KEYENCE Proximity Sensors

KEYENCE Proximity Sensors EV series two-wire self contained amplifier proximity sensor.

Features:

Shorter, space saving sensor bodies with high detection sensitivity and long detection distances.

• • Compact sensor head
  • Visible output indicator built into sensor
  • Flexible cable joint
  • IP67-rated housing

Proximity sensor models： EM-030、EM-038、EM-005、EZ-8M、EZ-12M、EZ-18T、EZ-30M、EV-108M、 EV-118M、EH-302、EH-303A、EH-305、ES-M1、ES-M2、ES-32DC、ES-X38、FS2-60、FS-V21

Photoelectric sensor models：PZ-41、PZ-42、PZ-51、PZ-61、PZ2-41、PZ2-42、PZ2-51、PZ2-61、PZ2-62、 PZ-M31、PZ-M61、PZ-M71、PZ-V11、PZ-V31、PZ-V71；PQ-01、PQ-02、PS-T1、 PS-T2、PS-TO、PS2-61、PS-X18、 PS-X28、

Fiber Optic Sensor：FS2-60、FS2-60P、FS2-62、FS2-65、FS-V11、FS-V12、FS-V21、 FS-V22、FS-V21R、FS-V22R、FS-V31 FS-V32 FS-V1、FS-M1、FS-M2、FS-T1、FS-T2、CZ-V1、LV-21A、LV-11A；

Fiber module：FU-10、FU-11、FU-12、FU-20、FU-21X、FU-22X 、FU-23X 、FU-22、FU-23、 FU-25、FU-31、FU-32、FU-35FA、FU-35FZ 、FU-36X 、FU-37、FU-38、FU-42、FU-43、FU-4F、 FU-4FZ、FU-45X、FU-49X 、FU-5F、FU-5FZ、FU-59、FU-63、FU-63Z、FU-65X 、FU-6F、FU-66、 FU-66Z、 FU-67、FU-68、FU-71、FU-7F、FU-77、FU-77V、FU-78、FU-79、FU-83C、FU-85、 FU-95、FU-95Z、CZ-10、CZ-40、LV-H32、LV-H42、LV-H6

KEYENCE：FU-32、FS2-60P、FS2-62、FS2-60、FS-V21R、FS-V21、FS-V22R、FS-V11P、FS-M1、FS-M1H、FS-17、FS-M2、FS-T2P、FS-T1、FS-T20、FS-L40、FS-V22、FS-V11、FS-T1P、FS-T2、FS-V1、FS-L70、FS-V32、FS-V1P、FS-RS1、FS-V12、FS-V21RM、FS2-60G、FS-V10、FS-V31、FU-65X、FU-21X、FU-42、FU、22X、FU-75F、FU-31、FU-35FA、FU-13、FU-49X、PZ-M11P、PZ-M51、PZ-M61、PZ-M11、PZ-M31、PZ-M61P、PZ-M65、PZ-M51P、PZ-M71P、PZ2-61 、PZ2-42P、PZ2-51 、PZ2-42 、PZ2-41 、PZ2-61D 、PZ2-62 、PZ2-62P 、PZ-101 、PZ-42L 、PZ-42P 、PZ-51L 、PZ-41 、PZ-41L 、PZ-61L 、PZ-51LP 、PZ-51 PZ-42 、PZ-61 、PZ-V31P 、PZ-V12 、PZ-V31 、PZ-V11P 、PZ-V71P 、PZ-V71 、PZ-V72P 、PZ-V33P 、PZ-V11 、PZ-V13P 、EM-005 、EM-030P 、EM-038A 、EM-038 、EM-030 、EM-054 、EH-302 、EH-303A 、EH-305 、EM-080 EH-308 、EM-014B 、EH-303A 、EH-110 、

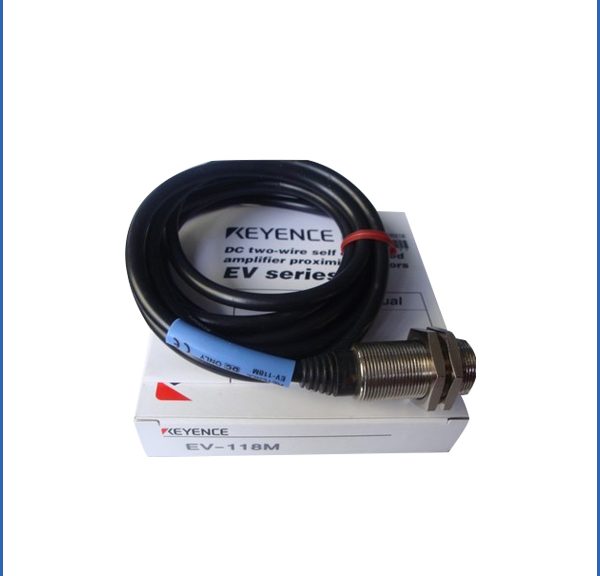

KEYENCE Proximity Sensors EV series

KEYENCE Proximity Sensors EV series two-wire self contained amplifier proximity sensor.

Features:

Shorter, space saving sensor bodies with high detection sensitivity and long detection distances.

• • Compact sensor head
  • Visible output indicator built into sensor
  • Flexible cable joint
  • IP67-rated housing

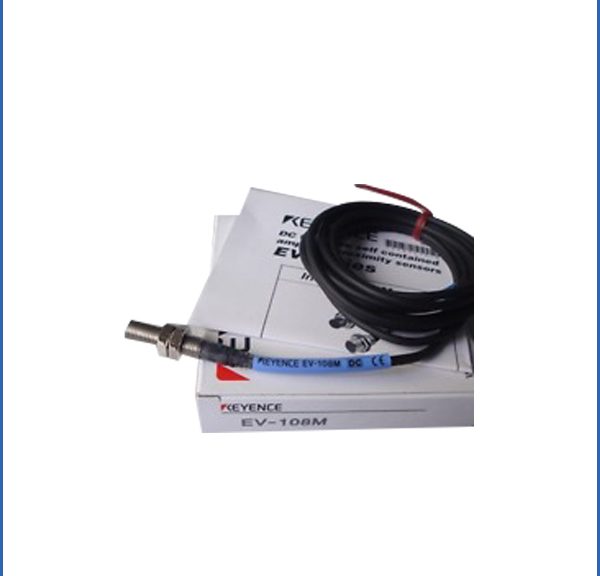

EV series EV-108M

Model: EV-108M
Detection distance: 1.5 mm 0.06 “± 10%
Detectable object: ferrous metal (see non-ferrous metal characteristics)
Standard target: (iron, t = 1mm × 0.04 “)
Response frequency: 800 Hz
Temperature characteristics: max ± 10% at 23 ° C Detection distance 73.4 ° F,
Between -25 and + 70 ° C -13 to + 158 ° F
Control output (switching capacity): 5 to 80 mA
Protection circuit: reverse polarity, surge voltage
Cable length: 2 meters 6.6 ‘
Power supply voltage: 12 to 24 VDC, ripple (p-p) up to 20%.
Current consumption (leakage current): maximum 1.0 mA, residual voltage: maximum 3.6 V. (2 m 6.6 ‘cable)
Residual voltage: up to 3.6 V (2 m 6.6 ‘cable)
Shell class: IP67
Operating temperature range: -25 to +80 ° C -13 to 176 ° F without freezing
Working environment humidity: 35 ~ 95%, no condensation
Vibration: 10 to 55 Hz in the X, Y and Z directions, 1.5 mm 0.06 “double amplitude, 2 hours
Impact resistance: 500 m / s in X, Y and Z 1640.4 ‘
Direction, 3 times
Case Material: Stainless Steel (SUS304)
Weight: about 42 grams

KEYENCE Proximity Sensors EV-F series

KEYENCE Proximity Sensors EV-F series spatter-resistant,two-wire proximity sensors.

Features:

• Spatter-resistant model

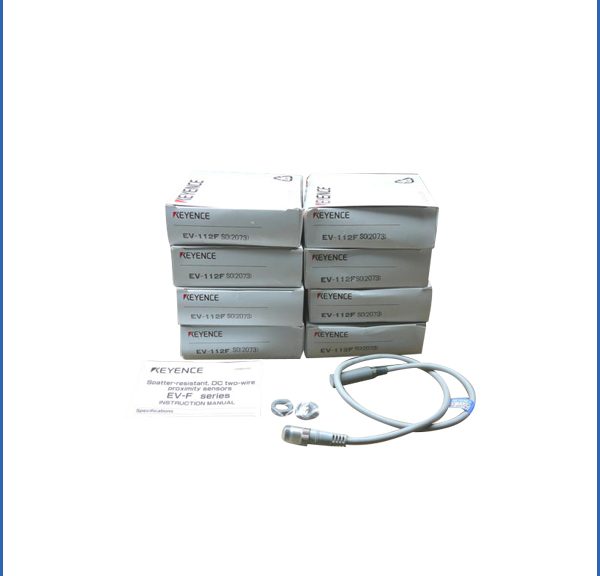

KEYENCE Proximity Sensors EV-F series EV-112FSO(2073)

Model: EV-112FSO (2073) * 1
Detection distance: 2.5 mm0.098 “± 10%
Detectable object: ferrous metal (see non-ferrous metal characteristics)
Standard target: (iron, t = 1mm × 0.04 “)
Hysteresis: up to 15% of the distance
Response frequency: 600 Hz
Temperature characteristics: max ± 10% at 23 ° C Detection distance 73.4 ° F,
Between -25 and + 70 ° C -13 to + 158 ° F
Control output (switching capacity): 5 ~ 200mA
Protection circuit: reverse polarity, short circuit, surge voltage
Cable length: 2 meters 6.6 ‘
Power supply voltage: 12 to 24 VDC, ripple (p-p) up to 20%.
Current consumption (leakage current): maximum 1.0 mA, residual voltage: maximum 3.6 V. (2 m 6.6 ‘cable)
Residual voltage: up to 3.6 V (2 m 6.6 ‘cable)
Shell class: IP67
Operating temperature range: -25 to +80 ° C -13 to 176 ° F without freezing
Working environment humidity: 35 ~ 95%, no condensation
Vibration: 10 to 55 Hz, 1.5 mm 0.06 “double amplitude, 2 hours in X, Y and Z directions, respectively
Impact resistance: 500 m / s2 in the X, Y, and Z directions, respectively
Case Material: Fluorine Chemically Coated Brass
Weight: about 110 grams

KEYENCE Proximity Sensors EV-F series

KEYENCE Proximity Sensors EV-F series Spatter-resistant,two-wire proximity sensors.

Features:

• Spatter-resistant model

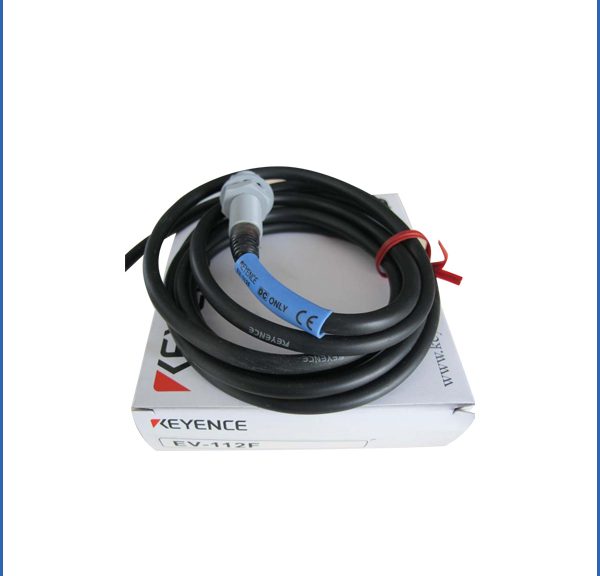

EV-F series EV-112F

Model				EV-112F
Type				Spatter-resistant/Shielded
Shape				M12
Detecting distance				2.5 mm0.098″±10%
Detectable object				Ferrous metals (see Characteristics for nonferrous metals)
Standard target (iron, t=1 mm 0.04″)				12 x 12 mm 0.47″ x 0.47″
Hysteresis				15% max. of detecting distance
Response frequency				600 Hz
Operation mode				N.O.
Temperature characteristics				±10% max. of detecting distance at 23°C 73.4°F, within -25 to +70°C -13 to +158°F
Control output (switching capacity)				5 to 200 mA
Protection circuit				Reversed polarity, short-circuit, surge voltage
Cable length				2 m 6.6′
Rating	Power voltage			12 to 24 VDC, Ripple (p-p) 20% max.
	Residual voltage			Residual voltage: 3.6 V max. (with 2-m 6.6′ cable)
Environmental resistance	Enclosure rating			IP67
	Operating temperature range			-25 to +80°C -13 to 176°F, No freezing
	Operating ambient humidity			35 to 95%, No condensation
	Shock resistance			500 m/s2 in X, Y, and Z directions, 3 times respectively
Case material				Fluoro-chemical-coated brass
Accessories				Screw nut x 2, toothed washer x 1
Weight				approx 110 g

KEYENCE Proximity Sensors ET series

KEYENCE Proximity Sensors ET series suter small proximity sensors for non magnetic metals.

Features:

• Accurately detects nonferrous metals
• New sensing technology does not detect iron
• Compact sensor head

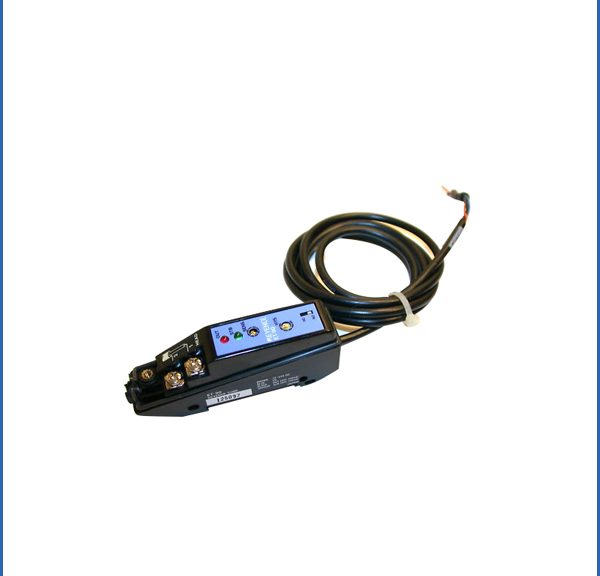

KEYENCE Proximity Sensors ET series ET-90

Model

ET-90

Type

Shielded

Detectable object

Nonferrous metals

Sensitivity adjustment

15-turn trimmer

Hysteresis adjustment

1-turn trimmer (240°), approx. 2 to 10% of detecting distance (variable)

Operation mode

N.O./N.C. (switch-selectable)

Temperature characteristics

+25 to -15% max. of detecting distance at 23°C 73.4°F,
within 0 to 50°C 32 to 122°F

Output

Control output

100 mA max. (40 V max.), Residual voltage: 1 V max.

Control output

Disconnection alarm output

Protection circuit

Reversed polarity, surge absorber

Indicator lamp

Output: Red LED, Stable operation: Green LED

Rating

Power voltage

12 to 24 VDC±10%

Current consumption.

45 mA max.

Environmental resistance

Operating temperature range

0 to 50°C 32 to 122°F, No condensation

Operating ambient humidity

35 to 85% RH (No condensation)

Vibration

10 to 55 Hz, 1.5 mm 0.06″ double amplitude in X, Y, and Z directions, 2 hours

Accessories

Dedicated mounting bracket, plastic screwdriver

Weight

Approx. 80 g (including 2m cable)

KEYENCE Proximity Sensors ES series

KEYENCE Proximity Sensors ES series separate amplifier proximity sensor.

Features:

Separate amplifier proximity sensors with twice the detecting distance of self-contained sensors and a range of up to 8-mm (shielded) and up to 70-mm (non-shielded).

• • Detecting distance twice that of conventional sensors
  • Detecting distance is easily adjustable
  • Wide range of sensor head types available.
  • Built-in alarm output

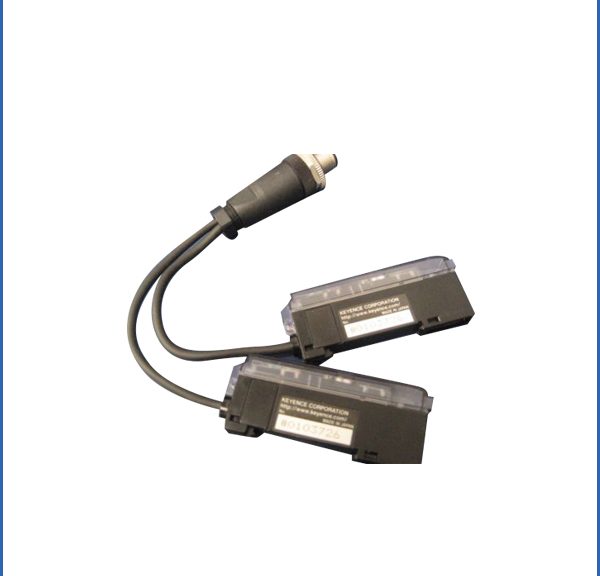

KEYENCE Proximity Sensors ES series ES-M1

Model

ES-M1^*1

Type

One-line expansion system

Shape

Main unit

Operation mode

N.O./N.C. switch-selectable

Timer function

10-ms delay / timer OFF switchable^*2

Output

NPN

Output

Control output

NPN open collector 100 mA max. 40 V, residual voltage 1 V max.

Disconnection alarm output

NPN open collector 100 mA max.
40 V,
residual voltage 1 V or less^*3

Response time

1 ms max.

Temperature characteristics

Within ±8% of detecting distance at +23°C 73.4°F when within 0 to 50°C 32 to 122°F temperature range

Sensitivity adjustment

25-turn trimmer

Protection circuit

Reverse power connection protection, output overcurrent protection, output surge protection

Rating

Power voltage

12 to 24 VDC, ripple (P-P) 10% max.

Current/power consumption

25 mA max.

Environmental resistance

Operating temperature range

0 to 50°C 32 to 122°F ^*4

Operating ambient humidity

35 to 85% RH (No condensation)

Weight

Approx. 65 g (including nuts and 2-m 9.8′ cable)

^*1 The ES-M1(P)/M2(P) cannot be connected to the EH-422, 430, 440 or 290.
^*2 During N.O. operating configuration, the off delay timer is 10 ms. During N.C., the on delay timer is 10 ms.
^*3 Broken connection warning output is not available on the ES-M2 (P).
^*4 The ambient temperature changes according to the following conditions when expansion units are added. When adding units, always attach them to a DIN rail (metal plate) and set the output current to 20
mA or less.
1 to 10 expansion units: 0 to 50˚C 32 to 122˚F
11 to 16 expansion units: 0 to 45˚C 32 to 113˚F

KEYENCE Proximity Sensors ES series

KEYENCE Proximity Sensors ES series separate amplifier proximity sensor.

Features:

Separate amplifier proximity sensors with twice the detecting distance of self-contained sensors and a range of up to 8-mm (shielded) and up to 70-mm (non-shielded).

• • Detecting distance twice that of conventional sensors
  • Detecting distance is easily adjustable
  • Wide range of sensor head types available.
  • Built-in alarm output

KEYENCE Proximity Sensors ES series ES-32DC

Model				ES-32DC
Type				DC
Operation mode				N.O./N.C. (switch-selectable)
Indicator				Output: Red LED
Output	Control output			NPN: 200 mA (40 V) max. Residual voltage: 1 V max.
Disconnection alarm output				NPN: 100 mA (40 V) max. Residual voltage: 1 V max.
Leakage current (OFF time)				―
Response time				1 ms max.
Temperature characteristics				±8% of detecting distance at 23°C 73.4°F, within 0 to 50°C 32 to 122°F
Sensitivity adjustment				15-turn trimmer
Rating	Power voltage			10 to 28 VDC, ripple (P-P) 10% max.
	Current/power consumption			18 mA max.
Environmental resistance	Operating temperature range			0 to 50°C 32 to 122°F
	Operating ambient humidity			35 to 85% RH (No condensation)
Weight				Approx 48 g

KEYENCE Proximity Sensors EM series

KEYENCE Proximity Sensors EM series with in-cable amplifiers proximity sensors.

Features:

Small, amplifier-in-cable sensor heads with built-in indicator LEDs and up to a 8-mm detecting distance.

• • Ultra-small sensor head
  • Amplifier and operation indicator built into cable.
  • Strong, flexible cable IP-67 waterproof housing

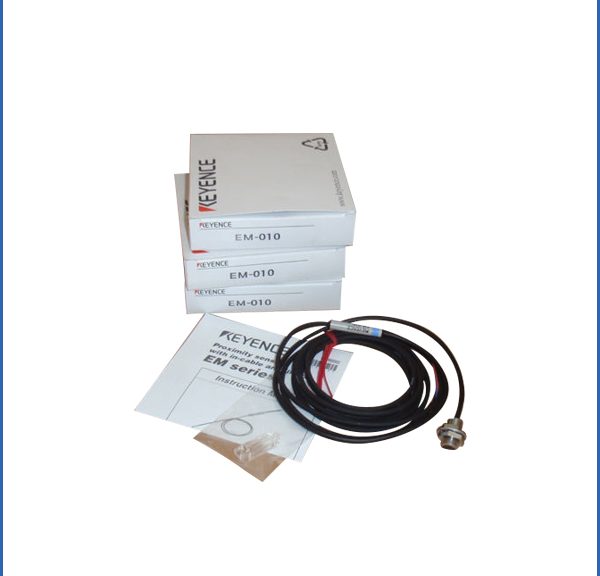

KEYENCE Proximity Sensors EM series EM-010

Model				EM-010
Type				Shielded
Shape				M10 Threaded
Detecting distance				2.0 mm 0.08″ ±10%
Detectable object				Ferrous metals (see Characteristics for non-ferrous metals)
Standard target (iron, t=1 mm 0.04″)				10 x 10 mm 0.39″ x 0.39″
Hysteresis				10% max. of detecting distance
Response frequency				1.2 kHz
Operation mode				N.O.
Temperature characteristics				±10% max. of detecting distance at +23°C 73.4°F, within -10 to +70°C14 to 158°F
Display indicator				Red LED
Output				NPN
Control output				NPN: 200 mA (40 V) max., Residual voltage: 1 V max.
Housing				Cr-plated brass
Rating	Power voltage			10.8 to 30 VDC, Ripple (P-P) 10% max.*1
	Current consumption.			12 mA max.
Environmental resistance	Enclosure rating			IP67
	Operating temperature range			-25 to +80°C -13 to 176°F, No freezing
	Operating ambient humidity			35 to 95%, No condensation
Weight (including nuts and 2-m 6.6′ cable)				Approx 50 g
*1 Make sure that the power voltage stays within 10.8 V to 30 V even if it is affected by ripple effects.

KEYENCE Proximity Sensors EM series

KEYENCE Proximity Sensors EM series with in-cable amplifiers proximity sensors.

Features:

Small, amplifier-in-cable sensor heads with built-in indicator LEDs and up to a 8-mm detecting distance.

• • Ultra-small sensor head
  • Amplifier and operation indicator built into cable.
  • Strong, flexible cable IP-67 waterproof housing

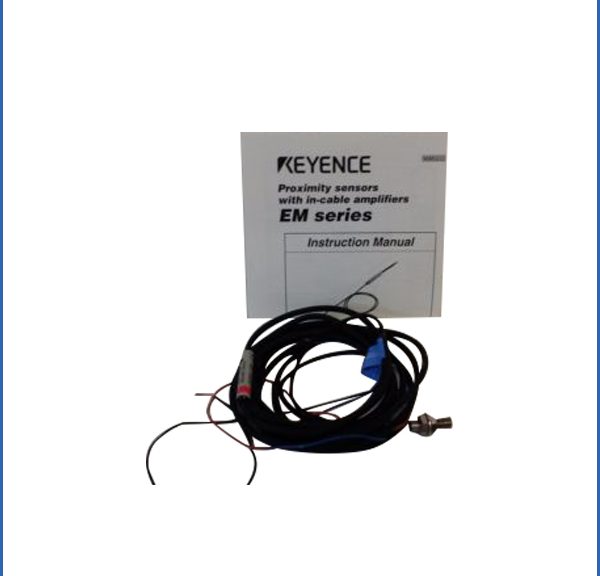

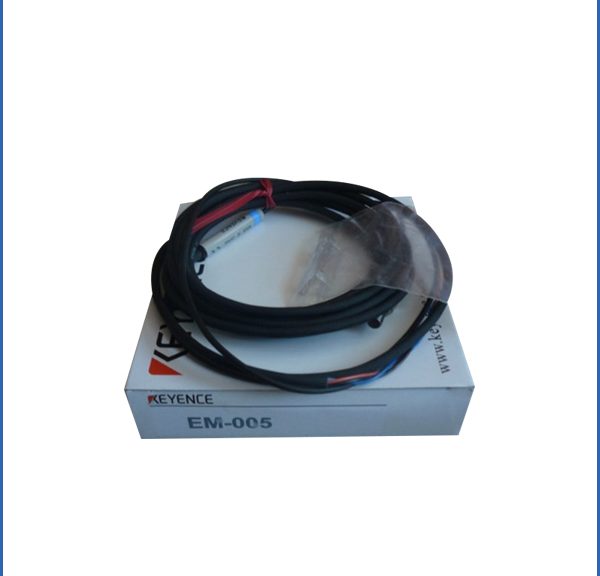

KEYENCE Proximity Sensors EM series EM-005P

Model				EM-005P
Type				Shielded
Shape				M5 Threaded
Detecting distance				1.0 mm 0.04″ ±15%
Detectable object				Ferrous metals (see Characteristics for non-ferrous metals)
Standard target (iron, t=1 mm 0.04″)				5 x 5 mm 0.20″
Hysteresis				10% max. of detecting distance
Response frequency				1.2 kHz
Operation mode				N.O.
Temperature characteristics				±10% max. of detecting distance at +23°C 73.4°F, within -10 to +70°C14 to 158°F
Display indicator				Red LED
Output				PNP
Control output				PNP: 200 mA (30 V) max., Residual voltage: 1 V max.
Housing				Stainless steel
Rating	Power voltage			10.8 to 30 VDC, Ripple (P-P) 10% max.*1
	Current consumption.			20 mA max.
Environmental resistance	Enclosure rating			IP67
	Operating temperature range			-25 to +80°C -13 to 176°F, No freezing
	Operating ambient humidity			35 to 95%, No condensation
Weight (including nuts and 2-m 6.6′ cable)				Approx 40 g
*1 Make sure that the power voltage stays within 10.8 V to 30 V even if it is affected by ripple effects.

KEYENCE Proximity Sensors EM series

KEYENCE Proximity Sensors EM series with in-cable amplifiers proximity sensors.

Features:

Small, amplifier-in-cable sensor heads with built-in indicator LEDs and up to a 8-mm detecting distance.

• • Ultra-small sensor head
  • Amplifier and operation indicator built into cable.
  • Strong, flexible cable IP-67 waterproof housing

KEYENCE Proximity Sensors EM series EM-005

Model				EM-005
Type				Shielded
Shape				M5 Threaded
Detecting distance				1.0 mm 0.04″ ±15%
Detectable object				Ferrous metals (see Characteristics for non-ferrous metals)
Standard target (iron, t=1 mm 0.04″)				5 x 5 mm 0.20″
Hysteresis				10% max. of detecting distance
Response frequency				1.2 kHz
Operation mode				N.O.
Temperature characteristics				±10% max. of detecting distance at +23°C 73.4°F, within -10 to +70°C14 to 158°F
Display indicator				Red LED
Output				NPN
Control output				NPN: 200 mA (40 V) max., Residual voltage: 1 V max.
Housing				Stainless steel
Rating	Power voltage			10.8 to 30 VDC, Ripple (P-P) 10% max.*1
	Current consumption.			12 mA max.
Environmental resistance	Enclosure rating			IP67
	Operating temperature range			-25 to +80°C -13 to 176°F, No freezing
	Operating ambient humidity			35 to 95%, No condensation
Weight (including nuts and 2-m 6.6′ cable)				Approx 40 g
*1 Make sure that the power voltage stays within 10.8 V to 30 V even if it is affected by ripple effects.

KEYENCE Proximity Sensors EG series

KEYENCE Proximity Sensors EG series high-accuracy positioning sensor.Positioning Sensor detecting slight position misalignment with high accuracy.

Features:

• Non-contact, stable detection in wide temperature range
• Hi/Lo tolerance detection with a single controller
• Wide variety of sensor head types

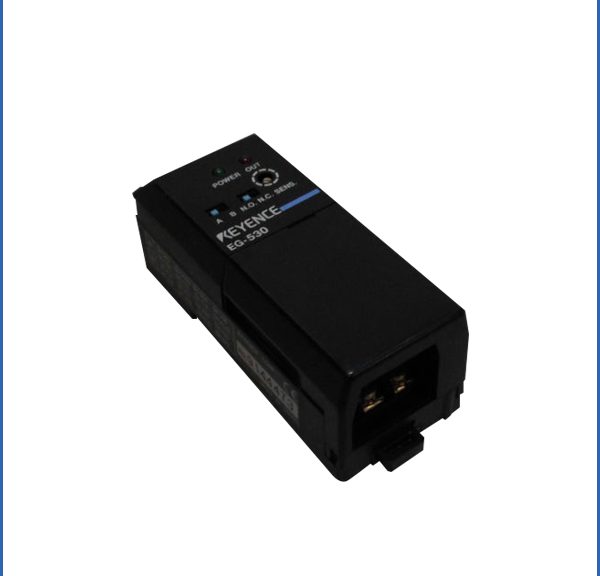

KEYENCE Proximity Sensors EG series EG-530

Model				EG-530
Type				DC
Sensitivity adjustment				15-turn trimmer
Function	Operation mode			N.O./N.C. (switch-selectable)
	Operation mode	External synchronization		―
Output	Control output 1 (NPN)			100 mA max. (40 V max.) Residual voltage： 1 V max.
	Control output 2			―
	Disconnection alarm output (NPN)			100 mA max. (40 V max.) Residual voltage： 1 V max.
	Response time (Relay contact)			1 ms
				―
OFF-delay time
Temperature characteristics				0.08%/°C*1
Rating	Power voltage			12 to 24 VDC： 10% max.
	Power consumption			100 mA max.
Environmental resistance	Operating temperature range			0 to 50°C 32 to 122°F
	Operating ambient humidity			35 to 85% RH (No condensation)
	Vibration			10 to 55 Hz, 1.5 mm 0.06″ double amplitude in X, Y, and Z directions, 2 hours respectively
Weight				Approx 75 g
*1 Above values obtained when the detecting distance is set at 50% of the maximum stable detecting distance.
