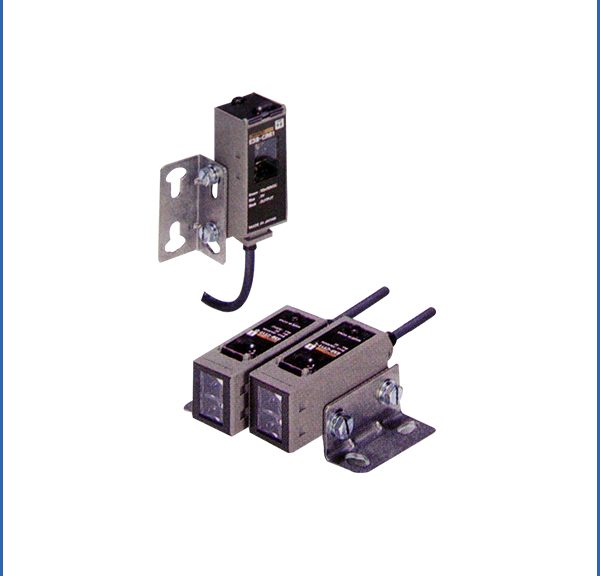

OMRON Photoelectric Sensors E3S-C series

OMRON Photoelectric Sensors E3S-C series Excellent water resistance, oil resistance (IP67, internal standards, oil). Oil mist environment can also be assured use

Long distance detection. Maximum 30m (for radio)

Rated value of 1,000m / s2 excellent impact resistance

Also available with M12 metal connector relay type

NPN / PNP output switching mode

OMRON Photoelectric Sensors E3S-C series models:

E3S-CT11 2M  E3S-CT11-M1J 0.3M  E3S-CT61 2M  E3S-CT61-M1J 0.3M  E3S-CR11 2M  E3S-CR11-M1J 0.3M  E3S-CR61 2M  E3S-CR61-M1J 0.3M  E3S-CD11 2M  E3S-CD12 2M  E3S-CD11-M1J 0.3M  E3S-CD12-M1J 0.3M  E3S-CD61 2M  E3S-CD62 2M  E3S-CD61-M1J 0.3M  E3S-CD62-M1J 0.3M

Detection of the type of reflection on the type of reflection
(With M.S.R. function) * 1 Diffuse reflection type
Model
Horizontal / E3S-CD11 (-M1J) Horizontal / E3S-CD11 (-M1J) Horizontal / E3S-CD11 (-M1J) Horizontal / E3S-CD12 (-M1J)
Vertical / E3S-CD61 (-M1J) Vertical / E3S-CD61 (-M1J) Vertical / E3S-CD61 (-M1J) Vertical / E3S-CD62 (-M1J)

Power supply voltage DC 10 ~ 30V (including fluctuation (p-p) 10%]
Current consumption below 50mA
(The emitter 25mA or less, the receiver 25mA or less) 40mA or less
Open collector output type (NPN / PNP output switch switching type)
ON / ON when light is ON ON switch
Protection circuit power supply reverse protection, output short circuit protection power supply reverse connection protection, output short circuit protection, to prevent interference
Response time action, reset: the following 1ms action, reset: the following 2ms
Sensitivity adjustment One-way rotary knob 2-turn No end knob (with indicator)

Protection structure IEC standard IP67 (internal standard oil), NEMA 6P (but only for indoor use) * 2
Connection type wire lead type (standard wire length 2m), connector relay type (standard wire length 300mm)
Quality (after packaging) about 270g (wire lead)
Material shell zinc die casting
The operating part covers the polyether sulfone
Lens part isobutylene resin
Mounting bracket Stainless steel (SUS304)
Accessories Mounting bracket (with screw), adjustment screwdriver, instruction manual, reflector (only retroreflective type)

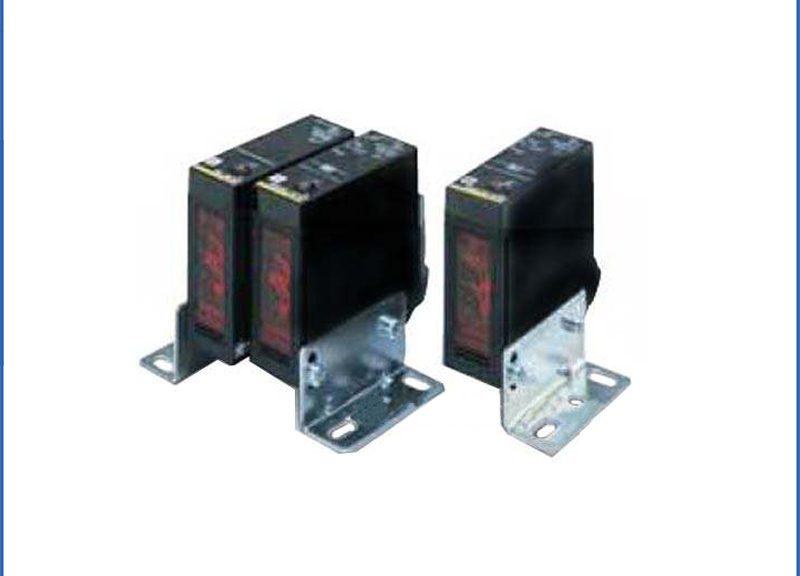

OMRON Photoelectric Sensors E3S-A series

OMRON Photoelectric Sensors E3S-A series only a few seconds of optical axis combination.

The spotlight on white paper is clearly clear.

IP67 waterproof performance.

Easy input Programmable controller with built-in OFF delay timer type

Just a few seconds of optical axis engagement

0.5ms high speed response

As an export machine can be used throughout the world

OMRON Photoelectric Sensors E3S-A series models:

E3S-AT11 2M
Emitter E3S-AT11-L
Receiver E3S-AT11-D
E3S-AT31 2M
Emitter E3S-AT31-L
Receiver E3S-AT31-D
E3S-AT21 2M
Emitter E3S-AT21-L
Receiver E3S-AT21-D
E3S-AT41 2M
Emitter E3S-AT41-L
Receiver E3S-AT41-D
E3S-AT16
Emitter E3S-AT16-L
Receiver E3S-AT16-D
E3S-AT36
Emitter E3S-AT36-L
Receiver E3S-AT36-D
E3S-AT61 2M
Emitter E3S-AT61-L
Receiver E3S-AT61-D
E3S-AT81 2M
Emitter E3S-AT81-L
Receiver E3S-AT81-D
E3S-AT71 2M
Emitter E3S-AT71-L
Receiver E3S-AT71-D
E3S-AT91 2M
Emitter E3S-AT91-L
Receiver E3S-AT91-D
E3S-AT66
Emitter E3S-AT66-L
Receiver E3S-AT66-D
E3S-AT86
Emitter E3S-AT86-L
Receiver E3S-AT86-D
E3S-AR11 2M E3S-AR31 2M
E3S-AR21 2M E3S-AR41 2M
E3S-AR16 E3S-AR36
E3S-AR61 2M E3S-AR81 2M
E3S-AR71 2M E3S-AR91 2M
E3S-AR66 E3S-AR86

E3S-AD13 2M E3S-AD33 2M
E3S-AD23 2M E3S-AD43 2M
E3S-AD11 2M E3S-AD31 2M
E3S-AD21 2M E3S-AD41 2M
E3S-AD12 2M E3S-AD32 2M
E3S-AD22 2M E3S-AD42 2M
E3S-AD18 E3S-AD38
E3S-AD16 E3S-AD36
E3S-AD17 E3S-AD37
E3S-AD63 2M E3S-AD83 2M
E3S-AD73 2M E3S-AD93 2M
E3S-AD61 2M E3S-AD81 2M
E3S-AD71 2M E3S-AD91 2M
E3S-AD62 2M E3S-AD82 2M
E3S-AD72 2M E3S-AD92 2M
E3S-AD68 E3S-AD88
E3S-AD66 E3S-AD86
E3S-AD67 E3S-AD87

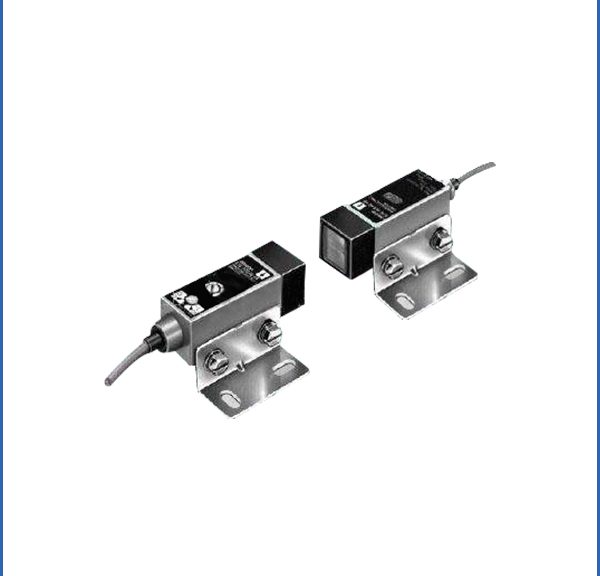

OMRON Photoelectric Sensors E3S series

OMRON Photoelectric Sensors E3S series is Amplifier built-in photoelectric sensor.

High quality and reliable detection

OMRON Photoelectric Sensors E3S series models:

E3S-LS10XE4 2M    E3S-LS20XE4 2M    E3S-R2E4    E3S-DS10E4    E3S-DS30E4    E3S-R2E41    E3S-DS10E41    E3S-DS30E41

E3S-2E4 *
Emitter E3S-2LE4 *
Receiver E3S-2DE4 *

E3S-5E4 *
Emitter E3S-5LE4 *
Receiver E3S-5DE4 *

E3S-2E41 *
Emitter E3S-2LE41 *
Receiver E3S-2DE41 *

E3S-5E41 *
Emitter E3S-5LE41 *
Receiver E3S-5DE41 *

Model Summary
E3S-LS10XE4 2M: limited reflection type, detection distance: 30 ~ 100mm, when the light ON / shading ON switch, no contact output, wire leads (2m)
E3S-LS20XE4 2M: limited reflection type, detection distance: 50 ~ 250mm, when the light ON / shading ON switch, no contact output, wire leads (2m)

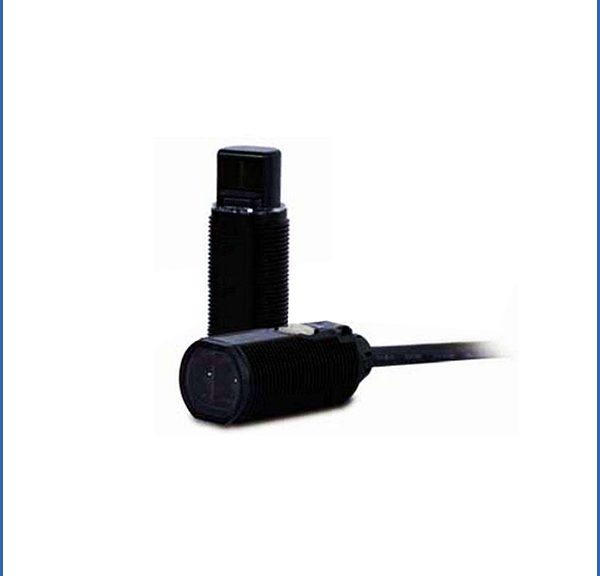

OMRON Photoelectric Sensors E3FA series

OMRON Photoelectric Sensors E3FA series small cylindrical photoelectric sensor installation is simple, easy to set up and intuitive operation. The large and powerful knobs allow the installer to adjust the sensor, and the bright, high-power red LED is clearly visible, allowing easy alignment of the optical axis even at longer distances. The sensor’s LED status indicator also has a longer visible distance and a larger visible angle.

 OMRON Photoelectric Sensors E3FA series models:

E3FA-TN11   E3FA-TP11 2M    E3FA-TN21    E3FA-TP21    E3FA-TN12 2M    E3FA-TP12 2M    E3FA-TN22    E3FA-TP22

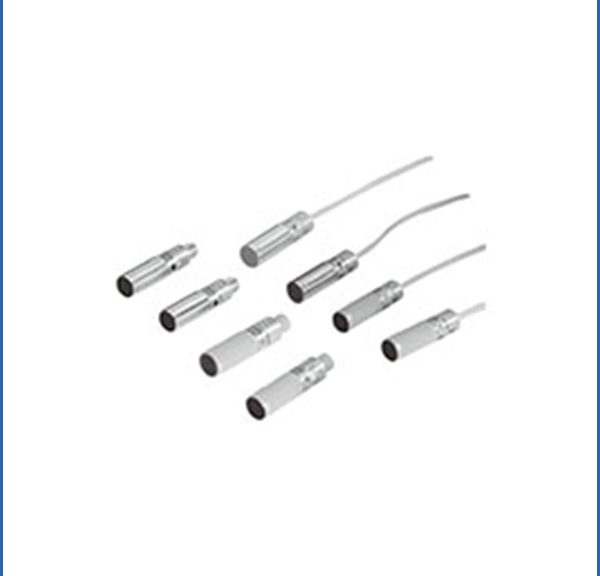

OMRON Photoelectric Sensors E3F3 series

OMRON Photoelectric Sensors E3F3 series Screw-type photoelectric sensor, built-in amplifier, with proximity sensor photoelectric sensor with photoelectric-IC technology, high immunity.

New photoelectric-IC, to increase the anti-jamming.

M18DIN-size columnar housing, ABS resin case / BRASS housing.

With a long distance detection (30cm), with a sensitivity regulator reflective products.

Short circuit protection and reverse protection.

 OMRON Photoelectric Sensors E3F3 series models:

OMRON Photoelectric Sensors E3C series

OMRON Photoelectric Sensors E3C series small, thin probe space
With interference installation that can be installed tightly
■ With sensor has input indicator, so easy to set

Sensing modes
1. A through beam arrangement consists of a receiver located within the line-of-sight of the transmitter. In this mode, an object is detected when the light beam is blocked from getting to the receiver from the transmitter.

2. A retroreflective arrangement places the transmitter and receiver at the same location and uses a reflector to bounce the light beam back from the transmitter to the receiver. An object is sensed when the beam is interrupted and fails to reach the receiver.

OMRON Photoelectric Sensors E3C series models:

E3C-S10
E3C-S50
E3C-1
E3C-2
E3C-S20W
E3C-S30W
E3C-S30T
E3C-DS10
E3C-DS10T
E3C-LS3R

E3C-A
E3C-C
E3C-JC4P
E3C-GE4
E3C-WE4
E3C-WH4F

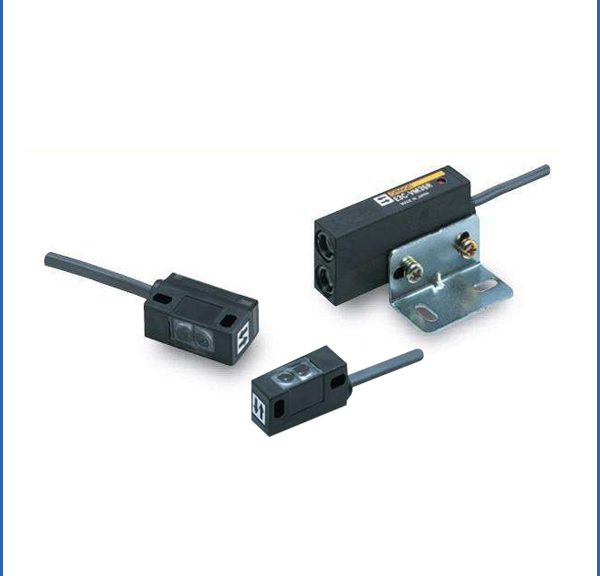

OMRON Photoelectric Sensors E3C-VS/VM series

OMRON Photoelectric Sensors E3C-VS/VM series Tiny spot, the most suitable for small objects and mark the detectionof small objects and subtle color.
■ Seam detection.
■ 200μ pole detection.
■ Small segment difference detection.

E3C-VM35R Sensor Unit , Mark Sensor , Red LED Light , Sensing Distance 35±5mm 2D / 3D

E3C-VM35R Sensor Unit , Mark Sensor , Red LED Light , Sensing Distance 35±5mm 2D / 3D

E3C-VS1G Sensor Unit , Mark Sensor , Green LED Light , Sensing Distance 10±2mm 2D / 3D

E3C-VS3R Sensor Unit , Mark Sensor , Red LED Light , Sensing Distance 30±5mm 2D / 3D

E3C-VS7R Sensor Unit , Mark Sensor , Red LED Light , Sensing Distance 70±10mm 2D / 3D

OMRON Photoelectric Sensors E3C-VS/VM series

Item Model E3C-VS1G E3C-VS3R E3C-VM35R E3C-VS7R
Detection distance 10 ± 2mm 30 ± 5mm 35 ± 5mm 70 ± 10mm
Minimal detection of objects
(Black on the bottom of the black logo)
Distance from center detection
0.7mm
Distance from center detection
2mm
Distance from center detection
0.2mm
Distance from center detection
0.6mm
Light source (light emitting wavelength) green light emitting diodes
(565 nm)
Red light emitting diodes
(680 nm)
Red light emitting diodes
(660 nm)
Weight (bundled state) about 50g about 60g
quality
Housing Polyester Heat Resistant ABS
Lens Department Polyester Glass
Metal installation
Accessories – iron
Annex Operating Instructions
Metal mounting accessories, + – screws
M3 × 16, spring washer, flat pad
Circle, nut M3
Metal mounting accessories, + – screws
M3 × 16, spring washer, pay tape
Flat washer, nut M3 operating instructions
book

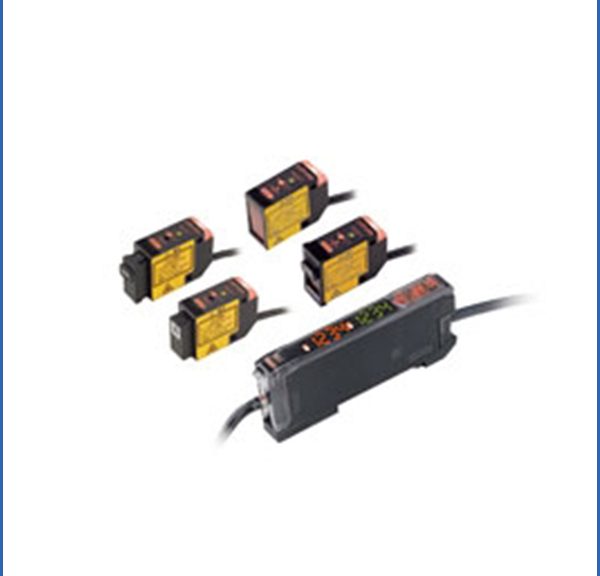

OMRON Photoelectric Sensors E3C-LDA series

OMRON Photoelectric Sensors E3C-LDA series Digital amplifier separate photoelectric sensor (laser type).

Feature:

【Diffuse Reflectance】 Long distance 1000mm detection, type 3 are surplus

[Coaxial regression] with the same type of detection characteristics, the sensor set up simple

OERON photoelectric sensor E3C-LDA series models:

E3C-LDA0   E3C-LD112M   E3C-LD212M   E3C-LD312M

E3C-LR11＊2M   E3C-LR12＊2M

. Supports EtherCAT sensor communication unit (E3X-ECT), CompoNet sensor communication unit (E3X-ECT).
* 2. When the detection function is selected as super high speed mode, the communication function will be disabled, the mutual interference prevention function and the communication function with the handheld console will not be used.
* 3. When the E3C-LDA0 is used with the sensor communication unit (E3X-ECT or E3X-CRT)
Operation: When connecting 1 ~ 2 sets: 0 ~ 55 ℃, connecting 3 ~ 10 units: 0 ~ 50 ℃, connecting 11 ~ 16 sets: 0 ~ 45 ℃,
(When using E3X-ECT to connect 17 to 30 units: 0 to 40 ° C).
* 4. E3C-LDA0 vibration (durable) is 10 ~ 150Hz (double amplitude 0.7mm) X, Y, Z direction of the 80min.
* 5. E3C-LDA0 impact (durability) is 150m / s2 X, Y, Z direction 3 times.
* 6. E3C-LDA0 connection for the sensor communication unit connector.
