Sensors, Keyence, Photoelectric Sensors

KEYENCE Photoelectric Sensors PZ2 series PZ2-41

Leave a comment

KEYENCE Photoelectric Sensors PZ2 series

KEYENCE Photoelectric Sensors PZ2 series micro-optical sensors with built-in amplifiers are small, waterproof, and have the ability to detect transparent objects.

  • World’s smallest photoelectric sensors
  • Excellent mirror surface detection
  • IP-67 rated waterproof housing
  • Sensors can operate side by side



KEYENCE Photoelectric Sensors PZ2 series PZ2-41

Model PZ2-41
Type Diffuse-reflective Long-range
Detection distance 600 mm 23.62″ (200 x 200 mm7.87″ white mat paper)
Light source Red LED
Detectable object Transparent and opaque
Hysteresis(of detecting distance) 20% max.
Sensitivity adjustment 1-turn trimmer (240°)
Response time 1 ms max.
Operation mode LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp Output and power*1 : Red LED, Stable operation : Green LED
Control output NPN or PNP : 100 mA (40 V) max., Residual voltage : 1 V max.
Protection circuit Reversed polarity, overcurrent protection, surge absorber
Rating Power voltage 12 to 24 VDC ±10%, ripple : 10% max., Class 2
Current consumption. 35 mA max.
Environmental resistance Enclosure rating IP67
Operating ambientluminance Incandescent lamp : 5,000 lux max., Sunlight : 20,000 lux max.
Operating temperature range -20 to +55°C -4 to 131°F (no freezing)
Operating ambient humidity 35 to 85%RH (no condensation)
Vibration 10 to 55 Hz, 1.5 mm 0.06″ double amplitude for 2 hours in each of the X, Y, and Z directions
Shock resistance 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Case material Glass-fiber reinforced plastic
Accessories Mounting bracket×1 Mounting screws×2 Plate nut×1
Weight Approx 50 g (including 2-m 6.6′ connector cable)
Sensors, Keyence, Photoelectric Sensors

KEYENCE Photoelectric Sensors PZ2 series PZ2-51

Leave a comment

KEYENCE Photoelectric Sensors PZ2 series

Features:

  • World’s smallest photoelectric sensors
  • Excellent mirror surface detection
  • IP-67 rated waterproof housing
  • Sensors can operate side by side

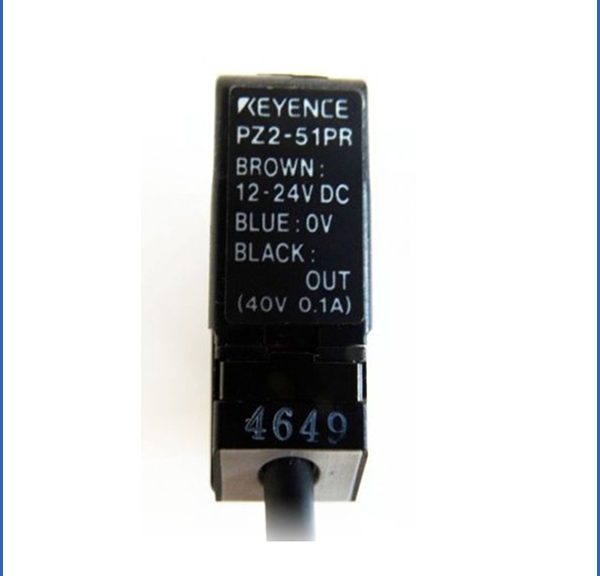

KEYENCE Photoelectric Sensors PZ2 series PZ2-51

Model PZ2-51
Type Thrubeam
Detection distance 7 m 23.0′
Light source Red LED
Detectable object Opaque material with an area of 30 mm2 or more
Hysteresis(of detecting distance) ―
Sensitivity adjustment 1-turn trimmer (240°)
Response time 1.5 ms max.
Operation mode LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp Output and power*1 : Red LED, Stable operation : Green LED
Control output NPN or PNP : 100 mA (40 V) max., Residual voltage : 1 V max.
Protection circuit Reversed polarity, overcurrent protection, surge absorber
Rating Power voltage 12 to 24 VDC ±10%, ripple : 10% max., Class 2
Current consumption. T : 20 mA max.
R : 25 mA max.
Environmental resistance Enclosure rating IP67
Operating ambientluminance Incandescent lamp : 5,000 lux max., Sunlight : 20,000 lux max.
Operating temperature range -20 to +55°C -4 to 131°F (no freezing)
Operating ambient humidity 35 to 85%RH (no condensation)
Vibration 10 to 55 Hz, 1.5 mm 0.06″ double amplitude for 2 hours in each of the X, Y, and Z directions
Shock resistance 1,000 m/s2, 6 times in each of the X, Y, and Z directions
Case material Glass-fiber reinforced plastic
Accessories Mounting bracket×2 Mounting screws×4 Plate nut×2
Sensors, Keyence, Photoelectric Sensors

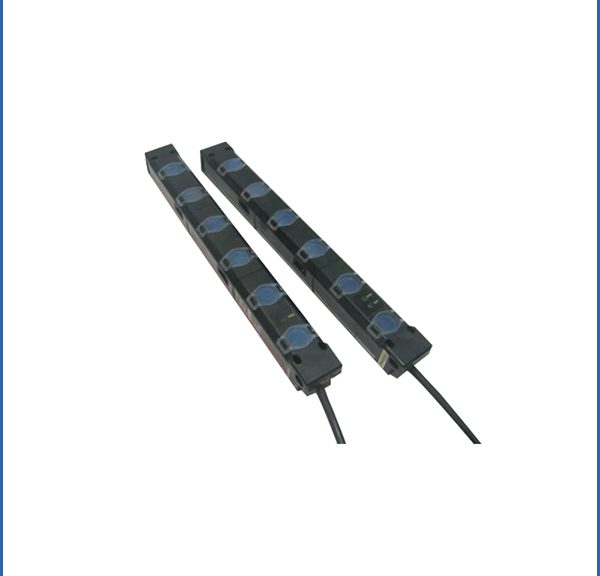

KEYENCE Photoelectric Sensors PJ series PJ-55A

Leave a comment

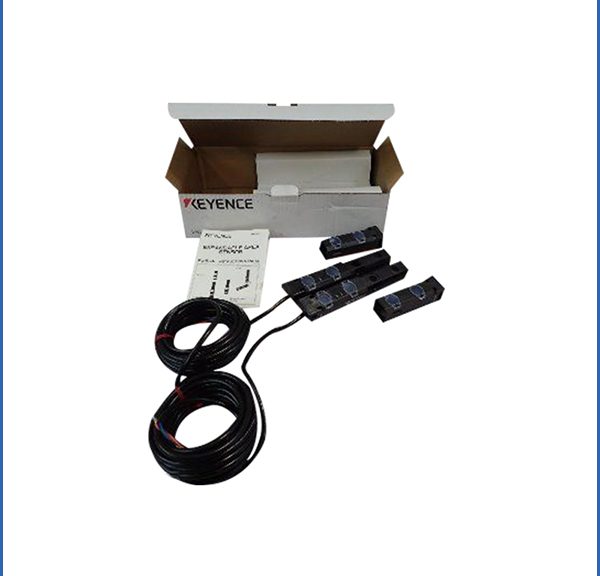

KEYENCE Photoelectric Sensors PJ series PJ-55A

model
PJ-55A
Number of optical axes
2
Optical axis spacing
40 mm
Maximum number of optical axes
28 optical axes (PJ-50A x 1 + PJ-55A x 2)
Detection area
120 mm (4 optical axes) to 1,080 mm (28 optical axes)
Detection distance
5 m
Can detect objects
Opaque material (minimum diameter 50 mm)
light source
Infrared LED
Display indicator
Output (PJ-50AR) / power supply (PJ-50AT): red LED, stable operation (PJ-50AR): green LED
Response time
15 ms or less
Output
Control output
NPN open collector max. 100 mA (max. 40 V), residual current: max. 1 V
Control output
Operating mode
LIGHT-ON / DARK-ON (switch selectable)
Noise-resistant (power cord)
350 V, pulse width 1 μs (clutter simulator)
protect the circuit
Reverse current protection, overcurrent protection, overvoltage
Rated value
voltage
12 to 24 VDC ± 10%, pulsation (P-P): max 10%
Current consumption
25 mA (PJ-55AT: 5 mA, PJ-55AR: 20 mA) (T, R total) * 1
Environmental tolerance
Degree of protection
IP64
Environmental lighting
Incandescent: up to 3,500 lux, daylight: up to 12,000 lux
Ambient temperature
-20 to +50 ° C (no freezing)
Relative humidity
35 to 85% RH, non-condensing
Vibration resistance
10 to 55 Hz, double amplitude: 1.5 mm, X, Y, Z axis are 2 hours
Seismic resistance
100m / s2 X, Y, Z direction 3 times
material
Housing: glass fiber reinforced resin, lens cover: PFA
weight
PJ-55AT: about 60 g
PJ-55AR: about 65 g * 2

Japan Keyence keyence photoelectric sensor:

PZ-M51 PZ-M51 PZ-M61 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ
PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ
PZ2-51 PZ2-51P PZ2-61 PZ2-61P PZ2-41 PZ2-41P PZ2-42 PZ2-42P
PZ2-62 PZ2-62P PZ2-62SPO PZ-101 PZ-41 PZ-42 PZ-51
PZ-G41N PZ-G51P PZ-G51P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P
PZ-G61N PZ-G61P PZ-G101P PZ-G101P PZ-G101P PZ-G10P PZ-G10P
PS-55 PS-50 PS-50 PS-50 PS-50 PS-
PS-20 PS-19 PS-49 PS-

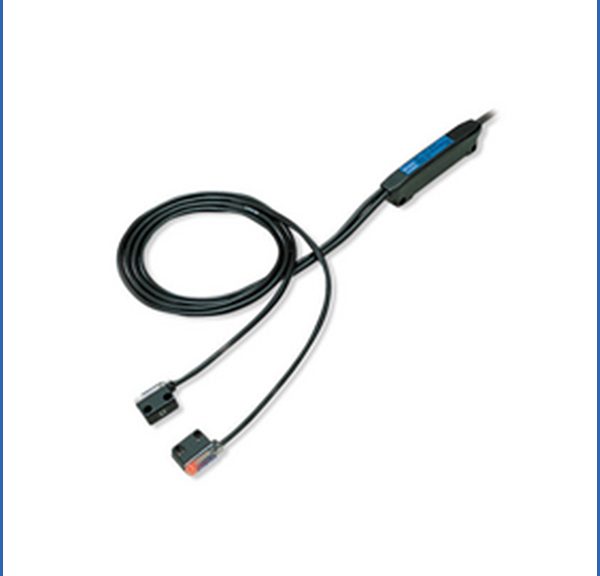

PQ-01 PQ-02 PG-602 PG-610

Sensors, Keyence, Photoelectric Sensors

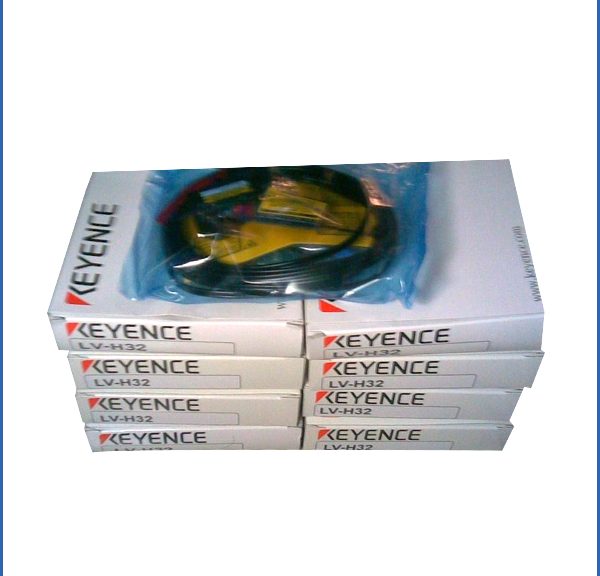

KEYENCE Photoelectric Sensors LV series LV-H32

Leave a comment

KEYENCE Photoelectric Sensors LV series



KEYENCE Photoelectric Sensors LV series is high-power digital laser optics can detect long distances in harsh environments.

LV series use a focused beam for long distance detection
By using a laser light source, the spot remains constant at ultra-long distances, eliminating any doubts about the installation location.

Characteristic

High Power
waterproof
10 mm / 30 mm area (through type)
Analog monitor output (through type)

7 light colour combinations RGB fibreoptic sensor with 16-bit accuracy. Including a new UV sensor head, lustre detection head, 2-colour digital display and unique colour element detection.

SUPER HIGH POWER RGB sensor Industry’s best colour differentiation

High resolution amplifier for triple 16-bit calculation

New Lustre Detection Sensor Head

New UV sensor head for fluorescent Detection

Three detection modes for every target [Super I / C’ / C+I]



KEYENCE Photoelectric Sensors LV series LV-H32

model
LV-H32
Types of
Adjustable spot
FDA (CDRH) Part 1040.10
Class II
light source
Visible red semiconductor laser
wavelength
660 nm
Detection distance
FINE
30 to 250 mm
TURBO
30 to 500 mm
SUPER
30 to 1000 mm
Environmental tolerance
Ambient temperature
35 to 85% RH, non-condensing
Relative humidity
-10 to + 55 ° C without freezing
material
shell
Glass reinforced plastic * 1
lens cap
Acrylic * 2
weight
About 45 g
* 1 norbornene plastic or acrylic
* 2 LV-H32 and LV-H37 receivers are polyaryl compounds.

Sensors, Keyence, Photoelectric Sensors

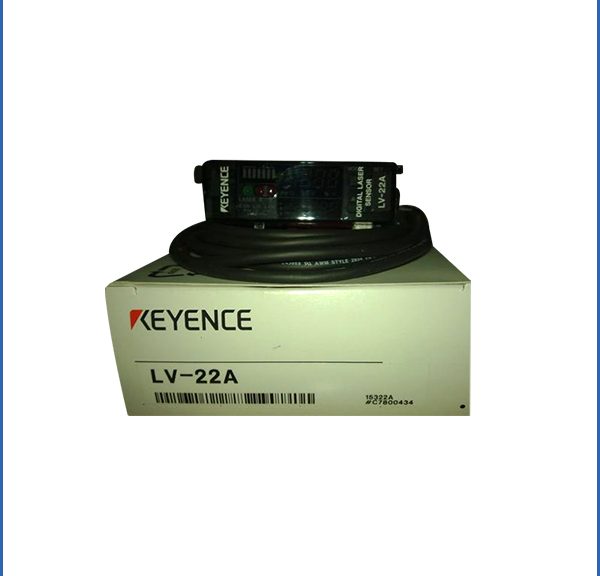

KEYENCE Photoelectric Sensors LV series LV-22A

Leave a comment

KEYENCE Photoelectric Sensors LV series



KEYENCE Photoelectric Sensors LV series is high-power digital laser optics can detect long distances in harsh environments.

Characteristic

High Power
waterproof
10 mm / 30 mm area (through type)
Analog monitor output (through type)

KEYENCE Photoelectric Sensors LV series LV-22A

model
LV-22A
Types of
NPN output
Master module / extension module
Expansion unit (single line)
Control output
NPN open collector x 2 channels, max. 40 VDC, max. 100 mA, residual voltage (max. 1.0 V)
reaction speed
FINE: 80 μs, TURBO: 500 μs, SUPER, TURBO: 4 ms
Number of anti – jamming devices
FINE: none, TURBO: two devices, SUPER: four devices
protect the circuit
Reverse polarity protection, overcurrent protection, overpressure absorber
Component extension
Can install up to 7 additional expansion devices (including the main device, including a total of 8 devices)
Rated value
voltage
12 to 24 VDC ± 10%, fluctuation (P-P): up to 10% (for LV-20A / 22A / 22AP, the supply voltage is provided by the master.)
Power consumption
Max. 1.5 W (maximum 125 mA at 12 V; max. 62.5 mA at 24 V)
Environmental tolerance
Ambient temperature
35 to 85% RH, non-condensing
Relative humidity
-10 to + 55 ° C (no freezing) * 1
material
main body
Polycarbonate
shell
weight
About 75 g
* 1 When extended, the ambient temperature will change due to the following conditions. When extending, be sure to install it on a DIN rail (mounted on a metal plate) and set the output current to 20 mA or less. Extended 1 to 2: -10 ° C to + 55 ° C Extended 3 to 10: -10 ° C to + 50 ° C Expansion 11 to 16: -10 ° C to + 45 ° C

Sensors, Keyence, Photoelectric Sensors

KEYENCE Photoelectric Sensors PX series PX-H61

Leave a comment

KEYENCE Photoelectric Sensors PX series PX-H61

KEYENCE Photoelectric Sensors PX series Can be in a harsh environment for stable detection of super photoelectric sensor.

Characteristic:

The new PX series of super industrial photoelectric sensor. A solid industrial sensor designed for use in harsh environments.

7 kinds of sensor head
High power MEGA mode
The industry’s first high-resolution display

KEYENCE Photoelectric Sensors PX series PX-H61

Model PX-H61
Type M12 Reflective Standard
Light source LED Red 4-element LED
(Wavelength：635 nm)
Detecting distance TURBO 400 mm 15.7″
SUPER 600 mm 23.6″
ULTRA 1200 mm 47.2″
MEGA 2000 mm 78.7″
Detectable object ―
Spot diameter Approx. 15 x 15 mm 0.59″
at 100 mm 3.94″
Approx. 65 x 65 mm 2.56″
at 500 mm 19.69″
Environmental resistance Enclosure rating IEC：IP68/JEM：IP68g/NEMA：4X, 6P, 13/DIN：IP69K
Operating ambientluminance Incandescent lamp：20000 lux max., Sunlight：30000 lux max.
Operating temperature range -10 to 55°C 14 to 131°F, No freezing
Operating ambient humidity 35 to 85% RH (No condensation)
Vibration 10 to 55 Hz double amplitude 1.5 mm 0.06″ 2 hours each in X, Y and Z axis
Case material Housing ：SUS303 (Plastic parts：PMP, POM) Lens ：BK7
Accessories Screw nut x 2,
toothed washer x 1
Weight Approx. 80 g*1 (Including cable)

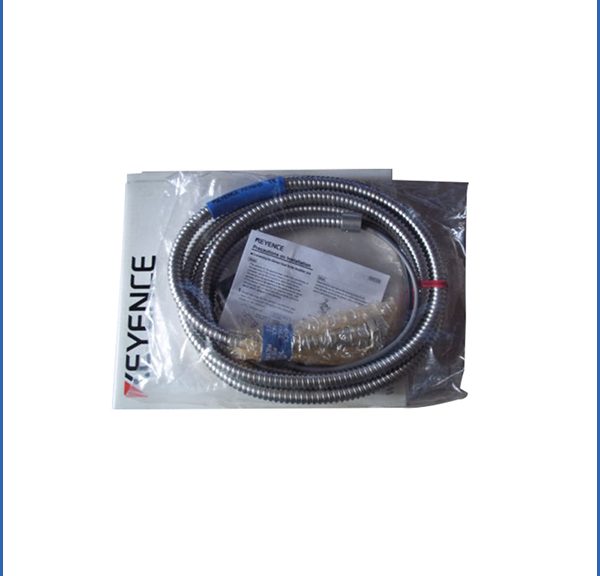

*1 The PX-H71G, H72G and H61G have SUS304 spiral protective tube on the cables.
Sensors, Keyence, Photoelectric Sensors

KEYENCE Photoelectric Sensors PX series PX-10

Leave a comment

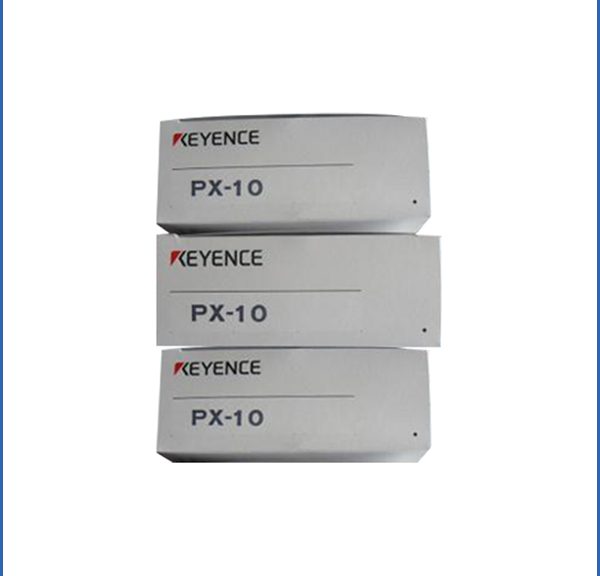

KEYENCE Photoelectric Sensors PX series PX-10

Model PX-10
Type Cable type
Output NPN
Response time 500 μs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA)
Output selection LIGHT-ON/DARK-ON
Indicator lamp – Operation indicator:Red LED x 2, DSC orange LED x 1
– Dual digital monitor:Dual 7-segment display
[Preset value (4-digit green LED) and current value (4-digit red LED) illuminated together,
current value range:0 to 65504, excess gain:0 P to 999 P]
– Hold function:Possible to display both peak and bottom hold values. Selectable from 5 variations.
– Bar LED monitor [Excess gain displayed (85% to 115% in 7 steps)]
– Scaling display
Detection mode Light intensity (automatic sensitivity-tracking function provided)/ [Limit light intensity/output monitor]
Shift function Variable between –1999 and 9999
Timer function Timer OFF/OFF-delay/ON-delay/One-shot/ON-delay, OFF-delay/ON-delay, One-shot
Timer duration selectable:1 ms to 9999 ms
Maximum error against the setting value:10% max.
Control output NPN open-collector 40 V, 100 mA max. for an output/100 mA max. for two outputs, residual voltage 1 V max.
External input Input time 2 ms (ON)/20 ms (OFF) min.
Interference prevention Up to 4 units (in all power modes)*1
Rating Power voltage 12 to 24 VDC ripple (P-P) 10% max. Class 2*2
Power consumption Standard mode:50 mA max. at 24 V/55 mA max. at 12 V
Power saving mode:40 mA max. at 24 V/45 mA max. at 12 V
Environmental resistance Enclosure rating IEC:IP67/JEM:IP67/NEMA:4X
Operating temperature range -10 to +55°C 14 to 131°F (No freezing)*3
Operating ambient humidity 35 to 85% RH (No condensation)
Vibration 10 to 55 Hz double amplitude 1.5 mm 0.06″ 2 hours each in X, Y and Z axis
Case material Housing:PBT, display:PSU, display cover/connector cover:SUS304, radiator plate:SUS304, gasket:NBR
Weight Approx. 100 g (Including cable)
*1 The received light intensity may vary somewhat when the sensor head’s cable layout is changed, so redo the sensitivity setting when changing the layout. The interference prevention function is affected
somewhat when using multiple units installed adjacent to each other. Fine-tune the sensitivity (increase the setting) for adjacent layouts.
*2 Use a 24 VDC power voltage when using a head light transmitting cable of 3 m 9.8′ or more (PX-H71/H71TZ) or 10 m 32.8′ or more (PX-H72).
*3 When using multiple units connected adjacently, the ambient temperature varies with the conditions below.
2 to 4 Units:-10 to +50°C 14 to 122°F, 5 to 17 Units:-10 to +45°C 14 to 133°F.

Japan Keyence keyence photoelectric sensor:

PZ-M51 PZ-M51 PZ-M61 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ
PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ
PZ2-51 PZ2-51P PZ2-61 PZ2-61P PZ2-41 PZ2-41P PZ2-42 PZ2-42P
PZ2-62 PZ2-62P PZ2-62SPO PZ-101 PZ-41 PZ-42 PZ-51
PZ-G41N PZ-G51P PZ-G51P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P
PZ-G61N PZ-G61P PZ-G101P PZ-G101P PZ-G101P PZ-G10P PZ-G10P
PS-55 PS-50 PS-50 PS-50 PS-50 PS-
PS-20 PS-19 PS-49 PS-
PQ-01 PQ-02 PG-602 PG-610
Japan Keyence keyence proximity sensor:
EM-030 EM-030P EM-008 EM-005 EM-054 EM-054 EM-054
EM-080 EM-080P EM-010 EM-010P EM-014 EM-014P
EZ-8M EZ-12M EZ-18M EZ-18M EZ-18M EZ-18M EZ-18M
EV-108M EV-112M EV-118M EV-118M EV-11U EV
EV-130U EV-112F EV-118F EV-130F
EH-30 EH-110 EH-110 EH-110 EH-110 EH-E
EH-4010 EH-430 EH-430 EH-430
E-290 ES-M1 ES ES-220 ES ESR

Sensors, Keyence, Photoelectric Sensors

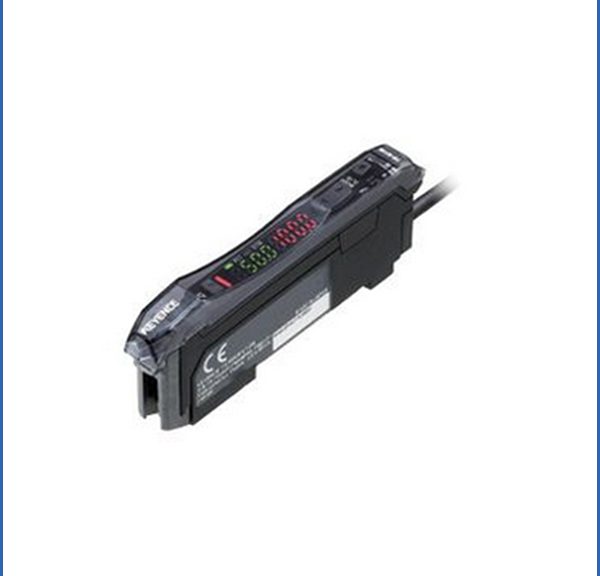

KEYENCE Photoelectric Sensors PS-N series

Leave a comment

KEYENCE Photoelectric Sensors PS-N series

KEYENCE Photoelectric Sensors PS-N series has high environmental resistance and cable extension capabilities provide enhanced installation diversity.

Characteristic

NEO series sensor function
Small high power
Wide range of sensor head selection features

KEYENCE Photoelectric Sensors PS-N series PS-N11CN

Model PS-N11CN
Type M8 connector
Output NPN
Main unit/Expansion unit Main unit
I/O Control outputs 1 output
External input 1 input
Response time 500 μs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA)
Output selection LIGHT-ON/DARK-ON (switch-selectable)
Control output NPN open collector 30 V, (without expansion) 100 mA max., (with expansion) 20 mA max,
residual voltage 1 V max. (when the out current is 10 mA or less)/2 V max. (when the output current is 10 to 100 mA)
External input Input time 2 ms (ON)/20 ms (OFF) or more*1
Unit expansion Up to 17 main units can be connected
Protection circuit Reverse polarity protection, Over-current protection, Surge absorber
Number of interference prevention units 4 for TURBO/SUPER/ULTRA/MEGA (When set to DOUBLE, the number of interference-prevention units will be doubled)
Case size H 32.6 mm 1.28″× W 9.8 mm 0.39″ × L 78.7 mm 3.1″
Rating Power voltage 24 VDC (operating voltage 10-30 VDC (with ripple)), ripple (P-P) 10% or less, Class 2 or LPS
Power consumption Normal: 810 mW or less (at 30V. 28 mA max. at 24 V, 34 mA max. at 12 V)
Eco on mode: 700 mW or less (at 30V. 24 mA max. at 24 V, 27 mA max. at 12 V) Eco Full mode: 490 mW or less (at 30V. 17 mA max. at 24 V, 20 mA max. at 12 V)
Ambient temperature -20°C to +55°C -4°F to 131°F (No freezing)*2
Relative humidity 35 to 85% RH (No condensation)
Environmental resistance Vibration 10 to 55 Hz, double amplitude: 1.5 mm 0.06″, 2 hours each in the X, Y and Z axis
Shock resistance 500 m/s2 3 times for each of X,Y and Z axis
Material Case Main unit and cover material: Polycarbonate
Cable PVC
Weight Approx 20 g
Sensors, Keyence, Photoelectric Sensors

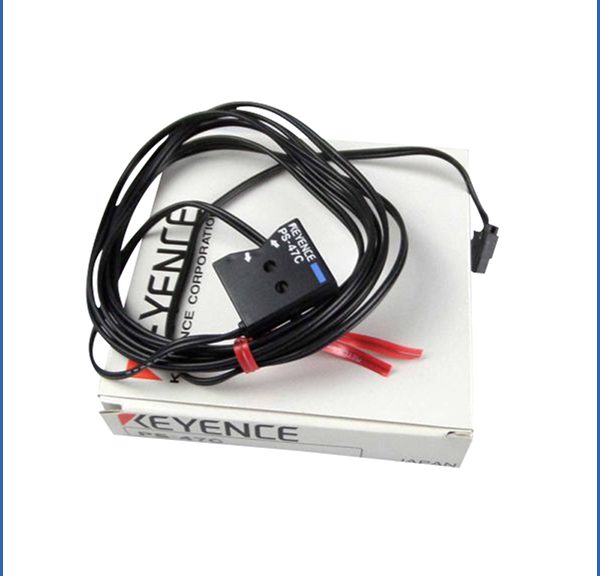

KEYENCE Photoelectric Sensors PS series PS-47

Leave a comment

KEYENCE Photoelectric Sensors PS series PS-47

KEYENCE Photoelectric Sensors PS series PS-47 Ultra – Small Amplifier Separated Photoelectric Sensors is Separate amplifier type photoelectric sensor with multiple sensor heads.

Characteristic

Easily fine-tune with a 3-turn trimmer (PS2-61, PS-X28)
Use a finger to rotate the screw without using a screwdriver to adjust the sensitivity (PS-X28)
To achieve a 0.5ms high-speed response (PS2-61, PS-X28)

Unique optical system and sophisticated electronic circuit can be fine targets for high-precision positioning and detection.

Non-contact detection of the damage to the target and the sensor head, extending the operating life of the sensor and no maintenance.

KEYENCE Photoelectric Sensors PS series PS-47

Model PS-47*1
Type Definite reflective
Detecting distance TURBO –
FINE 10 ± 4 mm 0.39″ ±0.16″
Light source Red LED
Mutual interference suppression
(When expansion units are connected)		 No interference (side-by-side mounting)
Ambient temperature -10 to +60°C 14 to 140°F
Relative humidity 35 to 85%
Weight Approx. 30 g (including 2-m cable)
*1 Models with a (C) come with plug-in connectors. (For other models, use the connector included with the amplifier.)

Japan Keyence keyence photoelectric sensor:

PZ-M51 PZ-M51 PZ-M61 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ
PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ
PZ2-51 PZ2-51P PZ2-61 PZ2-61P PZ2-41 PZ2-41P PZ2-42 PZ2-42P
PZ2-62 PZ2-62P PZ2-62SPO PZ-101 PZ-41 PZ-42 PZ-51
PZ-G41N PZ-G51P PZ-G51P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P
PZ-G61N PZ-G61P PZ-G101P PZ-G101P PZ-G101P PZ-G10P PZ-G10P
PS-55 PS-50 PS-50 PS-50 PS-50 PS-
PS-20 PS-19 PS-49 PS-
PQ-01 PQ-02 PG-602 PG-610

Sensors, Keyence, Photoelectric Sensors

KEYENCE Photoelectric Sensors PQ series

Leave a comment

KEYENCE Photoelectric Sensors PQ series

Japan Keyence keyence photoelectric sensor:

PZ-M51 PZ-M51 PZ-M61 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ
PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ
PZ2-51 PZ2-51P PZ2-61 PZ2-61P PZ2-41 PZ2-41P PZ2-42 PZ2-42P
PZ2-62 PZ2-62P PZ2-62SPO PZ-101 PZ-41 PZ-42 PZ-51
PZ-G41N PZ-G51P PZ-G51P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P
PZ-G61N PZ-G61P PZ-G101P PZ-G101P PZ-G101P PZ-G10P PZ-G10P
PS-55 PS-50 PS-50 PS-50 PS-50 PS-
PS-20 PS-19 PS-49 PS-
PQ-01 PQ-02 PG-602 PG-610
Japan Keyence keyence proximity sensor:
EM-030 EM-030P EM-008 EM-005 EM-054 EM-054 EM-054
EM-080 EM-080P EM-010 EM-010P EM-014 EM-014P
EZ-8M EZ-12M EZ-18M EZ-18M EZ-18M EZ-18M EZ-18M
EV-108M EV-112M EV-118M EV-118M EV-11U EV
EV-130U EV-112F EV-118F EV-130F
EH-30 EH-110 EH-110 EH-110 EH-110 EH-E
EH-4010 EH-430 EH-430 EH-430
E-290 ES-M1 ES ES-220 ES ESR

KEYENCE Photoelectric Sensors PQ Sensor PQ-01

Model PQ-01
Type Thrubeam Short-detecting distance
Detecting distance 100 mm 3.94″
Light source Infrared LED
Detectable object 1 mm 0.04″ dia. min. opaque
materials
Minimum detectable object 0.5 mm 0.02″ dia. copper wire
Response time 1 ms max.
Operation mode DARK-ON *1
Indicator lamp Output: Red LED
Control output NPN: 100 mA max. (40 V max.), Residual voltage: 1 V max.*2
Protection circuit Reversed polarity, overcurrent protection, surge absorber
Rating Power voltage 12 to 24 VDC ±10%
Current consumption. 30 mA max.
Environmental resistance Enclosure rating IP64
Operating ambientluminance Incandescent lamp: 3,000 lux max., Sunlight: 10,000 lux max.
Operating temperature range -20 to +55°C -4 to 131°F, No freezing
Operating ambient humidity 35 to 85% RH (No condensation)
Vibration 10 to 55 Hz, double amplitude: 1.5 mm 0.06″, 2 hours each in the X, Y and Z axis
Shock resistance 500 m/s2 in X, Y, and Z directions, 3 times respectively
Material Amplifi er: Polysulfone, Sensor head: Polyarylate
Weight (including 2m 6.6′ cable) Approx. 48 g
Sensors, Keyence, Photoelectric Sensors

KEYENCE Photoelectric Sensors PJ series PJ-50A

Leave a comment

KEYENCE Photoelectric Sensors PJ series PJ-50A

model
PJ-50A
Number of optical axes
4
Optical axis spacing
40 mm
Maximum number of optical axes
28 optical axes (PJ-50A x 1 + PJ-55A x 2)
Detection area
120 mm (4 optical axes) to 1,080 mm (28 optical axes)
Detection distance
5 m
Can detect objects
Light-impermeable material (minimum diameter 50 mm)
light source
Infrared LED
Display indicator
Output (PJ-50AR) / power supply (PJ-50AT): red LED, stable operation (PJ-50AR): green LED
Response time
15 ms or less

KEYENCE Photoelectric Sensors

Japan Keyence keyence photoelectric sensor:

PZ-M51 PZ-M51 PZ-M61 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ-M31 PZ
PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ-V71 PZ
PZ2-51 PZ2-51P PZ2-61 PZ2-61P PZ2-41 PZ2-41P PZ2-42 PZ2-42P
PZ2-62 PZ2-62P PZ2-62SPO PZ-101 PZ-41 PZ-42 PZ-51
PZ-G41N PZ-G51P PZ-G51P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P PZ-G52P
PZ-G61N PZ-G61P PZ-G101P PZ-G101P PZ-G101P PZ-G10P PZ-G10P
PS-55 PS-50 PS-50 PS-50 PS-50 PS-
PS-20 PS-19 PS-49 PS-
PQ-01 PQ-02 PG-602 PG-610
Japan Keyence keyence proximity sensor:
EM-030 EM-030P EM-008 EM-005 EM-054 EM-054 EM-054
EM-080 EM-080P EM-010 EM-010P EM-014 EM-014P
EZ-8M EZ-12M EZ-18M EZ-18M EZ-18M EZ-18M EZ-18M
EV-108M EV-112M EV-118M EV-118M EV-11U EV
EV-130U EV-112F EV-118F EV-130F
EH-30 EH-110 EH-110 EH-110 EH-110 EH-E
EH-4010 EH-430 EH-430 EH-430
E-290 ES-M1 ES ES-220 ES ESR



Sensors, Keyence, Photoelectric Sensors

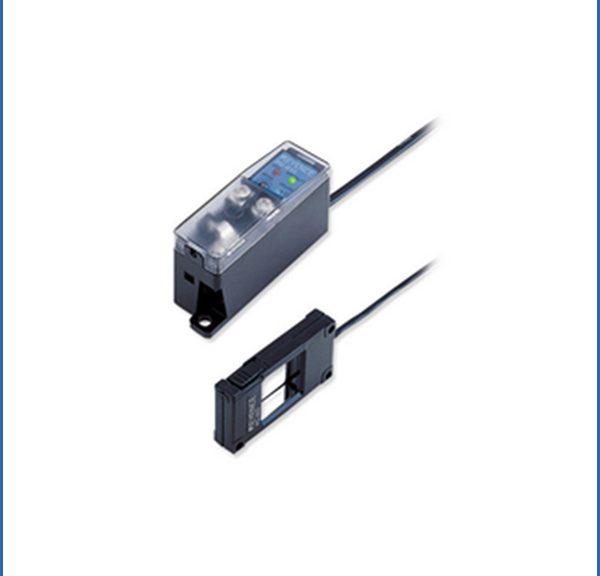

KEYENCE Photoelectric Sensors PG series laser sensor

Leave a comment

KEYENCE Photoelectric Sensor PG Series

KEYENCE Photoelectric Sensors PG series quick response sensor detecting φ0.5 mm.

FEATURES

  • Unique optical system
  • Detects only moving targets
  • Automatic sensitivity-compensating circuit

Modela:

Independent photoelectric sensor PZ-V / M series
PZ-M51, PZ-M51P, PZ-M52, PZ-M52P, PZ-M53, PZ-M53P
PZ-M61P, PZ-M62, PZ-M62P, PZ-M63, PZ-M63P, PZ-M65, PZ-M63
PZ-M73, PZ-M71, PZ-M32, PZ-M73P, PZ-M73P, PZ-M73P, PZ-M75, PZ-M31, PZ-M31P, PZ-M32, PZ-M32P PZ-M13, PZ-M13P, PZ-M13, PZ-M13, PZ-M13, PZ-M13, PZ-M12, PZ-M12, PZ-M13P, PZ-M13P, PZ-M13
PZ-V73, PZ-V73, PZ-V72, PZ-V72P, PZ-V73, PZ-V73P, PZ-V73, PZ-V31, PZ-V31P, PZ-V32, PZ-V32P, PZ-V33 PZ-V13P, PZ-V35, PZ-V11, PZ-V11P, PZ-V12, PZ-V12P, PZ-V13, PZ-V13P, PZ-V15
Transparent target photoelectric sensor: PZ2-62, PZ2-62P
Focused beam photoelectric sensor: PZ-101, PZ-101P
Ultra-strong light type photoelectric sensor PX series (oil, waterproof ability stronger)
Sensing head light through type: PX-H72, PX-H71, PX-H72G, PX-H71TG
Reflective type: PX-H61, PX-H61G
Digital amplifiers: PX-10, PX-10P, PX10C, PX-10CP
Single – key calibration photoelectric sensor PS01 series
PS-55, PS-55, PS-55, PS-52, PS-52, PS-52, PS-52, PS-52
Diffuse Reflective: PS-45, PS-46, PS-48, PS-205, PS-206
Limited reflection type: PS-47, PS-47C, PS-49, PS-49C
Amplifier module: PS-T1, PS-T2, PS-T0, PS-T1P, PS-T2P
Ultra – small amplifier separate photoelectric sensor PS series
Amplifier: PS2-61, PS2-61P, PS-X28, PS-25
Line built-in amplifier type photoelectric sensor PQ series
Pass type: PQ-01, PQ-02
Optical type by confirming the sensor PG series
Sensor head: PG-602, amplifier: PG-610

KEYENCE Photoelectric Sensors PG series laser sensor

Model PG-610
Type Amplifier
Detecting area 21 x 21 mm 0.83″ x 0.83″
Minimum detectable object 0.5 mm 0.02″ dia. min. opaque materials
Light source Infrared LED
Sensitivity adjustment 1-turn trimmer
Indicator lamp Output: Red LED, Stable operation: Green LED
Output Control output NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*1
Self-diagnostic output NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*2
Response time 0.2 ms*2
Off-delay time 0.5 / 70 ms (selectable)
Rating Power voltage 12 to 24 VDC ±10%
Current consumption. 40 mA max.
Environmental resistance Operating ambientluminance Fluorescent lamp: 10,000 lux max., Sunlight: 1,500 lux max.
Operating temperature range -10 to +50°C 14 to 122°F, No freezing
Operating ambient humidity 35 to 85% RH (No condensation)
Vibration 10 to 55 Hz, double amplitude: 1.5 mm 0.06″, 2 hours each in the X, Y and Z axis
Material Polycarbonate
Weight Amplifier (including 3-m 9.8′ cable): Approx. 100 g
