flowmeter

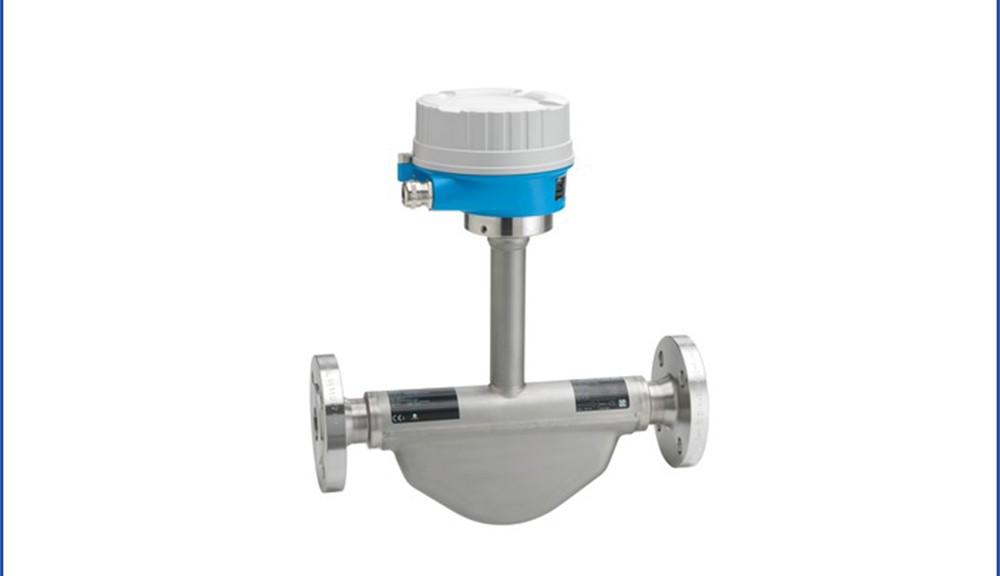

flowmeter Endress Hauser LNGmass is a Coriolis flowmeter specifically developed for dispensers and has no moving parts and is.

• Brand : Endress Hauser
• Measuring principle:Coriolis force
• Diameter: DN 8 to 25 (3/8 to 1″)
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow
• Pressure range：PN 40, Class 300
• Range: 0 to 18 000 kg/h (0 to 660 lb/min)

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of cryogenic gases in refueling applications
Device properties
• Flow rates up to 18 000 kg/h (660 lb/min)
• Medium temperature up to –196 °C (–321 °F)
• Nominal diameter: DN 8 to 25 (3/8 to 1″)
• Robust, compact transmitter housing
• Modbus RS485
• Designed to meet application needs

Your benefits
• Excellent operational safety – reliable under extreme ambient conditions
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Space-saving transmitter – full functionality on smallest
footprint
• Fast commissioning – preconfigured devices
• Automatic recovery of data for servicing

endress-hauser-lngmass-coriolis-mass-flowmeter

flowmeter

flowmeter Endress Hauser LPGmass D8EB will be the preferred choice for system integrators, skid builders and equipment manufacturers.

• Brand : Endress Hauser
• Measuring principle:Coriolis force
• Diameter: DN 8 to 50 (³⁄₈ to 2″)
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density
• Pressure range：PN 40, Class 300
• Range: 0 to 180 000 kg/h (0 to 6600 lb/min)

Endress Hauser LPGmass D8EB Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of liquefied petroleum gas in refueling and distribution applications
Device properties
• Flow rates up to 180 000 kg/h (6 600 lb/min)
• Volume flow calculation as per API Table 53
• Robust, compact transmitter housing
• Modbus RS485
• Designed to meet application needs

Your benefits
• Excellent operational safety – reliable under extreme ambient conditions
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space‐saving installation – no in/outlet run needs
• Space‐saving transmitter – full functionality on smallest footprint
• Fast commissioning – pre-configured devices
• Automatic recovery of data for servicing

endress-hauser-lpgmass-d8eb-coriolis-mass-flowmeter

flowmeter

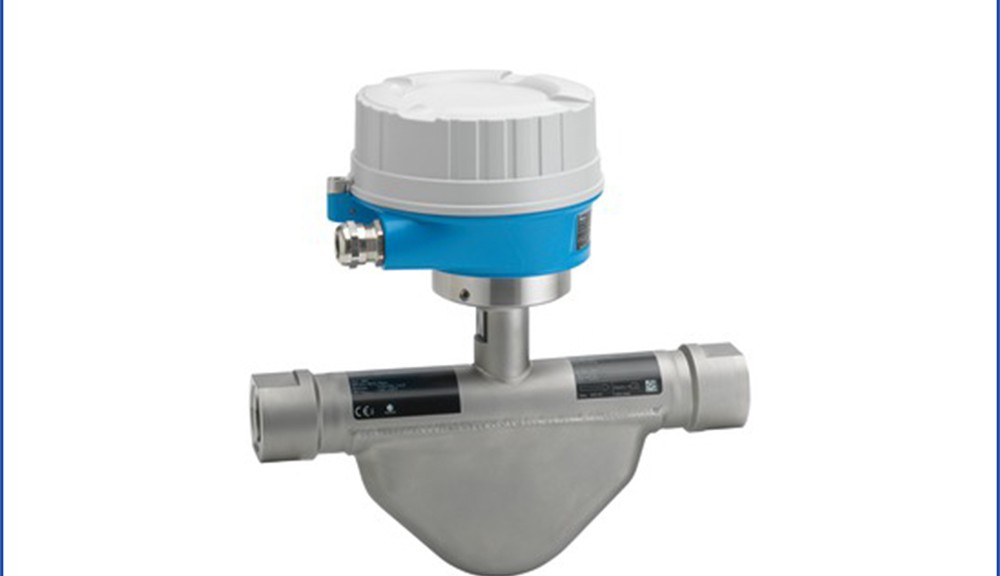

flowmeter Endress Hauser CNGmass D8CB Coriolis mass flowmeter can be measured with highest accuracy — independent of pressure and temperature.

• Brand : Endress Hauser
• Measuring principle:Coriolis force
• Diameter: DN 8 to 25 (⅜ to 1″)
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density
• Pressure range：350 bar (5080 psi)
• Range: 0 to 150 kg/min (0 to 330 lb/min)

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of compressed natural gas (CNG) in high pressure refueling applications
Device properties
• Flow rates up to 150 kg/min (330 lb/min)
• Process pressure up to 350 bar (5080 psi)
• Rupture disc available
• Robust, compact transmitter housing
• Modbus RS485
• Designed to meet application needs

Your benefits
• Excellent operational safety – reliable under extreme ambient conditions
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Space-saving transmitter – full functionality on smallest
footprint
• Fast commissioning – pre-configured devices
• Automatic recovery of data for servicing

endress-hauser-cngmass-d8cb-coriolis-mass-flowmeter

flowmeter

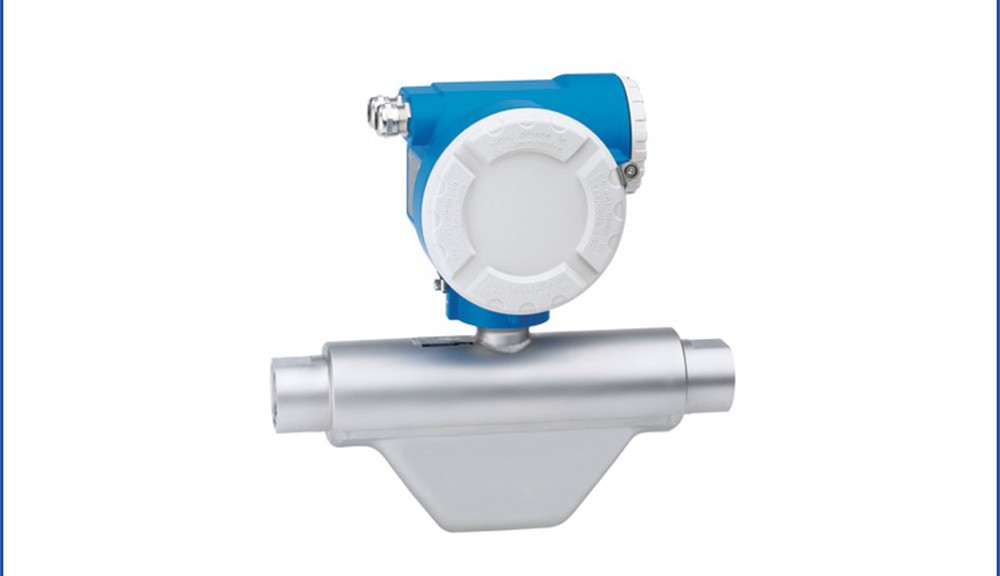

flowmeter Endress Hauser CNGmass is a flowmeter that measures the quantity of fuel transferred from dispenser to vehicle with the absolute highest accuracy.

• Brand : Endress Hauser
• Measuring principle:Coriolis force
• Diameter: DN 8 to 25 (⅜ to 1″)
• Measured variables: Mass flow, density, temperature, volume flow
• Pressure range：350 bar (5080 psi)
• Range: 0 to 150 kg/min (0 to 330 lb/min)

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of compressed natural gas (CNG) in high pressure refueling applications
Device properties
• Flow rates up to 150 kg/min (330 lb/min)
• Process pressure up to 350 bar (5080 psi)
• Rupture disc available
• Robust, ultra-compact transmitter housing
• Pulse output and Modbus RS485
• Transmitter for custody transfer
Your benefits
• Excellent operational safety – reliable under extreme process conditions
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Easy operation – reduced to application needs
• Fast commissioning – pre-configured devices
• Automatic recovery of data for servicing

endress-hauser-cngmass-coriolis-mass-flowmeter

flowmeter

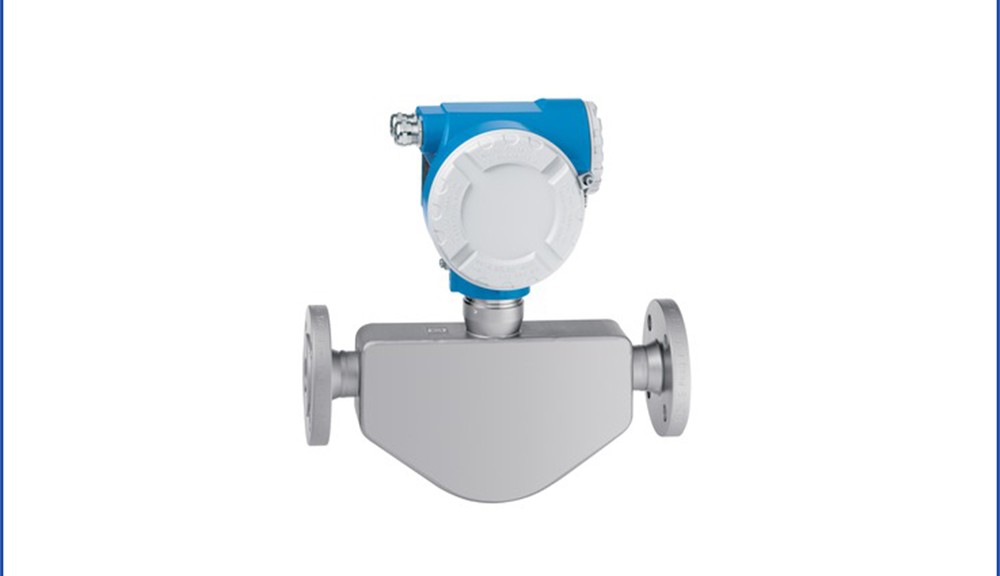

flowmeter Endress Hauser LPGmass is a Coriolis flowmeter specifically developed for dispensers.

• Brand : Endress Hauser
• Measuring principle:Coriolis force
• Diameter: DN 8 to 40 (³⁄₈ to 1½”)
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow
• Pressure range：PN 40, Class 300, 63K
• Range: 0 to 45 000 kg/h (0 to 1650 lb/min)

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of liquefied petroleum gas in refueling and distribution applications
Device properties
• Flow rates up to 45000 kg/h (1654 lb/min)
D: Flow rates up to 180000 kg/h (6600 lb(min)
• Volume flow calculation according to API table 53
• Worldwide metrological approvals
• Robust, ultra-compact transmitter housing
• Pulse output and Modbus RS485
• Transmitter for custody transfer

Your benefits
• Excellent operational safety – reliable under extreme ambient conditions
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Easy operation – reduced to application needs
• Fast commissioning – pre-configured devices
• Automatic recovery of data for servicing

endress-hauser-lpgmass-coriolis-mass-flowmeter

flowmeter

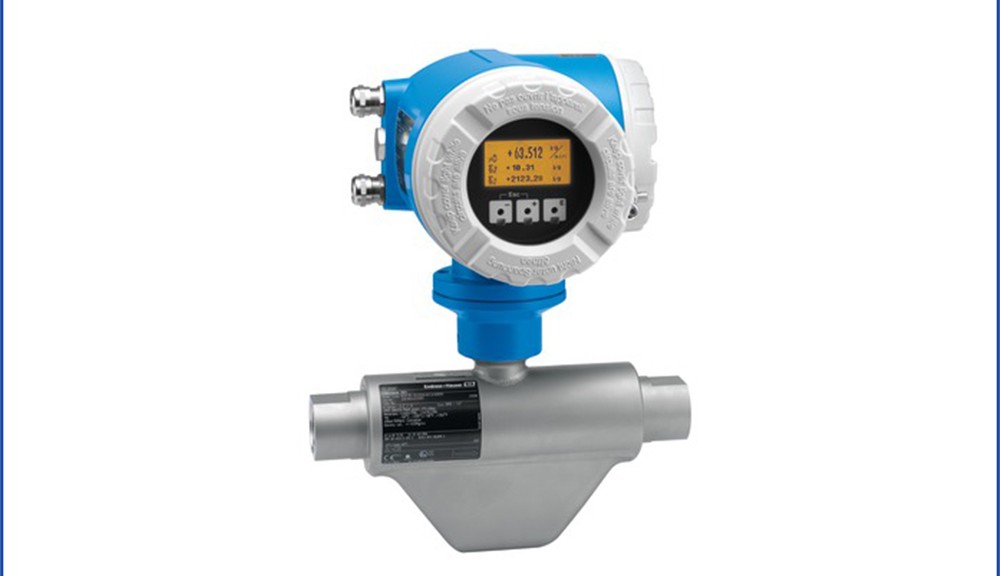

flowmeter Endress Hauser CNGmass DCI Coriolis mass flowmeter is specially designed for refueling with environmentally friendly natural gas (CNG).

• Brand : Endress Hauser
• Measuring principle:Coriolis force
• Diameter: DN 8 to 25 (⅜ to 1″)
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density
• Pressure range：350 bar (5080 psi)
• Range: 0 to 150 kg/min (0 to 330 lb/min)

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Accurate measurement of compressed natural gas (CNG) in high-pressure refueling applications
Device properties
• Flow rates up to 150 kg/min (330 lb/min)
• Process pressure up to 350 bar (5080 psi)
• Rupture disc available
• Device in compact or remote version
• Flexible outputs and Modbus RS485
• Transmitter for custody transfer

Your benefits
• Excellent operational safety – reliable under extreme process conditions
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• High flexibility in system integration – wide range of communication interfaces
• Fast commissioning – pre-configured devices
• Automatic recovery of data for servicing

endress-hauser-cngmass-dci-coriolis-mass-flowmeter

flowmeter

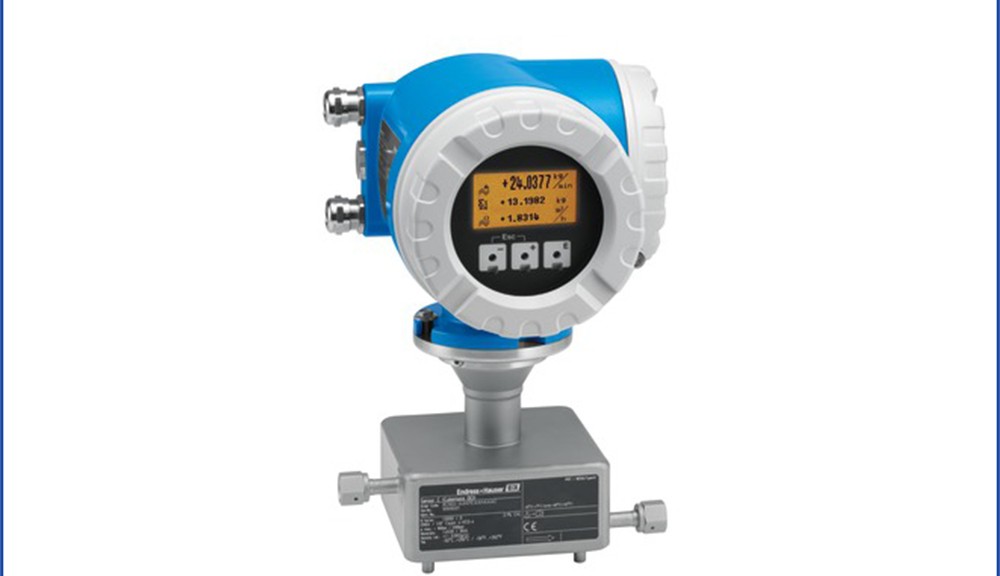

flowmeter Endress Hauser Cubemass DCI with the ultra-compact sensor for smallest quantities with seamless system integration.

• Brand : Endress Hauser
• Measuring principle:Coriolis force
• Diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄”)
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
• Pressure range：PN 40, Class 300, 10K, 400 bar (5800 psi)
• Range: 0 to 1000 kg/h (0 to 37 lb/min)

Endress Hauser Cubemass DCI Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring accurately smallest quantities of liquids and gases; ideal for skid integration
Device properties
• Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄”)
• Process pressure up to 400 bar (5800 psi)
• Medium temperature up to +200 °C (+392 °F)
• Device in compact or remote version
• Flexible outputs
• Modbus RS485

Your benefits
• Reduced installation cost – compact single-tube design
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• High flexibility in system integration – wide range of communication interfaces
• Fast commissioning – pre-configured devices
• Automatic recovery of data for servicing

endress-hauser-cubemass-dci-coriolis-mass-flowmeter

flowmeter

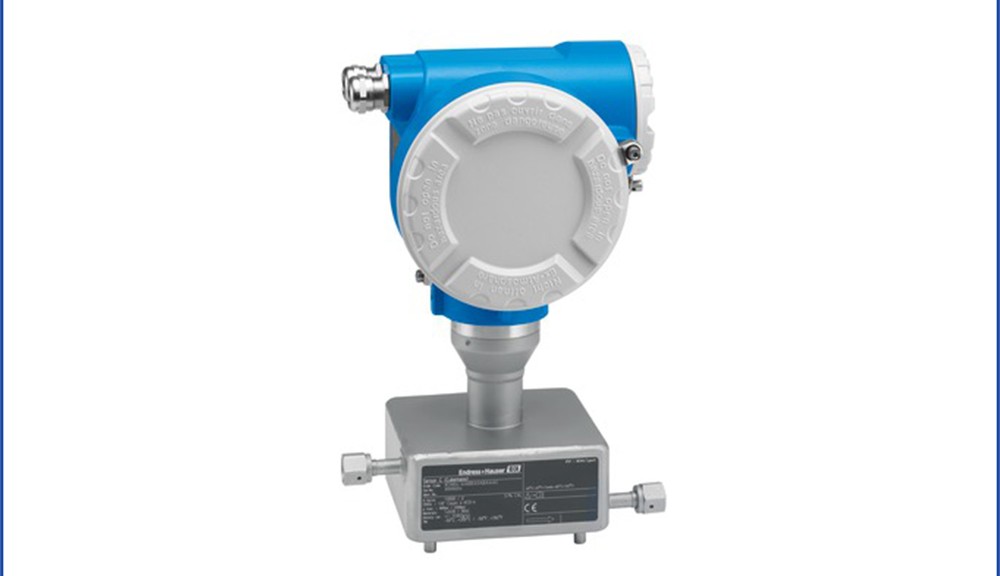

flowmeter Endress Hauser Cubemass Coriolis mass flowmeter in ultra-compact design is the specialist for direct mass and density measurement.

• Brand : Endress Hauser
• Measuring principle:Coriolis force
• Diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄”)
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
• Pressure range：PN 40, Class 300, 10K, 400 bar (5800 psi)
• Range: 0 to 1000 kg/h (0 to 37 lb/min)

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring accurately smallest quantities of liquids and gases; ideal for skid integration
Device properties
• Nominal diameter: DN 1 to 6 (¹⁄₂₄ to ¹⁄₄””)
• Process pressure up to 400 bar (5800 psi)
• Medium temperature up to +200 °C (+392 °F)
• Robust transmitter housing
• Modbus RS485
• Pulse output.

Your benefits
• Reduced installation cost – compact single-tube design
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Cost savings – very low power consumption
• Fast commissioning – pre-configured devices
• Automatic recovery of data for servicing

endress-hauser-cubemass-coriolis-mass-flowmeter

flowmeter

flowmeter Endress Hauser Dosimass measures volume and mass flow directly with temperature and density compensation to ensure maximum repeatability.

• Brand : Endress Hauser
• Measuring principle:Coriolis force
• Diameter: DN 8 to 25 (³⁄₈ to 1″)
• Measured variables: Mass flow, density, temperature, volume flow
• Pressure range：PN 40
• Range: 0 to 18 000 kg/h (0 to 660 lb/min)

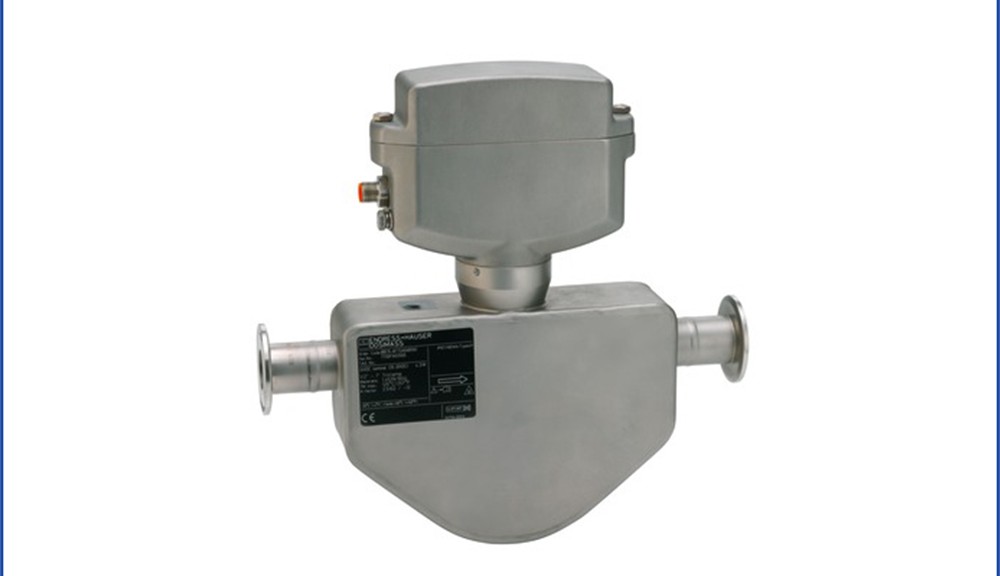

Endress Hauser Dosimass Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measurement of liquids in continuous process control and in batching applications
Device properties
• Nominal diameter: DN 8 to 25 (³⁄₈ to 1″)
• Many hygienic process connections, 3A‐compliant
• Sensor can be cleaned/sterilized in place (CIP/SIP)
• Robust, ultra-compact transmitter housing
• Pulse/frequency/switch output, Modbus RS485
• Excellent and easy-to-clean transmitter

Your benefits
• High process safety – high measuring accuracy for different media in shortest filling time
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space‐saving installation – no in/outlet run needs
• Versatile and time‐saving wiring – plug connector
• Fast commissioning – pre-configured devices
• Automatic recovery of data for servicing

endress-hauser-dosimass-coriolis-mass-flowmeter

mass flowmeter

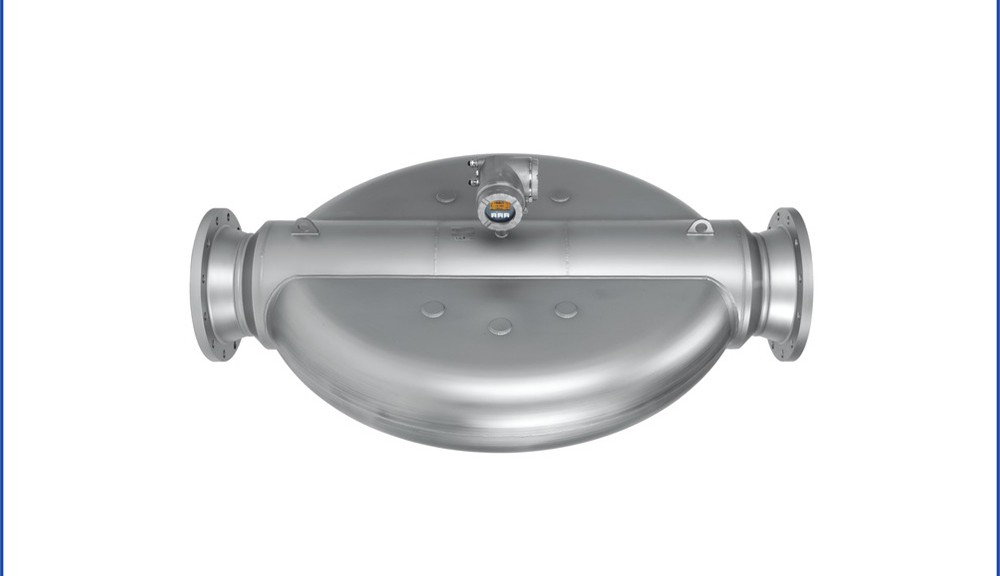

mass flowmeter Endress Hauser Proline Promass 84X is designed for the oil and gas industry.

• Brand : Endress Hauser
• Model: Endress Hauser Proline Promass 84X Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter: DN 300 to 400 (12 to 16″)
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density
• Pressure range：PN 100, Class 600

Endress Hauser Proline Promass 84X Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• For highest flow rates and outstanding performance in on/ offshore oil & gas applications
Device properties
• Nominal diameter: DN 300 to 400 (12 to 16″)
• Four-tube system with low pressure drop
• Complete exterior design made of 1.4404 (316L)
• 4-line backlit display with touch control
• Device in compact or remote version
• Phase-shifted pulse, HART, Modbus RS485

Your benefits
• Increased profit – single installation point providing premium accuracy for large quantities
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Quality – designed for custody transfer; featuring worldwide recognized metrological approvals
• Flexible data transfer options– numerous communication
• Automatic recovery of data for servicing

endress-hauser-proline-promass-84x-coriolis-mass-flowmeter

mass flowmeter

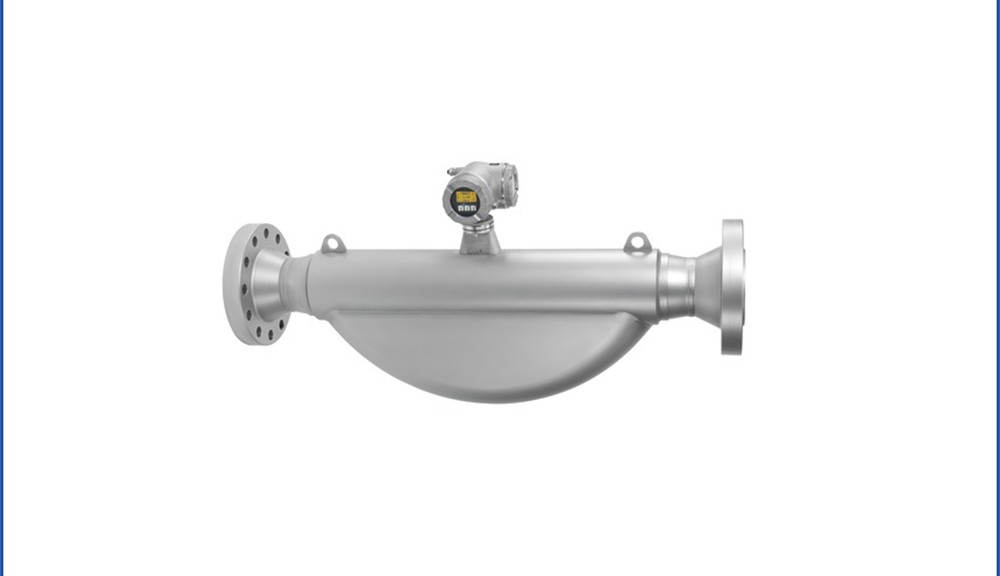

mass flowmeter Endress Hauser Proline Promass 84O is the first mass flow meter to combine pressure and corrosion resistance without compromise.

• Brand : Endress Hauser
• Model: Endress Hauser Proline Promass 84O Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter: DN 80 to 150 (3 to 6″)
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density
• Pressure range：PN 250, Class 1500

Endress Hauser Proline Promass 84O Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• For premium accuracy and highest process pressures; fully suitable for offshore conditions
Device properties
• Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750)
• Process pressure up to PN 250, Class 1500
• Nominal diameter: DN 80 to 150 (3 to 6″)
• 4-line backlit display with touch control
• Device in compact or remote version
• Phase-shifted pulse, HART, Modbus RS485

Your benefits
• Maximum safety – highest resistance to stress corrosion cracking
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Quality – designed for custody transfer; featuring worldwide recognized metrological approvals
• Flexible data transfer options – numerous communication types
• Automatic recovery of data for servicing

endress-hauser-proline-promass-84o-coriolis-mass-flowmeter
