mass flowmeter

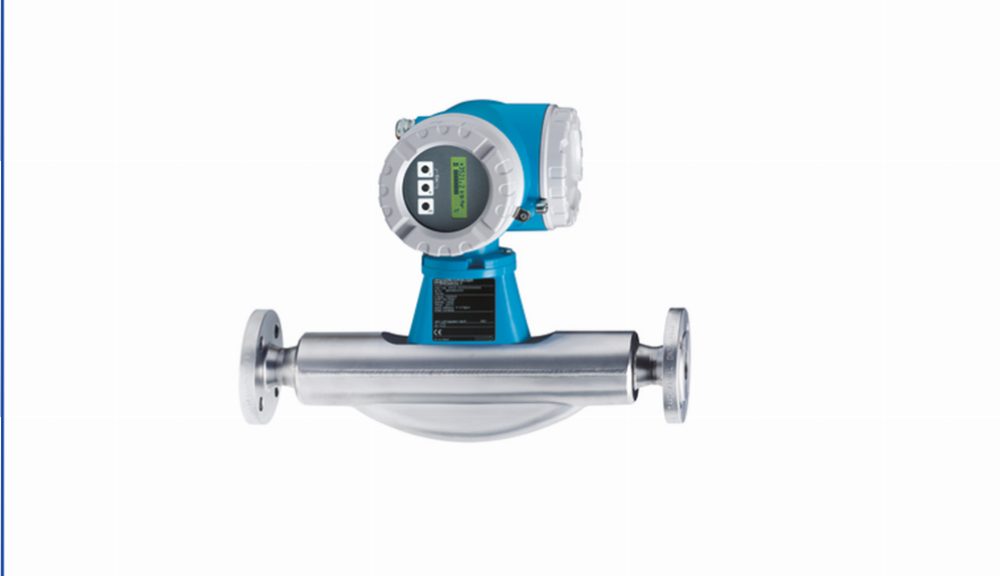

mass flowmeter Endress Hauser Proline Promass 84F offers premium accuracy in measurement of liquids and gases.

• Brand : Endress Hauser
• Model: Endress Hauser Proline Promass 84F Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter: “DN 8…250，3/8″…10”
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density
• Pressure range：PN 16…100、Cl 150…600、JIS 10…63K

Endress Hauser Proline Promass 84F Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Highest measurement performance for liquids and gases under varying, demanding process conditions
Device properties
• Mass flow: measured error ±0,05% (PremiumCal)
• Rated secondary containment up to 40 bar (580 psi)
• Nominal diameter: DN 8 to 250 (3/8 to 10″)
• 4-line backlit display with touch control
• Device in compact or remote version
• Phase-shifted pulse, HART, Modbus RS485

Your benefits
• Highest process safety – immune to fluctuating and harsh environments
• Fewer process measuring points – multivariable measurement (flow, density, temp)
• Space-saving installation – no in/outlet run needs
• Quality – designed for custody transfer; featuring worldwide recognized metrological approvals
• Flexible data transfer options – numerous communication
types
• Automatic recovery of data for servicing

endress-hauser-proline-promass-84f-coriolis-mass-flowmeter

mass flowmeter

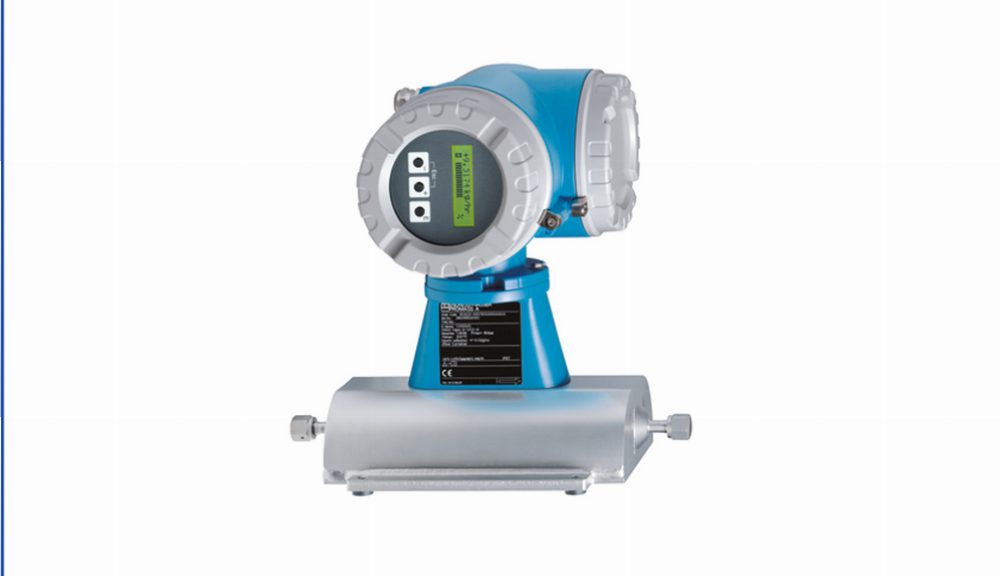

mass flowmeter Endress Hauser Proline Promass 84A single-tube flowmeter for smallest quantities with custody transfer functionality.

• Brand : Endress Hauser
• Model: Endress Hauser Proline Promass 84A Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter: “DN 1…4，1/24″…5/32”
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density
• Pressure range： PN 16…400、Cl 150…600、JIS 10…63K

Endress Hauser Proline Promass 84A Coriolis mass flowmeter

Applications
The Coriolis measuring principle operates independently of the physical fluid properties, such as viscosity and density.
• Extremely accurate, verified measurement of liquids (other than water) and for gases under high pressure (>100 bar)
• Process pressures up to 350 bar
• Mass flow measurement up to 2200 t/h
Approvals for custody transfer:
• PTB, NMi, METAS, BEV, NTEP, MC
Approvals for hazardous area:
• ATEX, FM, CSA, TIIS, IECEx, NEPSI
Approvals in the food industry/hygiene sector:
• 3A, FDA, EHEDG
Connection to process control system:
• HART, MODBUS
Relevant safety aspects:
• Secondary containment (up to 100 bar), Pressure
Equipment Directive, AD 2000
• Purge connections or rupture disk (optional)

mass flowmeter

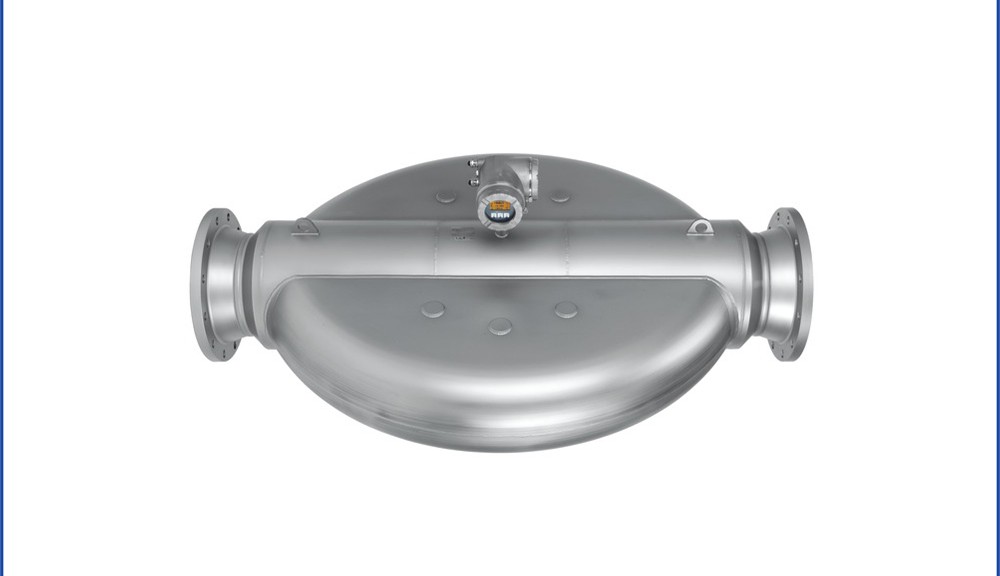

mass flowmeter Endress Hauser Proline Promass 83X is ideal for high flow rate applications requiring reliability and low maintenance.

• Brand : Endress Hauser
• Model: Endress Hauser Proline Promass 83X Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter: DN 300 to 400 (12 to 16″)
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
• Pressure range： PN 100, Class 600

Endress Hauser Proline Promass 83X Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• For highest flow rates and outstanding performance in on/ offshore oil & gas applications
Device properties
• Nominal diameter: DN 300 to 400 (12 to 16″)
• Four-tube system with low pressure drop
• Complete exterior design made of 1.4404 (316L)
• 4-line backlit display with touch control
• Device in compact or remote version
• HART,PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP

Your benefits
• Increased profit – single installation point providing premium accuracy for large quantities
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Quality – software for density & concentration, advanced diagnostics
• Flexible data transfer options– numerous communication
• Automatic recovery of data for servicing

endress-hauser-proline-promass-83x-coriolis-mass-flowmeter

mass flowmeter

mass flowmeter Endress Hauser Proline Promass 83S offers superior performance in applications requiring optimal cleanability.

• Brand : Endress Hauser
• Model: Endress Hauser Proline Promass 83S Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter: “DN 8…50，3/8″…2”
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
• Pressure range： PN 16…40、Cl 150…300、JIS 20…40K

Endress Hauser Proline Promass 83S Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated for applications requiring optimal cleanability under hygienic conditions
Device properties
• Large range of hygienic process connections
• 3A and EHEDG conform
• Fast recovery from CIP/SIP
• Device in compact or remote version
Promass 83
• 4-line backlit display with touch control
• HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP

Your benefits
• Reduced installation costs – fully self-drainable tube design enables compact horizontal mounting
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
Promass 83
• Quality – software for filling & dosing, density & concentration, advanced diagnostics
• Flexible data transfer options – numerous communication types
• Automatic recovery of data for servicing

endress-hauser-proline-promass-83s-coriolis-mass-flowmeter

mass flowmeter

mass flowmeter Endress Hauser Proline Promass 80S is easy-to-clean flowmeter with self-drainable single-tube system and a compact or remote transmitter.

• Brand : Endress Hauser
• Model: Endress Hauser Proline Promass 80S Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter: “DN 8…50，3/8″…2”
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density
• Pressure range： PN 16…40、Cl 150…300、JIS 20…40K

Endress Hauser Proline Promass 80S Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated for applications requiring optimal cleanability under hygienic conditions
Device properties
• Large range of hygienic process connections
• 3A and EHEDG conform
• Fast recovery from CIP/SIP
• Device in compact or remote version
Promass 83
• 4-line backlit display with touch control
• HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP

Your benefits
• Reduced installation costs – fully self-drainable tube design enables compact horizontal mounting
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
Promass 83
• Quality – software for filling & dosing, density & concentration, advanced diagnostics
• Flexible data transfer options – numerous communication types
• Automatic recovery of data for servicing

endress-hauser-proline-promass-80s-coriolis-mass-flowmeter

mass flowmeter

mass flowmeter Endress Hauser Proline Promass 83P offers highly accurate measurement for demanding applications in sterile environments.

• Brand : Endress Hauser
• Model: Endress Hauser Proline Promass 83P Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter: “DN 8…50，3/8″…2”
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
• Pressure range： PN 16…40、Cl 150…300、JIS 20…40K

Endress Hauser Proline Promass 83P Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated for applications under sterile conditions in the life sciences industry
Device properties
• ASME BPE, 3A and EHEDG conform & low delta ferrite
• Electropolished measuring tube in 1.4435 (316L)
• Fast recovery from CIP/SIP
• Device in compact or remote version
Promass 83
• 4-line backlit display with touch control
• HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP

Your benefits
• Highest process quality – fully compliant to industry enquirements
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
Promass 83
• Quality – software for filling & dosing, density & concentration, advanced diagnostics (Promass 83)
• Flexible data transfer options – numerous communication types
• Automatic recovery of data for servicing

endress-hauser-proline-promass-83p-coriolis-mass-flowmeter

mass flowmeter

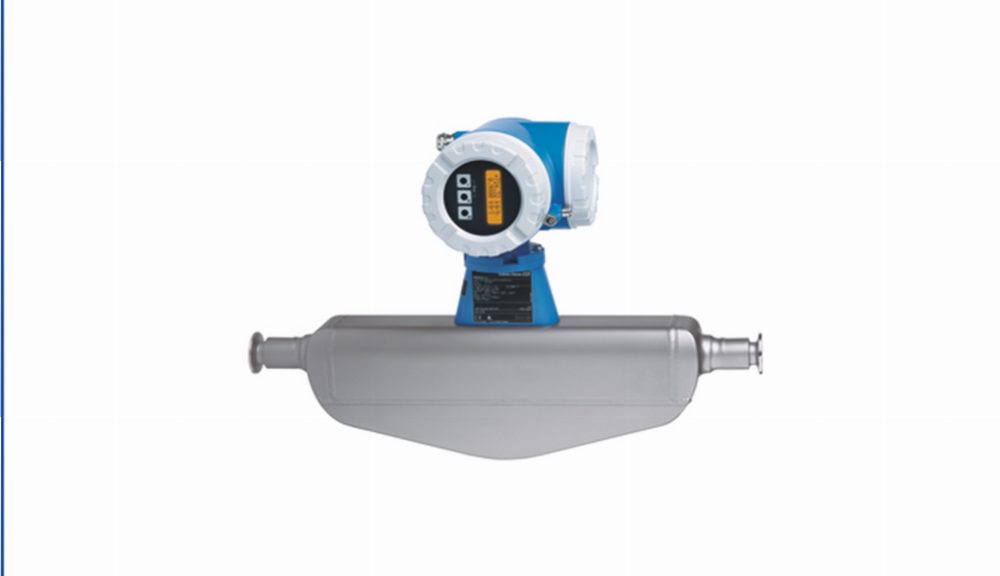

mass flowmeter Endress Hauser Proline Promass 80P offers a cost effective solution for applications in sterile environments in the life sciences industry.

• Brand : Endress Hauser
• Model: Endress Hauser Proline Promass 80P Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter: “DN 8…50，3/8″…2”
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density
• Pressure range： PN 16…40、Cl 150…300、JIS 20…40K

Endress Hauser Proline Promass 80P Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Dedicated for applications under sterile conditions in the life sciences industry
Device properties
• ASME BPE, 3A and EHEDG conform & low delta ferrite
• Electropolished measuring tube in 1.4435 (316L)
• Fast recovery from CIP/SIP
• Device in compact or remote version
Promass 83
• 4-line backlit display with touch control
• HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP

Your benefits
• Highest process quality – fully compliant to industry enquirements
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
Promass 83
• Quality – software for filling & dosing, density & concentration, advanced diagnostics (Promass 83)
• Flexible data transfer options – numerous communication types
• Automatic recovery of data for servicing

endress-hauser-proline-promass-80p-coriolis-mass-flowmeter

mass flowmeter

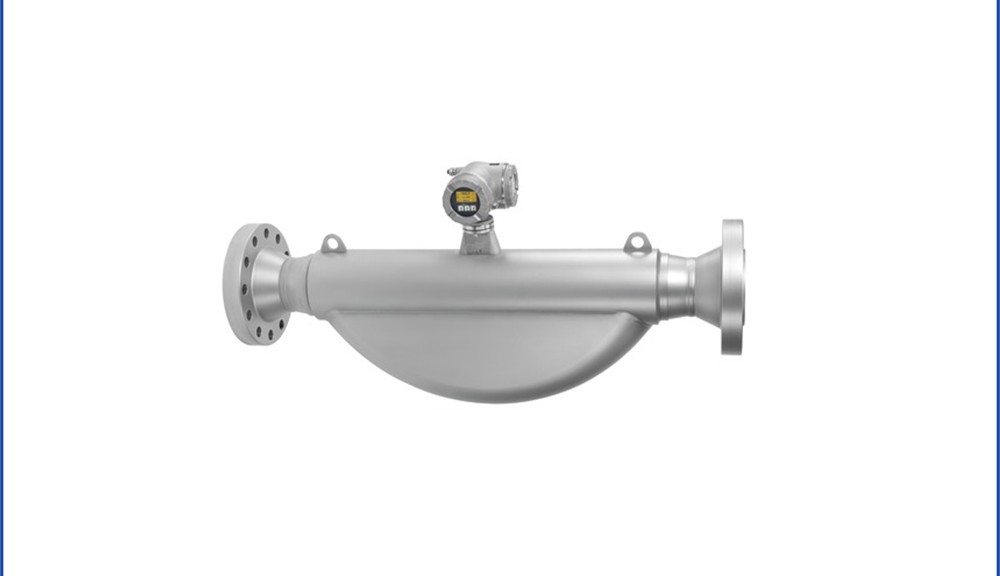

mass flowmeter Endress Hauser Proline Promass 83O robust high-pressure flowmeter with extended transmitter functionality.

• Brand :Endress Hauser
• Model:Endress Hauser Proline Promass 83O Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter:DN 80 to 150 (3 to 6″)
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Endress Hauser Proline Promass 83O Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• For premium accuracy and highest process pressures; fully suitable for offshore conditions
Device properties
• Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750)
• Process pressure up to PN 250, Class 1500
• Nominal diameter: DN 80 to 150 (3 to 6″)
• 4-line backlit display with touch control
• Device in compact or remote version
• HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP

Your benefits
• Maximum safety – highest resistance to stress corrosion cracking
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Quality – software for filling & dosing, density & concentration, advanced diagnostics
• Flexible data transfer options – numerous communication
types
• Automatic recovery of data for servicing

endress-hauser-proline-promass-83o-coriolis-mass-flowmeter

mass flowmeter

mass flowmeter Endress Hauser Proline Promass 83I is combines in-line viscosity and flow measurement with extended transmitter functionality

• Brand :Endress Hauser
• Model:Endress Hauser Proline Promass 83I Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter:”DN 8…80，5/16″…3″
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity

Endress Hauser Proline Promass 83I Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment
Device properties
• Straight, easy cleanable single-tube system
• TMB® technology
• Measuring tube made of Titanium
• Device in compact or remote version
Promass 83
• 4-line backlit display with touch control
• HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP

Your benefits
• Energy-saving – full bore design enables minimal pressure loss
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
Promass 83
• Quality – software for filling & dosing, density & concentration, advanced diagnostics
• Flexible data transfer options – numerous communication types
• Automatic recovery of data for servicing

endress-hauser-proline-promass-83i-coriolis-mass-flowmeter

mass flowmeter

mass flowmeter Endress Hauser Proline Promass 80I is the straight single-tube flowmeter with a compact or remote transmitter.

• Brand :Endress Hauser
• Model:Endress Hauser Proline Promass 80I Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter:”DN 8…80，5/16″…3″
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density

Endress Hauser Proline Promass 80I Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment
Device properties
• Straight, easy cleanable single-tube system
• TMB® technology
• Measuring tube made of Titanium
• Device in compact or remote version
Promass 83
• 4-line backlit display with touch control
• HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP

Your benefits
• Energy-saving – full bore design enables minimal pressure loss
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
Promass 83
• Quality – software for filling & dosing, density & concentration, advanced diagnostics
• Flexible data transfer options – numerous communication types
• Automatic recovery of data for servicing

endress-hauser-proline-promass-80i-coriolis-mass-flowmeter

mass flowmeter

mass flowmeter Endress Hauser Proline Promass 83H is the chemically resistant single-tube flowmeter with extended transmitter functionality.

• Brand :Endress Hauser
• Model:Endress Hauser Proline Promass 83H Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter:”DN 8…50，5/16″…2″
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Endress Hauser Proline Promass 83H Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring highly accurately liquids and gases in applications requiring highest corrosion resistance
Device properties
• Measuring tube made of Tantalum, Zirconium
• Nominal diameter: DN 8 to 50 (³⁄₈ to 2″)
• Medium temperature up to +200 °C (+392 °F)
• 4-line backlit display with touch control (Promass 83)
• Device in compact or remote version
• HART,PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP
(Promass 83)

Your benefits
• Maximum safety for chemically aggressive fluids – corrosionresistant wetted parts
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Safe operation – display provides easy readable process information
• Quality – software for filling & dosing, density & concentration, advanced diagnostics (Promass 83)
• Automatic recovery of data for servicing
• Fully industry compliant – IEC/EN/NAMUR

endress-hauser-proline-promass-83h-coriolis-mass-flowmeter

mass flowmeter

mass flowmeter Endress Hauser Proline Promass 80H is the chemically resistant single-tube flowmeter with a compact or remote transmitter

• Brand :Endress Hauser
• Model:Endress Hauser Proline Promass 80H Coriolis mass flowmeter
• Measuring principle:Coriolis force
• Diameter:”DN 8…50，5/16″…2″
• Measured variables: Mass flow, density, temperature, volume flow, corrected volume flow, reference density

Endress Hauser Proline Promass 80H Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid properties such as viscosity or density
• Measuring highly accurately liquids and gases in applications requiring highest corrosion resistance
Device properties
• Measuring tube made of Tantalum, Zirconium
• Nominal diameter: DN 8 to 50 (³⁄₈ to 2″)
• Medium temperature up to +200 °C (+392 °F)
• 4-line backlit display with touch control (Promass 83)
• Device in compact or remote version
• HART,PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP
(Promass 83)

Your benefits
• Maximum safety for chemically aggressive fluids – corrosionresistant wetted parts
• Fewer process measuring points – multivariable measurement (flow, density, temperature)
• Space-saving installation – no in/outlet run needs
• Safe operation – display provides easy readable process information
• Quality – software for filling & dosing, density & concentration, advanced diagnostics (Promass 83)
• Automatic recovery of data for servicing
• Fully industry compliant – IEC/EN/NAMUR

endress-hauser-proline-promass-80h-coriolis-mass-flowmeter
