Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Dosimag will be the preferred choice for system integrators, skid builders and equipment manufacturers.

Brand :Endress Hauser

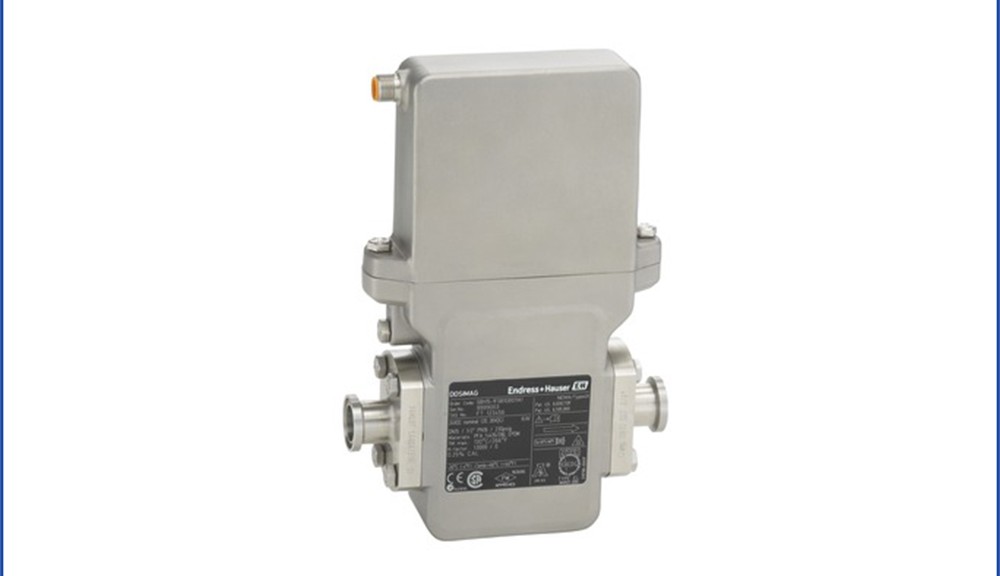

Model: Endress Hauser Dosimag Electromagnetic Flowmeter
Diameter：”DN 04…15，DN 5/32″…1/2″
Measurement error：± 0.2% (1 … 4m / s) ± 0.5% ± 5%, uncalibrated
Range:”0…1.66 l/s; 0…0.44 US-pgs”
Pressure range: PN16
Process Temperature:-20…+130℃
Output: Pulse / status

Endress Hauser Dosimag Electromagnetic Flowmeter

Application
• The measuring principle is practically independent of pressure, density, temperature and viscosity
• For demanding batching and dosing applications
Device properties
• Wetted materials suitable for CIP/SIP cleaning
• Nominal diameter: DN 4 to 25 (¹⁄₈ to 1″)
• FDA-compliant measuring device
• Pulse/frequency/switch output, Modbus RS485
• ATEX, cCSAus
• Excellent and easy-to-clean transmitter

Your benefits
• High process safety – high measuring accuracy and repeatability in shortest filling time
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Versatile and time‐saving wiring – plug connector
• Industry‐optimized – ultra‐compact design
• For hygiene requirements – stainless steel housing

endress-hauser-dosimag-electromagnetic-flowmeter

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 55S with its high performance transmitter in combination with its robust sensor design.

Brand :Endress Hauser

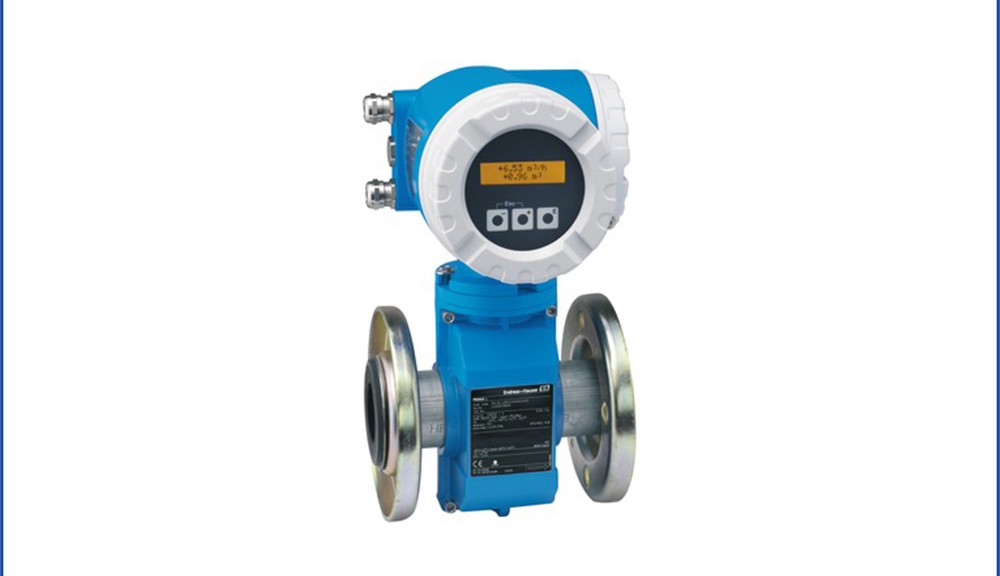

Model: Endress Hauser Electromagnetic Flowmeter Proline Promag 55S
Diameter：”DN 15…600，1/2″…24″
Measurement error：±0.2%
Range:0…9’600 m3/h
Pressure range: PN10…40、Cl 150…300、JIS 10…20K
Process Temperature:-40…+180℃
Output: 4 … 20mA (active / passive), pulse / frequency output (active / passive), two status outputs
Input:State input, current input

Endress Hauser Electromagnetic Flowmeter Proline Promag 55S

Application

• Chemical/mechanical pulps, paper pulp or wood pulp with solids contents up to 15 Vol.-%
• Fruit mashes, fruit concentrates and final products (salad dressings, soups with vegetable pieces)
• Slurries containing high amounts of sand or stone with an abrasive effect, e.g. ore slurry or mortar
• Chemically inhomogeneous fluids (e.g. additives)
• Thick wastewater sludges
• Flow measurement up to 9600 m/h
(42267 gal/min)
• Can be used up to +180 °C (+356 °F) and max. 40 bar (580 psi)
• Fitting lengths as per DVGW/ISO
Application-specific linings and electrodes:
• Natural rubber, hard rubber, polyurethane, PTFE or PFA linings
• Flat, bullet nose, neck, bow or brush electrodes

Your benefits

Promag measuring devices offer you cost-effective flow measurement with a high degree of accuracy for a wide range of process conditions.
The Proline transmitter concept comprises of:
• High degree of efficiency due to the modular device and operating concept
• Software options for: electrode cleaning, advanced diagnostics, calculation of mass flow and solids content
The robust Promag S sensors offer:
• Universal devices, even for difficult fluids
• Excellent accuracy and repeatability
• High resistance to abrasion thanks to industryoptimized linings and measuring electrodes
• Optimum operational safety due to advanced, permanent self-diagnosis
• Simple installation and commissioning
• Insensitive to vibration
• No pressure loss

endress-hauser-electromagnetic-flowmeter-proline-promag-55s

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 55H offers highest accuracy in the most complex and demanding measuring tasks.

Brand :Endress Hauser
Model: Endress Hauser Electromagnetic Flowmeter Proline Promag 55H
Diameter：DN 2…150
1/12″…6″
Measurement error：±0.25%
Range:0…600 m3/h
Pressure range: PN16…40
Process Temperature:-20…+150°C
(-4…+302°F)
Output: 4…20 mA
Pulse / frequency(active/passive)
Relais
Status
Input:Status
Current input

Endress Hauser Electromagnetic Flowmeter Proline Promag 55H

Application

Electromagnetic flowmeter for bidirectional measurement of liquids with a minimum conductivity of
≥ 5 μS/cm – in particular fluids that are not
homogeneous, fluids with entrained solids or fluids that tend to produce buildup, for example:
• Fruit mashes, fruit concentrates and final products
(salad dressings, soups with vegetable pieces)
• Beverages, e.g. fruit juice, beer, wine
• Dairy products, fruit juice mixes
• Saline solutions
• Acid, alkalis etc.
• Chemically inhomogeneous fluids (e.g. additives)
• Flow measurement up to 600 m³/h
(2650 gal/min)
• Fluid temperature up to +150 °C (+302 °F)
• Process pressures up to 40 bar (580 psi)
• Fitting lengths as per DVGW/ISO
• CIP-/SIP cleaning
• Stainless steel housing

The tried-and-tested Promag sensors offer:

• Excellent accuracy and repeatability
• Optimum operational safety due to advanced, permanent self-diagnosis
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning

endress-hauser-electromagnetic-flowmeter-proline-promag-55h

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 53P offers highest accuracy in the most complex and demanding measuring tasks.

Brand :Endress Hauser
Diameter：”DN 15…600，1/2″…24″
Measurement error：Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Range:9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d)
Pressure range: PN 16, Class 150
Process Temperature:Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Output: 4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency (passive)
Relay output
Switch output (passive)
Input:2 modular inputs:
Status input
0‐20 mA (aktiv)/4‐20 mA (aktiv/passiv)

Benefits

Versatile applications – wide variety of wetted materials
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Quality – software for filling and dosing, density, electrode cleaning and also advanced diagnostics
Easy calculation – bidirectional totalizers
Automatic recovery of data for servicing
Maintenance-free – no moving parts

Field of application

The measuring principle is virtually independent of pressure, density, temperature and viscosity
Dedicated for chemical and process applications with corrosive liquids and high medium temperatures.
Device properties

Nominal diameter: max. DN 600 (24″)
All common Ex approvals
Liner made of PTFE or PFA
4-line backlit display with touch control
Device in compact or remote version
HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP

endress-hauser-electromagnetic-flowmeter-proline-promag-53p

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 53H offers highest accuracy in the most complex and demanding measuring tasks.

Brand :Endress Hauser

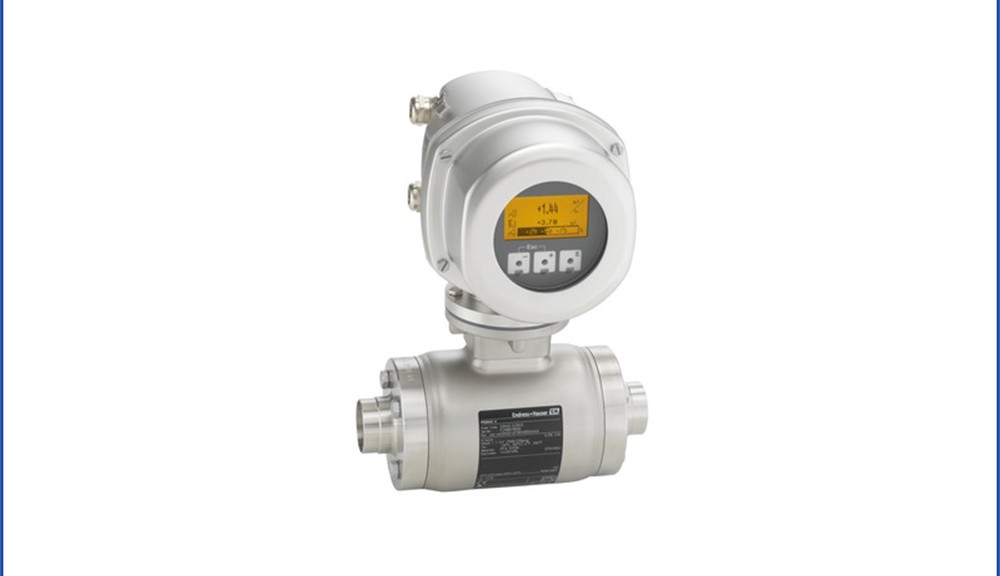

Model: Endress Hauser Electromagnetic Flowmeter Proline Promag 53H
Diameter：”DN 2…100，1/12″…4″
Measurement error：± 0.2%
Range:0…282 m3/h
Pressure range: PN16…40
Process Temperature:-20…+150℃
Output: 4 … 20 mA pulse / frequency (active / passive), relays, status
Input:State input, current input

Endress Hauser Electromagnetic Flowmeter Proline Promag 53H

Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• For the smallest flow quantities and demanding hygienic applications
Device properties
• Liner made of PFA
• Sensor housing made of stainless steel (3-A, EHEDG)
• Wetted materials CIP, SIP cleanable
• Device in compact or remote version
Promag 53
• 4-line backlit display with touch control
• HART, PROFIBUS PA/DP, Modbus RS485, FF, EtherNet/IP

Your benefits
• Flexible installation concept – numerous hygienic process connections
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
Promag 53
• Quality – software for filling & dosing, density, electrode cleaning and also advanced diagnostics
• Easy calculation – bidirectional totalizers
• Automatic recovery of data for servicing

endress-hauser-electromagnetic-flowmeter-proline-promag-53h

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 53L offers highest accuracy in the most complex and demanding measuring tasks.

Brand :Endress Hauser
Model: Endress Hauser Electromagnetic Flowmeter Proline Promag 53L
Diameter：Lap joint flange; lap joint flange, stamped plate: DN 25 to 300 (1 to 12″)
Fixed flange: DN 350 to 2400 (14 to 90″)
Measurement error：Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Range:9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d)
Pressure range: PN 16, Class 150
Process Temperature:Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Output: 4 modular outputs:
0‐20 mA (active)/4‐20 mA (active/passive)
Pulse/frequency (passive)
Relay output
Switch output (passive)
Input:2 modular inputs:
Status input
0‐20 mA (aktiv)/4‐20 mA (aktiv/passiv)

Endress Hauser Electromagnetic Flowmeter Proline Promag 53L

These Brief Operating Instructions are not intended to replace the Operating Instructions provided in the scope of supply.
Detailed information is provided in the Operating Instructions
and the additional documentation on the CD-ROM supplied.
The complete device documentation consists of:
• These Brief Operating Instructions
• Depending on the device version:
– Operating Instructions and the Description of Device Funct.
– Approvals and safety certificates
– Special safety instructions in accordance with the approvals
for the device (e.g. explosion protection, pressure
equipment directive, etc.)
– Additional device-specific information
