Flowmeters, Endress+Hauser, Electromagnetic Flowmeter

Endress Hauser Electromagnetic Flowmeter Proline Promag 10P

Leave a comment

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 10P will be the preferred solution for customers aiming for minimized cost of ownership.

  • Brand :Endress Hauser
  • Diameter：”DN 25…300，1″…12″
  • Measurement error：±0.5%
  • Range:0…2’400 m3/h
  • Pressure range: PN10…40，Cl 150，JIS 10…20K，AS 2129 E
  • Process Temperature: -40…+130℃(266℉)
  • Output: 4‐20 mA
  • Input:None

Application
Electromagnetic flowmeter for bidirectional measurement of liquids with a minimum
conductivity of ≥ 50 μS/cm:
• Acid, alkalis
• Paints
• Pastes
• Water, wastewater etc.
• Flow measurement up to 9600 m³/h (42268 gal/min)
• Fluid temperature up to +130 °C (266 °F)
• Process pressures up to 40 bar (580 psi)
• Lengths in accordance with DVGW/ISO
Application-specific lining material:
• PTFE

Your benefits
Promag measuring devices offer you cost-effective flow measurement with a high degree of accuracy for a wide range of process conditions.
The uniform Proline transmitter concept comprises:
• High degree of reliability and measuring stability
• Uniform operating concept
The tried-and-tested Promag sensors offer:
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning

Flowmeters, Endress+Hauser, Electromagnetic Flowmeter

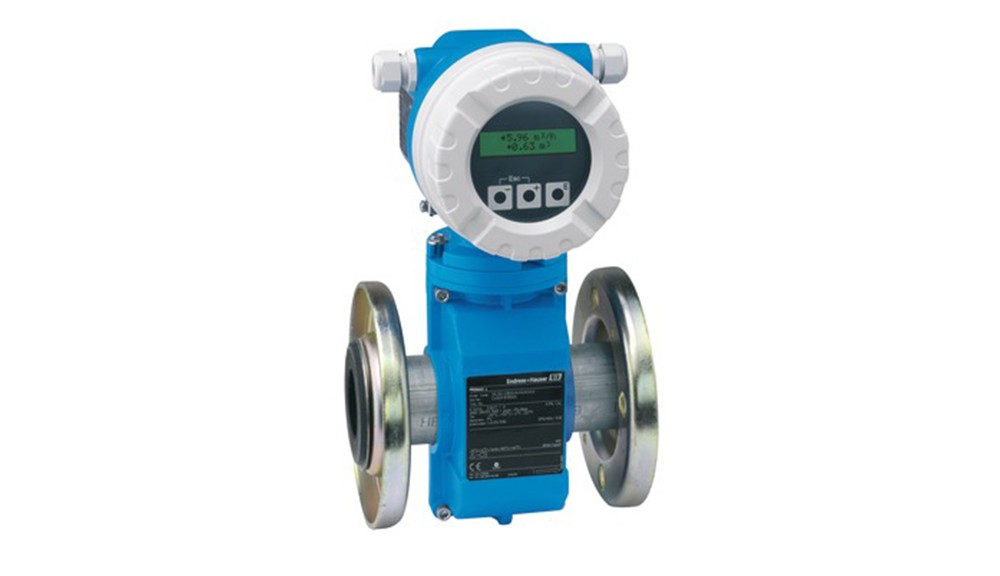

Endress Hauser Electromagnetic Flowmeter Proline Promag 10L

Leave a comment
  • Brand :Endress Hauser
  • Model:Endress Hauser Electromagnetic Flowmeter Proline Promag 10L
  • Diameter：Lap joint flange; lap joint flange, stamped plate: DN 25 to 300 (1 to 12″)
    Fixed flange: DN 350 to 2400 (14 to 90″)
  • Measurement error：Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)
  • Range: 9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d)
  • Pressure range: PN 16, Class 150
  • Process Temperature: Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
    Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
    Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
  • Output: 4‐20 mA HART (active)
    Pulse/switch output (passive)
  • Input:None

Endress Hauser Electromagnetic Flowmeter Proline Promag 10L

Application
• The measuring principle is virtually independent of pressure,
density, temperature and viscosity
• Fully suitable for standard applications in the water and
wastewater industry
Device properties
• Up to 30 % less sensor weight
• Nominal diameter: DN 25 to 2400 (1 to 90″)
• Maximum reduced installation length to DVGW/ISO
• 2-line display with push buttons
• Device in compact or remote version
• HART

Your benefits
• Reduced installation costs – flexible mounting by one-of-akind
lap-joint flange concept (DN < 350/14″)
• Energy-saving flow measurement – no pressure loss due to
cross-section constriction
• Maintenance-free – no moving parts
• Cost-effective – designed for easy applications and direct
integration
• Safe operation – display provides easy readable process
information
• Fully industry compliant – IEC/EN/NAMUR

Flowmeters, Endress+Hauser, Electromagnetic Flowmeter

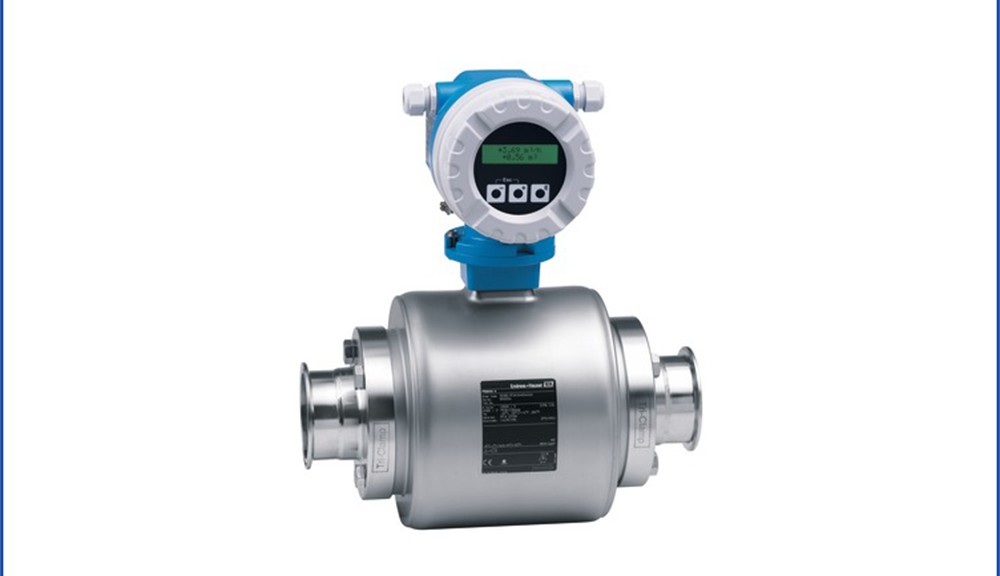

Endress Hauser Electromagnetic Flowmeter Proline Promag 10H

Leave a comment

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 10H offers accurate measurement of liquids for a wide range of applications.

  • Brand :Endress Hauser
  • Model:Endress Hauser Electromagnetic Flowmeter Proline Promag 10H
  • Diameter：”DN 2…100，1/12″…4″
  • Measurement error：±0.5%
  • Range: 0…282 m3/h
  • Pressure range: PN16…40
  • Process Temperature: -20…+150℃(176℉)
  • Output: 4 … 20mA Pulse / status
  • Input:None

Application
• The measuring principle is virtually independent of pressure,
density, temperature and viscosity
• For the smallest flow quantities and demanding hygienic
applications
Device properties
• Liner made of PFA
• Sensor housing made of stainless steel (3-A, EHEDG)
• Wetted materials CIP, SIP cleanable
• 2-line display with push buttons
• Device in compact or remote version
• HART

Your benefits
• Flexible installation concept – numerous hygienic process
connections
• Energy-saving flow measurement – no pressure loss due to
cross-section constriction
• Maintenance-free – no moving parts
• Cost-effective – designed for easy applications and direct
integration
• Safe operation – display provides easy readable process
information
• Fully industry compliant – IEC/EN/NAMUR

Flowmeters, Endress+Hauser, Electromagnetic Flowmeter

Endress Hauser Electromagnetic Flowmeter Proline Promag 10E

Leave a comment

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 10E offers accurate measurement of liquids for a wide range of applications.

  • Brand :Endress Hauser
  • Model:Endress Hauser Electromagnetic Flowmeter Proline Promag 10E
  • Diameter：DN 15 to 600 (½ to 24″)
  • Measurement error：Volume flow: ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
  • Range: 4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)
  • Pressure range: PN 40, Class 150, 20K
  • Process Temperature: –10 to +110 °C (+14 to +230 °F)
  • Output:4‐20 mA HART (active)
    Pulse/switch output (passive)
  • Input:None

Endress Hauser Electromagnetic Flowmeter Proline Promag 10E

Application
• The measuring principle is virtually independent of pressure,
density, temperature and viscosity
• Fully suitable for basic applications in the chemical and
process industry
Device properties
• Nominal diameter: max. DN 600 (24″)
• All common process connections
• Liner made of PTFE
• 2-line display with push buttons
• Device in compact or remote version
• HART

Your benefits
• Cost-effective sensor – ideal solution for basic requirements
• Energy-saving flow measurement – no pressure loss due to
cross-section constriction
• Maintenance-free – no moving parts
• Cost-effective – designed for easy applications and direct
integration
• Safe operation – display provides easy readable process
information
• Fully industry compliant – IEC/EN/NAMUR

Flowmeters, Endress+Hauser, Electromagnetic Flowmeter

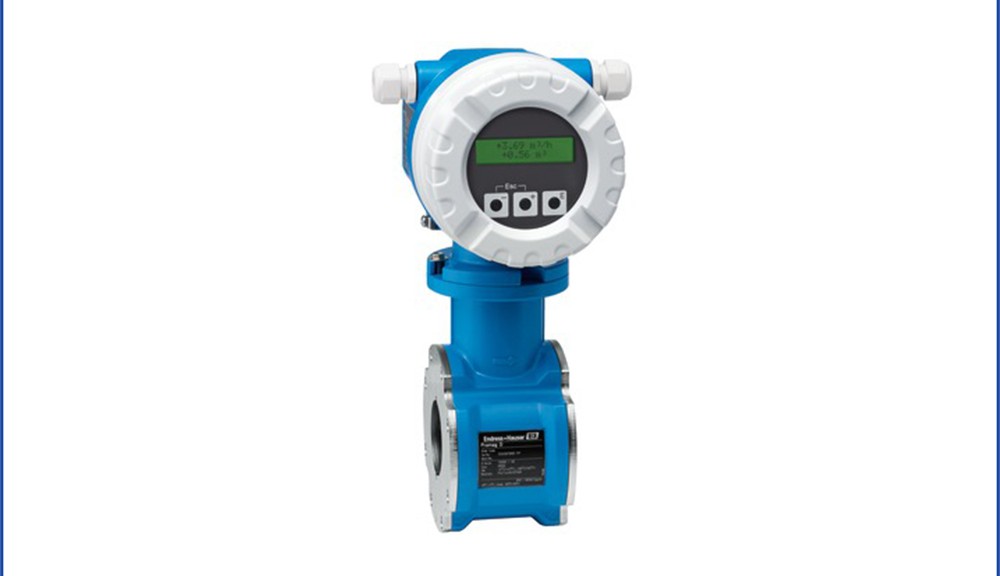

Endress Hauser Electromagnetic Flowmeter Proline Promag 10D

Leave a comment

Electromagnetic Flowmeter

Electromagnetic Flowmeter Promag 10D is the ideal solution for measurement of liquids for various applications and available in a compact or remote version.

  • Brand :Endress Hauser
  • Model:Endress Hauser Electromagnetic Flowmeter Proline Promag 10D
  • Diameter：DN 25 to 100 (1 to 4″)
  • Measurement error：Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)
  • Range: 9 to 4700 dm3/min (2.5 to 1250 gal/min)
  • Pressure range: PN 16, Class 150, 10K
  • Process Temperature: 0 to +60 °C (+32 to +140 °F)
  • Output:4‐20 mA HART (active)
    Pulse/switch output (passive)
  • Input:None

Endress Hauser Electromagnetic Flowmeter Proline Promag 10D

Application
• The measuring principle is virtually independent of pressure,
density, temperature and viscosity
• For basic water applications; optimized for limited space and
plastic pipe installations
Device properties
• Short installation length and low weight
• Integrated ground disks made of stainless steel
• International drinking water approvals
• 2-line display with push buttons
• Device in compact or remote version
• HART

Your benefits
• Easy, fast centering of the sensor – innovative housing
construction
• Energy-saving flow measurement – no pressure loss due to
cross-section construction
• Maintenance-free – no moving parts
• Cost-effective – designed for easy applications and direct
integration
• Safe operation – display provides easy readable process
information
• Fully industry compliant – IEC/EN/NAMUR

Flowmeters, Endress+Hauser, Coriolis Mass Flowmeter

Endress Hauser Proline Promass S 100 Coriolis mass flowmeter

Leave a comment

mass flowmeter

mass flowmeter Endress Hauser Proline Promass S 100 is easy-to-clean flowmeter with self-drainable single-tube system and an ultracompact transmitter.

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Promass S 100 Coriolis mass flowmeter
  • Diameter：DN 8 to 50 (⅜ to 2″)
  • Measurement error：Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.5 %
    Density (liquid): ±0.0005 g/cm³
  • Range:0 to 70 000 kg/h (0 to 2570 lb/min)
  • Pressure range:PN 40, Class 150, 20K
  • Process Temperature: –50 to +150 °C (–58 to +302 °F)
  • Output:4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None

Endress Hauser Proline Promass S 100 Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Specially designed for applications requiring optimum
cleanability under hygienic conditions
Device properties
• Large range of hygienic process connections
• 3-A and EHEDG compliance
• Fast recovery from CIP/SIP
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available

Your benefits
• Reduced installation costs – fully self-drainable tube design
enables compact horizontal mounting
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space‐saving installation – no inlet/outlet run needs
• Space‐saving transmitter – full functionality on smallest
footprint
• Time‐saving local operation without additional software and
hardware – integrated web server
• Integrated verification – Heartbeat Technology™

Flowmeters, Endress+Hauser, Coriolis Mass Flowmeter

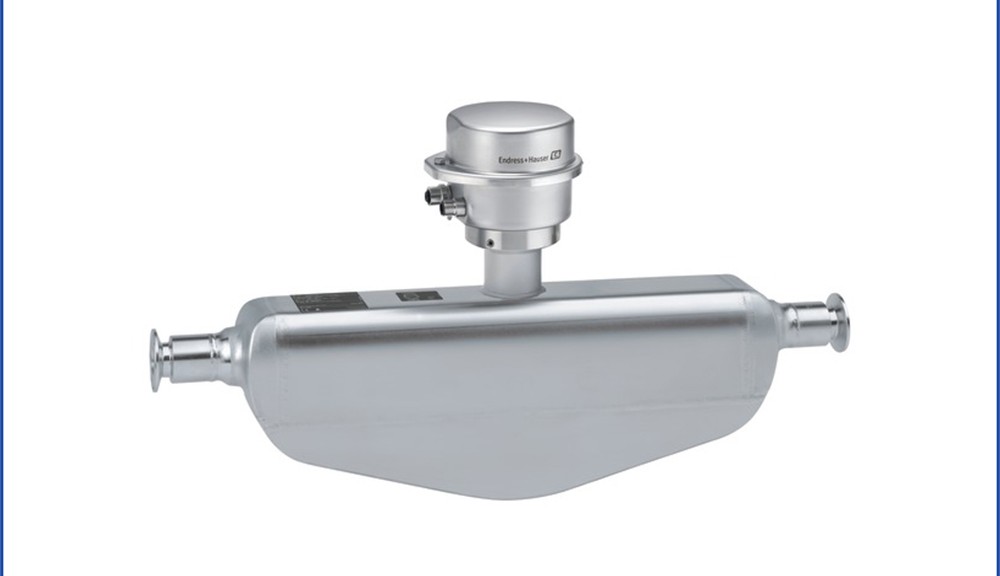

Endress Hauser Proline Promass P 100 Coriolis mass flowmeter

Leave a comment

mass flowmeter

mass flowmeter Endress Hauser Promass P 100 can be used to measure the minimum flow, especially for small space sterile environment.

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Promass P 100 Coriolis mass flowmeter
  • Diameter：DN 8 to 50 (⅜ to 2″)
  • Measurement error：Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.5 %
    Density (liquid): ±0.0005 g/cm³
  • Range:0 to 70 000 kg/h (0 to 2570 lb/min)
  • Pressure range:PN 63, Class 300, 40K
  • Process Temperature: Standard: –50 to +150 °C (–58 to +302 °F)
    Option: –50 to +205 °C (–58 to +401 °F)
  • Output:4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None

Endress Hauser Proline Promass P 100 Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Designed for applications under sterile conditions in the life
sciences industry
Device properties
• ASME BPE, 3-A, EHEDG compliant & low delta-ferrite
• Electropolished measuring tube in 1.4435 (316L)
• Fast recovery from CIP/SIP
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available

Your benefits
• Highest process quality – fully compliant with industry
requirements
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space‐saving installation – no inlet/outlet run needs
• Space‐saving transmitter – full functionality on smallest
footprint
• Time‐saving local operation without additional software and
hardware – integrated web server
• Integrated verification – Heartbeat Technology™

Flowmeters, Endress+Hauser, Coriolis Mass Flowmeter

Endress Hauser Proline Promass O 100 Coriolis mass flowmeter

Leave a comment

mass flowmeter

mass flowmeter Endress Hauser Proline Promass O 100 is the robust high-pressure flowmeter with an ultra-compact transmitter.

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Promass O 100 Coriolis mass flowmeter
  • Diameter：DN 80 to 250 (3 to 10″)
  • Measurement error：Mass flow (liquid): ±0.1 (standard), 0.05 % (option)
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 %
    Density (liquid): ±0.0005 g/cm³
  • Range:0 to 800 000 kg/h (0 to 29 400 lb/min)
  • Pressure range:PN 250, Class 1500
  • Process Temperature: –40 to +205 °C (–40 to +401 °F)
  • Output:4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None

Endress Hauser Proline Promass O 100 Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Premium accuracy at highest process pressures, fully
suitable for onshore/offshore conditions
Device properties
• Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750)
• Process pressure up to PN 250 (Class 1500)
• Nominal diameter: DN 80 to 150 (3 to 6″)
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available

Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Premium accuracy at highest process pressures, fully
suitable for onshore/offshore conditions
Device properties
• Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750)
• Process pressure up to PN 250 (Class 1500)
• Nominal diameter: DN 80 to 150 (3 to 6″)
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available

Flowmeters, Endress+Hauser, Coriolis Mass Flowmeter

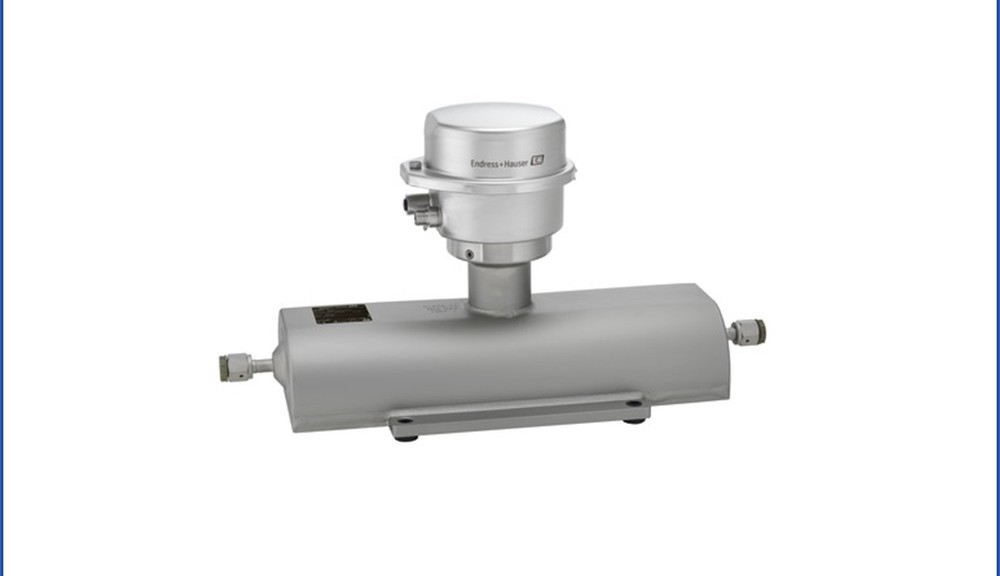

Endress Hauser Proline Promass I 100 Coriolis mass flowmeter

Leave a comment

mass flowmeter

mass flowmeter Endress Hauser Proline Promass I 100 can be used to measures mass flow, density and temperature, and can also measure viscosity on-line.

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Promass I 100 Coriolis mass flowmeter
  • Diameter：DN 8 to 80 (3/8 to 3″)
  • Measurement error：Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.5 %
    Density (liquid): ±0.0005 g/cm3
  • Range:0 to 180 000 kg/h (0 to 6600 lb/min)
  • Pressure range:PN 100, Class 600, 63K
  • Process Temperature: –50 to +150 °C (–58 to +302 °F)
  • Output:4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None

Endress Hauser Proline Promass I 100 Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Liquid and gas measurement in applications requiring low
pressure loss and sensitive handling of the medium
Device properties
• Straight, easy-to-clean single-tube system
• Titanium measuring tube
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available

Your benefits
• Energy-saving – full bore design enables minimal pressure
loss
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space‐saving installation – no inlet/outlet run needs
• Space‐saving transmitter – full functionality on smallest
footprint
• Time‐saving local operation without additional software and
hardware – integrated web server

Flowmeters, Endress+Hauser, Coriolis Mass Flowmeter

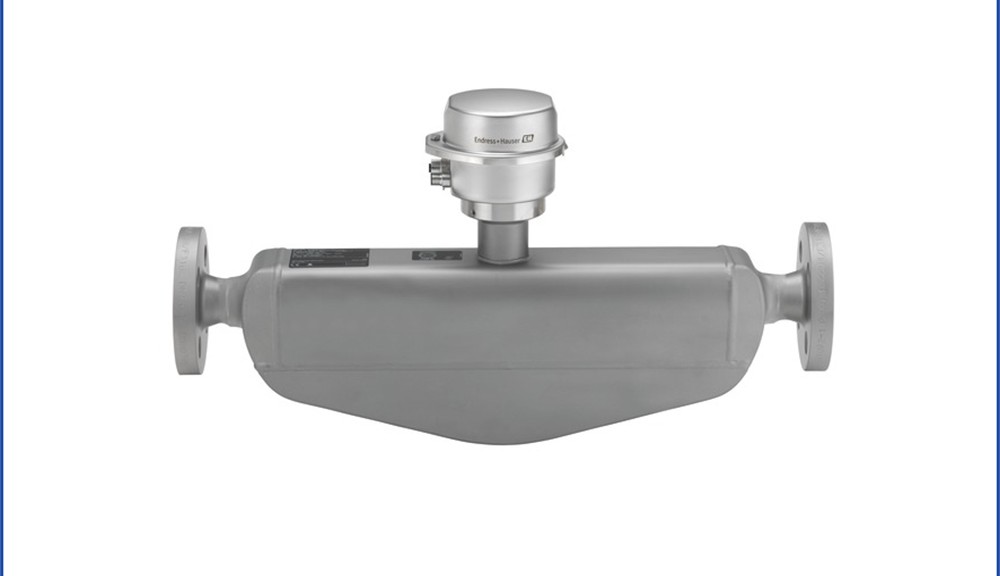

Endress Hauser Proline Promass H 100 Coriolis mass flowmeter

Leave a comment

mass flowmeter

mass flowmeter Endress Hauser Proline Promass H 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers.

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Promass H 100 Coriolis mass flowmeter
  • Diameter：DN 8 to 50 (3/8 to 2″)
  • Measurement error：Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas, Tantalum only): ±0.5 %
    Density (liquid): ±0.0005 g/cm3
  • Range:0 to 70 000 kg/h (0 to 2570 lb/min)
  • Pressure range:PN 40, Class 300, 20K
  • Pulse/frequency/switch output (passive)
  • Input:None

Endress Hauser Proline Promass H 100 Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Highly accurate measurement of liquids and gases in
applications requiring excellent corrosion resistance
Device properties
• Measuring tube made of tantalum and zirconium
• Nominal diameter: DN 8 to 50 (3/8 to 2″)
• Medium temperature up to +200 °C (+392 °F)
• Robust, ultra-compact transmitter housing
• Highest degree of protection: IP69K
• Local display available

Your benefits
• Maximum safety for chemically aggressive fluids –
corrosion-resistant wetted parts
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space‐saving installation – no inlet/outlet run needs
• Space‐saving transmitter – full functionality on smallest
footprint
• Time‐saving local operation without additional software and
hardware – integrated web server
• Integrated verification – Heartbeat Technology™

Flowmeters, Endress+Hauser, Coriolis Mass Flowmeter

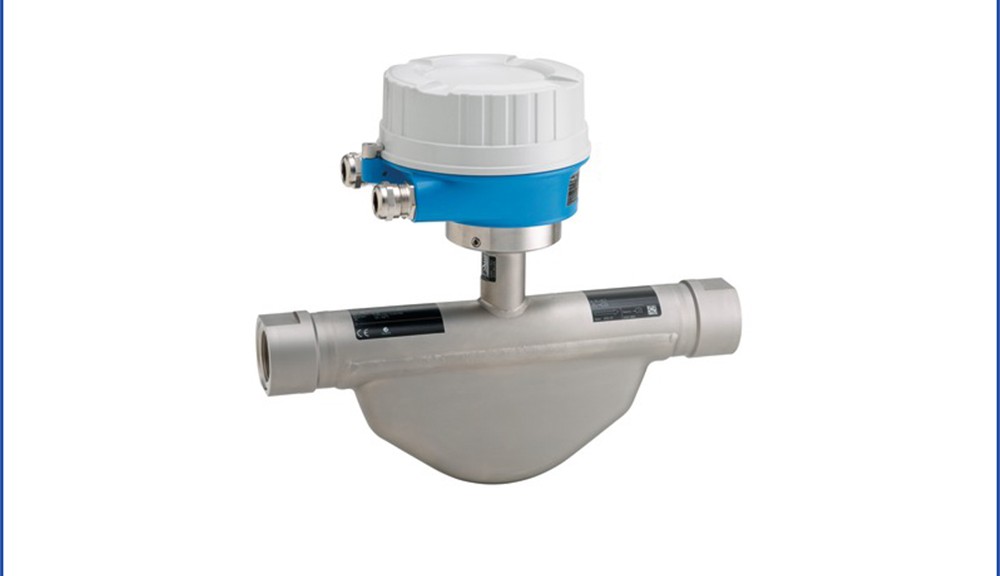

Endress Hauser Proline Promass G 100 Coriolis mass flowmeter

Leave a comment

mass flowmeter

mass flowmeter Endress Hauser Proline Promass G 100 is the extremely compact high-pressure sensor with ultra-compact transmitter.

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Promass G 100 Coriolis mass flowmeter
  • Diameter：DN 8 to 25 (⅜ to 1″)
  • Measurement error：Mass flow (liquid): ±0.15 %
    Volume flow (liquid): ±0.15 %
    Mass flow (gas): ±0.75 %
    Density (liquid): ±0.0005 g/cm³
  • Range:0 to 18 000 kg/h (0 to 662 lb/min)
  • Pressure range:350 bar (5080 psi)
  • Process Temperature: –50 to +150 °C (–58 to +302 °F)
  • Output:4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None

Endress Hauser Proline Promass G 100 Coriolis mass flowmeter

Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Accurate measurement of liquids and gases in high-pressure
applications
Device properties
• Internal threads as process connection
• Process pressure up to 350 bar (5080 psi)
• Rupture disc available
• Robust, ultra-compact transmitter housing
• Pre-configured plug connector
• Local display available

Your benefits
• Easy and safe process Integration – threaded connections
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space‐saving installation – no inlet/outlet run needs
• Space‐saving transmitter – full functionality on smallest
footprint
• Time‐saving local operation without additional software and
hardware – integrated web server
• Integrated verification – Heartbeat Technology™

Flowmeters, Endress+Hauser, Coriolis Mass Flowmeter

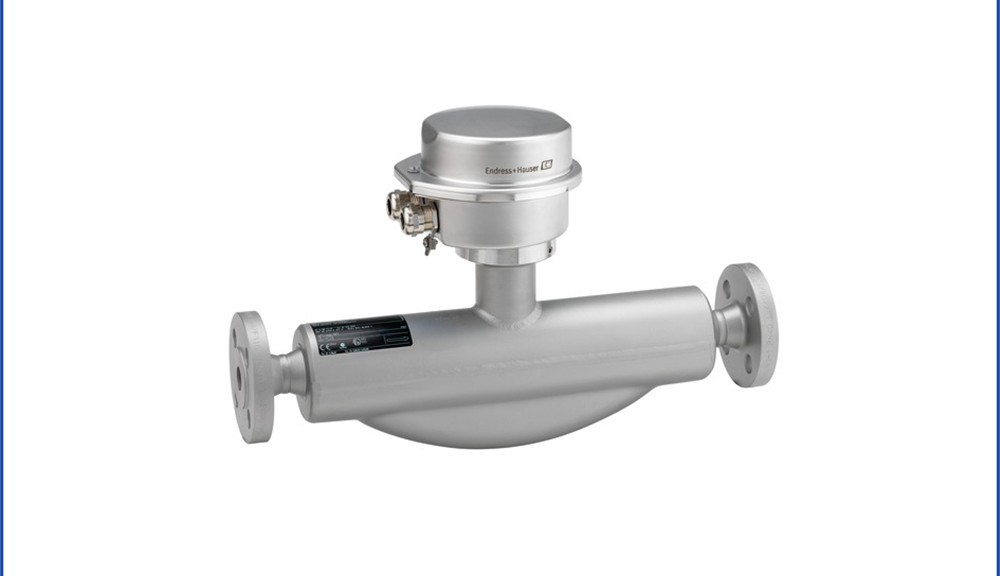

Endress Hauser Proline Promass F 100 Coriolis mass flowmeter

Leave a comment

mass flowmeter

Endress Hauser Proline Promass F 100 Coriolis mass flowmeter with premium accuracy, robustness and an ultra-compact transmitter.

  • Brand :Endress Hauser
  • Model:Endress Hauser Proline Promass F 100 Coriolis mass flowmeter
  • Diameter：DN 8 to 250 (3/8 to 10″)
  • Measurement error：Mass flow (liquid): ±0.1 % (standard), 0.05 % (option)
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 %
    Density (liquid): ±0.0005 g/cm3
  • Range:0 to 2 200 000 kg/h (0 to 80 840 lb/min)
  • Pressure range:PN 100, Class 600, 63K
  • Process Temperature: Standard: –50 to +150 °C (–58 to +302 °F)
    Option: –50 to +240 °C (–58…+464 °F)
    High temperatur option: –50 to +350 °C (–58…+662 °F)
  • Output:4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None

Endress Hauser Proline Promass F 100 Coriolis mass flowmeter

  • Application
    • Measuring principle operates independently of physical fluid
    properties such as viscosity or density
    • Highest measuring performance for liquids and gases under
    varying, demanding process conditions
    Device properties
    • Mass flow: Measured error ±0.05 % (PremiumCal)
    • Pressure rating of secondary containment up to
    40 bar (580 psi)
    • Robust, ultra-compact transmitter housing
    • Highest degree of protection: IP69K
    • Local display available
  • Your benefits
    • Highest process safety – immune to fluctuating and harsh
    environments
    • Fewer process measuring points – multivariable
    measurement (flow, density, temperature)
    • Space‐saving installation – no inlet/outlet run needs
    • Space‐saving transmitter – full functionality on smallest
    footprint
    • Time‐saving local operation without additional software and
    hardware – integrated web server
