mass flowmeter

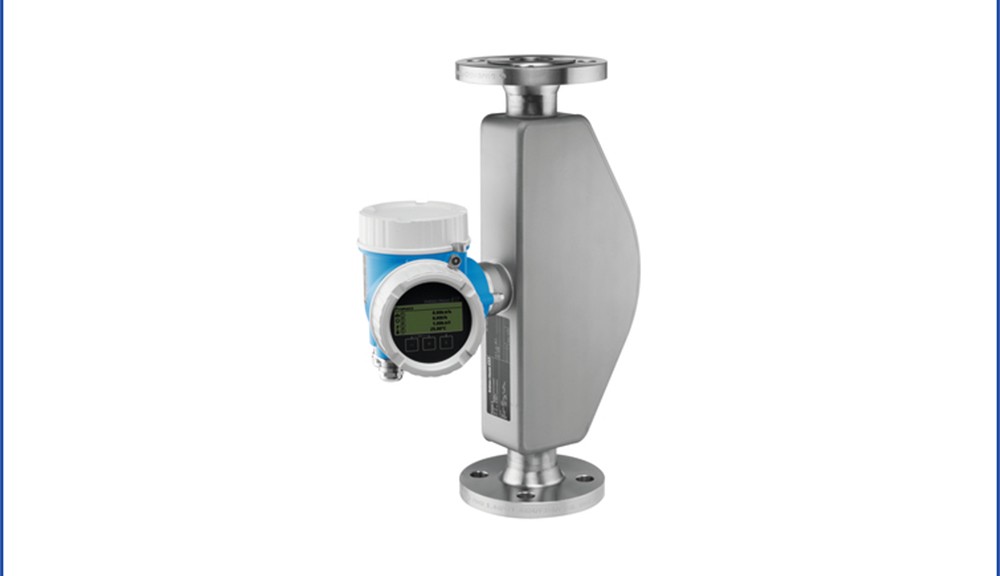

mass flowmeter Endress Hauser Proline Promass E 200 with genuine two-wire technology for minimized total cost of operation.
- Brand :Endress Hauser
- Model:Endress Hauser Proline Promass E 200 Coriolis mass flowmeter
- Diameter：DN 8 to 50 (⅜ to 2″)
- Measurement error：Mass flow (liquid): ±0.25 %
Volume flow (liquid): ±0.25 %
Mass flow (gas): ±0.75 %
Density (liquid): ±0.0005 g/cm³ - Range:0 to 70 000 kg/h (0 to 2570 lb/min)
- Pressure range:PN 100, Class 600, 63K
- Process Temperature: –40 to +140 °C (–40 to +284 °F)
- Output:4‐20 mA HART (passive)
4‐20 mA (passive)
Pulse/frequency/switch output (passive) - Input:None
Endress Hauser Proline Promass E 200 Coriolis mass flowmeter
Application
• Measuring principle operates independently of physical fluid
properties such as viscosity or density
• Highly accurate measurement of liquids and gases for a wide
range of standard applications
Device properties
• Compact dual-tube system
• Medium temperature up to +140 °C (+284 °F)
• Process pressure up to 100 bar (1 450 psi)
• Loop-powered technology
• Robust two-chamber housing
• Plant safety: worldwide approvals (SIL, Haz. area)
Your benefits
• Cost-effective – multi-purpose device; an alternative to
conventional volumetric flowmeters
• Fewer process measuring points – multivariable
measurement (flow, density, temperature)
• Space‐saving installation – no in/outlet run needs
• Convenient device wiring – separate connection
compartment
• Safe operation – no need to open the device thanks to
display with touch control, background lighting
