Sensor, Honeywell

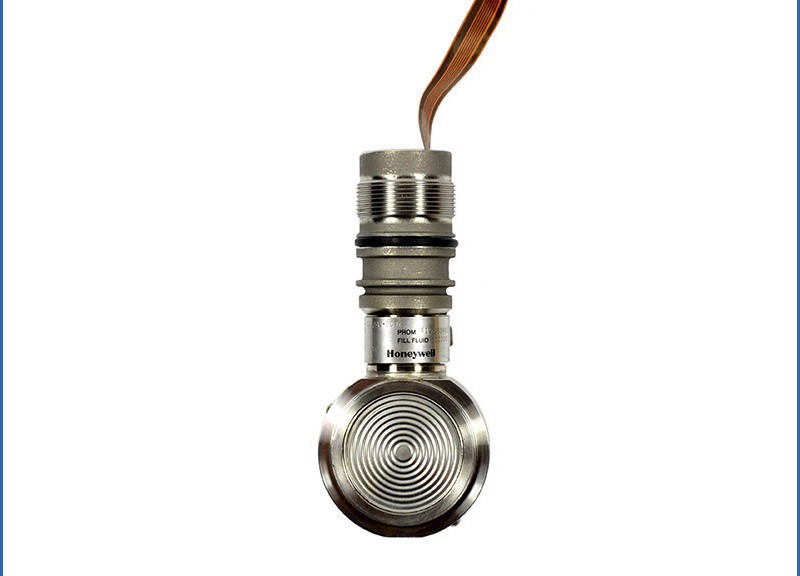

Original 316L SS differential diaphragm capsule pressure transmitter sensor for Honeywell STD924

Leave a comment

pressure sensor

pressure sensor for Honeywell STD924

Introduction

Part of the SmartLine family of products, the STD700 is suitable for monitoring, control and data acquisition.

STD700 products feature piezoresistive sensor technology combining pressure sensing. The SmartLine family is also fully tested and compliant with Experion PKS providing the highest level of compatibility assurance and integration capabilities.

SmartLine easily meets the most demanding application needs for pressure measurement applications.

Best in Class Features:

Accuracies up to 0.05% of span
Stability up to 0.02% of URL per year for 5 years
Automatic static pressure and temperature compensation
Rangeability up to 100:1
Response times as fast as 100ms
Alphanumeric display capabilities
External zero, span, configuration capability
Polarity insensitive electrical connections
On-board diagnostic capabilities
World class overpressure protection
Full compliance to SIL 2/3 requirements.
Modular design characteristics
Model:

ST 3000 900 Differential Pressure Models
STD924
STD930
STD974
900 Absolute Pressure Models
STA922/STA92L
STA922/STA92L
900 Flange Mounted Liquid Level Models
STF924
STF932
STF92F
STF93F
900 Remote Diaphragm Seals Models
STR93D
STR94G
900 Gauge Pressure Models
STG944
STG94L
STG974
STG97L
STG98L
STG99L

Original 316L SS differential diaphragm capsule pressure transmitter sensor for Honeywell STD924



  Wetted Process

Head 13

 Vent/Drain Valves

2

 Barrier

Diaphragms

 Selection
Materials of

Construction

 Carbon Steel 1

Carbon Steel 1

Carbon Steel 1

Carbon Steel 1

 316 SS

316 SS

316 SS

316 SS

 316L SS

Hastelloy® C-276 3

Monel 400® 4

Tantalum

 A _ _

B _ _

C _ _

D _ _

 .

.

19

.

 .

.

 .

.
316 SS 5

316 SS 5

316 SS 5

316 SS 5

 316 SS

316 SS

316 SS

316 SS

 316L SS

Hastelloy® C-276 3

Monel 400® 4

Tantalum

 E _ _

F _ _

G _ _

H _ _

 .

.

19

.

 .

.

 .

.
Hastelloy® C-276 3, 6

Hastelloy® C-276 3, 6

 Hastelloy® C-276 3

Hastelloy® C-276 3

 Hastelloy® C-276 3

Tantalum

 J _ _

K _ _

 .

.

 .



 .
Monel 400® 4, 7 Monel 400® 9 Monel 400® 4 L _ _ 19

Transmitters, Rosemount

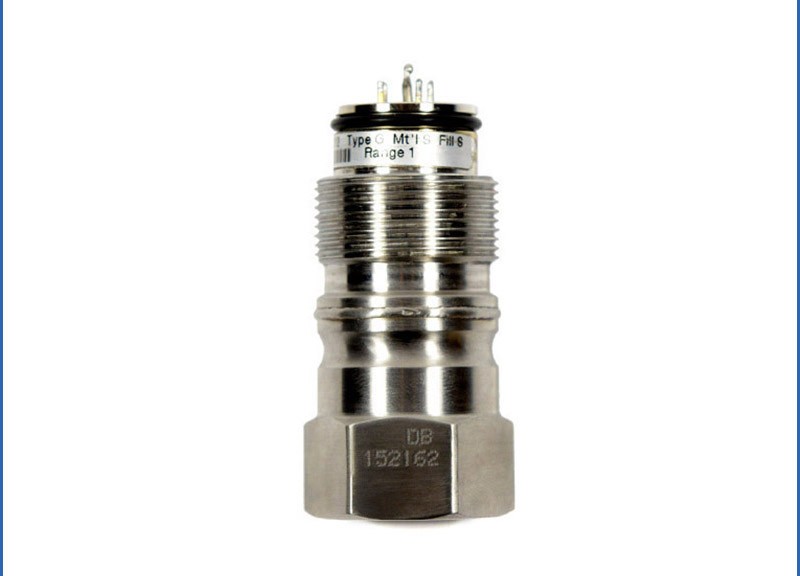

America Original SST pressure transmitter sensor for Rosemount 3051TG2A2B

Leave a comment

Rosemount pressure transmitter

Rosemount 3051T  pressure  transmitter Series

Features

Calibrated spans from 0.3 to 10000 psi

Up 0.04% accuracy (optional)

Total performance of ±0.15%

Installed five-year stability of 0.125%

Unmatched Dynamic Performance

Optional PlantWeb Functionality to increase plant

productivity

Responds up to eight times faster than the typical pressure

transmitter

Pressure sensor

America Original SST pressure transmitter sensor for Rosemount 3051TG2A2B



Gage (3051TG)(3) Absolute (3051TA)
1 -14.7 to 30 psi (-1,01 to 2,06 bar) 0 to 30 psia (0 to 2,06 bar)
2 -14.7 to 150 psi (-1,01 to 10,34 bar) 0 to 150 psia (0 to 10,34 bar)
3 -14.7 to 800 psi (-1,01 to 55,15 bar) 0 to 800 psia (0 to 55,15 bar)
4 -14.7 to 4000 psi (-1,01 to 275,79 bar) 0 to 4000 psia (0 to 275,79 bar)
5 -14.7 to 10000 psi (-1,01 to 689,47 bar) 0 to 10000 psia (0 to 689,47 bar)





Transmitter output
A(4) 4–20 mA with Digital Signal Based on HART Protocol
F FOUNDATION fieldbus Protocol

Transmitter output

A(4) 4–20 mA with Digital Signal Based on HART Protocol H
F FOUNDATION fieldbus Protocol H
W(5) PROFIBUS PA Protocol H
X(6) Wireless (requires wireless options and engineered polymer housing) H
M(7) Low-Power 1-5 Vdc with Digital Signal Based on HART Protocol

Process connection style

2B 1/2–14 NPT Female H
2C(8) G½ A DIN 16288 Male (Range 1–4 only) H
2F(9) Coned and Threaded, Compatible with Autoclave Type F-250-C (Range 5 only)
61(9) Non-threaded Instrument flange (Range 1-4 only)



Housing material Conduit entry size

A Aluminum ½–14 NPT H
B Aluminum M20 × 1.5 H
J SST ½–14 NPT H
K SST M20 × 1.5 H
P(11) Engineered polymer No conduit entries H
D(12) Aluminum G½
M(12) SST G½
Wireless options

Sensor, Transmitters, Rosemount

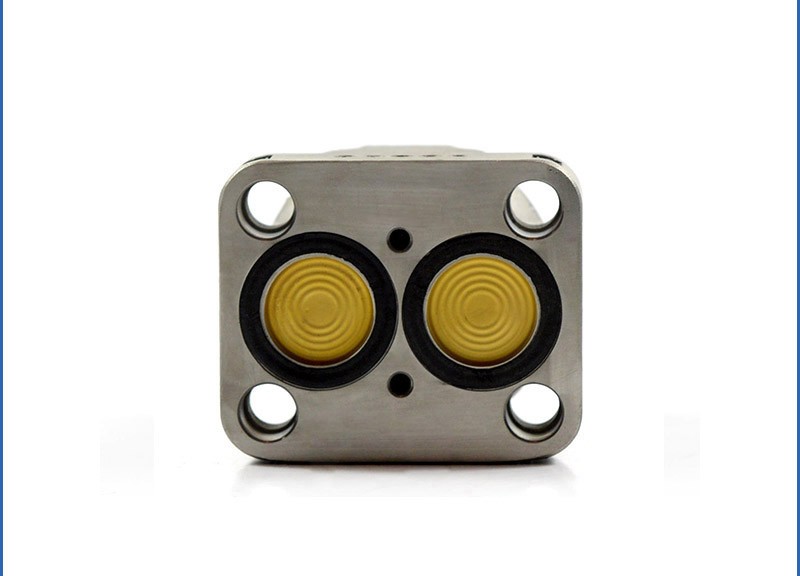

America Original Gold-plated Alloy 400 diaphragm capsule pressure transmitter sensor for Rosemount 3051CD4A26A1AHR5B4

Leave a comment

Pressure sensor

America Original Gold-plated Alloy 400 diaphragm capsule pressure transmitter sensor for Rosemount 3051CD4A26A1AHR5B4



Isolating diaphragm

Standard
2(4) 316 L SST

*
3(4) Alloy C-276

*
Extend
4 Alloy 400

*
5 Tantalum (available on 3051CD and CG, Ranges 2–5 only; not available on 3051CA)

*
6 Gold-plated Alloy 400 (use in combination with O-ring Option Code B)

*
7 Gold-plated  SST

*

pressure sensor

America Original Gold-plated Alloy 400 diaphragm capsule pressure transmitter sensor for Rosemount 3051CD4A26A1AHR5B4



Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,
Gage, and Absolute pressure measurement. The Coplanar Platform enables seamless
integration with manifolds, flow and level solutions.





Model Transmitter type
3051C(1) Coplanar Pressure Transmitter
Measurement type
D Differential
G Gage
A2 Absolute
Differential (3051CD) Gage (3051CG) Absolute (3051CA)
1 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 0 to 30 psia
(0 to 2,06 bar)
2 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 0 to 150 psia
(0 to 10,34 bar)
3 –1000 to 1000 inH2O
(-2,48 to 2,48 bar)		 –393 to 1000 inH2O
(-0,97 to 2,48 bar)		 0 to 800 psia
(0 to 55,15 bar)
4 –300 to 300 psi
(-20,68 to 20,68 bar)		 –14.2 to 300 psi
(-0,97 to 20,68 bar)		 0 to 4000 psia
(0 to 275,79 bar)
5 –2000 to 2000 psi
(-137,89 to 137,89 bar)		 –14.2 to 2000 psi
(-0,97 to 137,89 bar)		 N/A
0(3) –3 to 3 inH2O
(-7,46 to 7,46 mbar)		 N/A N/A

Sensor, Transmitters, Rosemount

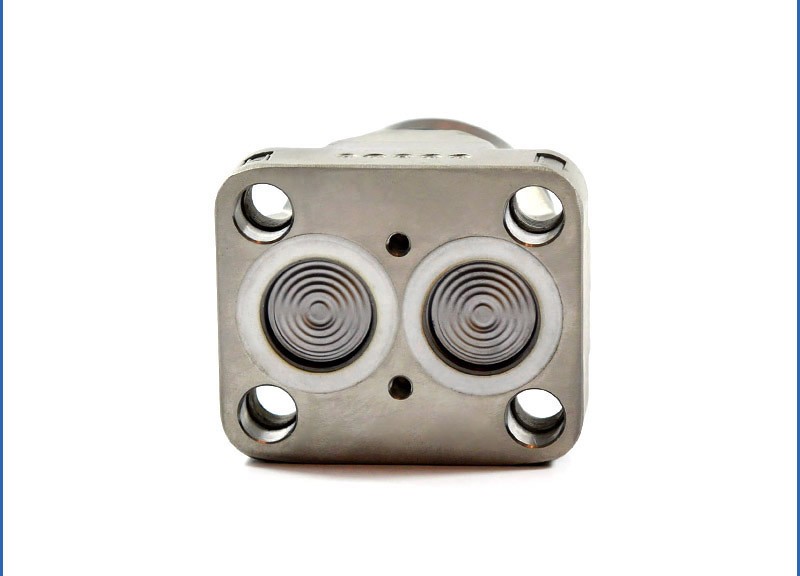

America Original Tantalum differential diaphragm capsule pressure transmitter pressure sensor for Rosemount 3051CD3A25A1AHR5B4

Leave a comment

Pressure sensor

America Original Tantalum differential diaphragm capsule pressure transmitter pressure sensor for Rosemount 3051CD3A25A1AHR5B4

Isolating diaphragm

Standard
2(4) 316 L SST

*
3(4) Alloy C-276

*
Extend
4 Alloy 400

*
5 Tantalum (available on 3051CD and CG, Ranges 2–5 only; not available on 3051CA)

*
6 Gold-plated Alloy 400 (use in combination with O-ring Option Code B)

*
7 Gold-plated  SST

*

pressure sensor

America Original Tantalum differential diaphragm capsule pressure transmitter pressure sensor for Rosemount 3051CD3A25A1AHR5B4



Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,
Gage, and Absolute pressure measurement. The Coplanar Platform enables seamless
integration with manifolds, flow and level solutions.





Model Transmitter type
3051C(1) Coplanar Pressure Transmitter
Measurement type
D Differential
G Gage
A2 Absolute
Differential (3051CD) Gage (3051CG) Absolute (3051CA)
1 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 0 to 30 psia
(0 to 2,06 bar)
2 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 0 to 150 psia
(0 to 10,34 bar)
3 –1000 to 1000 inH2O
(-2,48 to 2,48 bar)		 –393 to 1000 inH2O
(-0,97 to 2,48 bar)		 0 to 800 psia
(0 to 55,15 bar)
4 –300 to 300 psi
(-20,68 to 20,68 bar)		 –14.2 to 300 psi
(-0,97 to 20,68 bar)		 0 to 4000 psia
(0 to 275,79 bar)
5 –2000 to 2000 psi
(-137,89 to 137,89 bar)		 –14.2 to 2000 psi
(-0,97 to 137,89 bar)		 N/A
0(3) –3 to 3 inH2O
(-7,46 to 7,46 mbar)		 N/A N/A

Sensor, Transmitters, Rosemount

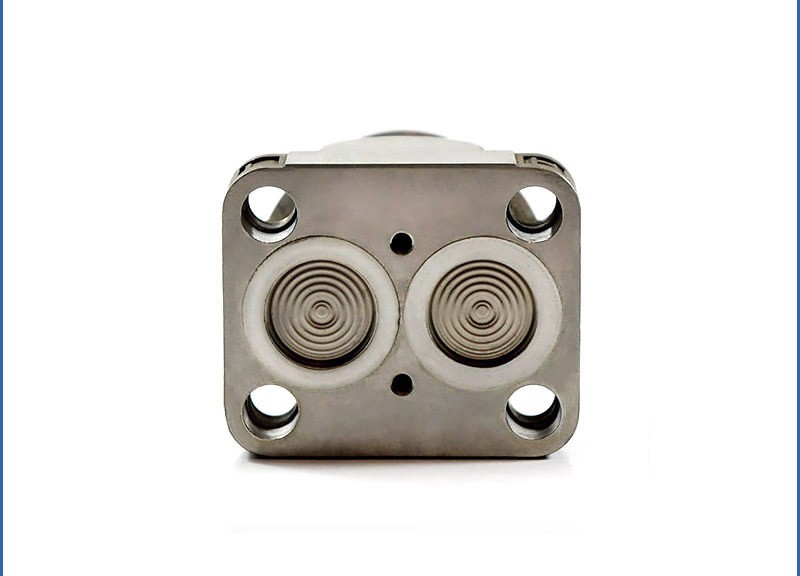

America Original Alloy 400 membrane pressure transmitter pressure sensor for Rosemount 3051CD2A24A1AHR5B4

Leave a comment

Pressure sensor

America Original Alloy 400 membrane pressure transmitter pressure sensor for Rosemount 3051CD2A24A1AHR5B4

Isolating diaphragm

Standard
2(4) 316 L SST

*
3(4) Alloy C-276

*
Extend
4 Alloy 400

*
5 Tantalum (available on 3051CD and CG, Ranges 2–5 only; not available on 3051CA)

*
6 Gold-plated Alloy 400 (use in combination with O-ring Option Code B)

*
7 Gold-plated  SST

*

Pressure sensor

America Original Alloy 400 membrane pressure transmitter pressure sensor for Rosemount 3051CD2A24A1AHR5B4



Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,
Gage, and Absolute pressure measurement. The Coplanar Platform enables seamless
integration with manifolds, flow and level solutions.





Model Transmitter type
3051C(1) Coplanar Pressure Transmitter
Measurement type
D Differential
G Gage
A2 Absolute
Differential (3051CD) Gage (3051CG) Absolute (3051CA)
1 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 0 to 30 psia
(0 to 2,06 bar)
2 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 0 to 150 psia
(0 to 10,34 bar)
3 –1000 to 1000 inH2O
(-2,48 to 2,48 bar)		 –393 to 1000 inH2O
(-0,97 to 2,48 bar)		 0 to 800 psia
(0 to 55,15 bar)
4 –300 to 300 psi
(-20,68 to 20,68 bar)		 –14.2 to 300 psi
(-0,97 to 20,68 bar)		 0 to 4000 psia
(0 to 275,79 bar)
5 –2000 to 2000 psi
(-137,89 to 137,89 bar)		 –14.2 to 2000 psi
(-0,97 to 137,89 bar)		 N/A
0(3) –3 to 3 inH2O
(-7,46 to 7,46 mbar)		 N/A N/A

Sensor, Transmitters, Rosemount

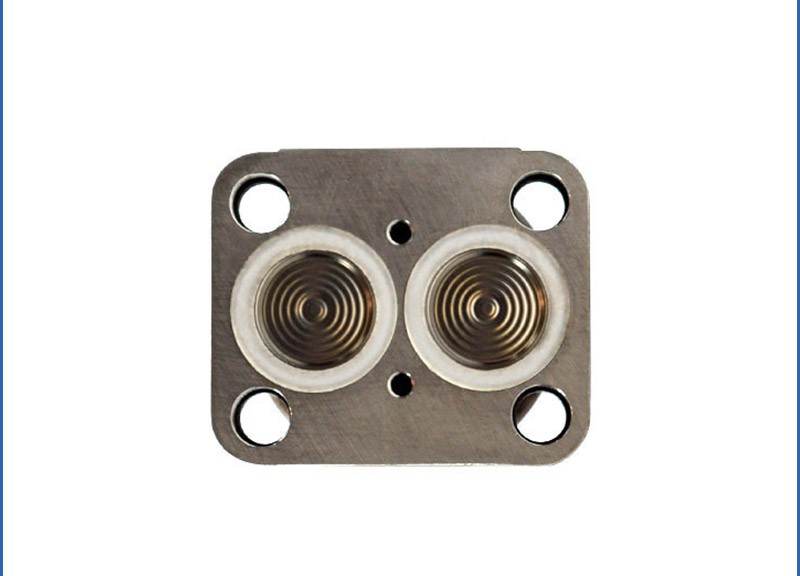

America Original Alloy C-276 diaphragm capsule pressure transmitter sensor for Rosemount 3051CD1A23A1AHR5B4

Leave a comment

Pressure sensor

America Original Alloy C-276 diaphragm capsule pressure transmitter sensor for Rosemount 3051CD1A23A1AHR5B4

Isolating diaphragm

Standard
2(4) 316 L SST

*
3(4) Alloy C-276

*
Extend
4 Alloy 400

*
5 Tantalum (available on 3051CD and CG, Ranges 2–5 only; not available on 3051CA)

*
6 Gold-plated Alloy 400 (use in combination with O-ring Option Code B)

*
7 Gold-plated  SST

*

Pressure sensor

America Original Alloy C-276 diaphragm capsule pressure transmitter sensor for Rosemount 3051CD1A23A1AHR5B4



Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,
Gage, and Absolute pressure measurement. The Coplanar Platform enables seamless
integration with manifolds, flow and level solutions.





Model Transmitter type
3051C(1) Coplanar Pressure Transmitter
Measurement type
D Differential
G Gage
A2 Absolute
Differential (3051CD) Gage (3051CG) Absolute (3051CA)
1 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 0 to 30 psia
(0 to 2,06 bar)
2 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 0 to 150 psia
(0 to 10,34 bar)
3 –1000 to 1000 inH2O
(-2,48 to 2,48 bar)		 –393 to 1000 inH2O
(-0,97 to 2,48 bar)		 0 to 800 psia
(0 to 55,15 bar)
4 –300 to 300 psi
(-20,68 to 20,68 bar)		 –14.2 to 300 psi
(-0,97 to 20,68 bar)		 0 to 4000 psia
(0 to 275,79 bar)
5 –2000 to 2000 psi
(-137,89 to 137,89 bar)		 –14.2 to 2000 psi
(-0,97 to 137,89 bar)		 N/A
0(3) –3 to 3 inH2O
(-7,46 to 7,46 mbar)		 N/A N/A

Sensor, Transmitters, Rosemount

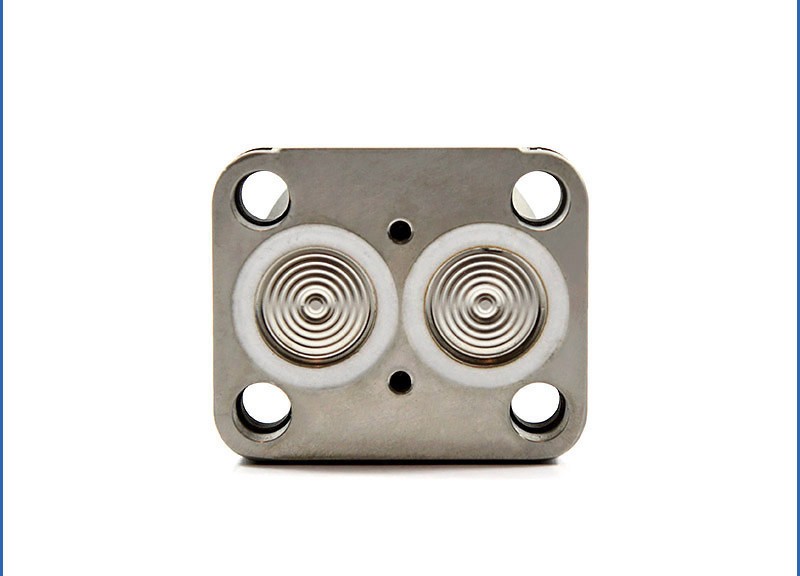

America Original 316L pressure transmitter pressure sensor for Rosemount 3051CD1A24A1AHR5B4

Leave a comment

Pressure sensor

America Original 316L pressure transmitter pressure sensor for Rosemount 3051CD1A24A1AHR5B4



Isolating diaphragm

Standard
2(4) 316 L SST

*
3(4) Alloy C-276

*
Extend
4 Alloy 400

*
5 Tantalum (available on 3051CD and CG, Ranges 2–5 only; not available on 3051CA)

*
6 Gold-plated Alloy 400 (use in combination with O-ring Option Code B)

*
7 Gold-plated  SST

*

Pressure sensor

America Original 316L pressure transmitter pressure sensor for Rosemount 3051CD1A24A1AHR5B4



Rosemount 3051C Coplanar Pressure Transmitters are the industry standard for Differential,
Gage, and Absolute pressure measurement. The Coplanar Platform enables seamless
integration with manifolds, flow and level solutions.





Model Transmitter type
3051C(1) Coplanar Pressure Transmitter
Measurement type
D Differential
G Gage
A2 Absolute
Differential (3051CD) Gage (3051CG) Absolute (3051CA)
1 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 –25 to 25 inH2O
(-62,16 to 62,16 mbar)		 0 to 30 psia
(0 to 2,06 bar)
2 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 –250 to 250 inH2O
(-621,60 to 621,60 mbar)		 0 to 150 psia
(0 to 10,34 bar)
3 –1000 to 1000 inH2O
(-2,48 to 2,48 bar)		 –393 to 1000 inH2O
(-0,97 to 2,48 bar)		 0 to 800 psia
(0 to 55,15 bar)
4 –300 to 300 psi
(-20,68 to 20,68 bar)		 –14.2 to 300 psi
(-0,97 to 20,68 bar)		 0 to 4000 psia
(0 to 275,79 bar)
5 –2000 to 2000 psi
(-137,89 to 137,89 bar)		 –14.2 to 2000 psi
(-0,97 to 137,89 bar)		 N/A
0(3) –3 to 3 inH2O
(-7,46 to 7,46 mbar)		 N/A N/A

Sensor, Yokogawa

Hastelloy C-276 D diaphragm capsule pressure transmitter sensor

Leave a comment

pressure sensor

pressure sensor Hastelloy C-276 D diaphragm capsule pressure sensor

Yokogaw sensor for EJA510A and EJA530A

Measurement span

(capsule)

 L……….. 0.5 to 10 kPa {50 to 1000 mmH 2 O} {2 to 40 inH 2 O} {5 to 100 mbar}
M……….. 1 to 100 kPa {100 to 10000 mmH 2 O} {4 to 400 inH 2 O} {10 to 1000 mbar}
H………… 5 to 500 kPa { 0.05 to 5 kgf/cm 2 } {20 to 2000 inH 2 O} {50 to 5000 mbar}
V………… 0.14 to 14 MPa { 1.4 to 140 kgf/cm 2 } *1  {20 to 2000 psi} {1.4 to 140 bar}
Wetted parts

material * 2



S #……..

H #……..

M #……..

T #………

A #……..
D #……..
B #………

[Body] *2            [Capsule]             [Vent plug]

SCS14A               SUS316L *5         SUS316 *13

SCS14A               Hastelloy C-276 *6*12    SUS316 *13

SCS14A               Monel *6              SUS316 *13

SCS14A               Tantalum *6          SUS316 *13

Hastelloy C-276 equivalent *3  Hastelloy C-276 *6*12   Hastelloy C-276 *12

Hastelloy C-276 equivalent *3  Tantalum *6  Hastelloy C-276 *12

Monel equivalent *4    Monel *6            Monel

pressure sensor

pressure sensor Hastelloy C-276 D diaphragm capsule pressure sensor

Absolute and gauge pressure transmitter model
EJA510A and EJA530A can be used to measure
liquid, gas, or steam pressure. Both output a 4 to 20
mA DC signal corresponding to the measured pressure,
and also feature remote setup and monitoring
through communications with the BRAIN™ terminal
and CENTUM CS™ or μXL™ or HART® 275 host.
 STANDARD SPECIFICATIONS
Refer to GS 01C22T02-00E for FOUNDATION Fieldbus
communication type and GS 01C22T03-00E for
PROFIBUS PA communication type marked with “”.
 PERFORMANCE SPECIFICATIONS
Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil.
Reference Accuracy of Calibrated Span
(including the effects of zero-based linearity, hysteresis,
and repeatability, values are in absolute for
EJA510A)

C-276 D Hastelloy diaphragm capsule pressure sensor

Sensor, Yokogawa

Hastelloy C-276 C module pressure transmitter pressure sensor

Leave a comment

pressure sensor

Hastelloy C-276 C module pressure transmitter pressure sensor

Yokogaw sensor for EJA510A and EJA530A

Measurement span

(capsule)

 L……….. 0.5 to 10 kPa {50 to 1000 mmH 2 O} {2 to 40 inH 2 O} {5 to 100 mbar}
M……….. 1 to 100 kPa {100 to 10000 mmH 2 O} {4 to 400 inH 2 O} {10 to 1000 mbar}
H………… 5 to 500 kPa { 0.05 to 5 kgf/cm 2 } {20 to 2000 inH 2 O} {50 to 5000 mbar}
V………… 0.14 to 14 MPa { 1.4 to 140 kgf/cm 2 } *1  {20 to 2000 psi} {1.4 to 140 bar}
Wetted parts

material * 2



S #……..

H #……..

M #……..

T #………

A #……..
D #……..
B #………

[Body] *2            [Capsule]             [Vent plug]

SCS14A               SUS316L *5         SUS316 *13

SCS14A               Hastelloy C-276 *6*12    SUS316 *13

SCS14A               Monel *6              SUS316 *13

SCS14A               Tantalum *6          SUS316 *13

Hastelloy C-276 equivalent *3  Hastelloy C-276 *6*12   Hastelloy C-276 *12

Hastelloy C-276 equivalent *3  Tantalum *6  Hastelloy C-276 *12

Monel equivalent *4    Monel *6            Monel

pressure sensor

Hastelloy C-276 C module pressure transmitter pressure sensor

Absolute and gauge pressure transmitter model
EJA510A and EJA530A can be used to measure
liquid, gas, or steam pressure. Both output a 4 to 20
mA DC signal corresponding to the measured pressure,
and also feature remote setup and monitoring
through communications with the BRAIN™ terminal
and CENTUM CS™ or μXL™ or HART® 275 host.
 STANDARD SPECIFICATIONS
Refer to GS 01C22T02-00E for FOUNDATION Fieldbus
communication type and GS 01C22T03-00E for
PROFIBUS PA communication type marked with “”.
 PERFORMANCE SPECIFICATIONS
Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil.
Reference Accuracy of Calibrated Span
(including the effects of zero-based linearity, hysteresis,
and repeatability, values are in absolute for
EJA510A)

Hastelloy C-276 C module pressure transmitter pressure sensor

Sensor, Yokogawa

SUS316L B membrane pressure transmitter pressure sensor

Leave a comment

pressure sensor

SUS316L B membrane pressure transmitter pressure sensor

Yokogaw sensor for EJA510A and EJA530A

Measurement span

(capsule)

 L……….. 0.5 to 10 kPa {50 to 1000 mmH 2 O} {2 to 40 inH 2 O} {5 to 100 mbar}
M……….. 1 to 100 kPa {100 to 10000 mmH 2 O} {4 to 400 inH 2 O} {10 to 1000 mbar}
H………… 5 to 500 kPa { 0.05 to 5 kgf/cm 2 } {20 to 2000 inH 2 O} {50 to 5000 mbar}
V………… 0.14 to 14 MPa { 1.4 to 140 kgf/cm 2 } *1  {20 to 2000 psi} {1.4 to 140 bar}
Wetted parts

material * 2



S #……..

H #……..

M #……..

T #………

A #……..
D #……..
B #………

[Body] *2            [Capsule]             [Vent plug]

SCS14A               SUS316L *5         SUS316 *13

SCS14A               Hastelloy C-276 *6*12    SUS316 *13

SCS14A               Monel *6              SUS316 *13

SCS14A               Tantalum *6          SUS316 *13

Hastelloy C-276 equivalent *3  Hastelloy C-276 *6*12   Hastelloy C-276 *12

Hastelloy C-276 equivalent *3  Tantalum *6  Hastelloy C-276 *12

Monel equivalent *4    Monel *6            Monel

pressure sensor

SUS316L B membrane pressure transmitter pressure sensor

The absolute and gauge pressure transmitter model
EJA510A and EJA530A can be used to measure
liquid, gas, or steam pressure. Both output a 4 to 20
mA DC signal corresponding to the measured pressure,
and also feature remote setup and monitoring
through communications with the BRAIN™ terminal
and CENTUM CS™ or μXL™ or HART® 275 host.
 STANDARD SPECIFICATIONS
Refer to GS 01C22T02-00E for FOUNDATION Fieldbus
communication type and GS 01C22T03-00E for
PROFIBUS PA communication type marked with “”.
 PERFORMANCE SPECIFICATIONS
Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil.
Reference Accuracy of Calibrated Span
(including the effects of zero-based linearity, hysteresis,
and repeatability, values are in absolute for
EJA510A)

SUS316L B membrane pressure transmitter pressure sensor

Sensor, Yokogawa

SUS316L A differential diaphragm capsule pressure sensor

Leave a comment

pressure sensor

pressure sensor SUS316L A differential diaphragm capsule pressure sensor. Yokogaw sensor for EJA510A and EJA530A

Measurement span

(capsule)

 L……….. 0.5 to 10 kPa {50 to 1000 mmH 2 O} {2 to 40 inH 2 O} {5 to 100 mbar}
M……….. 1 to 100 kPa {100 to 10000 mmH 2 O} {4 to 400 inH 2 O} {10 to 1000 mbar}
H………… 5 to 500 kPa { 0.05 to 5 kgf/cm 2 } {20 to 2000 inH 2 O} {50 to 5000 mbar}
V………… 0.14 to 14 MPa { 1.4 to 140 kgf/cm 2 } *1  {20 to 2000 psi} {1.4 to 140 bar}
Wetted parts

material * 2



S #……..

H #……..

M #……..

T #………

A #……..
D #……..
B #………

[Body] *2            [Capsule]             [Vent plug]

SCS14A               SUS316L *5         SUS316 *13

SCS14A               Hastelloy C-276 *6*12    SUS316 *13

SCS14A               Monel *6              SUS316 *13

SCS14A               Tantalum *6          SUS316 *13

Hastelloy C-276 equivalent *3  Hastelloy C-276 *6*12   Hastelloy C-276 *12

Hastelloy C-276 equivalent *3  Tantalum *6  Hastelloy C-276 *12

Monel equivalent *4    Monel *6            Monel

pressure sensor

pressure sensor SUS316L A differential diaphragm capsule pressure sensor. The absolute and gauge pressure transmitter model
EJA510A and EJA530A can be used to measure
liquid, gas, or steam pressure. Both output a 4 to 20
mA DC signal corresponding to the measured pressure,
and also feature remote setup and monitoring
through communications with the BRAIN™ terminal
and CENTUM CS™ or μXL™ or HART® 275 host.
 STANDARD SPECIFICATIONS
Refer to GS 01C22T02-00E for FOUNDATION Fieldbus
communication type and GS 01C22T03-00E for
PROFIBUS PA communication type marked with “”.
 PERFORMANCE SPECIFICATIONS
Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil.
Reference Accuracy of Calibrated Span
(including the effects of zero-based linearity, hysteresis,
and repeatability, values are in absolute for
EJA510A)

SUS316L A differential diaphragm capsule pressure sensor

Sensor, Yokogawa

SUS316L E differential diaphragm capsule pressure sensor

Leave a comment

pressure sensor

SUS316L E differential diaphragm capsule pressure sensor

EJA 120A

Model Suffix Codes Description
EJA120A Differential pressure transmitter (for draft application)
Output Signal -D . . . . . . . . . . . . . . . . . .

-E . . . . . . . . . . . . . . . . . .

-F . . . . . . . . . . . . . . . . . .

-G . . . . . . . . . . . . . . . . . .

 4 to 20 mA DC with digital communication (BRAIN protocol)

4 to 20 mA DC with digital communication (HART protocol, refer to GS 01C22T01-00E)

Digital communication (FOUNDATION Fieldbus protocol, refer to GS 01C22T02-00E)

Digital communication (PROFIBUS PA protocol, refer to GS 01C22T03-00E)
Measurement

span (capsule)

 E . . . . . . . . . . . . . . . . . 0.1 to 1 kPa {10 to 100 mmH2O} {0.4 to 4 inH2O} {1 to 10 mbar}
Wetted parts

material *6

 S# . . . . . . . . . . . . . . . . [Body] [Capsule] [Vent plug]

SCS14A *1 SUS316L *2 SUS316 *7

pressure sensor

SUS316L E differential diaphragm capsule pressure sensor

The high performance draft range differential pressure
transmitter model EJA120A outputs a 4 to 20 mA DC
signal corresponding to the measured differential
pressure.

Model EJA120A also features remote setup
and monitoring through communications with the
BRAIN™ terminal and CENTUM CS™ or XL™ or
HART® 275 host.
STANDARD SPECIFICATIONS
Refer to GS 01C22T02-00E for FOUNDATION Fieldbus
communication type and GS 01C22T03-00E for
PROFIBUS PA communication type marked with “.”
 PERFORMANCE SPECIFICATIONS

The high performance draft range differential pressure
transmitter model EJA120A outputs a 4 to 20 mA DC
signal corresponding to the measured differential
pressure.

Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil.
Reference Accuracy of Calibrated Span
(including the effects of zero-based linearity, hysteresis,
and repeatability)
Zero Adjustment Limits
Zero can be fully elevated or suppressed, within the
Lower and Upper Range Limits of the capsule.
External Zero Adjustment “”

External zero is continuously adjustable with 0.01 %
incremental resolution of span. Span may be
adjusted locally using the digital indicator with range
switch.

Mounting Position Effect
Rotation in diaphragm plane has no effect. Tilting up
to 90  will cause zero shift up to 0.4 kPa {1.6 inH2O}
which can be corrected by the zero adjustment.

SUS316L E differential diaphragm capsule pressure sensor
