All posts by conchgroup_admin

EJA-E series, Transmitters, Yokogawa

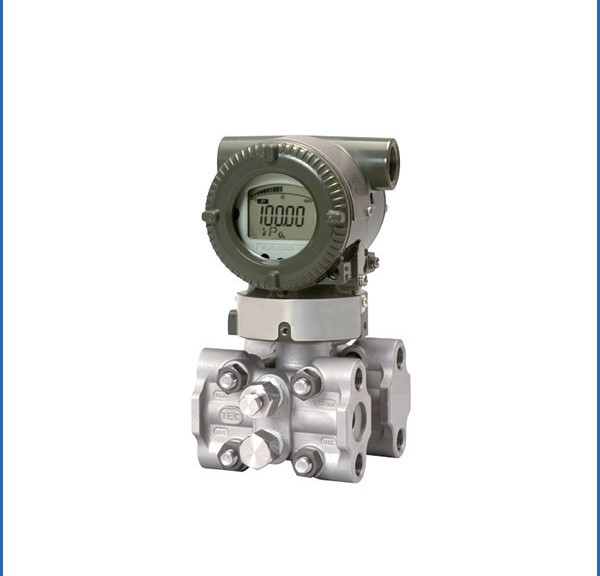

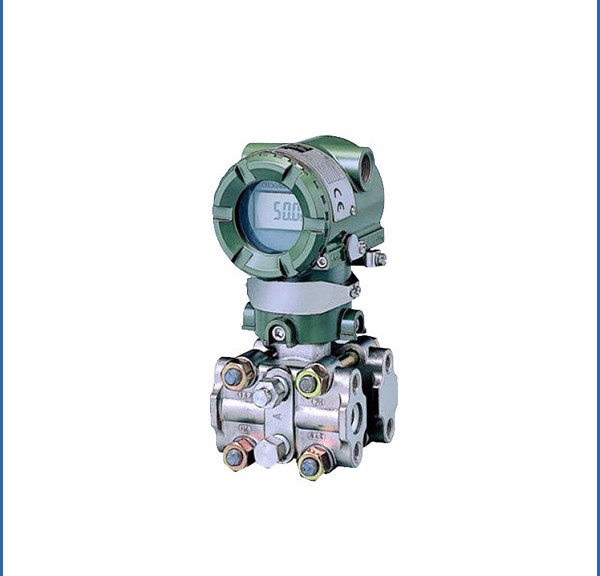

Yokogawa EJA310E Absolute Pressure Transmitter

Leave a comment

Pressure Transmitter

Yokogawa EJA310E Absolute Pressure Transmitter

The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA310E is our traditional-mount absolute pressure transmitter in the series.

EJA310E standard features include:

  • 0.1% Accuracy
  • 0.1% Stability for 1 year
  • 3,600 psia Maximum Over Pressure (MWP)
  • 90 ms Response Time
  • Local Parameter Setting (LPS)
  • SIL 2 / SIL 3 (IEC61508) Certified

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

Pressure Transmitter

Yokogawa EJA310E Absolute Pressure Transmitter

The high performance absolute pressure transmitter EJA310E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam pressure. The EJA310E outputs a 4 to 20 mA DC signal corresponding to the measured pressure.
It also features quick response, remote setup and monitoring via BRAIN or HART communications and self-diagnostics.

FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified by TÜV as complying with SIL 2 for safety requirement.

it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA310E is our traditional-mount absolute pressure transmitter in the series.

EJA310E standard features include:

  • 0.1% Accuracy
  • 0.1% Stability for 1 year
  • 3,600 psia Maximum Over Pressure (MWP)
  • 90 ms Response Time
  • Local Parameter Setting (LPS)
  • SIL 2 / SIL 3 (IEC61508) Certified

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

EJA-E series, Transmitters, Yokogawa

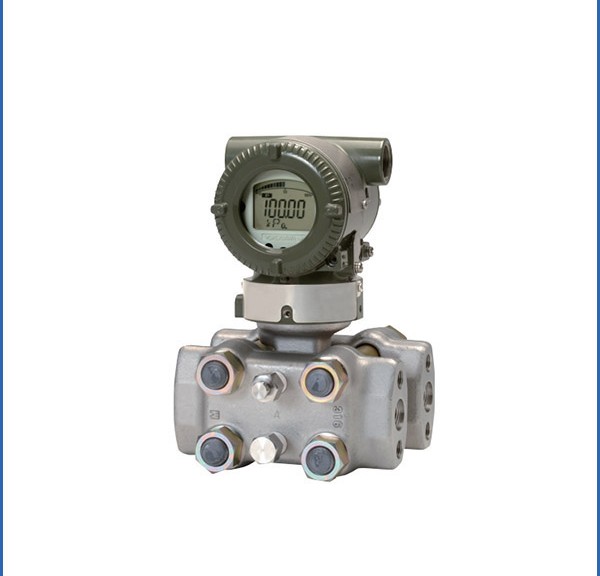

Yokogawa EJA130E Differential Pressure Transmitter

Leave a comment

Differential Pressure Transmitter

Yokogawa EJA130E Differential Pressure Transmitter

The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA130E is a differential pressure transmitter designed to work in a high static pressure enviroment.

EJA130E features include:

0.055% Accuracy
0.1% Stability for 5 years
4,500 psi MWP
150 ms Response Time
Local Parameter Setting (LPS)
SIL 2/3 Certified
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION FieldBus, PROFIBUS PA, or BRAIN communication.

Differential Pressure Transmitter

Yokogawa EJA130E Differential Pressure Transmitter

The high performance differential pressure transmitter EJA130E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJA130E outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.
Its accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series models in their standard configuration, with the exception
of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.

It combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA130E is a differential pressure transmitter designed to work in a high static pressure enviroment.

EJA130E features include:

0.055% Accuracy
0.1% Stability for 5 years
4,500 psi MWP
150 ms Response Time
Local Parameter Setting (LPS)
SIL 2/3 Certified
Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION FieldBus, PROFIBUS PA, or BRAIN communication.

EJA-E series, Transmitters, Yokogawa

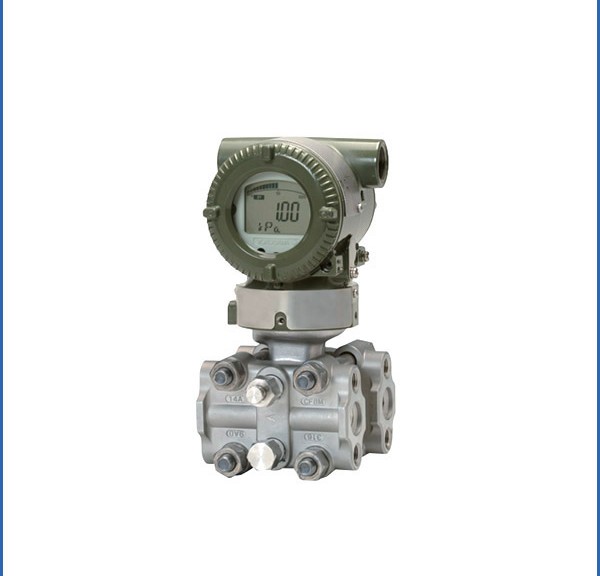

Yokogawa EJA120E Differential Pressure Transmitter

Leave a comment

Differential Pressure Transmitter

Yokogawa EJA120E Differential Pressure Transmitter

The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family of pressure transmitters. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA120E is the traditional-mount Draft Range Pressure Transmitter in this series.

EJA120E features include:

  • 0.2% Accuracy (0.09% available with /HAC option)
  • SIL 2/3 (IEC 61508) Certified
  • 150 ms Response Time
  • Local Parameter Setting (LPS)
  • True Draft Range design

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

Differential Pressure Transmitter

Yokogawa EJA120E Differential Pressure Transmitter

The high performance draft range differential pressure transmitter EJA120E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJA120E outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.

Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as
complying with SIL 2 for safety requirement.

It combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA120E is the traditional-mount Draft Range Pressure Transmitter in this series.

EJA120E features include:

  • 0.2% Accuracy (0.09% available with /HAC option)
  • SIL 2/3 (IEC 61508) Certified
  • 150 ms Response Time
  • Local Parameter Setting (LPS)
  • True Draft Range design

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

Diaphragm Seals & Capillaries, EJA-E series, Transmitters, Yokogawa

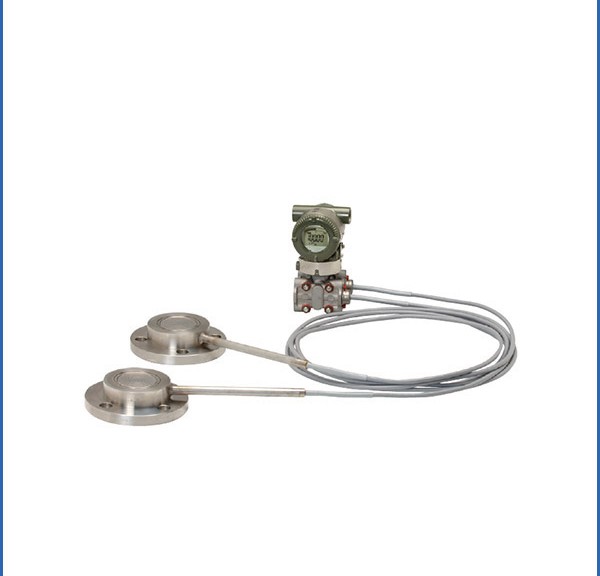

Yokogawa EJA118E Diaphragm Sealed Differential Pressure Transmitter

Leave a comment

Diaphragm Sealed Pressure Transmitter

Yokogawa EJA118E Diaphragm Sealed Pressure Transmitter

The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.

EJA118E features include:

  • 0.2% Accuracy
  • 200 ms Response Time
  • SIL 2/3 Certified
  • Local Parameter Setting (LPS)
  • 10-segment Signal Characterizer
  • Active Capillary Fill Fluid Density Compensation

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

Diaphragm Sealed Pressure Transmitter

Yokogawa EJA118E Diaphragm Sealed Pressure Transmitter

Diaphragm seals are used to prevent process medium form entering directly into the pressure-sensing assembly of the differential pressure transmitter, they are connected to the transmitter using capillaries filled with fill fluid.

EJA118E Diaphragm Sealed Differential Pressure Transmitters can be used to measure liquid, gas, or steam flow, as well as liquid level, density, and pressure. EJA118E outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.

Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, and self-diagnostics.

FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.

It combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA118E is a Differential Pressure Transmitter with remote diaphragm seals.

EJA118E features include:

  • 0.2% Accuracy
  • 200 ms Response Time
  • SIL 2/3 Certified
  • Local Parameter Setting (LPS)
  • 10-segment Signal Characterizer
  • Active Capillary Fill Fluid Density Compensation

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

EJA-E series, Transmitters, Yokogawa

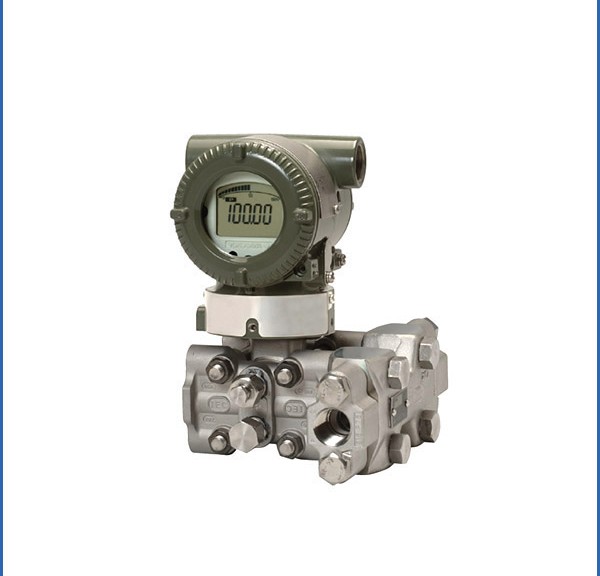

Yokogawa EJA115E Low Flow Transmitter

Leave a comment

Yokogawa Transmitter

EJA115E Low Flow Yokogawa Transmitter

The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA115E is Differential Pressure Transmitter in the series that is optimized for low flow applications with the addition of an Integral Flow Orifice (IFO).

EJA115E features include:

  • 0.055% Square Root Output Accuracy
  • 0.1% per 7 years Stability (DP)
  • 90 ms ~ 150 ms Response Time
  • SIL 2 / SIL 3 (IEC 61508) Certified
  • Local Parameter Setting (LPS)

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, BRAIN communication.

Yokogawa Transmitter

EJA115E Low Flow Yokogawa Transmitter

The low flow transmitter EJA115E is a differential pressure transmitter assembled with an integral orifice and excellent for very low flow measurement.
It outputs a 4 to 20 mA DC signal corresponding to the measured flow. Its accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series models in their standard configuration, with the exception of the Fieldbus, PROFIBUS and Low Power types, certify as complying with SIL2 for safety requirement.

The EJA115E is Differential Pressure Transmitter in the series that optimized for low flow applications with the addition of an Integral Flow Orifice (IFO).

EJA115E features include:

  • 0.055% Square Root Output Accuracy
  • 0.1% per 7 years Stability (DP)
  • 90 ms ~ 150 ms Response Time
  • SIL 2 / SIL 3 (IEC 61508) Certified
  • Local Parameter Setting (LPS)

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, BRAIN communication.

EJA-E series, Transmitters, Yokogawa

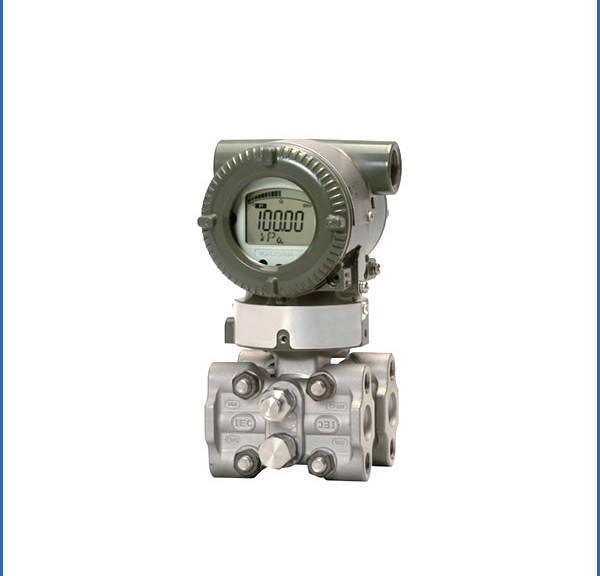

Yokogawa EJA110E Differential Pressure Transmitter

Leave a comment

Differential Pressure Transmitter

Yokogawa EJA110E Differential Pressure Transmitter

The EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family of pressure transmitters. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.

The EJA110E is our standard traditional-mount differential pressure transmitter in this series.

EJA110E features include:

  • 0.055% Accuracy (0.04% Accuracy option)
  • 0.1% Stability for 7 years
  • MWP 2,300 psi (MWP 3,600 psi option)
  • 90 ms Response Time
  • Local Parameter Setting (LPS)
  • SIL 2 (IEC 61508) Certified

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

Differential Pressure Transmitter

Yokogawa EJA110E Differential Pressure Transmitter

The high performance differential pressure transmitter EJA110E features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJA110E outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.

Its accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications and self-diagnostics. FOUNDATION Fieldbus, PROFIBUS PA and 1 to 5 V DC with HART (Low Power) protocol types are also available. All EJA-E series models in their standard configuration, with the exception
of the Fieldbus, PROFIBUS and Low Power types, are certified as complying with SIL 2 for safety requirement.

The EJA110E is our standard traditional-mount differential pressure transmitter in this series.

EJA110E features include:

  • 0.055% Accuracy (0.04% Accuracy option)
  • 0.1% Stability for 7 years
  • MWP 2,300 psi (MWP 3,600 psi option)
  • 90 ms Response Time
  • Local Parameter Setting (LPS)
  • SIL 2 (IEC 61508) Certified

Available with HART 5/7, 1 to 5 VDC HART 7 (Low Power), FOUNDATION Fieldbus, PROFIBUS PA, or BRAIN communication.

Transmitters, Yokogawa, EJA series

Yokogawa EJA510A and EJA530A Absolute and Gauge Pressure Transmitters

Leave a comment

Pressure Transmitter

Yokogawa EJA510A and EJA530A Absolute and Gauge Pressure Transmitter

The EJA-A series is Yokogawa’s most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

The EJA530A is the In-line mount Gauge Pressure Transmitters in the series.

EJA530A features include:

  • 0.2% Accuracy (0.075% Option)
  • 0.1% Stability for 1 year
  • 8,500 psi MWP

Pressure Transmitter

Yokogawa EJA510A and EJA530A Absolute and Gauge Pressure Transmitter

The EJA Series is available with BRAIN, HART, FOUNDATION™ fieldbus or PROFIBUS PA communication protocols.

The absolute pressure transmitter model EJA510A can be used to measure liquid, gas, or steam pressure. Both output a 4 to 20mA DC signal corresponding to the measured pressure.

Features

  • Excellent performance and stability

The EJA series uses a silicon resonant sensor formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.

EJA series offers two types of fieldbus models, FOUNDATION™ fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between Yokogawa and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.

Transmitters, Yokogawa, EJA series

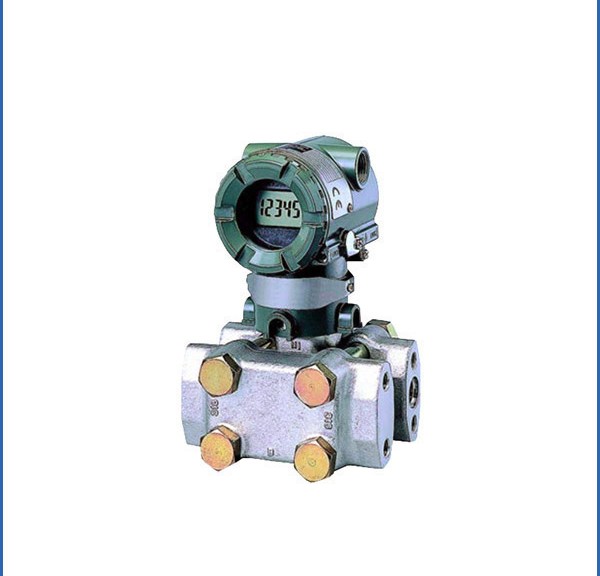

Yokogawa EJA440A Gauge Pressure Transmitter

Leave a comment

Pressure Transmitter

Yokogawa EJA440A Gauge Pressure Transmitter

Specifications

EJA440A Gauge Pressure Transmitter
C Capsule
Range -0.1 to 32 MPa
(-15 to 4500 psi)
Span 5 to 32 MPa
(720 to 4500 psi)
Accuracy ±0.12%
Degrees of protection IP67, NEMA 4X, and JIS C0920 immersion proof
Certificates FM, CENELEC ATEX, CSA, IECEx
Output 4 to 20 mA DC or FOUNDATION™ fieldbus or PROFIBUS PA 2-wire system with digital communication
Supply voltage BRAIN and HART:10.5 to 42 V DC (10.5 to 30 V DC for Intrinsically safe type)
Fieldbus:9 to 32 V DC (9 to 24 V DC for Entity model and 9 to 17.5 V DC for FISCO model)
Ambient temperature -40 to 85 deg C (-40 to 185 deg F) (general use type)
-30 to 80 deg C (-22 to 176 deg F) (with integral indicator)
Process temperature -40 to 120 deg C (-40 to 248 deg F) (general use type)
Maximum overpressure 48 MPa (6750 psig)
Mounting 2-inch pipe mounting
Wetted parts material Capsule SUS316L (Diaphragm material is Hastelloy C-276)
Cover flange SUS316
Housing Cast aluminum alloy or SUS316 equivalent stainless steel (optional)

Pressure Transmitter

Yokogawa EJA440A Gauge Pressure Transmitter

The high performance gauge pressure transmitter model EJA440A can be used to measure liquid, gas, or steam pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured gauge pressure.
Model EJA440A also features remote setup and monitoring through communications with the BRAIN™ terminal and CENTUM CS™ or XL™ or HART® 275 host.



Features:

  • Excellent performance and stability

The EJA series uses a formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.



EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.

Diaphragm Seals & Capillaries, Transmitters, Yokogawa, EJA series

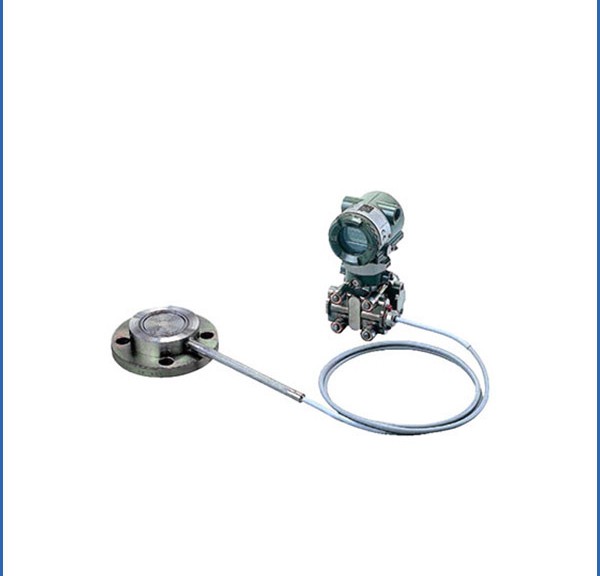

Yokogawa EJA438W and EJA438N Diaphragm Sealed Gauge Pressure Transmitters

Leave a comment

Diaphragm Sealed Pressure Transmitter

Yokogawa EJA438W and EJA438N Diaphragm Sealed Pressure Transmitter

The EJA-A series is Yokogawa’s most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

The EJA438 is a Gauge Pressure Transmitter with a Remote Diaphragm seal attached.

It is available with a Flush Type Remote Seal (EJA438W) or an Extended Type Remote Seal (EJA438N).

EJA438 features include:

  • 0.2% Accuracy
  • 700 ms Response Time
  • External Zero Adjust

Diaphragm Sealed Pressure Transmitter

Yokogawa EJA438W and EJA438N Diaphragm Sealed Pressure Transmitter

Diaphragm seal is used to prevent process medium from entering directly into the pressure-sensing assembly of the pressure transmitter. It connecte to the transmitter using capillary filled with fill fluid.

Models EJA438W and EJA438N Diaphragm Sealed Gauge Pressure Transmitters can use to measure liquid, gas or steam pressure. They output a 4 to 20 mA DC signal corresponding to the measured pressure.

The models EJA438W and EJA438N feature remote setup and monitoring through communications with the model BT200/100 BRAIN TERMINAL, CENTUM CS/XL system etc.



Features:

  • Excellent performance and stability

The EJA series uses a formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.

EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.

Transmitters, Yokogawa, EJA series

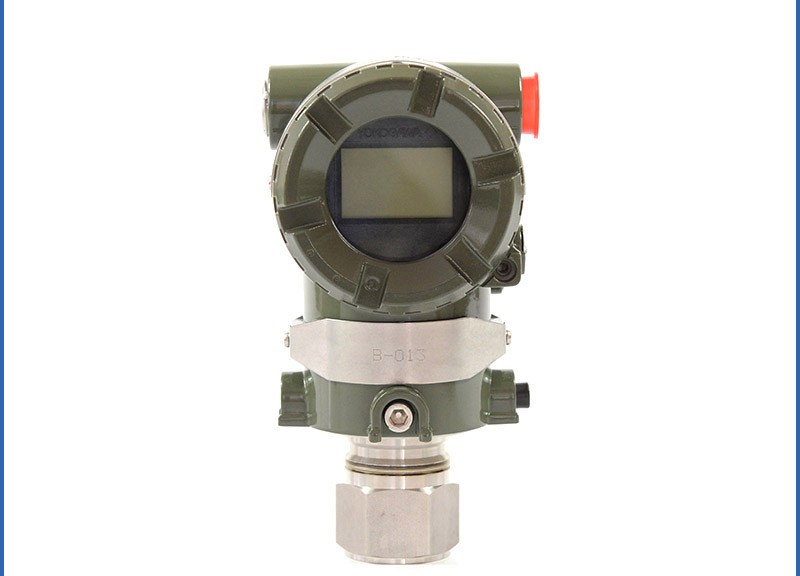

Yokogawa EJA430A Gauge Pressure Transmitter

Leave a comment

Pressure Transmitter

Yokogawa EJA430A Gauge Pressure Transmitter

The EJA-A series is Yokogawa’s most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

The EJA430A is the Traditional-mount Gauge Pressure Transmitters in the series.

EJA430A features include:

  • 0.065% Accuracy
  • 0.1% Stability per 5 years
  • 3,000 psi MWP

Pressure Transmitter

Yokogawa EJA430A Gauge Pressure Transmitter

The high performance gauge pressure transmitter model EJA430A can be used to measure liquid, gas, or steam pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured gauge pressure.
Model EJA430A also features remote setup and monitoring through communications with the BRAIN™ terminal and CENTUM CS™ or XL™ or HART® 275 host.

Features:

  • Excellent performance and stability

The EJA series uses a formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.

EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.

Transmitters, Yokogawa, EJA series

Yokogawa EJA310A Absolute Pressure Transmitter

Leave a comment

Pressure Transmitter

Yokogawa EJA310A Absolute Pressure Transmitter

The EJA-A series is Yokogawa’s most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

The EJA310A is a Traditional-mount Absolute Pressure Transmitter in the series.

EJA310A features include:

  • 0.15% Accuracy (0.075% Option)
  • 0.1% Stability
  • External Zero Adjust

Pressure Transmitter

Yokogawa EJA310A Absolute Pressure Transmitter

The high performance gauge pressure transmitter model EJA310A can be used to measure liquid, gas, or steam pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured absolute pressure.
Model EJA310A also features remote setup and monitoring through communications with the BRAIN™ terminal and CENTUM-CS™ or XL™ or HART® 275 host.

Features:

  • Excellent performance and stability

The EJA series uses a formed from monocrystal silicon, a perfect material which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.

EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.

Diaphragm Seals & Capillaries, Transmitters, Yokogawa, EJA series

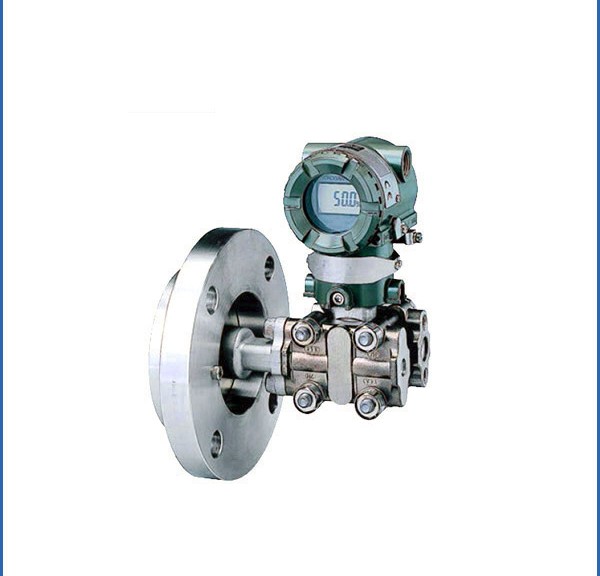

Yokogawa EJA210A and EJA220A Flange Mounted Differential Pressure Transmitters

Leave a comment

Differential Pressure Transmitter

Yokogawa EJA210A and EJA220A Flange Mounted Differential Pressure Transmitter

The EJA-A series is Yokogawa’s most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

The EJA210A and EJA220A are Flange-mount Liquid Level Transmitters in the series.

Key EJA210A and EJA220A feature include:

  • 0.075% Accuracy
  • 0.1% Stability per 5 years
  • Flush Flange Process Connection (EJA210A)
  • Extended Flange Process Connection (EJA220A)

Differential Pressure Transmitter

Yokogawa EJA210A and EJA220A Flange Mounted Differential Pressure Transmitter

The high performance differential pressure transmitter models EJA210A and 220A can be used to measure levels of densities. Both output a 4 to 20 mA DC signal corresponding to the measured differential pressure. Models EJA210A and 220A also feature remote setup and monitoring.



Features:

  • Excellent performance and stability

The EJA series uses a formed from monocrystal silicon, a perfect material, which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.

EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.
