proximity sensor

Omron Proximity Sensor E2EC-M / -Q Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2EC-M / -Q
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2EC-M / -Q
Name:Omron Proximity Sensor E2EC-M / -Q
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor E2EC-M / -Q Series

Features:
Using stainless steel detection surface, to strengthen the

reliability of the detection head

There are also splash resistant models for welding processes

species:
Ontology

Shape Detection Distance Output Type Model

Action mode NO
1865_lu_1_1 ..

Φ8 2mm DC 3-wire (PNP) E2EC-MC2B1 2M

DC 2-wire (with polarity) E2EC-MC2D1 2M

DC 2-wire (no polarity)

③-④ pin configuration E2EC-QC2D1-M1GJ-T 0.3M

Accessories (sold separately)

Sensor I / O connector at a glance (M12, unilateral

connector)

(Connector relay type required) is not a sensor attachment,

please be sure to order.

Shape wire length sensor I / O connector type Applicable

proximity sensor model

Straight
1865_lu_2_1

2m XS2F-D421-DD0 E2EC-QC2D1-M1GJ-T

5m XS2F-D421-GD0

L type
1865_lu_2_2

2m XS2F-D422-DD0
5m XS2F-D422-GD0

Note: The above sensor I / O connector for the standard

cable type.

In the splashing environment, use a flame retardant cable

type (XS2F-D42 □ – □ 80-F).

Rating / Performance:

Information Update: July 17, 2014

Type DC 3-wire PNP DC 2-wire DC 2-wire (no polarity)

(Resistant to splash type)

Size φ8 (sensor head)

Shielded shield

Model E2EC-MC2B1 E2EC-MC2D1 E2EC-QC2D1-M1GJ-T

Detection distance 2mm ± 15% 2mm ± 10%

Set the distance 0 ~ 1.2mm 0 ~ 1.4mm

Should be less than 15% of the detection distance

Can detect the object magnetic metal (non-magnetic metal

detection distance is short.

See Catalog “characteristic data”)

Standard test object iron 8 × 8 × 1mm

Response frequency 100Hz

Power supply voltage (using voltage range) DC12 ~ 24V Ripple

(p-p) 10% or less (DC10 ~ 30V)

Current consumption below 10mA –

Leakage current – 0.8mA or less

Control

Output switch capacity 100mA or less 3 ~ 50mA

Residual voltage 2V or less (load current 100mA,Wire length 2m)

3V or less (load current 50mA,

Wire length 2m) 5V below (load current 50mA,

Wire length 2m)

Indicator action display (yellow LED) Action display (red

LED), set the action display (green LED)

Operation mode (near detection object) NO (normally open)

For details, refer to the timing diagram in the “Input

Output Section Circuit Diagram” in the Catalog

Protection circuit power reverse protection, surge

absorption

Load short circuit protection, output reverse protection

protection surge absorption, load short circuit protection

Ambient temperature range of work, save: the -25 ~ +70 ℃

(no icing, condensation)

Ambient temperature range of work, when stored: 35 ~ 95% RH

(no condensation)

Temperature of the impact of -25 ~ +70 ℃ temperature range

+23 ℃, the detection distance of ± 20%

The voltage is within ± 15% of the rated supply voltage

± 5% of the detection distance is within ± 1% of the

detection distance in the range of ± 15% of the rated power

supply voltage

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage AC1,000V 50 / 60Hz 1min charging part

between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X

, Y, Z direction 2h

Impact (durable) 1,000m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP67, internal standard

oil (only sensor head)

Connection type Wire lead type (standard 2m) Connector relay

type (standard 0.3m)

After the quality (after packaging) about 65g about 95g

Material Sensory Head Part Housing Stainless Steel (SUS303)

Stainless Steel (SUS303) Fluorine Resin Coating

Detection surface

(Thickness) Stainless steel (SUS303) (0.2mm) Stainless steel

(SUS303) Fluororesin coating

(0.2mm)
Wire Polyester Elastomer (TPEE) (Shielded Wire) Viton

(Shielded Wire)
Relay Amplifier Housing ABS Resin Stainless Steel (SUS303)

Wire vinyl chloride (PVC) fluorine wire (flame retardant)

Accessories manual, amplifier mounting bracket

Note: After the power is turned on, it will take some time

to detect the distance will become stable.

In order to ensure sufficient detection distance, please

carefully confirm the use of the environment,

and set the distance below the use.

proximity sensor

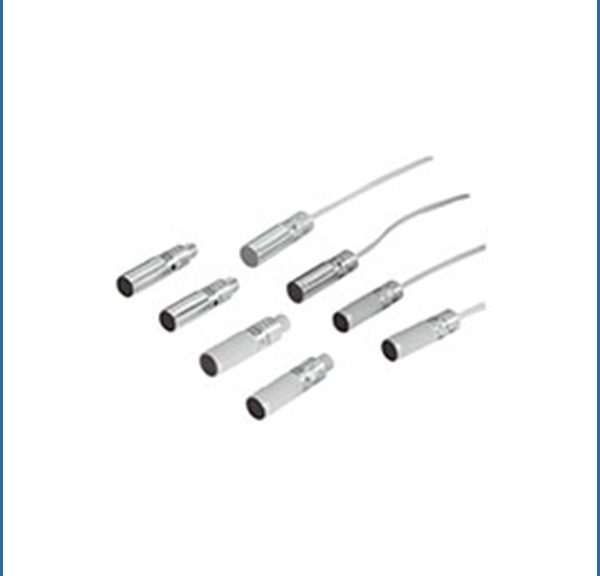

Omron Proximity Sensor E2CY-SD Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2CY-SD
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2CY-SD
Name:Omron Proximity Sensor E2CY-SD
Accuracy:0.5%FS

proximity sensor

New and Original Omron E2Q4 proximity sensor Series

Omron Proximity Sensor E2CY-SD

The metal heads of the E2EF achieve the same distances for

the same sizes as the E2E Proximity Sensors with Resin Heads.

This allows you to use Proximity Sensors that withstand

friction with the workpiece without major changes to mounting brakets.

The 0.4-mm metal head exhibits almost no wear due to

friction with the workpiece or cleaning with metal brushes.

This helps prevent equipment down time due to sensor failure and reduces the frequency of replacement.

Spatter-resistant models with fluororesin-coated head are

also available. Reduces adhesion of spatter to achieve

stable detection. The tough all-stainless steel housing with

a flame-retardant cable enables reliable application where

spatter is present near welding machines.

Main information
Omron Proximity Sensor E2CY-SD

Sensing object

Ambient temperature range

Dielectric strength

Degree of protection

Ferrous metal (The sensing distance decreases with non-ferrous metal.

Refer to Engineering Data on Data Sheet.)

Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no icing or condensation)

1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
IEC 60529 IP67

Features:
Detection of non-magnetic metals (aluminum, copper, etc.)

(E2CY-V3A), chemical-resistant fluororesin type (E2CY-C2AF)

Can easily adjust the sensitivity (one-touch teaching)

Numerical detection of the state at a glance (digital display)

species:
Ontology

Sensor part of the amplifier section

Shape stability detection distance Model output form Model
shield

New Component

M5 1.5mm E2CY-X1R5A 3M Straight 3-wire NPN open collector E2CY-SD11 2M

Φ5.4 E2CY-C1R5A-1 3M
Φ8 2mm E2CY-C2A 3M

Flat type 3mm E2CY-V3A 3M
Φ8 2mm E2CY-C2AF 3M

proximity sensor

New and Original Omron E2Q4 proximity sensor Series



Quick Details
Place of Origin:Japan
Brand Name:Omron
Model Number:E2Q4
Usage:proximity sensor
Theory:square proximity sensor
Output:Analog Sensor
Price:Best Price for new and original omron E2Q4 square proximity sensor
Quality:International Standard for E2Q4 square proximity sensor
Current Outputs:+/- 0.01 mA
Temperature:-10 to + 140°C (14 to 284°F)
Accuracy:0.5% of reading
Output Accuracy:+/- 0.01 mA
Drift:Negligible
Repeatability:0.05%
Control Loop Types:PID, Duplex, On/Off
Color:Red

proximity sensor

New and Original Omron E2Q4 proximity sensor Series

Features:

The detection direction can be changed in front, side (up

and down, left and right 90 ° units)

Can be installed like a sense of the limit switch

species:
Ontology

DC type

Shape detection distance model

Output type NPN NO + NC

(Dual output) output form PNP NO + NC
(Dual output)

Shielding
463_Lu_1_1
463_Lu_1_3
20mm E2Q4-N20E3-H E2Q4-N20F3-H

Unshielded
463_Lu_1_2
30mm E2Q4-N30ME3-H E2Q4-N30MF3-H
Exchange type

Shape detection distance model

Operation mode NO / NC (switching type)
Shielding
463_Lu_1_1
463_Lu_1_3
15mm E2Q4-N15Y4-H
Unshielded
463_Lu_1_2
30mm E2Q4-N30MY4-H
Accessories (sold separately)

Cable clamp (ST type) <Recommended> [Products produced by kmecs Co., Ltd.]

Item No. Screw size SW C D Suitable for cable diameter φ

ST-M20 × 1.5 M20 × 1.5 25 37 9 7 ~ 13
Suitable for rubber gaskets
GPM20

Rating / Performance:

Information Update: April 1, 2013

Shielded / unshielded shielded unshielded shielded unshielded

Model E2Q4-N20 □ 3-H E2Q4-N30M □ 3-H E2Q4-N15Y4-H E2Q4-N30MY4-H

Detection distance 20mm ± 10% 30mm ± 10% 15mm ± 10% 30mm ± 10%

Set the distance 0 ~ 16mm 0 ~ 24mm 0 ~ 12mm 0 ~ 24mm

Should be less than 15% of the detection distance

Detection object Magnetic metal (non-magnetic metal

detection distance is reduced) See Catalog “Characteristic data”

Standard detection object iron 60 × 60 × 1mm iron 90 × 90 × 1mm iron 60 × 60 × 1mm iron 90 × 90 × 1mm

Response frequency 150Hz 100Hz 20Hz

voltage
(Use voltage range) DC12 ~ 48V Ripple (p-p) 10% or less

(DC10 ~ 60V) AC24 ~ 240V (AC20 ~ 253V) 50 / 60Hz

Current consumption / leakage current 20mA or less 1.7mA or less See the “Characteristic data”

Control output switch capacity 200mA or less 8 ~ 500mA

Residual voltage 3V or less (when load current is 200mA) See “Characteristic data”

Indicator Power display (green), detection display (yellow)

Power display (green), action display (yellow)
Action mode

(Close to the detection of objects) E3 type: NPN NO + NC, F3 type: PNP NO + NC

For details, refer to “Input Output Section Circuit Diagram”

in the catalog
Timing diagram

AC: NO / NC switching type

For details, refer to “Input Output Section Circuit Diagram” in the catalog

Timing diagram

Protection circuit reverse protection, load short circuit protection

Ambient temperature work: -25 ~ +70 ℃, save: -40 ~ +70 ℃ (no icing, condensation)

Ambient humidity Operating: 35 ~ 85% RH Storage: 35 ~ 95% RH (no condensation)

Effect of temperature Shield type -25 ~ +70 ℃ temperature range +23 ℃, the detection distance of ± 10%

Unshielded -25 ~ + 70 ℃ temperature range +23 ℃, the detection distance of ± 15%

Voltage within ± 10% of the rated power supply voltage

within the rated power supply voltage within ± 2% of the detection distance

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage E □ type, F □ type: AC1,000V 50 / 60Hz

1min charging part between the whole and the shell

Y type: AC4,000V 50 / 60Hz 1min The charging part is between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP67 *

Connection type terminal block type

Quality about 240g
Material housing PBT

Terminal block PBT
Detection surface PBT

* When using the recommended cable clamp

proximity sensor

New and Original Omron E2Q3 proximity sensor Series



Quick Details
Place of Origin:Japan
Brand Name:Omron
Model Number:E2Q3
Usage:proximity sensor
Theory:square proximity sensor
Output:Analog Sensor
Price:Best Price for new and original omron E2Q3 square proximity sensor
Quality:International Standard for E2Q3 square proximity sensor
Current Outputs:+/- 0.01 mA
Temperature:-10 to + 140°C (14 to 284°F)
Accuracy:0.5% of reading
Output Accuracy:+/- 0.01 mA
Drift:Negligible
Repeatability:0.05%
Control Loop Types:PID, Duplex, On/Off
Color:Red

proximity sensor

New and Original Omron E2Q3 proximity sensor Series

Features:

The detection direction can be changed in front, side (up

and down, left and right 90 ° units)

Can be installed like a sense of the limit switch

species:
Ontology

DC type

Shape detection distance model

Output type NPN NO + NC

(Dual output) output form PNP NO + NC
(Dual output)

Shielding
463_Lu_1_1
463_Lu_1_3
20mm E2Q3-N20E3-H E2Q3-N20F3-H

Unshielded
463_Lu_1_2
30mm E2Q3-N30ME3-H E2Q3-N30MF3-H
Exchange type

Shape detection distance model

Operation mode NO / NC (switching type)
Shielding
463_Lu_1_1
463_Lu_1_3
15mm E2Q3-N15Y4-H
Unshielded
463_Lu_1_2
30mm E2Q3-N30MY4-H
Accessories (sold separately)

Cable clamp (ST type) <Recommended> [Products produced by kmecs Co., Ltd.]

Item No. Screw size SW C D Suitable for cable diameter φ

ST-M20 × 1.5 M20 × 1.5 25 37 9 7 ~ 13
Suitable for rubber gaskets
GPM20

Rating / Performance:

Information Update: April 1, 2013

Shielded / unshielded shielded unshielded shielded unshielded

Model E2Q3-N20 □ 3-H E2Q3-N30M □ 3-H E2Q3-N15Y4-H E2Q3-N30MY4-H

Detection distance 20mm ± 10% 30mm ± 10% 15mm ± 10% 30mm ± 10%

Set the distance 0 ~ 16mm 0 ~ 24mm 0 ~ 12mm 0 ~ 24mm

Should be less than 15% of the detection distance

Detection object Magnetic metal (non-magnetic metal

detection distance is reduced) See Catalog “Characteristic data”

Standard detection object iron 60 × 60 × 1mm iron 90 × 90 × 1mm iron 60 × 60 × 1mm iron 90 × 90 × 1mm

Response frequency 150Hz 100Hz 20Hz

voltage
(Use voltage range) DC12 ~ 48V Ripple (p-p) 10% or less

(DC10 ~ 60V) AC24 ~ 240V (AC20 ~ 253V) 50 / 60Hz

Current consumption / leakage current 20mA or less 1.7mA or less See the “Characteristic data”

Control output switch capacity 200mA or less 8 ~ 500mA

Residual voltage 3V or less (when load current is 200mA) See “Characteristic data”

Indicator Power display (green), detection display (yellow)

Power display (green), action display (yellow)
Action mode

(Close to the detection of objects) E3 type: NPN NO + NC, F3 type: PNP NO + NC

For details, refer to “Input Output Section Circuit Diagram”

in the catalog
Timing diagram

AC: NO / NC switching type

For details, refer to “Input Output Section Circuit Diagram” in the catalog

Timing diagram

Protection circuit reverse protection, load short circuit protection

Ambient temperature work: -25 ~ +70 ℃, save: -40 ~ +70 ℃ (no icing, condensation)

Ambient humidity Operating: 35 ~ 85% RH Storage: 35 ~ 95% RH (no condensation)

Effect of temperature Shield type -25 ~ +70 ℃ temperature range +23 ℃, the detection distance of ± 10%

Unshielded -25 ~ + 70 ℃ temperature range +23 ℃, the detection distance of ± 15%

Voltage within ± 10% of the rated power supply voltage

within the rated power supply voltage within ± 2% of the detection distance

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage E □ type, F □ type: AC1,000V 50 / 60Hz

1min charging part between the whole and the shell

Y type: AC4,000V 50 / 60Hz 1min The charging part is between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP67 *

Connection type terminal block type

Quality about 240g
Material housing PBT

Terminal block PBT
Detection surface PBT

* When using the recommended cable clamp

proximity sensor

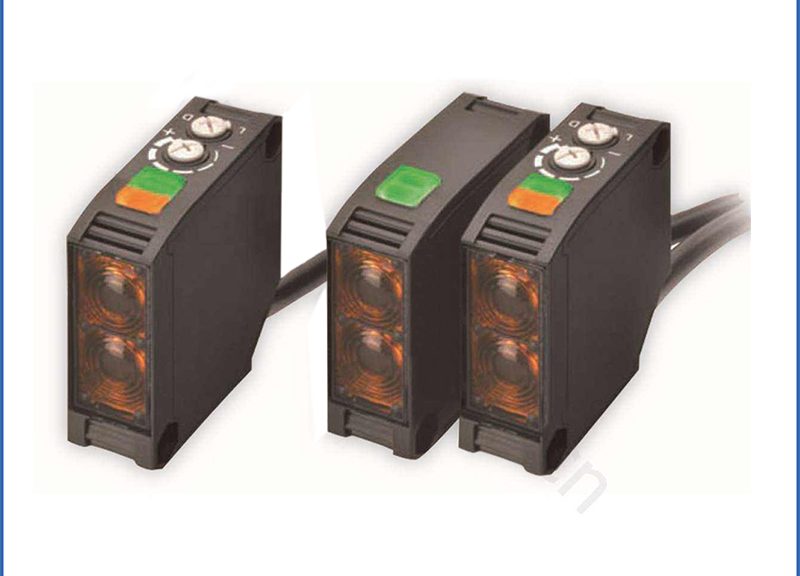

New and Original Omron E2Q2 proximity sensor Series



Quick Details
Place of Origin:Japan
Brand Name:Omron
Model Number:E2Q2
Usage:proximity sensor
Theory:square proximity sensor
Output:Analog Sensor
Price:Best Price for new and original omron E2Q2 square proximity sensor
Quality:International Standard for E2Q2 square proximity sensor
Current Outputs:+/- 0.01 mA
Temperature:-10 to + 140°C (14 to 284°F)
Accuracy:0.5% of reading
Output Accuracy:+/- 0.01 mA
Drift:Negligible
Repeatability:0.05%
Control Loop Types:PID, Duplex, On/Off
Color:Red

proximity sensor

New and Original Omron E2Q2 proximity sensor Series

Features:

The detection direction can be changed in front, side (up

and down, left and right 90 ° units)

Can be installed like a sense of the limit switch

species:
Ontology

DC type

Shape detection distance model

Output type NPN NO + NC

(Dual output) output form PNP NO + NC
(Dual output)

Shielding
463_Lu_1_1
463_Lu_1_3
20mm E2Q2-N20E3-H E2Q2-N20F3-H

Unshielded
463_Lu_1_2
30mm E2Q2-N30ME3-H E2Q2-N30MF3-H
Exchange type

Shape detection distance model

Operation mode NO / NC (switching type)
Shielding
463_Lu_1_1
463_Lu_1_3
15mm E2Q2-N15Y4-H
Unshielded
463_Lu_1_2
30mm E2Q2-N30MY4-H
Accessories (sold separately)

Cable clamp (ST type) <Recommended> [Products produced by kmecs Co., Ltd.]

Item No. Screw size SW C D Suitable for cable diameter φ

ST-M20 × 1.5 M20 × 1.5 25 37 9 7 ~ 13
Suitable for rubber gaskets
GPM20

Rating / Performance:

Information Update: April 1, 2013

Shielded / unshielded shielded unshielded shielded unshielded

Model E2Q2-N20 □ 3-H E2Q2-N30M □ 3-H E2Q2-N15Y4-H E2Q2-N30MY4-H

Detection distance 20mm ± 10% 30mm ± 10% 15mm ± 10% 30mm ± 10%

Set the distance 0 ~ 16mm 0 ~ 24mm 0 ~ 12mm 0 ~ 24mm

Should be less than 15% of the detection distance

Detection object Magnetic metal (non-magnetic metal

detection distance is reduced) See Catalog “Characteristic data”

Standard detection object iron 60 × 60 × 1mm iron 90 × 90 × 1mm iron 60 × 60 × 1mm iron 90 × 90 × 1mm

Response frequency 150Hz 100Hz 20Hz

voltage
(Use voltage range) DC12 ~ 48V Ripple (p-p) 10% or less

(DC10 ~ 60V) AC24 ~ 240V (AC20 ~ 253V) 50 / 60Hz

Current consumption / leakage current 20mA or less 1.7mA or less See the “Characteristic data”

Control output switch capacity 200mA or less 8 ~ 500mA

Residual voltage 3V or less (when load current is 200mA) See “Characteristic data”

Indicator Power display (green), detection display (yellow)

Power display (green), action display (yellow)
Action mode

(Close to the detection of objects) E3 type: NPN NO + NC, F3 type: PNP NO + NC

For details, refer to “Input Output Section Circuit Diagram”

in the catalog
Timing diagram

AC: NO / NC switching type

For details, refer to “Input Output Section Circuit Diagram” in the catalog

Timing diagram

Protection circuit reverse protection, load short circuit protection

Ambient temperature work: -25 ~ +70 ℃, save: -40 ~ +70 ℃ (no icing, condensation)

Ambient humidity Operating: 35 ~ 85% RH Storage: 35 ~ 95% RH (no condensation)

Effect of temperature Shield type -25 ~ +70 ℃ temperature range +23 ℃, the detection distance of ± 10%

Unshielded -25 ~ + 70 ℃ temperature range +23 ℃, the detection distance of ± 15%

Voltage within ± 10% of the rated power supply voltage

within the rated power supply voltage within ± 2% of the detection distance

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage E □ type, F □ type: AC1,000V 50 / 60Hz

1min charging part between the whole and the shell

Y type: AC4,000V 50 / 60Hz 1min The charging part is between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP67 *

Connection type terminal block type

Quality about 240g
Material housing PBT

Terminal block PBT
Detection surface PBT

* When using the recommended cable clamp
