proximity sensor

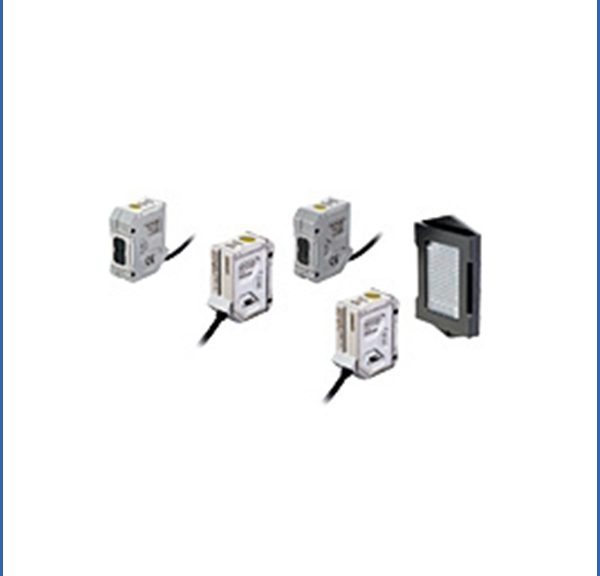

New and Original Omron TL-N/-Q proximity sensor Series



Quick Details
Place of Origin:Japan
Brand Name:Omron
Model Number:omron TL-N/-Q square proximity sensor
Usage:proximity sensor
Theory:proximity sensor
Output:Analog Sensor
Product name:omron TL-N/-Q square proximity sensor
Model:omron TL-N/-Q square proximity sensor
Condition:New and original

proximity sensor

New and Original Omron TL-N/-Q proximity sensor Series

Features:

Easy to install, can be used for high-speed pulse generator, high-speed rotation controller

Can be directly installed metal parts (-N type)

Because the variety is rich, so the most suitable for a

variety of limit control, counting control and other aspects (-N type)

species:
Ontology

DC 2-wire

Shape detection distance model

Action mode
NO NC
Unshielded

462_lu_1_1
□ 17 5mm TL-Q5MD1 2M * 1 * 2 TL-Q5MD2 2M * 1
□ 25 7mm TL-N7MD1 2M * 1 TL-N7MD2 2M * 1
□ 30 12mm TL-N12MD1 2M * 1 TL-N12MD2 2M * 1
□ 40 20mm TL-N20MD1 2M * 1 TL-N20MD2 2M * 1

* 1. Various types of frequencies that prevent mutual interference. Model TL-N □ MD □ 5, TL-Q5MD □ 5. (Example: TL-N7MD15)

* 2. Equipped with a robot (resistant to bending) wire type. Model is -R.

(For example: TL-Q5MD1-R 2M)
DC 3-wire / AC 2-wire

Shape Detection Distance Output Type Model
Action mode

NO NC
Unshielded

462_lu_2_1 8 × 9 2mm DC 3-wire NPN TL-Q2MC1 2M –
□ 17 5mm TL-Q5MC1 2M * 1 * 2 TL-Q5MC2 2M
DC 3-wire PNP TL-Q5MB1 2M –

□ 25 5mm DC 3-wire NPN TL-N5ME1 2M * 1 * 2 TL-N5ME2 2M * 1
AC 2-wire TL-N5MY1 2M * 1 TL-N5M Y2 2M * 1

□ 30 10mm DC 3-wire NPN TL-N10ME1 2M * 1 * 2 TL-N10ME2 2M * 1

DC 3-wire PNP TL-N10MF1 2M * 1 –
AC 2-wire TL-N10MY1 2M * 1 TL-N10MY2 2M * 1

□ 40 20mm DC 3-wire NPN TL-N20ME1 2M * 1 * 2 TL-N20ME2 2M * 1
AC 2-wire TL-N20MY1 2M * 1 TL-N20MY2 2M * 1

* 1. Various types of frequencies that prevent mutual interference.

Model TL- □□ M □□ 5. (Example: TL-N5ME15)

* 2. Equipped with a robot (resistant to bending) wire type. Model is -R.

(For example: TL-Q5MC1-R 2M)

Rating / Performance:
DC 2-wire

Model TL-Q5MD □ TL-N7MD □ TL-N12MD □ TL-N20MD □
Detection distance 5mm ± 10% 7mm ± 10% 12mm ± 10% 20mm ± 10%

Set the distance 0 ~ 4mm 0 ~ 5.6mm 0 ~ 9.6mm 0 ~ 16mm

Should be less than 10% of the detection distance

Can detect the object magnetic metal (non-magnetic metal

detection distance is short. Please refer to the sample “characteristic data”)

Standard detection object iron 18 × 18 × 1mm iron 30 × 30 × 1mm iron 40 × 40 × 1mm iron 50 × 50 × 1mm

Response frequency * 500Hz 300Hz

voltage
(Using voltage range) DC12 ~ 24V Ripple (p-p) 10% or less (DC10 ~ 30V)

Leakage current below 0.8mA

Control output switch capacity 3 ~ 100mA

Residual voltage 3.3V or less (load current 100mA, wire length 2m)

Indicator D1: Action display (red), set display (green)

D2 type: action display (red)

Action mode
(When the detection object is close) D1 type: NO

D2 type: NC

For details, refer to the timing diagram of the “Input

Output Section Circuit Diagram” of the sample

Protection circuit load short circuit protection, surge absorption

Ambient temperature range of work, save: the -25 ~ +70 ℃ (no icing, condensation)

Ambient humidity range when operating, save: 35 ~ 95% RH (no condensation)

The temperature of the impact of -25 ~ +70 ℃ temperature

range +23 ℃, the detection distance of ± 10%

The voltage is within ± 15% of the rated supply voltage,

the rated supply voltage, the detection distance of ± 2.5%

Insulation resistance 50MΩ or more (DC500V megger) The charging unit is integral with the housing

Withstand voltage AC1,000V 1min charging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2X, Y, Z each direction 3 1,000m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP67, the company internal standard oil

Connection type wire lead type (standard wire length 2m)

The quality (after packaging) is about 85g about 165g about 235g about 330g

Material shell heat ABS

Detection surface

Accessories Operating Instructions Mounting Bracket,

Mounting screws (M4 x 25),

Instruction manual mounting bracket,

Installation screws (M4 × 30),

Instruction manual mounting bracket,

Installation screws (M5 × 40),
user’s Guide

* Response frequency is average.

Measurement conditions, the use of standard detection of objects, the detection of objects spacing for the standard

detection of objects 2 times the set distance of the detection distance of 1 /
DC 3-wire

Model TL-Q2MC1 TL-Q5MC □ / TL-Q5MB1

Detection distance 2mm ± 15% 5mm ± 10%

Set the distance 0 ~ 1.5mm 0 ~ 4mm

Should be less than 10% of the detection distance

Can detect the object magnetic metal (non-magnetic metal detection distance is short.

Please refer to the sample “characteristic data”)

Standard test object iron 8 × 8 × 1mm iron 15 × 15 × 1mm
Response time – 2ms or less

Response frequency * 500Hz
voltage

(Using voltage range) DC12 ~ 24V
Ripple (p-p) 10% or less
(DC10 to 30V)

Consumption current 15mA or less (when DC24V, no load) 10mA or less (DC24V)

Control output switch capacity NPN open collector

100mA or less (DC30V or less) TL-Q5MC □: NPN open collector, 50mA or less (DC30V or less)

TL-Q5MB □: PNP open collector, 50mA or less (DC30V or less)

Residual voltage 1V or less (load current 100mA

And the conductor length 2m) 1V or less (load current 50mA
And wire length 2m)

Indicator light detection display (red)
Action mode

(When the object is near) NO B1 / C1: NO

Type C2: NC

For details, refer to the timing diagram of the “Input Output Section Circuit Diagram” of the sample

Protection circuit reverse connection protection, surge absorption

Ambient temperature range of work, save: the -10 ~ +60 ℃ (no icing, condensation) work,

save: the -25 ~ +70 ℃ (no icing, condensation)
Ambient humidity range when operating, save: 35 ~ 95% RH (no condensation)

Temperature of -10 ~ + 60 ℃ within the temperature range

+23 ℃, the detection distance of ± 10% or less -25 ~ +70

℃ temperature range +23 ℃, the detection distance of ± 20%

The voltage is within ± 10% of the rated power supply

voltage, the rated power supply voltage, the detection distance of ± 2.5%

Insulation resistance 50MΩ or more (DC500V megger) Charging

part between the whole and the shell 5MΩ or more (DC500V

megger) Charging part of the whole and the shell

Withstand voltage AC1,000V 1min charging part between the

whole and the shell between the AC500V 50 / 60Hz 1min

charging part of the overall and the shell between

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 1,000m / s2 X, Y, Z 10 times each direction 200m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP67, internal standard oil resistance IEC standard IP67

Connection type wire lead type (standard wire length 2m)

After mass (after packaging) about 60g about 90g
Material shell heat ABS

Detection surface
Accessories User’s Manual –

* Response frequency is average.

Measurement conditions: the use of standard detection of objects, the detection of objects as the standard interval

of 2 times the object, set the distance of 1/2 of the detection distance.

DC 3-wire / AC 2-wire

Model TL-N5ME □
TL-N5MY □ TL-N10ME □
TL-N10MY □
TL-N10MF1 TL-N20ME □
TL-N20MY □

Detection distance 5mm ± 10% 10mm ± 10% 20mm ± 10%

Set the distance 0 ~ 4mm 0 ~ 8mm 0 ~ 16mm

Should be less than 15% of the detection distance

Can detect the object magnetic metal (non-magnetic metal

detection distance is short.

Please refer to the sample “characteristic data”)
Standard detection object iron 30 × 30 × 1mm iron 40 × 40 × 1mm iron 50 × 50 × 1mm

Response frequency * 1 E / F type: 500Hz

Y type: 10Hz E type: 40Hz

Y type: 10Hz

Power supply * 2

(Use voltage range) E / F type: DC12 ~ 24V ripple (p-p) 10% or less (DC10 ~ 30V)

Y type: AC100 ~ 220V (AC90 ~ 250V) 50 / 60Hz

Current consumption E / F type: 8mA or less (when DC12V), 15mA or less (DC24V)

Leakage current Y type: see the sample “characteristic data”

Control output switch capacity E / F type: 100mA or less (DC12V), 200mA or less (DC24V)

Y type: 10 ~ 200mA

Residual voltage E / F type: 1V or less (at 200mA)

Y type: Please refer to the sample “Characteristic data”

Indicator E / F type: detection display (red)

Y type: action display (red)

Action mode
(When detecting object is close) E1 / F1 / Y1 type: NO

E2 / Y2 type: NC

For details, refer to the timing diagram of the “Input Output Section Circuit Diagram” of the sample

Protection circuit E type: reverse protection, surge absorption

Y type: surge absorption

Ambient temperature range of work, save: the -25 ~ +70 ℃ (no icing, condensation)

Ambient humidity range when operating, save: 35 ~ 95% RH (no condensation)

The temperature of the impact of -25 ~ +70 ℃ temperature range +23 ℃, the detection distance of ± 10%

Voltage effect E / F type: within ± 10% of the rated power

supply voltage, the rated power supply voltage, the detection distance of ± 2.5%

Y type: within ± 10% of the rated power supply voltage, the

rated power supply voltage, the detection distance of ± 1%

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage E / F type: AC1,000V 50 / 60Hz 1min

charging part between the whole and the shell

Y type: AC2,000V 50 / 60Hz 1min charging part of the whole and the shell between

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP67, the company internal standard oil

Connection type wire lead type (standard wire length 2m)

After the quality (after packaging) about 190g about 240g about 340g

Material shell heat ABS

Detection surface

Accessories Type E: Mounting bracket,

Mounting screws (M4 x 25),
user’s Guide

Y Type: Operating Instructions E / F type: Mounting bracket,
Installation screws (M4 × 30),

user’s Guide

Y: Instruction manual Type E: Mounting bracket,
Installation screws (M5 × 40),

user’s Guide

Y: User’s Manual

* 1. The response frequency is the average. Measurement conditions: the use of standard detection of objects, the detection of objects as the standard interval of 2 times the object, set the distance of 1/2 of the detection distance.

* 2. E type (DC switch type) can use DC24V ± 10% (average) full-wave rectifier power supply.

proximity sensor

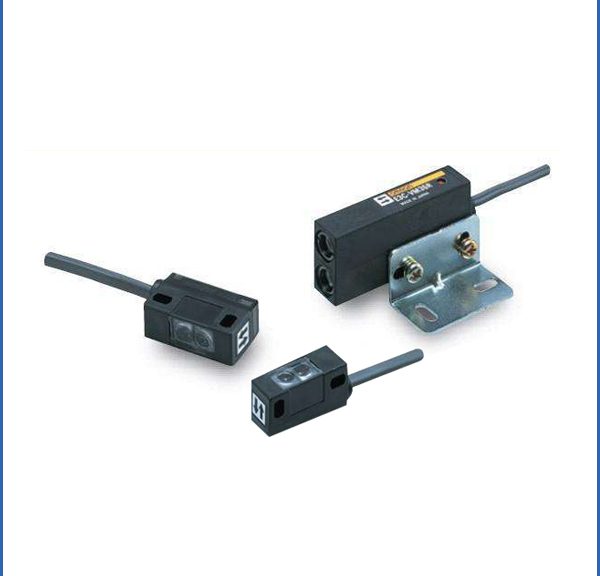

Omron Proximity Sensor TL-W series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:TL-W
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:TL-W
Name:Omron Proximity Sensor TL-W
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor TL-W series

Features:

Thickness 6mm Detection distance 3mm (TL-W3MC1)

Series of aluminum die-casting type

species:
Ontology

DC 2-wire

Shape detection distance model
Action mode
NO NC
Unshielded

Lt; / RTI &
DC 3-wire

Shape Detection Distance Output Type Model
Action mode
NO NC
Unshielded

Tl_w_lineup2_1
1.5mm NPN TL-W1R5MC1 2M * 1 * 2 –
PNP TL-W1R5MB1 2M –
3mm NPN TL-W3MC1 2M * 1 * 2 TL-W3MC2 2M * 1 * 2
PNP TL-W3MB1 2M * 2 TL-W3MB2 2M * 2
5mm NPN TL-W5MC1 2M * 1 * 2 TL-W5MC2 2M
PNP TL-W5MB1 2M TL-W5MB2 2M
20mm NPN TL-W20ME1 2M * 1 TL-W20ME2 2M * 1
Shielding

Lt; / RTI &
PNP TL-W5F1 2M TL-W5F2 2M

* 1. Various types of frequencies that prevent mutual interference. Model TL-W □ M □ □ 5. (Example: TL-W5MD15)

* 2. Equipped with a robot (resistant to bending) wire type. Model is -R. (For example: TL-W5MC1-R 2M)

Rating / Performance:
DC 2-wire

Model TL-W5MD □
Detection distance 5mm ± 10%
Set the distance 0 ~ 4mm

Should be less than 10% of the detection distance

Detectable object Magnetic metal (non-magnetic metal

detection distance is short. Please refer to the sample

“characteristic data”.)

Standard test object iron 18 × 18 × 1mm

Response frequency * 1 500Hz

Power supply voltage (using voltage range) DC12 ~ 24V Ripple

(p-p) 10% or less (DC10 ~ 30V)

Leakage current below 0.8mA

Control output switch capacity 3 ~ 100mA

Residual voltage 3.3V or less (load current 100mA, wire length 2m)

Indicator D1: Action display (red), set display (green)

D2 type: action display (red)

Action mode (near detection of object) D1 type: NO

D2 type: NC Please refer to the sample “input and output section circuit diagram” timing diagram.

Protection circuit load short circuit protection, surge absorption

Ambient temperature range when operating, save: -25 ~ +70 ° C (no icing, condensation) * 2

Ambient humidity range when operating, save: 35 ~ 95% RH (no condensation)

Temperature of ± 25 ° C at + 23 ° C in the temperature

range of -25 to + 70 ° C, ± 10% of the detection distance

The voltage is within ± 15% of the rated supply voltage,

the rated supply voltage, the detection distance of ± 2.5%

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage AC1,000V 1min charging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 3 times

Protection structure IEC standard IP67, internal standard oil * 2

Connection type wire lead type (standard wire length 2m)

Quality (after packaging) about 80g

Material shell heat ABS

Detection surface
Accessories manual

* 1. The response frequency is the average.

Measurement conditions: the use of standard detection of

objects, the detection of objects as the standard interval

of 2 times the object, set the distance of 1/2 of the detection distance.

* 2. In the oil resistant environment, use the upper limit of the ambient temperature range (when operating) to +40 ° C.

DC 3-wire

Model TL-W1R5MC1
TL-W1R5MB1 TL-W3MC □
TL-W3MB □ TL-W5MC □
TL-W5MB □

Detection distance 1.5mm ± 10% 3mm ± 10% 5mm ± 10%
Set the distance 0 ~ 1.2mm 0 ~ 2.4mm 0 ~ 4mm

Should be less than 10% of the detection distance

Can detect the object magnetic metal (non-magnetic metal detection distance is short.

Please refer to the sample “characteristic data”)

Standard detection object iron 8 × 8 × 1mm iron 12 × 12 × 1mm iron 18 × 18 × 1mm

Response frequency * 1 1kHz above 600Hz above 500Hz

Power supply voltage (using voltage range) DC12 ~ 24V Ripple (p-p) 10% or less (DC10 ~ 30V)

Consumption of current below 15mA (DC24V, no load) 10mA or less

(DC24V, no load)

Control output switching capacity TL-W1R5MC1: NPN open collector, 100mA or less (DC30V or less)

TL-W1R5MC1 / -W3MB □: PNP open collector, 100mA or less

(DC30V or less) TL-W5MC □: NPN open collector,

DC12V when 50mA or less
(DC30V or less)
DC24V when 100mA or less
(DC30V or less)

TL-W5MB □: PNP open collector,
DC12V when 50mA or less
(DC30V or less)

DC24V when 100mA or less
(DC30V or less)

Residual voltage 1V or less (load current 100mA, wire length 2m)

Indicator light detection display (red)
Action mode (near detector) NO B1 / C1 type: NO

B2 / C2 type: NC
For details on the protection circuit, refer to the timing

diagram of the “Input and output section circuit diagram” of the sample

Ambient temperature range reverse protection, surge absorption

Ambient humidity range when working, save: -25 ~ +70 ° C (no icing, condensation) *

Temperature effects When working, save: 35 ~ 95% RH (no condensation)

Voltage effect ± 25 ° C at + 23 ° C in the temperature range of -25 to + 70 ° C

Insulation resistance Within ± 10% of the rated power

supply voltage, ± 2.5% of the rated distance when rated

power supply voltage Within ± 20% of the rated power supply

voltage, the rated power supply voltage is less than ± 2.5% of the detection distance

Withstand voltage 50MΩ or more (DC500V megger) charging unit between the whole and the shell

Vibration (durable) AC1,000V 50 / 60Hz 1min charging part between the whole and the shell

Impact (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Protection structure 500m / s2 X, Y, Z direction 3 times
Connection method IEC standard IP67, the company internal standard oil *

Quality (after packaging) lead-out lead (standard wire length 2m)

Material shell about 70g about 80g
Test surface heat ABS

Accessories Heat-resistant ABS

Pay the product to install the bracket, the instruction manual

Model TL-W5E1, TL-W5E2
TL-W5F1, TL-W5F2 TL-W20ME1
TL-W20ME2

Detection distance 5mm ± 10% 20mm ± 10%
Set the distance 0 ~ 4mm 0 ~ 16mm

Should be less than 10% of the detection distance of the detection distance of 1 to 15%

Can detect the object magnetic metal (non-magnetic metal detection distance is short.

Please refer to the sample “characteristic data”)

Standard detection object iron 18 × 18 × 1mm iron 50 × 50 × 1mm

Response frequency * 1 300Hz above 40Hz or more

Power supply voltage (using voltage range) DC12 ~ 24V Ripple (p-p) 20% or less (DC10 ~ 30V) DC12 ~ 24V Ripple (p-p) 10% or less (DC10 ~ 30V)

Current consumption DC24V, 15mA or less (DC24V, no load) 8mA / 12V, 15mA / 24V

Control output switch capacity 200mA DC12V when 100mA or less

DC24V when 200mA or less

Residual voltage 2V or less (load current 200mA, wire length 2m) 1V or less (load current 200mA, wire length 2m)

Indicator light detection display (red)

Action mode (near detection of object) E1 / F1 type: NO

E2 / F2 type: NC

For details on the protection circuit, refer to the timing

diagram of the “Input and output section circuit diagram” of the sample

Ambient temperature range reverse protection, surge absorption

Ambient humidity range when working, save: -25 ~ +70 ° C (no icing, condensation) *

Temperature effects When working, save: 35 ~ 95% RH (no condensation)

Voltage effect ± 25 ° C at + 23 ° C in the temperature range of -25 to + 70 ° C

Insulation resistance within ± 10% of the rated power supply voltage, the rated power supply voltage, the

detection distance of ± 2.5%

Withstand voltage 50MΩ or more (DC500V megger) charging unit between the whole and the shell

Vibration (durable) AC1,000V 50 / 60Hz 1min charging part between the whole and the shell

Impact (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Protection structure 500m / s2 X, Y, Z direction 3 times 500m / s2 X, Y, Z direction 10 times

Connection method IEC standard IP67, the company internal standard oil *

Quality (after packaging) lead-out lead (standard wire length 2m)

Material shell about 100g about 210g

Inspection surface aluminum die-casting heat-resistant ABS
Accessories Heat-resistant ABS

To pay the product manual

* In the oil-resistant environment, use the upper limit of the ambient temperature range (during operation) to +40 ° C.
