All posts by conchgroup_admin

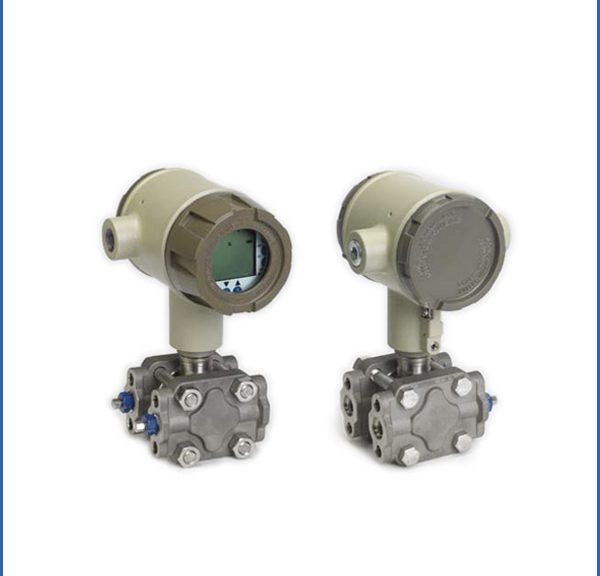

ST3000 900 Series, Transmitters, Honeywell

Honeywell STD930 Differential Pressure Transmitter

25 7 月, 2017 conchgroup_admin Leave a comment

Differential Pressure Transmitter

Differential Pressure Transmitter Honeywell STD930 series of intelligent differential pressure transmitter is based on the microprocessor-based intelligent transmitter. The latest R300 version, to enhance the accuracy of the transmitter, reliability and long-term stability indicators. It can measure a variety of liquid and gas differential pressure, pressure or level, and output the corresponding 4 ~ 20mA analog and digital signals. Its unique temperature and static pressure error automatic correction function to make it meet the harsh environment. It has DE communication protocol, with Honeywell’s ExperionPKS distributed control system and intelligent field communicator (SFC) to achieve two-way digital communication, eliminating the analog signal transmission error, to facilitate the transmitter debugging, verification and fault diagnosis The

STD924 features

1. Advanced sensor technology:

Using the ion implantation silicon technology, the static pressure sensor and the temperature sensor, at any time to correct the process temperature and static pressure caused by the error, improve the measurement accuracy and stability.

2. High reliability: Mean time between failures 470 years.

3. High stability: ± 0.01% / year.

4. High precision: ± 0.065%.

5. High static pressure:

Ordinary type is 31.5MPa, up to 42MPa.

6 Wide measuring range:

STD9240 ~ 100kPa

STD9300 ~ 700kPa

STD9740 ~ 21MPa

7. Complete specifications:

The liquid part has a variety of anti-corrosion materials, to meet the conditions of the use of a variety of conditions, special needs

8. With a variety of intrinsically safe and flameproof certification.

9. Optional HART protocol.

10. Optional fieldbus (FF) communication protocol.

11. Use the field communicator or MCT multi-protocol communicator to achieve the ST3000 transmitter configuration, checksum fault diagnosis.

12. Configurable with SCT configuration tool via a portable computer.

13. Digital integration with Honeywell ExperionPKSTM distributed control system.

14. Small size, light weight: 4.1Kg.

Description

Isolated diaphragm material
STD924: 316L SS, Hastelloy C-276, Monel alloy, tantalum
STD930: 316L SS, Hastelloy C-276, Monel alloy, tantalum
STD974: 316L SS, Hastelloy C-276

Process interface material
STD924: 316 SS, carbon steel (galvanized), Monel alloy, Hastelloy
STD930: 316 SS, carbon steel (galvanized), Monel alloy, Hastelloy
STD974: 316 SS, carbon steel (galvanized), Monel alloy

O-type gasket: standard for Teflon (polytetrafluoroethylene), fluorinated rubber
Body bolts: carbon steel (galvanized), or 3166 SS nut 304SS bolts; or NACE A286SS bolts, 304SS nut or B7M bolt nut
Mounting bracket: carbon steel (galvanized) or stainless steel angle bracket, or carbon steel plate bracket
Filling liquid: silicone oil DC200 or CTFE (fluorine oil)
Case: epoxy polyester paint, low copper and aluminum alloy. Meet NEMA AX (waterproof) and NEMA 7 (explosion proof) requirements. Optional stainless steel
Process connection: 1/4 inch NPT; 1/2 inch NPT adapter, DIN wiring 16AWG (1.5mm diameter)
Installation: Use a standard mounting bracket that can be installed in any position. The bracket is mounted on a 2 inch (50 mm) vertical or horizontal pipe
Stability: 0.03% of full scale / year
Output (two lines): 4 ~ 20mA, or DE digital communication. Optional FF field bus and HART protocol

STD930

proximity sensor, Omron

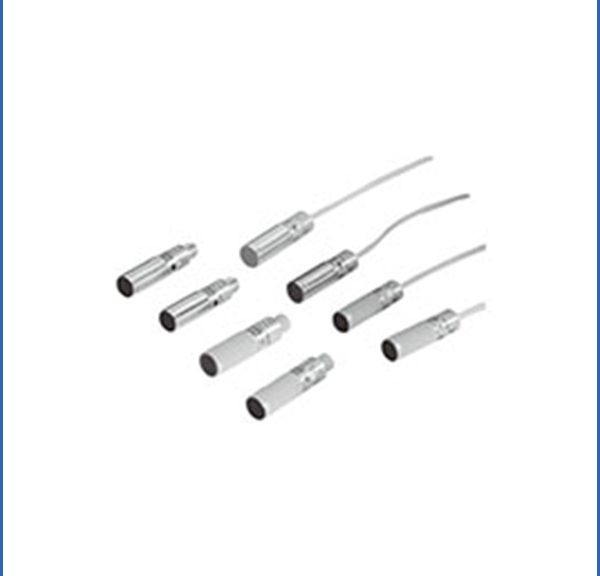

Omron Proximity sensor E2S series

25 7 月, 2017 conchgroup_admin Leave a comment

proximity sensor

Omron Proximity sensor E2S series

Quick Details
Place of Origin:Japan
Brand Name:Omron
Model Number:omron E2S proximity sensor
Usage:proximity sensor
Theory:proximity sensor
Output:Analog Sensor
Product name:omron E2S proximity sensor
Model:omron E2S proximity sensor
Condition:New and original

proximity sensor

Omron Proximity sensor E2S series

Features:
□ 5.5mm ultra-small built-in amplifier

The longest detection distance of 2.5mm. Workpiece shaking can also be stable detection

Response frequency 1kHz

Low current consumption

species:
Ontology

DC 2-wire

Shape detection surface detection distance model
Action mode

NO NC
Unshielded
459_lu_1_1
Above 1.6mm E2S-W11 1M * 1 * 2 E2S-W12 1M
Front E2S-Q11 1M * 1 * 2 E2S-Q12 1M
Above 2.5mm E2S-W21 1M * 1 * 2 E2S-W22 1M * 2
Front E2S-Q21 1M * 1 * 2 E2S-Q22 1M * 2

* 1. Various types of frequencies that prevent mutual interference. Model is E2S- □□□ B. (Example: E2S-W11B)

* 2. Equipped with a robot (resistant to bending) wire type. Model is -R. (Eg E2S-W11-R 1M)
DC 3-wire

Shape detection surface detection distance output type model
Action mode

NO NC
Unshielded
459_lu_2_1
Above 1.6mm NPN E2S-W13 1M * 1 * 2 E2S-W14 1M
Front E2S-Q13 1M * 1 * 2 E2S-Q14 1M

Above 2.5mm E2S-W23 1M * 1 * 2 E2S-W24 1M * 2
Front E2S-Q23 1M * 1 * 2 E2S-Q24 1M * 2

Above 1.6mm PNP E2S-W15 1M * 1 E2S-W16 1M
Front E2S-Q15 1M * 1 E2S-Q16 1M

Above 2.5mm E2S-W25 1M * 1 E2S-W26 1M
Front E2S-Q25 1M * 1 E2S-Q26 1M

* 1. Various types of frequencies that prevent mutual interference. Model is E2S- □□□ B. (Eg E2S-W13B)

* 2. Equipped with a robot (resistant to bending) wire type. Model is -R. (Eg E2S-W13-R 1M)

Accessories (sold separately)

Mounting brackets

The sensor comes with a part of the home. Other mounting brackets can be ordered as needed.

Shape Model Number Remarks
459_lu_3_1
Y92E-C1R6 1 Accessories for E2S- □ 1 □□ (fixed with one screw)

459_lu_3_2
Y92E-C2R5 is an attachment for E2S- □ 2 □□ (fixed with a screw)

459_lu_3_3
Y92E-D1R6 E2S- □ 1 □□ With (with two screws)

459_lu_3_4

Y92E-D2R5 E2S- □ 2 □□ With (with two screws)

Rating:
DC 2-wire

Model Item E2S-W11
E2S-W12 E2S-Q11
E2S-Q12 E2S-W21
E2S-W22 E2S-Q21
E2S-Q22

Check the front of the front of the front

Detection distance 1.6mm ± 15% 2.5mm ± 15%

Set the distance 0 ~ 1.2mm 0 ~ 1.9mm

Should be less than 10% of the detection distance

Can detect the object magnetic metal (non-magnetic metal

detection distance is short.

See catalog “characteristic data”)

Standard test object iron 12 × 12 × 1mm iron 15 × 15 × 1mm

Response frequency above 1kHz

Power supply voltage (using voltage range) DC12 ~ 24V Ripple (p-p) 10% or less (DC10 ~ 30V)

Leakage current below 0.8mA

Control the output switch capacitance of 3 ~ 50mA or less

Residual voltage 3V or less (load current 50mA, wire length 1m)

Indicator □ Type 1: Action display (red), setting display (green)

□ □ 2 type: action display (red)

Action mode (near detection of object) □□ Type 1: NO

□ □ Type 2: NC For details, refer to the timing diagram of “Input Output Section Circuit Diagram” on the catalog

* Response frequency is average.
Measurement conditions: the use of standard detection of

objects, the detection of objects as the standard interval

of 2 times the object, set the distance of 1/2 of the detection distance.
DC 3-wire

Model item E2S-W13
E2S-W14 E2S-Q13
E2S-Q14 E2S-W23
E2S-W24 E2S-Q23
E2S-Q24 E2S-W15
E2S-W16 E2S-Q15
E2S-Q16 E2S-W25
E2S-W26 E2S-Q25
E2S-Q26

The front of the front of the front of the front above the front

Detection distance 1.6mm ± 15% 2.5mm ± 15% 1.6mm ± 15% 2.5mm ± 15%

Set the distance 0 ~ 1.2mm 0 ~ 1.9mm 0 ~ 1.2mm 0 ~ 1.9mm
Should be less than 10% of the detection distance

Can detect the object magnetic metal (non-magnetic metal

detection distance is short. See catalog “characteristic data”)

Standard detection object iron 12 × 12 × 1mm iron 15 × 15 × 1mm iron 12 × 12 × 1mm iron 15 × 15 × 1mm

Response frequency above 1kHz

Power supply voltage (using voltage range) DC12 ~ 24V Ripple (p-p) 10% or less (DC10 ~ 30V)

Current consumption below 13mA (DC24V, no load)

Control output switching capacitor NPN open collector output

50mA or less (DC30V or less) PNP open collector output 50mA or less (DC30V or less)

Residual voltage 1V or less (load current 50mA, wire length 1m)

Indicator action display (orange)
Action mode (near detection of object)

□ □ 3 type: NO

Type: NC

For details, see the timing diagram of the “Input Output Section Circuit Diagram” on the catalog

□ □ 5 type: NO

Type: NC
For details, see the timing diagram of the “Input Output Section Circuit Diagram” on the catalog

* Response frequency is average.

Measurement conditions: the use of standard detection of objects, the detection of objects as the standard interval of 2 times the object, set the distance of 1/2 of the detection distance.

specification

Item Model E2S- □□□
Protection circuit power reverse protection, surge absorption

Environmental temperature work: -25 ~ +70 ℃, save: -40 ~ +85 ℃ (no icing, condensation)

Environmental Humidity Range Operating: 35 to 90% RH, when stored: 35 to 95% RH (no condensation)

The temperature of the impact of -25 ~ +70 ℃ temperature range +23 ℃, the detection distance of ± 15%

The voltage is within ± 10% of the rated power supply voltage, the rated power supply voltage, the detection distance of ± 2.5%

Insulation resistance 50MΩ or more (DC500V) The charging unit is integral with the housing

Withstand voltage AC1,000V 1min charging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 3 times

Protection structure IEC standard IP67

Connection type Wire lead type (standard wire length 1m)
Quality (after packaging) about 10g

Material Housing Polyaryl
Attachment mounting bracket

ST3000 900 Series, Transmitters, Honeywell

Honeywell STD924 Differential Pressure Transmitter

25 7 月, 2017 conchgroup_admin Leave a comment

Differential Pressure Transmitter

Differential Pressure Transmitter Honeywell STD924 series of intelligent differential pressure transmitter is based on the microprocessor-based intelligent transmitter. The latest R300 version, to enhance the accuracy of the transmitter, reliability and long-term stability indicators. It can measure a variety of liquid and gas differential pressure, pressure or level, and output the corresponding 4 ~ 20mA analog and digital signals. Its unique temperature and static pressure error automatic correction function to make it meet the harsh environment. It has DE communication protocol, with Honeywell’s ExperionPKS distributed control system and intelligent field communicator (SFC) to achieve two-way digital communication, eliminating the analog signal transmission error, to facilitate the transmitter debugging, verification and fault diagnosis The

STD924 features

1. Advanced sensor technology:

2. High reliability: Mean time between failures 470 years.

3. High stability: ± 0.01% / year.

4. High precision: ± 0.065%.

5. High static pressure:

Ordinary type is 31.5MPa, up to 42MPa.

6 Wide measuring range:

STD9240 ~ 100kPa

STD9300 ~ 700kPa

STD9740 ~ 21MPa

7. Complete specifications:

The liquid part has a variety of anti-corrosion materials, to meet the conditions of the use of a variety of conditions, special needs

8. With a variety of intrinsically safe and flameproof certification.

9. Optional HART protocol.

10. Optional fieldbus (FF) communication protocol.

11. Use the field communicator or MCT multi-protocol communicator to achieve the ST3000 transmitter configuration, checksum fault diagnosis.

12. Configurable with SCT configuration tool via a portable computer.

13. Digital integration with Honeywell ExperionPKSTM distributed control system.

14. Small size, light weight: 4.1Kg.

Description

Isolated diaphragm material
STD924: 316L SS, Hastelloy C-276, Monel alloy, tantalum
STD930: 316L SS, Hastelloy C-276, Monel alloy, tantalum
STD974: 316L SS, Hastelloy C-276

STD924

ST 800 Series, Transmitters, Honeywell

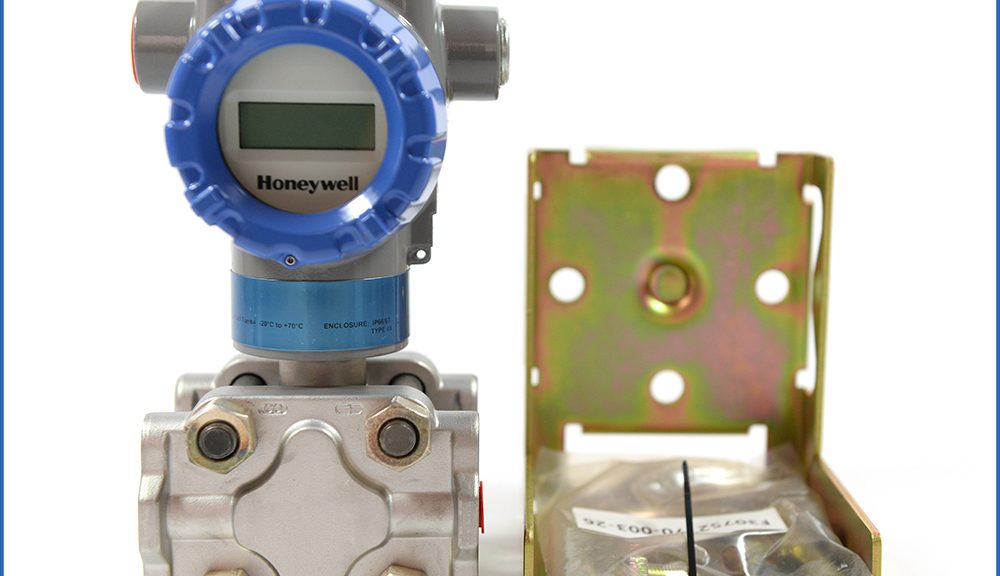

Honeywell STA84L Absolute Pressure Transmitter

25 7 月, 2017 conchgroup_admin Leave a comment

Pressure Transmitter

Pressure Transmitter Honeywell ST800 wireless pressure transmitter provides a range of output communication options including 4 to 20 mA, Honeywell Digitally Enhanced (DE) protocol, HART and FF fieldbus.
Integration with Experion PKS: improves performance and provides a variety of other features such as transmitter messaging, health observation diagnostics, maintenance mode indications, and interference alerts / indications.

SmartLine ST 800 pressure transmitters offer the following features:

Accuracy of up to 0.025%
Stability of 0.01% per year
Onboard pressure and temperature compensation
Modularity with field-replaceable units
Unequaled display capabilities
External zero, span and configuration capability
90ms response time
Polarity-insensitive electrical connections
Lifetime 15-year warranty
Unique integration capabilities with Experion® systems
Intuitive human machine interface (HMI).

Description

The SmartLine family of gauge pressure, differential pressure, and absolute pressure transmitters is designed around a high performance piezo-resistive sensor. This one sensor actually integrates multiple sensors linking process pressure measurement with on-board staticpressure (DP Models) and temperature compensation measurements resulting in the best total performance available. This level of performance allows the ST 800 to replace virtually any competitive transmitter available today.

ST800 Series models:

STD800 SmartLine Differential Pressure
STD810
STD820
STD830
STD870
STG800 SmartLine Gauge Pressure
STG830/STG83L
STG840/STG84L
STG870/STG87L
STG88L
STG89L
STR800 SmartLine Remote Diaphragm Seals
STR82D
STR83D
STR84G
STR87G
STR84A

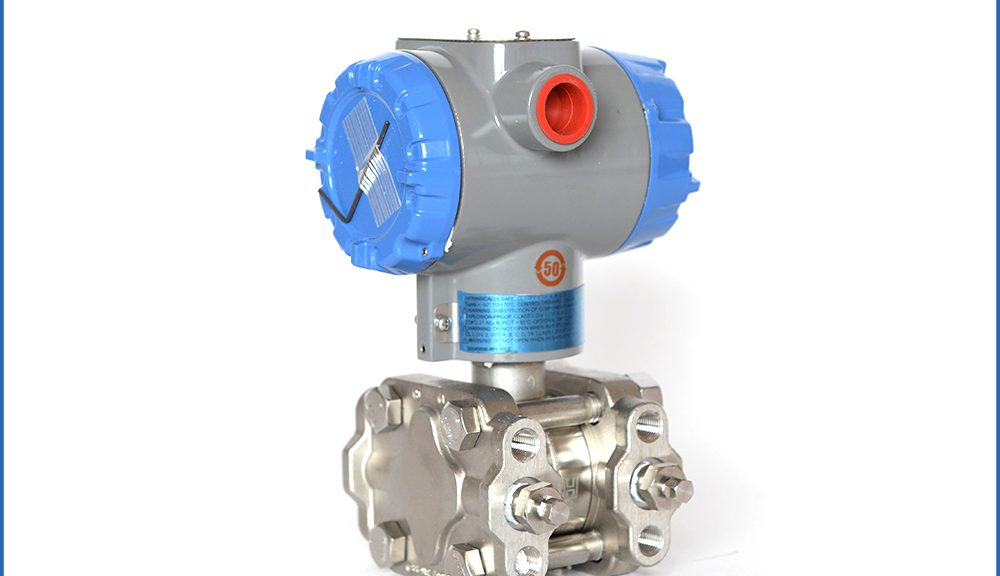

STA800/STA80L
Absolute Pressure Transmitters”

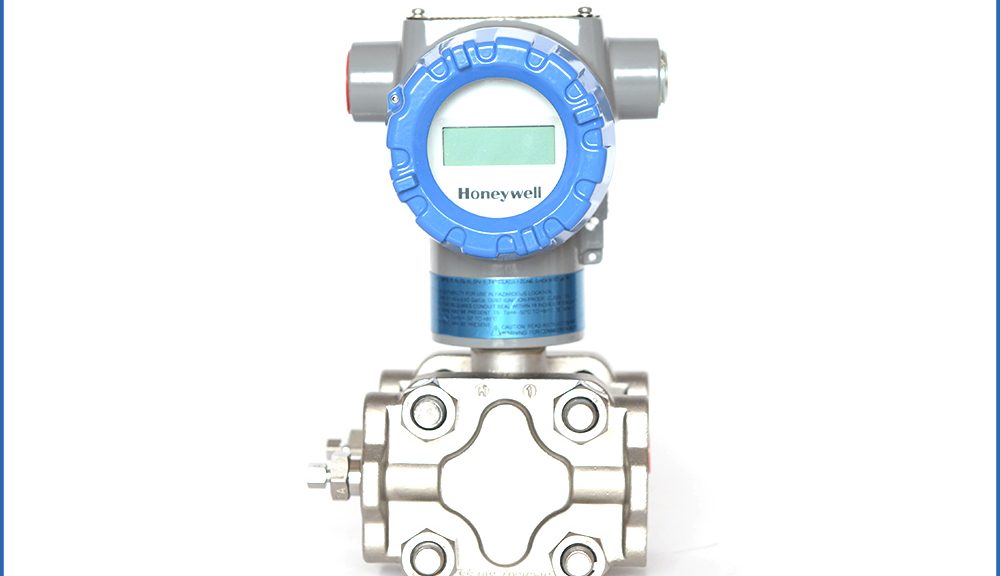

STA822
STA840
STA82L
STA84L
STA87L

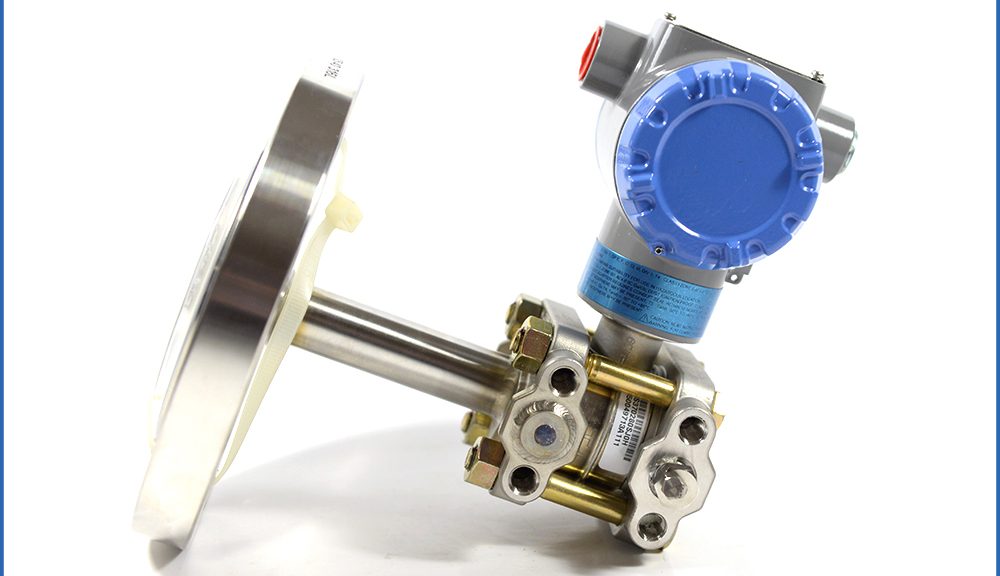

STF800 Flange Mounted Liquid Level
STF828
STF832
STF82F

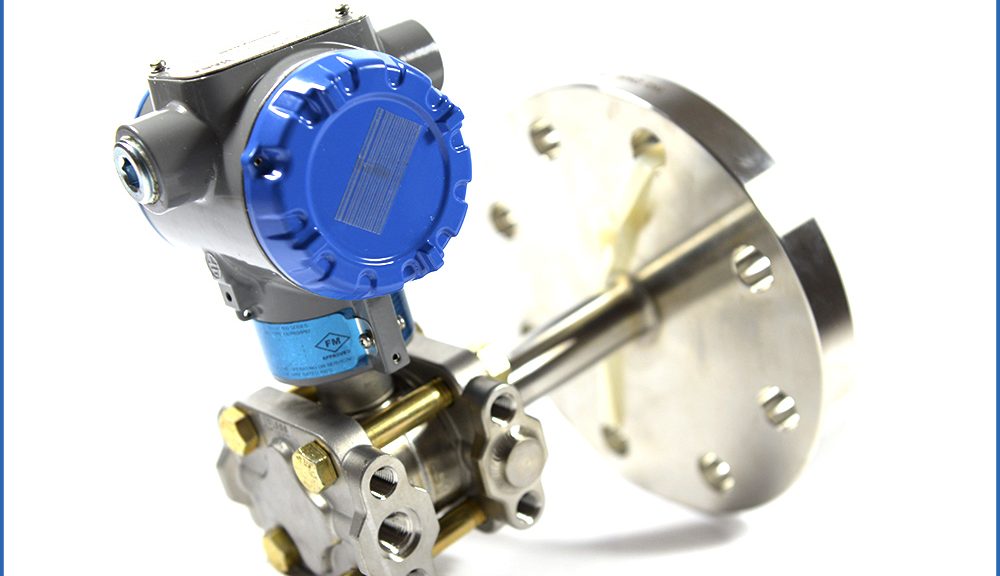

STF83F

Honeywell STA800 Absolute Pressure Transmitter

ST 800 Series, Transmitters, Honeywell

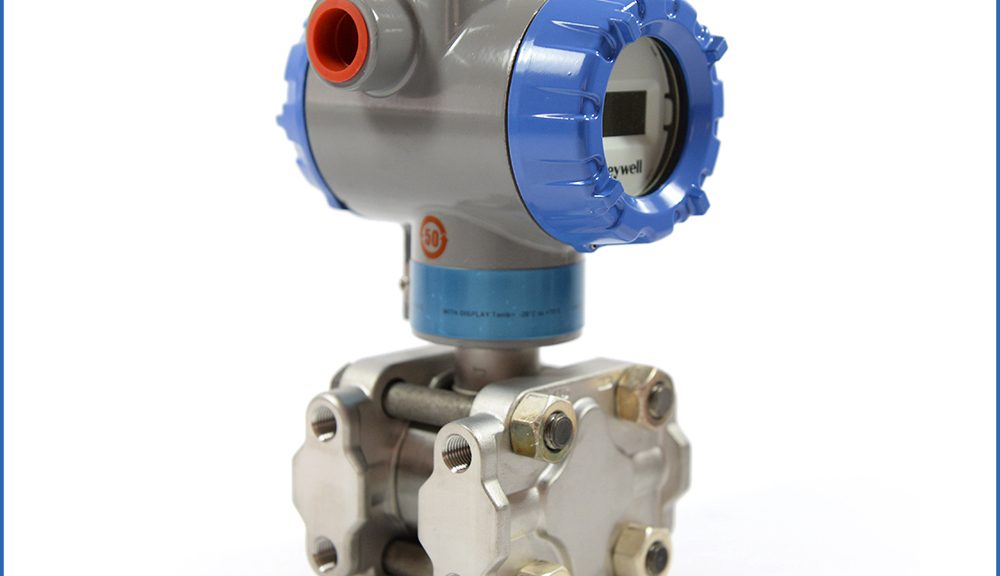

Honeywell STA82L Absolute Pressure Transmitter

25 7 月, 2017 conchgroup_admin Leave a comment

Pressure Transmitter

SmartLine ST 800 pressure transmitters offer the following features:

Accuracy of up to 0.025%
Stability of 0.01% per year
Onboard pressure and temperature compensation
Modularity with field-replaceable units
Unequaled display capabilities
External zero, span and configuration capability
90ms response time
Polarity-insensitive electrical connections
Lifetime 15-year warranty
Unique integration capabilities with Experion® systems
Intuitive human machine interface (HMI).

Description

ST800 Series models:

Honeywell STA800 Absolute Pressure Transmitter

ST 800 Series, Transmitters, Honeywell

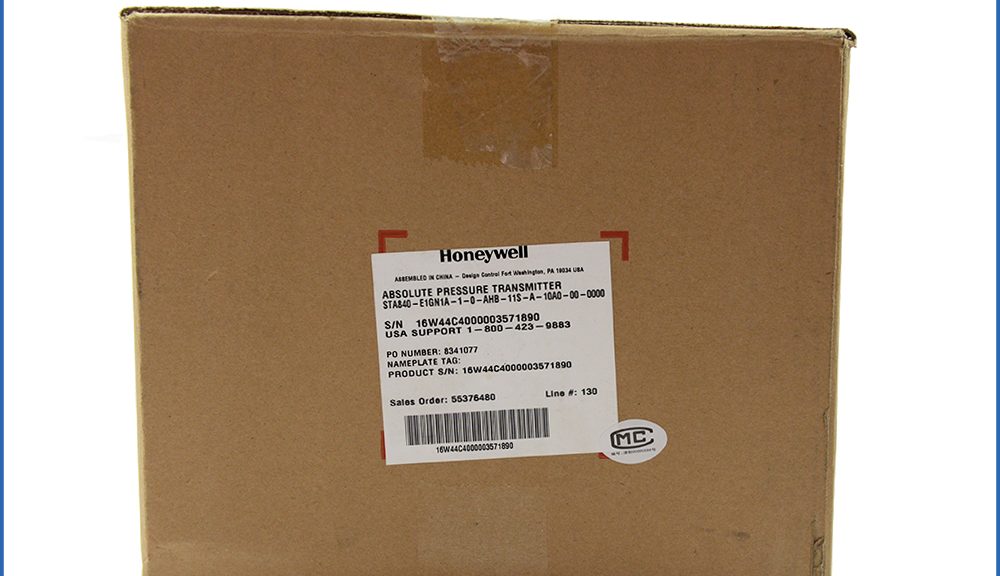

Honeywell STA840 Absolute Pressure Transmitter

25 7 月, 2017 conchgroup_admin Leave a comment

Pressure Transmitter

SmartLine ST 800 pressure transmitters offer the following features:

Accuracy of up to 0.025%
Stability of 0.01% per year
Onboard pressure and temperature compensation
Modularity with field-replaceable units
Unequaled display capabilities
External zero, span and configuration capability
90ms response time
Polarity-insensitive electrical connections
Lifetime 15-year warranty
Unique integration capabilities with Experion® systems
Intuitive human machine interface (HMI).

Description

ST800 Series models:

Honeywell STA800 Absolute Pressure Transmitter

ST 800 Series, Transmitters, Honeywell

Honeywell STA822 Absolute Pressure Transmitter

25 7 月, 2017 conchgroup_admin Leave a comment

Pressure Transmitter

SmartLine ST 800 pressure transmitters offer the following features:

Accuracy of up to 0.025%
Stability of 0.01% per year
Onboard pressure and temperature compensation
Modularity with field-replaceable units
Unequaled display capabilities
External zero, span and configuration capability
90ms response time
Polarity-insensitive electrical connections
Lifetime 15-year warranty
Unique integration capabilities with Experion® systems
Intuitive human machine interface (HMI).

Description

ST800 Series models:

Honeywell STA800 Absolute Pressure Transmitter

ST 800 Series, Transmitters, Honeywell

Honeywell STA80L Absolute Pressure Transmitter

24 7 月, 2017 conchgroup_admin Leave a comment

Pressure Transmitter

SmartLine ST 800 pressure transmitters offer the following features:

Accuracy of up to 0.025%
Stability of 0.01% per year
Onboard pressure and temperature compensation
Modularity with field-replaceable units
Unequaled display capabilities
External zero, span and configuration capability
90ms response time
Polarity-insensitive electrical connections
Lifetime 15-year warranty
Unique integration capabilities with Experion® systems
Intuitive human machine interface (HMI).

Description

ST800 Series models:

Honeywell STA700 SmartLine Absolute Pressure – Specfication

ST 800 Series, Transmitters, Honeywell

Honeywell STF83F Flange Mounted Liquid Level Transmitter

24 7 月, 2017 conchgroup_admin Leave a comment

Level Transmitter

Level transmitter Honeywell STF83F Flange Pressure Transmitter high-performance microprocessors with integrated A / D converters have faster response times, higher accuracy and wider adjustable range.
ST800 wireless pressure transmitter provides a range of output communication options including 4 to 20 mA, Honeywell Digitally Enhanced (DE) protocol, HART and FF fieldbus.
Integration with Experion PKS: improves performance and provides a variety of other features such as transmitter messaging, health observation diagnostics, maintenance mode indications, and interference alerts / indications.

Characteristic:
● Accuracy of calibration range up to 0.0375%
● Annual stability of up to 0.01% / full scale, for 10 years
● Automatic hydrostatic and temperature compensation
● Up to 100: 1 range ratio
● Response time is up to 90ms
● a variety of local display function
● External zero, range and configuration functions
● The power supply polarity is connected arbitrarily
● perfect self-diagnosis function
● Integrated double seal design based on ANSI / NFPA 70-202 and ANSI / ISA 12.27.0 ensures maximum safety
● world-class over-voltage protection
● The standard is fully compliant with SIL2 / 3
Full module design
● Up to 15 years warranty is available

Description

ST800 Series models:

STF800

ST 800 Series, Transmitters, Honeywell

Honeywell STF82F Flange Mounted Liquid Level Transmitter

24 7 月, 2017 conchgroup_admin Leave a comment

Level Transmitter

Level transmitter Honeywell STF82F Flange Pressure Transmitter high-performance microprocessors with integrated A / D converters have faster response times, higher accuracy and wider adjustable range.
ST800 wireless pressure transmitter provides a range of output communication options including 4 to 20 mA, Honeywell Digitally Enhanced (DE) protocol, HART and FF fieldbus.
Integration with Experion PKS: improves performance and provides a variety of other features such as transmitter messaging, health observation diagnostics, maintenance mode indications, and interference alerts / indications.

Description

ST800 Series models:

STF800

ST 800 Series, Transmitters, Honeywell

Honeywell STF832 Flange Mounted Liquid Level Transmitter

24 7 月, 2017 conchgroup_admin Leave a comment

Level Transmitter

Level transmitter Honeywell STF832 Flange Pressure Transmitter high-performance microprocessors with integrated A / D converters have faster response times, higher accuracy and wider adjustable range.
ST800 wireless pressure transmitter provides a range of output communication options including 4 to 20 mA, Honeywell Digitally Enhanced (DE) protocol, HART and FF fieldbus.
Integration with Experion PKS: improves performance and provides a variety of other features such as transmitter messaging, health observation diagnostics, maintenance mode indications, and interference alerts / indications.

Features:
Automatic static pressure and temperature compensation
Adjustable range up to 100: 1
Local display function
External zero value, range and configuration performance
Polarity-insensitive electrical connection
STF828 Flange Pressure Transmitter
Full onboard diagnostic function
Comprehensive double seal design based on ANSI / NFPA 70-202 and ANSI / ISA 12.27.0 maximum safety
World-class overpressure protection
Fully compliant with SIL 2/3 requirements
Modular design

Description

ST800 Series models:

STF800

ST 800 Series, Transmitters, Honeywell

Honeywell STF828 Flange Mounted Liquid Level Transmitter

24 7 月, 2017 conchgroup_admin Leave a comment

Level Transmitter

Level transmitter Honeywell STF828 Flange Pressure Transmitter high-performance microprocessors with integrated A / D converters have faster response times, higher accuracy and wider adjustable range.
ST800 wireless pressure transmitter provides a range of output communication options including 4 to 20 mA, Honeywell Digitally Enhanced (DE) protocol, HART and FF fieldbus.
Integration with Experion PKS: improves performance and provides a variety of other features such as transmitter messaging, health observation diagnostics, maintenance mode indications, and interference alerts / indications.

Description

ST800 Series models:

STF800
