proximity sensor

Omron Proximity Sensor E2EZ Series



Quick Details
D/C:Newest
Package:original, Original package
Model Number： E2EZ
Type:new and original
Brand Name:Original
Place of Origin:Japan
Date Code:Newest
Lead free status:RoHS compliant
Distributor:Shenzhen Airuichen Technology Co., Limited
Quality warranty:360 days
Shipping by:DHL,UPS,Fedex,EMS and HK Post,other
Our aim:Integrity management!

proximity sensor

Omron Proximity Sensor E2EZ Series

Features:

Adhesion of aluminum, cast iron and other chips will not cause malfunction, only the detection of objects

With SmartClick connector relay type
species:
Ontology

Wire lead type

Shape Detection Distance Output Type Model
Action mode
NO NC
shield
454_lu_1_1
M12 2mm DC 2-wire E2EZ-X2D1-N 2M E2EZ-X2D2-N 2M
M18 4mm DC 3-wire NPN E2EZ-X4C1 2M –
DC 2-wire E2EZ-X4D1-N 2M E2EZ-X4D2-N 2M
AC 2-wire E2EZ-X4Y1 2M –
M30 8mm DC 3-wire NPN E2EZ-X8C1 2M –
DC 2-wire E2EZ-X8D1-N 2M E2EZ-X8D2-N 2M
AC 2-wire E2EZ-X8Y1 2M
SmartClick connector relay type (M12)

Shape Detection Distance Output Type Model
Action mode
NO NC
shield
454_lu_2_1
M12 2mm DC 2-wire type ③-④ Pin configuration E2EZ-X2D1-M1TJ 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X2D1-M1TGJ 0.3M –
M18 4mm DC 2-wire type ③-④ Pin configuration E2EZ-X4D1-M1TJ 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X4D1-M1TGJ 0.3M –
M30 8mm DC 2-wire type ③-④ Pin configuration E2EZ-X8D1-M1TJ 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X8D1-M1TGJ 0.3M –
Connector relay type (M12)

Shape Detection Distance Output Type Model
Action mode
NO NC
shield
454_lu_3_1
M12 2mm DC 2-wire type ③-④ Pin configuration E2EZ-X2D1-M1J 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X2D1-M1GJ 0.3M –
M18 4mm DC 2-wire type ③-④ Pin configuration E2EZ-X4D1-M1J 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X4D1-M1GJ 0.3M –
M30 8mm DC 2-wire ③-④ Pin Configuration E2EZ-X8D1-M1J 0.3M –
DC 2-wire type ①-④ pin configuration E2EZ-X8D1-M1GJ 0.3M –
Accessories (sold separately)

Sensor I / O connector (M12, unilateral connector)

(Connector relay type necessities) are not included in the sensor accessories, so be sure to order.
Shape wire length sensor I / O connector type Applicable proximity sensor model
Straight
454_lu_4_1
2m XS2F-D421-DD0 E2EZ-X □ D1-M1J
5m XS2F-D421-GD0
L type
454_lu_4_2
2m XS2F-D422-DD0
5m XS2F-D422-GD0
Straight
454_lu_4_1
2m XS2F-D421-DA0-F E2EZ-X □ D1-M1GJ
5m XS2F-D421-GA0-F
L type
454_lu_4_2
2m XS2F-D422-DA0-F
5m XS2F-D422-GA0-F
SmartClick connector is linear
454_lu_4_3
2m XS5F-D421-D80-F E2EZ-X □ D1-M1TJ
E2EZ-X □ D1-M1TGJ
5m XS5F-D421-G80-F
Mounting brackets
Protective cover
Anti-sputtering protective cover

For more information, see the catalog of Y92 □

proximity sensor

Omron Chemical Resistant Inductive Proximity Sensor E2FQ Series



Quick Details
Place of Origin:Japan
Brand Name:Omron
Model Number:E2FQ
Usage:Consumption Sensor
Theory:Resistance Sensor
Output:Analog Sensor
Price:Best Price for Omron Resistant Inductive Proximity Sensor E2FQ
Quality:original
Protective structure:IEC60529 IP67
Connection method:Pre-wired models (standard length: 2 m)
Accessories:Instruction manual
Destruction:500 m/s2 for 10 times each in X, Y, and Z directions

proximity sensor

Omron Chemical Resistant Inductive Proximity Sensor E2FQ Series

Omron Chemical Resistant Sensor E2FQ Series



Features:

All use of fluorine resin, chemical resistance superior performance

The longest detection distance of 10mm
species:
Ontology

Shape Detection Distance Output Type Action Mode Model
shield
1866_lu_1_1
M12 2mm DC 2-wire NO E2FQ-X2D1 2M
DC 3-wire NPN E2FQ-X2E1 2M
M18 5mm DC 2-wire E2FQ-X5D1 2M
DC 3-wire NPN E2FQ-X5E1 2M
AC 2-wire E2FQ-X5Y1 2M
M30 10mm DC 2-wire E2FQ-X10D1 2M
DC 3-wire NPN E2FQ-X10E1 2M
AC 2-wire E2FQ-X10Y1 2M

Rating:
Item Model E2FQ-X2E1
E2FQ-X2D1 E2FQ-X5E1
E2FQ-X5D1
E2FQ-X5Y1 E2FQ-X10E1
E2FQ-X10D1
E2FQ-X10Y1

Detection distance 2mm ± 10% 5mm ± 10% 10mm ± 10%
Set the distance 0 ~ 1.6mm 0 ~ 4mm 0 ~ 8mm
Should be poor E1,

Y1 type: less than 10% of the detection distance, D1 type: less than the detection distance of 20%
Can detect the object magnetic metal (non-magnetic metal detection distance is short.

See Catalog “characteristic data”)
Standard detection object iron 12 × 12 × 1mm iron 18 × 18 × 1mm iron 30 × 30 × 1mm

Response frequency * E1 type: 1.5kHz

D1 type: 800Hz E1 type: 600Hz 、500Hz E1 type: 400Hz、300Hz、

Y1 type: 25Hz
voltage

(Using voltage range) E1 type: DC12 ~ 24V ripple (p-p) 10% or less (DC10 ~ 30V)

Y1 type: AC24 ~ 240V (AC20 ~ 264V) 50 / 60Hz

D1 type: DC12 ~ 24V ripple (p-p) 20% or less (DC10 ~ 36V)

Current consumption E1 type: 17mA or less

Leakage current D1 type: 0.8mA or less, Y1 type: 1.7mA or less (when AC200V)

Control output switch capacity E1 type: 200mA or less,

D1 type: 5 ~ 100mA, Y1 type: 5 ~ 300mA

Residual voltage E1 type: 2V or less (load current 200mA, wire length 2m)

Y1 type: see the catalog “characteristic data”

D1 type: 3V or less (load current 100mA, wire length 2m)

Indicator E type: detection display (red), Y type: action display (red),

D type: action display (red), set display (green) (but set the display only NO type)

Action mode
(Close to the detection object) E1 type, D1 type,

Y1 type: NO For details, please refer to the catalog “Input and output section circuit diagram” timing diagram
Protection circuit

E1 type: reverse connection protection, load short circuit protection, surge absorption D1 type,

Y1 type: surge absorption
Ambient temperature range of work, save: every -25 ~ +70 ° C (no icing, condensation)

when stored: 35 ~ 95% RH (no condensation)

Temperature of ± 25 ° C at + 23 ° C in the temperature range of -25 to + 70 ° C, ± 10% of the detection distance
Voltage effect E1 type: ± 15% of the rated power supply voltage, the rated power supply voltage, the detection distance of ± 2.5%

D1 type: within ± 20% of the rated power supply voltage, the rated power supply voltage, the detection distance of ± 2.5%

Y1 type: within ± 10% of the rated power supply voltage, the rated power supply voltage, the detection distance of ± 1%

Insulation resistance 50MΩ or more (DC500V megger) The charging unit is integral with the housing
Withstand voltage E1,

D1 type: AC1,000V 50 / 60Hz 1min each charging part between the whole and the shell

Y type: AC4,000V 50 / 60Hz 1min Each charging part is integral with the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z 10 times each direction 1,000m / s2 X, Y, Z 10 directions

Protection structure IEC standard IP67, the company internal standard oil

Connection type wire lead type (standard wire length 2m)
The quality (after packaging) is about 70g about 130g about 170g

Material Housing Fluorine Resin
Detection surface
Tighten nuts
Toothed Washer Galvanized
Cable PVC

Accessories manual
* Response frequency is average. Measurement conditions: the use of standard detection of objects, the detection of objects as the standard interval of 2 times the object, set the distance of 1/2 of the detection distance.

proximity sensor

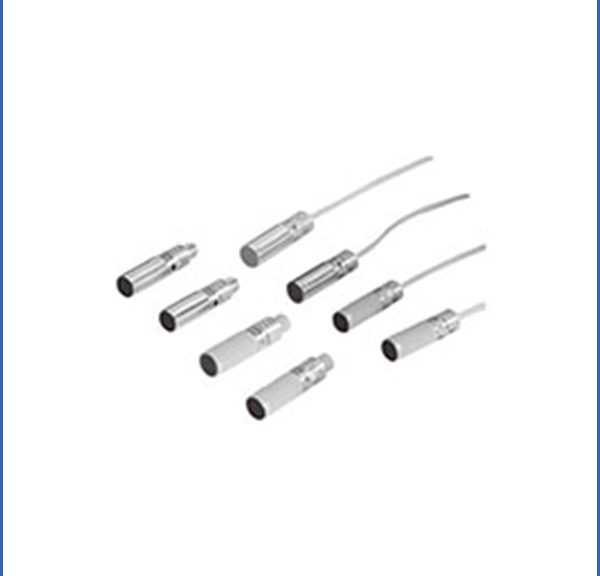

Omron proximity sensor E2EH series



Quick Details
Place of Origin:Japan
Brand Name:omron
Model Number:E2EH cylindrical proximity sensor
Usage:cylindrical proximity sensor
Theory:cylindrical proximity sensor
Output:Analog Sensor
Product name:E2EH cylindrical proximity sensor
New and Original:YES
Model:E2EH cylindrical proximity sensor

proximity sensor

Omron  E2EH series



Features:

-SUS316L body, IP69K, high temperature environment, resistance to cleaning agent performance –
species:
Ontology

Export leads

Shape detection distance Output form Operation mode: NO Operation mode: NC

1866_2
M12 3mm DC 2-wire (with polarity) E2EH-X3D1 2M E2EH-X3D2 2M
DC 2-wire (no polarity *) E2EH-X3D1-T 2M –
DC 3-wire (PNP) E2EH-X3B1 2M E2EH-X3B2 2M
DC 3-wire (NPN) E2EH-X3C1 2M E2EH-X3C2 2M
M18 7mm DC 2-wire (with polarity) E2EH-X7D1 2M E2EH-X7D2 2M
DC 2-wire (no polarity *) E2EH-X7D1-T 2M –
DC 3-wire (PNP) E2EH-X7B1 2M E2EH-X7B2 2M
DC 3-wire (NPN) E2EH-X7C1 2M E2EH-X7C2 2M
M30 12mm DC 2-wire (with polarity) E2EH-X12D1 2M E2EH-X12D2 2M
DC 2-wire (non-polar *) E2EH-X12D1-T 2M –
DC 3-wire (PNP) E2EH-X12B1 2M E2EH-X12B2 2M
DC 3-wire (NPN) E2EH-X12C1 2M E2EH-X12C2 2M
Connector type (M12)

Shape detection distance Output form Operation mode: NO Operation mode: NC

1866_3
M12 3mm DC 2-wire (with polarity) E2EH-X3D1-M1G E2EH-X3D2-M1G
DC 3-wire (PNP) E2EH-X3B1-M1 E2EH-X3B2-M1
DC 3-wire (NPN) E2EH-X3C1-M1 E2EH-X3C2-M1
M18 7mm DC 2-wire (with polarity) E2EH-X7D1-M1G E2EH-X7D2-M1G
DC 3-wire (PNP) E2EH-X7B1-M1 E2EH-X7B2-M1
DC 3-wire (NPN) E2EH-X7C1-M1 E2EH-X7C2-M1
M30 12mm DC 2-wire (with polarity) E2EH-X12D1-M1G E2EH-X12D2-M1G
DC 3-wire (PNP) E2EH-X12B1-M1 E2EH-X12B2-M1
DC 3-wire (NPN) E2EH-X12C1-M1 E2EH-X12C2-M1
* Polarity type No need to consider positive and negative polarity when connecting the power supply. The load can be connected to + V or 0V.
Accessories (sold separately)

Sen sensor I / O connector (M12, unilateral connector)

(Connector type required) is not a sensor attachment, please be sure to order.
Shape wire length sensor I / O connector type Applicable proximity sensor model
Straight
1866_lu_3_1
2m XS2F-E421-D80-E E2EH-X □ D □ -M1G
E2EH-X □ B □ -M1
E2EH-X □ C □ -M1
5m XS2F-E421-G80-E
L type
1866_lu_3_2
2m XS2F-E422-D80-E
5m XS2F-E422-G80-E
Note: DIN40050-9 standard equivalent to IP69K, can be used below 105 ℃, the use of SUS316L.

L type
1866_lu_3_2
2m XS2F-E422-D80-E
5m XS2F-E422-G80-E
Note: DIN40050-9 standard equivalent to IP69K, can be used below 105 ℃, the use of SUS316L.

proximity sensor

Omron proximity sensor E2FM series



Quick Details
Place of Origin:Japan
Brand Name:E2FM
Model Number:E2FM
Usage:Consumption Sensor
Theory:Current Sensor
Output:Analog Sensor
Price:Best price for Inductive Proximity Sensor in full metal housing E2FM
Quality:Original
Current consumption:10 mA max
Output configuration:PNP open collector output
Indicators:Operation indicator (yellow LED)
Operating/Storage:-25 to 70° C (with no icing or condensation)
Connection method:Connector Models
Case Materials:Stainless steel (SUS303)

proximity sensor

Omron proximity sensor E2FM series



Features:

All stainless steel frame

Resistant to aluminum

Can be embedded in metal (iron)

Ecolab certified by the European chemical resistance

With lead wire lead, DC 3-wire NPN output, fluororesin coating type

species:
Ontology

DC 2-wire / wire lead-out type

Shape Detection Distance Output Type Action Mode Model
1760_lu_1_1
M8 1.5mm DC 2-wire (with polarity) NO E2FM-X1R5D1 2M *
M12 2mm E2FM-X2D1 2M *
M18 5mm E2FM-X5D1 2M *
M30 10mm E2FM-X10D1 2M *
Note: There is also an action mode NC type. Please consult separately.
* Also available with fluororesin coated. Model E2FM-QX □ D1. But the cable material for the PVC, need to be protected.
DC 3-wire / wire lead-out type

Shape detection distance Output form NPN NO Output form PNP NO
1760_lu_2_1
M8 1.5mm E2FM-X1R5C1 2M E2FM-X1R5B1 2M
M12 2mm E2FM-X2C1 2M E2FM-X2B1 2M
M18 5mm E2FM-X5C1 2M E2FM-X5B1 2M
M30 10mm E2FM-X10C1 2M E2FM-X10B1 2M
Note: There is also an action mode NC type. Please consult separately.
DC 2-wire / SmartClick connector relay type (M12)

Shape Detection Distance Output Type Action Mode Model
1760_lu_3_1
M8 1.5mm Polarity ①-④ Terminal configuration NO E2FM-X1R5D1-M1TGJ 0.3M
M12 2mm Polarity ①-④ Terminal configuration E2FM-X2D1-M1TGJ 0.3M
No polarity ③-④ Terminal configuration E2FM-X2D1-M1TGJ-T 0.3M
M18 5mm Polarity ①-④ Terminal configuration E2FM-X5D1-M1TGJ 0.3M
No polarity ③-④ Terminal configuration E2FM-X5D1-M1TGJ-T 0.3M
M30 10mm Polarity ①-④ Terminal configuration E2FM-X10D1-M1TGJ 0.3M
No polarity ③-④ Terminal configuration E2FM-X10D1-M1TGJ-T 0.3M
DC 3-wire / connector type (M12)

Shape detection distance model
Output Type NPN NO Output Type PNP NO
1760_lu_4_1
M8 1.5mm E2FM-X1R5C1-M1 E2FM-X1R5B1-M1 *
M12 2mm E2FM-X2C1-M1 E2FM-X2B1-M1 *
M18 5mm E2FM-X5C1-M1 E2FM-X5B1-M1 *
M30 10mm E2FM-X10C1-M1 E2FM-X10B1-M1
* Also available with fluororesin coated. Model E2FM-QX □ B1-M1. But the cable material for the PVC, need to be protected.
Accessories (sold separately)

Sensor I / O connector (M12, unilateral connector)

(Connector type, connector type required) is not included in the sensor accessories, so be sure to order.
Shape wire length sensor I / O connector type Applicable proximity sensor model
Straight
1760_lu_6_1
2m XS2F-D421-DC0-F E2FM-X □ C1-M1
E2FM-X □ B1-M1
5m XS2F-D421-GC0-F
L type
1760_lu_6_2
2m XS2F-D422-DC0-F
5m XS2F-D422-GC0-F
SmartClick connector is linear
1760_lu_6_7
2m XS5F-D421-D80-F E2FM-X □ D1-M1TGJ
E2FM-X □ D1-M1TGJ-T
5m XS5F-D421-G80-F

proximity sensor

Omron proximity sensor E2EQ series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2EQ
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2EQ-X10B4-M1TJ-IL2 0.3M
Name:Omron Proximity Sensor E2EQ-X10B4-M1TJ-IL2 0.3M
Accuracy:0.5%FS

proximity sensor

Omron proximity sensor E2EQ series



Features:
Excellent splash resistance

New long distance series. The longest detection distance of 15mm

With SmartClick connector relay type
species:
Ontology

Wire lead type

Long distance type

Shape Detection Distance Output Type Action Mode Model
shield
452_lu_1_1
M12 4mm DC 2-wire
(No polarity) NO E2EQ-X4X1 2M
M18 8mm E2EQ-X8X1 2M
M30 15mm E2EQ-X15X1 2M
Standard type

Shape Detection Distance Output Type Action Mode Model
shield
452_lu_2_1
M12 3mm DC 2-wire NO E2EQ-X3D1 2M
M18 7mm E2EQ-X7D1 2M
M30 10mm E2EQ-X10D1 2M
SmartClick connector relay type (M12)

Long distance type

Shape Detection Distance Output Type Action Mode Model
shield
452_lu_3_1
M12 4mm DC 2-wire (Promise
) ③-④ pin configuration NO E2EQ-X4X1-M1TJ 0.3M
M18 8mm E2EQ-X8X1-M1TJ 0.3M
M30 15mm E2EQ-X15X1-M1TJ 0.3M
Standard type

Shape Detection Distance Output Type Action Mode Model
shield
452_lu_4_1
M12 3mm DC 2-wire type ①-④ Pin configuration NO E2EQ-X3D1-M1GJ 0.3M
M18 7mm E2EQ-X7D1-M1GJ 0.3M
M30 10mm E2EQ-X101-M1GJ 0.3M
Connector relay type (M12)

Long distance type

shield
452_lu_5_1
M12 4mm DC 2-wire type ③-④ Pin configuration NO E2EQ-X4X1-M1J 0.3M
M18 8mm E2EQ-X8X1-M1J 0.3M
M30 15mm E2EQ-X15X1-M1J 0.3M
Standard type

Shape Detection Distance Output Type Action Mode Model
shield
452_lu_6_1
M12 3mm DC 2-wire type ①-④ Pin configuration NO E2EQ-X3D1-M1TGJ 0.3M
M18 7mm E2EQ-X7D1-M1TGJ 0.3M
M30 10mm E2EQ-X10D1-M1TGJ 0.3M

proximity sensor

Omron proximity sensor E2Vseries



Quick Details
Place of Origin:Jiangsu, China (Mainland)
Brand Name:Carel
Model Number:E1V
Type:refrigerant control valve
Application:Refrigeration Parts
Certification:CE
Brand:Carel
Usage:Refrigeration industry
Color:Red
Certificate:CE&ROHS

proximity sensor

Omron proximity sensor E2Vseries



Expansion valveExpansion valveCarel electronic expansionvalves are designed to meet any cooling capacity

requirements up to 2000 kW in air-conditioning and

refrigeration applications, and stand out above all for

their excellent flow control, event at lower flow-rates.

Carel expansion valves have three main strengths:

1. Reliability over time: the standard design process usedfor the Carel ExV valves includes accelerated life testing of 1*106 cycles;

the valves are certified in accordance with the mainnational and international standards;

compliance with these standards guarantees maximum qualityof both the products and the manufacturing process,

as well as continuous commitment to improving the environmental management system.

2. Very precise control: this is guaranteed by Carel electronic controllers

guaranteeing flow with an equal percentage characteristic,

the stroke length, achieved by using stainless steel ball-bearings,

and the use of high precision mechanical components.

3. Perfect refrigerant tightness: despite the rotary motion of the motor,

the movable element does not rotate during movement.

This allows the use of a high quality Teflon seal,which rests gently on the valve seat, without any sliding.

To improve tightness of the seal,an elastic steel spring is fitted that pushes the movable



The energy accumulated by the spring in this stage gives additional energy to close the valve,

meaning tightness values that are comparable to those

provided by a traditional solenoid valve.

Finally,testing of 100% of the valves manufactured provides afurther guarantee of reliability over time and valve tightness,

and helps ensure operations with a reduced environmental impact.

with direct transmission from the rotor to the movable

element3 Use of high quality materials: stainless steel,

copper, brass, composites4 Perfect tightness when valve

closed5 Significant reduction in energy loss when starting

the system6 Very wide range of models and sizes available, to meet all systems requirements
