Azbil Valve Positioner

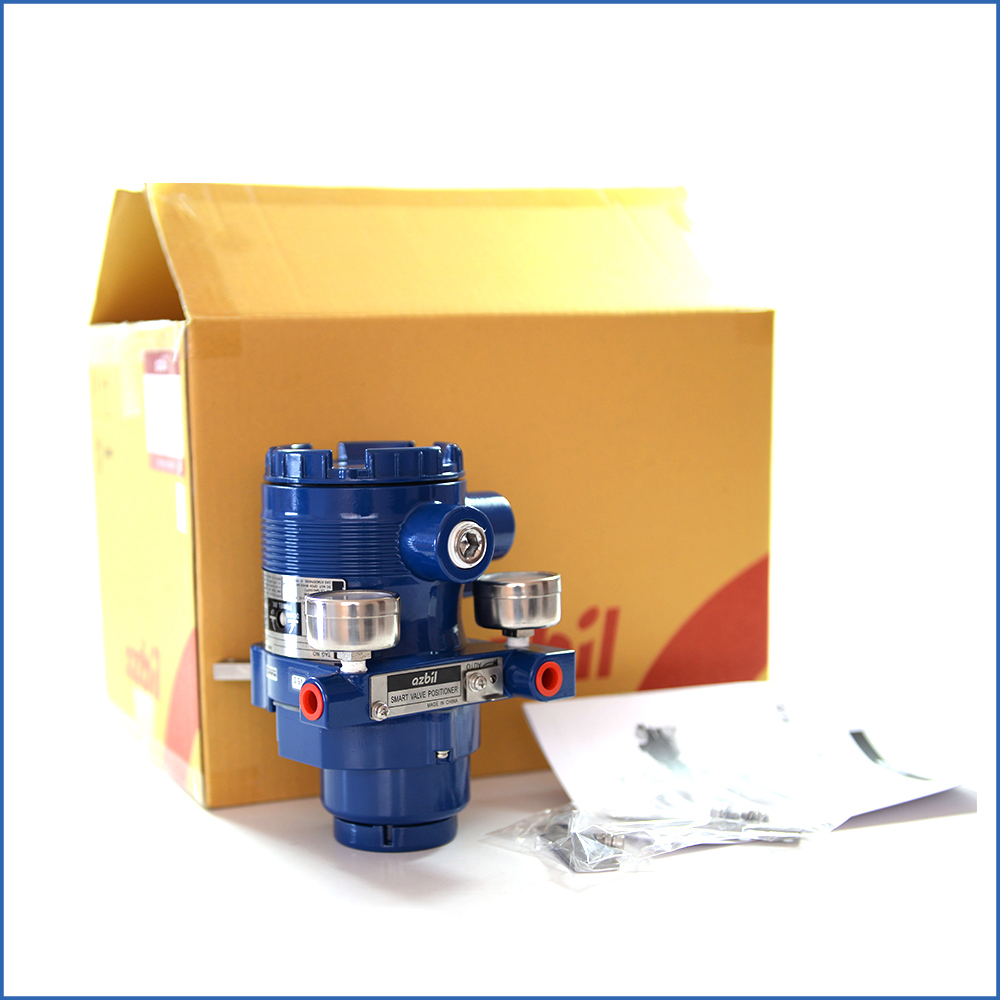

Azbil Valve Positioner for Rotary Valve SVX100
Communication protocol: HART, SFNCommunication protocol: HART, SFNEquipped with an integrated double-action reversing relayIntegral type
| Positioner type | SVX100 / SVX102 Smart Valve Positioner for Rotary Valve |
|---|---|
| Model No. | SVX |
| Input signal | 4 to 20mADC, split range setting available |
| Stroke range | to 90° (Rotary) |
| Air supply pressure | 140 to 700kPa |
| Ambient temperature | -40 to +80°C |
| Features |
|
Azbil Valve Positioner
Azbil Valve Positioner for Rotary Valve SVX100
Positioner type: Smart Valve positioner for rotary valve
Model No.: SVX
Input signal: 4 to 20mADC, split range setting available
Stroke range: to 90° (Rotary)
Air supply pressure: 140 to 700kPa
Ambient temperature: -40 to +80°C
Features
Single action/Double action
Auto set-up
Communication : HART®
Easy zero/span adjustments
This smart valve positioner is designed especially for rotary valves (butterfly valves, ball valves, etc.). The design is suited for use in combination with actuators for rotary valves, such as rack and pinion actuators and Scotch-York actuators.
Execution of the automatic adjustment (Auto Setup) program, manual span adjustment, and other tasks can be performed using push buttons inside the casing.
Integration with device management systems can be done using EDDL, DTM, and PLUG-IN Valstaff.
Comes with a control valve diagnosis algorithm installed.
Easy to use
Auto setup: The auto-setup function is a fully-automatic configuration program which specifies the actuator and adjusts the zero and span of the valve. The program can turn on simply from an external switch so that adjustments to the valve can performe quickly and safely in hazardous areas.
High reliability
Positive seating: The positive seating function completely shuts off the valve if the input signal becomes lower than previously set. This in turn enhances the full shut-off capabilities of the valves.
Self-diagnostic: The self-diagnostic function provides with the ability to check the status of the positioner at any time and to alert in case of failure.
