Electromagnetic Flowmeter

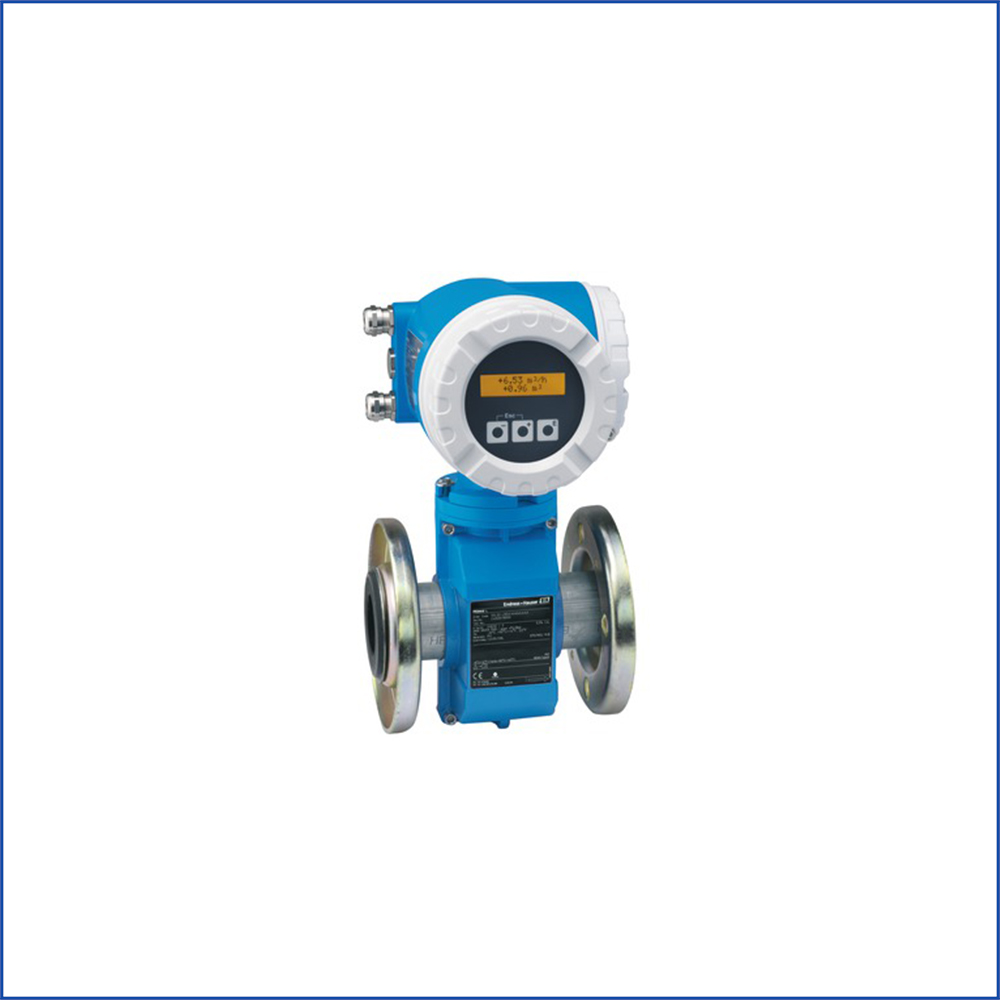

Electromagnetic Flowmeter Endress Hauser Proline Promag 50P offers highly accurate measurement of liquids for a wide range of applications.
- Brand :Endress Hauser
- Model: Endress Hauser Electromagnetic Flowmeter Proline Promag 50P
- Diameter：”DN 15…600，1/2″…24″
- Measurement error：± 0.5%，± 0.2%
- Range:0…9’600 m3/h
- Pressure range: PN10…40，Cl 150…300，JIS 10…20K，AS 2129
- Process Temperature:-40…+180℃
- Output: 4 … 20 mA pulse / frequency, state
- Input:Status
Endress Hauser Electromagnetic Flowmeter Proline Promag 50P
Electromagnetic flowmeter for bidirectional measurement of liquids with a minimum
conductivity of ≥ 5 μS/cm:
• Acid, alkalis
• Paints
• Pastes
• Water, wastewater etc.
• Flow measurement up to 9600 m³/h (42268 gal/min)
• Fluid temperature up to +180 °C (356 °F)
• Process pressures up to 40 bar (580 psi)
• Lengths in accordance with DVGW/ISO
Application-specific lining materials:
• PTFE
• PFA
Approvals for hazardous area:
• ATEX
• IECEx
• FM
• CSA
• NEPSI
• TIIS
Connection to process control system:
• HART
• PROFIBUS DP/PA
• FOUNDATION Fieldbus
• MODBUS RS485
Your benefits
Promag measuring devices offer you cost-effective flow measurement with a high degree of accuracy for a wide range of process conditions.
The uniform Proline transmitter concept comprises:
• Modular device and operating concept resulting in a
higher degree of efficiency
• Software options for batching, electrode cleaning and
for measuring pulsating flow
• High degree of reliability and measuring stability
• Uniform operating concept
The tried-and-tested Promag sensors offer:
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning
