Remote Seal Pressure Transmitter Honeywell ST 3000 Series 900
ST 3000 Series 900 Remote Seal Pressure Transmitters includes gauge, absolute and differential pressure transmitters. This remote seal line of transmitters demonstrates proven reliability in applications with a wide variety of secondary fill fluids for corrosive or high temperature process fluids.
Two models of the transmitters are available for application:
-
STR93D 0 to 100 psid 0 to 7 bar
-
STR94G 0 to 500 psig 0 to 35 bar
These cost-effective transmitters offer:
-
Stability = +/-0.01% per year
-
Reliability = 470 years MTBF
Comprehensive self-diagnostics and three levels of failure reporting help users avoid costly shutdowns, meet regulatory requirements and attain high quality standards.

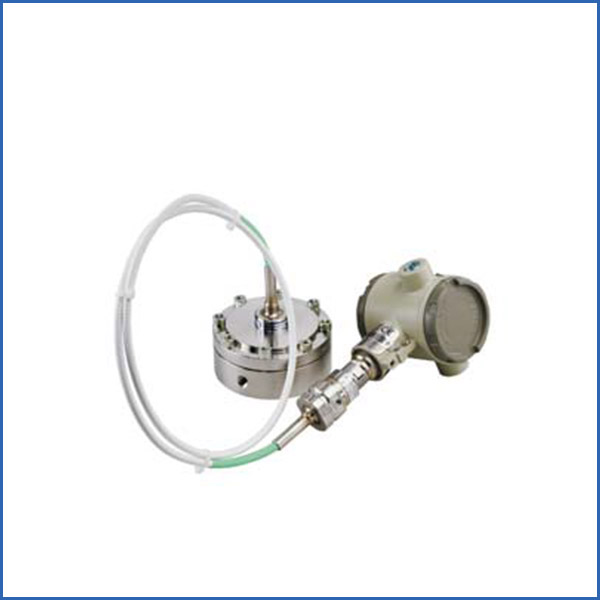

Honeywell ST 3000 Series 900 Remote Sealed Pressure Transmitter
Description of Diaphragm Seals
Diaphragm seals are traditionally used when a standard pressure transmitter should not be exposed to the process pressure directly. Diaphragm seals typically protect the pressure transmitter from one or more damaging aspects of the process media. Consideration for using a diaphragm seal should be made in the following circumstances.
High Process Temperature
Process Media is Viscous or Contains Suspended Solids,Subject to Solidifying ,Corrosive
Process Application Requires Sanitary Connections,Subjects the Measuring Instrument to Hydrogen Permeation
Tank Level Applications with Maintenance Intensive Wet Legs
Tank Application with Density or Interface Measurements
Measuring Instrument Requires Remote Mounting
