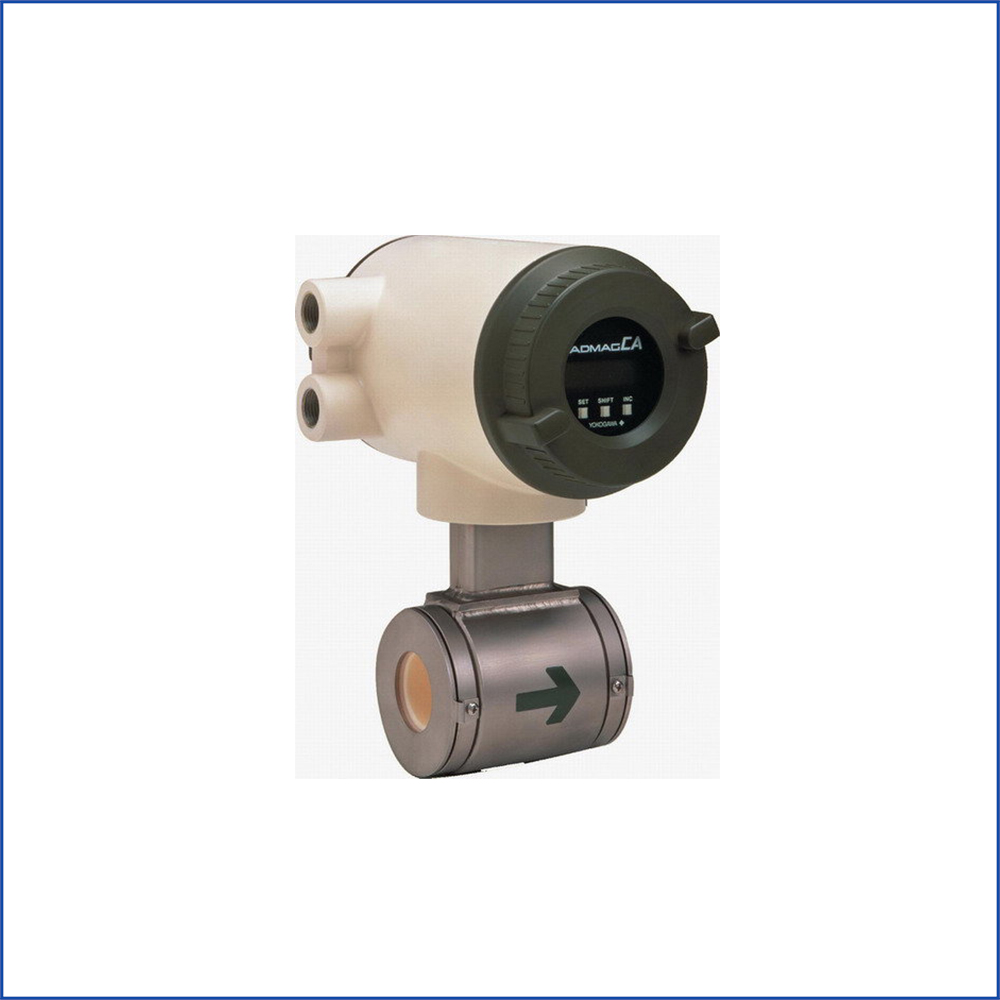

Yokogawa CA208S Capacitance Magnetic Flowmeter

Magnetic Flow meter

Yokogawa CA208S Capacitance Magnetic Flow meter

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: CA208S
  • price:Yokogawa CA208S Capacitance Magnetic Flowmeter with best price
  • quality: Original
  • guarantee: 1 year
  • Accuracy : ±0.05%
  • output : 4 to 20mA DC

Magnetic Flow meter

Yokogawa CA208S Capacitance Magnetic Flow meter



ADMAG CA magnetic flowmeter is excellent at measurement ultra-low conductivity fluids down to 0.01μS/cm, adhesive fluids, or slurry fluids. Since ADMAG CA employs a non-wetted electrode construction, picking up the signal voltage by electrode plates provided outside a ceramic pipe through the capacitance of the pipe.

FEATURES
Non-wetted electrodes
• Immune to adhesive or slurry fluids
• Wide measurable range, minimum 0.01μS/cm of
conductivity. (for size 15 to 100mm (0.5 to 4in.))
• Leak Proof Electrode
Excellent on corrosive fluid and abrasive fluid
• Alumina ceramics (99.9%)
Dual compartment housing separates the wiring
section from the electronics and protects the
electronics from corrosive environments.
High accuracy, +0.5% of flow rate (size 25 to
100mm (1 to 4 in.))

STANDARD SPECIFICATIONS
Degrees of Protection :
IP67, Type 4X
Grounding:
• 100Ω or less
• When optional code A (lightning protector) is
selected, Class C (10Ω or less)
• In case of TIIS Flameproof type, Class A (10Ω or
less) or Class C (10Ω or less)
• In case of explosion proof type except TIIS, follow
the domestic electrical requirements as regulated
in each country.

Reference Model:
CA115S Size 15mm (0.5 in.)
CA202S Size 25mm (1 in.)
CA204S Size 40mm (1.5 in.)
CA205S Size 50mm (2 in.)
CA208S Size 80mm (3 in.)
CA210S Size 100mm (4 in.)
CA215S Size150mm (6 in.)
CA220S Size 200mm (8 in.)
