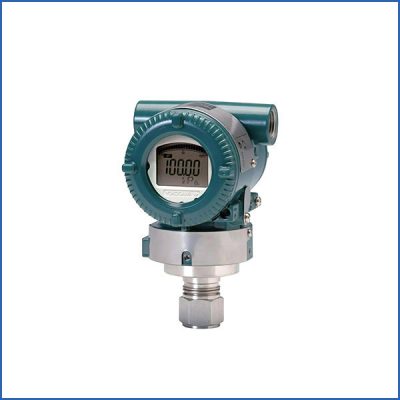

Yokogawa EJX440A Gauge pressure transmitter
The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the the thoroughbred of the DPharp family of transmitters.
The EJX440A is the Traditional Mount High Gauge Transmitter in the series.
EJX440A Standard features include:
- 0.04% Accuracy
- 0.1% per 10 years Stability
- 90 ms Response Time
- Local Parameter Setting (LPS)
- TUV SIL 2/3 (IEC61508) Certified
pressure transmitter
Yokogawa EJX440A Gauge pressure transmitter
The high performance gauge transmitter EJX440A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam pressure. The EJX440A outputs a 4 to 20 mA DC signal corresponding to the measured pressure.
It also features quick response, remote setup and monitoring via BRAIN or HART communications, and diagnostics. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUSPA protocol types are also available.
All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified by TÜV as complying with SIL 2 for safety requirement.
PERFORMANCE SPECIFICATIONS
Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil, unless
otherwise mentioned.
For Fieldbus and PROFIBUS PA communication
types, use calibrated range instead of span in the
following specifications.
Specification Conformance
EJX series ensures specification conformance to at
least ±3σ.
The multi-sensing technology provides
the advanced diagnostic function to detect such
abnormalities as an impulse line blockage or heat
trace breakage. FOUNDATION Fieldbus and PROFIBUS
PA protocol types are also available.
All EJX series models in their standard configuration,
with the exception of the Fieldbus and PROFIBUS
types, are certified by TÜV as complying with SIL 2 for
safety requirement.
