Smart Positioner, Valve Positioner, YTC

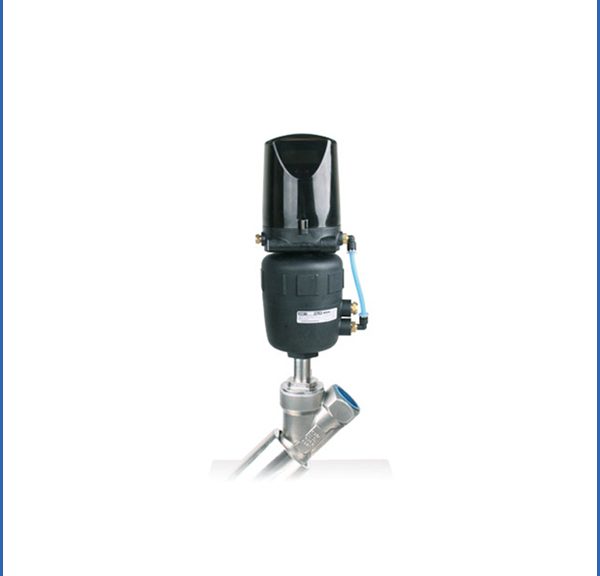

YTC Smart Positioner TMP-3000 Series

Leave a comment

Smart Positioner YTC TMP-3000 Series

Smart Positioner TMP-3000 Series accurately controls valve stroke, according to input signal of 4~20mA being delivered from controller.

  1. Interchangeable fail action
  2. Near zero consumption level
  3. LCD display with backlight
  4. Feedback signal
  5. 4 buttons for local control
  6. Simple mounting
  7. Auto calibration

Features:

1. Light weight, the structure of the small, anti-friction, suitable for Y-valve and other small implementing agencies.
2. Standby state of air consumption close to zero, can greatly save factory energy.
3. The product is equipped with a liquid crystal screen (LCD), so you can confirm the status of the positioner directly in the field.
4. Can add the valve output module, feedback valve opening.
5. Can be arbitrarily set linear, fast open, such as percentage flow characteristics.
6. Through the button on the product can easily adjust the PID parameters, can also be set to 16 points to achieve a special flow curve.

Description

TMP-3000 Series


Models:

YT-3300-LSN ；YT-3350LSN ；YT-3300-LSI ；YT-3350LSI ；YT-3300-LDN ；YT-3350LDN ；YT-3300-LDI ；YT-3350LDI ；YT3300-RSN ；YT-3350RSN ；YT-3300-RSI ；YT-3350RSI；YT-3300-RDN ；YT-3350RDN ；YT-3300-RDI ；YT-3350RDI ；YT-3303LSN ；YT-3303LDN ；YT-3303LSI ；YT-3303LDI ；YT-3303RSN ；YT-3303RSI ；YT-3303RDN ；YT-3303RDI ；YT-3301LSN；YT-3301LSI ；YT-3301LDN ；YT-3301LDI ；YT-3301RSN ；YT-3301RSI ；YT-3301RDN ；YT-3301RDI ；YT-3400LSC；YT-3400LDC ；YT-3400RSC ；YT-3400RDC ；YT-3450LSC ；YT-3450LDC；YT-3450RSC ；YT-3450RDC ；YT-2500LSN ；YT-2500LDN ；YT-2500LSI ；YT-2500LDI ； YT-2500RSN ；YT-2500RDN ；YT-2500RSI ；YT-2500RDI ；YT-2550LSN ；YT-2550LDN ；YT-2550LSI；YT-2550LDI ； YT-2550RSN ；YT-2550RDN ；YT-2550RSI ；YT-2550RDI ；YT-2501LSN ；YT-2501LDN ；YT-2501LSI ；YT-2501LDI ；YT-2501RSN ；YT-2501RDN ；YT-2501RSI ；YT-2501RDI；YT-2600LSC ；YT-2600LDC ；YT-2600RSC ；YT-2600RDC ；YT-2700LSN ；YT-2700LSI ；YT-2700RSN ；YT-2700RSI ；YT-1000LSn ；YT-1000LDn ；YT-1000LSm ；YT-1000LDm ；YT-1000LSc ；YT-1000LDc ；YT-1000LSi ；YT-1000LDi ；YT-1000LSp ；YT-1000LDp ；YT-1000LSH ；YT-1000LDH ；YT-1000RSn ；YT-1000RDn ；YT-1000RSm ；YT-1000RDm ；YT-1000RSc ；YT-1000RDc ；YT-1000RSi；YT-1000RDi ；YT-1000RSp ；YT-1000RDp ；YT-1000RSH ；YT-1000RDH ；YT-1050LSn ；YT-1050LSm ；YT-1050RSn ；YT-1050RSm ；

Smart Positioner, Valve Positioner, YTC

YTC Smart Positioner YT-2700 Series

Leave a comment

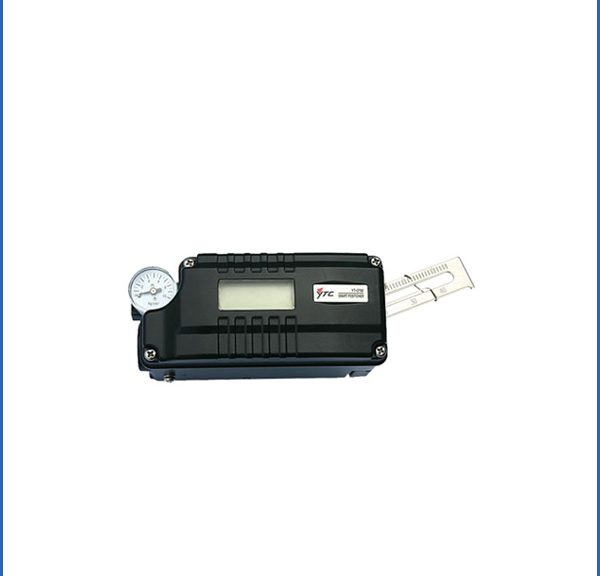

Smart Positioner YTC YT-2700 Series

Smart Positioner YT-2700 Series accurately controls valve stroke, according to input signal of 4~20mA being delivered from controller.

  1. built-in micro-processing operator optimizes the
  2. positioner’s performance
  3. Auto calibration,
  4. PID control,
  5. Alarm, and Hart protocol.

Features:

1. Light weight, the structure of the small, anti-friction, suitable for Y-valve and other small implementing agencies.
2. Standby state of air consumption close to zero, can greatly save factory energy.
3. The product is equipped with a liquid crystal screen (LCD), so you can confirm the status of the positioner directly in the field.
4. Through the HART communication, you can get a variety of valves and locators intelligence.
5. Can add the valve output module, feedback valve opening.
6. Can be arbitrarily set linear, fast open, such as percentage flow characteristics.
7. Through the product button can easily adjust the PID parameters, can also be set to 16 points to achieve a special flow curve.
8. Has excellent protection function (IP66).

Description

YT-2700 Series

Technical Parameters

Item: YT-2700L YT-2700R

Input signal: 4 ~ 20mA DC

Minimum current signal: 3.2mA (standard), 3.8mA (with Hart)

Air supply input pressure: 1.4 ~ 7kgf / cm2 (0.14 ~ 0.7MPa)

Stroke: YT-2700L: 10 to 150 mm, YT-2700R: 0 to 90 °

Impedance: max. 460Ω / 20mA DC

Air connection: PT 1/4, NPT1 / 4

Pressure gauge interface: PT 1/8, NPT1 / 8

Power interface: PF 1/2 (standard), NPT1 / 2 (option)

Explosion-proof grade: Ex ia IIC T6 / T5, protection class IP66

Ambient temperature: Operating temperature -30 ~ 85 ℃, Explosion-proof temperature -40 ~ 60 ℃ (T5) / – 40 ~ 40 ℃ (T6)

Linearity: ± 0.5% F.S.

Hysteresis: 0.5% F.S.

Sensitivity: ± 0.2% F.S.

Repeatability: 0.3% F.S.

Flow: 22 LPM

Air consumption: 0.01LPM (input pressure of 1.4K)

Output characteristics: linear, fast open, etc. Percentage, user-defined (16 points can be set)

Seismic coefficient: 6G (100Hz)

Ambient humidity: 5 to 95% RH (at 40 ° C)

Communication (option): HART communication

Feedback signal (option): 4 ~ 20mA (DC 10 ~ 30V)

Material: Die-cast aluminum

Weight: 0.82kg (1.8Ib)

Models:

YT-3300-LSN ；YT-3350LSN ；YT-3300-LSI ；YT-3350LSI ；YT-3300-LDN ；YT-3350LDN ；YT-3300-LDI ；YT-3350LDI ；YT3300-RSN ；YT-3350RSN ；YT-3300-RSI ；YT-3350RSI；YT-3300-RDN ；YT-3350RDN ；YT-3300-RDI ；YT-3350RDI ；YT-3303LSN ；YT-3303LDN ；YT-3303LSI ；YT-3303LDI ；YT-3303RSN ；YT-3303RSI ；YT-3303RDN ；YT-3303RDI ；YT-3301LSN；YT-3301LSI ；YT-3301LDN ；YT-3301LDI ；YT-3301RSN ；YT-3301RSI ；YT-3301RDN ；YT-3301RDI ；YT-3400LSC；YT-3400LDC ；YT-3400RSC ；YT-3400RDC ；YT-3450LSC ；YT-3450LDC；YT-3450RSC ；YT-3450RDC ；YT-2500LSN ；YT-2500LDN ；YT-2500LSI ；YT-2500LDI ； YT-2500RSN ；YT-2500RDN ；YT-2500RSI ；YT-2500RDI ；YT-2550LSN ；YT-2550LDN ；YT-2550LSI；YT-2550LDI ； YT-2550RSN ；YT-2550RDN ；YT-2550RSI ；YT-2550RDI ；YT-2501LSN ；YT-2501LDN ；YT-2501LSI ；YT-2501LDI ；YT-2501RSN ；YT-2501RDN ；YT-2501RSI ；YT-2501RDI；YT-2600LSC ；YT-2600LDC ；YT-2600RSC ；YT-2600RDC ；YT-2700LSN ；YT-2700LSI ；YT-2700RSN ；YT-2700RSI ；YT-1000LSn ；YT-1000LDn ；YT-1000LSm ；YT-1000LDm ；YT-1000LSc ；YT-1000LDc ；YT-1000LSi ；YT-1000LDi ；YT-1000LSp ；YT-1000LDp ；YT-1000LSH ；YT-1000LDH ；YT-1000RSn ；YT-1000RDn ；YT-1000RSm ；YT-1000RDm ；YT-1000RSc ；YT-1000RDc ；YT-1000RSi；YT-1000RDi ；YT-1000RSp ；YT-1000RDp ；YT-1000RSH ；YT-1000RDH ；YT-1050LSn ；YT-1050LSm ；YT-1050RSn ；YT-1050RSm ；

Smart Positioner, Valve Positioner, YTC

YTC Smart Positioner YT-2600 Series

Leave a comment

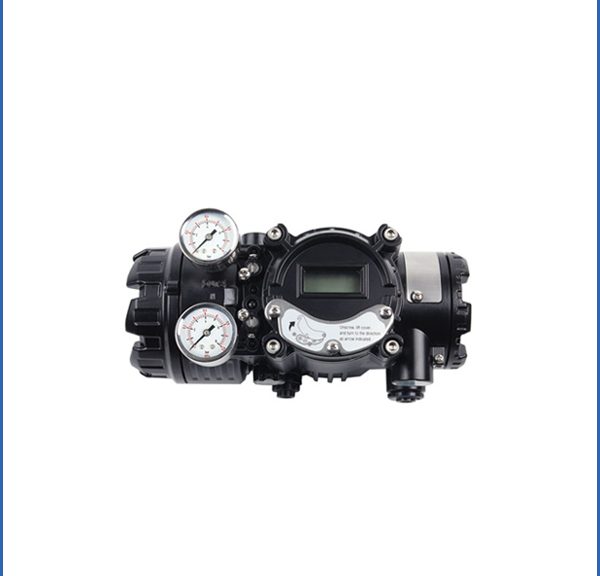

YTC Smart Positioner YT-2600 Series

YTC Smart Positioner YT-2600 Series accurately controls valve stroke, according to input signal of 4~20mA being delivered from controller.

  • Fail freeze function
  • Near zero air consumption level
  • HART comunication
  • Auto calibration
  • PD control
  • 4 buttons for local control
  • LCD display
  • Feedback signal
  • Limit switch

Features

1. With broken signal lock function.
2. Standby state of air consumption close to zero, can greatly save factory energy.
3. The product is equipped with a liquid crystal screen (LCD), so you can confirm the status of the positioner directly in the field.
4. Through the HART communication, you can get a variety of valves and locators intelligence.
5. Can add the valve output module, feedback valve opening.
6. Can be arbitrarily set linear, fast open, such as percentage flow characteristics.
7. Through the product button can easily adjust the PID parameters, can also be set to 16 points to achieve a special flow curve.
8. Has excellent protection function (IP66).

YT-2600 Series

Technical Parameters:

Item: single acting double acting, YT-2600R single acting double acting

Input signal: 4 ~ 20mA DC

Minimum current signal: 3.2mA (standard), 3.8mA (with Hart)

Air supply input pressure: 1.4 ~ 7kgf / cm2 (0.14 ~ 0.7MPa)

Stroke: YT-2600L: 10 to 150 mm, YT-2600R: 0 to 90 °

Impedance: max. 460Ω / 20mA DC

Air connection: PT 1/4, NPT1 / 4

Pressure gauge interface: PT 1/8, NPT1 / 8

Power interface: PF 1/2 (standard), NPT1 / 2 (option)

Explosion protection class: Ex d IIC T6, protection class IP66

Linearity: ± 0.5% F.S.

Hysteresis: 0.5% F.S.

Sensitivity: ± 0.2% F.S.

Repeatability: 0.3% F.S.

Flow: 60 LPM

Air consumption: 0.01LPM (input pressure of 1.4K)

Seismic coefficient: 6G (100Hz)

Ambient humidity: 5 to 95% RH (at 40 ° C)

Communication (option): HART communication

Feedback signal (option): 4 ~ 20mA (DC 10 ~ 30V)

Material: Die-cast aluminum

Weight: 3.0kg

Models:

YT-3300-LSN ；YT-3350LSN ；YT-3300-LSI ；YT-3350LSI ；YT-3300-LDN ；YT-3350LDN ；YT-3300-LDI ；YT-3350LDI ；YT3300-RSN ；YT-3350RSN ；YT-3300-RSI ；YT-3350RSI；YT-3300-RDN ；YT-3350RDN ；YT-3300-RDI ；YT-3350RDI ；YT-3303LSN ；YT-3303LDN ；YT-3303LSI ；YT-3303LDI ；YT-3303RSN ；YT-3303RSI ；YT-3303RDN ；YT-3303RDI ；YT-3301LSN；YT-3301LSI ；YT-3301LDN ；YT-3301LDI ；YT-3301RSN ；YT-3301RSI ；YT-3301RDN ；YT-3301RDI ；YT-3400LSC；YT-3400LDC ；YT-3400RSC ；YT-3400RDC ；YT-3450LSC ；YT-3450LDC；YT-3450RSC ；YT-3450RDC ；YT-2500LSN ；YT-2500LDN ；YT-2500LSI ；YT-2500LDI ； YT-2500RSN ；YT-2500RDN ；YT-2500RSI ；YT-2500RDI ；YT-2550LSN ；YT-2550LDN ；YT-2550LSI；YT-2550LDI ； YT-2550RSN ；YT-2550RDN ；YT-2550RSI ；YT-2550RDI ；YT-2501LSN ；YT-2501LDN ；YT-2501LSI ；YT-2501LDI ；YT-2501RSN ；YT-2501RDN ；YT-2501RSI ；YT-2501RDI；YT-2600LSC ；YT-2600LDC ；YT-2600RSC ；YT-2600RDC ；YT-2700LSN ；YT-2700LSI ；YT-2700RSN ；YT-2700RSI ；

Smart Positioner, Valve Positioner, YTC

YTC Smart Positioner YT-2501 Series

Leave a comment

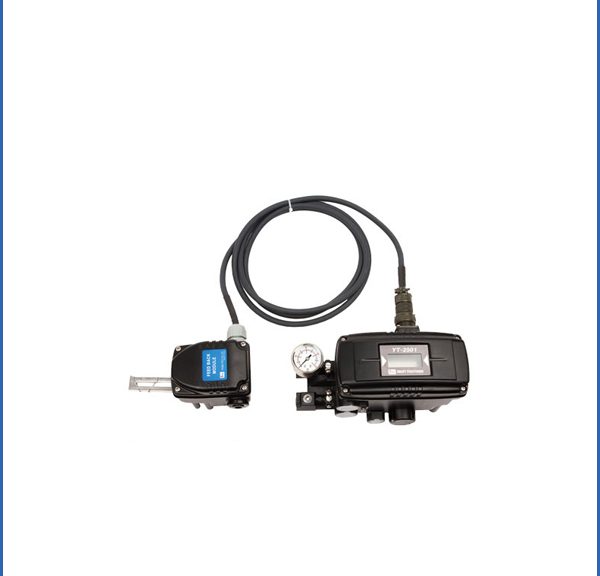

YTC Smart Positioner YT-2501 Series

YTC Smart Positioner YT-2501 Series supplies remote functions and higher liabilities in high temperature and vibration environment.

  • Separated feedback module
  • Near zero air consumption level
  • HART comunication
  • Auto calibration
  • PD control
  • 4 buttons for local control
  • LCD display
  • Feedback signal
  • Fail freeze & safe function

Features:

1. The body and position sensors are separated from each other, easy to maintain, strong seismic performance, can be used in high temperature occasions. Standby air consumption close to zero, can greatly save factory energy.
2. The product is equipped with a liquid crystal display (LCD), so you can confirm the status of the positioner directly in the field.
3. Through the HART communication, you can get a variety of valves and locators intelligence.
4. Can add the valve output module, feedback valve opening.
5. Can be arbitrarily set linear, fast open, such as percentage flow characteristics.
6. Through the button on the product can easily adjust the PID parameters, can also be set to 16 points to achieve a special flow curve.
7. Has excellent protection function (IP66).

 YTC Smart Positioner YT-2501 Series

Parameter:

Item: YT-2501L single acting double acting, YT-2501R single acting double acting

Input signal: 4 ~ 20mA DC

Minimum current signal: 3.2mA (standard), 3.8mA (with Hart)

Air supply input pressure: 0.14 ~ 0.7MPa

Stroke: YT-2501L: 10 to 150 mm, YT-2501R: 0 to 90 °

Impedance: max. 460Ω / 20mA DC

Air connection: PT 1/4, NPT1 / 4

Pressure gauge interface: PT 1/8, NPT1 / 8

Power interface: PF 1/2 (G1 / 2),

Explosion-proof grade: Ex ia IIC T6 / T5

Protection class: IP66

Linearity: ± 0.5% F.S. (cable length 5 meters or less)

Hysteresis: 0.5% F.S. (cable length of 5 meters or less)

Sensitivity: ± 0.2% F.S. (cable length 5 meters or less)

Repeatability: ± 0.3% F.S. (cable length 5 meters or less)

Flow: 50 LPM

Air consumption: 0.01LPM (input pressure of 1.4K)

Ambient humidity: 5 to 95% RH (at 40 ° C)

Communication (option): HART communication

Feedback signal (option): 4 ~ 20mA (DC 10 ~ 30V)

Material: Die-cast aluminum

Weight Body: 1.5kg (3.3Ib), Sensor: 0.6kg (1.3Ib)

Models:

YT-3300-LSN ；YT-3350LSN ；YT-3300-LSI ；YT-3350LSI ；YT-3300-LDN ；YT-3350LDN ；YT-3300-LDI ；YT-3350LDI ；YT3300-RSN ；YT-3350RSN ；YT-3300-RSI ；YT-3350RSI；YT-3300-RDN ；YT-3350RDN ；YT-3300-RDI ；YT-3350RDI ；YT-3303LSN ；YT-3303LDN ；YT-3303LSI ；YT-3303LDI ；YT-3303RSN ；YT-3303RSI ；YT-3303RDN ；YT-3303RDI ；YT-3301LSN；YT-3301LSI ；YT-3301LDN ；YT-3301LDI ；YT-3301RSN ；YT-3301RSI ；YT-3301RDN ；YT-3301RDI ；YT-3400LSC；YT-3400LDC ；YT-3400RSC ；YT-3400RDC ；YT-3450LSC ；YT-3450LDC；YT-3450RSC ；YT-3450RDC ；YT-2500LSN ；YT-2500LDN ；YT-2500LSI ；YT-2500LDI ； YT-2500RSN ；YT-2500RDN ；YT-2500RSI ；YT-2500RDI ；YT-2550LSN ；YT-2550LDN ；YT-2550LSI；YT-2550LDI ； YT-2550RSN ；YT-2550RDN ；YT-2550RSI ；YT-2550RDI ；YT-2501LSN ；YT-2501LDN ；YT-2501LSI ；YT-2501LDI ；YT-2501RSN ；YT-2501RDN ；YT-2501RSI ；YT-2501RDI；YT-2600LSC ；YT-2600LDC ；YT-2600RSC ；YT-2600RDC ；YT-2700LSN ；YT-2700LSI ；YT-2700RSN ；YT-2700RSI ；

Smart Positioner, Valve Positioner, YTC

YTC Smart Positioner YT-2550 Series

Leave a comment

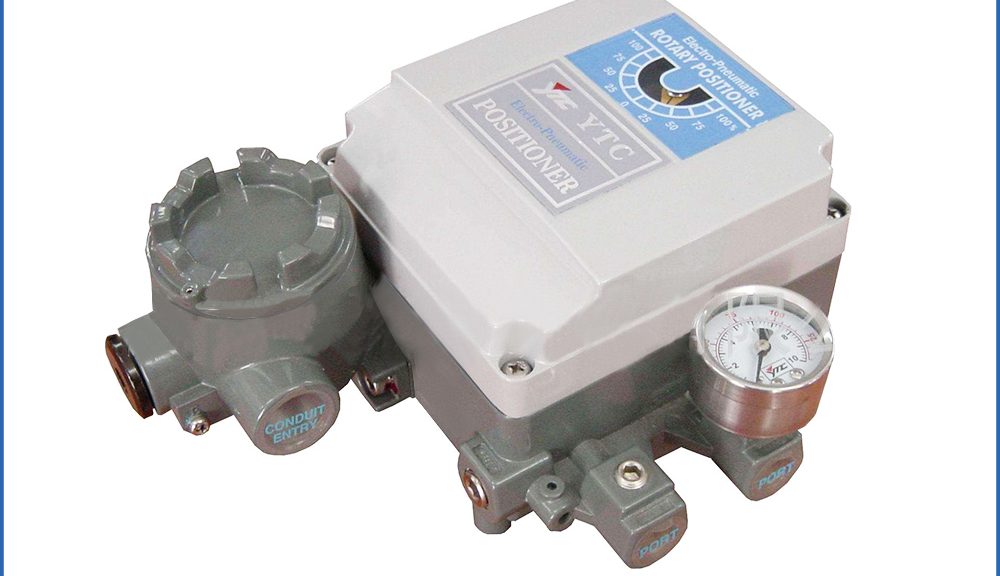

YTC Smart Positioner YT-2550 Series

YTC Smart Positioner YT-2550 Series ccurately controls valve stroke, according to input signal of 4~20mA being delivered from controller.

  • Fail freeze function
  • Near zero air consumption level
  • HART comunication
  • Auto calibration
  • PD control
  • 4 buttons for local control
  • LCD display
  • Feedback signal
  • Limit switch

models:

YT-3300-LSN ；YT-3350LSN ；YT-3300-LSI ；YT-3350LSI ；YT-3300-LDN ；YT-3350LDN ；YT-3300-LDI ；YT-3350LDI ；YT3300-RSN ；YT-3350RSN ；YT-3300-RSI ；YT-3350RSI；YT-3300-RDN ；YT-3350RDN ；YT-3300-RDI ；YT-3350RDI ；YT-3303LSN ；YT-3303LDN ；YT-3303LSI ；YT-3303LDI ；YT-3303RSN ；YT-3303RSI ；YT-3303RDN ；YT-3303RDI ；YT-3301LSN；YT-3301LSI ；YT-3301LDN ；YT-3301LDI ；YT-3301RSN ；YT-3301RSI ；YT-3301RDN ；YT-3301RDI ；YT-3400LSC；YT-3400LDC ；YT-3400RSC ；YT-3400RDC ；YT-3450LSC ；YT-3450LDC；YT-3450RSC ；YT-3450RDC ；YT-2500LSN ；YT-2500LDN ；YT-2500LSI ；YT-2500LDI ； YT-2500RSN ；YT-2500RDN ；YT-2500RSI ；YT-2500RDI ；YT-2550LSN ；YT-2550LDN ；YT-2550LSI；YT-2550LDI ； YT-2550RSN ；YT-2550RDN ；YT-2550RSI ；YT-2550RDI ；YT-2501LSN ；YT-2501LDN ；YT-2501LSI ；YT-2501LDI ；YT-2501RSN ；YT-2501RDN ；YT-2501RSI ；YT-2501RDI；YT-2600LSC ；YT-2600LDC ；YT-2600RSC ；YT-2600RDC ；YT-2700LSN ；YT-2700LSI ；YT-2700RSN ；YT-2700RSI ；

 YTC Smart Positioner YT-2550 Series
Item.Type YT-2500 YT-2550
Input Signal 4-20mA DC
Supply Pressure 0.14-0.7MPa(1.4-7bar)
Stroke Linear Type 10-150mm
Rotary Type 0-90°
Impedance Max.500Ω@20mA DC
Air Connection PT(NPT)1/4 NPT1/4
Gauge Connection PT(NPT)1/8 NPT1/8
Conduit PF1/2(G1/2)
Ambient Temp Operating Temp (-30°C~80°C)/(-22~176°F)
Explosion Temp (-40°C~60°C T5)/(-40°C~40°C T6)
Linearity ±0.5% F.S
Hysteresis ±0.5% F.S
Sensitivity ±0.2% F.S
Repeatability ±0.3% F.S
Air Consumption Fail Freeze 0.01LPM(sup=0.14MPa)
Fail Safe 6LPM(sup=0.14MPa)
Flow Capacity 60LPM(sup=0.14MPa)
Output Characteristics Linear,EQ%,Quick Open user set(16 Point)
Material Aluminum Diecasting Stainless Steel316
Enclosure IP66
Explosion Proof Type Exia IIC T5/T6
Weight 1.5kg(3.3Ib) 2.9kg(6.4Ib)
Smart Positioner, Valve Positioner, YTC

YTC Smart Positioner YT-2500 Series

Leave a comment

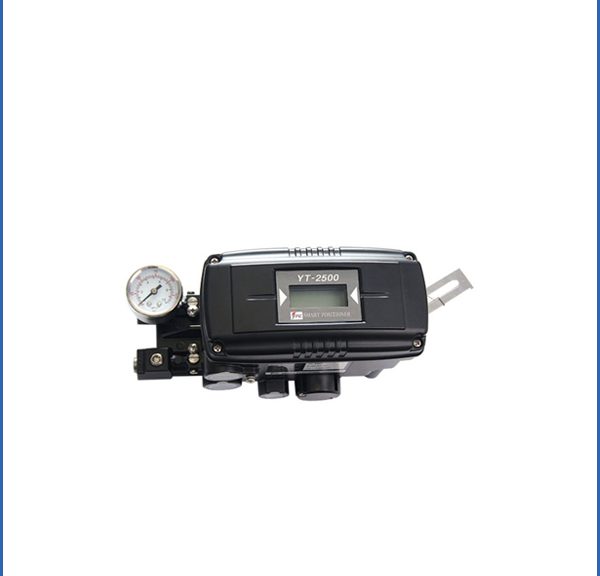

YTC Smart Positioner YT-2500 Series

YTC Smart Positioner YT-2500 Series ccurately controls valve stroke, according to input signal of 4~20mA being delivered from controller.

  • Fail freeze function
  • Near zero air consumption level
  • HART comunication
  • Auto calibration
  • PD control
  • 4 buttons for local control
  • LCD display
  • Feedback signal
  • Limit switch

models:

YT-3300-LSN ；YT-3350LSN ；YT-3300-LSI ；YT-3350LSI ；YT-3300-LDN ；YT-3350LDN ；YT-3300-LDI ；YT-3350LDI ；YT3300-RSN ；YT-3350RSN ；YT-3300-RSI ；YT-3350RSI；YT-3300-RDN ；YT-3350RDN ；YT-3300-RDI ；YT-3350RDI ；YT-3303LSN ；YT-3303LDN ；YT-3303LSI ；YT-3303LDI ；YT-3303RSN ；YT-3303RSI ；YT-3303RDN ；YT-3303RDI ；YT-3301LSN；YT-3301LSI ；YT-3301LDN ；YT-3301LDI ；YT-3301RSN ；YT-3301RSI ；YT-3301RDN ；YT-3301RDI ；YT-3400LSC；YT-3400LDC ；YT-3400RSC ；YT-3400RDC ；YT-3450LSC ；YT-3450LDC；YT-3450RSC ；YT-3450RDC ；YT-2500LSN ；YT-2500LDN ；YT-2500LSI ；YT-2500LDI ； YT-2500RSN ；YT-2500RDN ；YT-2500RSI ；YT-2500RDI ；YT-2550LSN ；YT-2550LDN ；YT-2550LSI；YT-2550LDI ； YT-2550RSN ；YT-2550RDN ；YT-2550RSI ；YT-2550RDI ；YT-2501LSN ；YT-2501LDN ；YT-2501LSI ；YT-2501LDI ；YT-2501RSN ；YT-2501RDN ；YT-2501RSI ；YT-2501RDI；YT-2600LSC ；YT-2600LDC ；YT-2600RSC ；YT-2600RDC ；YT-2700LSN ；YT-2700LSI ；YT-2700RSN ；YT-2700RSI ；

 Description

YTC Smart Positioner YT-2500 Series

The main features and functions are as follows:

1. When the current input signal or input gas source signal is less than 1.4kgf / cm2, it can automatically lock the air path leading to the actuator, keep the current valve opening.

2. The product is equipped with a liquid crystal screen (LCD), so you can confirm the status of the positioner directly in the field.

3. Strong seismic performance, can be applied to the vast majority of the scene.

4. Simple operation button can be set automatically.

5. The structure is small and easy to install in small actuators.

6. Standby air consumption close to zero, for large factories can save energy, good economy.

7. Can be applied to low voltage (8.5V), so there is almost no restriction on the control system.

8. You can add the valve position output module to confirm the valve opening. (Valve position feedback function is option)

9. Can be arbitrarily set linear, fast open, such as percentage flow characteristics.

10. The user can arbitrarily set 16 points to achieve special traffic characteristics.

11. The percentage of the starting point signal for forced close closing can be set arbitrarily.

12. Do not use other devices in the field, through the simple operation button to adjust the PID value.

13. The product has a manual switch (A / M), can be directly to the actuator input valve pressure.

14. Can be 4 ~ 12mA, 12 ~ 20mA of the split control.

15. Set the zero and span by manually setting.

16. Through the manual operation function, you can adjust the valve opening, easy to confirm the normal valve or not.

17. With IP66 excellent protection level.

28.The internal structure is very simple, the modular, reducing the probability of failure, easy maintenance.

Smart Positioner, Valve Positioner, YTC

YTC Smart Positioner YT-3450 Series

Leave a comment

YTC Smart Positioner YT-3450 Series

YTC Smart Positioner YT-3450 Series ccurately controls valve stroke, according to input signal of 4~20mA being delivered from controller.

Main Features and Functions

  • LCD display enables users to monitor the positioner status.
  • Positioner operates normally during sudden changes in supply pressure and / or high vibration environment.
  • Low air consumption level and low voltage use (8.5 V) yield to lower plant operating costs. The YT-3400/3450 is compatible with most of controllers
  • Variable orifice can be used to minimize the hunting occurrence and optimize operating conditions.
  • Valve system feedback is greatly improved by the accuracy and fast response of the YT- 3400/3450.
  • Different valve characteristics can be adjusted – Linear, Quick Open, Equal Percentage, and Custom which user can make 16 points characterizations.
  • Tight Shut – Close and Shut – Open can be set.
  • PID parameters can be adjusted in the field without any additional communicator.
  • A/M switch can be used to direct supply air to the actuator or to manually operate the positioner or valve.
  • Split range 4-12mA or 12-20mA can be set.
  • Operating temperature is -40 ~ 85’C.

models:

YT3300-LSN: YT-3350LSN; YT3300-LSI; YT-3350LSI; YT3300-LDN; YT-3350LDN; YT3300-LDI; YT-3350LDI; YT3300-RSN; YT-3350RSN; YT- RSI-3300; 3350RSI-YT; YT-3300-RDN; 3350RDN-YT; YT-3300-RDI; 3350RDI-YT; YT-3303LSN; 3303LDN-YT; YT-3303LSI; 3303LDI-YT; YT-3303RSN; YT- 3303RSI; YT-3303RDN; YT-3303RDI; YT-3301LSN; YT-3301LSI; YT-3301LDN; YT-3301LDI; YT-3301RSN; YT-3301RSI; YT-3301RDN; YT-3301RDI; YT-3400LSC; YT-3400LDC; YT-3400RSC; 3400RDC-YT; YT-3450LSC; YT-3450LDC; 3450RSC-YT; YT-3450RDC; 2500LSN-YT; YT-2500LDN; 2500LSI-YT; YT-2500LDI; 2500RSN-YT; YT-2500RDN; YT- 2500RSI; YT-2500RDI; YT-2550LSN; YT-2550LDN; YT-2550LSI; YT-2550LDI; YT-2550RSN; YT-2550RDN; YT-2550RSI; YT-2550RDI; YT-2501LSN; YT-2501LDN; YT-2501LSI; YT-2501LDI; 2501RSN-YT; YT-2501RDN; YT-2501RSI; 2501RDI-YT; YT-2600LSC; 2600LDC-YT; YT-2600RSC ; 2600RDC-YT; YT-2700LSN; 2700LSI-YT; YT-2700RSN; YT-2700RSI;

 YTC Smart Positioner YT-3450 Series

Smart Positioner, Valve Positioner, YTC

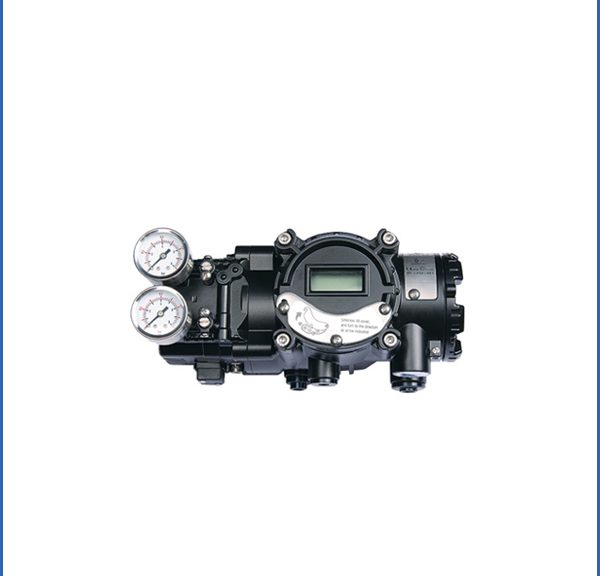

YTC Smart Positioner YT-3400 Series

Leave a comment

Smart Positioner

Smart Positioner YT-3400 Series ccurately controls valve stroke, according to input signal of 4~20mA being delivered from controller.

.Auto calibration

.PID control

.HART comunication

.Auto/Manual switch

.Feedback signal

.4 buttons for local control

.LCD display

.Limit switch

Features:

1. The use of nozzle baffle structure torque motor, to strengthen the anti-dust, moisture, oil capacity.
2. The product is equipped with a liquid crystal display (LCD), so you can confirm the status of the positioner directly in the field.
3. Through the HART communication, you can get a variety of valves and locators intelligence.
4. Can add the valve output module, feedback valve opening.
5. Can be arbitrarily set linear, fast open, such as percentage flow characteristics.
6. The PID parameters can be easily adjusted by pressing the button on the product
7. Has excellent protection function (IP66).

models:

YT3300-LSN: YT-3350LSN; YT3300-LSI; YT-3350LSI; YT3300-LDN; YT-3350LDN; YT3300-LDI; YT-3350LDI; YT3300-RSN; YT-3350RSN; YT- RSI-3300; 3350RSI-YT; YT-3300-RDN; 3350RDN-YT; YT-3300-RDI; 3350RDI-YT; YT-3303LSN; 3303LDN-YT; YT-3303LSI; 3303LDI-YT; YT-3303RSN; YT- 3303RSI; YT-3303RDN; YT-3303RDI; YT-3301LSN; YT-3301LSI; YT-3301LDN; YT-3301LDI; YT-3301RSN; YT-3301RSI; YT-3301RDN; YT-3301RDI; YT-3400LSC; YT-3400LDC; YT-3400RSC; 3400RDC-YT; YT-3450LSC; YT-3450LDC; 3450RSC-YT; YT-3450RDC; 2500LSN-YT; YT-2500LDN; 2500LSI-YT; YT-2500LDI; 2500RSN-YT; YT-2500RDN; YT- 2500RSI; YT-2500RDI; YT-2550LSN; YT-2550LDN; YT-2550LSI; YT-2550LDI; YT-2550RSN; YT-2550RDN; YT-2550RSI; YT-2550RDI; YT-2501LSN; YT-2501LDN; YT-2501LSI; YT-2501LDI; 2501RSN-YT; YT-2501RDN; YT-2501RSI; 2501RDI-YT; YT-2600LSC; 2600LDC-YT; YT-2600RSC ; 2600RDC-YT; YT-2700LSN; 2700LSI-YT; YT-2700RSN; YT-2700RSI;

Mitsubishi, Rotating servo motor

MITSUBISHI Rotary Servo Motor HF-SP Series

Leave a comment

Servo motor

MITSUBISHI Rotary Servo Motor HF-SP Series

Quick Details
Place of Origin:Japan
Brand Name:MITSUBISHI
Model Number:HF-SP
Price:Best price for MITSUBISHI Rotary Servo Motor HF-SP Series
Quality:Original
Type:Servo Motor
Output Power:100W
Warranty:1 Year
Condition:100% new and original
Voltage:AC power 220V
AC Voltage:208-230 / 240 V

Servo motor

MITSUBISHI Rotary Servo Motor HF-SP Series

100% Original MITSUBISHI Rotary Servo Motor HF-SP Series

Stainless Steel Washdown Food Grade Servo Motors

UL / CE / IP69K certifications
316L stainless steel construction
Superior to 303/304 for hygiene and corrosion resistance
FDA approved food grade components, shaft seal, and o-rings
Food-grade lubrication
Surface finish meets EHEDG and 3A criteria
Hygienic permanent markings (name plate data)
Single NFPA 79 cable for motor and absolute encoder

White Washdown Food Grade Servo Motors

UL / CE / RoHS / FDA / IP67 certifications
316L stainless steel construction superior to 303/304 for hygiene and corrosion resistance
FDA approved food grade components
PTFE shaft seal
Food-grade lubrication
White surface finish including flange
Stainless steel shaft, fasteners, and connectors
Corrosion proof against common cleaning & disinfecting chemicals
For applications where motor is lateral or below food
Not for direct food contact

  • Even though we have this part in stock, it may take several days for internal process to complete. Goods will be delivered within 5 working days.
  • For use with Servo Amplifier Model: MR-J3-100A/B/T
  • Power Facility Capacity [kVA]: 1.7
  • Voltage: 200 VAC
  • Shipping Weight: 8 kg
  • HF-SP152 Mitsubishi AC induction motor, also known as Mitsubishi AC motor, or Mitsubishi asynchronous motor, or Mitsubishi AC motor, or Mitsubishi motor, or Mitsubishi Electric, Mitsubishi AC motor, or Mitsubishi induction motor.
    (HMI), frequency converter, tension control system, distribution control products, motion controller and servo control system, CNC system, laser processing machine, EDM machine, industrial robot, industrial sewing machine, Mitsubishi energy saving data collection server, integrated class.
Mitsubishi, Rotating servo motor

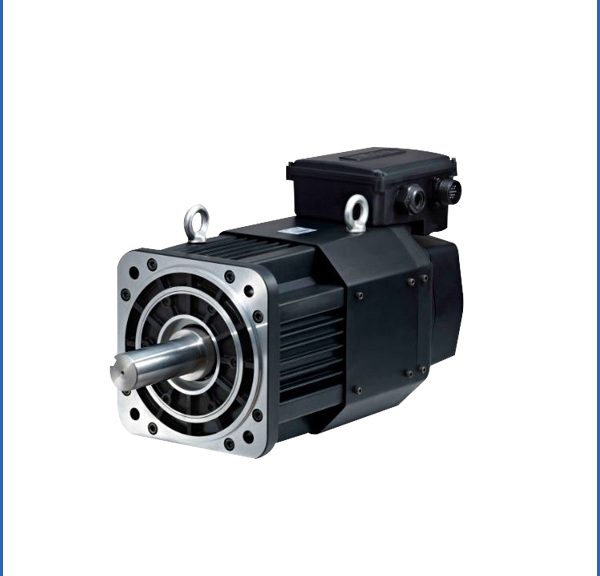

MITSUBISHI Rotary Servo Motor HF-MP Series

Leave a comment

Servo motor

MITSUBISHI Rotary Servo Motor HF-MP Series

Quick Details
Place of Origin:Japan
Brand Name:MITSUBISHI
Model Number:HF-MP
Price:Best price for MITSUBISHI Rotary Servo Motor HF-MP Series
Quality:Original
Type:Servo Motor
Output Power:100W
Warranty:1 Year
Condition:100% new and original
Voltage:AC power 220V
AC Voltage:208-230 / 240 V

Servo motor

MITSUBISHI Rotary Servo Motor HF-MP Series

MITSUBISHI Rotary Servo Motor HF-MP Series

Stainless Steel Washdown Food Grade

UL / CE / IP69K certifications
316L stainless steel construction
Superior to 303/304 for hygiene and corrosion resistance
FDA approved food grade components, shaft seal, and o-rings
Food-grade lubrication
Surface finish meets EHEDG and 3A criteria
Hygienic permanent markings (name plate data)
Single NFPA 79 cable for motor and absolute encoder

White Washdown Food Grade

UL / CE / RoHS / FDA / IP67 certifications
316L stainless steel construction superior to 303/304 for hygiene and corrosion resistance
FDA approved food grade components
PTFE shaft seal
Food-grade lubrication
White surface finish including flange
Stainless steel shaft, fasteners, and connectors
Corrosion proof against common cleaning & disinfecting chemicals
For applications where motor is lateral or below food
Not for direct food contact

Mitsubishi HF-MP23 Mitsubishi drive applications

1` The product has USB and RS-422 serial communication function, through the installation of the servo set software personal calculation

2` MR-J3 series of high-performance servo motor encoder with a resolution of 262144 pulse / turn

To have the ability to perform more precise control than the MR-J2S series.
3 `series of servo motors to adapt to different control needs, the encoder on the motor are supported ABS mode, as long as

4` more powerful servo set software MR-configurator use more convenient, with precise machinery
Analysis function.
Mitsubishi servo MR-J3 series features
Mitsubishi servo MR-J3 series also has the following more superior features:
High level of automatic tuning function, user-friendly;

Added robust disturbance compensation function, especially for the printing industry;

Built-in oscilloscope has three channels at the same time accurate sampling of three different sets of data, so that debugging and troubleshooting work more convenient and quick;
In line with international standards.

Smart Positioner, Valve Positioner, YTC

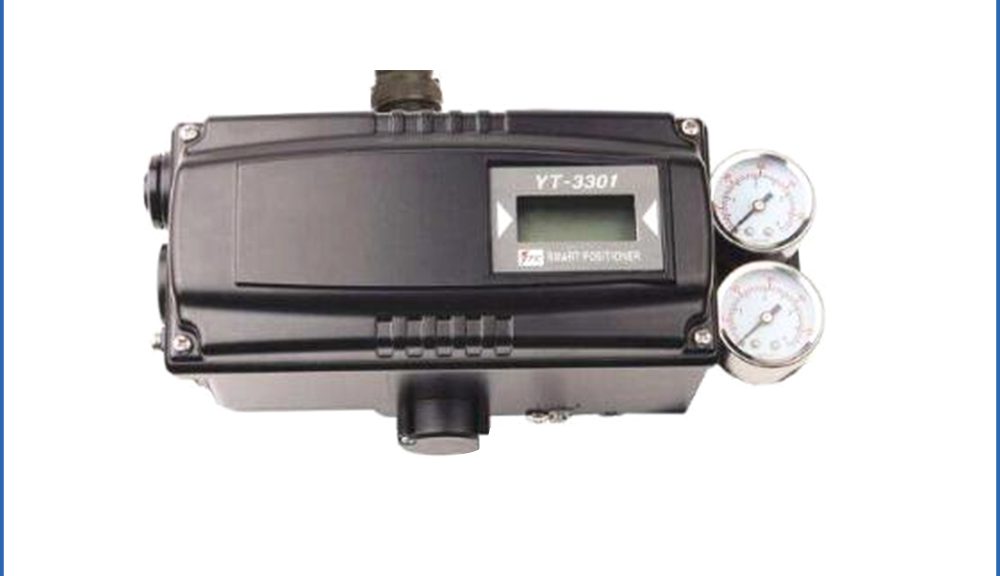

New and Original YTC Smart Positioner YT-3301 Series

Leave a comment

Smart Positioner YTC YT-3301 Series

Smart Positioner accurately controls valve stroke, according to input signal of 4~20mA being delivered from controller.

  • Separated feedback module
  • Auto/Manual switch
  • HART comunication
  • Auto calibration
  • PID control
  • 4 buttons for local control
  • LCD display
  • Feedback signal
Item.Type YT-3301L YT-3301R
Input Signal 4-20mA DC
Supply Pressure 0.14-0.7MPa(1.4~7bar)
Stroke 10-150mm 0-90°
Impedance Max.500Ω@20mA DC
Air Connection PT(NPT)1/4
Gauge Connection PT(NPT)1/8
Conduit PF1/2(G1/2)
Ambient Temp Sensor Oprating Temp (-40℃~120℃)/(-40~248°F)
Body Oprating Temp (-30℃~85℃)/(-22~185°F)
Explosion Temp (-40℃~60℃ T5)/(-40℃~40℃ T6)
LCD Operaling Temp (-30℃~85℃)/(-22~185°F)
Linearity ±0.5% F.S
Hysteresis ±0.5% F.S
Sensitivity ±0.2% F.S
Repeatability ±0.3% F.S
Air Consumption Below 2LPM(sup=0.14MPa)
Flow Capacity 70LPM(sup=0.14MPa)
Output Characteristics Linear,EQ%,Quick Open user set(16 Point)
Material Aluminum Diecasting
Enclosure IP66
Explosion Proof Type Exia IIC T5/T6
Weight  Body 2kg(4.4Ib)
 Sensor 0.6kg(1.3Ib) 0.9kg(2.0Ib)

Models:

YT-3300-LSN  YT-3350LSN  YT-3300-LSI  YT-3350LSI  YT-3300-LDN  YT-3350LDN  YT-3300-LDI  YT-3350LDI  YT3300-RSN  YT-3350RSN  YT-3300-RSI  YT-3350RSI YT-3300-RDN  YT-3350RDN  YT-3300-RDI  YT-3350RDI  YT-3303LSN  YT-3303LDN  YT-3303LSI  YT-3303LDI  YT-3303RSN  YT-3303RSI  YT-3303RDN  YT-3303RDI  YT-3301LSN YT-3301LSI  YT-3301LDN  YT-3301LDI  YT-3301RSN  YT-3301RSI  YT-3301RDN  YT-3301RDI  YT-3400LSC YT-3400LDC  YT-3400RSC  YT-3400RDC  YT-3450LSC  YT-3450LDC YT-3450RSC  YT-3450RDC  YT-2500LSN  YT-2500LDN  YT-2500LSI  YT-2500LDI  YT-2500RSN  YT-2500RDN  YT-2500RSI  YT-2500RDI  YT-2550LSN  YT-2550LDN  YT-2550LSI YT-2550LDI  YT-2550RSN  YT-2550RDN  YT-2550RSI  YT-2550RDI  YT-2501LSN  YT-2501LDN  YT-2501LSI  YT-2501LDI  YT-2501RSN  YT-2501RDN  YT-2501RSI  YT-2501RDI YT-2600LSC  YT-2600LDC  YT-2600RSC  YT-2600RDC  YT-2700LSN  YT-2700LSI  YT-2700RSN  YT-2700RSI

Smart Positioner, Valve Positioner, YTC

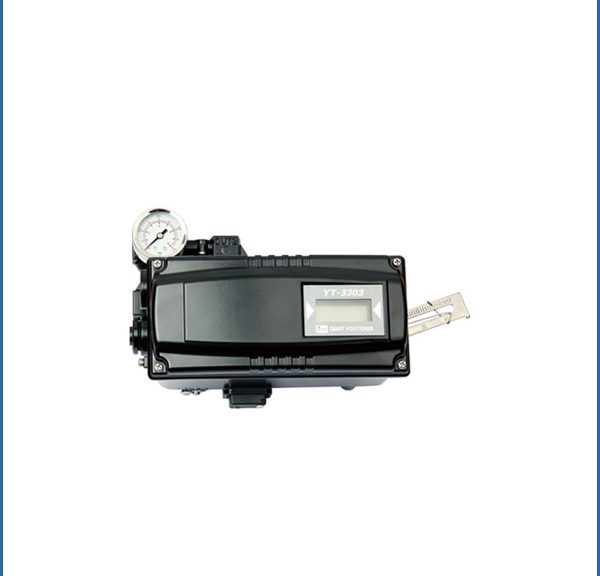

YTC Smart Positioner YT-3303 Series

Leave a comment

YTC Smart Positioner YT-3303 Series

YTC Smart Positioner YT-3303 SeriesSmart Valve Positioner accurately controls valve stroke, according to input signal of 4~20mA being delivered from controller.

  • Auto calibration
  • Auto/Manual switch
  • HART comunication
  • LCD display
  • PID control
  • 4 buttons for local control
  • Feedback signal
 YTC Smart Positioner YT-3303 Series
Item.Type YT-3303
Input Signal 4-20mA DC
Supply Pressure 0.14-0.7MPa(1.4-7bar)
Stroke Linear Type 10-150mm
Rotary Type 0-90°
Impedance Max.500Ω@20mA DC
Air Connection PT(NPT)1/4
Gauge Connection PT(NPT)1/8
Conduit PF1/2(G1/2)
Ambient Temp Standard Type (-30℃~85℃)/(-22~185°F)
Low Temp Type (-40℃~85℃)/(-40~185°F)
Explosion Temp (-40℃~60℃ T5)/(-40℃~40℃ T6)
LCD Operaling Temp (-30℃~85℃)/(-22~185°F)
Linearity ±0.5% F.S
Hysteresis ±0.5% F.S
Sensitivity ±0.2% F.S
Repeatability ±0.3% F.S
Air Consumption Below 2LPM(sup=0.14MPa)
Flow Capacity 70LPM(sup=0.14MPa)
Output Characteristics Linear,EQ%,Quick Open user set(16 Point)
Material Aluminum Diecasting
Enclosure IP66
Explosion Proof Type Exia IIC T5/T6
Weight 2kg(4.4Ib)

models:

YT3300-LSN: YT-3350LSN; YT3300-LSI; YT-3350LSI; YT3300-LDN; YT-3350LDN; YT3300-LDI; YT-3350LDI; YT3300-RSN; YT-3350RSN; YT- RSI-3300; 3350RSI-YT; YT-3300-RDN; 3350RDN-YT; YT-3300-RDI; 3350RDI-YT; YT-3303LSN; 3303LDN-YT; YT-3303LSI; 3303LDI-YT; YT-3303RSN; YT- 3303RSI; YT-3303RDN; YT-3303RDI; YT-3301LSN; YT-3301LSI; YT-3301LDN; YT-3301LDI; YT-3301RSN; YT-3301RSI; YT-3301RDN; YT-3301RDI; YT-3400LSC; YT-3400LDC; YT-3400RSC; 3400RDC-YT; YT-3450LSC; YT-3450LDC; 3450RSC-YT; YT-3450RDC; 2500LSN-YT; YT-2500LDN; 2500LSI-YT; YT-2500LDI; 2500RSN-YT; YT-2500RDN; YT- 2500RSI; YT-2500RDI; YT-2550LSN; YT-2550LDN; YT-2550LSI; YT-2550LDI; YT-2550RSN; YT-2550RDN; YT-2550RSI; YT-2550RDI; YT-2501LSN; YT-2501LDN; YT-2501LSI; YT-2501LDI; 2501RSN-YT; YT-2501RDN; YT-2501RSI; 2501RDI-YT; YT-2600LSC; 2600LDC-YT; YT-2600RSC ; 2600RDC-YT; YT-2700LSN; 2700LSI-YT; YT-2700RSN; YT-2700RSI;
