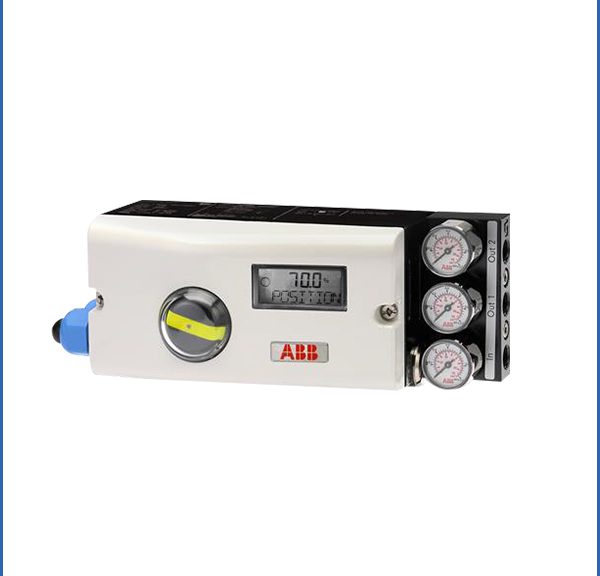

ABB Digital Positioners Series Electro-Pneumatic Positioners TZIDC-210 features a small and compact design, a modular construction, and an excellent cost-performance ratio. Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.

ABB (TZIDC-200) explosion-proof intelligent electrical valve positioner (TZIDC-200) series of products for the introduction of field actuators of digital communications, the whole plant integrated management through advanced tools. TZID / TZID-C break through the traditional concept of locator, using TEIP11 as the core components, combined with micro-processing technology, built-in communication function.

Through the installation, suitable for rotary and straight stroke control, high positioning accuracy, travel range: straight stroke: 20 ~ 150mm, rotation type: up to 125 degrees. Gas capacity ≥13.5kg / hour, gas consumption ≤ 0.03kg / hour, through the automatic zero / range adjustment, simplify debugging. Using sensor technology for temperature and position compensation, with anti-vibration ability up to 10g, 10 ~ 150Hz; temperature range -40 ~ +85 ° C excellent features. Through the HART or Profibus / FF communication interface, the establishment of real-time contact with the control room, can be parameter adjustment, status monitoring. Free configuration of the output characteristics, to improve the ball valve / disc valve output characteristics, can be used inexpensive ball valve / disc valve + intelligent valve positioner at the same time to achieve the characteristics of shut-off valve and control valve.

ABB Digital Positioners Series Electro-Pneumatic Positioner TZIDC-210

positioner ABB TZIDC-200 features a small and compact design, a modular construction, and an excellent cost-performance ratio. Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.

ABB Digital positioner Series Electro-Pneumatic Positioners TZIDC-200

Positioner ABB Digital Electro-Pneumatic Positioners Series TZIDC-120 represents the digital, intelligent positioners for communication via FOUNDATION Fieldbus within the positioners family. Unmatched shock and vibration immunity of 10 g up to 80 Hz distinguishes the TZIDC-120 from other‘s and guarantee reliable operation in almost all areas under harshest environmental conditions.

Digital communication acc. to PROFIBUS-PA profile, version 3.0, class B
FDT/DTM-technology serves for central configuration, documentation, diagnosis as well as Asset Management
Easiest commissioning and operation on site due to local operation and auto adjustment
Intrinsically safe (IS)
Robust design and flexible in use with linear and rotary actuators

For FOUNDATION Fieldbus
Compact and efficient
— With proven technology and intelligence
Communication-ready for FOUNDATION Fieldbus
— Fieldbus connection acc. to IEC 61158-2
— Power consumption 11.5 mA, 9 … 32 V DC
Easy to commission, user-friendly
— Fully automatic autoadjust
— Setup via integrated operator panel or remote configuration
— Mechanical position indicator
EMV and CE conformity
Robust and environmentally ruggedized
— Shock and vibration influence < 1 %
— Aluminum housing, protection class IP 65
Additional temperature range
— -40 … 85 °C (-40 … 185 °F)
Mounting on pneumatic linear actuators or rotary
actuators
Optional with pressure gauge block and filter regulator
Low operating cost
— Air consumption < 0.03 kg/h
ATEX, FM, CSA, GOST and IECEx approvals

ABB Digital positioner Series Electro-Pneumatic Positioners TZIDC-120

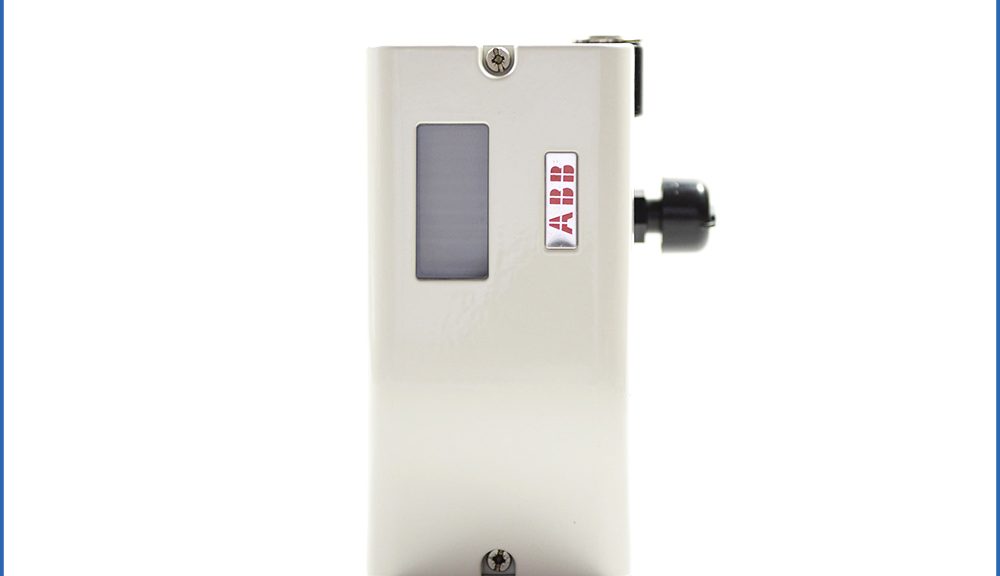

positioner ABB Digital Electro-Pneumatic Positioners Series TZIDC-110 represents the digital, intelligent positioners for communication via PROFIBUS PA within the positioners family. Unmatched shock and vibration immunity of 10g up to 80 Hz distinguishes the TZIDC-110 from other‘s and guarantee reliable operation in almost all areas under harshest environmental conditions.

ABB Digital positioner Series Electro-Pneumatic Positioners TZIDC-110

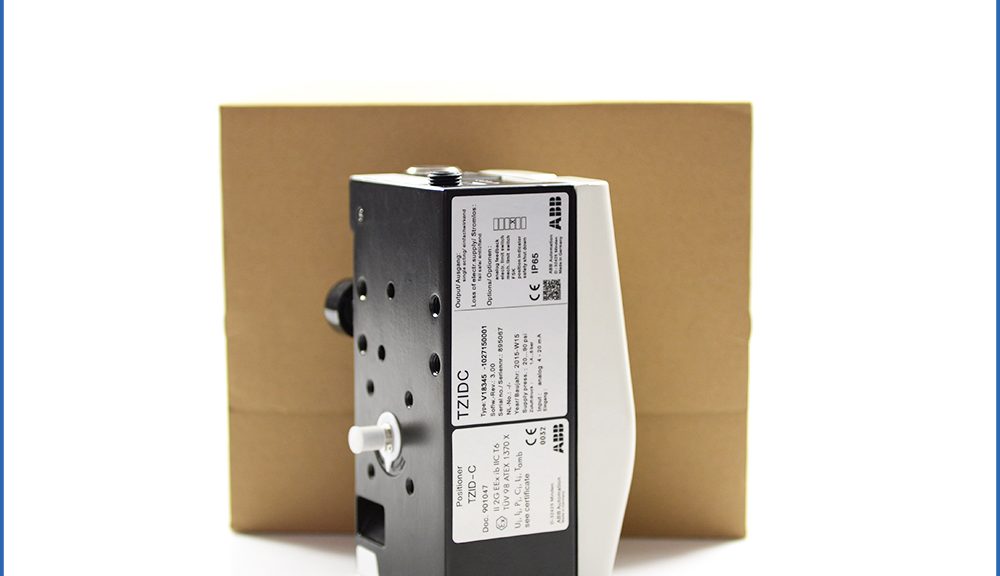

Positioner ABB Digital Electro-Pneumatic Positioners Series TZIDC represents the digital, intelligent positioners for communication via HART within the positioners family. Unmatched shock and vibration immunity of 10g up to 80 Hz distinguishes the TZIDC from other‘s and guarantee reliable operation in almost all areas under harshest environmental conditions.

For FOUNDATION Fieldbus

Compact and efficient

— With proven technology and intelligence

Communication-ready for FOUNDATION Fieldbus

— Fieldbus connection acc. to IEC 61158-2

— Power consumption 11.5 mA, 9 … 32 V DC

Easy to commission, user-friendly

— Fully automatic autoadjust

— Setup via integrated operator panel or remote configuration

— Mechanical position indicator

EMV and CE conformity

Robust and environmentally ruggedized

— Shock and vibration influence < 1 %

— Aluminum housing, protection class IP 65

Additional temperature range

— -40 … 85 °C (-40 … 185 °F)

Mounting on pneumatic linear actuators or rotary

actuators

Optional with pressure gauge block and filter regulator

Low operating cost

— Air consumption < 0.03 kg/h

ATEX, FM, CSA, GOST and IECEx approvals

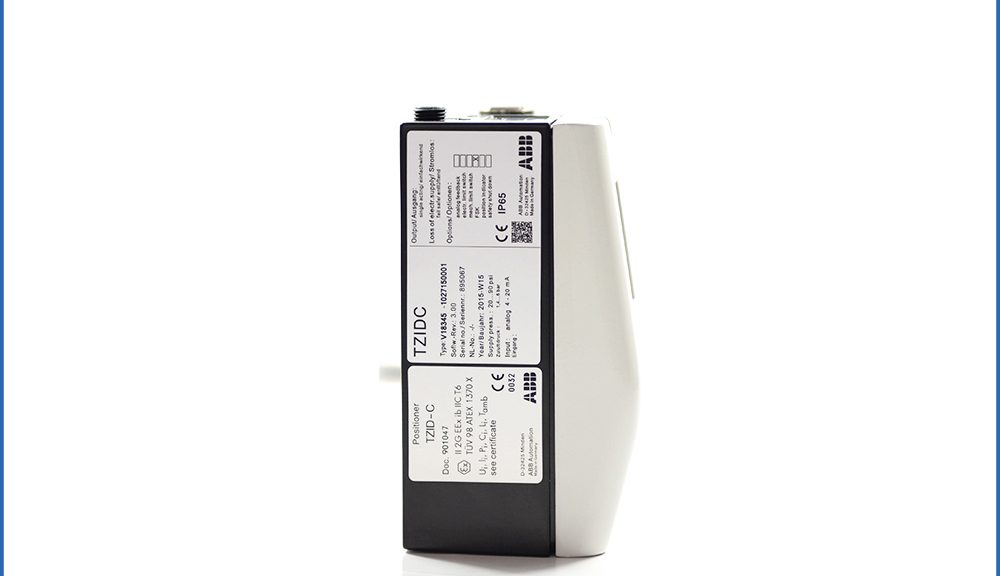

Abb Positioner V18345, Electro-pneumatic Positioner

ABB Digital Positioners Series Electro-Pneumatic Positioner TZIDC

Positioner New and Original ABB Digital Position Master EDP300 features a small and compact design, a modular construction features a small and compact design, a modular construction, and an excellent cost-performance ratio. Fully automatic determination of the control parameters and adaptation to the positioners allow for considerable time savings as well as optimum control behavior. Because of its properties, the positioners is suited for even the most challenging operating conditions.

1, high capacity, gas capacity output range
2, low gas consumption, static air consumption and supply pressure has nothing to do
3, resistant to overvoltage, control accuracy from the impact of gas pressure changes
4, high vibration resistance: up to 10g of anti-vibration ability
5, power off, off signal protection
6, part of the trip test PST
7, optional micro switch, limit switch
8, small size, aluminum alloy shell — standard, optional stainless steel shell
9, simple operation, easy to set parameters, with a local operation panel
10, advanced diagnostic functions: there are three internal pressure sensor
11, through the self-correction function to facilitate the establishment of working parameters
12, there are adaptive mode, no need to adjust the zero and full scale

ABB Digital positioner PositionMaster EDP300
