Valve Positioner, Siemens

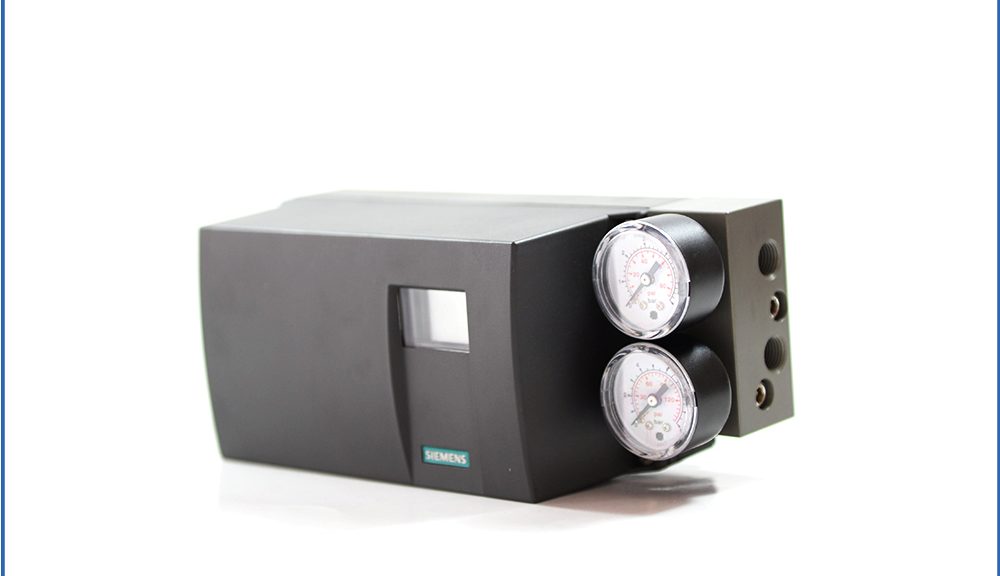

Siemens Valve Positioner SIPART PS2 6DR5020

Leave a comment
  • Place of Origin: Germany
  • Brand Name: Siemens
  • Model Number: SIPART PS2 6DR5020
  • price: Best price with Siemens Valve Positioner SIPART PS2 6DR5020
  • quality: Original
  • guarantee: 1 year

Siemens Valve Positioner

Siemens Valve Positioner SIPART PS2 6DR5110



The SIPART PS2 series locator has the following product types:

1, single acting actuators of plastic aluminum, stainless steel or cast aluminum housing
2, double acting actuators of plastic aluminum and stainless steel housing
3, for non-hazardous areas
4, can be used for non-hazardous areas
5, intrinsically safe products (EEx ia / ib)
6, explosion-proof shell (EEx d)
7, explosion-proof design (no spark type)

Benefits
As standard with IP66 or NEMA 4x protection, optionally available with Makrolon, aluminum or stainless steel enclosure, or as flameproof aluminum version
Intelligent diagnostics functions
Compact booster option
Fail in place and fail-safe functions
Also available down to -40 °C up to +80 °C ambient temperature
Comprehensive certificates and approvals, e.g. ATEX, IEC, FM, CSA, NEPSI, INMETRO, EAC, KC, GL, LR, DNV, ABS and BV



Reference Model :

6DR5010-0NG00-0AA0
6DR5010-0NG00-0AA1
6DR5010-0NG01-0AA0
6DR5010-0NG01-0AA1
6DR5010-0NG11-0AA3
6DR5010-0NG02-0AA0
6DR5010-0EG01-0AA0
6DR5010-0EG00-0AA0
6DR5010-0EN00-0AA0
6DR5010-0EN01-0AA0
6DR5010-0EM00-0AA1
6DR5010-0NM00-0AA0
6DR5010-0NN01-0AA0
6DR5010-0NN01-0AA3
6DR5010-0NG03-0AA0
6DR5010-0GN00-0AA0
6DR5011-0NN01-0AA1
6DR5011-0NG00-0AA0
6DR5011-0EG01-0AA1
6DR5011-0NG13-0AA1
6DR5011-0NN01-0AA1
6DR5011-0NG00-0AA0
6DR5011-0EG01-0AA1
6DR5111-0NG00-0AA0
6DR5011-0NG01-0AA0
6DR5011-0NG13-0AA0
6DR5011-0EN00-0AA0
6DR5011-0NN00-0AA0
6DR5211-0NG00-0AA0
6DR5311-0NG00-0AA0
6DR5511-0NG00-0AA0
6DR5611-0NG00-0AA0

Empty tab. Edit page to add content here.
Valve Positioner, Fisher, Digital Positioners

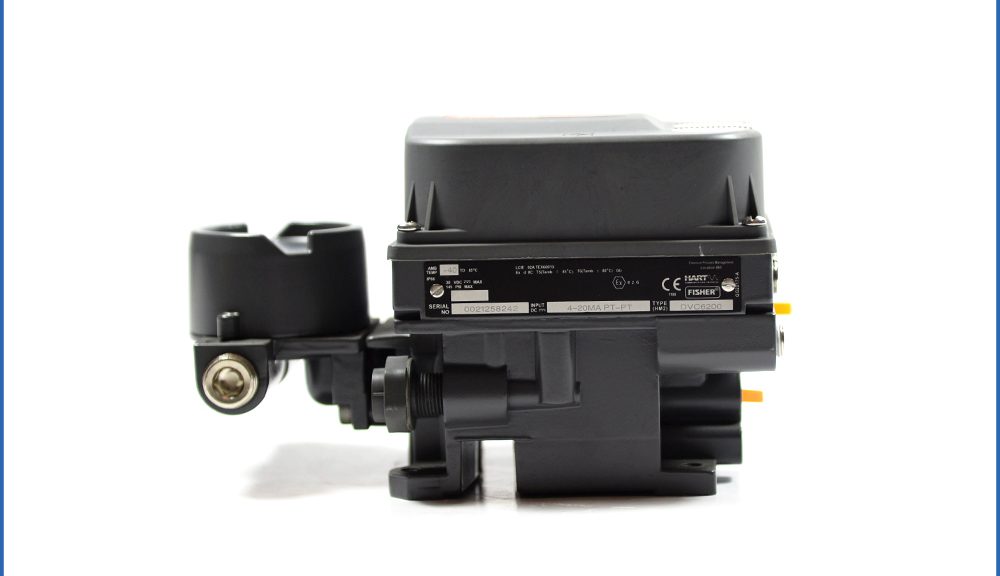

Fisher Valve Controllers DVC6000 Series Hart Digital positioner

Leave a comment

Fisher Valve positioner

Fisher Valve positioner DVC6000 Series Valve Controllers

DVC6000 series of digital valve controller is a communication, microprocessor-based electrical-electrical conversion instrument. In addition to the traditional function of converting current signals into air pressure signals, the DVC6000 Series Digital Valve Controller utilizes the HART communication protocol to easily access information critical to process operation.

Fisher Valve Controllers DVC6000 Series Hart Digital positioner

Classification and application:

Products directly mounted on the valve:

  • DVC6010: used in straight stroke control valves
  • DVC6020: for rotary and long stroke straight stroke control valves
  • DVC6030: for 90 degree rotary control valve

Remote installation of products:

  • DVC6005: Basic unit for 2-inch tubing or wall panel mounting
  • DVC6015: The feedback unit is used for straight stroke valves
  • DVC6025: The feedback unit is used for rotary and long stroke straight stroke valves
  • DVC6035: The feedback unit is used for 90 degree rotary valves

Specific models are as follows:

  • DVC6010-AC single acting, DVC6010-AC double acting,
  • DVC6010-HC single acting, DVC6010-HC double acting
  • DVC6020-AC single acting, DVC6020-AC double acting,
  • DVC6020-HC single acting, DVC6020-HC double acting
  • DVC6030-AC single acting, DVC6030-AC double acting,
  • DVC6030-HC single acting, DVC6030-HC double acting

ABB positioner model is as follows:

  • V18345-1010521001
  • V18345-1010121001
  • V18345-1020121001
  • V18345-1010120001
  • V18345-1004210001
  • V18345-1021120001
  • V18345-1020520001
  • V18345-1010221001

Siemens (SIEMENS) positioner models are as follows:

  • 6DR5220-0EN00-0AA0
  • 6DR5010-0NG00-0AA0
  • 6DR5215-0EN00-0AA0
  • 6DR5020-0NG00-0AA0
  • 6DR5010-0NG01-0AA0
  • 6DR5110-0EG00-0AA0
  • 6RD5210-0NN00-0AA0
  • 6DR5010-0NN01-0AA0
Valve Positioner, Fisher

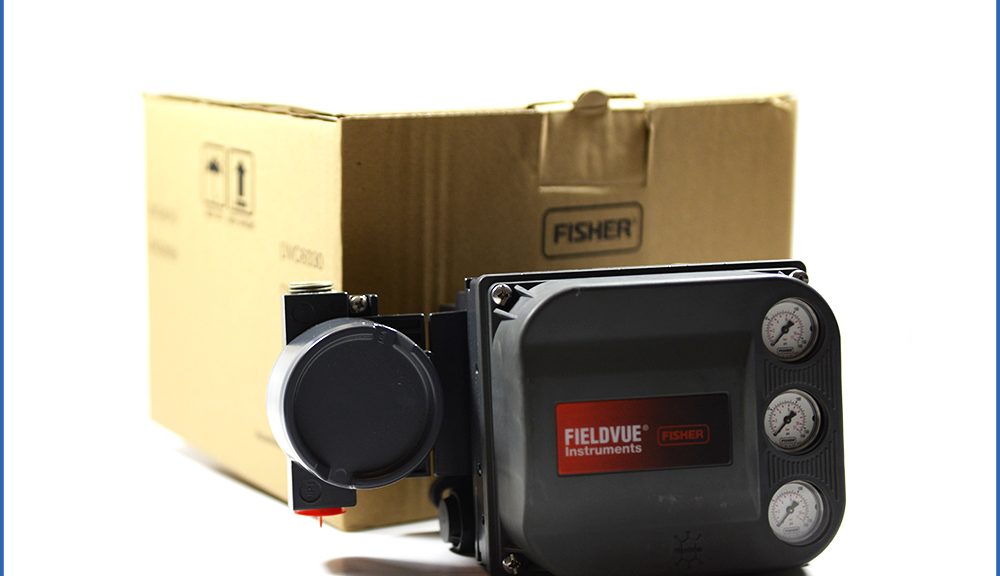

Fisher DVC6000 Series Digital Valve Controllers DVC6010 positioner

Leave a comment

Fisher Valve positioner

Fisher Valve positioner DVC6000 Series DVC6010 Valve Controllers

The DVC6000 series digital valve controller is a microprocessor based electro pneumatic converter. In addition to the standard function of converting current signals to pneumatic output pressure, the DVC6000 series digital valve controllers use HART communication protocols to easily access information vital to process operations.
DVC6000 series digital valve controller is designed to replace the standard pneumatic and electro pneumatic valve positioner mounted directly on the valve.

fisher DVC6200 positioner can be used to replace the old models fisherDVC6200 DVC6010,6020,6030 locator

  • HART communication protocol
  • Loop power supply of 2 wire system 4-20mA
  • Overload current protection
  • Reverse polarity protection
  • Output signal range: 0.4bar (6 psi) ~9.5bar (140 psi)
  • Independent linearity: + 0.5% of the output range

Fisher DVC6000 Series Digital Valve Controllers DVC6010 positioner

Classification and application:

Products directly mounted on the valve:

  • DVC6010: used in straight stroke control valves
  • DVC6020: for rotary and long stroke straight stroke control valves
  • DVC6030: for 90 degree rotary control valve

Remote installation of products:

  • DVC6005: Basic unit for 2-inch tubing or wall panel mounting
  • DVC6015: The feedback unit is used for straight stroke valves
  • DVC6025: The feedback unit is used for rotary and long stroke straight stroke valves
  • DVC6035: The feedback unit is used for 90 degree rotary valves

Specific models are as follows:

  • DVC6010-AC single acting, DVC6010-AC double acting,
  • DVC6010-HC single acting, DVC6010-HC double acting
  • DVC6020-AC single acting, DVC6020-AC double acting,
  • DVC6020-HC single acting, DVC6020-HC double acting
  • DVC6030-AC single acting, DVC6030-AC double acting,
  • DVC6030-HC single acting, DVC6030-HC double acting

ABB positioner model is as follows:

  • V18345-1010521001
  • V18345-1010121001
  • V18345-1020121001
  • V18345-1010120001
  • V18345-1004210001
  • V18345-1021120001
  • V18345-1020520001
  • V18345-1010221001

Siemens (SIEMENS) positioner models are as follows:

  • 6DR5220-0EN00-0AA0
  • 6DR5010-0NG00-0AA0
  • 6DR5215-0EN00-0AA0
  • 6DR5020-0NG00-0AA0
  • 6DR5010-0NG01-0AA0
  • 6DR5110-0EG00-0AA0
  • 6RD5210-0NN00-0AA0
  • 6DR5010-0NN01-0AA0
Valve Positioner, ABB, Digital Positioners

ABB TEIP11-PS IP signal converter for standard signals

Leave a comment

The IP converter with various housing is available for cabinet installation, field installation, rail installation and as slide-in type. The signal conversion is based on standard signals. Current signals 0/4 to 20 mA are converted to pressure signals 0.2 to 1 bar or 3 to 15 psi.

ABB TEIP11-PS IP signal converter for standard signals

IP converters with booster stage

Data

General specifications:

  • Small dimensions
  • Variable designs
    – Control room housing IP 20, for rail and block mounting
    – Field housing, polyester IP 54
    – Field housing, aluminium IP 65
    – Field housing, stainless steel IP 65
  • High immunity to shocks and vibrations with an effect < 1% for loads up to 10 g
  • Wide temperature range
    –  -40 °C (optionally -55 °C) to 85 °C
  • Worldwide approvals for Explosion Proof and Intrinsic Safety
Flowmeters, Yokogawa, Electromagnetic Flowmeter

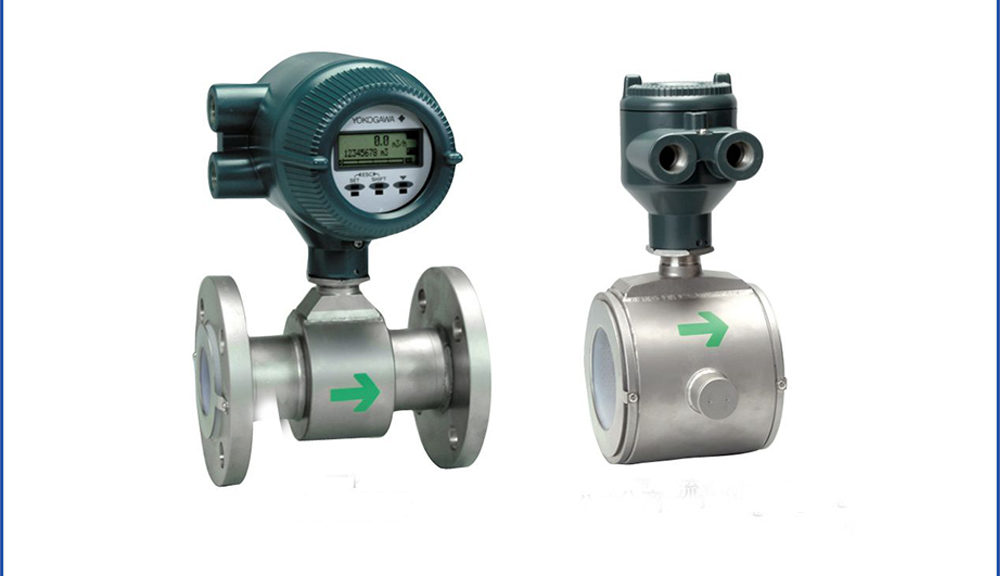

Yokogawa AXF250 Magnetic/ Integral /Remote Flowmeter

Leave a comment

Magnetic Flow meter

Yokogawa AXF250 Magnetic/ Integral /Remote Flowmeter



Place of Origin: Japan
Brand Name: Yokogawa
Model Number:  AXF250
Price:Yokogawa AXF250 Magnetic/ Integral /Remote Flowmeter  with best price
Quality: Original
Guarantee: 1 year
Accuracy : ±0.05%
Output : 4 to 20mA DC

Magnetic Flow meter

Yokogawa AXF250 Magnetic/ Integral /Remote Flowmeter

The ADMAG AXF is the magnetic flow meter which has adopted the proven Dual Frequency Excitation. Moreover, the Enhanced Dual Frequency Excitation has been newly added to tackle more severe applications.

The AXF has user-friendly functions; such as an electrode adhesion level diagnosis function, infra-red switches which can be used for setting parameters without opening the case cover, ability to change the direction of electrical connection on the site.

Based on FOUNDATION™ fieldbus specifications, AXF Fieldbus models offer more flexible instrumentation through a higher level communication capability and propose the cost reduction by multi-drop wirings with less cables. FOUNDATION™ fieldbus is a registered trademark of Fieldbus FOUNDATION.

Note: The “Dual Frequency Excitation Method” is a Yokogawa innovation.

Expansion of Product Lineup

Improved Accuracy Specification
The standard accuracy is 0.35% of reading. Also available as an option is high accuracy calibration rated at 0.2% of reading.

Extra Small Size Flange Type
Flange types are now available in sizes as small as 2.5 mm.

Variety of Sanitary Connections
A wider variety of sanitary connections are now available, including Tri-Clamp, ISO, DIN and SMS.



Enhanced Performance

Enhanced Dual Frequency Excitation
The enhanced dual frequency excitation method is available as an option. This provides highly stable measurements involving high concentration slurries or low conductivity fluids.

Lower Minimum Conductivity
The newly designed AXF converter permits the measurement of fluids with conductivity as low as 1μS/cm depending on the nominal pipe size and fluid condition.

High-Speed Pulse Output
The maximum rate for high speed applications such as short-duration batch processes is now 10,000 pps (pulses per second).

Flowmeters, Krohne, Mass Flowmeter

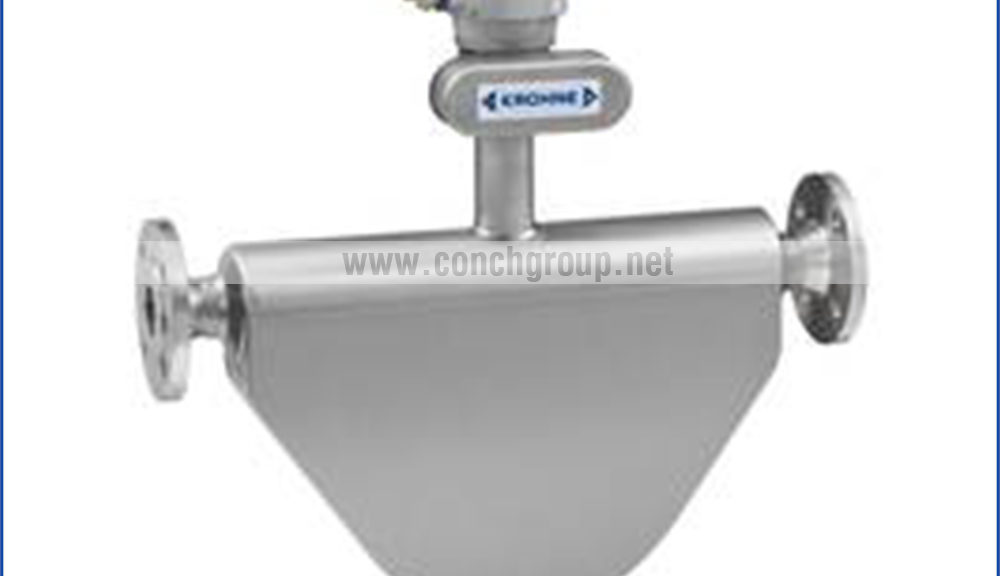

Krohne OPTIMASS 8000K with high accuracy mass flow meter

Leave a comment

mass flow meter

mass flow meter with high accuracy

  • Brand :Germany Krohne
  • Model: OPTIMASS 8000K high accuracy mass flow meter
  • Protocol:Hart
  • Quality: New and Original for Krohne mass flow meter
  • Measuring system
  • Measuring principle: Coriolis mass flow
  • Application range: Mass flow and density measurement of fluids, gases and solids
  • Measured values: Mass, density, temperature
  • Calculated values: Volume, referred density, concentration, velocity
  • Design
  • Basic: System consists of a measuring sensor and a converter to process the
    output signal
  • Features: Fully welded maintenance free sensor with twin U-shaped measuring tube
  • Measuring accuracy
  • Mass
  • Liquid: ±0.1% of actual measured flow rate + zero stability
  • Gas: ±0.5% of actual measured flow rate + zero stability
  • Repeatability: Better than 0.05% plus zero stability (includes the combined effects of
    repeatability, linearity and hysteresis)
  •  Zero stability
  • Stainless Steel: ±0.004% of maximum flow rate with respective sensor size

  • Features

Innovative dual U-tube design
Temperature range from -195ºC to + 230ºC
Selective insulation / heating jacket
Tight envelope
Optimal shunt minimum pressure loss
Vertical installation of automatic drainage

industry

Freshwater and wastewater
Chemical industry
Oil and gas
food and drinks
medicine
General industry
Supercritical gas

application

Crystallization, solidification and low temperature products
Tanker loading
General purpose applications
In situ cleaning (CIP) and in situ disinfection (SIP) temperatures> 130 ° C
Liquefied Natural Gas (LNG)

Flowmeters, Krohne

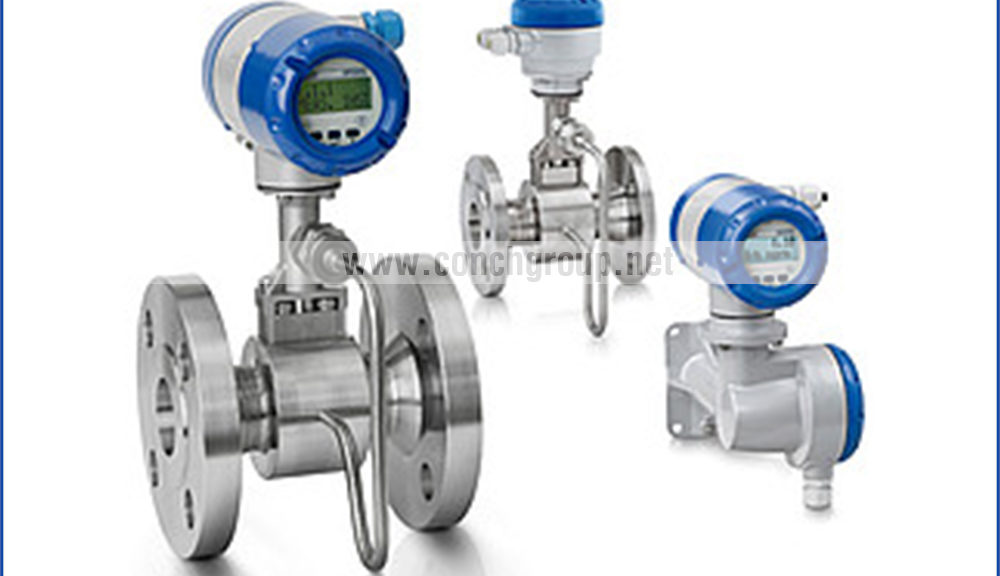

Germany Krohne flowmeter OPTISWIRL 4070 Vortex Flowmeter

Leave a comment

Vortex Flowmeter

Vortex Flowmeter Krohne OPTISWIRL 4070 is the first vortex flowmeter to feature integrated pressure and temperature compensation in 2-wire technology.

  • Brand :Germany Krohne
  • Model: OPTISWIRL 4070 Vortex Flowmeter
  • Protocol:Hart
  • Technology:2 wire
  • Design: Sandwich
  • Ware:PACT
  • Quality: Original

  • Highlights

    • 2-wire device with integrated pressure and temperature compensation
    • Non-wearing, fully welded stainless steel construction with high corrosion, pressure and temperature resistance
    • Optimal process reliability thanks to Intelligent Signal Processing (ISP) – stable readings, free of external perturbations
    • Ready to use immediately thanks to plug & play
    • Maintenance-free measuring sensor design
    • PACTware available at no extra cost
    • Pressure and temperature available via HART

    Industries

    • Chemicals
    • Oil & Gas
    • Power plants
    • Food & Beverage
    • Pharmaceuticals
    • Iron, Steel and Metals
    • Paper and pulp
    • Water
    • Automobile industry

    Applications

    • Vapour and saturated steam measurement
    • Steam boiler monitoring
    • Monitoring of compressor output
    • Measurement of consumption in compressed air systems
    • Measurement of consumption of industrial gases
    • SIP and CIP processes in the food, beverage and pharmaceutical industries
    • Measurement of conductive and non-conductive liquids

Flowmeters, Krohne, Mass Flowmeter

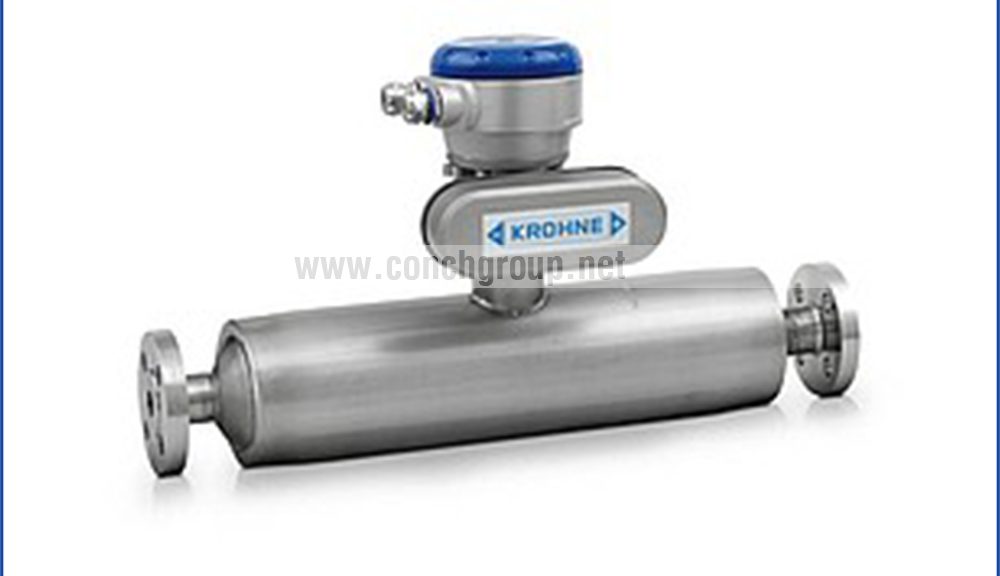

Krohne Mass Flowmeters MFC 010 C Converter

Leave a comment

Krohne Mass Flow meter

Krohne Mass Flow meter MFC 010 C Converter applicable for Ex and non-Ex installation with cost effective solution

  • Brand :Germany Krohne

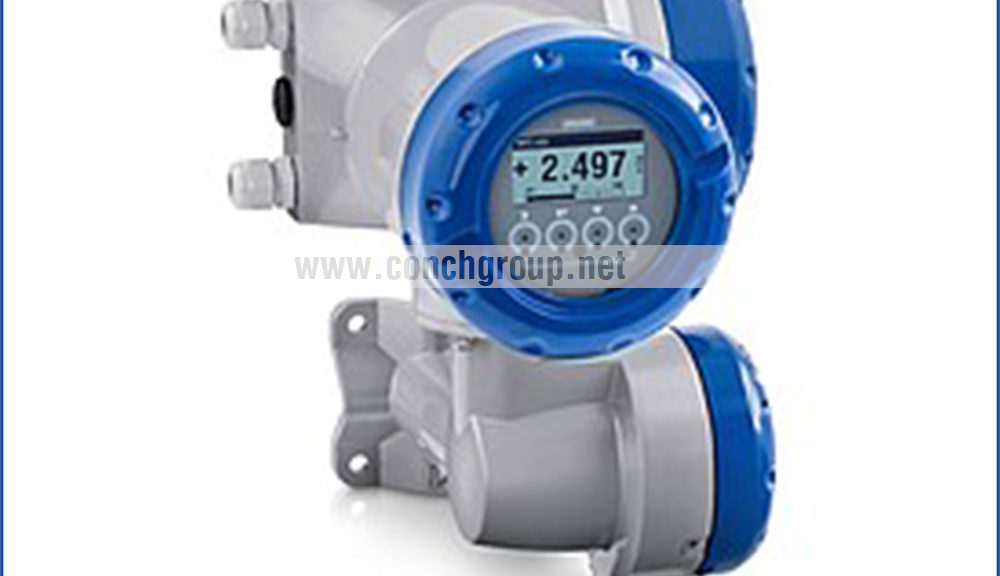

  • Model: MFC 400 Universal high-precision mass flowmeter
  • Measuring range:1000（m3/h）
  • Applicable media: Liquid, gas, solid
  • Operating temperature: -40 – 150（℃）

  • Modbus communication direct from meter; no need for separate converter
  • Connection using standard, off-the-shelf, four-core cable
  • Cost effective solution since no converter needed
  • Applicable for Ex and non-Ex installation
  • Full functionality through using Modbus communication:
    – all measured variables
    – ability to program meter
    – sensor and process diagnostics
  • Full range of OPTIMASS sensor types and OPTIGAS
  • Full range of sensor materials, connections and options available

Flowmeters, Krohne, Mass Flowmeter

Krohne MFC 400 Universal high-precision mass flowmeter

Leave a comment
  • Brand :Germany Krohne
  • Model: MFC 400 Universal high-precision mass flowmeter
  • Measuring range:1000（m3/h）
  • Applicable media: Liquid, gas, solid
  • Operating temperature: -40 – 150（℃）

The MFC 400 Coriolis mass flow signal converter will provide the highest performance possible across a wide range of applications. For the measurement of liquids or gases, cryogenic to high temperature fluids, single or multi-phase fluids and advanced digital signal processing techniques is used to give stable and accurate measurements of mass flow, density and temperature.

Conforming to the NAMUR standard NE 107 for status and error handling, the MFC 400 features enhanced meter diagnostics. This provides extensive self-checking of internal circuits and information regarding the health of the measuring sensor, but just as importantly, vital information about the process and process conditions.

Highlights

  • High performance signal converter with multiple output options
  • Advanced diagnostic functions acc. to NE 107
  • With Entrained Gas Management (EGMTM) – the new standard for entrained gas immunity
  • Excellent long-term stability
  • Easy to install and program due to improved user interface
  • Optical and mechanical keys for ease of use
  • Redundant data storage in signal converter housing
  • Real time clock for logging events
  • HART® 7

Industries

  • Industries
  • Water & Wastewater
  • Chemicals
  • Power plants
  • Food & Beverage
  • Machinery
  • Oil & Gas
  • Petrochemical
  • Pulp & Paper
  • Pharmaceutical
  • Marine

Applications

  • Liquids and gases
  • Liquids with gas entrainment
  • Slurries and viscous products
  • Concentration measurement for quality control
  • Measurement of volume flow
  • Measurement of density and reference density
  • Custody transfer loading/unloading
  • Custody transfer measurements

Flowmeters, Krohne, Mass Flowmeter

Krohne Mass Flow Meter MFC 300 Signal converter for mass flowmeters

Leave a comment

Krohne Mass Flow Meter

Krohne Mass Flow Meter MFC 300 is a common Coriolis mass flowmeter converter, applicable to a wide range of application and installation.

  • Brand :Germany Krohne
  • Model: Mass Flow Meter MFC 300 Signal converter for mass flowmeters
  • Measuring range:1000（m3/h）
  • Applicable media: Liquid, gas, solid
  • Operating temperature: -40 – 150（℃）

Signal converter for mass flowmeters

  • Modular signal converter concept and the same hardware for all housing designs
  • Double redundancy of the calibration data
  • Stainless steel housing for applications in the food, beverage and offshore industry

The MFC 300 is a universal Coriolis mass flow signal converter suitable for a wide range of applications and installations. The common platform for the modular hardware allows easy selection for the required output options, and is suitable for mounting in various housing configurations.

The MFC 300 is also suitable for all current and future mass flow sensors. The split architecture solution for the mass flow family ensures maximum security and redundant back-up of calibration parameters, should a failure occur. There is no need for reprogramming after a failed unit is replaced

Highlights

  • Modular versions from a basic signal converter to a high-end option with multiple output options
  • Advanced diagnostic functions
  • Excellent long term stability
  • Easy to install and program due to improved user interface
  • Maximum process safety
  • Tropicalised and Stainless Steel versions for harsh environmental conditions

Industries

  • Water & Wastewater
  • Chemicals
  • Power plants
  • Food & Beverage
  • Machinery
  • Oil & Gas
  • Petrochemicals
  • Pulp & Paper
  • Pharmaceutical

Applications

  • Liquids and gases
  • Slurries and viscous products
  • Concentration measurement for quality control
  • Measurement of volume flow
  • Measurement of density and reference density
  • Custody transfer loading/unloading
  • Custody transfer measurements

Flowmeters, Krohne, Mass Flowmeter

Krohne OPTIBATCH 4011C Mass flow meter for process batching

Leave a comment

Krohne Mass flow meter

Krohne Mass flow meter offers excellent long-term stability and reliability of mass flow, over long periods.

  • Brand :Germany Krohne
  • Model: OPTIBATCH 4011C Mass flow meter for process filling
  • Measuring range:1000（m3/h）
  • Applicable media: Various trades
  • Operating temperature: -40 – 150（℃）

The OPTIBATCH has been developed to compliment the OPTIMASS family of mass flowmeters, as a specialised meter for batching and filling machines.

Highlights

  • Compact design
  • Integrated electronics
  • Excellent reliability and accuracy
  • Hygienic design of process connections
  • Excellent repeatability
  • Stainless Steel 316L construction
  • CIP / SIP to maximum 120ºC / 248ºF
  • Welded outer casing, sealed to IP 67

Industries

  • Food & Beverages
  • Chemical
  • Pharmaceutical industry
  • Cosmetics
  • Health Care

Applications

  • Filling machines
  • Fast batching
  • Ultra-pure water

Flowmeters, Krohne, Mass Flowmeter

Krohne Mass Flowmeters OPTIMASS 7000 Mass Flow Meter Sensors

Leave a comment
  • Brand :Germany Krohne
  • Model: Mass Flowmeters OPTIMASS 7000 Mass Flow Meter Sensors
  • Measuring range:1000（m3/h）
  • Applicable media: Mud, solid, I gas
  • Operating temperature: -40 – 150（℃）
  • Working pressure: 100 barg（MPa）

Sensor for mass flow

The optimum meter for demanding applications
A single straight measuring tube
Choice of 4 tube materials
The OPTIMASS 7000 is the only sensor for mass flow with a single straight measuring tube that is available in Titanium, Stainless Steel, Hastelloy® or Tantalum.

Highlights

Outer cylinder typical burst pressure greater than 100 barg / 1450 psig, with optional PED approved secondary pressure containment available
Easily drained and easy to clean
Resistant to installation and process effects
Excellent zero stability
Low energy consumption, means lower operating costs
Rapid signal processing, even with product / temperature changes
Modular electronics with data redundancy – “plug & play” replacement of electronics
Industries

Water & wastewater
Mining & building materials
Iron, steel and metal processing
Food & beverage
Oil, gas and alternative fuels
Paper & pulp
Petrochemical industry
Pharmaceutical industry
Chemical industry
Applications

Viscous or shear-sensitive products
Products requiring low flow velocities
Non-homogeneous mixtures
Products with entrained solids or gas
Custody transfer
Loading and product transfer measurement
Slurries
Highly corrosive fluids
