Flowmeters, Endress+Hauser, Electromagnetic Flowmeter

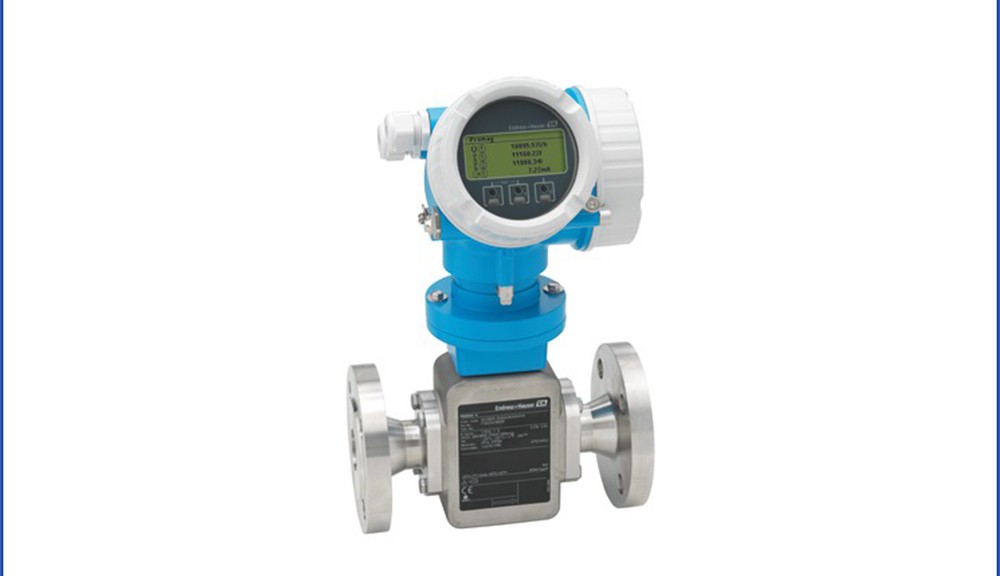

Endress Hauser Electromagnetic Flowmeter Proline Promag H 200

Leave a comment

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag H 200 offers in addition genuine, industry-compliant two-wire technology.

  • Brand :Endress Hauser
  • Model:Endress Hauser Electromagnetic Flowmeter Proline Promag H 200
  • Diameter：DN 2 to 25 (¹⁄₁₂ to 1″)
  • Measurement error：Volume flow: ±0.5 % o.r. ± 2 mm/s (0.08 in/s)
  • Range:0.06 dm³/min to 300 m³/h (0.015 to 80 gal/min)
  • Pressure range: PN 40, Class 150, 20K
  • Process Temperature: –20 to +150 °C (–4 to +302 °F)
  • Output: 4‐20 mA HART (passive)
    Pulse/frequency/switch output (passive)
  • Input:None

Endress Hauser Electromagnetic Flowmeter Proline Promag H 200

Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• For the smallest flow quantities and demanding hygienic applications
Device properties
• Liner made of PFA
• Sensor housing made of stainless steel (3A, EHEDG)
• Wetted materials CIP, SIP cleanable
• Loop-powered technology
• Robust two-chamber housing
• Plant safety: worldwide approvals (SIL, Haz. area)

Your benefits
• Flexible installation concept – numerous hygienic process connections
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Convenient device wiring – separate connection compartment
• Safe operation – no need to open the device due to display
with touch control, background lighting
• Integrated verification – Heartbeat Technology™

Flowmeters, Endress+Hauser, Electromagnetic Flowmeter

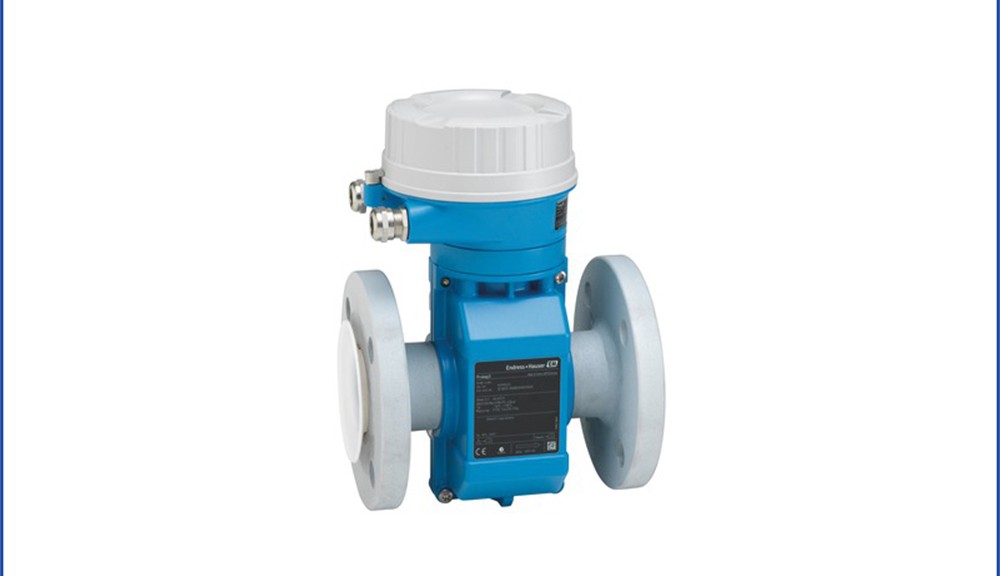

Endress Hauser Electromagnetic Flowmeter Proline Promag E 100

Leave a comment

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag E 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers

  • Brand :Endress Hauser
  • Model:Endress Hauser Electromagnetic Flowmeter Proline Promag E 100
  • Diameter：DN 15 to 600 (½ to 24″)
  • Measurement error：Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
    Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
  • Range:4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)
  • Pressure range: PN 40, Class 150, 20K
  • Process Temperature: –10 to +110 °C (+14 to +230 °F)
  • Output: 4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
  • Input:None

Endress Hauser Electromagnetic Flowmeter Proline Promag E 100

Application
• The measuring principle is practically independent of pressure, density, temperature and viscosity
• Perfectly suitable for basic applications in the chemical and process industry
Device properties
• Nominal diameter: max. DN 600 (24″)
• Ex approvals for Zone 2
• PTFE liner
• Robust, ultra-compact transmitter housing
• Local display available

Your benefits
• Low-cost sensor – ideal solution for basic requirements
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Space‐saving transmitter – full functionality on smallest footprint
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology™

Flowmeters, Endress+Hauser, Electromagnetic Flowmeter

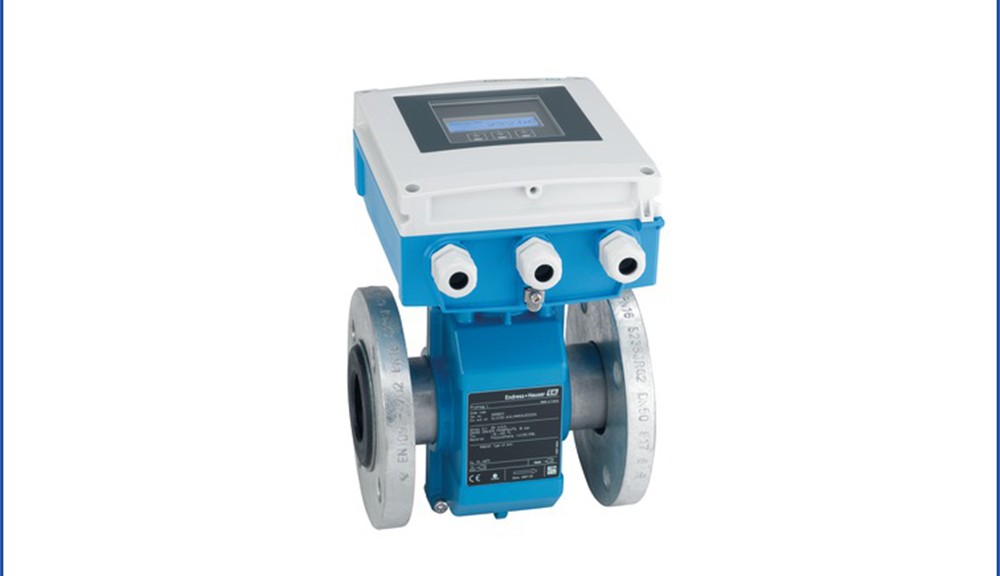

Endress Hauser Electromagnetic Flowmeter Proline Promag D 400

Leave a comment

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag D 400 is designed for all basic water applications where space is at a minimum.

  • Brand :Endress Hauser
  • Model:Endress Hauser Electromagnetic Flowmeter Proline Promag D 400
  • Diameter：DN 25…100  1″…4″
  • Measurement error：Volume flow: ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
  • Range:9 to 4700 dm³/min (2.5 to 1250 gal/min)
  • Pressure range: PN 16, Class 150, 10K
  • Process Temperature: 0 to +60 °C (+32 to +140 °F)
  • Output: 3 ouputs:
    0‐20 mA/4‐20 mA HART (active)
    Pulse/frequency/switch output (passive)
    Pulse/frequency output (passive)
    Switch output (passive)
  • Input:Status input

Endress Hauser Electromagnetic Flowmeter Proline PromagD400

Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• For basic water applications; optimized for limited space and plastic pipe installations
Device properties
• Short installation length and low weight
• Integrated ground disks made of stainless steel
• International drinking water approvals
• Transmitter housing made of durable polycarbonate
• Same housing concept for compact/remote version
• Integrated data logger: measured values monitoring

Your benefits
• Easy, fast centering of the sensor – innovative housing construction
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Safe operation – no need to open the device due to display with touch control, background lighting
• Time‐saving local operation without additional software and hardware – integrated web server
• Integrated verification – Heartbeat Technology™

Flowmeters, Yokogawa, Electromagnetic Flowmeter

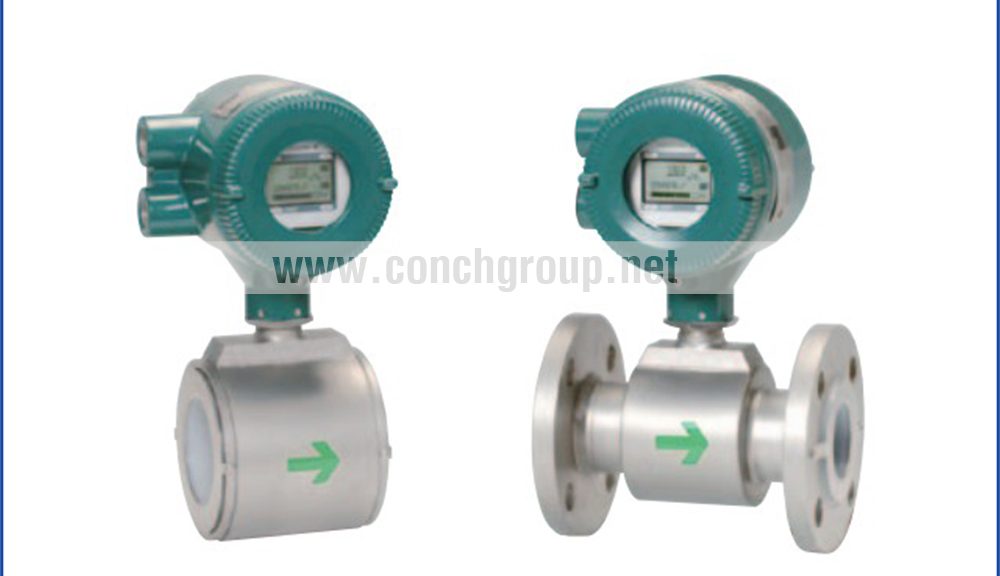

Yokogawa AXR200 Two wire Magnetic Flowmeter Integral Flowmeter

Leave a comment

Magnetic Flowmeter

Yokogawa AXR200 Two wire Magnetic Flowmeter Integral Flowmeter

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: AXR200
  • price:Yokogawa AXR200 Magnetic Flowmeter with best price
  • quality: Original
  • guarantee: 1 year
  • Supply Voltage: 20.6 to 42 V DC

Magnetic Flowmeter

Yokogawa AXR200 Two wire Magnetic Flowmeter Integral Flowmeter



FEATURES

High Accuracy
The ADMAG AXR performs 0.5% of rate under normal

flowrate conditions.
Electric Noise Resistance The ADMAG AXR offers electric noise resistance compared with the four-wire magnetic flowmeter.

High Reliability
The ADMAG AXR complies with SIL2 for safety requirement. The ADMAG AXR has SIL2 capability for single flowmeter use and SIL3 capability for dual flowmeter use.

Reducing the Instrumentation Cost

Reducing the Wiring Cost
The two-wire system reduces the wiring cost drastically.

Direct Connection with the DCS
AC power sources are not necessary. The ADMAG AXR can be connected with almost all distributors, signal conditioner cards, and input modules

Energy Saving
Compared with four-wire magnetic flowmeters, the ADMAG AXR can drastically decrease power consumption.

Output Signals:

Current output: 4 to 20 mA DC, two-wire system
Output range: 3.8 to 20.5 mA (?.25 to 103.13%)

Digital output (*1):
Transistor contact output, open collector Contact rating: 30 V DC, 120 mA DC
Low level: 0 to 2 V DC (Read Figure 1)



Supply Voltage:
14.7 to 42 V DC for general-purpose use and explosion
proof type
14.7 to 32 V DC for lightning protector
(optional code A)



AXR025———————————–Size 25 mm (1 in.) Two-wire Magnetic Flowmeter Integral Flowmeter
AXR040———————————–Size 40 mm (1.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR050———————————–Size 50 mm (2 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR065———————————–Size 65 mm (2.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR080———————————–Size 80 mm (3 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR100———————————–Size 100 mm (4 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR150———————————–Size 150 mm (6 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR200———————————–Size 200 mm (8 in.)Two-wire Magnetic Flowmeter Integral Flowmeter

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXR150 Two wire Magnetic Flowmeter Integral Flowmeter

Leave a comment

Yokogawa Magnetic Flowmeter

Yokogawa AXR150 Two wire Magnetic Flowmeter Integral Flowmeter

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: AXR150
  • price:Yokogawa AXR150 Magnetic Flowmeter with best price
  • quality: Original
  • guarantee: 1 year
  • Supply Voltage: 20.6 to 42 V DC

Yokogawa Magnetic Flowmeter

Yokogawa AXR150 Two wire Magnetic Flowmeter Integral Flowmeter



FEATURES

High Accuracy
The ADMAG AXR performs 0.5% of rate under normal

flowrate conditions.
Electric Noise Resistance The ADMAG AXR offers electric noise resistance compared with the four-wire magnetic flowmeter.

High Reliability
The ADMAG AXR complies with SIL2 for safety requirement. The ADMAG AXR has SIL2 capability for single flowmeter use and SIL3 capability for dual flowmeter use.

Reducing the Instrumentation Cost

Reducing the Wiring Cost
The two-wire system reduces the wiring cost drastically.

Direct Connection with the DCS
AC power sources are not necessary. The ADMAG AXR can be connected with almost all distributors, signal conditioner cards, and input modules

Energy Saving
Compared with four-wire magnetic flowmeters, the ADMAG AXR can drastically decrease power consumption.

Output Signals:

Current output: 4 to 20 mA DC, two-wire system
Output range: 3.8 to 20.5 mA (?.25 to 103.13%)

Digital output (*1):
Transistor contact output, open collector Contact rating: 30 V DC, 120 mA DC
Low level: 0 to 2 V DC (Read Figure 1)



Supply Voltage:
14.7 to 42 V DC for general-purpose use and explosion
proof type
14.7 to 32 V DC for lightning protector
(optional code A)



AXR025———————————–Size 25 mm (1 in.) Two-wire Magnetic Flowmeter Integral Flowmeter
AXR040———————————–Size 40 mm (1.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR050———————————–Size 50 mm (2 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR065———————————–Size 65 mm (2.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR080———————————–Size 80 mm (3 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR100———————————–Size 100 mm (4 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR150———————————–Size 150 mm (6 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR200———————————–Size 200 mm (8 in.)Two-wire Magnetic Flowmeter Integral Flowmeter

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXR100 Two wire Magnetic Flowmeter Integral Flowmeter

Leave a comment

Yokogawa Magnetic Flowmeter

Yokogawa AXR100 Two wire Magnetic Flowmeter Integral Flowmeter

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: AXR100
  • price:Yokogawa AXR100 Magnetic Flowmeter with best price
  • quality: Original
  • guarantee: 1 year
  • Supply Voltage: 20.6 to 42 V DC

Yokogawa Magnetic Flowmeter

Yokogawa AXR100 Two wire Magnetic Flowmeter Integral Flowmeter



FEATURES

High Accuracy
The ADMAG AXR performs 0.5% of rate under normal

flowrate conditions.
Electric Noise Resistance The ADMAG AXR offers electric noise resistance compared with the four-wire magnetic flowmeter.

High Reliability
The ADMAG AXR complies with SIL2 for safety requirement. The ADMAG AXR has SIL2 capability for single flowmeter use and SIL3 capability for dual flowmeter use.

Reducing the Instrumentation Cost

Reducing the Wiring Cost
The two-wire system reduces the wiring cost drastically.

Direct Connection with the DCS
AC power sources are not necessary. The ADMAG AXR can be connected with almost all distributors, signal conditioner cards, and input modules

Energy Saving
Compared with four-wire magnetic flowmeters, the ADMAG AXR can drastically decrease power consumption.

Output Signals:

Current output: 4 to 20 mA DC, two-wire system
Output range: 3.8 to 20.5 mA (?.25 to 103.13%)

Digital output (*1):
Transistor contact output, open collector Contact rating: 30 V DC, 120 mA DC
Low level: 0 to 2 V DC (Read Figure 1)



Supply Voltage:
14.7 to 42 V DC for general-purpose use and explosion
proof type
14.7 to 32 V DC for lightning protector
(optional code A)



AXR025———————————–Size 25 mm (1 in.) Two-wire Magnetic Flowmeter Integral Flowmeter
AXR040———————————–Size 40 mm (1.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR050———————————–Size 50 mm (2 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR065———————————–Size 65 mm (2.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR080———————————–Size 80 mm (3 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR100———————————–Size 100 mm (4 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR150———————————–Size 150 mm (6 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR200———————————–Size 200 mm (8 in.)Two-wire Magnetic Flowmeter Integral Flowmeter

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXR065 Two wire Magnetic Flowmeter Integral Flowmeter

Leave a comment

Yokogawa Magnetic Flowmeter

Yokogawa AXR65 Two wire Magnetic Flowmeter Integral Flowmeter

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: AXR065
  • price:Yokogawa AXR065 AXR Magnetic Flowmeter with best price
  • quality: Original
  • guarantee: 1 year
  • Supply Voltage: 20.6 to 42 V DC

Yokogawa Magnetic Flowmeter

Yokogawa AXR65 Two wire Magnetic Flowmeter Integral Flowmeter



FEATURES

High Accuracy
The ADMAG AXR performs 0.5% of rate under normal

flowrate conditions.
Electric Noise Resistance The ADMAG AXR offers electric noise resistance compared with the four-wire magnetic flowmeter.

High Reliability
The ADMAG AXR complies with SIL2 for safety requirement. The ADMAG AXR has SIL2 capability for single flowmeter use and SIL3 capability for dual flowmeter use.

Reducing the Instrumentation Cost

Reducing the Wiring Cost
The two-wire system reduces the wiring cost drastically.

Direct Connection with the DCS
AC power sources are not necessary. The ADMAG AXR can be connected with almost all distributors, signal conditioner cards, and input modules

Energy Saving
Compared with four-wire magnetic flowmeters, the ADMAG AXR can drastically decrease power consumption.

Output Signals:

Current output: 4 to 20 mA DC, two-wire system
Output range: 3.8 to 20.5 mA (?.25 to 103.13%)

Digital output (*1):
Transistor contact output, open collector Contact rating: 30 V DC, 120 mA DC
Low level: 0 to 2 V DC (Read Figure 1)



Supply Voltage:
14.7 to 42 V DC for general-purpose use and explosion
proof type
14.7 to 32 V DC for lightning protector
(optional code A)



AXR025———————————–Size 25 mm (1 in.) Two-wire Magnetic Flowmeter Integral Flowmeter
AXR040———————————–Size 40 mm (1.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR050———————————–Size 50 mm (2 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR065———————————–Size 65 mm (2.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR080———————————–Size 80 mm (3 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR100———————————–Size 100 mm (4 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR150———————————–Size 150 mm (6 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR200———————————–Size 200 mm (8 in.)Two-wire Magnetic Flowmeter Integral Flowmeter

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXR050 Two wire Magnetic Flowmeter Integral Flowmeter

Leave a comment

Yokogawa Magnetic Flowmeter

Yokogawa AXR050 Two wire Magnetic Flowmeter Integral Flowmeter

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: AXR050
  • price:Yokogawa AXR050 AXR Magnetic Flowmeter with best price
  • quality: Original
  • guarantee: 1 year
  • Supply Voltage: 20.6 to 42 V DC

Yokogawa Magnetic Flowmeter

Yokogawa AXR050 Two wire Magnetic Flowmeter Integral Flowmeter



FEATURES

High Accuracy
The ADMAG AXR performs 0.5% of rate under normal

flowrate conditions.
Electric Noise Resistance The ADMAG AXR offers electric noise resistance compared with the four-wire magnetic flowmeter.

High Reliability
The ADMAG AXR complies with SIL2 for safety requirement. The ADMAG AXR has SIL2 capability for single flowmeter use and SIL3 capability for dual flowmeter use.

Reducing the Instrumentation Cost

Reducing the Wiring Cost
The two-wire system reduces the wiring cost drastically.

Direct Connection with the DCS
AC power sources are not necessary. The ADMAG AXR can be connected with almost all distributors, signal conditioner cards, and input modules

Energy Saving
Compared with four-wire magnetic flowmeters, the ADMAG AXR can drastically decrease power consumption.

Output Signals:

Current output: 4 to 20 mA DC, two-wire system
Output range: 3.8 to 20.5 mA (?.25 to 103.13%)

Digital output (*1):
Transistor contact output, open collector Contact rating: 30 V DC, 120 mA DC
Low level: 0 to 2 V DC (Read Figure 1)



Supply Voltage:
14.7 to 42 V DC for general-purpose use and explosion
proof type
14.7 to 32 V DC for lightning protector
(optional code A)



AXR025———————————–Size 25 mm (1 in.) Two-wire Magnetic Flowmeter Integral Flowmeter
AXR040———————————–Size 40 mm (1.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR050———————————–Size 50 mm (2 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR065———————————–Size 65 mm (2.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR080———————————–Size 80 mm (3 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR100———————————–Size 100 mm (4 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR150———————————–Size 150 mm (6 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR200———————————–Size 200 mm (8 in.)Two-wire Magnetic Flowmeter Integral Flowmeter

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXR040 Two-wire Magnetic Flowmeter Integral Flowmeter

Leave a comment

Yokogawa Magnetic Flowmeter

Yokogawa AXR040 Two wire Magnetic Flowmeter Integral Flowmeter

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: AXR040
  • price:Yokogawa AXR040 AXR Magnetic Flowmeter with best price
  • quality: Original
  • guarantee: 1 year
  • Supply Voltage: 20.6 to 42 V DC

Yokogawa Magnetic Flowmeter

Yokogawa AXR040 Two wire Magnetic Flowmeter Integral Flowmeter



FEATURES

High Accuracy
The ADMAG AXR performs 0.5% of rate under normal

flowrate conditions.
Electric Noise Resistance The ADMAG AXR offers electric noise resistance compared with the four-wire magnetic flowmeter.

High Reliability
The ADMAG AXR complies with SIL2 for safety requirement. The ADMAG AXR has SIL2 capability for single flowmeter use and SIL3 capability for dual flowmeter use.

Reducing the Instrumentation Cost

Reducing the Wiring Cost
The two-wire system reduces the wiring cost drastically.

Direct Connection with the DCS
AC power sources are not necessary. The ADMAG AXR can be connected with almost all distributors, signal conditioner cards, and input modules

Energy Saving
Compared with four-wire magnetic flowmeters, the ADMAG AXR can drastically decrease power consumption.

Output Signals:

Current output: 4 to 20 mA DC, two-wire system
Output range: 3.8 to 20.5 mA (?.25 to 103.13%)

Digital output (*1):
Transistor contact output, open collector Contact rating: 30 V DC, 120 mA DC
Low level: 0 to 2 V DC (Read Figure 1)



Supply Voltage:
14.7 to 42 V DC for general-purpose use and explosion
proof type
14.7 to 32 V DC for lightning protector
(optional code A)



AXR025———————————–Size 25 mm (1 in.) Two-wire Magnetic Flowmeter Integral Flowmeter
AXR040———————————–Size 40 mm (1.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR050———————————–Size 50 mm (2 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR065———————————–Size 65 mm (2.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR080———————————–Size 80 mm (3 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR100———————————–Size 100 mm (4 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR150———————————–Size 150 mm (6 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR200———————————–Size 200 mm (8 in.)Two-wire Magnetic Flowmeter Integral Flowmeter

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXR025G Two-wire Magnetic Flowmeter Integral Flowmeter

Leave a comment

Yokogawa Magnetic Flowmeter

Yokogawa AXR025G Two wire Magnetic Flowmeter Integral Flowmeter

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: AXR025G
  • price:Yokogawa AXR025G AXR Magnetic Flowmeter with best price
  • quality: Original
  • guarantee: 1 year
  • Supply Voltage: 20.6 to 42 V DC

Yokogawa Magnetic Flowmeter

Yokogawa AXR025G Two wire Magnetic Flowmeter Integral Flowmeter



FEATURES

High Accuracy
The ADMAG AXR performs 0.5% of rate under normal

flowrate conditions.
Electric Noise Resistance The ADMAG AXR offers electric noise resistance compared with the four-wire magnetic flowmeter.

High Reliability
The ADMAG AXR complies with SIL2 for safety requirement. The ADMAG AXR has SIL2 capability for single flowmeter use and SIL3 capability for dual flowmeter use.

Reducing the Instrumentation Cost

Reducing the Wiring Cost
The two-wire system reduces the wiring cost drastically.

Direct Connection with the DCS
AC power sources are not necessary. The ADMAG AXR can be connected with almost all distributors, signal conditioner cards, and input modules

Energy Saving
Compared with four-wire magnetic flowmeters, the ADMAG AXR can drastically decrease power consumption.

Output Signals:

Current output: 4 to 20 mA DC, two-wire system
Output range: 3.8 to 20.5 mA (?.25 to 103.13%)

Digital output (*1):
Transistor contact output, open collector Contact rating: 30 V DC, 120 mA DC
Low level: 0 to 2 V DC (Read Figure 1)



Supply Voltage:
14.7 to 42 V DC for general-purpose use and explosion
proof type
14.7 to 32 V DC for lightning protector
(optional code A)



AXR025———————————–Size 25 mm (1 in.) Two-wire Magnetic Flowmeter Integral Flowmeter
AXR040———————————–Size 40 mm (1.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR050———————————–Size 50 mm (2 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR065———————————–Size 65 mm (2.5 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR080———————————–Size 80 mm (3 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR100———————————–Size 100 mm (4 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR150———————————–Size 150 mm (6 in.)Two-wire Magnetic Flowmeter Integral Flowmeter
AXR200———————————–Size 200 mm (8 in.)Two-wire Magnetic Flowmeter Integral Flowmeter

Flowmeters, Endress+Hauser, Electromagnetic Flowmeter

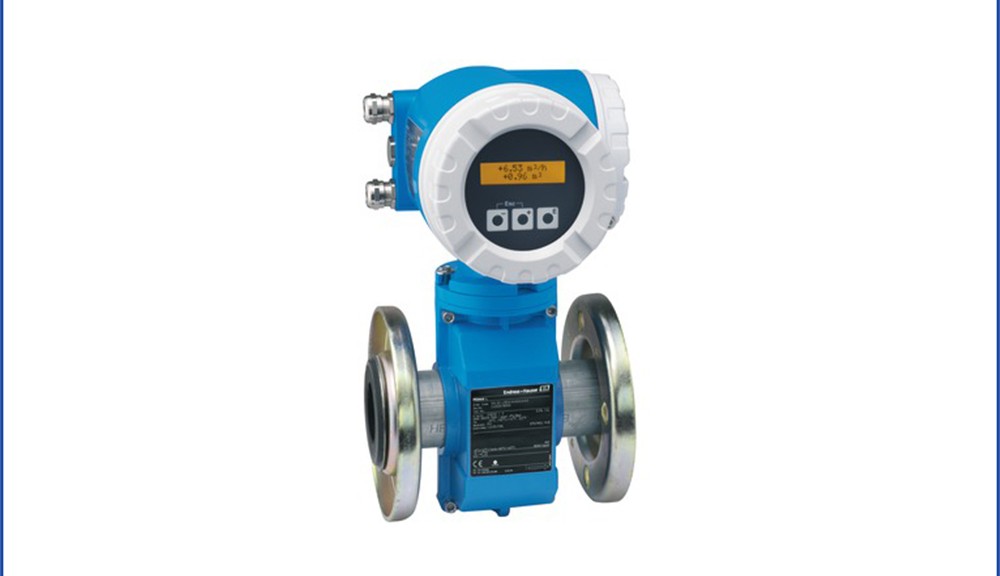

Endress Hauser Electromagnetic Flowmeter Proline Promag 50E

Leave a comment

Electromagnetic Flowmeter

Electromagnetic Flowmeter Endress Hauser Proline Promag 50E offers accurate measurement of liquids for a wide range of standard applications.

  • Brand :Endress Hauser
  • Model:Endress Hauser Electromagnetic Flowmeter Proline Promag 50E
  • Diameter：DN 15 to 600 (½ to 24″)
  • Measurement error：Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
    Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
  • Range:4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)
  • Pressure range: PN 40, Class 150, 20K
  • Process Temperature: –10 to +110 °C (+14 to +230 °F)
  • Output: 3 outputs:
    0‐20 mA (active)/4‐20 mA (active/passive)
    Pulse/frequency output (passive)
    Switch output (passive)
  • Input:Status input

Endress Hauser Electromagnetic Flowmeter Proline Promag 50E

Application
• The measuring principle is virtually independent of pressure, density, temperature and viscosity
• Fully suitable for basic applications in the chemical and process industry
Device properties
• Nominal diameter: max. DN 600 (24″)
• Ex approvals for Zone 2
• Liner made of PTFE
• 2-line backlit display with push buttons
• Device in compact or remote version
• HART, PROFIBUS DP/PA

Your benefits
• Cost-effective sensor – ideal solution for basic requirements
• Energy-saving flow measurement – no pressure loss due to cross-section constriction
• Maintenance-free – no moving parts
• Fast commissioning – application-specific Quick Setups
• Safe operation – display provides easy readable process information
• Fully industry compliant – IEC/EN/NAMUR

Flowmeters, Yokogawa, Vortex Flowmeter

Yokogawa DY300 Vortex Flowmeter

Leave a comment

Vortex Flowmeter

Yokogawa DY300 Vortex Flowmeter

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: DY300
  • price: Best for Yokogawa DY series Vortex Flowmeter DY025 with best price
  • quality: Original
  • guarantee: 1 year
  • accuracy: ±0.75% of Reading(Liquid)±1% of Reading (Gas, Steam)
  • Communication Signal: BRAIN or HART
  • Process Temperature: 29 to 250 deg C
  • Fluid to be Measured: Liquid, Gas, Steam (Avoid Multiphase Flow and Sticky Fluids)
  • Repeatability: ± 0.2% of Reading
  • Power Supply Voltage: 10.5 to 42 V DC

Vortex Flowmeter

Yokogawa DY300 Vortex Flowmeter

Performance Specifications
Fluid to be Measured :
Liquid, Gas, Steam (Avoid Multiphase Flow
and Sticky Fluids)
Measuring Flow Rates :
Refer to Table 6
Accuracy : ±0.75% of Reading (Liquid)
±1% of Reading (Gas, Steam)
Refer to P.13.
When Multi-Variable Type is selected,
refer to P.13.
Repeatability : ± 0.2% of Reading
Calibration :
This flowmeter is factory-calibrated using a
water flow.
Temperature and flow calibration by water
flow when Multi-Variable Type is selected.

Normal Operating Condition
Process Temperature Range :
–29 to 250 °C (general)
–196 to 100 °C (Cryogenic Version:option)
–29 to 450 °C (High Process Temperature
Version:option)
When Multi-Variable Type is selected, refer
to P.10.
Refer to Figure 1 for integral converter type.
Process Pressure Limit :
–0.1MPa (–1 kg/cm2) to flange rating.
Ambient Temperature Range :
–29 to 85 °C (Remote type detector)
–40 to 85 °C (Remote type converter)
–29 to 85 °C (Integral type, refer to Figure 1)
–29 to 80 °C (Integral type with Indicator,
refer to Figure 1)
–30 to 80 °C (Remote type converter with
Indicator)





DY015……………………………Size 15 mm (1/2 inch)
DY025……………………………Size 25 mm (1 inch)
DY040……………………………Size 40 mm (1-1/2 inch)
DY050……………………………Size 50 mm (2 inch)
DY080……………………………Size 80 mm (3 inch)
DY100……………………………Size 100 mm (4 inch)
DY150……………………………Size 150 mm (6 inch)
DY200……………………………Size 200 mm (8 inch)
DY250……………………………Size 250 mm (10 inch)
DY300……………………………Size 300 mm (12 inch)
