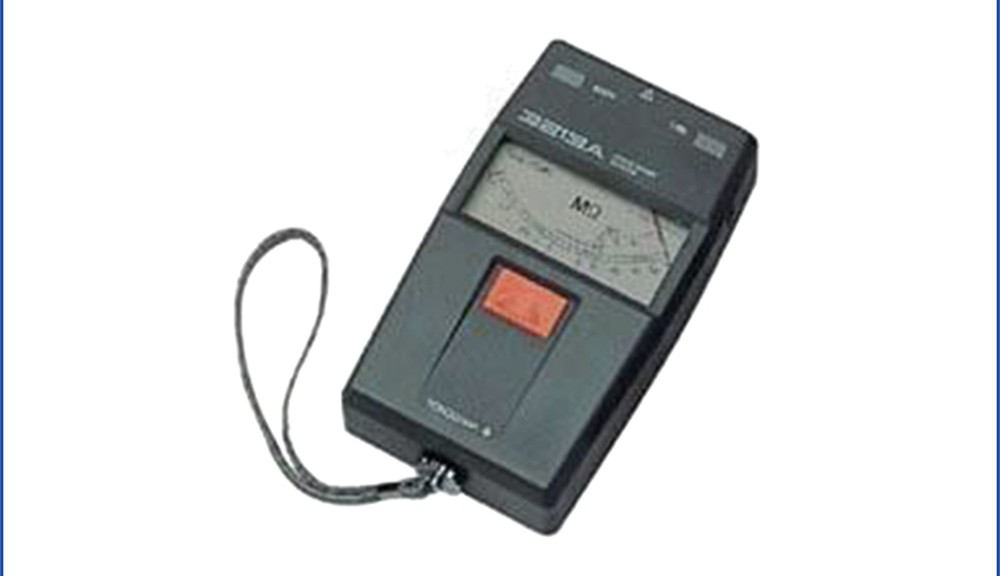

Yokogawa Digital Insulation Tester 3213A

Leave a comment
  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: 3213A
  • Product Name: Yokogawa Digital Insulation Tester 3213A
  • Safety: good
  • Quality: International Standard for Yokogawa Digital Insulation Tester 3213A
  • Accuracy: High Accuracy
  • Model: 3213A

YOKOGAWA ANALOG INSULATION TESTERS 3213A SERIES Model 321343



  • Analog models with single rating
  • AC voltage measurement and check live lines such as motive power lines
  • One-touch operation Press-and-lock switch for continuous measurement
  • A wide choice of accessories to meet various testing requirements
  • Vibration – and shock-resistant hand-held compact testers
  • Approx weight including batteries, or Approx. weigh including hard case, handle, test leads and batteries

Specifications – Model 321343

Rating 500V/100MΩ
Effective Measuring Range 0.1–100MΩ
Central Scale Value 2MΩ
AC Voltage Measurement 0 to 300 V
Lower Limit 0.5MΩ
Rated Current 1 mA
Scale Length 88 mm
Approx. Width 110 mm
Approx. Height 180 mm
Approx. Depth 60 mm
Approx. Weight 700 g
1.2 kg
Batteries Eight AA (R6P) batteries
Standard Accessories Batteries Qty – 8
Handle (B9303XE) Qty – 1
Hard case (B9600HA) Qty – 1 (with leads-housing case)
Test lead (B9205VA) Qty – 1 (consist of earth/line terminal)
User’s manual Qty – 1



Standard Test Conditions – Model 312343

Ambient Temperature/Humidity Ranges 23 ±5 /45-75% RH
Position of Use Horizontal (5° max. of angle of inclination)
Battery Voltage Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)
Tolerance Mentioned Conditions Resistance measurement: First effective measuring range = ±5% of reading
Second effective measuring range = ±10% of reading
Infinite and zero scale values: 0.7% max. of scale length
AC voltage: ±10% of maximum scale value
No-load voltage: 130% max. of rated voltage
Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range
Short-circuit current: 12 mA max.

DCS, Megger / Insulation Resistance Meter, Yokogawa

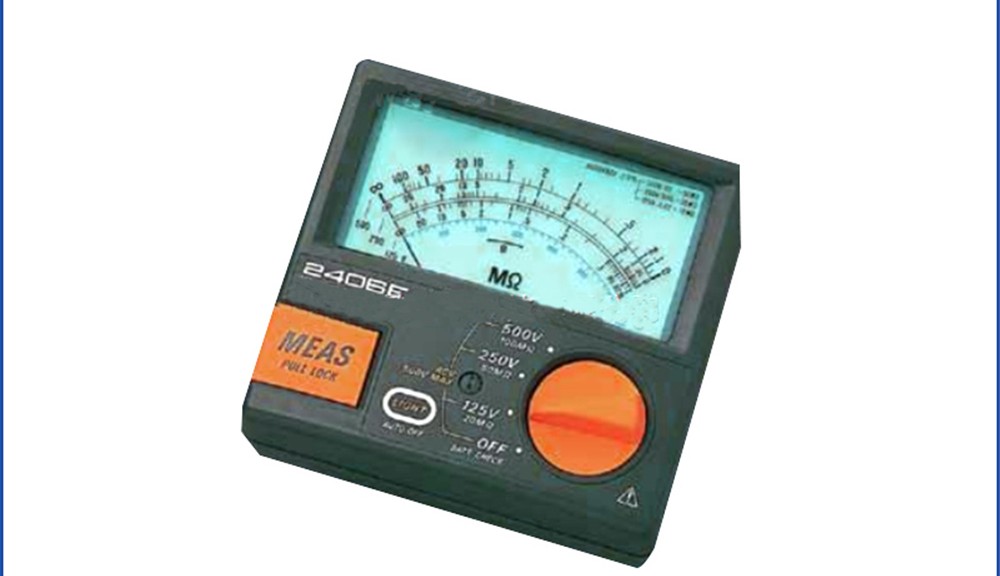

Yokogawa Digital Insulation Tester 2406E

Leave a comment
  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: 2406E
  • Product Name: Yokogawa Digital Insulation Tester 2406E
  • Safety: good
  • Quality: International Standard for Yokogawa Digital Insulation Tester 2406E
  • Accuracy: High Accuracy
  • Model: 2406E

Yokogawa 2406E Analog Insulation Tester   240667

Yokogawa Insulation Tester

Yokogawa Portable and Handheld Instrument



The 2406E Analog Insulation Tester:

-Analog models with two and three rating

-AC voltage measurement

-Automatic discharge

-Sky blue EL backlight

-Increased safety (covered battery charger)

Model Description
240632 Rating 125V/20M~ ; Effective Measuring Range 0.01-20M~; AC Voltage Measurement 0 to 300 V ; Lower Limit 0.125~; Rated Current 1 mA
240635 Rating 1000V/2000M~ 250V/50M~ 500V/100M~; Effective Measuring Range 0.01-0M~ 0.05-100M~ 1-2000M~; AC Voltage Measurement 0 to 600 V ; Lower Limit 0.25M~ 0.5M~ 1~; Rated Current 1 mA
240644 Rating 1000V/2000M~ 250V/50M~ 500V/100M~; Effective Measuring Range 0.01-0M~ 0.05-100M~ 1-2000M~; AC Voltage Measurement 0 to 600 V ; Lower Limit 0.25M~ 0.5M~ 1~; Rated Current 1 mA
240641 Rating 125V/20M~ 25V/5M~ 50V/10M~; Effective Measuring Range 0.001-5M~ 0.005-10M~ 0.01-20M~; AC Voltage Measurement 0 to 300 V ; Lower Limit 0.025M~ 0.05M~ 0.125~; Rated Current 1 mA
240634 Rating 1000V/2000M~ 250V/50M~ 500V/100M~; Effective Measuring Range 0.01-0M~ 0.05-100M~ 1-2000M~; AC Voltage Measurement 0 to 600 V ; Lower Limit 0.25M~ 0.5M~ 1~; Rated Current 1 mA
240631 Rating 125V/20M~ 25V/5M~ 50V/10M~; Effective Measuring Range 0.001-5M~ 0.005-10M~ 0.01-20M~; AC Voltage Measurement 0 to 300 V ; Lower Limit 0.025M~ 0.05M~ 0.125~; Rated Current 1 mA
240645 Rating 1000V/2000M~ 250V/50M~ 500V/100M~; Effective Measuring Range 0.01-0M~ 0.05-100M~ 1-2000M~; AC Voltage Measurement 0 to 600 V ; Lower Limit 0.25M~ 0.5M~ 1~; Rated Current 1 mA
240643 Rating 125V/20M~ 250V/50M~ 500V/100M~; Effective Measuring Range 0.01-20M~ 0.01-50M~ 0.05-100M~; AC Voltage Measurement 0 to 600 V ; Lower Limit 0.125M~ 0.25M~ 0.5~; Rated Current 1 mA
240633 Rating 125V/20M~ 250V/50M~ 500V/100M~; Effective Measuring Range 0.01-20M~ 0.01-50M~ 0.05-100M~; AC Voltage Measurement 0 to 600 V ; Lower Limit 0.125M~ 0.25M~ 0.5~; Rated Current 1 mA
240642 Rating 250V/50M~ ; Effective Measuring Range 0.01-50M~; AC Voltage Measurement 0 to 300 V ; Lower Limit 0.25; Rated Current 1 mA







DCS, Megger / Insulation Resistance Meter, Yokogawa

Yokogawa Digital Insulation Tester MY10

Leave a comment
  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: MY10
  • Product Name: Yokogawa Digital Insulation Tester MY10
  • Safety: good
  • Quality: International Standard for Yokogawa Digital Insulation Tester MY10
  • Accuracy: High Accuracy
  • Model: MY10

Yokogawa Insulation Tester MY10-01

Yokogawa Insulation Tester

Yokogawa Portable and Handheld Instrument



MY10 SERIES OF ANALOG TESTERS

Analog models with single rating

MY10-01:125V/20MΩ

MY10-02:250V/50MΩ

MY10-03:500V/100MΩ

MY10-04:500V/1000MΩ

MY10-05:1000V/2000MΩ

AC voltage measurement

Automatic discharge

A wide choice of accessories-Designed for shared use with the MY40



Specifications – Model MY10-01

Rating 125V/20MΩ
Effective Measuring Range 0.01-20MΩ
Central Scale Value 0.5MΩ
AC Voltage Measurement 0 to 250 V
Lower Limit 0.125MΩ
Rated Current 1-1.2 mA
Approx. Overall Scale Length 107 mm
Battery Life Approx. 10 hours when continuously operated on manganese – oxide batteries with the pointer pointing to the central scale value.
Batteries Four AA (R6P) batteries
Approx. Width 125 mm
Approx. Height 103 mm
Approx. Depth 53 mm
Approx. Weight 500 g
Compliance EN61010-1:1993; EN61010-2-31:1995 (Overvoltage Category III, Pollution Degree 2 installations for indoor use)
Standard Accessories Batteries (Qty – 4)
Earth Probe (98002) (Qty – 1)
Line Probe (98001) (Qty – 1)
Protection Cover (93013) (Qty – 1)
Shoulder Strap (99005) (Qty – 1)
User’s Manual (Qty – 1)



Standard Test Conditions – Model MY10-01

Ambient Temperature/Humidity Ranges 23 ±5 /45-75% RH
Position of Use Horizontal (5° max. of angle of inclination)
Battery Voltage Within effective voltage range (The pointer must stay within the range indicated by the BAT symbol when the battery check is performed.)
Tolerance Mentioned Conditions Resistance measurement: First effective measuring range = ±5% of reading
Second effective measuring range = ±10% of reading
Infinite and zero scale values: 0.7% max. of scale length
AC voltage: ±10% of maximum scale value
No-load voltage: 130% max. of rated voltage
Rated measuring current: 1 mA (0 to 20%) when in first effective measuring range
Short-circuit current: 12 mA max.

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

DCS, Megger / Insulation Resistance Meter, Yokogawa

Yokogawa EY200 Digital Earth Tester

Leave a comment
  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: EY200
  • Product Name: Yokogawa EY200 Digital Earth Tester
  • Safety: good
  • Quality: International Standard for Yokogawa EY200 Digital Earth Tester
  • Accuracy: High Accuracy
  • Model: EY200
 The Yokogawa EY200 Digital Earth Tester is an earth resistance tester for testing power distribution lines, in-house wiring system, electrical appliances etc. The Yokogawa EY-200 also has an earth voltage range for earth voltage measurement.
A simplified 2-pole measuring method can be used if there is an almost perfectly earth/ground object such as a lead or iron water-pipe (plastic pipes cannot be used) or if there is an object with a known value of earth resistance, near the measurement site. The Yokogawa ey200 Digital Earth Tester is dust and drip resistant (IP54 rated).

Name

Model

Digital Earth Tester

EY200

EY200 General Specifications

Display

LCD Digital Display: 1999-count digital reading

Measuring Range

Earth Resistance: 2000Ω LSD: 0.01 to 1Ω Earth Voltage: 200V

Accuracy

Earth Resistance: 20Ω range: ±2%rdg±0.1Ω                              200Ω range: ±2%rdg±3dgt                              2000Ω range: ±2%rdg3dgt Earth Voltage:      ±1%rdg±4dgt

Measuring Frequency

Approx. 820Hz

Measuring Current

Approx. 3mA (at 20Ω range)

Battery Life

Approx. 4.5hours (at 5 second measuring 3300 times)

Operating Temp. and Humidity

0~40°C, 85%Rh or less

Dimensions

Approx. 105x158x70mm

Weight

Approx. 550g

Standard Accessories

3-pole Test Lead (Model 98074) Earth Spikes (for EY200) (Model 98070) 2-pole Test Lead Set (Model 98075) Soft Case (Model 93041) Shoulder Belt (for EY200) (Model 99018) Six AA (R6) dry cells User’s Manual









DCS, Megger / Insulation Resistance Meter, Yokogawa

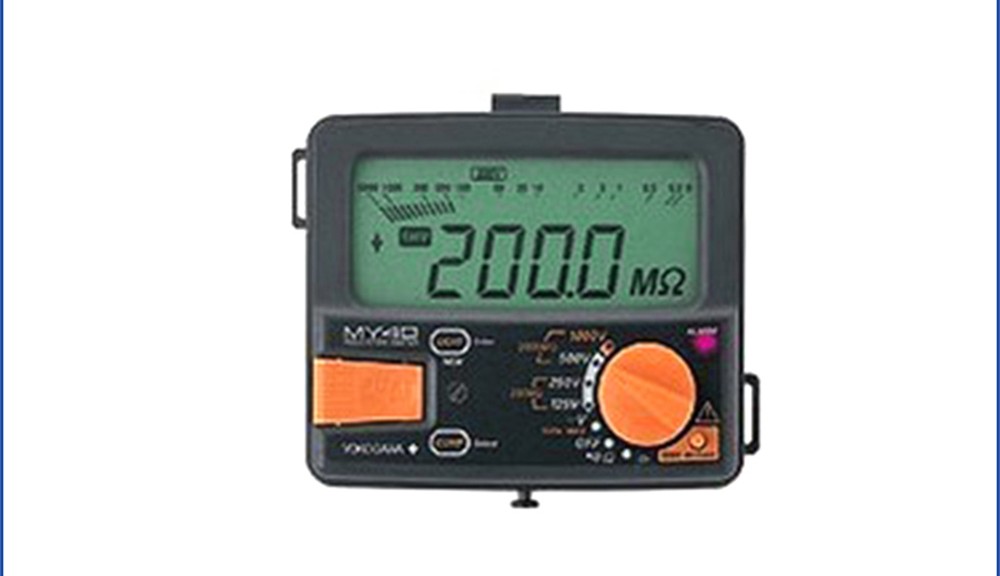

Yokogawa Digital Insulation Tester MY40

Leave a comment
  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: MY40
  • Product Name: Yokogawa Digital Insulation Tester MY40
  • Safety: good
  • Quality: International Standard for Yokogawa Digital Insulation Tester MY40
  • Accuracy: High Accuracy
  • Model: MY40

Yokogawa Digital Insulation Tester MY40

Yokogawa Insulation Tester

Yokogawa Portable and Handheld Instrument



MY40 DIGITAL INSULATION TESTER

-Digital model with 4 voltage/resistance ratings

-Multifunction

*Insulation resistance, AC voltage and conductor resistance measurement

*Insulation test mode: Comparator, memory, auto-hold and discharge functions

*All test modes: Live-line alarm (excluding AC voltage measurement), battery check and automatic power-off

-Easy-to-view, fluctuation-free display

-Double-action safety mechanism

-Weight including main unit and batteries only, excluding accessories



Specifications – MY40 Digital Insulation Tester

Width 125 mm
Height 103 mm
Depth 53 mm
Display 3 1/2-digit LCD; 4000 count; backlight-illuminated; logarithmic bar graph; extension bar graph-no fluctuations, as the display shows the digits of a reading in the order in which each digit settles.
Comparator Function The MY40 alerts you by turning on the LOW symbol and sounding the buzzer if the measured value is smaller than the reference value. You can allocate as many as three user-defined reference values to each rating. The factory-set defaults are 0.1 MΩ, 0.2 MΩ and 0.4 MΩ.
Memory Function For each rating, you can save as many as 20 measurements at desired memory address numbers.
Automatic Discharge Function The MY40 automatically begins discharge when you turn off the MEAS switch. You can monitor the state of discharge by checking the bar graph and make sure discharge is complete by checking that the segment bar disappear.
High-Voltage Indicators The high-voltage symbol and LED lamp come on to alert you when the MY40 is in insulation testing mode or if any voltage remains to be discharged.
Live-Line Alarm If you apply an AC voltage of approximately 40 V or higher across the input terminals, the MY40 alerts you by blinking the LED lamp and sounding the buzzer.
Overrange Input Alarm If the voltage being measured exceeds 600 V during AC voltage measurement, the MY40 alerts you by flashing the Maximum Value indicator and sounding the buzzer.
Auto-Hold Function The tester retains the measured resistance for approximately 5 seconds after the MEAS switch is turned off.
Batteries Four AA (R6P) batteries
Weight 420 g
Ambient Temperature/Humidity Ranges 23 ±5 /45-75% RH
Standard Accessories Batteries (Qty – 4)
Earth Probe (98002) (Qty – 1)
Line Probe (98001) (Qty – 1)
Protection Cover (93013) (Qty – 1)
Shoulder Strap (99005) (Qty – 1)
User’s manual (Qty – 1)



Tolerance Mentioned Conditions

Max. Deviation from Zero Scale Value 6 digits
Indication of mark on bar graph Approx. 4000 MΩ min. (500 V/1000 V)
Approx. 400 MΩ min. (125 V/250 V)
No-Load Voltage 130% max. of rated voltage
Rated Measuring Current 1 mA (0 to 20%) when in first effective measuring range
Max. Short-circuit Current 2 mA





DCS, Honeywell dcs

Honeywell HC900 cards spare parts 900A01-0102

Leave a comment

Honeywell spare parts

Honeywell spare parts 900A01-0102 Systems General Analog Input Module (8-channel)

Specializing in Honeywell DCS cards, absolutely guaranteed to be genuine Honeywell brand new card member services covering S9000, HC900, PLANTSCAPE, TDC2000, TDC3000 (US Operator Station), TPS (GUS operation station), PKS and other Honeywell DCS Distributed Control System

Honeywell Module PWA NIM Modem 51305896-200

Model:

51309288-225 51309512-125 MC-TAMR03 51204162-175 51403988-150
51309218-175 51304362-150 51304337-150 51305348-100 51304453-150
80363972-150 51198947-100 51309276-150 51305508-200 51305348-100
51198947-100 51309512-175 51204160-175 51191593-100 51403427-275
51309241-125 51309288-375 51304419-150 51304532-150 51201557-150
51309241-175 51404305-375 51197593-100 51304511-200 51309290-125
51201420-005 51201420-010 51304754-150 51304337-150 51204160-175 51305348-100 51304453-150
51309276-150 51405038-175 51405040-175 51405039-175 51309204-175 51304362-150 51304754-150 80363969-150 80363972-150 80363975-150 51204172-175 51304453-15051305890-17551204162-175

51304449-500 INTECOLOR CRT EA
51304451-100 DO STANDBY MANUAL P WA EA
51304453-100 FTA, HLAI/STI COMP TERM MU-TAIH02 EA
51304453-150 FTA,HLAI/STI COMP TERM CC MC-TAIH02 EA
51304456-100 MONITOR 14IN EA 51196793-100
51304465-000 POWER CABLE (ORDER INDV. LENGTH) EA
51304467-100 FTA, LLMUX/SDI/SI PWR ADAPTER EA 51309204-175
51304467-150 FTA, LLMUX/SDI/SI PWR ADAPTER EA 51309204-175
51304472-100 PWA, NGI I/O EA
51304476-100 FTA, A/O COMPR TERM EA 51304476-175
51304476-125 A/O FTA, COMP CE MU-TAOX02 EA
51304476-150 FTA, A/O EA 51304476-175
51304476-175 FTA, A/O CCCE MC-TAOX02 EA
51304477-100 LLAI RTD MUX FTA EA 51309218-125
51304477-150 FTA,LLAI MUX RTD EA 51309218-175
51304478-100 FTA,LLAI MUX TC (SEE NOTES) EA
51304481-100 LLAI IOP ASSM MU-PAIL02 EA
51304481-150 LLAI IOP ASSM CC MC-PAIL02 EA
51304483-100 PWA, AO/IOP EA 51309152-175

There are a lot of models do not have the statistics, if you need, please contact me or send e-mail and phone

DCS, Honeywell dcs

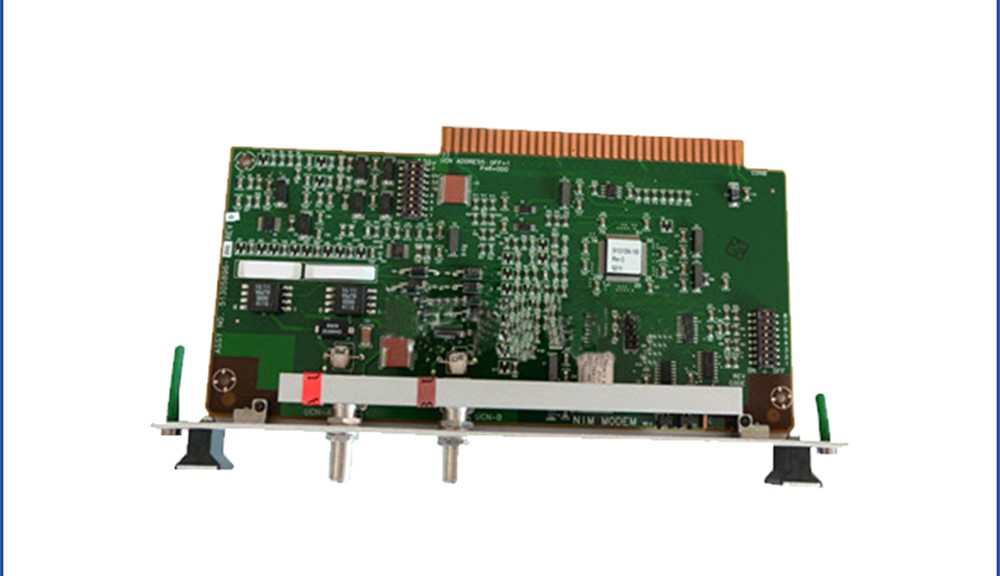

Honeywell TAP DCS module 51201395-100

Leave a comment

Specializing in Honeywell DCS cards, absolutely guaranteed to be genuine Honeywell brand new card member services covering S9000, HC900, PLANTSCAPE, TDC2000, TDC3000 (US Operator Station), TPS (GUS operation station), PKS and other Honeywell DCS Distributed Control System

Honeywell DCS TAP module 51201395-100

Model:

51309288-225 51309512-125 MC-TAMR03 51204162-175 51403988-150
51309218-175 51304362-150 51304337-150 51305348-100 51304453-150
80363972-150 51198947-100 51309276-150 51305508-200 51305348-100
51198947-100 51309512-175 51204160-175 51191593-100 51403427-275
51309241-125 51309288-375 51304419-150 51304532-150 51201557-150
51309241-175 51404305-375 51197593-100 51304511-200 51309290-125
51201420-005 51201420-010 51304754-150 51304337-150 51204160-175 51305348-100 51304453-150
51309276-150 51405038-175 51405040-175 51405039-175 51309204-175 51304362-150 51304754-150 80363969-150 80363972-150 80363975-150 51204172-175 51304453-15051305890-17551204162-175

51304449-500 INTECOLOR CRT EA
51304451-100 DO STANDBY MANUAL P WA EA
51304453-100 FTA, HLAI/STI COMP TERM MU-TAIH02 EA
51304453-150 FTA,HLAI/STI COMP TERM CC MC-TAIH02 EA
51304456-100 MONITOR 14IN EA 51196793-100
51304465-000 POWER CABLE (ORDER INDV. LENGTH) EA
51304467-100 FTA, LLMUX/SDI/SI PWR ADAPTER EA 51309204-175
51304467-150 FTA, LLMUX/SDI/SI PWR ADAPTER EA 51309204-175
51304472-100 PWA, NGI I/O EA
51304476-100 FTA, A/O COMPR TERM EA 51304476-175
51304476-125 A/O FTA, COMP CE MU-TAOX02 EA
51304476-150 FTA, A/O EA 51304476-175
51304476-175 FTA, A/O CCCE MC-TAOX02 EA
51304477-100 LLAI RTD MUX FTA EA 51309218-125
51304477-150 FTA,LLAI MUX RTD EA 51309218-175
51304478-100 FTA,LLAI MUX TC (SEE NOTES) EA
51304481-100 LLAI IOP ASSM MU-PAIL02 EA
51304481-150 LLAI IOP ASSM CC MC-PAIL02 EA
51304483-100 PWA, AO/IOP EA 51309152-175

There are a lot of models do not have the statistics, if you need, please contact me or send e-mail and phone

DCS, Honeywell dcs

Honeywell 51309218-125 FTA RTD module card MC-TAMR03

Leave a comment

Honeywell 51309218-125

Honeywell 51309218-125 FTA RTD module card MC-TAMR03

Professional to provide a Honeywell DCS card, integrity services, absolute guarantee is part of the original Honeywell new card, the scope of services involved S9000, plantscape, TDC2000 TDC3000 (US operation station), TPS (Gus operation station), PKS and Honeywell DCS distributed control system

Honeywell 51309218-125 FTA RTD module card MC-TAMR03

Model:

51305896-200 51401473-100 51309288-375 REV.K-TK-PRR021 51192337-100
CC-TAIX11 redundancy HLAI IO terminal board
CC-PWRB01 redundant DC power module 20A
CC-PAIM01LLMUX module 64 channels
CC-PDOB01DO module 32 channels
CC-PDIS01DI SOE module features 32 channels
CC-PDIL01DI module 32 channels
CC-PAOX01AO module does not support the Hart protocol
CC-PAOH01AO Hart protocol module supports 16 channels
CC-PAIX01HLAI module does not support the Hart protocol 16 channels
CC-PAIH01HLAI Hart protocol module supports 16 channels
CC-TCNT01C301 controller backplane
CC-PCNT01C300 Controller
CC-TCF901 control firewall floor
CC-PAOH01 51405039-175
CC-PDIL01 51405040-175
CC-PDOB01 51405043-175
CC-PCF901 control firewall
TP-OPADP1-201
51401052-100
51400646-100
51309276-150
51308092-200
51308035-100
51305907-175 (MC-TAMR04) 51305896-200
51305890-175 (MC-TAMT04) 51305380-100
51305348-100 (HI-ZUG100) 51305378-100
51304913-100
51304754-150 (MC-PAIH03)

  • 9904-TPR ControlNet T Tap right angle 4
  • TC-CCN013 CNI Module, Single Media 1
  • TC-CCR013 CNI Module, Redundant Media 2
  • TC-FFPCX1 Power Supply Module, 1.3 A, RIOM-A 1
  • TC-FPCXX2 120 / 240vac Pwr Supply 1
  • TC-FPDXX2 24Vvdc Pwr Supply 0
  • TC-FXX102 10 Slot Chassis, 13 Amp 2
  • TC-FXX132 13 Slot Chassis, 13 Amp 2
  • TC-IAH061 Analog Input 8px Module, CIOM-A 1
  • TC-IAH161 AI 16 Module (single8 diff.), CIOM-A 0

There are a lot of models do not have the statistics, if you need, please contact me or send e-mail and phone

DCS, Honeywell dcs

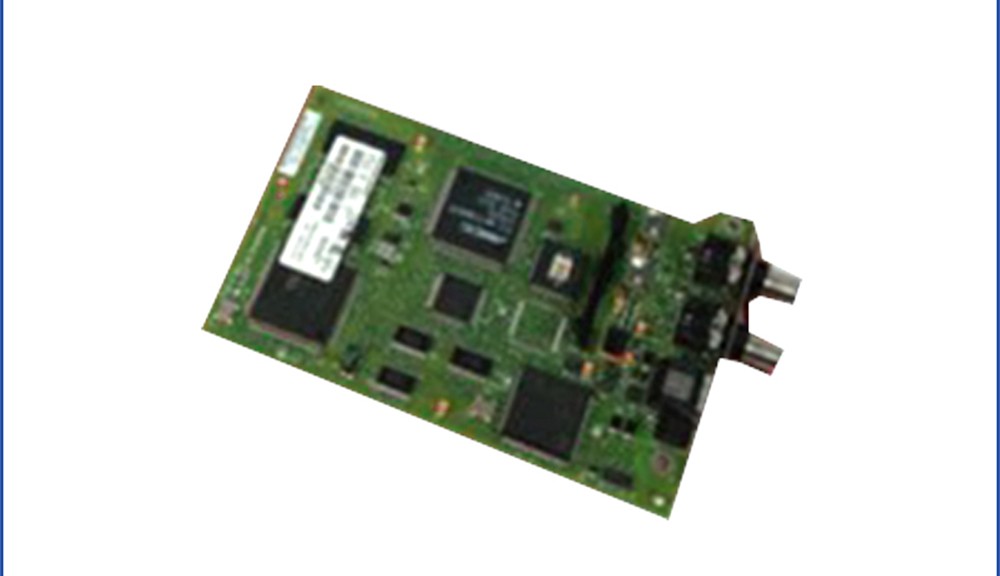

Honeywell LCNA IO 51305072-200

Leave a comment

Honeywell 51305072-200

Honeywell 51305072-200 LCNA IO

Professional to provide a Honeywell DCS card, integrity services, absolute guarantee is part of the original Honeywell new card, the scope of services involved S9000, plantscape, TDC2000 TDC3000 (US operation station), TPS (Gus operation station), PKS and Honeywell DCS distributed control system

Honeywell LCNA IO 51305072-200

Model:

51305896-200 51401473-100 51309288-375 REV.K-TK-PRR021 51192337-100
CC-TAIX11 redundancy HLAI IO terminal board
CC-PWRB01 redundant DC power module 20A
CC-PAIM01LLMUX module 64 channels
CC-PDOB01DO module 32 channels
CC-PDIS01DI SOE module features 32 channels
CC-PDIL01DI module 32 channels
CC-PAOX01AO module does not support the Hart protocol
CC-PAOH01AO Hart protocol module supports 16 channels
CC-PAIX01HLAI module does not support the Hart protocol 16 channels
CC-PAIH01HLAI Hart protocol module supports 16 channels
CC-TCNT01C301 controller backplane
CC-PCNT01C300 Controller
CC-TCF901 control firewall floor
CC-PAOH01 51405039-175
CC-PDIL01 51405040-175
CC-PDOB01 51405043-175
CC-PCF901 control firewall
TP-OPADP1-201
51401052-100
51400646-100
51309276-150
51308092-200
51308035-100
51305907-175 (MC-TAMR04) 51305896-200
51305890-175 (MC-TAMT04) 51305380-100
51305348-100 (HI-ZUG100) 51305378-100
51304913-100
51304754-150 (MC-PAIH03)

  • 9904-TPR ControlNet T Tap right angle 4
  • TC-CCN013 CNI Module, Single Media 1
  • TC-CCR013 CNI Module, Redundant Media 2
  • TC-FFPCX1 Power Supply Module, 1.3 A, RIOM-A 1
  • TC-FPCXX2 120 / 240vac Pwr Supply 1
  • TC-FPDXX2 24Vvdc Pwr Supply 0
  • TC-FXX102 10 Slot Chassis, 13 Amp 2
  • TC-FXX132 13 Slot Chassis, 13 Amp 2
  • TC-IAH061 Analog Input 8px Module, CIOM-A 1
  • TC-IAH161 AI 16 Module (single8 diff.), CIOM-A 0

There are a lot of models do not have the statistics, if you need, please contact me or send e-mail and phone

DCS, Honeywell dcs

Honeywell Terminating resistor 51192418-100

Leave a comment

Honeywell 51192418-100

Honeywell 51192418-100 Terminating resistor

Professional to provide a Honeywell DCS card, integrity services, absolute guarantee is part of the original Honeywell new card, the scope of services involved S9000, plantscape, TDC2000 TDC3000 (US operation station), TPS (Gus operation station), PKS and Honeywell DCS distributed control system

Honeywell Terminating resistor 51192418-100

51305896-200 51401473-100 51309288-375 REV.K-TK-PRR021 51192337-100
CC-TAIX11 redundancy HLAI IO terminal board
CC-PWRB01 redundant DC power module 20A
CC-PAIM01LLMUX module 64 channels
CC-PDOB01DO module 32 channels
CC-PDIS01DI SOE module features 32 channels
CC-PDIL01DI module 32 channels
CC-PAOX01AO module does not support the Hart protocol
CC-PAOH01AO Hart protocol module supports 16 channels
CC-PAIX01HLAI module does not support the Hart protocol 16 channels
CC-PAIH01HLAI Hart protocol module supports 16 channels
CC-TCNT01C301 controller backplane
CC-PCNT01C300 Controller
CC-TCF901 control firewall floor
CC-PAOH01 51405039-175
CC-PDIL01 51405040-175
CC-PDOB01 51405043-175
CC-PCF901 control firewall
TP-OPADP1-201
51401052-100
51400646-100
51309276-150
51308092-200
51308035-100
51305907-175 (MC-TAMR04) 51305896-200
51305890-175 (MC-TAMT04) 51305380-100
51305348-100 (HI-ZUG100) 51305378-100
51304913-100
51304754-150 (MC-PAIH03)

  • 9904-TPR ControlNet T Tap right angle 4
  • TC-CCN013 CNI Module, Single Media 1
  • TC-CCR013 CNI Module, Redundant Media 2
  • TC-FFPCX1 Power Supply Module, 1.3 A, RIOM-A 1
  • TC-FPCXX2 120 / 240vac Pwr Supply 1
  • TC-FPDXX2 24Vvdc Pwr Supply 0
  • TC-FXX102 10 Slot Chassis, 13 Amp 2
  • TC-FXX132 13 Slot Chassis, 13 Amp 2
  • TC-IAH061 Analog Input 8px Module, CIOM-A 1
  • TC-IAH161 AI 16 Module (single8 diff.), CIOM-A 0

There are a lot of models do not have the statistics, if you need, please contact me or send e-mail and phone

DCS, Digital Multimeter, Yokogawa

Yokogawa TY710 Multimeter

Leave a comment
  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: TY710
  • Product Name: Yokogawa TY710 Multimeter
  • Safety: good
  • Quality: International Standard for Yokogawa TY710 Multimeter
  • Accuracy: High Accuracy
  • Model: TY710

Yokogawa TY710 Multimeter



3.5-digit (6000-count dual display, 31-segment bar graph display), RMS type Measurement Functions : Voltage, Current, Resistance, Continuity Check, Diode Test, Frequency, Capacitance, Temperature, Logging-mode memory for 1600 data (TY530 only)



Features : Category IV 600V, Category III 1000V, USB Communication function, Closed Case Calibration (User calibration function).



Measurement Function DC Voltage, AC voltage, DC current, AC current, resistance, frequency, temperature, capacitance, continuity check, diode test For AC voltage/current, RMS/MEAN detection can be switched.
Low-pass filter can be switched on/off
Additional Functions Data hold/auto hold/range hold, maximum/minimum/average values, resistance, relative and percentage value calculation, memory function, communication function, logging-mode memory, auto power off, backlight
Display 3.5-digit LCD: 7-segment
Digital display: Main display; [6000] counts
Bar graph display: 31-segment
Polarity indicator : “-” appears automatically when the polarity is negative
Overrange indicator: “OL”
Features
  • High Precision
  • Basic accuracy 0.09%
  • True RMS measurement
  • Ensured Field Site Safety
  • Conforms to safety standards EN61010-1, 1000V CAT III, 600V CAT IV
  • Safety shutters for preventing erroneous insertion of test leads into current measurement terminals
  • New Functions for Yokogawa Middle Class DMMs
  • Current direct reading function provided by current clamp sensor (optional)
  • Low-pass Filter (LPF)
  • Logging-mode memory for 1600 data
  • USB communication, application software (Optional DMM communication package) TY530 only
  • Closed Case Calibration
  • 3-year Warranty



DCS, Digital Multimeter, Yokogawa

Yokogawa TY520 Multimeter

Leave a comment
  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: TY520
  • Product Name: Yokogawa TY520 Multimeter
  • Safety: good
  • Quality: International Standard for Yokogawa TY520 Multimeter
  • Accuracy: High Accuracy
  • Model: TY520

Yokogawa TY520 Multimeter



3.5-digit (6000-count dual display, 31-segment bar graph display), RMS type Measurement Functions : Voltage, Current, Resistance, Continuity Check, Diode Test, Frequency, Capacitance, Temperature, Logging-mode memory for 1600 data (TY530 only)



Features : Category IV 600V, Category III 1000V, USB Communication function, Closed Case Calibration (User calibration function).



Measurement Function DC Voltage, AC voltage, DC current, AC current, resistance, frequency, temperature, capacitance, continuity check, diode test For AC voltage/current, RMS/MEAN detection can be switched.
Low-pass filter can be switched on/off
Additional Functions Data hold/auto hold/range hold, maximum/minimum/average values, resistance, relative and percentage value calculation, memory function, communication function, logging-mode memory, auto power off, backlight
Display 3.5-digit LCD: 7-segment
Digital display: Main display; [6000] counts
Bar graph display: 31-segment
Polarity indicator : “-” appears automatically when the polarity is negative
Overrange indicator: “OL”
Features
  • High Precision
  • Basic accuracy 0.09%
  • True RMS measurement
  • Ensured Field Site Safety
  • Conforms to safety standards EN61010-1, 1000V CAT III, 600V CAT IV
  • Safety shutters for preventing erroneous insertion of test leads into current measurement terminals
  • New Functions for Yokogawa Middle Class DMMs
  • Current direct reading function provided by current clamp sensor (optional)
  • Low-pass Filter (LPF)
  • Logging-mode memory for 1600 data
  • USB communication, application software (Optional DMM communication package) TY530 only
  • Closed Case Calibration
  • 3-year Warranty
