Sensor, Yokogawa

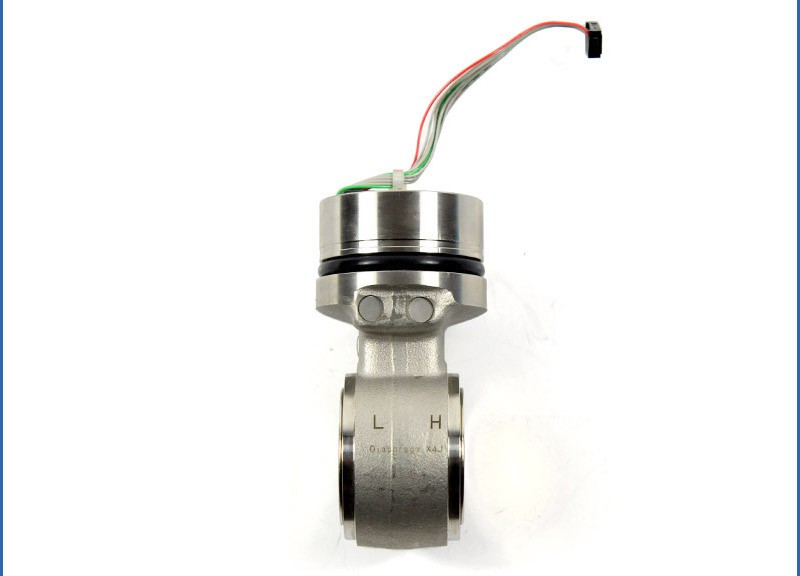

Tantalum V module pressure transmitter sensor

Leave a comment

pressure sensor

pressure sensor Tantalum V module pressure transmitter sensor



Measurement span
(capsule)		 A………. 10 to 200 kPa {0.1 to 2 kgf/cm 2 } {1.45 to 29 psi} {0.1 to 2 bar}
B……….. 0.1 to 2 MPa {1 to 20 kgf/cm 2 } {14.5 to 290 psi} {1 to 20 bar}
C……….. 0.5 to 10 MPa {5 to 100 kgf/cm 2 } {72.5 to 1450 psi} {5 to 100 bar}
D……….. 5 to 50 MPa {50 to 500 kgf/cm 2 } {720 to 7200 psi} {50 to 500 bar}
Wetted parts
material * 2

S #…………
H #………..



 [Process Connection]   [Diaphragm]
SUS316L * 4          Hastelloy C-276 * 3
Hastelloy C-276 * 3     Hastelloy C-276 * 3

pressure sensor

pressure sensor Tantalum V module pressure transmitter sensor

The high performance differential pressure transmitter
model EJA110A can be used to measure liquid, gas,
or steam flow as well as liquid level, density and
pressure. It outputs a 4 to 20 mA DC signal corresponding
to the measured differential pressure. Model
EJA110A also features remote setup and monitoring
through communications with the BRAIN™ terminal
and CENTUM CS™ or XL™ or HART® 275 host.
STANDARD SPECIFICATIONS
Refer to GS 01C22T02-00E for FOUNDATION Fieldbus
communication type and GS 01C22T03-00E for
PROFIBUS PA communication type marked with “.”
 PERFORMANCE SPECIFICATIONS
Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil.
Reference Accuracy of Calibrated Span
(including the effects of zero-based linearity, hysteresis,
and repeatability)

Zero Adjustment Limits
Zero can be fully elevated or suppressed, within the
Lower and Upper Range Limits of the capsule.
External Zero Adjustment “”
External zero is continuously adjustable with 0.01 %
incremental resolution of span. Span may be
adjusted locally using the digital indicator with range
switch.
Mounting Position Effect
Rotation in diaphragm plane has no effect. Tilting up to
90 ° will cause zero shift up to 0.4 kPa {1.6 inH2O}
which can be corrected by the zero adjustment.
Output “”
Two wire 4 to 20 mA DC output with digital communications,
linear or square root programmable. BRAIN
or HART FSK protocol are superimposed on the 4 to
20 mA signal.

Sensor, Yokogawa

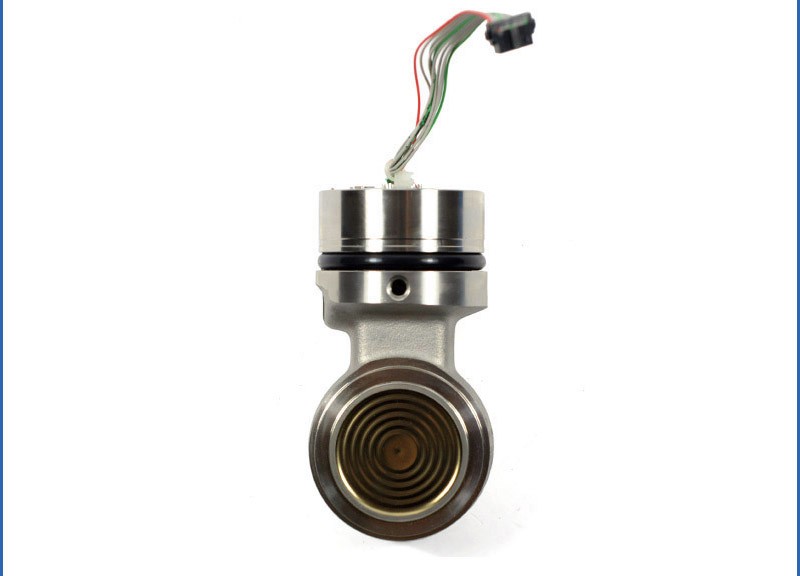

Monel M diaphragm capsule pressure transmitter sensor

Leave a comment

pressure sensor

pressure sensor Monel M diaphragm capsule pressure transmitter sensor

Measurement span
(capsule)		 A………. 10 to 200 kPa {0.1 to 2 kgf/cm 2 } {1.45 to 29 psi} {0.1 to 2 bar}
B……….. 0.1 to 2 MPa {1 to 20 kgf/cm 2 } {14.5 to 290 psi} {1 to 20 bar}
C……….. 0.5 to 10 MPa {5 to 100 kgf/cm 2 } {72.5 to 1450 psi} {5 to 100 bar}
D……….. 5 to 50 MPa {50 to 500 kgf/cm 2 } {720 to 7200 psi} {50 to 500 bar}
Wetted parts
material * 2

S #…………
H #………..



 [Process Connection]   [Diaphragm]
SUS316L * 4          Hastelloy C-276 * 3
Hastelloy C-276 * 3     Hastelloy C-276 * 3

pressure sensor

pressure sensor Monel M diaphragm capsule pressure transmitter sensor

The high performance differential pressure transmitter
model EJA110A can be used to measure liquid, gas,
or steam flow as well as liquid level, density and
pressure. It outputs a 4 to 20 mA DC signal corresponding
to the measured differential pressure.

Model EJA110A also features remote setup and monitoring
through communications with the BRAIN™ terminal
and CENTUM CS™ or XL™ or HART® 275 host.

STANDARD SPECIFICATIONS Refer to GS 01C22T02-00E for FOUNDATION Fieldbus
communication type and GS 01C22T03-00E for
PROFIBUS PA communication type marked with “.”
 PERFORMANCE SPECIFICATIONS

Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil.
Reference Accuracy of Calibrated Span
(including the effects of zero-based linearity, hysteresis,
and repeatability)

Zero Adjustment Limits
Zero can be fully elevated or suppressed, within the Lower and Upper Range Limits of the capsule. External Zero Adjustment “” External zero is continuously adjustable with 0.01 % incremental resolution of span. Span may be
adjusted locally using the digital indicator with range
switch.

Mounting Position Effect Rotation in diaphragm plane has no effect. Tilting up to 90 ° will cause zero shift up to 0.4 kPa {1.6 inH2O} which can be corrected by the zero adjustment.

Output “ Two wire 4 to 20 mA DC output with digital communications, linear or square root programmable. BRAIN or HART FSK protocol are superimposed on the 4 to
20 mA signal”.

Sensor, Yokogawa

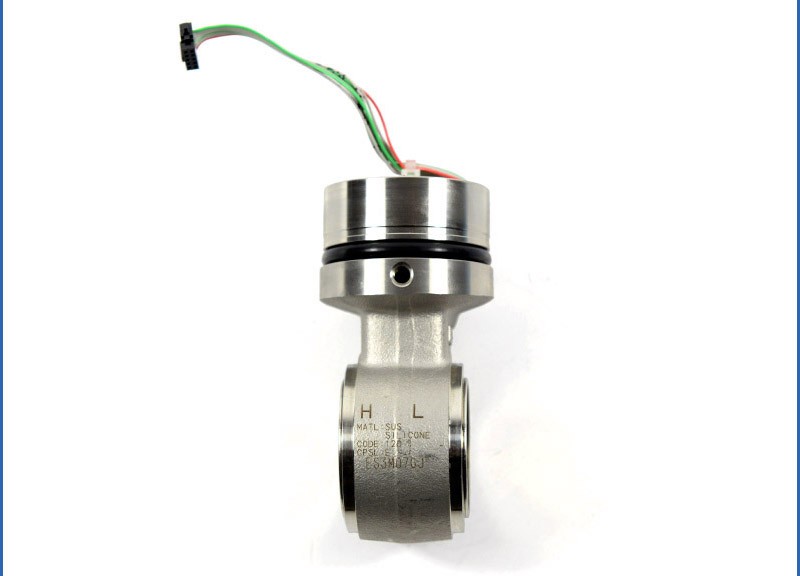

SUS316L H membrane pressure transmitter sensor

Leave a comment

pressure sensor

pressure sensor SUS316L H membrane pressure transmitter sensor

Measurement span
(capsule)		 A………. 10 to 200 kPa {0.1 to 2 kgf/cm 2 } {1.45 to 29 psi} {0.1 to 2 bar}
B……….. 0.1 to 2 MPa {1 to 20 kgf/cm 2 } {14.5 to 290 psi} {1 to 20 bar}
C……….. 0.5 to 10 MPa {5 to 100 kgf/cm 2 } {72.5 to 1450 psi} {5 to 100 bar}
D……….. 5 to 50 MPa {50 to 500 kgf/cm 2 } {720 to 7200 psi} {50 to 500 bar}
Wetted parts
material * 2

S #…………
H #………..



 [Process Connection]   [Diaphragm]
SUS316L * 4          Hastelloy C-276 * 3
Hastelloy C-276 * 3     Hastelloy C-276 * 3

pressure sensor

pressure sensor SUS316L H membrane pressure transmitter sensor


The high performance differential pressure transmitter

model EJA110A can be used to measure liquid, gas,
or steam flow as well as liquid level, density and
pressure. It outputs a 4 to 20 mA DC signal corresponding
to the measured differential pressure.

Model EJA110A also features remote setup and monitoring through communications with the BRAIN™ terminal and CENTUM CS™ or XL™ or HART® 275 host.
STANDARD SPECIFICATIONS Refer to GS 01C22T02-00E for FOUNDATION Fieldbus communication type and GS 01C22T03-00E for PROFIBUS PA communication type marked with “.”

 PERFORMANCE SPECIFICATIONS
Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil. Reference Accuracy of Calibrated Span
(including the effects of zero-based linearity, hysteresis, and repeatability)

Zero Adjustment Limits
Zero can be fully elevated or suppressed, within the Lower and Upper Range Limits of the capsule.

External Zero Adjustment “”
External zero is continuously adjustable with 0.01 %
incremental resolution of span. Span may be
adjusted locally using the digital indicator with range
switch.

Mounting Position Effect
Rotation in diaphragm plane has no effect. Tilting up to
90 ° will cause zero shift up to 0.4 kPa {1.6 inH2O}
which can be corrected by the zero adjustment.

Output “”
Two wire 4 to 20 mA DC output with digital communications,
linear or square root programmable. BRAIN
or HART FSK protocol are superimposed on the 4 to
20 mA signal.

Sensor, Yokogawa

Hastelloy C-276 L pressure sensor for Yokogawa EJA110A

Leave a comment

pressure sensor

pressure sensor Hastelloy C-276 L pressure sensor for Yokogawa EJA110A

Measurement span
(capsule)		 A………. 10 to 200 kPa {0.1 to 2 kgf/cm 2 } {1.45 to 29 psi} {0.1 to 2 bar}
B……….. 0.1 to 2 MPa {1 to 20 kgf/cm 2 } {14.5 to 290 psi} {1 to 20 bar}
C……….. 0.5 to 10 MPa {5 to 100 kgf/cm 2 } {72.5 to 1450 psi} {5 to 100 bar}
D……….. 5 to 50 MPa {50 to 500 kgf/cm 2 } {720 to 7200 psi} {50 to 500 bar}
Wetted parts
material * 2

S #…………
H #………..



 [Process Connection]   [Diaphragm]
SUS316L * 4          Hastelloy C-276 * 3
Hastelloy C-276 * 3     Hastelloy C-276 * 3

pressure sensor

pressure sensor Hastelloy C-276 L pressure sensor for Yokogawa EJA110A

Measurement span
(capsule)		 A………. 10 to 200 kPa {0.1 to 2 kgf/cm 2 } {1.45 to 29 psi} {0.1 to 2 bar}
B……….. 0.1 to 2 MPa {1 to 20 kgf/cm 2 } {14.5 to 290 psi} {1 to 20 bar}
C……….. 0.5 to 10 MPa {5 to 100 kgf/cm 2 } {72.5 to 1450 psi} {5 to 100 bar}
D……….. 5 to 50 MPa {50 to 500 kgf/cm 2 } {720 to 7200 psi} {50 to 500 bar}
Wetted parts
material * 2

S #…………
H #………..



 [Process Connection]   [Diaphragm]
SUS316L * 4          Hastelloy C-276 * 3
Hastelloy C-276 * 3     Hastelloy C-276 * 3



The high performance differential pressure transmitter
model EJA110A can be used to measure liquid, gas,
or steam flow as well as liquid level, density and
pressure. It outputs a 4 to 20 mA DC signal corresponding
to the measured differential pressure. Model
EJA110A also features remote setup and monitoring
through communications with the BRAIN™ terminal
and CENTUM CS™ or XL™ or HART® 275 host.
STANDARD SPECIFICATIONS
Refer to GS 01C22T02-00E for FOUNDATION Fieldbus
communication type and GS 01C22T03-00E for
PROFIBUS PA communication type marked with “.”
 PERFORMANCE SPECIFICATIONS
Zero-based calibrated span, linear output, wetted
parts material code ‘S’ and silicone oil.
Reference Accuracy of Calibrated Span
(including the effects of zero-based linearity, hysteresis,
and repeatability)

Diaphragm Seals & Capillaries, Transmitters, Honeywell

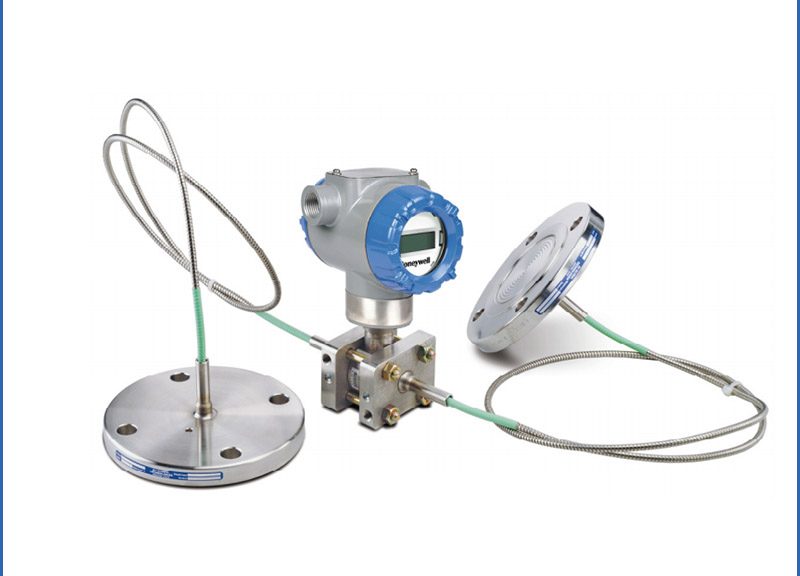

Honeywell SmartLine ST 800 Remote Diaphragm Seal Pressure Transmitter

Leave a comment

Diaphragm Seal Pressure Transmitter

Diaphragm Seal Pressure Transmitter Honeywell ST 800 easily meets the most demanding application needs for pressure measurement applications.

SmartLine ST 800 Remote Diaphragm Seal Transmitters provide accurate measurement for a wide variety of applications involving corrosive or high temperature process fluids. Typical applications include high-accuracy level measurement in pressurized vessels in hydrocarbon processing and flow measurement of slurries and high viscosity process fluids in chemical plants.

Honeywell offers the following ST 800 Remote Diaphragm Seal Transmitters:

  • Flush flange seals

  • Flange seal with extended diaphragm

  • Pancake seals

  • Sanitary seals

  • Chemical tee “taylor” wedge

  • Seals with threaded process connections

  • Saddle seals

  • Calibration rings

  • Stainless steel armor and pvc coated stainless steel armor capillaries

  • 2” stainless steel nipples

  • Welded meter body

SmartLine ST 800 Remote Diaphragm Seal Transmitters provide accurate measurement for a wide variety of applications involving corrosive or high temperature process fluids. Typical applications include high-accuracy level measurement in pressurized vessels in hydrocarbon processing and flow measurement of slurries and high viscosity process fluids in chemical plants.

Transmitters, Honeywell

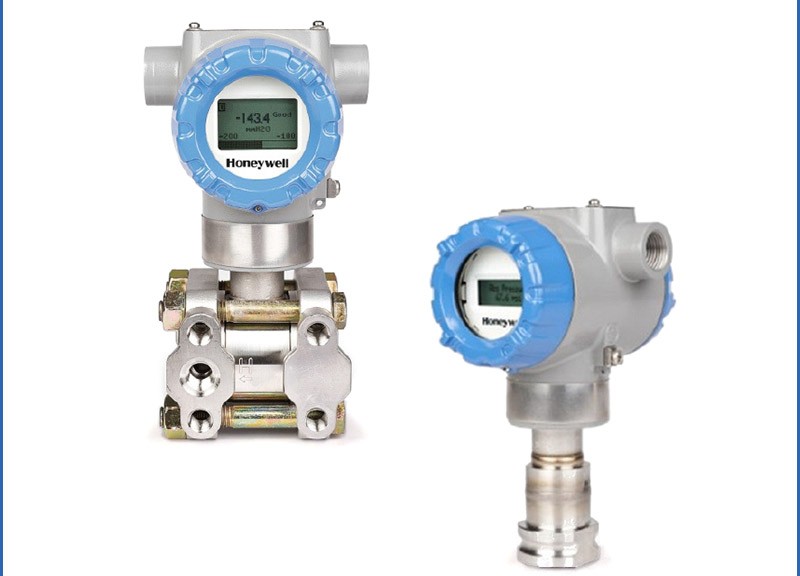

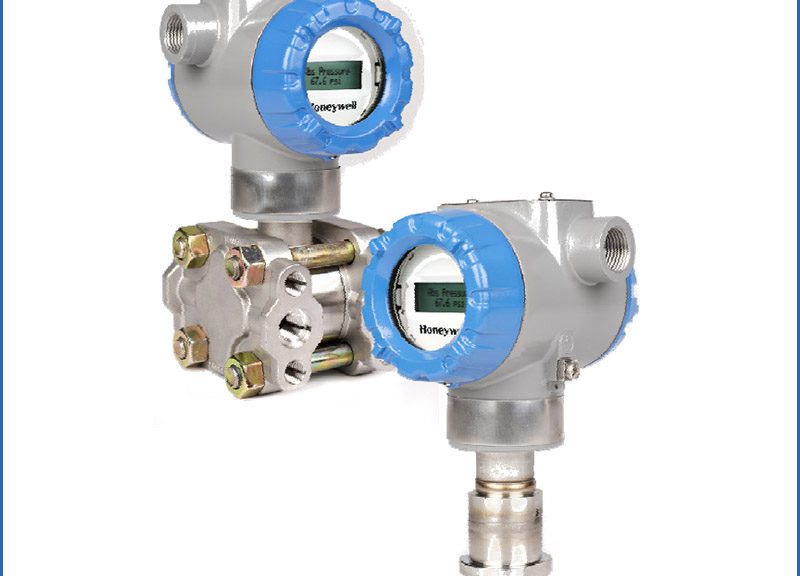

Honeywell SmartLine ST 800 Gauge Pressure Transmitters

Leave a comment

Pressure Transmitters

Introduction
Part of the SmartLine® family of products, the STA800 and STA80L are high performance absolute pressure transmitters featuring piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures.

The SmartLine family is also fully tested and compliant with Experion ® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.
Best in Class Features:
Accuracy up to 0.010 %
Automatic temperature compensation
Rangeability up to 100:1
Response times as fast as 80ms
Multiple local display capabilities
External zero, span, & configuration capability
Polarity insensitive electrical connections
Comprehensive on-board diagnostic capabilities
Integral Dual Seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
Full compliance to SIL 2/3 requirements as a standard.
Modular design characteristics
Available with 15 year warranty
Plugged Impulse Line Detection Option
Dual/Triple Calibration Option (HART & Fieldbus Only)

The following models are available for deployment:

  • STG840/STG84L                     0-500 psi                        0-35 bar
  • STG870/STG87L                     0-3,000 psi                     0-210 bar
  • STG88L                                  0-6,000 psi                     0-415 bar
  • STG89L                                  0-10,000 psi                   0-690 bar

SmartLine ST 800 Gauge Pressure Transmitters offer exceptional performance and are ideal for high-pressure measurements in boilers and fuel feeds, and tank level measurement applications with a relatively high process temperature. Dual-head and in-line models are available to suit users’ process interface requirements.

Diaphragm Seals & Capillaries, Transmitters, Honeywell

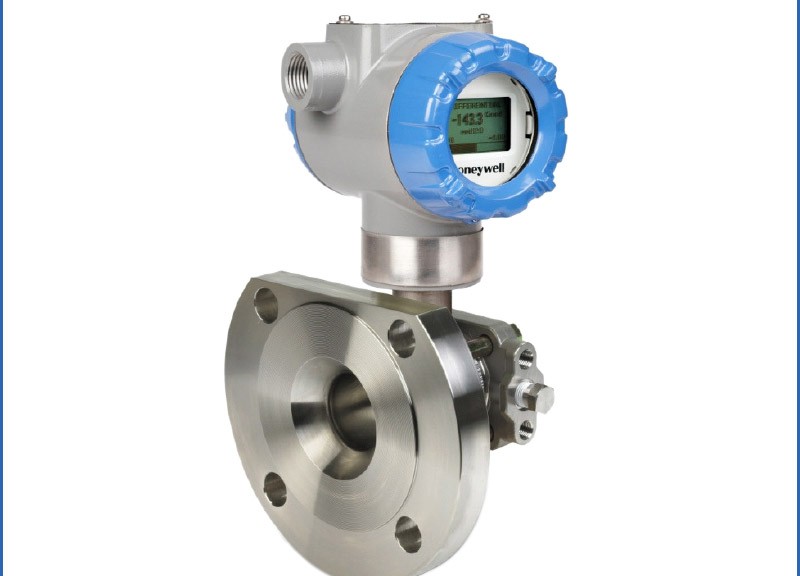

Honeywell SmartLine ST 800 Flange Mount Pressure Transmitters

Leave a comment

Pressure Transmitters

SmartLine ST 800 Flange Mount Pressure Transmitters may be installed directly onto a tank flange and are offered with a variety of tank connections. Typical applications include high-accuracy level measurement in pressurized and unpressurized vessels in the chemical and hydrocarbon industries.

ST 800 Flange Mount Pressure Transmitters are ideal for critical applications such as custody transfer of natural gas and energy and material balances, where accuracy and stability are of utmost importance. Four ranges of the transmitters are available with the following range and span:

  • STF828             -400 to 400 inH2O (-1000 to 1000 mbar)               4 to 400 inH2O (10 to 1000 mbar)

  • STF832             -100 to 100 psi (-7 to 7 bar)                                 1 to 100 psi (0.07 to 7 bar)

  • STF82F             -400 to 400 inH2O (-1000 to 1000 mbar)               1 to 400 inH2O (2.5 to 1000 mbar)

  • STF83F             -100 to 100 psi (-7 to 7 bar)                                 1 to 100 psi (0.07 to 7 bar)



The transmitters offer the following features:

  • Automatic static pressure and temperature compensation

  • Rangeability up to 100:1

  • Local display capabilities

  • External zero, span and configuration capability

  • Polarity-insensitive electrical connections

  • Comprehensive onboard diagnostic capabilities

  • Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0

  • World-class overpressure protection

  • Full compliance with SIL 2/3 requirements

  • Modular design

  • 15-year warranty.

SmartLine ST 800 Flange Mount Pressure Transmitters may be installed directly onto a tank flange and are offered with a variety of tank connections. Typical applications include high-accuracy level measurement in pressurized and unpressurized vessels in the chemical and hydrocarbon industries.

Transmitters, Honeywell

Honeywell SmartLine ST 800 Differential Pressure Transmitters

Leave a comment

Differential Pressure Transmitters

Differential Pressure Transmitters Honeywell SmartLine ST 800 bring smart technology to a wide spectrum of measurement applications.

ST 800 Differential Pressure Transmitters are ideal for critical process loops and high-value applications such as custody transfer, and energy and material balances. Five models are available with the following ranges:

  • STD810    -10 to 10 inH2O                 -25 to +25 mbar
  • STD820    -400 to +400 in H2O          -996 to +996 mbar
  • STD830    -100 to +100 psi                -6.9 to +6.9 bar
  • STD870    -3000 to +3000 psi            -207 to +207 bar

The transmitters offer the following compelling features:

  • Accuracy up to 0.025%
  • Stability of 0.01% per year
  • 90ms response time
  • Polarity-insensitive electrical connections
  • 15-year warranty
  • Tight integration with Experion® systems.

Honeywell SmartLine ST 800 Differential Pressure Transmitters

Introduction

Part by the SmartLine® family of products, the STD800 is a high performance differential pressure substrate bronoresistive sensor technology. By combining differential pressure sensing with on chip static pressure and temperature compensation the STD800 offers high accuracy and stability over a wide range of addressing And temperatures. The Smart levels are compatibility test and compliance with Experion ® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application requirements for pressure measurement applications.

Best in Class Features:

Accuracies up to 0.035% standard & 0.025% Opt
Stability up to 0.01% of URL per year for ten years
Automatic static pressure & temperature compensation
Rangeability up to 400: 1
Response times as fast as 90ms
Multiple local display capabilities
External zero, span, & configuration capability
Polarity insensitive electrical connections
Comprehensive on-board diagnostic capabilities
Integral Dual Seal design for growing safety based on ANSI / NFPA 70-202 and ANSI / ISA 12.27.0
World class overpressure protection
Full compliance to SIL 2/3 requirements
Modular design characteristics
Available with 15 year warranty
Plugged Impulse Line Detection Option
Dual / Triple Calibration Option (HART & Fieldbus)

Transmitters, Honeywell

Honeywell SmartLine ST 800 Absolute Pressure Transmitters

Leave a comment

Pressure Transmitters

SmartLine ST 800 Absolute Pressure Transmitters are available in two variants – In-line (STA8XL) and Single Head (STA8XX) in the following ranges:

  • STA822/STA82L     0 to 780 mmHgA    (0 to 1,040 mbarA)
  • STA840/STA84L     0 to 500 psia          (0 to 35 barA)
  • STA87L                 0 to 3000psia          (0-207 barA)

The transmitters offer the following compelling features:

  • Accuracy up to 0.025%
  • Stability of 0.01% per year
  • 90ms response time
  • Polarity-insensitive electrical connections
  • 15-year warranty
  • Tight integration with Experion® systems.

SmartLine ST 800 Absolute Pressure Transmitters are used in applications that require high accuracy in the vacuum range of pressure. The transmitters are ideal for low pressure measurement in vacuum distillation columns, where energy savings are directly proportional to the vacuum in the column.

Actuators, Rotork

Rotork IQ Electric Actuator

Leave a comment

Rotork Valve Actuator

Rotork Valve Actuator IQ Electric Actuator

Specifications
Firstly, Complete integrated motor control.
Secondly, Simple non-intrusive, infra-red setup and adjustment.

Then provides intelligent communication options and a multilingual display. The IQ actuator range offers multi-turn (rotary) and quarter-turn isolating/regulating duty.

Torque range 14 to 3,000 Nm (10 to 2,200 lbf-ft) direct drive (multi-turn only). Higher torques when combined with IS or IB gearbox, up to 40,800 Nm (30,000 lbf-ft). Quarter-turn when combined with IW gearbox up to 250,000 Nm (185,000 lbf-ft).

  • Complete integrated motor control.
  • Simple non-intrusive, infra-red setup and adjustment.
  • Digital, analogue or bus system remote control and status reporting.
  • Comprehensive software tools for plant records and valve performance analysis.

Rotork Valve Actuator

Rotork Valve Actuator IQ Electric Actuator

It is the home of the flagship IQ intelligent electric actuator range. And the IQ range features legendary innovations including Rotork’s unique double-sealed enclosure, ‘non-intrusive’ infra-red commissioning, data-logging and predictive maintenance capabilities. Then, more recent innovations include the advanced display, and Bluetooth® communications interface and absolute encoder.

Moreover, the IQ functionality and reliability is available for valves of virtually every size and description, including multi-turn (rotary), quarter-turn, isolating and modulating, with watertight and hazardous area approvals to all internationally recognised standards.

Besides, electric actuator ranges also include the AWT for simplified control duties, ROM, ROMpak and Q direct drive actuators for small quarter-turn valves and IEEE qualified NA actuators for the nuclear power industry.

Therefore, the Rotork actuators are compatible with a wide range of communication and process control systems. Then, Rotork’s own Pakscan system offers advanced actuator network control similar to network control from Profibus, Foundation Fieldbus, Modbus, DeviceNet and Hart.

It is the home of the flagship IQ intelligent electric actuator range. The IQ range features legendary innovations including Rotork’s unique double-sealed enclosure.

I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Diaphragm Seals & Capillaries, Transmitters, Honeywell

Honeywell ST 700 Remote Diaphragm Seal Pressure Transmitter

Leave a comment

Diaphragm Seal Pressure Transmitter

Diaphragm Seal Pressure Transmitter Honeywell ST 700 easily meets the most demanding application needs for pressure measurement applications.

ST 700 Remote Diaphragm Seal Transmitters (STR700) provide accurate measurement in a wide variety of applications involving corrosive or high temperature process fluids. Typical applications include level measurement in pressurized vessels in hydrocarbon processing and flow measurement of slurries and high viscosity process fluids in chemical plants.

Honeywell offers the following STR700 Remote Diaphragm Seal Transmitters:

    • Flush flange seals

    • Flange seal with extended diaphragm

    • Pancake seals

    • Sanitary seals

    • Chemical tee “taylor” wedge

    • Seals with threaded process connections

    • Saddle seals

    • Calibration rings

    • Stainless steel armor and pvc coated stainless steel armor capillaries

    • 2” Stainless steel nipples

    • Welded meter body

Two models are available with the following range and span limits:

  • STR73D            -100 to 100 psid (-7 to 7 bar)                1 to 100 psid (0.07 to 7 bar)

  • STR74G            -500 to 500 psig (-35 to 35 bar)            5 to 500 psig (0.035 to 35 bar)

ST 700 Remote Diaphragm Seal Transmitters (STR700) provide accurate measurement in a wide variety of applications involving corrosive or high temperature process fluids. Typical applications include level measurement in pressurized vessels in hydrocarbon processing and flow measurement of slurries and high viscosity process fluids in chemical plants.

Transmitters, Honeywell

Honeywell STG700 SmartLine Gauge Pressure Transmitter

Leave a comment

Pressure Transmitter

Honeywell STG700 SmartLine Transmitter easily meets the most demanding application needs for pressure measurement applications.

ST 700 Gauge Pressure Transmitters (STG700) are ideal for applications ranging from high-pressure measurements in boilers and fuel feeds to tank level measurement applications with a relatively high process temperature. Users have the option of choosing between dual-head and in-line models to match their process interface requirements.​​​​

Introduction

Part of the SmartLine® family of products, the STG700 and STG70L are suitable for monitoring, control and data acquisition. STG70X products feature piezoresistivesensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion ® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.  needs for pressure measurement applications.

Best in Class Features:

  • Accuracies up to 0.065 % of calibrated span
  • Stability up to 0.02% of URL per year for 5 years
  • Automatic temperature compensation
  • Rangeability up to 100:1
  • Response times as fast as 100ms
  • Alphanumeric display capabilities
  • External zero, span, & configuration capability
  • Polarity insensitive electrical connections
  • On-board diagnostic capabilities
  • Integral Dual Seal design for highest safety basedon ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
  • World class overpressure protection
  • Full compliance to SIL 2/3 requirements as a standard.
  • Modular design characteristics

The following models are available for deployment:

• STG740/STG74L                     0-500 psi                        0-35 bar

• STG770/STG77L                     0-3,000 psi                     0-210 bar

• STG78L                                  0-6,000 psi                     0-420 bar

• STG79L                                  0-10,000 psi                   0-690 bar

Honeywell STG700 SmartLine Gauge Pressure Transmitter

ST 700 Gauge Pressure Transmitters (STG700) are ideal for applications ranging from high-pressure measurements in boilers and fuel feeds to tank level measurement applications with a relatively high process temperature. Users have the option of choosing between dual-head and in-line models to match their process interface requirements.​​​​
