Transmitters, Rosemount

Rosemount 648 Wireless Temperature Transmitter

Leave a comment

Rosemount Temperature Transmitter

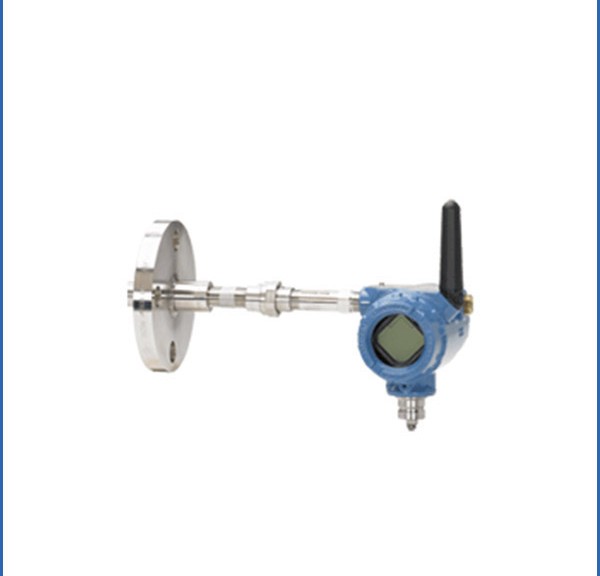

Rosemount 648 Wireless Temperature Transmitter

Specifications

Input
Supports Thermocouple, RTD, millivolt, and ohm input types.
See “Transmitter accuracy” on page 8 for sensor options.

Output
IEC 62591 (WirelessHART), 2.4 GHz DSSS

Local display
The optional five-digit integral LCD Display can display sensor temperature in engineering units (°F, °C, °R, K, Ω, and millivolts) and percent of range. The display updates based on the Wireless Update Rate.

Humidity limits
0–99% Non-condensing Relative Humidity

Update rate
WirelessHART, user-selectable 1 second to 60 minutes

Accuracy
(Pt 100 @ reference condition: 20 °C)
±0.225 °C (±0.405 °F)

Radio frequency power output from antenna External Antenna (WK1 option): Maximum of 10 mW (10dBm) EIRP



Rosemount Temperature Transmitter

Rosemount 648 Wireless Temperature Transmitter

The industry-leading Rosemount 648 Wireless Temperature

Transmitter delivers unmatched field reliability and

performance as a wireless measurement solution.

The 648 Wireless is ideal for high performance applications,

helping you achieve optimal efficiency with Best-in-Class

product specifications and capabilities.

The Rosemount 648 Wireless features include a large, easy to

read display, user-configurable process alerts, Long and

Extended Range Antenna options, and Transmitter-Sensor

Matching for enhanced accuracy.

Fully compatible with any IEC-approved WirelessHART network,

the 648 Wireless provides rich diagnostic data and reliable

performance as a Smart Wireless temperature solution.

  1. Superior accuracy and stability.
  2. Single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms).
  3. Transmitter-Sensor Matching with Callendar-Van Dusen.
  4. IEC-approved Wireless HART protocol.
  5. Dual-compartment housing, available in aluminum or stainless steel.
  6. Large LCD display.
  7. Extended Range Antenna options available
  8. Output: IEC 62591 (Wireless HART), 2.4 GHz DSSS.
  9. Accuracy: for Pt 100 is ±0.225 °C.
  10. Radio Frequency Power Output from Antenna: Maximum of 10 mW for External Antenna.
  11. Stability: ±0.15% for 2 years.
  12. Temperature Limits: –20 to 80 °C with LCD and –40 to 85 °C without LCD.
  13. Physical specification:
Transmitters, Rosemount

Rosemount 3144P Temperature Transmitter

Leave a comment

Rosemount Temperature Transmitter

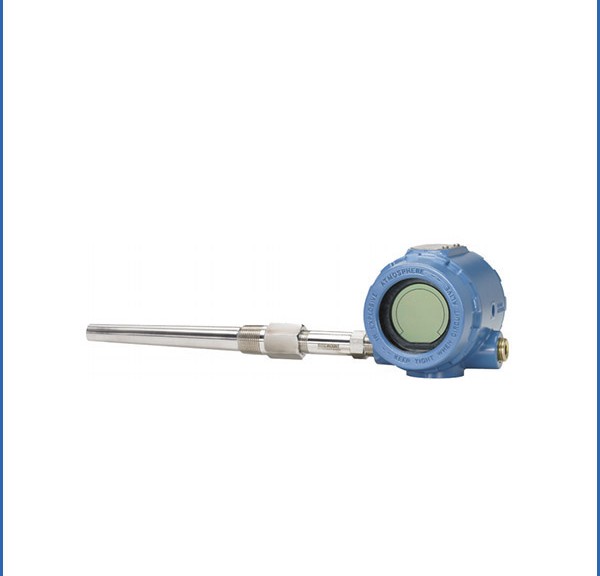

Rosemount 3144P Temperature Transmitter

specifications

Inputs
User-selectable. See Table 2 on page 9 for sensor options.

Output
2-wire device with either 4–20 mA/HART, linear with temperature or input, or completely digital output with FOUNDATION fieldbus communication (ITK 6.0.1 compliant).

Isolation
Input/output isolation specified to 500 Vdc (500 Vrms 707 V peak) at 50/60 Hz.

Humidity limits
0–99% relative humidity.

Update time
Approximately 0.5 seconds for a single sensor (1 second for dual sensors).

Rosemount  Temperature Transmitter

Rosemount 3144P Temperature Transmitter

The Rosemount 3144P Temperature Transmitter (available with

HART or FOUNDATION fieldbus protocols) provides industry-

leading accuracy, stability, and reliability.

The 3144P is designed with a dual-compartment, field-mount

electromechanical configuration, protecting the transmitter

against water intrusion and shielding it from harmful

electromagnetic surges.

A 5-year stability specification and an optional integral

transient protector make the 3144P the most reliable

temperature measurement instrument available.

The Rosemount 3144P has the capability to accept single-

sensor or dual-sensor inputs, which allows the transmitter

to receive simultaneous inputs from two independent sensors.

A dual-sensor configuration can be used for averaging

temperatures, measuring differentials, providing a redundant

temperature measurement, and taking advantage of key

features, such as Hot Backup® and Sensor Drift Alert.

Advanced diagnostics capabilities enable detection of sensor

drift, potential thermocouple sensor or loop degradation,

and enhanced insight into your processes and instrumentation.

The 3144P is available with MID certification for European Custody Transfer.

Contact your salesman for more information.

  • Conduit Connections: Power Module supplied with Intrinsically Safe solution owns 10 years’ life, Sensor terminals permanently fixed to terminal block.
  • Materials of Construction: Electronics Housing is Low-copper aluminum or Stainless Steel; Paint is Polyurethane.
  • Cover O-rings: Buna-N.
  • Terminal Block and Power Module: PBT.
  • Antenna: PBT/Polycarbonate (PC) integrated omnidirectional antenna.
  • Mounting: Transmitters can be attached directly to the sensor.
  • Enclosure Ratings: IP66 and IP67.
Transmitters, Rosemount

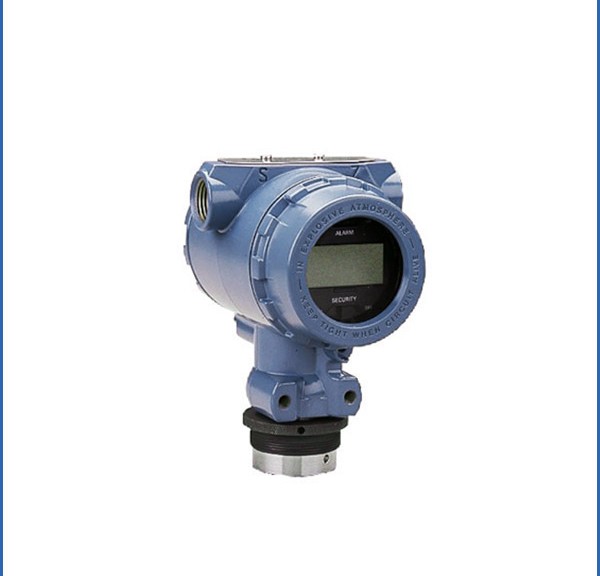

Rosemount 2090P Pulp and Paper Pressure Transmitter

Leave a comment

Rosemount Pressure Transmitter

Rosemount 2090P Pulp and Paper Pressure Transmitter

The 2090P can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 300 psi (20.7 bar). The combination of these superior measurement capabilities, its compact size and rugged construction make it ideal for pulp and paper applications.

  • Reference Accuracy: ± 0.20% of span
  • Rangeability: 20:1
  • Installed Stability of ± 0.10% of URL for 12 months
  • Available in 4-20mA HART® protocol
  • Available in 1-inch flush mount compatible with a PMC® process connection, or 1½-in. threaded mounting connection

Rosemount Pressure Transmitter

Rosemount 2090P Pulp and Paper Pressure Transmitter

The 2090P has process connections that position the

isolation diaphragm flush with vessel or pipe walls,

eliminating clogging problems associated with highly viscous

processes that tend to crystallize, polymerize, or

precipitate, such as those in the pulp and paper industry.

Absolute or gauge pressure ranges up to 300 psi and 20:1

turndown

Higher turndown allows for lower inventories by allowing you

to measure pressures from 1.5 psi to 300 psi with only three

transmitter ranges.

Communicates via the HART protocol

The 2090P utilizes the advantages of HART communication,

enabling quick and easy reranging, calibration and

troubleshooting.

0.20% reference accuracy including linearity, hysteresis, and

repeatability

The single-filled sensor system of the 2090P leads to

outstanding accuracy due to full sensor compensation.

1-in. flush mount compatible with PMC process connection,or

1 1/2-in. threaded mounting connection

The 2090P has process connections that position the

isolation diaphragm flush with vessel or pipe walls,

eliminating clogging problems associated with highly viscous

processes that tend to crystallize, polymerize, or

precipitate, such as those in the pulp and paper industry.

Absolute or gauge pressure ranges up to 300 psi and 20:1 turndown

Higher turndown allows for lower inventories by allowing you

to measure pressures from 1.5 psi to 300 psi with only three

transmitter ranges.

Communicates via the HART protocol

The 2090P utilizes the advantages of HART

communication,enabling quick and easy reranging, calibration

and troubleshooting.

Transmitters, Rosemount

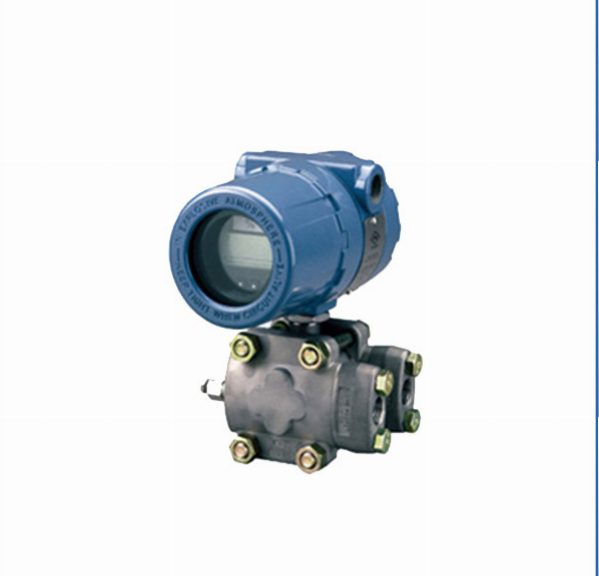

Rosemount 1151 Pressure Transmitter

Leave a comment

Rosemount Pressure Transmitter

Rosemount 1151 Pressure Transmitter

Features

  • Reference accuracy: ± 0.075% of span
  • Installed Stability: ± 0.01% of URL for 2 years
  • Rangeability: 50:1
  • Protocols available include 4-20mA HART, Analog, and Low Power
  • Differential, gauge and absolute pressure measurements
  • Pressure ranges up to 6000 psi

Rosemount Pressure Transmitter

Rosemount 1151 Pressure Transmitter

The Rosemount 1151 pressure transmitter combines modular

construction, interchangeable parts, dual compartment

housings, advanced electronics and sensors with proven field

performance, reliability and longevity in even the harshest

of environments. This combination of factors has made the

Rosemount 1151 pressure transmitter one of the most popular

pressure transmitters with millions installed worldwide.

The Rosemount 1151 pressure transmitter incorporates a

number of manufacturing and technological enhancements to

produce ±0.075% reference accuracy and rangeability to

50:1. An extended two-year stability of 0.10% provides

confidence in your pressure measurements.

The modular design of the Rosemount 1151 pressure

transmitter allows interchangeable mechanical and electrical

components, providing backward and forward compatibility.

The Rosemount 1151 pressure transmitter offers a variety of

configurations for differential, gauge, absolute, and

liquid-level measurements including integrated solutions for

pressure, level, and flow.

High pressure models allow static line pressures up to 6000 psi.

Multiple wetted materials, as well as alternative fill

fluids ensure process compatibility.

Smart, analog, and low-power electronics are available to

meet specific application requirements.

Specification

Pressure types:Gauge pressure,absolute pressure,differential pressure

Measuring rangeGauge: 200Pa-40MPa

Absolute: 2kPa – 10MPa

Differential: 200Pa-10Mpa

Output signal:4-20mA,4~20mA/HART , customer

Reference accuracy:0.075% ,0.05%,

Working temperature:-40-85℃, LCD display unit:-20-70℃

measuring medium:Liquid, gas, or steam level, density and pressure

Media temperature:with silicone oil -40-120℃,

with fluorocarbon oil -10-80℃

Proction class:IP67

OUTPUT SIGNAL:4~20mA two wire,power supply: 10.5-
55vdc

4~20mA+HART two wire,power supply: 16.5-55vdc

Diaphragm material:SS316L,Hastelloy C

Stability: ±0.2% URL/5years

Approvals: Flame proof certificate, ExdIICT6,

NEPSI,Intrinsic safety certificate, ExiaIICT4, NEPSI,CE certificate

Dimension

Transmitters, Rosemount

Rosemount 2051L Liquid Level Transmitter

Leave a comment

Rosemount Level Transmitter

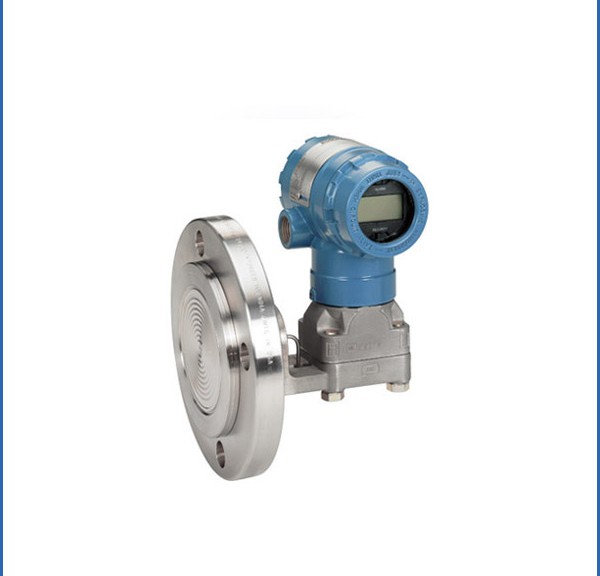

Rosemount 2051L Liquid Level Transmitter

Features

  • Compact and lightweight for easy installation and maintenance
  • Two-year stability of 0.10%
  • Welded fill fluid system
  • 100:1 rangeability
  • 0.075% accuracy
  • Flush and extended diaphragms
  • Multiple fill fluids and wetted materials available



Rosemount Level Transmitter

Rosemount 2051L Liquid Level Transmitter

The flange-mounted Rosemount 2051L liquid level transmitter

provides precise level and specific gravity measurement up

to 300 psi for a wide variety of tank configurations.

Based on proven capacitance cell technology, the Rosemount

2051L liquid level transmitter is designed for applications

requiring high levels of accuracy and performance, such as

inventory control, material balance, and head box.

With many diaphragm and flange options to fit all process

and installation needs, the Rosemount 2051L liquid level

transmitter is engineered to be the perfect fit for nearly

any application.

The Rosemount 2051L liquid level transmitter offers an

accuracy of 0.075% of span, 100:1 rangeability, and two-year

stability of 0.10% to provide confidence in your

measurements.

A welded fill fluid system provides best-in-class system reliability.

The Rosemount 2051L liquid level transmitter is configurable

with multiple wetted materials and fill fluids.

A wide range of options and hazardous area approvals are also available.

Output options available to the Rosemount 2051L liquid level

transmitter include 4-20mA or 1-5VDC with HART protocol, or

FOUNDATION fieldbus.

Brief introduction

Rosemount 2051 series pressure transmitter is specially

designed for a wide range of application requirements.

It provides reference for accuracy of 0.075%, 100:1 range

than, 2 years of stability.

Using strong commonality of common graphic platform design, the pressure,

Connection is the best process flow and level measurement applications.

2051 series pressure transmitter can provide comprehensive differential pressure,

Gage pressure and absolute pressure measuring scheme, thus

satisfies the customer the pressure,

Liquid level and flow measurement requirements.

The technical performance

The accuracy of performance index is high to 0.075%

Welding sealing liquid filling system to provide the first-class reliability

Flush type and expand the diaphragm

Can provide a variety of filling liquid

Transmitters, Rosemount

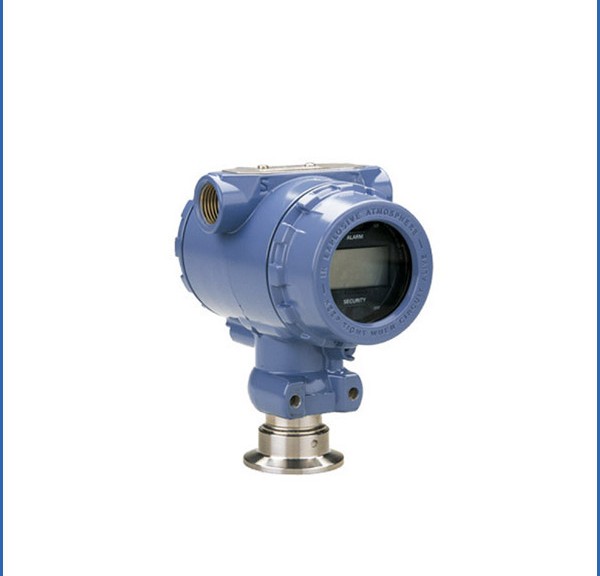

Rosemount 2090F Hygienic Pressure Transmitter

Leave a comment

Rosemount Pressure Transmitter

Rosemount 2090F Hygienic Pressure Transmitter

Features

  • Accuracy: ±0.20 % of span
  • Rangeability: 20:1
  • Output: 4-20 mA dc with HART Protocol
  • Conforms to 3-A Sanitary Standards
  • Features CIP/SIP service for process temperatures up to 284° F (140° C)
  • Absolute or gauge pressure ranges from 0-1.5 to 0-800 psi
  • Mounts with either 1-1/2 or 2 inch Tri-Clamp connection
  • Utilizes single-filled sensor system for reliability and outstanding accuracy

Rosemount  Pressure Transmitter

Rosemount 2090F Hygienic Pressure Transmitter

The Rosemount 2090F is a sanitary, microprocessor-based

Smart pressure transmitter.

The 2090F is highly reliable and accurate and conforms

With absolute or gauge pressure ranges that extend from 0-

1.5 psi to 0-800 psi, the Rosemount 2090F utilizes a single-

filled sensor system for reliability and the outstanding accuracy of 0.20%.

The 2090G has a rangeability of 20:1 to increase the

versatility of the unit and is highly reliable and accurate

and conforms to 3-A Sanitary Standards making it ideal for

use in the food .

pharmaceutical industries.



It features CIP/SIP service for process temperatures up to

284° F (140° C), and has a USDA accepted design.

The sanitary design also provides a product contact surface

that is easy to clean and able to withstand thermal shocks.

The  mounts with either 1 1/2 or 2 inch Tri-Clamp Connection.

The design of the Rosemount 2090F pressure transmitter is

small, stable, and reliable, making it ideal for food and

pharmaceutical applications, including: fermentation, vessel

pressure, HTST pasteurization, and back pressure control.

Brief introduction

Rosemount 2051 series pressure transmitter is specially

designed for a wide range of application requirements.

It provides reference for accuracy of 0.075%, 100:1 range

than, 2 years of stability.

Using strong commonality of common graphic platform design, the pressure,

Connection is the best process flow and level measurement applications.

2051 series pressure transmitter can provide comprehensive differential pressure,

Gage pressure and absolute pressure measuring scheme, thus satisfies the customer the pressure,

Liquid level and flow measurement requirements.



The technical performance

The accuracy of performance index is high to 0.075%

Welding sealing liquid filling system to provide the first-class reliability

Flush type and expand the diaphragm

Can provide a variety of filling liquid

Transmitters, Rosemount

Rosemount 2051TA Absolute Pressure Transmitter

Leave a comment

Rosemount Pressure Transmitter

Rosemount 2051TA Absolute Pressure Transmitter

Features

  • Reference Accuracy of 0.075%, optional 0.065%
  • Two-year stability of 0.10%, optional five-year stability
  • Rangeability of 100:1
  • Pressure ranges of 30, 150, 800, 4000and 10,000 psi
  • Protocols available include 4-20 mA HART, FOUNDATION fieldbus, 1-5 Vdc HART Low Power
  • 316L SST and Hastelloy C-276 process wetted parts

Rosemount  Pressure Transmitter

Rosemount 2051TA Absolute Pressure Transmitter

The Rosemount 2051TA pressure transmitter offers absolute or

gauge pressure measurements to 10,000 psi with advanced

capabilities designed to meet a wide range of applications

and to easily integrate into existing or new installations.

The versatile Rosemount 2051TA pressure transmitter has a

standard reference accuracy of 0.075% along with 100:1

rangedown and extended two-year stability of 0.10% to

provide confidence in your pressure measurements.

For applications demanding even more precision, an enhanced

accuracy of 0.065% with 5-year stability is available as an option.

The Rosemount 2051TA pressure transmitter is available with

a range of process connections and features 316L stainless

steel and Hastelloy ® C-276 process wetted parts.

The Rosemount 2051TA pressure transmitter is also available

with a wide range of hazardous area certifications.

Output options available to the Rosemount 2051TA pressure

transmitter include 4-20mA HART, Low Power HART, or

FOUNDATION fieldbus output protocols.

The Rosemount 2051TA pressure transmitter offers so many

options that it can be configured for any application.

Brief introduction

Rosemount 2051 series pressure transmitter is specially

designed for a wide range of application requirements.

It provides reference for accuracy of 0.075%, 100:1 range

than, 2 years of stability.

Using strong commonality of common graphic platform design, the pressure,

Connection is the best process flow and level measurement applications.

2051 series pressure transmitter can provide comprehensive differential pressure,

Gage pressure and absolute pressure measuring scheme, thus

satisfies the customer the pressure,

Liquid level and flow measurement requirements.



The technical performance

High performance index to 0.075% accuracy, can choose 0.065% accuracy.

Two years of 0.10% stability, can choose stability for five years

Calibration range from 0.3 to 10000 psi (689 bar) 10, 3 mbar to



Transmitters, Rosemount

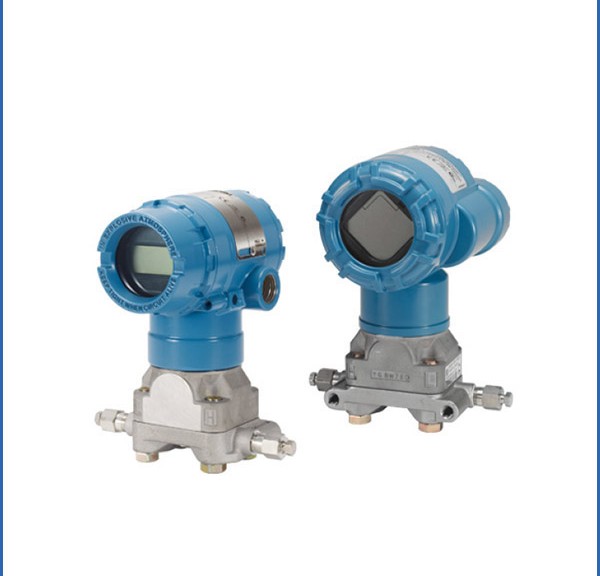

Rosemount 2051CG Gage Pressure Transmitter

Leave a comment

Rosemount Pressure Transmitter

Rosemount 2051CG Gage Pressure Transmitter

Features

  • Reference Accuracy of 0.075%, optional 0.065%
  • Two-year stability of 0.10%, optional five-year stability
  • Rangeability of 100:1
  • Calibrated spans/ranges from 0.5 inH2O to 2000 psi (1,2 mbar to 276 bar)
  • Protocols available include 4-20 mA HART, FOUNDATION fieldbus, 1-5 Vdc HART Low Power
  • 316L SST and Hastelloy C-276 process wetted parts
  • Coplanar platform enables integration of primary elements, manifolds, and diaphragm seal solutions



Rosemount  Pressure Transmitter

Rosemount 2051CG Gage Pressure Transmitter

The Rosemount 2051CG pressure transmitter offers

differential and gauge pressure measurements with advanced

capabilities designed to meet a wide range of applications

and to easily integrate into existing or new installations.

The versatile Rosemount 2051CG pressure transmitter has a

standard reference accuracy of 0.075% along with 100:1

rangedown and extended two-year stability of 0.10% to

provide confidence in your pressure measurements.

For applications demanding even more precision, both an

enhanced accuracy of 0.065% and 5-year stability are

available as options.

The Rosemount 2051CG pressure transmitter can utilize either

traditional flanges or Rosemount’s versatile Coplanar ™

platform designed to enable the best process connection for

pressure, flow, and level applications.

Right out of the box, the solution arrives factory

calibrated, pressure-tested, and ready to install.

The Rosemount 2051CG smart pressure transmitter is also

available in a number of materials and a wide range of

hazardous area certifications are available.

Output options available to the Rosemount 2051CG pressure

transmitter include 4-20mA HART, Low Power HART, or

FOUNDATION fieldbus output protocols.

The Rosemount 2051CG pressure transmitter offers so many

options that it can be configured for any application.

Product decription

The Rosemount 2051CG pressure transmitter is one member of

the pressure transmitter series of

Rosemount company,prividing a reliable differential, gage,

and absolute pressure measurement with a

variety of output protocols, materials and process connections.

2. Product feature

Performance of 0.075% accuracy, optional 0.065%

Two-year stability of 0.10%, optional five-year stability

Coplanar platform enables integrated manifold, primary

element and remote seal solutions

Calibrated spans/ranges from 0.5 inH2O to 2000 psi(1,2 mbar

to 138 bar)316L SST, Alloy C-276 and

tantalum process wetted parts

Recommended replacement for the Rosemount 1151

Transmitters, Rosemount

Rosemount 2051TG Gage Pressure Transmitter

Leave a comment

Rosemount Pressure Transmitter

Rosemount 2051TG Gage Pressure Transmitter

Features

  • Reference Accuracy of 0.075%, optional 0.065%
  • Two-year stability of 0.10%, optional five-year stability
  • Rangeability of 100:1
  • Pressure ranges of 30, 150, 800, 4000and 10,000 psi
  • Protocols available include 4-20 mA HART, FOUNDATION fieldbus, 1-5 Vdc HART Low Power
  • 316L SST and Hastelloy C-276 process wetted parts

Rosemount  Pressure Transmitter

Rosemount 2051TG Gage Pressure Transmitter

The Rosemount 2051TG pressure transmitter offers absolute or

gauge pressure measurements to 10,000 psi with advanced

capabilities designed to meet a wide range of applications

and to easily integrate into existing or new installations.

The versatile Rosemount 2051TG pressure transmitter has a

standard reference accuracy of 0.075% along with 100:1

rangedown and extended two-year stability of 0.10% to

provide confidence in your pressure measurements.

For applications demanding even more precision, an enhanced

accuracy of 0.065% with 5-year stability is available as an option.

The Rosemount 2051TG pressure transmitter is available with

a range of process connections and features 316L stainless

steel and Hastelloy ® C-276 process wetted parts.

The Rosemount 2051TG pressure transmitter is also available

with a wide range of hazardous area certifications.

Output options available to the Rosemount 2051TG pressure

transmitter include 4-20mA HART, Low Power HART, or

FOUNDATION fieldbus output protocols.

The Rosemount 2051TG pressure transmitter offers so many

options that it can be configured for any application.

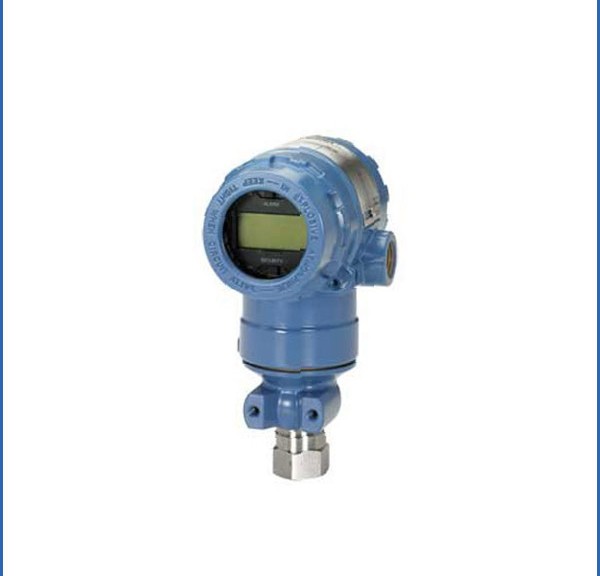

The Rosemount 2051T pressure transmitter is available with a

range of process connections and features 316L stainless

steel and Hastelloy ® C-276 process wetted parts.

The Rosemount 2051T pressure transmitter is also available

with a wide range of hazardous area certifications.

The Rosemount 2051T pressure transmitter offers absolute or

gage pressure measurements to 10,000 psi with advanced

capabilities designed to meet a wide range of applications

and to easily integrate into existing or new installations.

The versatile Rosemount 2051T pressure transmitter has a

standard reference accuracy of 0.075% along with 100:1

rangedown and extended two-year stability of 0.10% to

provide confidence in your pressure measurements.

For applications demanding even more precision, an enhanced

accuracy of 0.065% with 5-year stability is available as an option.





Transmitters, Rosemount

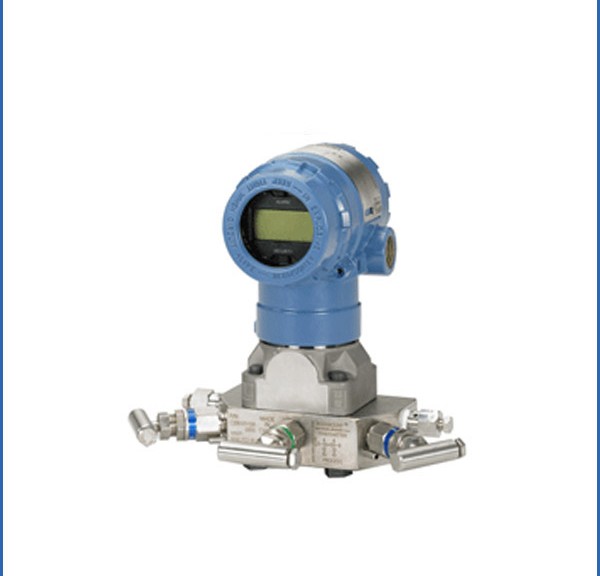

Rosemount 2051CD Differential Pressure Transmitter

Leave a comment

Features

  • Reference Accuracy of 0.075%, optional 0.065%
  • Two-year stability of 0.10%, optional five-year stability
  • Rangeability of 100:1
  • Calibrated spans/ranges from 0.5 inH2O to 2000 psi (1,2 mbar to 276 bar)
  • Protocols available include 4-20 mA HART, FOUNDATION fieldbus, 1-5 Vdc HART Low Power
  • 316L SST and Hastelloy C-276 process wetted parts
  • Coplanar platform enables integration of primary elements, manifolds, and diaphragm seal solutions



The Rosemount 2051CD pressure transmitter offers differential and gauge pressure measurements with advanced capabilities designed to meet a wide range of applications and to easily integrate into existing or new installations.

The versatile Rosemount 2051CD pressure transmitter has a standard reference accuracy of 0.075% along with 100:1 rangedown and extended two-year stability of 0.10% to provide confidence in your pressure measurements. For applications demanding even more precision, both an enhanced accuracy of 0.065% and 5-year stability are available as options.

The Rosemount 2051CD pressure transmitter can utilize either traditional flanges or Rosemount’s versatile Coplanar ™ platform designed to enable the best process connection for pressure, flow, and level applications. Right out of the box, the solution arrives factory calibrated, pressure-tested, and ready to install. The Rosemount 2051CD smart pressure transmitter is also available in a number of materials and a wide range of hazardous area certifications are available.

Output options available to the Rosemount 2051CD pressure transmitter include 4-20mA HART, Low Power HART, or FOUNDATION fieldbus output protocols. The Rosemount 2051CD pressure transmitter offers so many options that it can be configured for any application.

Transmitters, Rosemount

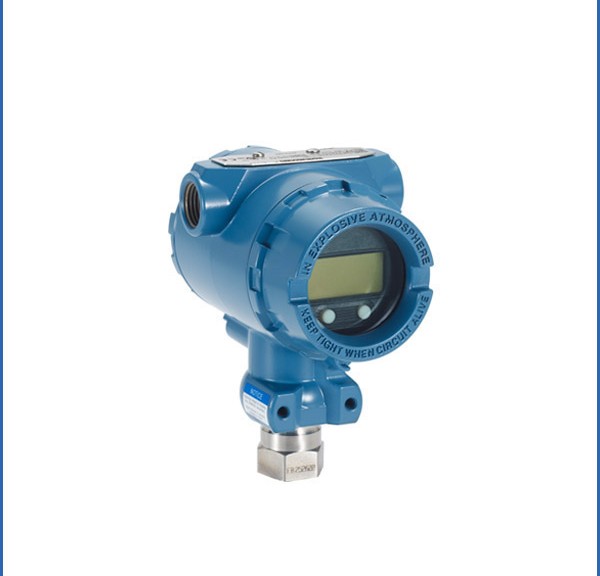

Rosemount 2088 Absolute and Gage Pressure Transmitter

Leave a comment

Rosemount Pressure Transmitter

Rosemount 2088 Absolute and Gage Pressure Transmitter

Features

  • Absolute of gauge pressure measurement
  • For pressures up to 4000 psi
  • Accuracy: ±0.10%
  • Rangeability: 20:1
  • Integral manifold
  • Stainless steel or Hastelloy wetted materials
  • Smart communications
  • External push button zero and span capabilities

Rosemount  Pressure Transmitter

Rosemount 2088 Absolute and Gage Pressure Transmitter

The Rosemount 2088 pressure transmitter provides accurate,

stable, and reliable pressure measurement in difficult

applications.

The small compact design allows the Rosemount 2088 pressure

transmitter to be directly connected to a process –

providing a quick, easy, and cost effective installation.

The Rosemount 2088 pressure transmitter provides superior

measurement capability that can be used for almost any line

pressure or tank level applications.

The 2088 pressure transmitter is available in either gauge

or absolute pressure in pressure ranges to 4,000 psi (275

bar). It utilizes a solid-state, polysilicon pressure sensor

with a choice of either 316L or Hastelloy C-276 isolating

diaphragms.

The low oil fill of this design has very little temperature

effect and outstanding accuracy.

The Rosemount 2088 pressure transmitter is suitable for

almost any location in which value is a priority.

Its patented piezoresisitive silicon sensor, dual-

compartment housing, and compact, lightweight design adds up

to a reliable, convenient, an economical installation

wherever it is applied.

It is designed with reliability, long-term performance, and maintainability in mind.

The Rosemount 2088 pressure transmitter is available with a

wide range of options to provide solutions for virtually any application.

Specifications
Measurement Type
Gage, absolute
Accuracy
Up to 0.065% of span
Stability
Up to ±0.10% of Upper Range Limit (URL) for 3 years
Warranty
Up to 5-year limited warranty
Rangedown
Up to 50:1
Communication Protocol
4-20 mA HART®, 1-5 V Low Power HART®
Features
•
Local Operator Interface (LOI) features straightforward menus and built-in configuration buttons for ease-of-use
•
Factory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-up
•
Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibility
Transmitters, Rosemount

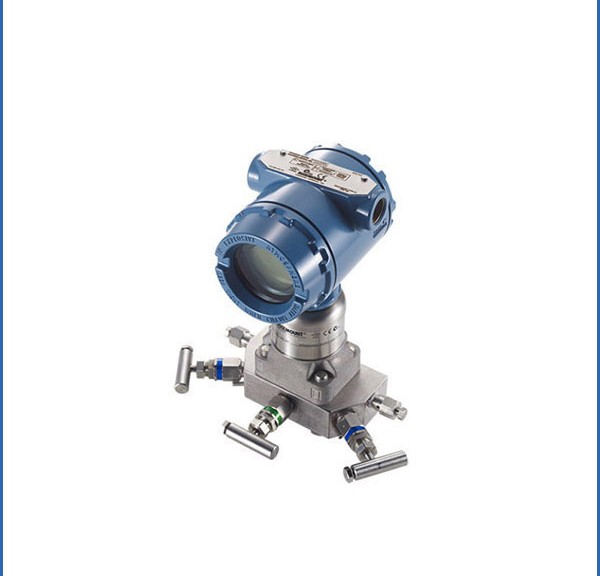

Rosemount 3051S Coplanar Pressure Transmitter

Leave a comment

Rosemount Pressure Transmitter

Rosemount 3051S Coplanar Pressure Transmitter



Output

  • Two-wire 4-20 mA is user-selectable for linear or square root output. Digital signal based on HART Protocol.

Range Limits

  • 3051S_CA: 0-0.167 to 0-4000 psia
  • 3051S_CD: 0-0.01 in H2O to 0-2000 psid
  • 3051S_CG: 0-8.3 in H2O to 2000 psig
  • 3051SAL: 0-8.3 in H2O to 0-300 psi
  • 3051S_TA: 0-0.3 to 0-10,000 psia
  • 3051S_TG: 0-0.3 to 0-10,000 psig



Rosemount Pressure Transmitter

Rosemount 3051S Coplanar Pressure Transmitter



• The 3051S Series offers the highest field performance and reliability

• The SuperModule® platform provides the foundation for built-in pressure, flow and level solutions

• The IEC 62591 (WirelessHART ™) protocol enables cost-effective installation

• Multivariable ™ technology for full compensation for quality and energy flow

• Advanced diagnostic capabilities range from process to host system

• Innovative DP flowmeter integrates primary components and transmitters into one device

• Electronic remote sensors and Tuned-System ™ components are available

For cost-effective optimized level measurement

2-Wire Differential rosemount 2088 pressure transmitter is

Reference Accuracy



3051S_CD/CG, Range 1:

Classic: +0.10% of span, For spans less than 15:1, ±[0.025 + 0.005(URL / Span)]% of span
Ultra: +0.09% of span, For spans less than 15:1, ±[0.015 + 0.005(URL / Span)]% of span
3051S_CD, Range 0:

Classic: +0.10% of span, For spans less than 2:1: ±0.05% of URL
Ultra: +0.09% of span, For spans less than 2:1: ±0.045% of URL
3051S_CA, Ranges 1-4:

Classic: +0.035% of span, For spans less than 10:1: ±[0.0065(URL / Span)]% of span
Ultra: +0.025% of span, For spans less than 10:1: ±[0.004(URL / Span)]% of span
3051S_CA, Range 0:

Classic: +0.075% of span, For spans less than 5:1: ±[0.025 + 0.01(URL / Span)]% of span
Ultra: +0.075% of span, For spans less than 5:1: ±[0.025 + 0.01(URL / Span)]% of span
3051S_TA/TG, Ranges 1-4:
