pressure transmitter

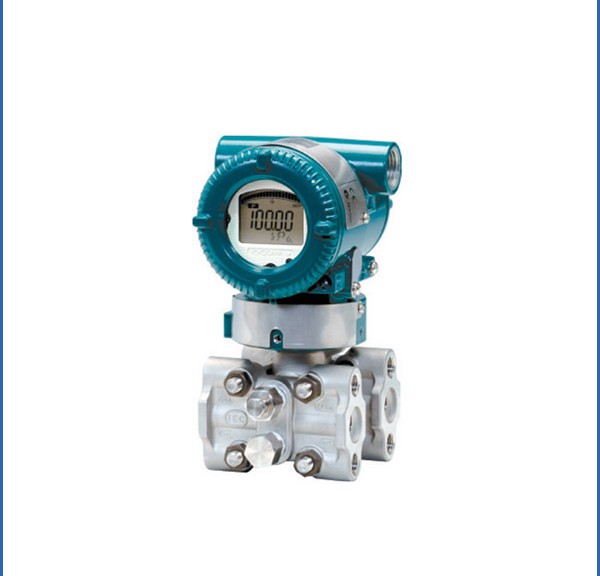

pressure transmitter Yokogawa EJX430A Gauge Pressure Transmitter

The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the the thoroughbred of the DPharp family of pressure transmitters.

The EJX430A is the Traditional Mount Gauge Pressure Transmitter in the series.

EJX430A features include:

• 0.04% Accuracy (Optional 0.025% Accuracy)
• 0.1% per 10 years Stability
• 90 ms Response Time
• Local Parameter Setting (LPS)
• TUV SIL 2/3 (IEC61508) Certified

pressure transmitter

pressure transmitter Yokogawa EJX430A Gauge Pressure Transmitter

The high performance gauge transmitter EJX430A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam pressure. The EJX430A outputs a 4 to 20 mA DC signal corresponding to the measured pressure.

It also features quick response, remote setup and monitoring via BRAIN or HART communications, and diagnostics. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available.

All EJX series models in their standard confi guration,
with the exception of the Fieldbus and PROFIBUS
types, are certifi ed by TÜV as complying with SIL 2 for
safety requirement.

Output “◊”
Two wire 4 to 20 mA DC output with digital
communications, linear or square root programmable.
BRAIN or HART FSK protocol are superimposed on
the 4 to 20 mA signal.
Output range: 3.6 mA to 21.6 mA
Output limits conforming to NAMUR NE43 can be
pre-set by option code C2 or C3.
Failure Alarm (Output signal code D, E and J)
Output status at CPU failure and hardware error;
Up-scale: 110%, 21.6 mA DC or more (standard)
Down-scale: −5%, 3.2 mA DC or less
Analog output status at process abnormality (Option
code /DG6);
The result of process abnormality detected by the
advanced diagnostic function can be reflected to
an analog alert status. The following three setting
modes are available.

EJX430A Gauge Pressure Transmitter – General Specifications

pressure transmitter

pressure transmitter Yokogawa EJX310A Absolute Pressure Transmitter

The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it a thoroughbred of the DPharp family of pressure transmitters.

The EJX310A is the traditional-mount Absolute Pressure Transmitter in the series.

EJX310A features include:

• 0.04% Accuracy
• 0.2% per 10 years Stability
• 90 ms Response Time
• TUV IEC61508 SIL 2/3 Certification
• LPS (Local Parameter Setting)

pressure transmitter

Yokogawa EJX310A Absolute Pressure Transmitter

The high performance absolute transmitter EJX310A features single crystal silicon resonant sensor.

The EJX310A outputs a 4 to 20 mA DC signal corresponding to the measured pressure.

The multi-sensing technology provides the advanced diagnostic function to detect

FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available.

All EJX series models in their standard confi guration

Mounting Position Effects
Tilting up to 90 degree will cause zero shift up to 0.5
kPa (2.0 inH2O), which can be corrected by the zero
adjustment.
Response Time (All capsules) “◊”
90 ms

When amplifier damping set to zero and including
dead time of 45 ms (nominal)
Minimum Pressure at Calibration*
L capsule: 130 Pa abs (1 mmHg abs)
M, A and B capsules: 2.7 kPa abs (20 mmHg abs)
* : If one or two of the calibration points are smaller
than the above value, the above pressure is used
for testing.

In case all of the calibration points are greater
than the limit, only the pressure of upper range
value (URV) is applied for testing.
Specifying option code /S1 with M or A capsule
will lower the limit to 130 Pa abs.
/S1 is recommended for M capsule when
the specified upper range value (URV) is not
exceeding 3.4 kPa abs.

EJX310A Absolute Pressure Transmitter – General Specifications

Differential Pressure Transmitter

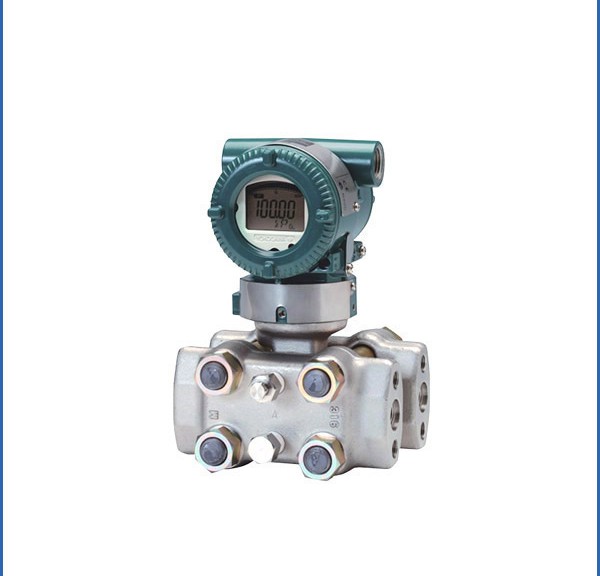

Yokogawa EJX130A Differential Pressure Transmitter

The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

The EJX130A is the traditional-mount high-static Differential Pressure Transmitter in the series.

EJX130A features include:

• 0.04% Accuracy
• 0.1% Stability per 10 years
• 4,500 psi MWP
• 150 ms Response Time
• Local Parameter Setting (LPS)
• TUV SIL 2/3 (IEC 61508) Certified

Differential Pressure Transmitter

Yokogawa EJX130A Differential Pressure Transmitter

The high performance pressure transmitter EJX130A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJX130A outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.

Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat
trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available. All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified by TÜV as complying with SIL 2 for safety requirement.

Vibration Effects
Amplifier housing code 1 and 3:
Less than 0.1% of URL when tested per the
requirements of IEC60770-1 field or pipeline
with high vibration level (10-60 Hz, 0.21 mm
displacement/60-2000 Hz 3 g)
Amplifier housing code 2:
Less than ±0.1% of URL when tested per the
requirements of IEC60770-1 field with general
application or pipeline with low vibration level (10-60
Hz 0.15mm displacement /60-500 Hz 2g)

EJX130A Differential Pressure Transmitter – General Specifications

Differential Pressure Transmitter

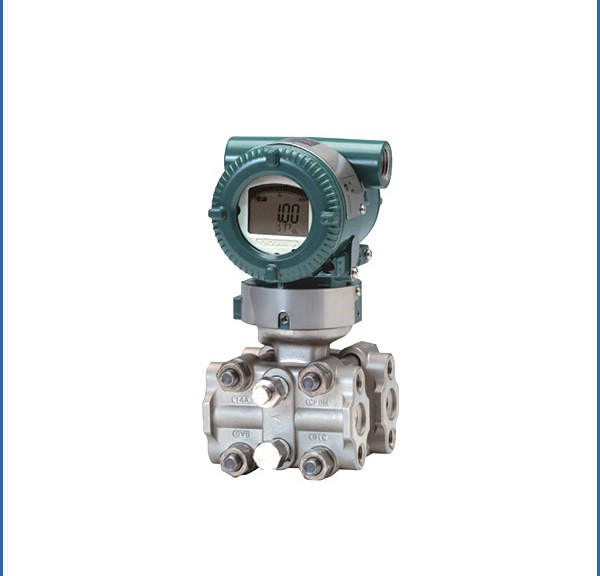

Yokogawa EJX120A Draft Range Differential Pressure Transmitter

The EJX-A series is Yokogawa’s premium perforamnce line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

The EJX120A is the traditional-mount Draft Range Pressure Transmitter in the series.

EJX120A feature include:

• 0.09% Accuracy
• TUV SIL 2 (IEC 61508) Certified
• 150 msec Response Time
• Local Parameter Setting (LPS)
• True Draft Range design

Differential Pressure Transmitter

Yokogawa EJX120A Draft Range Differential Pressure Transmitter

The high performance draft range pressure transmitter EJX120A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. EJX120A outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.

Other key features include quick response, remote set-up using communications, diagnostics and optional status output for pressure high/low alarm. The multisensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available. All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified by TÜV as complying
with SIL 2 for safety requirement.

EJX120A Differential Pressure Transmitter – General Specifications

Yokogawa transmitter

Yokogawa transmitter EJX115A Low Flow Transmitter

The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

The EJX115A is Differential Pressure Transmitter in the series that is optimized for low flow applications with the addition of an Integral Flow Orifice (IFO).

EJX115A features include:

• 0.04% Square Root Output Accuracy
• 0.1% per 10 years Stability (DP)
• 90 ms ~ 150 ms Response Time
• TUV SIL 2 (IEC 61508) Certified
• Local Parameter Setting (LPS)

Yokogawa transmitter

Yokogawa transmitter EJX115A Low Flow Transmitter

The low flow transmitter EJX115A is a differential pressure transmitter assembled with an integral orifice and excellent for very low flow measurement.
It outputs a 4 to 20 mA DC signal corresponding to the measured flow. Its highly accurate and stable sensor can also measure the static pressure which can show on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available.

All EJX series models in their standard configuration, with the exception of the Fieldbus and PROFIBUS types, are certified by TÜV as complying with SIL 2 for safety requirement.

EJX115A Low Flow Transmitter – General Specifications

Differential Pressure Transmitter

Yokogawa EJX110A Differential Pressure Transmitter

The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

The EJX110A is the traditional-mount Differential Pressure Transmitter in the series.

EJX110A features include:

• 0.04% Accuracy (0.025% Accuracy option available)
• 0.1% per 10 years Stability
• 3,600 psi MWP
• 90 msec Response Time
• Local Parameter Setting (LPS)
• TUV NORD SIL 2/SIL 3 (IEC 61508) Certified

Differential Pressure Transmitter

Yokogawa EJX110A Differential Pressure Transmitter

The high performance pressure transmitter EJX110A features single crystal silicon resonant sensor and is suitable to measure liquid, gas, or steam fl ow as well as liquid level, density and pressure. EJX110A outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure.

Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via BRAIN or HART communications. Other key features include quick response, remote set-up using communications, diagnostics and optional status output for pressure high/low alarm. The multi-sensing technology provides the advanced diagnostic function to detect such abnormalities as an impulse line blockage or heat
trace breakage. FOUNDATION Fieldbus and PROFIBUS PA protocol types are also available. All EJX series models in their standard confi guration, with the exception of the Fieldbus and PROFIBUS types, are certifi ed by TÜV as complying with SIL 2 for safety requirement.

EJX110A Differential Pressure Transmitter – General Specifications
