proximity sensor

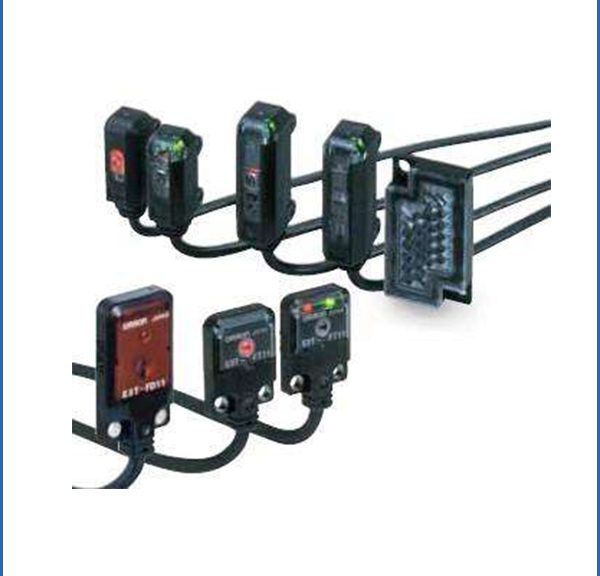

Omron Proximity Sensor E2K-L Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2K-L
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2K-L
Name:Omron Proximity Sensor E2K-L
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor E2K-L Series





Features:
Bypass pipe mounting type

Applicable to φ8 ~ 11mm, φ12 ~ 26mm large diameter

Amplifier built-in, space-saving installation

species:
Ontology

Detection method for diameter shape output form / action

mode model

Capacitance mode φ8 ~ 11mm

475_lu_1_1

NPN open collector output NO E2K-L13MC1 2M

Φ12 ~ 26mm

475_lu_1_2

E2K-L26MC1 2M

Rating / Performance:

Item Model E2K-L13MC1 E2K-L26MC1

Applicable pipe material Nonmetal

Size Outer diameter φ8 ~ 11mm φ12 ~ 26mm

Wall thickness 1mm below 1.5mm or less

Can detect object liquid *

Repeat distance ± 0.2mm or less

Should be due to pipe size, solution and change

The reference value of 0.6 ~ 5mm 0.3 ~ 3mm

Power supply voltage (using voltage) DC12 ~ 24V Ripple 10%

or less (DC10.8 ~ 30V)

Current consumption below 12mA

Control output switch capacity of 100mA or less

Residual voltage 1V or less (load current: 100mA, wire

length: 2m)

Check the level mark position

Indicator light detection display (orange)

Ambient temperature range Use: 0 ~ +55 ℃, save: -10 ~ +65

℃ (no icing, condensation)

Ambient temperature range When used, save: 25 ~ 85% RH (no

condensation)

Temperature of 0 ~ + 55 ℃ temperature range +23 ℃, the

detection level of ± 4mm (pure water and 20% saline)

(E2K-L13MC1 pipe diameter φ8 pure water is ± 6mm)

Voltage of the rated power supply voltage within ± 10% of

the rated power supply voltage when the detection level of ± 0.5mm

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housin

Withstand voltage AC500V 50 / 60Hz 1min charging part

between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 3 times

Protection structure IEC standard

Connection type wire lead type (standard wire length 2m)

Quality (after packaging) about 70g

Material shell, cover heat ABS

Wire clip NBR

Accessories with two straps, anti-slip tube 4, the use of manual

* In the following cases, there is a problem that can not be

measured, and the test performance must be confirmed on the

device to be used.

(1) When the relative dielectric constant or the

conductivity of the liquid is low, the electrostatic

capacity type is used, and the liquid level may not be detected.

(2) In the case where the liquid capacity is small or the

corresponding capacity change of the liquid level changes is

small due to the small diameter and the wall thickness of the pipe size

(3) the inner wall of the pipeline has a high viscosity

liquid film and a large number of foam residues, or pipe

wall attached to the accumulation of dirt and so on

proximity sensor

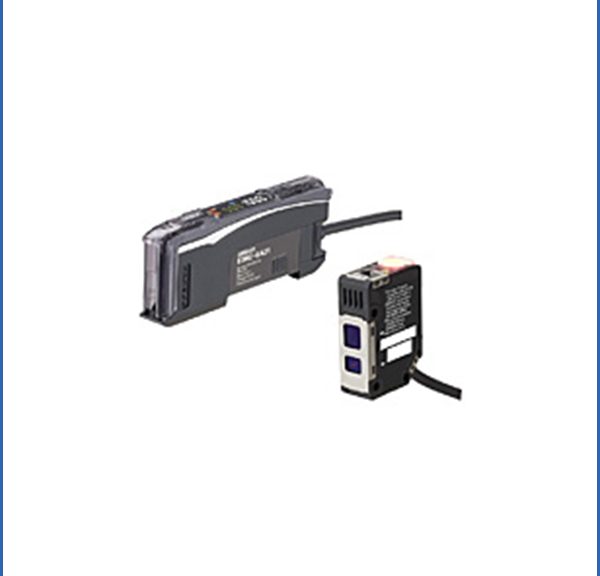

Omron Proximity Sensor E2K-F Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2K-F
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2K-F
Name:Omron Proximity Sensor E2K-F
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor E2K-F Series





Features:

Efficient space-saving flat type (built-in amplifier,

thickness 10mm)

Can be installed directly to the metal surface

species:
Ontology

Shape Detection Distance Output Type Model / Action Mode
NO NC

Flat type unshielded

472_lu_1_1

10mm DC 3-wire NPN E2K-F10MC1 2M E2K-F10MC2 2M
10mm

[4 to 10 mm *] E2K-F10MC1-A 2M E2K-F10MC2-A 2M

* Detection range of variable range

Rating / Performance:

Item Model E2K-F10MC □ -A E2K-F10MC □

Detection distance 10mm (detection range of variable range: 4 ~ 10mm) 10mm ± 10%

Set the distance 0 ~ 7.5mm *

Should be less than 15% of the detection distance

Detects object conductors and dielectrics

Standard detection of objects to ground metal plate 50 × 50 × 1mm

Response frequency 100Hz

Power supply voltage (using voltage range) DC12 ~ 24V

Pulsation (p-p) 10% or less (DC10 ~ 30V)

Current consumption below 10mA (DC24V)

Control output switch capacity NPN open collector, up to 100mA (DC30V)

Residual voltage 1.5V or less (load current 100mA, wire length 2m)

Indicator light (red)

Sensitivity adjustment knob speed 12 rpm –

Operation mode (near detection object) For details, refer to

the timing diagram of “Input Output Section Circuit Diagram”

on the Catalog

Protection circuit reverse connection protection, surge absorption

Ambient temperature range of work, when stored: -10 ~ +55 ° C (no icing, condensation)

Ambient humidity range Operating time: When saving: 35 ~ 85%

RH Operating time: When saving: 35 ~ 95% RH

Temperature of ± 10% of the detection range at + 23 ° C in

the temperature range of -10 ~ + 55 ° C

The voltage is within ± 10% of the rated power supply

voltage, the rated power supply voltage, the detection

distance of ± 2.5%

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage AC500V 50 / 60Hz 1min charging part

between the whole and the shell

Vibration (durable) 10 ~ 55Hz double amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 3 times

Protection structure IEC standard IP64 IEC standard IP66

Connection type wire lead type (standard wire length 2m)

After the quality (after packaging) about 35g

Material shell heat ABS

Detection surface

Accessories manual

* E2K-F10MC □ -A Adjusted to 10mm when the value.

proximity sensor

Omron Proximity Sensor E2K-X Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number: E2K-X
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model: E2K-X
Name:Omron Proximity Sensor E2K-X
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor E2K-X Series





Equipped with M12, M18, M30 type

Detection of fixed distance without adjustment

species:
Ontology

Shape Detection Distance Output Type Model

Action mode

NO NC

Unshielded

471-lu-1-1

M12 4mm DC 3-wire NPN E2K-X4ME1 2M E2K-X4ME2 2M

DC 3-wire PNP E2K-X4MF1 2M E2K-X4MF2 2M

AC 2-wire E2K-X4MY1 2M E2K-X4MY2 2M

M18 8mm DC 3-wire NPN E2K-X8ME1 2M E2K-X8ME2 2M

DC 3-wire PNP E2K-X8MF1 2M E2K-X8MF2 2M

AC 2-wire E2K-X8MY1 2M E2K-X8MY2 2M

M30 15mm DC 3-wire NPN E2K-X15ME1 2M E2K-X15ME2 2M

DC 3-wire PNP E2K-X15MF1 2M E2K-X15MF2 2M

AC 2-wire E2K-X15MY1 2M E2K-X15MY2 2M

Rating:
Item Model E2K-X4ME □,

E2K-X4MF □,

E2K-X4MY □ E2K-X8ME □,

E2K-X8MF □,

E2K-X8MY □ E2K-X15ME □,

E2K-X15MF □,

E2K-X15MY □

Detection distance 4mm ± 10% 8mm ± 10% 15mm ± 10%

Set distance * 1 0 ~ 2.8mm 0 ~ 5.6mm 0 ~ 10mm

Should be detected by the distance of 4 to 20%

Can detect object conductor and dielectric body

Standard detection of objects to ground metal plate 50 × 50 × 1mm

Response frequency E type, F type: 100Hz,

Y type: 10Hz

Power supply voltage * 2

(Use voltage range) E type, F type: DC12 ~ 24V (DC10 ~ 30V)

Y type: AC100 ~ 220V (AC90 ~ 250V)

Current consumption E type, F type: 15mA or less

Leakage current Y type: 2.2mA below See sample

Control output switch capacity E type, F type: 200mA or less * 2 Y type: 10 ~ 200mA

Residual voltage E type, F type: 2V or less (load current

200mA, wire length 2m) Y type: Please refer to the sample

“characteristic data”

Indicator E type, F type: detection indicator (red) Y type: action indicator (red)

Action mode

(When the detection object is close) E1, F1, Y1 type: NO

E2, F2, Y2: NC

For details, refer to the timing diagram of the “Input

Output Section Circuit Diagram” on the sample

Protection circuit E type, F type: reverse connection

protection, surge absorption, load short circuit protection,

output reverse protection, Y type: surge absorption

Ambient temperature range of work, when stored: -25 ~ +70 °

C (no freezing, no condensation) work, save: the -10 ~ +

(No freezing, no condensation)

Ambient humidity range when operating, save: 35 ~ 95% RH (no condensation)

Temperature effects within the temperature range, + 23 ° C,

the detection distance of ± 20% or less

Voltage effect E type, F type: within ± 20% of the rated

power supply voltage, the rated power supply voltage, the

detection distance of ± 2%

Y type: within ± 10% of the rated power supply voltage, the

rated power supply voltage, the detection distance of ± 2%

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage E type, F type: AC1,000V 50 / 60Hz 1min

charging part of the whole and the shell between

Y type: AC2,000V 50 / 60Hz 1min charging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz double amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 3 times

Protection structure IEC standard IP66, the company internal standard oil

Connection type Wire lead type (standard wire length 2m)

The quality (after packaging) is about 65g about 145g about 205g

Material shell heat ABS

Detection surface

Tighten nuts with polyacetal

Accessories manual

* 1. The numbers in the table are the detection distance of

the standard detection object. For other materials, see

“Characteristic data” on the sample.

* 2. Type E, type F (DC switch type) can use DC24V ± 20%

(average) full-wave rectifier power supply.

proximity sensor

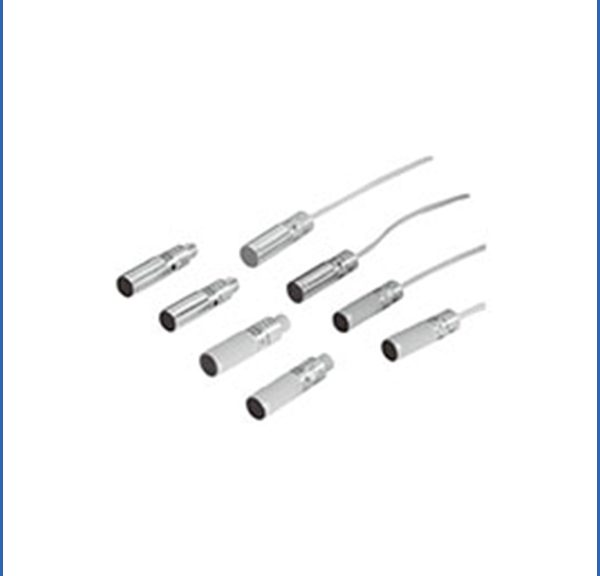

Omron Proximity Sensor E2K-C Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2K-C
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2K-C
Name:Omron Proximity Sensor E2K-C
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor E2K-C Series





Omron Proximity Sensor E2K-C

The metal heads of the E2EF achieve the same distances for

the same sizes as the E2E Proximity Sensors with Resin Heads.

This allows you to use Proximity Sensors that withstand

friction with the workpiece without major changes to

mounting brakets.

The 0.4-mm metal head exhibits almost no wear due to

friction with the workpiece or cleaning with metal brushes.

This helps prevent equipment down time due to sensor failure

and reduces the frequency of replacement.

Spatter-resistant models with fluororesin-coated head are

also available.

Reduces adhesion of spatter to achieve stable detection.

The tough all-stainless steel housing with a flame-retardant

cable enables reliable application where spatter is present

near welding machines.

Main information

Omron Proximity Sensor E2K-C

Sensing object

Ambient temperature range

Dielectric strength

Degree of protection

Ferrous metal (The sensing distance decreases with non-

ferrous metal.

Refer to Engineering Data on Data Sheet.)

Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no

icing or condensation)

1,000 VAC, 50/60 Hz for 1 minute between current-carrying

parts and case

IEC 60529 IP67

CAD:
Product Type Product Overview CAD Download

E2K-C20MC1 Noise-Resistant Model, DC 3-Wire Model, Sensing

Distance 3 to 20mm, Operation Mode NO 2D / 3D

E2K-C20MC2 Noise-Resistant Model, DC 3-Wire Model, Sensing

Distance 3 to 20mm, Operation Mode NC 2D / 3D

E2K-C20MT1 Noise-Resistant Model, AC / DC 2-Wire Model,

Sensing Distance 3 to 20mm, Operation Mode NO 2D / 3D

E2K-C20MT2 Noise-Resistant Model, AC / DC 2-Wire Model,

Sensing Distance 3 to 20mm, Operation Mode NC 2D / 3D

proximity sensor

Omron Proximity Sensor E2C / E2C-H Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2C / E2C-H
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2C / E2C-H
Name:Omron Proximity Sensor E2C / E2C-H
Accuracy:0.5%FS

proximity sensor

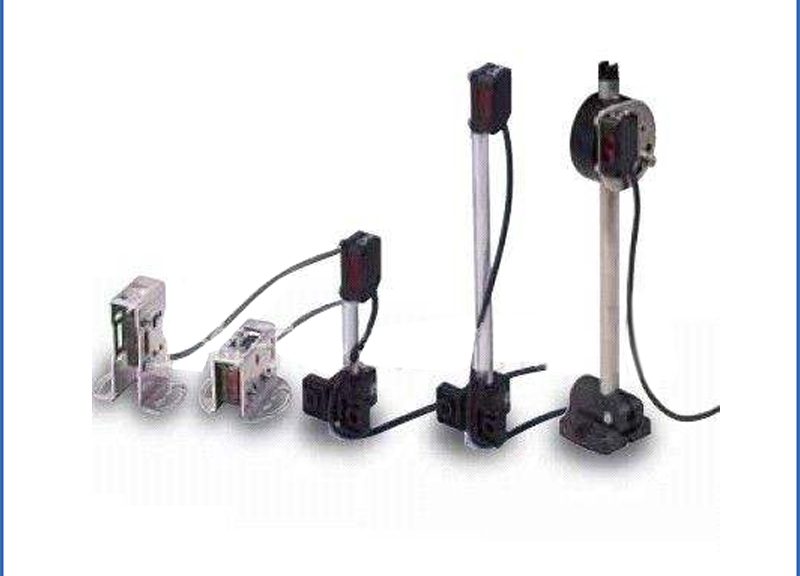

Omron Proximity Sensor E2C-EDA Series





Features:

To achieve the miniaturization of the sensor. Compact

Available in a temperature range of -10 to + 200 ° C.
species:
Ontology

Standard type

The sensor section is part of the amplifier unit

Shape stability detection distance * 1 Model Model Power /

Output form timer

Function self-test
Output
shield
464_lu_1_1

Φ 3.5 0.8 (1.8)

Mm E2C-CR8A 3M E2C-GE4A DC / (NPN) – –

E2C-GF4A DC / (PNP) – –
E2C-JC4AP 2M

* 2 DC / (NPN) ○ ○

E2C-JC4A 2M DC / (NPN) ○ –

E2C-AM4A DC / (NPN PNP) – –

E2C-AK4A AC –

Φ3.8 0.8 (1.8)

Mm E2C-CR8B 3M E2C-GE4A DC / (NPN) – –

E2C-GF4A DC / (PNP) – –

E2C-JC4AP 2M

* 2 DC / (NPN) ○ ○

E2C-JC4A 2M DC / (NPN) ○ –

E2C-AM4A DC / (NPN PNP) – –

E2C-AK4A AC –

M5 1 (2)

Mm E2C-X1A 3M E2C-GE4A DC / (NPN) – –

E2C-GF4A DC / (PNP) – –

E2C-JC4AP 2M

* 2 DC / (NPN) ○ ○

E2C-JC4A 2M DC / (NPN) ○ –

E2C-AM4A DC / (NPN PNP) – –
E2C-AK4A AC –

Φ5.4 1 (2)

Mm E2C-C1A 3M E2C-GE4A DC / (NPN) – –

E2C-GF4A DC / (PNP) – –

E2C-JC4AP 2M

* 2 DC / (NPN) ○ ○

E2C-JC4A 2M DC / (NPN) ○ –

E2C-AM4A DC / (NPN PNP) – –

E2C-AK4A AC –

M8 1.5 (3)

Mm E2C-X1R5A 3M E2C-GE4A DC / (NPN) – –

E2C-GF4A DC / (PNP) – –

E2C-JC4AP 2M

* 2 DC / (NPN) ○ ○

E2C-JC4A 2M DC / (NPN) ○ –

E2C-AM4A DC / (NPN PNP) – –

E2C-AK4A AC –

The sensor section is part of the amplifier unit

Shape stability detection distance

* 1 Model Model Power /
Output form timer

Function self-test

Output
shield
464_lu_1_1

M12 2 (5) mm E2C-X2A 3M E2C-JC4AP 2M * 2 DC / (NPN) ○ ○

E2C-JC4A 2M DC / (NPN) ○

E2C-AM4A DC / (NPN

PNP) – –
E2C-AK4A AC –

The sensor section is part of the amplifier unit
Shape stability detection distance

* 1 Model Model Power /
Output form timer

Function self-test

Output
shield
464_lu_1_1
M18 5 (10)

Mm E2C-X5A 3M E2C-AM4A DC /

(NPN PNP) – –

E2C-AK4A AC –
M30 10 (18)

Mm E2C-X10A 3M E2C-AM4A DC /

(NPN PNP) – –

E2C-AK4A AC –

Unshielded

464_lu_1_2
Φ40 20 (50)

Mm E2C-C20MA 3M E2C-AM4A DC /

(NPN PNP) – –
E2C-AK4A AC –

Note 1. () is the maximum detection distance (+ 23 ° C constant)

2. Self-test output function, with timer function, and DIN rail installation can be.

Heat resistant type

The sensor section is part of the amplifier unit

Shape stability detection range Model number
shield

464_lu_4_1
M8 1.5mm E2C-X1R5AH 3M E2C-JC4CH 2M

M12 2mm E2C-X2AH 3M E2C-JC4DH 2M

M18 5mm E2C-X5AH 3M E2C-JC4EH 2M

Note: Changes in the length of the sensor lead to changes in

characteristics, so please do not cut / extend.

Accessories (sold separately)

The mounting brackets are not included in the sensor

accessories, please order as needed.

Name Model Applicable sensor Remarks

Installation bracket Y92E-F3R5 E2C-CR8A φ3.5 with ─ ─ ─

Y92E-F5R4 E2C-C1A φ5.4 with

The connection socket is not included in the amplifier

accessories, please order as needed.

Name Model Applicable Amplifier Unit Remark

Surface connection socket PYF08A E2C-GE4A

E2C-GF4A fixed bracket (sold separately)

PYC-A1
P2CF-08 E2C-AM4A ─ ─
P2CF-11 E2C-AK4A

Back connection socket P3G-08 E2C-AM4A

P3GA-11 E2C-AK4A
PY08 E2C-GE4A

E2C-GF4A

The adapter is not included in the amplifier accessories, so please order as needed.



Name Model Applicable Amplifier Unit Remark

Embedded mounting adapter Y92F-30 E2C-AM4A / -AK4A ─
Y92F-70
Y92F-71

proximity sensor

Omron Proximity Sensor E2C-EDA Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2C-EDA
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2C-EDA
Name:Omron Proximity Sensor E2C-EDA
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor E2C-EDA Series



Omron Proximity Sensor E2C-EDA

The metal heads of the E2EF achieve the same distances for

the same sizes as the E2E Proximity Sensors with Resin Heads.

This allows you to use Proximity Sensors that withstand

friction with the workpiece without major changes to

mounting brakets.

The 0.4-mm metal head exhibits almost no wear due to

friction with the workpiece or cleaning with metal brushes.

This helps prevent equipment down time due to sensor failure

and reduces the frequency of replacement.

Spatter-resistant models with fluororesin-coated head are

also available. Reduces adhesion of spatter to achieve

stable detection. The tough all-stainless steel housing with

a flame-retardant cable enables reliable application where

spatter is present near welding machines.

Features:
Can be selected according to the type of sensor probe type,

sensor preamplifier – between the use of anti-bending cable amplifier

Not susceptible to ambient temperature, the temperature

characteristics of 0.08% / ° C (φ5.4 type)

Can be simple, really check the set micron-level accuracy

(teaching function)

Can confirm the detection margin (digital display)

High-precision positioning, support for screening checks,

maximize the amount of change “FP (Fine Positioning) function”

E2C-EDA0 model for EtherCAT sensor communication unit /

CompoNet communication unit is also available

Main information

Omron Proximity Sensor E2C-EDA

Sensing object
Ambient temperature range

Dielectric strength
Degree of protection

Ferrous metal (The sensing distance decreases with non-

ferrous metal. Refer to Engineering Data on Data Sheet.)

Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no icing or condensation)

1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case

IEC 60529 IP67

proximity sensor

Omron Ultra Small Inductive Proximity Sensor E2EC



Quick Details
Place of Origin:Japan
Brand Name:Omron
Model Number:E2EC
Usage:Consumption Sensor
Theory:Current Sensor
Output:Analog Sensor
Price:Best price for Omron Ultra Small Inductive Proximity Sensor E2EC
Quality:Original
Differential distance:10% max.
Sensing object:Ferrous metal (Sensitivity lowers with non-ferrous metals)
Response frequency:1.5 kHz
Leakage current:0.8 mA max
Protective circuits:Surge absorber, short-circuit protection
Operating/Storage:-25°C to 70° C (with no icing or condensation)
Protective structure:IEC60529 IP67

proximity sensor

Omron Ultra Small Inductive Proximity Sensor E2EC

Features:
Φ3 ~ M12 small shield type sensor head. Can be embedded

within the metal

Using the robot wire standard (DC 2-wire)

The indicator on the trunk cable (amplifier section) makes

it easy to confirm the action

Power supply voltage range DC5 ~ 24V. (Only for DC 3-wire)

species:
Ontology

DC 2-wire

Shape the distance detection model

Action mode
NO NC
shield
467_lu_2_1
Φ3 0.8mm E2EC-CR8D1 2M * E2EC-CR8D2 2M *

Φ5.4 1.5mm E2EC-C1R5D1 2M * E2EC-C1R5D2 2M *

Φ8 3mm E2EC-C3D1 2M * E2EC-C3D2 2M *

M12 4mm E2EC-X4D1 2M * E2EC-X4D2 2M *

* With different frequency type. Model E2EC- □□□□ 5. (Eg E2EC-CR8D15)
DC 3-wire

Shape detection distance model

Output mode action mode NO
shield
467_lu_2_1

Φ3 0.5mm NPN open collector output E2EC-CR5C1 2M * 1,2

Φ8 2.5mm E2EC-C2R5C1 2M * 1,2

* 1. With different frequency type. Model E2EC- □□□□ 5. (Eg E2EC-CR5C15)

* 2. Also available with NC type. Please consult separately.

Rating:
Type DC 2-wire type

Item Model E2EC-CR8D □ E2EC-C1R5D □ E2EC-C3D □ E2EC-X4D □

Detection distance 0.8mm ± 15% 1.5mm ± 10% 3mm ± 10% 4mm ± 10%

Set the distance 0 ~ 0.56mm 0 ~ 1.05mm 0 ~ 2.1mm 0 ~ 2.8mm

Should be less than 10% of the detection distance

Detectable object Magnetic metal (non-magnetic metal

detection distance is short. See “Feature data” on the Catalog)

Standard detection object iron 5 × 5 × 1mm iron 8 × 8 × 1mm iron 12 × 12 × 1mm

Response frequency * 1 1.5kHz 1kHz

voltage
(Using voltage range)

) DC12 ~ 24V Ripple (p-p) 10% or less (DC10 ~ 30V)
Consumption Current –

Leakage current below 0.8mA

Control

Output switch

Capacity 5 ~ 100mA

Residual

Voltage 3V or less (load current 100mA, wire length 2m)

Indicator D1: Action display (red), set display (green),

D2 type: action display (red)

Action mode (near
Detection of objects) D1 type: NO

D2 type: NC

For details, refer to the timing diagram in the “Input

Output Section Circuit Diagram” on the Catalog

Protection circuit load short circuit protection, surge absorption

Ambient temperature range when operating, save: -25 ~ +70 °

C (no icing, condensation) *

2
Ambient humidity range when operating, save: 35 ~ 95% RH (no condensation)

Temperature of ± 25 ° C in the temperature range of -25 to

+ 70 ° C at + 23 ° C

The voltage is within ± 15% of the rated supply voltage,

the rated supply voltage, the detection distance of ± 2.5%

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage AC1,000V 1min charging part between the

whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 1,000m / s2X, Y, Z direction 10 times

Protection structure IEC standard IP67,

Internal standard oil (only for sensor head)

Connection type wire lead type (standard wire length 2m)
Quality

(After packaging) about 45g

Material shell brass

Inspection surface ABS

Fastening
Nuts – Brass Nickel Plating

With teeth
Washer – iron galvanized

Accessories Amplifier mounting bracket, instruction manual

Type DC 3-wire

Item Model E2EC-CR5C1 E2EC-C2R5C1

Detection distance 0.5mm ± 15% 2.5mm ± 10%

Set the distance 0 ~ 0.3mm 0 ~ 1.7mm

Should be less than 10% of the detection distance

Detectable object Magnetic metal (non-magnetic metal

detection distance is short. See “Feature data” on the Catalog)

Standard detection object iron 5 × 5 × 1mm iron 8 × 8 × 1mm

Response frequency * 1 1kHz

voltage
(Using voltage range)

) DC5 ~ 24V ripple (p-p) 10% or less
(DC4.75 ~ 30V)

Consumption current below 10mA

Leakage current –
Control

Output switch

Capacity NPN open collector output 100mA or less
(DC30V or less)

Residual
Voltage below 1V (load current 100mA, wire length
2m)

Indicator light detection display (red)

Action mode (near
When detecting an object) NO

For details, see “Inputs and Outputs” on the Catalog

Section of the circuit diagram “in the timing diagram

Protection loop surge absorption

Ambient temperature range when operating, save: -25 ~ +70 ° C (no icing, condensation) * 2

Ambient humidity range when operating, save: 35 ~ 95% RH (no condensation)

Temperature of ± 25 ° C in the temperature range of -25 to + 70 ° C at + 23 ° C

Voltage effects using the voltage range of 4.75 ~ 30V rated power supply voltage

, The detection distance of ± 5% or less

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage AC500V 1min charging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP64

Connection type wire lead type (standard wire length 2m)
Quality

(After packaging) about 45g

Material shell brass

Inspection surface ABS

Fastening
Nuts –
With teeth
Washers –
Accessories manual

* 1. The response frequency is the average.

Measurement conditions: the use of standard detection of

objects, the detection of objects as the standard interval

of 2 times the object, set the distance of 1/2 of the detection distance.

* 2. Please note that when the temperature difference

between the sensor section and the amplifier section is

large, malfunction may occur.
