proximity sensor

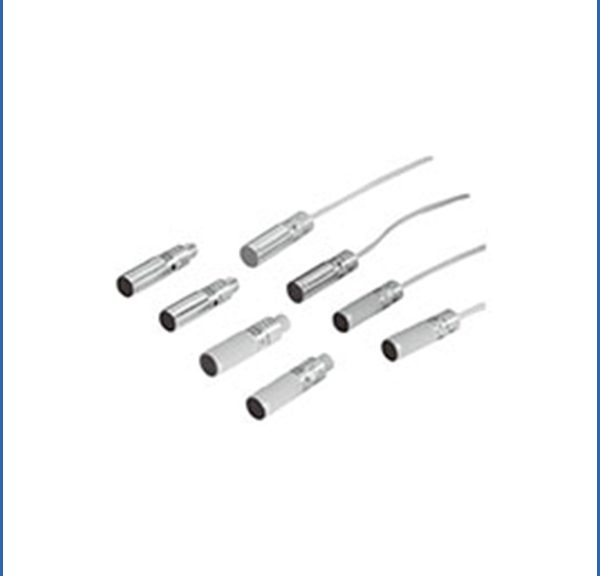

new and original omron E2G cylindrical proximity sensor Series



Quick Details
Place of Origin:Japan
Brand Name:Omron
Model Number:omron E2G cylindrical proximity sensor
Usage:proximity sensor
Theory:proximity sensor
Output:Analog Sensor
Product name:omron E2G cylindrical proximity sensor
Model:omron E2G cylindrical proximity sensor
Condition:New and original

proximity sensor

new and original omron E2G cylindrical  Series

Cost-effective standard

· Standard cable protection

· Added DC 2-wire model

· Non-polar 2-wire



High quality for extra long life in daily use

•continuously high quality level through specialized

manufacturing process

•DC 3-wire and DC 2-wire models

•up to 30mm sensing distance

•Stainless steel and brass housings

•Pre-wired versions with different cable materials and diameters,

M8 and M12 connector types, pre-wired types with cable end connectors

The metal heads of the achieve the same distances for

This allows you to use them that withstand

friction with the workpiece without major changes to mounting brakets.

The 0.4-mm metal head exhibits almost no wear due to

friction with the workpiece or cleaning with metal brushes.

This helps prevent equipment down time due to sensor failure

and reduces the frequency of replacement.

Spatter-resistant models with fluororesin-coated head are also available.

Reduces adhesion of spatter to achieve stable detection.

The tough all-stainless steel housing with a flame-retardant

cable enables reliable application where spatter is present

near welding machines.

Main information

Sensing object

Ambient temperature range

Dielectric strength

Degree of protection

Ferrous metal (The sensing distance decreases with non-

ferrous metal.

Refer to Engineering Data on Data Sheet.)

Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no

icing or condensation)

1,000 VAC, 50/60 Hz for 1 minute between current-carrying

parts and case

DC three-wire / wire lead-out:

E2G-S08KS01-WP-C1, E2G-S08KS01-WP-C2

E2G-S08KS01-WP-B1, E2G-S08KS01-WP-B2

E2G-M12KS02-WP-C1, E2G-M12KS02-WP-C2

E2G-M12KS02-WP-B1, E2G-M12KS02-WP-B2

E2G-M18KS05-WS-C1, E2G-M18KS05-WS-C2

E2G-M18KS05-WS-B1, E2G-M18KS05-WS-B2

E2G-M30KS10-WS-C1, E2G-M30KS10-WS-C2

E2G-M30KS10-WS-B1, E2G-M30KS10-WS-B2

E2G-S08KN02-WP-C1, E2G-S08KN02-WP-C2

E2G-S08KN02-WP-B1, E2G-S08KN02-WP-B2

E2G-M12KN05-WP-C1, E2G-M12KN05-WP-C2

E2G-M12KN05-WP-B1, E2G-M12KN05-WP-B2

E2G-M18KN10-WS-C1, E2G-M18KN10-WS-C2

E2G-M18KN10-WS-B1, E2G-M18KN10-WS-B2

E2G-M30KN18-WS-C1, E2G-M30KN18-WS-C2

E2G-M30KN18-WS-B1, E2G-M30KN18-WS-B2

DC three-wire / connector type:

E2G-S08KS01-M3-C1, E2G-S08KS01-M3-C2

E2G-S08KS01-M3-B1, E2G-S08KS01-M3-B2

E2G-M12KS02-M1-C1, E2G-M12KS02-M 1-C2

E2G-M12KS02-M1-B1, E2G-M12KS02-M1-B2

E2G-M18KS05-M1-C1, E2G-M18KS05-M1-C2

E2G-M18KS05-M1-B1, E2G-M18KS05-M1-B2

E2G-M30KS10-M1-C1, E2G-M30KS10-M1-C2

E2G-M30KS10-M1-B1, E2G-M30KS10-M1-B2

E2G-S08KN02-M3-C1, E2G-S08KN02-M1-C2

E2G-S08KN02-M3-B1, E2G-S08KN02-M1-B2

E2G-M12KN05-M1-C1, E2G-M12KN05-M1-C2

E2G-M12KN05-M1-B1, E2G-M12KN05-M1-B2

E2G-M18KN10-M1-C1, E2G-M18KN10-M1-C2

E2G-M18KN10-M1-B1, E2G-M18KN10-M1-B2

E2G-M30KN18-M1-C1, E2G-M30KN18-M1-C2

E2G-M30KN18-M1-B1, E2G-M30KN18-M1-B2

proximity sensor

Omron Proximity Sensor E2A Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2A
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2A
Name:Omron Proximity Sensor E2A
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor E2A Series

Omron Proximity Sensor E2A

High quality for extra long life in daily use

•wide portfolio range through modular concept•designed and tested for extra long life

•IP67 and IP69k for highest protection in wet environments

•continuously high quality level through specialized

manufacturing process •DC 3-wire and DC 2-wire models

•Normally open (NO), normally closed (NC) and antivalent (NO+NC) models•up to 30mm sensing distance

•Stainless steel and brass housings

•Pre-wired versions with different cable materials and diameters, M8 and M12 connector types, pre-wired types with cable end connectors

The metal heads of the E2EF achieve the same distances for

the same sizes as the E2E Proximity Sensors with Resin Heads.

This allows you to use Proximity Sensors that withstand

friction with the workpiece without major changes to mounting brakets.

The 0.4-mm metal head exhibits almost no wear due to

friction with the workpiece or cleaning with metal brushes.

This helps prevent equipment down time due to sensor failure

and reduces the frequency of replacement.

Spatter-resistant models with fluororesin-coated head are also available.

Reduces adhesion of spatter to achieve stable detection.

The tough all-stainless steel housing with a flame-retardant

cable enables reliable application where spatter is present near welding machines.

Main information
Omron Proximity Sensor E2A

Sensing object

Ambient temperature range

Dielectric strength

Degree of protection

Ferrous metal (The sensing distance decreases with non-ferrous metal.

Refer to Engineering Data on Data Sheet.)

Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no icing or condensation)

1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
IEC 60529 IP67

proximity sensor

Omron Proximity Sensor E2E2 Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2E2
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2E2
Name:Omron Proximity Sensor E2E2
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor E2E2 Series

Features:

Enhance the tightening strength, but also standard wire protector

To enhance the visibility of the indicator light, all models used in all wrench clamping with milling

species:
Ontology

DC 2-wire

Shape detection distance model
Action mode
NO NC
shield
451_lu_1_1
M12 3mm E2E2-X3D1 * E2E2-X3D2
M18 7mm E2E2-X7D1 * E2E2-X7D2
M30 10mm E2E2-X10D1 * E2E2-X10D2
Unshielded
451_lu_1_2
M12 8mm E2E2-X8MD1 * E2E2-X8MD2
M18 14mm E2E2-X14MD1 * E2E2-X14MD2
M30 20mm E2E2-X20MD1 * E2E2-X20MD2

* With different frequency type. Model E2E2-X □ D15. (Eg E2E2-X3D15)
DC 3-wire

Shape detection distance model
Action mode
NO NC
shield
451_lu_1_1
M12 2mm E2E2-X2C1 E2E2-X2C2
M18 5mm E2E2-X5C1 E2E2-X5C2
M30 10mm E2E2-X10C1 E2E2-X10C2
Unshielded
451_lu_1_2
M12 5mm E2E2-X5MC1 E2E2-X5MC2
M18 10mm E2E2-X10MC1 E2E2-X10MC2
M30 18mm E2E2-X18MC1 E2E2-X18MC2
Exchange 2 lines

Shape detection distance model
Action mode
NO NC
shield
451_lu_1_1
M12 2mm E2E2-X2Y1 E2E2-X2Y2
M18 5mm E2E2-X5Y1 E2E2-X5Y2
M30 10mm E2E2-X10Y1 E2E2-X10Y2
Unshielded
451_lu_1_2

M12 5mm E2E2-X5MY1 E2E2-X5MY2
M18 10mm E2E2-X10MY1 E2E2-X10MY2
M30 18mm E2E2-X18MY1 E2E2-X18MY2
Rating:
Rated specification / performance

DC 2-wire (E2E2-X □ D □)

Size M12 M18 M30
Shielded shielded unshielded shielded unshielded shielded unshielded

Item Model E2E2
-X3D □ E2E2
-X8MD □ E2E2
-X7D □ E2E2
-X14MD □ E2E2
-X10D □ E2E2
-X20MD □

Detection distance 3mm ± 10% 8mm ± 10% 7mm ± 10% 14mm ± 10% 10mm ± 10% 20mm ± 10%

Set distance * 1 0 ~ 2.4mm 0 ~ 6.4mm 0 ~ 5.6mm 0 ~ 11.2mm 0 ~ 8mm 0 ~ 16mm

Should be less than 10% of the detection distance

Detection of magnetic metal (non-magnetic metal detection

distance is short.) See the “characteristic data”

Standard detection object iron 12 × 12 × 1mm iron 30 × 30 × 1mm iron 18 × 18 × 1mm iron 30 × 30 × 1mm iron 30 × 30 × 1mm iron 54 × 54 × 1mm

Response frequency * 2 1kHz 800Hz 500Hz 400Hz 100Hz
voltage

(Using voltage range) DC12 ~ 24V ripple (p-p) 10% or less
(DC10 to 30V)

Leakage current below 0.8mA

Control output switch capacity 3 ~ 100mA

Residual voltage 3V or less (load current 100mA, wire length 2m)

Indicator D1: Action display (red), set display (green)

D2 type: action display (red)

Action mode
(Close to the detection of objects) D1 type: NO

D2 type: NC

For details, please refer to the “I / O section circuit diagram” of the sample

Protection loop surge absorption, load short circuit protection

Ambient temperature work, save: the -25 ~ +70 ℃ (no icing, condensation)

Ambient humidity When operating, save: 35 ~ 95% RH (no condensation)

Temperature of the temperature range of -25 ~ +70 ℃, +23 ℃, the detection distance of ± 10%

Voltage within ± 15% of the rated power supply voltage

within the rated power supply voltage within ± 1% of the detection distance

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing
Withstand voltage AC1,000V 50 / 60Hz 1min c

harging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 1,000m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP67, the company internal standard oil

Connection type wire lead type (standard wire length 2m)

The quality (after packaging) is about 65g about 150g about 210g

Material shell brass

Detection of polybutylene terephthalate (PBT)
Tighten nuts brass, nickel plated

Toothed washer iron, galvanized
Accessories manual

* 1. Please use the green indicator light in the range. (Except D2)

* 2. The response frequency of the DC switch is averaged. Measurement conditions: the use of standard detection of objects, the detection of objects as the standard interval of 2 times the object, set the distance of 1/2 of the detection distance.

proximity sensor

new and original omron E2EY cylindrical proximity sensor Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2EY
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2EY
Name:Omron Proximity Sensor E2EY
Accuracy:0.5%FS

proximity sensor

new and original omron E2EY cylindrical proximity sensor Series

Features:

Detection of non-magnetic gold (aluminum, brass, etc.) *

Can not detect magnetic metal (iron, nickel, etc.)

* But can not detect aluminum foil

species:
Ontology

Shape Detection Distance Output Type / Action Mode Model
shield

457_lu_1_1

M18 4mm DC 3-wire NPN NO E2EY-X4C1 2M
M30 8mm E2EY-X8C1 2M

Accessories (sold separately)

Mounting brackets
Protective cover
Anti-sputtering protective cover

Rating:
Information Update: April 1, 2013

Item Model E2EY-X4C1 E2EY-X8C1
Detection distance 4mm ± 10% 8mm ± 10%
Set the distance 0 ~ 2.8mm 0 ~ 5.6mm
Should be less than 20% of the detection distance
Can detect objects non-magnetic metal (can not detect magnetic metal)

Standard detection object Aluminum 18 × 18 × 1mm Aluminum 30 × 30 × 1mm response

Response frequency * 70Hz

Power supply voltage (using voltage range) DC12 ~ 24V Ripple (p-p) 10% or less (DC10 ~ 30V)

Current consumption below 20mA

Output control switch capacity NPN open collector output 100mA or less (DC30V)

Residual voltage 2V or less (load current 100mA, wire length 2m)

Indicator light detection display (red)

Operation mode NO See the timing diagram in the “Input

Output Section Circuit Diagram” in the Catalog

Protection circuit reverse connection protection, load short

circuit protection, surge absorption

Ambient temperature range of work, when stored: -10 ~ +55 ° C (no icing, condensation)

Ambient humidity range when operating, save: 35 ~ 95% RH (no condensation)

Temperature of ± 10 ° C in the temperature range of -10 ~ + 55 ° C at + 23 ° C

The voltage is within ± 15% of the rated supply voltage,

the rated supply voltage, the detection distance of ± 2.5%

Insulation resistance 50MΩ or more (DC500V) The charging unit is integral with the housing

Withstand voltage AC1,000V 50 / 60H

z 1min charging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 1,000m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP67, the company internal standard oil

Connection type wire lead type (standard wire length 2m)

After the quality (after packaging) about 140g about 190g

Material Housing Brass Nickel Plating

Test surface heat ABS
Tighten nuts brass nickel plated
Toothed Washer Galvanized

Annex

* Response frequency is average. Measurement conditions: the use of standard detection of objects, the detection of objects as the standard interval of 2 times the object, set the distance of 1/2 of the detection distance.

proximity sensor

Omron Proximity Sensor E2F Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2F
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2F
Name:Omron Proximity Sensor E2F
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor E2F Series

Features:

In line with IP68, outstanding protection structure

To prevent mutual interference (with different frequency type)
species:
Ontology

Model Detection distance Output type Model
Action mode
NO NC
Shielding

456_lu_1_1 M8 1.5mm DC 3-wire NPN E2F-X1R5E1 2M E2F-X1R5E2 2M
DC 3-wire PNP E2F-X1R5F1 2M E2F-X1R5F2 2M
AC 2-wire E2F-X1R5Y1 2M E2F-X1R5Y2 2M

M12 2mm DC 3-wire NPN E2F-X2E1 2M * 1 E2F-X2E2 2M * 1
DC 3-wire PNP E2F-X2F1 2M E2F-X2F2 2M
AC 2-wire E2F-X2Y1 2M * 1 E2F-X2Y2 2M * 1

M18 5mm DC 3-wire NPN E2F-X5E1 2M * 1 E2F-X5E2 2M * 1
DC 3-wire PNP E2F-X5E1 2M * 1 E2F-X5F2 2M
AC 2-wire E2F-X5Y1 2M * 1 * 2 E2F-X5Y2 2M * 1 * 2

M30 10mm DC 3-wire NPN E2F-X10E1 2M * 1 E2F-X10E2 2M * 1
DC 3-wire PNP E2F-X10F1 2M E2F-X10F2 2M
AC 2-wire E2F-X10Y1 2M * 1 * 2 E2F-X10Y2 2M * 1 * 2

* 1. With different frequency type. Model E2F-X □□□ 5. (Eg E2F-X5E15)

* 2. Models with short circuit protection. Model E2F-X □ Y □ -53. (Eg E2F-X5Y1-53) However, the supply voltage range is AC100 to 120V.

Detection distance 1.5mm ± 10% 2mm ± 10% 5mm ± 10% 10mm ± 10%

Set the distance 0 ~ 1.2mm 0 ~ 1.6mm 0 ~ 4mm 0 ~ 8mm

Should be less than 10% of the detection distance
Detectable object magnetic metal (non-magnetic metal detection distance is short.

Please refer to the sample “characteristic data”)

Standard detection object iron 8 × 8 × 1mm iron 12 × 12 × 1mm iron 18 × 18 × 1mm iron 30 × 30 × 1mm

Response frequency * 1 E / F type: 2kHz,



voltage

(Use voltage range) E / F type: DC12 ~ 24V ripple (p-p) 10% or less (DC10 ~ 30V)

Y type: AC24 ~ 240V (AC20 ~ 264V)

Current consumption E / F type: 17mA or less

Leakage current Y type: 1.7mA or less (when AC200V) See “Characteristic data” on the sample

Control output switch capacity E / F type: 200mA to
Y type: 5 ~ 100mA E / F type: 200mA or less

Y type: 5 ~ 300mA

Residual voltage E / F type: 2V or less (load current 200mA, wire length 2m)

Y: See “Characteristic data” on the sample.
Indicator E1 type: detection display (red), E2 / F1 / F2

type: action display (red)

Y type: action display (red)
Action mode

(Close to the detection of objects) E1 / F1 / Y1 type: NO

E2 / F2 / Y2 type: NC

For details, refer to the timing diagram of the “Input

Output Section Circuit Diagram” on the sample

Protection circuit E / F type: reverse protection, load

short circuit protection, surge absorption

Y: none
Ambient temperature range of work, save: the -25 ~ +70 ℃ (no icing, condensation)

Environmental Humidity Range When operating, save: 35 ~ 95% RH

Temperature of the impact of -25 ~ +70 ℃ temperature range +23 ℃, the detection distance of ± 10% to

Voltage effect E / F type: within ± 15% of the rated power

supply voltage, the rated power supply voltage, the

detection distance of ± 2.5%

Y type: within ± 10% of the rated power supply voltage, the

rated power supply voltage, the detection distance of ± 1%

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage E / F type: AC1,000V 50 / 60Hz 1min

charging part between the whole and the shell

Y type: M8 type AC2,000V 50 / 60Hz 1min charging part

between the whole and the shell

Other AC4,000V 50 / 60Hz 1min charging part between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 1,000m / s2 X, Y, Z direction 10 times

Protection structure IEC standard IP68, internal standard oil * 2

Connection type wire lead type (standard wire length 2m)

The quality (after packaging) is about 40g about 50g about 130g about 170g

Material Housing Polyaryl
Detection surface

Tighten nuts with polyacetal
Accessories manual
