All posts by conchgroup_sales

Transmitters, Yokogawa, EJA series

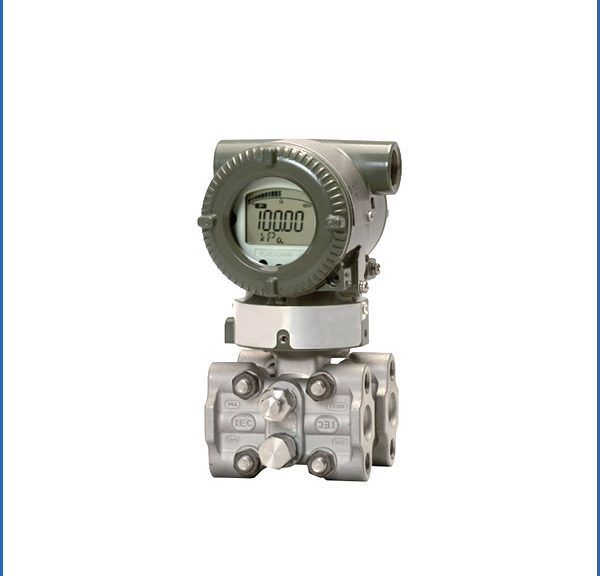

Yokogawa EJA110A -DM Differential Pressure Transmitter

Leave a comment

Yokogawa EJA110A -DM Differential Pressure Transmitter

The high performance differential pressure transmitter
model EJA110A can be used to measure liquid, gas,or steam flow as well as liquid level, density and
pressure.

Static Pressure Effects
Total Effects per Change
L capsule
6[0.07 % Span+0.052 % URL] per 3.4 MPa {500 psi}
M, H and V capsules
6[0.1% Span+0.028 % URL] per 6.9 MPa {1000 psi}

Effect on Zero (can be corrected at line pressure)
L capsule
6[0.02 % Span+0.052 % URL] per 3.4 MPa {500 psi}
M, H and V capsules
60.028 % of URL per 6.9 MPa {1000 psi}
Overpressure Effects (M, H and V capsules)
60.03 % of URL per 14 MPa {2000 psi}
Stability (M, H and V capsules)
60.1 % of URL for 24 months
Power Supply Effects “e”
60.005 % per Volt (from 21.6 to 32 V DC, 350 V for
Output signal code D and E.)

Stability (M, H and V capsules)
60.1 % of URL for 24 months
Power Supply Effects “e”
60.005 % per Volt (from 21.6 to 32 V DC, 350 V for
Output signal code D and E.)

Weight
3.9 kg (8.6 lbs.) without integral indicator, mounting
bracket, and process connector

Description

Ambient Temperature Limits
(approval codes may affect limits)
-40 to 85 ˚C (-40 to 185 ˚F)
-30 to 80 ˚C (-22 to 176 ˚F) with LCD Display
Process Temperature Limits
(approval codes may affect limits)
-40 to 120 ˚C (-40 to 248 ˚F)
Ambient Humidity Limits
5 to 100 % RH @ 40 ˚C (104 ˚F)

Supply Voltage
10.5 to 42 V DC for operation(10.5 to 30 V DC for
Intrinsically safe type)
16.4 to 42 V DC for digital communications, BRAIN
and HART protocols(16.4 to 30 V DC for
Intrinsically safe type)
9.0 to 32 V DC for digital communication, FOUNDATION
Fieldbus protocol

Flowmeters, Endress+Hauser, Electromagnetic Flowmeter

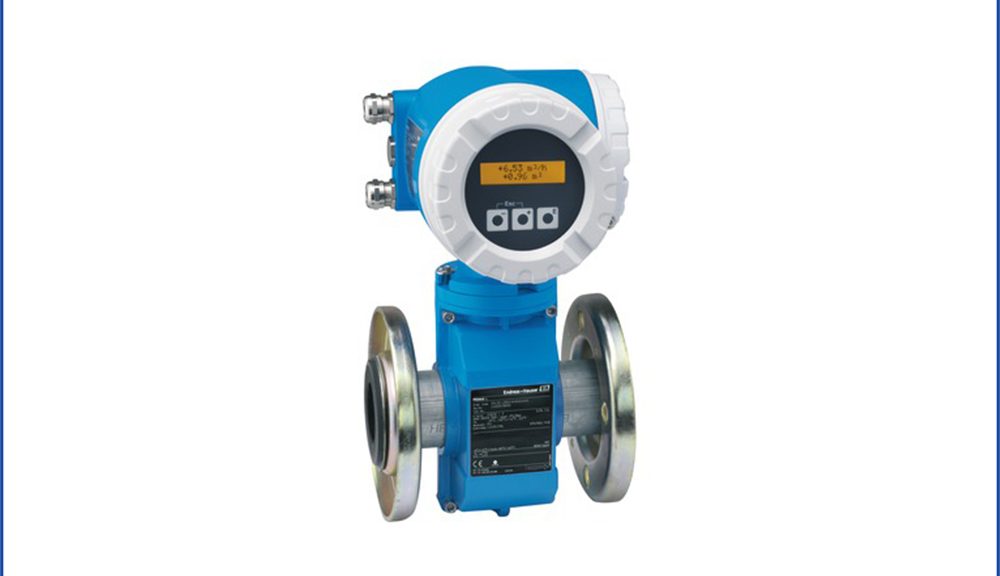

Endress+Hauser Electromagnetic Flowmeter Proline Promag 53W

Leave a comment

Endress+Hauser Electromagnetic Flowmeter

Endress+Hauser Electromagnetic Flowmeter Proline Promag 53W

Electromagnetic Flow Measuring System
Flow measurement of liquids in water or wastewater applications

Brand :Endress+Hauser
Model: Endress+Hauser Electromagnetic Flowmeter Proline Promag 53W

Your benefits
Promag measuring devices offer you cost-effective flow
measurement with a high degree of accuracy for a wide
range of process conditions.
The uniform Proline transmitter concept comprises:
• Modular device and operating concept resulting in a
higher degree of efficiency
• Software options for electrode cleaning
• Uniform operating concept
The tried-and-tested Promag sensors offer:
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning

Measuring principle:

Faraday’s law of induction states that a voltage is induced in a conductor moving in a magnetic field.
In electromagnetic measuring, the flowing medium corresponds to the moving conductor. The induced voltage
is proportional to the flow velocity and is detected by two measuring electrodes and transmitted to the amplifier.
Flow volume is computed on the basis of the pipe’s diameter. The constant magnetic field is generated by a switched direct current of alternating polarity.

Endress Hauser Electromagnetic Flowmeter Proline Promag 53W

Application-specific lining of the measuring pipe from
polyurethane or hard rubber with the following drinking
water permissions:
• KTW
• WRAS
• NSF
• ACS
Approvals for hazardous area:
• ATEX
• IECEx
• FM
• CSA
• NEPSI
Connection to process control system:
• HART
• PROFIBUS DP/PA
• FOUNDATION Fieldbus
• MODBUS RS485

The tried-and-tested Promag sensors offer:
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning

Transmitters, Yokogawa, EJA series

Yokogawa EJA110A -DL Differential Pressure Transmitter

Leave a comment

Yokogawa EJA110A -DL Differential Pressure Transmitter

The high performance differential pressure transmitter
model EJA110A can be used to measure liquid, gas,or steam flow as well as liquid level, density and
pressure.

Static Pressure Effects
Total Effects per Change
L capsule
6[0.07 % Span+0.052 % URL] per 3.4 MPa {500 psi}
M, H and V capsules
6[0.1% Span+0.028 % URL] per 6.9 MPa {1000 psi}

Effect on Zero (can be corrected at line pressure)
L capsule
6[0.02 % Span+0.052 % URL] per 3.4 MPa {500 psi}
M, H and V capsules
60.028 % of URL per 6.9 MPa {1000 psi}
Overpressure Effects (M, H and V capsules)
60.03 % of URL per 14 MPa {2000 psi}
Stability (M, H and V capsules)
60.1 % of URL for 24 months
Power Supply Effects “e”
60.005 % per Volt (from 21.6 to 32 V DC, 350 V for
Output signal code D and E.)

Stability (M, H and V capsules)
60.1 % of URL for 24 months
Power Supply Effects “e”
60.005 % per Volt (from 21.6 to 32 V DC, 350 V for
Output signal code D and E.)

Weight
3.9 kg (8.6 lbs.) without integral indicator, mounting
bracket, and process connector

Description

Ambient Temperature Limits
(approval codes may affect limits)
-40 to 85 ˚C (-40 to 185 ˚F)
-30 to 80 ˚C (-22 to 176 ˚F) with LCD Display
Process Temperature Limits
(approval codes may affect limits)
-40 to 120 ˚C (-40 to 248 ˚F)
Ambient Humidity Limits
5 to 100 % RH @ 40 ˚C (104 ˚F)

Supply Voltage
10.5 to 42 V DC for operation(10.5 to 30 V DC for
Intrinsically safe type)
16.4 to 42 V DC for digital communications, BRAIN
and HART protocols(16.4 to 30 V DC for
Intrinsically safe type)
9.0 to 32 V DC for digital communication, FOUNDATION
Fieldbus protocol

Valve Positioner, Fisher

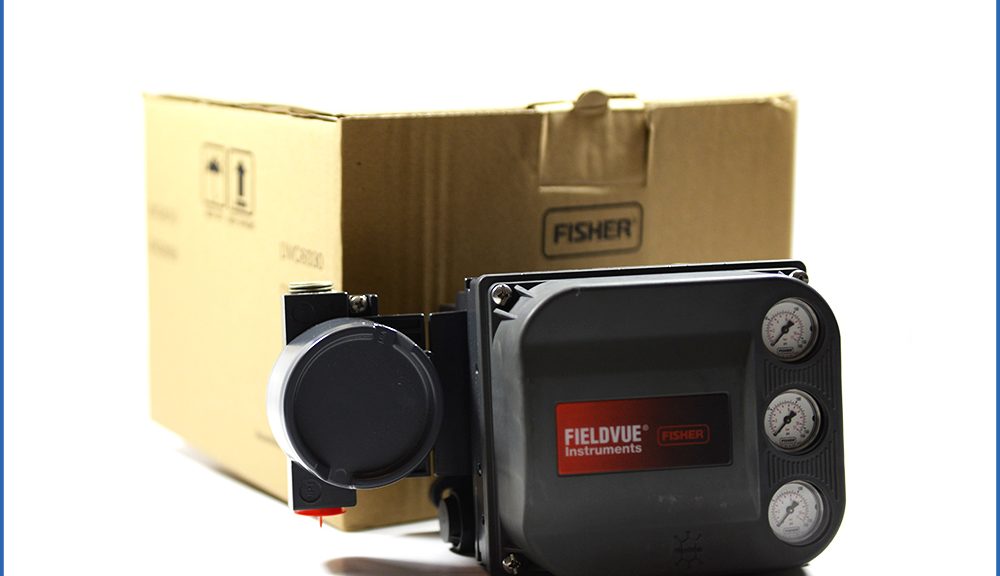

Fisher DVC6020 Digital Valve Controller

Leave a comment

Fisher valve positioner

Fisher DVC6020 Digital Valve Controller

DVC6020 on Sliding‐Stem Actuators and Rotary Actuators

Refer to the following guidelines when mounting on rotary actuators:

  • Isolate the control valve from the process line pressure and release pressure from both sides of the valve body. Shut
    off all pressure lines to the pneumatic actuator, releasing all pressure from the actuator. Use lock‐out procedures to
    be sure that the above measures stay in effect while working on the equipment.
  • If a cam is not already installed on the actuator, install the cam as described in the instructions included with the
    mounting kit.
  • If a mounting plate is required, fasten the mounting plate to the actuator.
  • For applications that require remote venting, a pipe‐away bracket kit is available. Follow the instructions included
    with the kit to replace the existing mounting bracket on the digital valve controller with the pipe‐away bracket and
    to transfer the feedback parts from the existing mounting bracket to the pipe‐away bracket.

Fisher DVC6020 Digital Valve Controller

Classification and application:

Products directly mounted on the valve:

  • DVC6010: used in straight stroke control valves
  • DVC6020: for rotary and long stroke straight stroke control valves
  • DVC6030: for 90 degree rotary control valve

Remote installation of products:

  • DVC6005: Basic unit for 2-inch tubing or wall panel mounting
  • DVC6015: The feedback unit is used for straight stroke valves
  • DVC6025: The feedback unit is used for rotary and long stroke straight stroke valves
  • DVC6035: The feedback unit is used for 90 degree rotary valves

Specific models are as follows:

  • DVC6010-AC single acting, DVC6010-AC double acting
  • DVC6010-HC single acting, DVC6010-HC double acting
  • DVC6020-AC single acting, DVC6020-AC double acting
  • DVC6020-HC single acting, DVC6020-HC double acting
  • DVC6030-AC single acting, DVC6030-AC double acting
  • DVC6030-HC single acting, DVC6030-HC double acting

ABB positioner models are as follows:

  • V18345-1010521001
  • V18345-1010121001
  • V18345-1020121001
  • V18345-1010120001
  • V18345-1004210001
  • V18345-1021120001
  • V18345-1020520001
  • V18345-1010221001

Siemens (SIEMENS) positioner models are as follows:

  • 6DR5220-0EN00-0AA0
  • 6DR5010-0NG00-0AA0
  • 6DR5215-0EN00-0AA0
  • 6DR5020-0NG00-0AA0
  • 6DR5010-0NG01-0AA0
  • 6DR5110-0EG00-0AA0
  • 6RD5210-0NN00-0AA0
  • 6DR5010-0NN01-0AA0
​
EJA-E series, Transmitters, Yokogawa

Yokogawa YTA320 Temperature Transmitter with a dual input

Leave a comment

Yokogawa YTA320 Temperature Transmitter with a dual input

. The YTA310 is a single sensor input model, and the YTA320 is a dual input model.

Both models support either BRAIN or HART ® communication protocol, and YTA320 also supports FOUNDATION fieldbus TM .

This input can be from a RTD, thermocouple, ohm, or DC millivolt.

It converts the sensor input to a 4 to 20mA DC analog signal.

Place of Origin:

Japan

Brand Name:

Yokogawa

Model Number:

YTA11O/YTA310

Accuracy:

±0.055% of Span

Output:

4 to 20 mA DC output with digital

Quality:

Origina

Yokogawa YTA320 Temperature Transmitter with a dual input

Yokogawa YTA320 Temperature Transmitter with a dual input

Features

Excellent performance:

Microprocessor-based sensing technology ensures high accuracy and stability.

High reliability:

Dual-compartment housing realizes high resistance capability to harsh environments.

SIL Certification:

YTA series temperature transmitters have been certified by TÜV NORD as being compliant with the requirements of the IEC61508 for SIL 2.

Variety of sensor inputs:

The type of sensor input is user-selectable from thermocouples (T/C), RTDs, ohms, or DC milivolts

Digital communication:

The BRAIN and HART communication protocols are available.

The instrument configuration can be changed by the user with a BT200 terminal or HART communicator.

The YTA320 temperature transmitter also supports FOUNDATION fieldbus communication protocol.

Self-diagnostics function:

Continuous self-diagnostics capability ensures long-term performance and lower cost of ownership.

LCD display with bargraph:

The LCD display simultaneously displays a digital readout and a bargraph.

Dual universal inputs(Model YTA320)

The YTA320 can accept two thermocouple, RTD, ohm, or DC milivolt inputs.

Differential or average temperature transmitter measurement can be selected.

A sensor backup function automatically switches-over from the primary sensor to a backup if the sensor fails.

EJA-E series, Transmitters, Yokogawa

Yokogawa YTA 310 pressure transmitter YTA110 Temperature Transmitter

Leave a comment

Yokogawa YTA310 pressure transmitter YTA110 Temperature Transmitter

Yokogawa YTA310 pressure transmitter YTA110 Temperature Transmitter



The YTA110/YTA310 is the high performance field-mount temperature transmitter that accepts a single sensor input.

This input can be from a RTD, thermocouple, ohm, or DC millivolt.

It converts the sensor input to a 4 to 20mA DC analog signal.

The YTA110/YTA310 supports either BRAIN or HART® 5 digital communication protocol.

The YTA110/YTA310 is the choice for control and safety applications.

Place of Origin:

Japan

Brand Name:

Yokogawa

Model Number:

YTA11O/YTA310

Accuracy:

±0.055% of Span

Output:

4 to 20 mA DC output with digital

Quality:

Origina



Yokogawa YTA 310 pressure transmitter YTA110 Temperature Transmitter

Yokogawa YTA 310 pressure transmitter YTA110 Temperature Transmitter

Features

Excellent performance:

Microprocessor-based sensing technology ensures high accuracy and stability.

High reliability:

Dual-compartment housing realizes high resistance capability to harsh environments.

SIL Certification:

YTA series temperature transmitters have been certified by TÜV NORD as being compliant with the requirements of the IEC61508 for SIL 2.

Variety of sensor inputs:

The type of sensor input is user-selectable: thermocouples, RTDs, ohms, or DC milivolt.

Digital communication:

The BRAIN and HART communication protocols are available.

The instrument configuration can be changed by the user with a BT200 terminal or HART communicator.

The YTA320 temperature transmitter also supports FOUNDATION fieldbus communication protocol.

Self-diagnostics function:

Continuous self-diagnostics capability ensures long-term performance and lower cost of ownership.

LCD display with bargraph:

The LCD display simultaneously displays a digital readout and a bargraph.

Dual universal inputs(Model YTA320)

The YTA320 can accept two thermocouple, RTD, ohm, or DC milivolt inputs.

Differential or average temperature transmitter measurement can be selected.

A sensor backup function automatically switches-over from the primary sensor to a backup if the sensor fails.

EJA-E series, Transmitters, Yokogawa

Yokogawa Gauge Pressure Transmitter EJA530E -JD

Leave a comment

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -JD

The high performance Gauge pressure
transmitter EJA530E  feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure.

  • Power Supply Effects
    ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
  • Stability (All normal operating condition)
    EJA530E: ±0.1% of URL for 7 years
    EJA510E: ±0.2% of URL for 7 years
  • Weight
    Capsule A, B and C: 1.2 kg (2.6 lb)*
    Capsule D: 1.4 kg (3.1 lb)*
    *: Without integral indicator and mounting bracket.
    Add 1.5 kg (3.3 lb) for Amplifier housing code 2.

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -JD

□ NORMAL OPERATING CONDITION
(Optional features or approval codes may
affect limits.)
Ambient Temperature Limits
−40 to 85°C (−40 to 185°F)
−30 to 80°C (−22 to 176°F) with LCD display
Process Temperature Limits
−40 to 120°C (−40 to 248°F)
Ambient Humidity Limits
0 to 100% RH
Maximum Over Pressure



                                          Pressure

Capsule                              EJA510E                          EJA530E

A and B 4 MPa abs (580 psia) 4 MPa (580 psig)
C 20 MPa abs (2900 psia) 20 MPa (2900 psig)
D 60 MPa abs (8700 psia) * 60 MPa abs (8700 psia) *

*: 105 MPa (15200 psi) when /HG is specified.Working Pressure Limits (Silicone oil)
Maximum Pressure Limits

                                          Pressure

Capsule                              EJA510E                          EJA530E

A 200 kPa abs (29 psia) 200 kPa (29 psig)
B 2 kPa abs (290 psia) 2 kPa (290 psig)
C 10 kPa abs (1450 psia) 10 kPa (1450 psig)
D 50 kPa abs (7200 psia) 50 kPa (7200 psig)

Minimum Pressure Limit
See graph below

Supply Voltage “◊”
For 4 to 20 mA HART / BRAIN
(Output signal code D and J)
10.5 to 42 V DC for general use and flameproof type.
10.5 to 32 V DC for lightning protector
(option code /A.)
10.5 to 30 V DC for intrinsically safe, type n, or nonincendive
type.
Minimum voltage limited at 16.6 V DC for digital
communications, BRAIN and HART
For 1 to 5 V HART (Output signal code Q)
Power supply :
9 to 28 V DC for general use and flame proof type.
Power Consumption :
0.96 mA to 3 mA, 27 mW

​
EJA-E series, Transmitters, Yokogawa

Yokogawa Gauge Pressure Transmitter EJA530E -JC

Leave a comment

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -JC

The high performance Gauge pressure
transmitter EJA530E  feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure.

  • Power Supply Effects
    ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
  • Stability (All normal operating condition)
    EJA530E: ±0.1% of URL for 7 years
    EJA510E: ±0.2% of URL for 7 years
  • Weight
    Capsule A, B and C: 1.2 kg (2.6 lb)*
    Capsule D: 1.4 kg (3.1 lb)*
    *: Without integral indicator and mounting bracket.
    Add 1.5 kg (3.3 lb) for Amplifier housing code 2.

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -JC

□ NORMAL OPERATING CONDITION
(Optional features or approval codes may
affect limits.)
Ambient Temperature Limits
−40 to 85°C (−40 to 185°F)
−30 to 80°C (−22 to 176°F) with LCD display
Process Temperature Limits
−40 to 120°C (−40 to 248°F)
Ambient Humidity Limits
0 to 100% RH
Maximum Over Pressure



                                          Pressure

Capsule                              EJA510E                          EJA530E

A and B 4 MPa abs (580 psia) 4 MPa (580 psig)
C 20 MPa abs (2900 psia) 20 MPa (2900 psig)
D 60 MPa abs (8700 psia) * 60 MPa abs (8700 psia) *

*: 105 MPa (15200 psi) when /HG is specified.Working Pressure Limits (Silicone oil)
Maximum Pressure Limits

                                          Pressure

Capsule                              EJA510E                          EJA530E

A 200 kPa abs (29 psia) 200 kPa (29 psig)
B 2 kPa abs (290 psia) 2 kPa (290 psig)
C 10 kPa abs (1450 psia) 10 kPa (1450 psig)
D 50 kPa abs (7200 psia) 50 kPa (7200 psig)

Minimum Pressure Limit
See graph below

Supply Voltage “◊”
For 4 to 20 mA HART / BRAIN
(Output signal code D and J)
10.5 to 42 V DC for general use and flameproof type.
10.5 to 32 V DC for lightning protector
(option code /A.)
10.5 to 30 V DC for intrinsically safe, type n, or nonincendive
type.
Minimum voltage limited at 16.6 V DC for digital
communications, BRAIN and HART
For 1 to 5 V HART (Output signal code Q)
Power supply :
9 to 28 V DC for general use and flame proof type.
Power Consumption :
0.96 mA to 3 mA, 27 mW

​
EJA-E series, Transmitters, Yokogawa

Yokogawa Gauge Pressure Transmitter EJA530E -JB

Leave a comment

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -JB

The high performance Gauge pressure
transmitter EJA530E  feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure.

  • Power Supply Effects
    ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
  • Stability (All normal operating condition)
    EJA530E: ±0.1% of URL for 7 years
    EJA510E: ±0.2% of URL for 7 years
  • Weight
    Capsule A, B and C: 1.2 kg (2.6 lb)*
    Capsule D: 1.4 kg (3.1 lb)*
    *: Without integral indicator and mounting bracket.
    Add 1.5 kg (3.3 lb) for Amplifier housing code 2.

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -JB

□ NORMAL OPERATING CONDITION
(Optional features or approval codes may
affect limits.)
Ambient Temperature Limits
−40 to 85°C (−40 to 185°F)
−30 to 80°C (−22 to 176°F) with LCD display
Process Temperature Limits
−40 to 120°C (−40 to 248°F)
Ambient Humidity Limits
0 to 100% RH
Maximum Over Pressure



                                          Pressure

Capsule                              EJA510E                          EJA530E

A and B 4 MPa abs (580 psia) 4 MPa (580 psig)
C 20 MPa abs (2900 psia) 20 MPa (2900 psig)
D 60 MPa abs (8700 psia) * 60 MPa abs (8700 psia) *

*: 105 MPa (15200 psi) when /HG is specified.Working Pressure Limits (Silicone oil)
Maximum Pressure Limits

                                          Pressure

Capsule                              EJA510E                          EJA530E

A 200 kPa abs (29 psia) 200 kPa (29 psig)
B 2 kPa abs (290 psia) 2 kPa (290 psig)
C 10 kPa abs (1450 psia) 10 kPa (1450 psig)
D 50 kPa abs (7200 psia) 50 kPa (7200 psig)

Minimum Pressure Limit
See graph below

Supply Voltage “◊”
For 4 to 20 mA HART / BRAIN
(Output signal code D and J)
10.5 to 42 V DC for general use and flameproof type.
10.5 to 32 V DC for lightning protector
(option code /A.)
10.5 to 30 V DC for intrinsically safe, type n, or nonincendive
type.
Minimum voltage limited at 16.6 V DC for digital
communications, BRAIN and HART
For 1 to 5 V HART (Output signal code Q)
Power supply :
9 to 28 V DC for general use and flame proof type.
Power Consumption :
0.96 mA to 3 mA, 27 mW

​
EJA-E series, Transmitters, Yokogawa

Yokogawa Gauge Pressure Transmitter EJA530E -JA

Leave a comment

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -JA

The high performance Gauge pressure
transmitter EJA530E  feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure.

  • Power Supply Effects
    ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
  • Stability (All normal operating condition)
    EJA530E: ±0.1% of URL for 7 years
    EJA510E: ±0.2% of URL for 7 years
  • Weight
    Capsule A, B and C: 1.2 kg (2.6 lb)*
    Capsule D: 1.4 kg (3.1 lb)*
    *: Without integral indicator and mounting bracket.
    Add 1.5 kg (3.3 lb) for Amplifier housing code 2.

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -JA

□ NORMAL OPERATING CONDITION
(Optional features or approval codes may
affect limits.)
Ambient Temperature Limits
−40 to 85°C (−40 to 185°F)
−30 to 80°C (−22 to 176°F) with LCD display
Process Temperature Limits
−40 to 120°C (−40 to 248°F)
Ambient Humidity Limits
0 to 100% RH
Maximum Over Pressure



                                          Pressure

Capsule                              EJA510E                          EJA530E

A and B 4 MPa abs (580 psia) 4 MPa (580 psig)
C 20 MPa abs (2900 psia) 20 MPa (2900 psig)
D 60 MPa abs (8700 psia) * 60 MPa abs (8700 psia) *

*: 105 MPa (15200 psi) when /HG is specified.Working Pressure Limits (Silicone oil)
Maximum Pressure Limits

                                          Pressure

Capsule                              EJA510E                          EJA530E

A 200 kPa abs (29 psia) 200 kPa (29 psig)
B 2 kPa abs (290 psia) 2 kPa (290 psig)
C 10 kPa abs (1450 psia) 10 kPa (1450 psig)
D 50 kPa abs (7200 psia) 50 kPa (7200 psig)

Minimum Pressure Limit
See graph below

Supply Voltage “◊”
For 4 to 20 mA HART / BRAIN
(Output signal code D and J)
10.5 to 42 V DC for general use and flameproof type.
10.5 to 32 V DC for lightning protector
(option code /A.)
10.5 to 30 V DC for intrinsically safe, type n, or nonincendive
type.
Minimum voltage limited at 16.6 V DC for digital
communications, BRAIN and HART
For 1 to 5 V HART (Output signal code Q)
Power supply :
9 to 28 V DC for general use and flame proof type.
Power Consumption :
0.96 mA to 3 mA, 27 mW

​
EJA-E series, Transmitters, Yokogawa

Yokogawa Gauge Pressure Transmitter EJA530E -DD

Leave a comment

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -DD

The high performance Gauge pressure
transmitter EJA530E  feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure.

  • Power Supply Effects
    ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
  • Stability (All normal operating condition)
    EJA530E: ±0.1% of URL for 7 years
    EJA510E: ±0.2% of URL for 7 years
  • Weight
    Capsule A, B and C: 1.2 kg (2.6 lb)*
    Capsule D: 1.4 kg (3.1 lb)*
    *: Without integral indicator and mounting bracket.
    Add 1.5 kg (3.3 lb) for Amplifier housing code 2.

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -DD

□ NORMAL OPERATING CONDITION
(Optional features or approval codes may
affect limits.)
Ambient Temperature Limits
−40 to 85°C (−40 to 185°F)
−30 to 80°C (−22 to 176°F) with LCD display
Process Temperature Limits
−40 to 120°C (−40 to 248°F)
Ambient Humidity Limits
0 to 100% RH
Maximum Over Pressure



                                          Pressure

Capsule                              EJA510E                          EJA530E

A and B 4 MPa abs (580 psia) 4 MPa (580 psig)
C 20 MPa abs (2900 psia) 20 MPa (2900 psig)
D 60 MPa abs (8700 psia) * 60 MPa abs (8700 psia) *

*: 105 MPa (15200 psi) when /HG is specified.Working Pressure Limits (Silicone oil)
Maximum Pressure Limits

                                          Pressure

Capsule                              EJA510E                          EJA530E

A 200 kPa abs (29 psia) 200 kPa (29 psig)
B 2 kPa abs (290 psia) 2 kPa (290 psig)
C 10 kPa abs (1450 psia) 10 kPa (1450 psig)
D 50 kPa abs (7200 psia) 50 kPa (7200 psig)

Minimum Pressure Limit
See graph below

Supply Voltage “◊”
For 4 to 20 mA HART / BRAIN
(Output signal code D and J)
10.5 to 42 V DC for general use and flameproof type.
10.5 to 32 V DC for lightning protector
(option code /A.)
10.5 to 30 V DC for intrinsically safe, type n, or nonincendive
type.
Minimum voltage limited at 16.6 V DC for digital
communications, BRAIN and HART
For 1 to 5 V HART (Output signal code Q)
Power supply :
9 to 28 V DC for general use and flame proof type.
Power Consumption :
0.96 mA to 3 mA, 27 mW

EJA-E series, Transmitters, Yokogawa

Yokogawa Gauge Pressure Transmitter EJA530E -DC

Leave a comment

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -DC

The high performance Gauge pressure
transmitter EJA530E  feature single crystal silicon resonant sensor and are suitable to measure liquid, gas, or steam pressure.

  • Power Supply Effects
    ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
  • Stability (All normal operating condition)
    EJA530E: ±0.1% of URL for 7 years
    EJA510E: ±0.2% of URL for 7 years
  • Weight
    Capsule A, B and C: 1.2 kg (2.6 lb)*
    Capsule D: 1.4 kg (3.1 lb)*
    *: Without integral indicator and mounting bracket.
    Add 1.5 kg (3.3 lb) for Amplifier housing code 2.

Yokogawa Gauge Pressure Transmitter EJA530E

Yokogawa Gauge Pressure Transmitter EJA530E -DC

□ NORMAL OPERATING CONDITION
(Optional features or approval codes may
affect limits.)
Ambient Temperature Limits
−40 to 85°C (−40 to 185°F)
−30 to 80°C (−22 to 176°F) with LCD display
Process Temperature Limits
−40 to 120°C (−40 to 248°F)
Ambient Humidity Limits
0 to 100% RH
Maximum Over Pressure



                                          Pressure

Capsule                              EJA510E                          EJA530E

A and B 4 MPa abs (580 psia) 4 MPa (580 psig)
C 20 MPa abs (2900 psia) 20 MPa (2900 psig)
D 60 MPa abs (8700 psia) * 60 MPa abs (8700 psia) *

*: 105 MPa (15200 psi) when /HG is specified.Working Pressure Limits (Silicone oil)
Maximum Pressure Limits

                                          Pressure

Capsule                              EJA510E                          EJA530E

A 200 kPa abs (29 psia) 200 kPa (29 psig)
B 2 kPa abs (290 psia) 2 kPa (290 psig)
C 10 kPa abs (1450 psia) 10 kPa (1450 psig)
D 50 kPa abs (7200 psia) 50 kPa (7200 psig)

Minimum Pressure Limit
See graph below

Supply Voltage “◊”
For 4 to 20 mA HART / BRAIN
(Output signal code D and J)
10.5 to 42 V DC for general use and flameproof type.
10.5 to 32 V DC for lightning protector
(option code /A.)
10.5 to 30 V DC for intrinsically safe, type n, or nonincendive
type.
Minimum voltage limited at 16.6 V DC for digital
communications, BRAIN and HART
For 1 to 5 V HART (Output signal code Q)
Power supply :
9 to 28 V DC for general use and flame proof type.
Power Consumption :
0.96 mA to 3 mA, 27 mW
