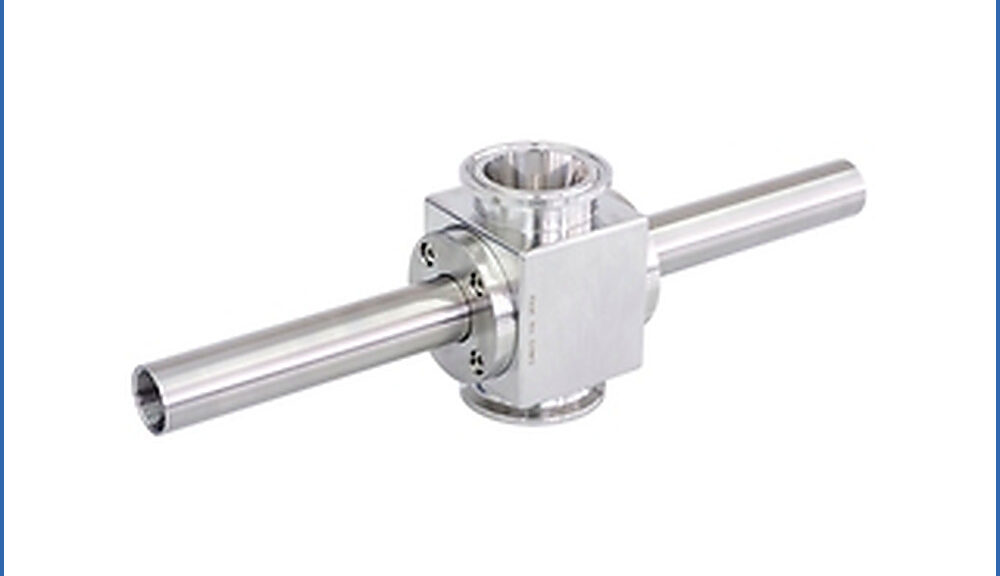

Endress Hauser Flow assembly CYA680

Endress Hauser Flow assembly CYA680

The CYA680 is a flow assembly from Endress+Hauser, designed for in-line pH and conductivity measurement in hygienic and sterile applications within the life sciences and chemical industries. Suitable for Clean-in-Place (CIP) and Sterilization-in-Place (SIP), it is particularly suited to small pipe diameters, providing maximum safety for high-quality products.

Key Features and Benefits

  • Optimized for Small Nominal Diameters: The flow hole diameter ranges from 5 mm to 45 mm, matching the clamp diameter. This makes it particularly suitable for applications requiring small pipe diameters, such as chromatography, filtration, and reverse osmosis.

  • High Product Safety: The assembly is suitable for Clean-in-Place (CIP) and Sterilization-in-Place (SIP), ensuring reliable operation of hygienic processes.

  • Compliance with Strict Life Sciences Regulations: Certified to USP Class VI for biocompatibility, with FDA-approved seals and a hygienic electropolished surface roughness of Ra = 0.38 µm (15 µin).

  • Suitable for Corrosive Media: A PVDF material version is available for measuring corrosive media.

  • Dual Sensor Installation Capability: Accommodates one pH electrode (CPS71D-TU) and one Memosens CLS82D conductivity sensor simultaneously.

  • Material and Seal Options: Holder material is available in stainless steel or PVDF. Seals are available in EPDM, Kalrez, Viton, or Teflon-coated Viton (all FDA-approved).

Technical Specifications (at a Glance)

Specification Detail
Application Life sciences, oil & gas, chemical industries
Process Temperature Max. 130 °C (266 °F)
Process Pressure Stainless steel: max. 16 bar; PVDF: max. 4 bar
Sensor Compatibility 12 mm sensors (pH electrode CPS71D-TU, conductivity sensor Memosens CLS82D)
Flow Hole Diameter 5 mm to 45 mm (matching clamp diameter)
Process Connection Clamp 0.25″ to 2″
Face-to-Face Length 82.55 mm (3.25″)
Material Holder: stainless steel or PVDF
Seals EPDM, Kalrez, Viton, Teflon-coated Viton (FDA-approved)
Certification Material certificate 3.1 EN 10204, surface roughness Ra < 0.38 µm

The CYA680 flow assembly provides a reliable, hygienic solution for pH and conductivity measurement in small-diameter piping for the life sciences and chemical industries, combining small-volume fast measurement, CIP/SIP compatibility, and strict regulatory compliance to ensure safe production of high-quality products.

Endress Hauser Flow assembly CYA680



The CYA680 is a flow assembly from Endress+Hauser, providing a simple solution for in-line pH and conductivity measurement in hygienic and sterile applications. Designed for Clean-in-Place and Sterilization-in-Place, it is particularly suited to small pipe diameters, offering maximum safety for high-quality products.

The assembly’s core advantage is its optimization for small nominal diameters. The flow hole diameter ranges from 5 mm to 45 mm, precisely matching the clamp diameter, making it particularly suitable for applications with strict pipe size requirements such as chromatography, filtration, and reverse osmosis. The small-volume design enables rapid measured value acquisition, thereby optimizing product yield. The assembly features a compact design with a face-to-face length of 82.55 mm, equipped with clamp connections (0.25″ to 2″) for easy installation in piping systems.

In terms of hygiene and compliance, the CYA680 performs excellently. The assembly is suitable for Clean-in-Place (CIP) and Sterilization-in-Place (SIP), ensuring process continuity and product safety. It is certified to USP Class VI for biocompatibility, meeting the stringent requirements of the life sciences industry. Seals are FDA-approved, and the hygienic electropolished surface achieves a roughness of Ra = 0.38 µm (15 µin), effectively preventing microbial growth and product contamination.

The CYA680 supports simultaneous installation of two sensors, accommodating one pH electrode (CPS71D-TU) and one Memosens CLS82D conductivity sensor to meet multi-parameter measurement requirements. The holder material is available in stainless steel and PVDF, with the PVDF version suitable for corrosive media. Seal materials include EPDM, Kalrez, Viton, or Teflon-coated Viton, all FDA-approved to suit different process media and temperature conditions.

The process temperature can reach up to 130 °C (266 °F). Regarding process pressure, the stainless steel version supports up to 16 bar, while the PVDF version supports up to 4 bar. The assembly is supplied with a material certificate 3.1 EN 10204 to meet quality traceability requirements. For routine maintenance, O-rings should be replaced at least every 12 months. Cleaning agents should be selected according to the type of contamination—for example, hot water or alkaline surfactant media for grease and oil contamination, and approximately 3% hydrochloric acid solution for scale deposits.

The CYA680 flow assembly provides a reliable, hygienic solution for pH and conductivity measurement in small-diameter piping for the life sciences and chemical industries, combining small-volume fast measurement, CIP/SIP compatibility, and strict regulatory compliance to ensure safe production of high-quality products.

Endress Hauser Analog pH sensor Ceragel CPS71 Orbipore CPS91

Endress Hauser Analog pH sensor Ceragel CPS71 Orbipore CPS91

The Ceragel CPS71 and Orbipore CPS91 are analog pH sensors from Endress+Hauser, each engineered for distinct challenging application profiles. The CPS71 is the specialist for sterile and hygienic applications with poison-resistant gel technology, while the CPS91 is designed for heavily contaminated media with high suspended solids content, featuring an open aperture that prevents fouling.

Key Features and Benefits

  • Application-Specific Design: The CPS71 is dedicated to hygienic and sterile applications including fermenters, biotechnology, life sciences, and food industry processes. It is also suitable for processes with quickly changing pH values and high proportions of electrode poisons such as H2S. The CPS91 is the specialist for fibrous media, dispersions, precipitation reactions, and emulsions, particularly in chemical processes, pulp and paper industry, and flue gas cleaning.

  • Poison-Resistant Technology (CPS71): The advanced gel technology with ceramic diaphragm and ion trap resists reference poisoning, guaranteeing stable measurement even in flowing media or low conductivity. The sensor is sterilizable, autoclavable up to 140°C, and CIP/SIP compatible, maintaining high accuracy.

  • Open Aperture Design (CPS91): The open aperture prevents fouling in heavily soiled media, ensuring reliable measurement under extreme process conditions. The stabilized gel filling provides low maintenance and long service life, and the sensor is not affected by fluctuations in pressure and temperature.

  • Biocompatibility and Safety (CPS71): The sensor features certified biocompatibility with no cytotoxicity, is free from animal-based materials and acrylamide, and is non-toxic, ensuring highest product safety.

  • Hazardous Area Approvals: Both sensors hold ATEX, FM, and CSA approvals for use in hazardous areas.

Technical Specifications (at a Glance)

Specification CPS71 (Ceragel) CPS91 (Orbipore)
Application Hygienic/sterile, fermenters, biotech, food Fibrous/contaminated media, chemical, pulp & paper
Measuring Range pH 0–14 pH 0–14
Process Temperature –15 to +140 °C Max. +110 °C
Process Pressure Max. 13 bar Max. 10 bar
Measuring Principle Ceramic diaphragm, ion trap Open aperture, double gel reference
Material Glass / ceramic Glass
Dimensions Ø 12 mm; shaft lengths 120/225/360/425 mm Ø 12 mm; shaft lengths 120/225/360/425 mm
Temperature Sensor Optional Pt100 or Pt1000 Optional Pt100 or Pt1000
Connection TOP68 connection head TOP68 plug-in head
Ingress Protection IP68 IP68
Certifications ATEX, FM, CSA; 3A, biocompatibility ATEX, FM, CSA

Endress Hauser Analog pH sensor Ceragel CPS71 Orbipore CPS91



The Ceragel CPS71 and Orbipore CPS91 are analog compact pH sensors from Endress+Hauser, designed for potentiometric pH measurement in demanding industrial applications.

The Ceragel CPS71 is the analog specialist for pH measurement in sterile and hygienic applications. Its state-of-the-art gel is poison-resistant and guarantees stable measurement even in flowing media or low conductivity. The sensor is designed for hygienic and sterile applications including fermenters, biotechnology, life sciences, and the food industry, as well as process technology and monitoring of processes with quickly changing pH values and high proportions of electrode poisons such as H2S.

The CPS71 features an advanced gel technology with ceramic diaphragm and ion trap. The ion trap prevents poisoning of the reference, ensuring long sensor lifetime even in demanding media. The sensor is sterilizable and autoclavable up to 140°C, CIP/SIP compatible, and maintains high accuracy throughout its service life. It resists strong acids and bases and high organic loads, and features certified biocompatibility with no cytotoxicity. The sensor is free from animal-based materials and acrylamide, ensuring highest product safety. A version with pressurized reference (6 bar) is available specifically for fermentation processes, and an upside-down installation version is also offered.

The CPS71 has a measuring range of pH 0–14, with process temperature from –15 to +140°C and process pressure up to 13 bar. The sensor has a diameter of 12 mm and is available in shaft lengths of 120, 225, 360, and 425 mm. It connects via a TOP68 connection head and is rated IP68 for ingress protection. Optional integrated Pt100 or Pt1000 temperature sensors are available. The sensor holds ATEX, FM, and CSA approvals for hazardous areas, along with 3A and biocompatibility certifications.

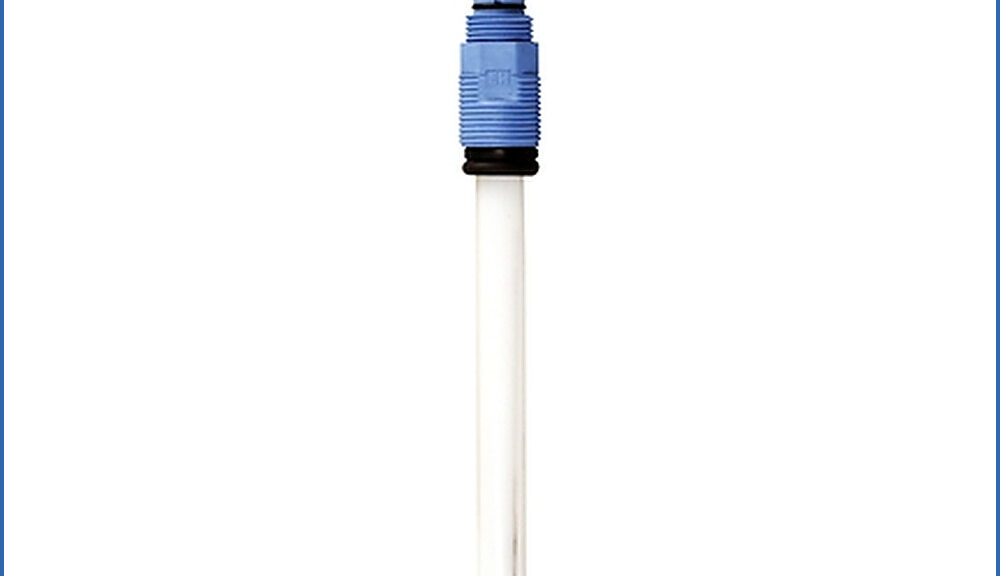

The Orbipore CPS91 is the analog specialist for pH measurement in fibrous media or media with a high content of suspended solids such as dispersions, precipitation reactions, or emulsions. The open aperture prevents fouling and guarantees the most reliable measurement under extreme process conditions. The sensor is suitable for chemical processes, pulp and paper industry, flue gas cleaning, and contaminated media applications.

The CPS91 features an open aperture design with double gel reference. The stabilized gel filling provides low maintenance and long service life, and the sensor is not affected by fluctuations in pressure and temperature. The measuring principle is designed for media with a minimum conductivity greater than 500 µS/cm. The sensor delivers rapid response and reliable performance even in heavily soiled media.

The CPS91 has a measuring range of pH 0–14, with a maximum process temperature of 110°C and maximum process pressure of 10 bar. The sensor has a diameter of 12 mm and is available in shaft lengths of 120, 225, 360, and 425 mm. It connects via a TOP68 plug-in head and is rated IP68 for ingress protection. Optional integrated Pt100 or Pt1000 temperature sensors are available. The sensor holds ATEX, FM, and CSA approvals for hazardous areas.

The Ceragel CPS71 and Orbipore CPS91 deliver reliable, application-specific analog pH measurement, combining durable construction, long-term stability, and resistance to the specific challenges of their respective process environments.

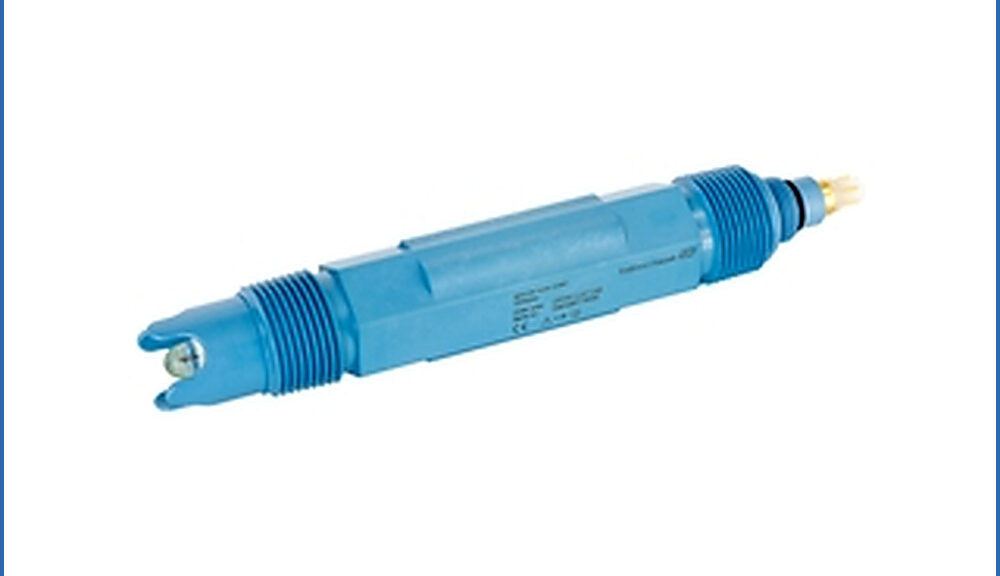

Endress Hauser Analog pH sensor CPF201 CPF81

Endress Hauser Analog pH sensor CPF201 CPF81

The Purisys CPF201 and Orbipac CPF81 are analog compact pH sensors from Endress+Hauser, each engineered for distinct application profiles. The CPF201 is the specialist for pure and ultrapure water, while the CPF81 is the robust solution for harsh environments including mining, industrial water, and wastewater treatment.

Key Features and Benefits

  • Application-Specific Design: The CPF201 is dedicated to pure and ultrapure water applications below 100 µS/cm, including boiler feedwater, power plant monitoring, and pharmaceutical water for injection (WFI). Its integrated stainless steel assembly ensures stable, flow-independent measurement at the lowest conductivities. The CPF81 is designed for harsh environments such as mining flotation, leaching, neutralization, and industrial wastewater treatment. Its double-chamber reference system with potassium nitrate bridge electrolyte and PTFE diaphragm provides resistance against electrode poisoning ions such as sulfide (S²⁻) or cyanide (CN⁻).

  • Robust Construction: The CPF201 features a glass electrode with a patented porous PTFE reference junction and salt (KCl) storage, installed in a stainless steel bypass assembly. The CPF81 uses a compact PPS housing with NPT ¾” process connection, protecting against mechanical damage.

  • Long-Term Stability: The CPF81’s second electrolyte bridge offers better protection against poisoning ions, ensuring reliable measurement in demanding media. The dirt-repellent gel electrode maintains performance even in fibrous media and at high flow rates.

  • Ex Certification: The CPF81 holds ATEX and FM approvals for use in hazardous areas, while the CPF201 is designed for non-hazardous industrial applications.

Technical Specifications (at a Glance)

Specification CPF201 (Purisys) CPF81 (Orbipac)
Application Pure/ultrapure water, power plants, WFI Mining, industrial water, wastewater
Measuring Range pH 1–13 (<100 µS/cm)  pH 0–14
Process Temperature 2 to 75 °C (36 to 167 °F)  –10 to 110 °C (14 to 230 °F)
Process Pressure Max. 3 bar (43.5 psi) Max. 10 bar (145 psi)
Measuring Principle Glass-gel compact electrode, PTFE diaphragm, KCl storage Gel-compact electrode, double-chamber reference, KNO₃ bridge, PTFE diaphragm
Material Glass, stainless steel  PPS / glass / PTFE
Process Connection TOP68 connection head or fixed cable  NPT ¾”, TOP68 or fixed cable
Ingress Protection IP68  IP68
Ex Certification ATEX, FM

The Purisys CPF201 and Orbipac CPF81 deliver reliable, application-specific analog pH measurement, combining durable construction, long-term stability, and resistance to the specific challenges of their respective process environments.

Endress Hauser Analog pH sensor CPF201 CPF81



The Purisys CPF201 and Orbipac CPF81 are analog compact pH sensors from Endress+Hauser, designed for the potentiometric measurement of pH in liquid analysis applications.

The Purisys CPF201 is the analog specialist for pure and ultrapure water. Its integrated stainless steel assembly provides stable and flow-independent measurement at the lowest conductivities, ensuring optimum water quality and the highest safety for products and assets. The sensor is specifically engineered for applications including boiler feedwater monitoring, power plant applications, and pharmaceutical water for injection (WFI). The measuring range is pH 1–13 for conductivities below 100 µS/cm, with a process temperature range of 2 to 75 °C and a maximum process pressure of 3 bar.

The CPF201 features a glass-gel compact electrode with a patented porous PTFE reference junction and potassium chloride (KCl) salt storage. This design eliminates flow dependency errors, ensuring stable pH readings and response even at the lowest conductivities. The electrode is installed in a stainless steel boundary surface within a stainless steel flow assembly, enabling potential-free measurements in ultrapure water. The sensor connects via a TOP68 connection head or fixed cable connection and is rated IP68 for ingress protection. An optional integrated Pt100 or Pt1000 temperature sensor is available.

The Orbipac CPF81 is the robust analog pH sensor for harsh environments, specifically designed for mining processes, industrial water treatment, and wastewater treatment. The sensor is suitable for flow and immersion installation, saving space and time during installation. Its measuring range is pH 0–14, with a process temperature range of –10 to 110 °C and a maximum process pressure of 10 bar.

The CPF81 features a gel-compact electrode with a double-chamber reference system, potassium nitrate bridge electrolyte, and PTFE diaphragm. This second electrolyte bridge provides better protection against electrode poisoning ions such as sulfide (S²⁻) or cyanide (CN⁻), ensuring long-term stability even in demanding media. The compact electrode is housed in a robust PPS (polyphenylene sulfide) polymer housing with an NPT ¾” process connection, protecting against mechanical damage. An optional flat membrane is available for high flow rates, fibrous media, and mining applications.

The CPF81 is suitable for monitoring flotation, leaching, neutralization, and inlet and outlet processes in mining industries and treatment of industrial water and wastewater. It connects via a TOP68 connection head or fixed cable connection, with an optional integrated Pt100 temperature sensor. The sensor is rated IP68 for ingress protection and holds ATEX and FM certifications for use in hazardous areas.

The Purisys CPF201 and Orbipac CPF81 deliver reliable, application-specific analog pH measurement, combining durable construction, long-term stability, and resistance to the specific challenges of their respective process environments.

Endress Hauser Process assembly CPA640 CPA482

Endress Hauser Process assembly CPA640 CPA482

The Ecofit CPA640 and Cleanfit CPA482 are process assemblies from Endress+Hauser, designed for the fixed installation of 120 mm pH/ORP and dissolved oxygen sensors in pipes and vessels. Each model is engineered for distinct application profiles, with the CPA640 optimized for cost-sensitive water and wastewater measurement, and the CPA482 built for demanding chemical and industrial processes.

Key Features and Benefits

  • Application-Specific Design: The CPA640 is the universal, cost-efficient solution for water treatment, wastewater treatment, condensate treatment, and cooling water circuits, suitable for pressures up to 10 bar. The CPA482 is designed for demanding process applications, handling pressures up to 14 bar and temperatures up to 140 °C.

  • Universal Sensor Compatibility: The CPA640 accommodates all standard 120 mm sensors with Pg 13.5 connection, including both analog and Memosens sensors. The CPA482 similarly supports 120 mm sensors for process measurement.

  • Quick Installation and Removal: Threaded connections enable fast installation and removal of the assembly, minimizing downtime during maintenance.

  • Flexible Material Options: The CPA640 adapter body is available in PVDF, stainless steel 316L (1.4404/1.4435), or Monel, with seal rings in Viton, EPDM, Chemraz, or Kalrez to suit diverse media. The CPA482 features wetted parts in stainless steel 1.4404 with EPDM or Viton O-rings.

  • Cost-Efficient Design: The CPA640 is specifically engineered to reduce the total cost of ownership for standard pH measuring points, allowing reuse of the threaded adapter and wiring cable when replacing sensors.

Technical Specifications (at a Glance)

Specification CPA640 CPA482
Application Water/wastewater, condensate, cooling water Demanding process applications
Process Temperature 0 to 90 °C (at 2 bar); up to 6 bar at 40 °C Up to 140 °C
Process Pressure Up to 10 bar  Up to 14 bar
Sensor Length 120 mm (Pg 13.5) 120 mm
Wetted Materials PVDF, Stainless Steel 316L, Monel Stainless Steel 1.4404
Seal Materials Viton, EPDM, Chemraz, Kalrez EPDM or Viton
Process Connection NPT ½”, NPT ¾”, NPT 1″, M25 x 1.5

The Ecofit CPA640 and CPA482 process assemblies provide reliable, application-specific sensor installation for liquid analysis, combining flexible material options, quick maintenance capability, and robust construction suited to their respective process environments.

Endress Hauser Process assembly CPA640 CPA482



The Ecofit CPA640 and Cleanfit CPA482 are process assemblies from Endress+Hauser, designed for the fixed installation of 120 mm pH/ORP and dissolved oxygen sensors in pipes and vessels.

The Ecofit CPA640 is a universal process assembly specifically engineered for cost-sensitive water and process applications. It provides fixed installation for any standard 120 mm sensor with Pg 13.5 connection, including both analog and Memosens sensors. The assembly is intended for installation in pipes across wastewater treatment, water treatment, condensate treatment, and cooling water circuits, and is suitable for pressures up to 10 bar. Its threaded connections enable quick installation and removal, while various seal materials—including Viton, EPDM, Chemraz, and Kalrez—allow adaptation to diverse process conditions. The adapter body is available in PVDF, stainless steel 316L (1.4404/1.4435), or Monel, with process connections including NPT ½”, NPT ¾”, NPT 1″, and M25 x 1.5. The CPA640 is designed as a cost-efficient solution that reduces the total cost of ownership for standard pH measuring points by allowing reuse of the threaded adapter and wiring cable when sensors are replaced.

The Cleanfit CPA482 is a process assembly designed for more demanding industrial applications, handling higher pressures and temperatures than the CPA640. It accommodates 120 mm sensors and operates at pressures up to 14 bar and temperatures up to 140 °C. Wetted parts are constructed of stainless steel 1.4404, with O-rings available in EPDM or Viton for reliable sealing in aggressive media. This makes the CPA482 suitable for chemical, petrochemical, and other industrial processes where higher performance specifications are required.

The Ecofit CPA640 and CPA482 process assemblies provide reliable, application-specific sensor installation for liquid analysis, combining flexible material options, quick maintenance capability, and robust construction suited to their respective process environments.

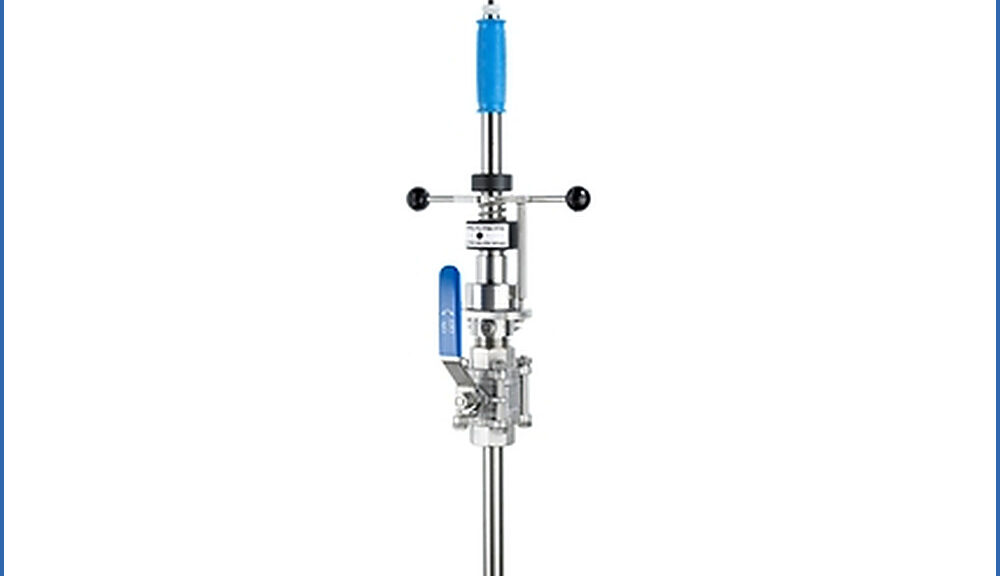

Endress Hauser Manual retractable assembly Cleanfit CPA450

Endress Hauser Manual retractable assembly Cleanfit CPA450

The Cleanfit CPA450 is a manual retractable assembly from Endress+Hauser, designed for installing pH/ORP and oxygen sensors in thick-walled tanks or large pipes, particularly in processes with fibrous or sticky media. Featuring a stainless steel ball valve for reliable process isolation, it allows sensor maintenance, cleaning, and calibration without interrupting the process or draining the tank.

Key Features and Benefits

  • No Process Interruption: The ball valve reliably isolates the process medium, allowing sensors to be removed for cleaning, calibration, or replacement while the process is running, significantly saving maintenance time and costs.

  • High Operational Safety: The stainless steel ball valve ensures reliable process isolation during maintenance. A safety kit is recommended for pressures exceeding 4 bar.

  • Flexible Immersion Depths: Available in three immersion depths — 100 mm, 250 mm, and 700 mm — to suit different tank and pipe dimensions.

  • Wide Material and Connection Options: Wetted materials include stainless steel 1.4404, Alloy C22, and titanium. Process connections include G 1¼” external thread, NPT 1¼” external thread, DN 32 PN 16 flange, and ANSI 1¼” flange.

  • Integrated Rinse Connection: Equipped with a G ¼ rinse connection for convenient sensor cleaning and maintenance.

Technical Specifications (at a Glance)

Specification Detail
Application Chemical, pulp & paper, power, wastewater, water supply
Process Temperature –15 to +130 °C (5 to 266 °F)
Process Pressure Max. 12 bar (at 100 °C)
Immersion Depth 100 mm / 250 mm / 700 mm
Sensor Specification 12 mm diameter, 120 mm length (pH/ORP/oxygen)
Wetted Materials Stainless steel 1.4404, Alloy C22, Titanium 3.7035
Process Connection G 1¼” ext., NPT 1¼” ext., DN 32 PN 16 flange, ANSI 1¼” flange
Certification 3.1B EN 10204 material certificate

The Cleanfit CPA450 provides a reliable, flexible sensor installation solution for processes with fibrous or sticky media, combining ball valve isolation with the convenience of sensor maintenance without process interruption.

Endress Hauser Manual retractable assembly Cleanfit CPA450



The Cleanfit CPA450 is a manual retractable assembly from Endress+Hauser, designed for installing pH/ORP and oxygen sensors in thick-walled tanks or large pipes, particularly in processes with fibrous or sticky media. As an entry-level retractable assembly, it uses a stainless steel ball valve for reliable process isolation, making sensor maintenance extremely convenient.

The assembly’s core advantage is that sensor maintenance can be performed without interrupting the process. The ball valve reliably isolates the process medium, allowing users to clean, calibrate, or replace sensors without draining the tank or stopping the process. This capability is particularly valuable in industries such as chemical, pulp and paper, power, wastewater treatment, and water supply.

The CPA450 offers three immersion depth options: 100 mm, 250 mm, and 700 mm, allowing flexible selection based on specific tank or pipe dimensions. Wetted materials are available in stainless steel 1.4404, Alloy C22, and Titanium 3.7035 to suit different corrosive media requirements. Process connection options include G 1¼” external thread, NPT 1¼” external thread, DN 32 PN 16 flange, and ANSI 1¼” flange. Seal materials can be selected from EPDM, Viton (FPM), or Kalrez (FFKM) / PTFE depending on the application.

The assembly accommodates sensors with 12 mm diameter and 120 mm length, including standard gel electrodes and ISFET sensors. It is equipped with a G ¼ rinse connection for convenient sensor rinsing during maintenance. The process temperature range is –15 to +130 °C, with a maximum process pressure of 12 bar (at 100 °C). A safety kit is strongly recommended for pressures exceeding 4 bar to ensure operational safety.

For installation, the assembly should preferably be mounted upright, with a minimum installation angle of 15° to the horizontal. A complete measuring system consists of the CPA450 assembly, a 120 mm pH/ORP sensor (such as Orbisint CPS11D), a transmitter (such as Mycom S CPM153), and a measuring cable (such as CYK10).

The Cleanfit CPA450 provides a reliable, flexible sensor installation solution for processes with fibrous or sticky media, combining ball valve isolation with the convenience of sensor maintenance without process interruption.

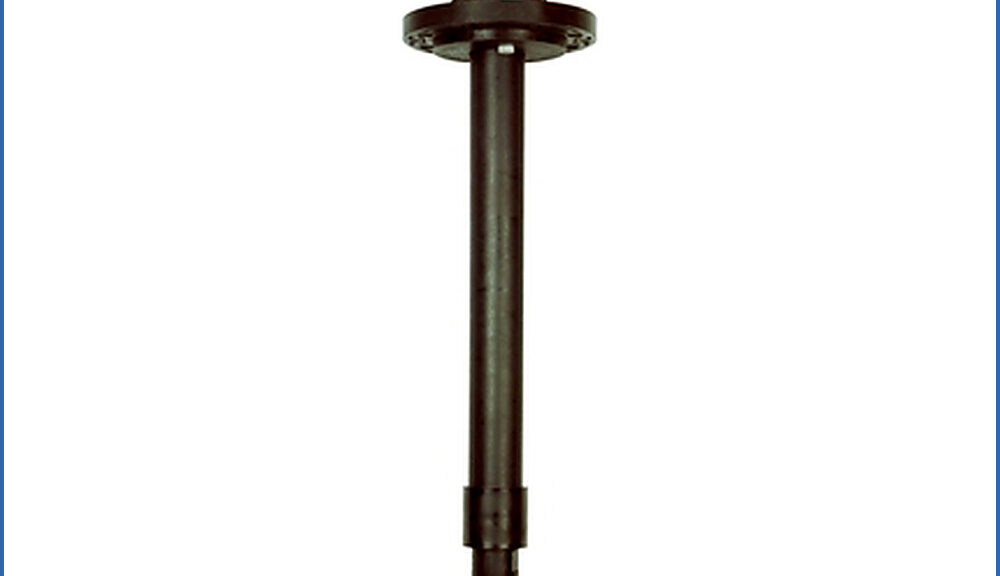

Endress Hauser Immersion assembly Dipfit CPA111 CPA140

Endress Hauser Immersion assembly Dipfit CPA111 CPA140

The Dipfit CPA111 and CPA140 are immersion assemblies from Endress+Hauser, designed for installing pH/ORP sensors in open and closed tanks, basins, and channels. Each model is tailored to specific application requirements, from standard water and wastewater treatment to demanding chemical processes with aggressive media.

Key Features and Benefits

  • Application-Specific Designs: The CPA111 (Dipfit W) is a plastic immersion assembly for open and closed vessels, suitable for water/wastewater treatment and standard process applications. The CPA140 (Dipfit P) is a flanged immersion assembly for very demanding processes, designed for chemical, petrochemical, life sciences, and power industries.

  • Three Sensor Mounting Positions: Both assemblies provide space for up to three sensors, offering flexibility for multi-parameter measurement configurations.

  • Bayonet Coupling for Easy Maintenance: The bayonet-style sensor mounting enables quick and simple installation and removal of sensors, even in media containing solids, significantly reducing maintenance and recalibration time.

  • Adjustable Immersion Depth: The CPA111 features a sliding flange that allows flexible adjustment of immersion depth to suit various vessel geometries.

  • Robust Construction for Demanding Media: The CPA140 is suitable for high-temperature and high-pressure applications up to 10 bar (145 psi) and 150°C (302°F), with a Goretex filter to reduce condensation.

Technical Specifications (at a Glance)

Specification CPA111 (Dipfit W) CPA140 (Dipfit P)
Application Water/wastewater, open/closed vessels, process Chemical, petrochemical, life sciences, power, aggressive media
Process Connection DN 100 flange Flange (DIN, ANSI, JIS available)
Sensor Positions 3 3
Immersion Depth Adjustable via sliding flange 500 to 2500 mm (20 to 98″)
Max. Process Pressure Standard process pressures Up to 10 bar (145 psi)
Max. Process Temperature Standard process temperatures Up to 150 °C (302 °F)
Material Polypropylene (PP) PVDF, stainless steel 1.4404
Special Features Sliding flange, Chemoclean compatible Goretex filter, bayonet coupling
Certifications PED, Ex protection available

The Dipfit CPA111 and CPA140 deliver reliable, application-specific sensor mounting for liquid analysis, combining flexible sensor positioning, easy maintenance access, and robust construction for demanding process environments.

Endress Hauser Immersion assembly Dipfit CPA111 CPA140



The Dipfit CPA111 and CPA140 are immersion assemblies from Endress+Hauser, designed for the installation of pH/ORP sensors in open and closed tanks, basins, and channels. Both assemblies provide three sensor mounting positions and feature bayonet-style couplings for quick and easy sensor installation and removal.

The Dipfit CPA111 (Dipfit W) is a plastic immersion assembly suitable for open and closed vessels with a DN 100 flange connection. It is designed for water and wastewater treatment, as well as standard process applications. The assembly features a sliding flange that allows flexible adjustment of immersion depth to suit various vessel geometries. Constructed of environmentally friendly polypropylene material, it is compatible with sensors including CLS 21 and CLS 40 conductivity sensors with Pt100 temperature sensors. Optional accessories include spray heads and mounting brackets, and the assembly can be equipped with the Chemoclean electrode cleaning system. All accessories are replaceable without requiring replacement of the assembly itself.

The Dipfit CPA140 (Dipfit P) is a flanged immersion assembly designed for very demanding processes involving aggressive media. It is suitable for chemical industry applications such as synthetic materials and dyes production, pesticides and fertilizers production, oil or wastewater separation, and condensate treatment. It is also used in power stations and incinerator plants for cooling water monitoring and flue gas cleaning, as well as in metal extraction and processing. The assembly handles high-temperature and high-pressure applications up to 10 bar (145 psi) and 150°C (302°F). It features a Goretex filter to reduce condensation and is available with various flange process connections including DIN, ANSI, and JIS standards. The immersion depth ranges from 500 to 2500 mm (20 to 98 inches). The assembly is constructed of PVDF or stainless steel 1.4404 and holds PED certification with Ex protection available.

Both assemblies feature bayonet coupling for convenient sensor installation and removal, with good sealing even in media containing solids. This design significantly reduces maintenance and recalibration time by enabling quick sensor exchange without process interruption.

The Dipfit CPA111 and CPA140 deliver reliable, application-specific sensor mounting for liquid analysis, combining flexible sensor positioning, easy maintenance access, and robust construction for demanding process environments.

Endress Hauser Multichannel transmitter Liquiline CM44P

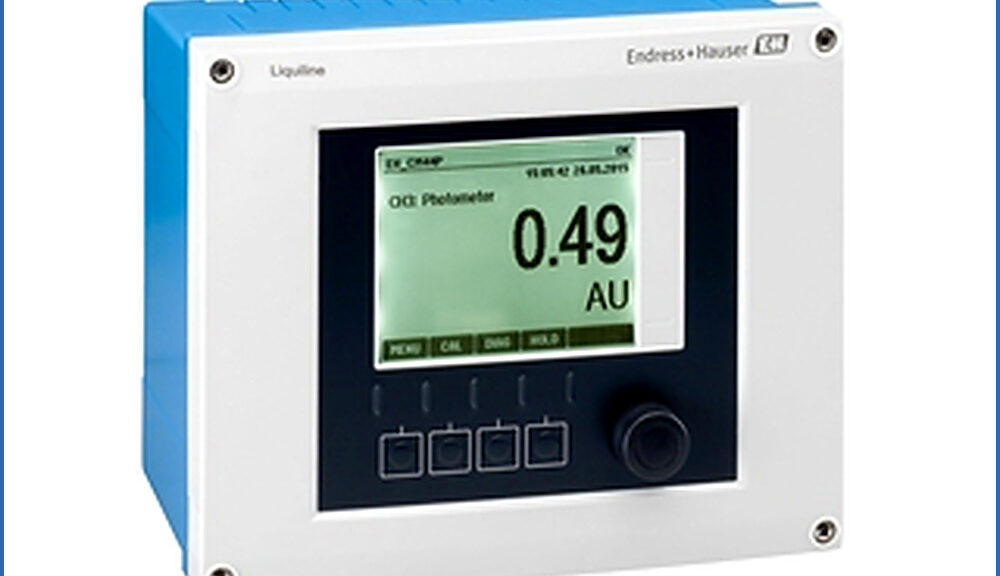

Endress Hauser Multichannel transmitter Liquiline CM44P

The Liquiline CM44P is a universal four-wire multichannel transmitter from Endress+Hauser, designed for connecting process photometers and Memosens digital sensors. As the first transmitter to combine both optical sensors and Memosens sensors on a single platform, it enables complete measuring point setup for demanding processes such as chromatography, fermentation, phase separation, and filtration.

Key Features and Benefits

  • Unique Hybrid Sensor Combination: The CM44P allows simultaneous connection of up to 2 process photometers and up to 4 Memosens sensors of your choice, measuring up to 16 different parameters from 6 analytical sensors. This combination capability simplifies complex measurement tasks that previously required multiple transmitters.

  • Optimized for Critical Processes: The transmitter is especially suited for chromatography, fermentation, filtration, and phase separation. In chromatography, combining a UV photometer with pH and conductivity measurements ensures accurate product detection and buffer quality verification. In fermentation, photometer measurement with pH and dissolved oxygen helps achieve optimal growth conditions.

  • Intelligent Design and Flexible I/O: One controller handles all parameters including process photometers, with 2 to 8 current outputs, alarm relay, and 4 relays. Optional digital or analog inputs/outputs allow adaptation to various applications.

  • Seamless System Integration: Communication protocols include 0/4…20 mA, HART, PROFIBUS DP, Modbus RS485/TCP, EtherNet/IP, and PROFINET, plus an integrated web server for remote access via any browser.

  • Heartbeat Technology: Enables status-oriented maintenance and easy verification of the entire measuring point, helping find the ideal balance between measurement point availability and maintenance costs.

Technical Specifications (at a Glance)

Specification Detail
Sensor Inputs 1 to 2x process photometer; 0 to 4x Memosens digital input
Measured Parameters Up to 16 parameters (UV, NIR/VIS absorption, turbidity, pH/ORP, conductivity, dissolved oxygen, etc.)
Outputs 2 to 8x 0/4…20 mA current outputs; alarm relay; 4x relay
Communication HART, PROFIBUS DP, Modbus RS485/TCP, EtherNet/IP, PROFINET, web server
Housing Material PC-FR (housing base & DIN rail housing); EPDM (seals)
Ingress Protection Field device: IP66/67; External display: IP66; Cabinet device: IP20
Certifications cCSAus, IECEx, ATEX

The Liquiline CM44P delivers reliable, flexible multichannel measurement for demanding analytical processes, combining hybrid sensor capability, expandable architecture, and advanced diagnostic power through Heartbeat Technology.

Endress Hauser Multichannel transmitter Liquiline CM44P



The Liquiline CM44P is a universal four-wire multichannel transmitter from Endress+Hauser, engineered for connecting process photometers and Memosens digital sensors. As the first transmitter to combine both optical sensors and Memosens sensors on a single platform, it enables complete measuring point setup for demanding processes such as chromatography, fermentation, phase separation, and filtration.

The transmitter’s core capability is its unique hybrid sensor combination. It accepts inputs from up to two process photometers and four Memosens sensors simultaneously, measuring up to 16 different parameters from six analytical sensors. Sensor types supported include pH, ORP, conductivity, dissolved oxygen, nitrate, turbidity, free chlorine, and ion-selective sensors. Mathematical functions allow the CM44P to calculate measured values based on multiple input values, enabling up to six “virtual” process values such as pH calculation from two conductivity values or rH value based on pH and ORP inputs.

The CM44P is especially suited for demanding analytical processes. In chromatography, combining a UV process photometer with pH and conductivity measurement ensures accurate detection of the target product and verifies buffer quality, leading to optimum product yield. The transmitter also detects the transition from product to cleaning phase, allowing optimization of cleaning and flushing cycles. In fermentation, photometer measurement with pH and dissolved oxygen helps achieve optimal growth conditions for microorganisms. For filtration, combining turbidity and dissolved oxygen measurement provides an accurate overview of the process, indicating product purity and whether oxygen has penetrated the process.

The transmitter performs diagnostics on all connected sensors and analyzers, transmitting error messages according to NE107 categories. Diagnostic functions include monitoring pH glass impedance, measuring signal stagnation, monitoring electrode condition and aging, checking overcurrent conditions, and comparing conductivity and temperature values against USP and EP specifications for pharmaceutical water.

Communication options are extensive, including 0/4…20 mA, HART, PROFIBUS DP, Modbus RS485/RTU, Modbus TCP, EtherNet/IP, PROFINET, and an integrated web server. The web server allows operators to remotely view diagnostic data, perform configurations, or access device parameters in any web browser, even via smartphone. The transmitter can be extended with an Ex module whose approvals (IECEx, ATEX, CSA) allow connection of sensors installed in hazardous areas.

The CM44P interfaces to all Memosens sensors from Endress+Hauser and other vendors. Sensor-related data stored directly in the sensor head can be accessed for analysis, mathematical calculations, and diagnostic purposes. Data can be stored in a tamper-proof database or SD card, exported to CSV, and logged with up to 150,000 entries in up to eight logbooks. All settings and logbooks are stored in non-volatile memory for retention during power failure. Memosens lab-calibrated sensors and hot plug-and-play allow fast commissioning.

The transmitter is available as a field device (IP66/67) or cabinet device (IP20), with an external display option (IP66). Housing materials include PC-FR base and DIN rail housing with EPDM seals. The CM44P holds cCSAus, IECEx, and ATEX certifications. Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point, helping optimize maintenance efforts and maximize plant availability.

The Liquiline CM44P delivers reliable, flexible multichannel measurement for demanding analytical processes, combining hybrid sensor capability, expandable architecture, and advanced diagnostic power through Heartbeat Technology.

Endress Hauser 8-channel transmitter Liquiline CM448 CM448R

Endress Hauser 8-channel transmitter Liquiline CM448 CM448R

The Liquiline CM448 and CM448R are digital 8-channel multiparameter transmitters from Endress+Hauser, designed for process monitoring and control across all industries. The CM448 features a robust field housing, while the CM448R is a DIN-rail mountable version optimized for cabinet installation in space-constrained applications.

Key Features and Benefits

  • Maximum Channel Density: The CM448/CM448R supports up to 8 digital Memosens sensor channels, allowing connection of any combination of over 12 measurement parameters including pH, ORP, ISFET, conductivity (inductive and conductive), dissolved oxygen, chlorine, turbidity, nitrate, and sludge level.

  • Expandable Architecture: Functionality is modularly extendable at any time with additional inputs, outputs, controllers, and math modules. Optional inputs include 2x 0/4…20 mA and 2 to 4x digital inputs, while outputs include 2 to 8x 0/4…20 mA current outputs, an alarm relay, and 4x relays.

  • Seamless System Integration: A comprehensive portfolio of communication standards suits every distributed control system (DCS), including 0/4…20 mA, HART, PROFIBUS DP, Modbus RS485/TCP, EtherNet/IP, and PROFINET. An integrated web server allows remote viewing of diagnostic data, configurations, and device parameters via any web browser, even on smartphones.

  • DIN-Rail Convenience (CM448R): The CM448R features a compact DIN-rail design (220 x 100 x 98 mm) that saves cabinet space, requires no cut-out in the cabinet door, and enables one-click mounting with minimized wiring.

  • Heartbeat Technology: Enables status-oriented maintenance and easy verification of the entire measuring point, helping to optimize maintenance efforts and maximize plant availability.

Technical Specifications (at a Glance)

Specification CM448 (Field Housing) CM448R (DIN-Rail)
Sensor Inputs 1 to 8x Memosens digital input 1 to 8x Memosens digital input
Optional Inputs 2x 0/4…20 mA, 2 to 4x digital input 2x 0/4…20 mA, 2 to 4x digital input
Outputs 2 to 8x 0/4…20 mA current outputs, alarm relay, 4x relay 2 to 8x 0/4…20 mA current outputs, alarm relay, 4x relay
Communication PROFIBUS DP, Modbus RS485/TCP, EtherNet/IP, PROFINET, Ethernet webserver PROFIBUS DP, Modbus RS485/TCP, EtherNet/IP, PROFINET, Ethernet webserver
Housing Material PC-FR (polycarbonate) PC-FR (polycarbonate)
Dimensions 237 x 194 x 162 mm 220 x 100 x 98 mm
Ingress Protection IP66 / IP67 Transmitter: IP20; Optional display: IP66
Process Temperature –20 to 55 °C –20 to 55 °C
Certifications EAC, cCSAus EAC, cCSAus

The Liquiline CM448/CM448R delivers reliable, flexible multiparameter measurement for process monitoring and control, combining maximum channel density, expandable architecture, seamless system integration, and the diagnostic power of Heartbeat Technology.

Endress Hauser 8-channel transmitter Liquiline CM448 CM448R



The Liquiline CM448 and CM448R are digital 8-channel multiparameter transmitters from Endress+Hauser, designed for process monitoring and control across all industries. The CM448 features a robust field housing, while the CM448R is a DIN-rail mountable version optimized for cabinet installation in space-constrained applications.

Both models support up to 8 digital Memosens sensor channels, with the ability to connect any combination of pH, ORP, ISFET, conductivity (inductive and conductive), dissolved oxygen, chlorine, turbidity, nitrate, and sludge level sensors. The transmitter’s functionality is modularly extendable at any time with additional inputs, outputs, controllers, and math modules, allowing the device to grow with changing process requirements. Optional inputs include 2x 0/4…20 mA and 2 to 4x digital inputs, while outputs include 2 to 8x 0/4…20 mA current outputs, an alarm relay, and 4x relays.

The transmitters offer clever simplicity through a single controller that handles all parameters and applications. The intuitive user interface, automatic sensor recognition, and hot plug & play capability with pre-calibrated Memosens sensors simplify commissioning and operation. Configuration can be saved on an SD card for fast setup on duplicate installations, reducing engineering time and minimizing errors.

Seamless system integration is achieved through a unique portfolio of communication standards that suits every distributed control system (DCS), including 0/4…20 mA, HART, PROFIBUS DP, Modbus RS485/TCP, EtherNet/IP, and PROFINET. An integrated web server allows remote viewing of diagnostic data, configurations, and device parameters via any web browser, even on smartphones, enabling convenient remote monitoring and troubleshooting.

The CM448R features a compact DIN-rail design (220 x 100 x 98 mm) that saves cabinet space, requires no cut-out in the cabinet door, and enables one-click mounting with minimized wiring. It is ideal for skids and space-constrained installations. The CM448 field housing is constructed of PC-FR (polycarbonate) with dimensions of 237 x 194 x 162 mm and IP66/IP67 ingress protection. The CM448R DIN-rail housing is constructed of PC-FR with dimensions of 220 x 100 x 98 mm, featuring IP20 protection for the transmitter and IP66 for the optional display.

Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point, helping to optimize maintenance efforts and maximize plant availability. The transmitters hold EAC and cCSAus certifications.

The Liquiline CM448/CM448R delivers reliable, flexible multiparameter measurement for process monitoring and control, combining maximum channel density, expandable architecture, seamless system integration, and the diagnostic power of Heartbeat Technology.

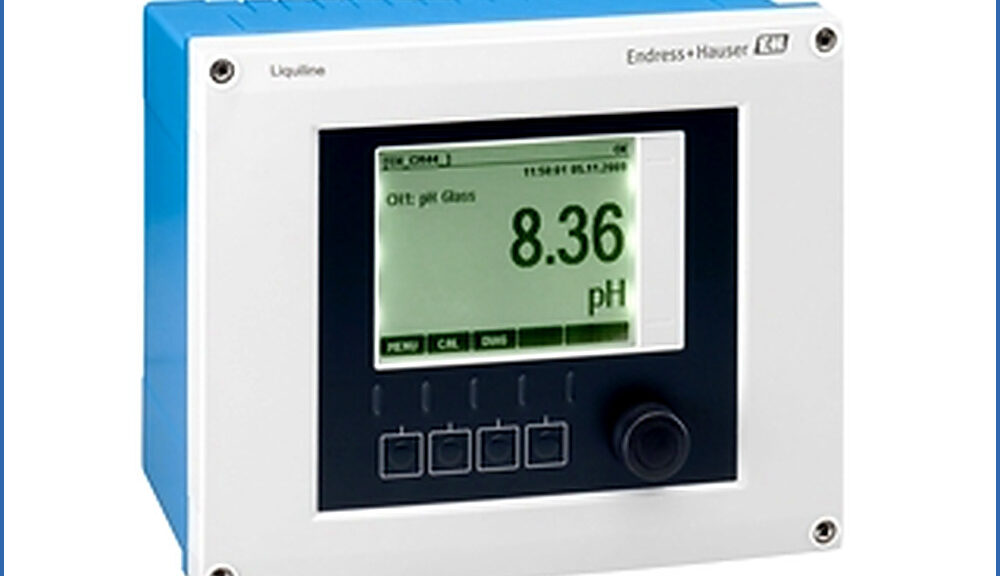

Endress Hauser 4-channel transmitter Liquiline CM444 CM444R

Endress Hauser 4-channel transmitter Liquiline CM444 CM444R

The Liquiline CM444 and CM444R are digital 4-channel multiparameter transmitters from Endress+Hauser, designed for process monitoring and control across all industries. The CM444 features a robust field housing, while the CM444R is a DIN-rail mountable version optimized for cabinet installation in space-constrained applications.

Key Features and Benefits

  • Expandable Multichannel Architecture: Both models support up to 4 digital Memosens sensor channels, with the ability to connect any combination of pH, ORP, conductivity (inductive and conductive), dissolved oxygen, chlorine, turbidity, nitrate, and ISFET sensors. Functionality is modularly extendable at any time with additional inputs, outputs, controllers, and math modules.

  • Clever Simplicity: One controller handles all parameters and applications with an intuitive user interface, automatic sensor recognition, and hot plug & play capability with pre-calibrated Memosens sensors. Configuration can be saved on an SD card for fast setup on duplicate installations.

  • Seamless System Integration: A unique portfolio of communication standards suits every distributed control system (DCS), including 0/4…20 mA, HART, PROFIBUS DP, Modbus RS485/TCP, EtherNet/IP, and PROFINET. An integrated web server allows remote viewing of diagnostic data, configurations, and device parameters via any web browser, even on smartphones.

  • DIN-Rail Convenience (CM444R): The CM444R features a compact DIN-rail design that saves cabinet space, requires no cut-out in the cabinet door, and enables one-click mounting with minimized wiring. It is ideal for skids and space-constrained installations.

  • Higher Availability, Lower Costs: Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point, helping to optimize maintenance efforts and maximize plant availability.

Technical Specifications (at a Glance)

Specification CM444 (Field Housing) CM444R (DIN-Rail)
Sensor Inputs 1 to 4x Memosens digital input 1 to 4x Memosens digital input
Optional Inputs 2x 0/4…20 mA, 2 to 4x digital input 2x 0/4…20 mA, 2 to 4x digital input
Outputs 2 to 8x 0/4…20 mA current outputs, alarm relay, 4x relay 2 to 8x 0/4…20 mA current outputs, alarm relay, 4x relay
Communication PROFIBUS DP, Modbus RS485, Modbus TCP, EtherNet/IP, PROFINET, Ethernet webserver PROFIBUS DP, Modbus RS485, Modbus TCP, EtherNet/IP, PROFINET, Ethernet webserver
Housing Material Robust plastic (PC-FR) DIN rail housing: PC-FR
Dimensions 237 x 194 x 162 mm 220 x 100 x 97 mm
Ingress Protection IP66 / IP67 Transmitter: IP20; Optional display: IP66
Certifications EAC, cCSAus EAC, cCSAus

The Liquiline CM444/CM444R delivers reliable, flexible multiparameter measurement for process monitoring and control, combining expandable architecture, seamless system integration, and the diagnostic power of Heartbeat Technology.

Endress Hauser 4-channel transmitter Liquiline CM444 CM444R



The Liquiline CM444 and CM444R are digital 4-channel multiparameter transmitters from Endress+Hauser, designed for process monitoring and control across all industries. The CM444 features a robust field housing, while the CM444R is a DIN-rail mountable version optimized for cabinet installation in space-constrained applications.

Both models support up to 4 digital Memosens sensor channels, with the ability to connect any combination of pH, ORP, conductivity (inductive and conductive), dissolved oxygen, chlorine, turbidity, nitrate, and ISFET sensors. The transmitter’s functionality is modularly extendable at any time with additional inputs, outputs, controllers, and math modules, allowing the device to grow with changing process requirements. Optional inputs include 2x 0/4…20 mA and 2 to 4x digital inputs, while outputs include 2 to 8x 0/4…20 mA current outputs, an alarm relay, and 4x relays.

The transmitters offer clever simplicity through a single controller that handles all parameters and applications. The intuitive user interface, automatic sensor recognition, and hot plug & play capability with pre-calibrated Memosens sensors simplify commissioning and operation. Configuration can be saved on an SD card for fast setup on duplicate installations, reducing engineering time and minimizing errors.

Seamless system integration is achieved through a unique portfolio of communication standards that suits every distributed control system (DCS), including 0/4…20 mA, HART, PROFIBUS DP, Modbus RS485/TCP, EtherNet/IP, and PROFINET. An integrated web server allows remote viewing of diagnostic data, configurations, and device parameters via any web browser, even on smartphones, enabling convenient remote monitoring and troubleshooting.

The CM444R features a compact DIN-rail design that saves cabinet space, requires no cut-out in the cabinet door, and enables one-click mounting with minimized wiring. It is ideal for skids and space-constrained installations. The CM444 field housing is constructed of robust plastic (PC-FR) with dimensions of 237 x 194 x 162 mm and IP66/IP67 ingress protection. The CM444R DIN-rail housing is constructed of PC-FR with dimensions of 220 x 100 x 97 mm, featuring IP20 protection for the transmitter and IP66 for the optional display.

Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point, helping to optimize maintenance efforts and maximize plant availability. The transmitters hold EAC and cCSAus certifications.

The Liquiline CM444/CM444R delivers reliable, flexible multiparameter measurement for process monitoring and control, combining expandable architecture, seamless system integration, and the diagnostic power of Heartbeat Technology.

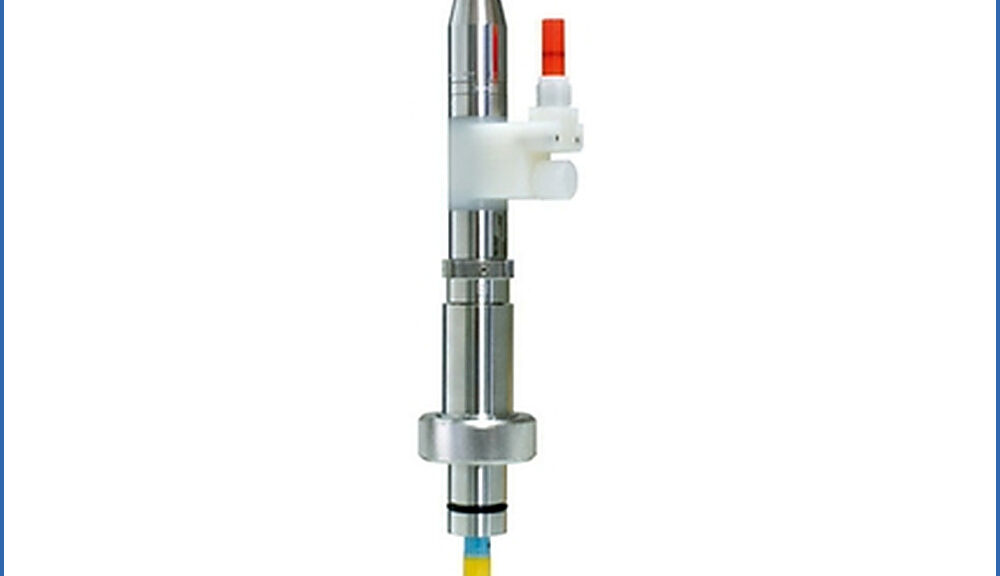

Endress Hauser Digital non-glass pH sensor Ceramax CPS341D

Endress Hauser Digital non-glass pH sensor Ceramax CPS341D

The Ceramax CPS341D is a digital non-glass pH sensor from Endress+Hauser, engineered as the long-runner for hygienic applications in the food and life sciences industries. Featuring a shatterproof pH-sensitive enamel coating on a steel carrier and Memosens digital technology, it guarantees long-term stability and minimal maintenance in demanding sanitary processes.

Key Features and Benefits

  • Shatterproof Non-Glass Design: The sensor body is made of steel with a pH-sensitive enamel coating, eliminating the risk of glass breakage—a critical safety advantage for food and pharmaceutical production where glass contamination is intolerable.

  • Long-Term Stability: The enamel pH-sensitive surface shows almost no drift or aging, enabling stable measurements for many years. In most applications, annual calibration with the product is sufficient.

  • Hygienic Design for CIP/SIP: The sensor is suitable for Clean-in-Place and Sterilization-in-Place processes, with an aseptic ground diaphragm forming the interface to the medium. The electrolyte is packed in sterile PE bottles that can be replaced without impacting sterility.

  • High Mechanical Strength and Corrosion Resistance: The glass-lined steel carrier provides mechanical stability against abrasive substances and turbulent flow from agitators. The sensor resists extreme corrosion in strong acids and is unaffected by organic solvents or proteins.

  • Large pH Measuring Surface: The pH-sensitive enamel area is much larger than that of a glass electrode, enabling precision measurements in process solutions where other methods are limited, and making it insensitive to soiling.

  • Memosens Digital Technology: Non-contact, inductive signal transmission eliminates moisture and corrosion issues, enables laboratory pre-calibration, and stores sensor data for predictive maintenance.

Technical Specifications (at a Glance)

Specification Detail
Measuring Range pH 0 to 10 (linear range); pH -2 to 14 (application range)
Process Temperature 0 to 140 °C (32 to 280 °F)
Process Pressure 0 to 7 bar abs (0 to 101.5 psi)
Reference System Ag/AgCl with 3 M KCl and inhibitor (colloidal silica)
Measuring Principle Ground diaphragm, liquid KCl-filled reference
Temperature Sensor NTC 30 kΩ
Material pH-sensitive enamel on steel carrier
Dimensions Diameter: 12 mm (0.47″); Shaft length: 120 mm (4.72″)
Connection Contactless, inductive, digital connection head with Memosens technology
Ingress Protection IP68
Hygienic Approvals FDA, EU 1935/2004 compliant

The Ceramax CPS341D delivers reliable, shatterproof pH measurement for hygienic food and life sciences applications, combining enamel-based non-glass technology with Memosens digital capabilities for maximum process integrity and minimal maintenance.

Endress Hauser Digital non-glass pH sensor Ceramax CPS341D



The Ceramax CPS341D is a digital non-glass pH sensor from Endress+Hauser, engineered as the long-runner for hygienic applications in the food and life sciences industries. Featuring a shatterproof pH-sensitive enamel coating on a steel carrier and Memosens digital technology, it guarantees long-term stability and minimal maintenance in demanding sanitary processes.

The sensor’s construction is fundamentally different from conventional glass electrodes. The carrier material is made of steel, protected against corrosion by a special resistant, anti-adhesive enamel coating. The yellow pH-sensitive enamel is fused on the lower end in a circular shape, providing a pH-sensitive area much larger than that of a glass electrode. Because there is no internal buffer, the enamel measuring electrode is directly connected to a metal contact, simplifying the sensor design and contributing to its long-term stability.

The Ag/AgCl reference is integrated in the head of the electrode, with a conductive electrolyte connection between the electrolyte vessel, reference part, and product established via a tube and a hygienically formed ground diaphragm. The KCl electrolyte is supplied in sterile PE bottles placed in a stainless steel pressure vessel. The pressure inside the electrolyte system must always be kept above the process pressure. Thanks to this sophisticated construction, the Ceramax CPS341D shows almost no drift or aging, and in most applications, annual calibration is sufficient.

The sensor is suitable for Clean-in-Place and Sterilization-in-Place processes, making it ideal for hygienic applications. It resists extreme corrosion in strong acids and is not affected by organic solvents or proteins. The glass-lined steel carrier provides mechanical stability against abrasive substances and turbulent flow from agitators, and the sensor can be installed at any orientation, even upside down. The Ceramax is installed directly in pipes or tank nozzles without the need for an assembly.

The CPS341D is used across a range of applications including food production with highly pasty media, beverage production and filling, quality control, pharmaceutical industry, biotechnology, fermentation, and water treatment. Its non-glass, shatterproof design makes it particularly valuable where glass breakage poses a contamination risk, and its large pH-sensitive surface ensures reliable measurement even in viscous or challenging media.

Memosens digital technology provides non-contact, inductive signal transmission that eliminates moisture and corrosion issues, enables laboratory pre-calibration, and stores calibration data and sensor history directly in the sensor head for predictive maintenance. The sensor is precalibrated when delivered and combines maximum process and data integrity with simple operation.

The sensor features an integrated NTC 30 kΩ temperature sensor for automatic temperature compensation. It has a diameter of 12 mm (0.47 inch) and a shaft length of 120 mm (4.72 inch), with different hygienic process connectors available. The connection uses a contactless, inductive, digital connection head with Memosens technology, rated IP68 for ingress protection. The sensor is compliant with FDA and EU 1935/2004 regulations for food contact materials.

The Ceramax CPS341D delivers reliable, shatterproof pH measurement for hygienic food and life sciences applications, combining enamel-based non-glass technology with Memosens digital capabilities for maximum process integrity and minimal maintenance.

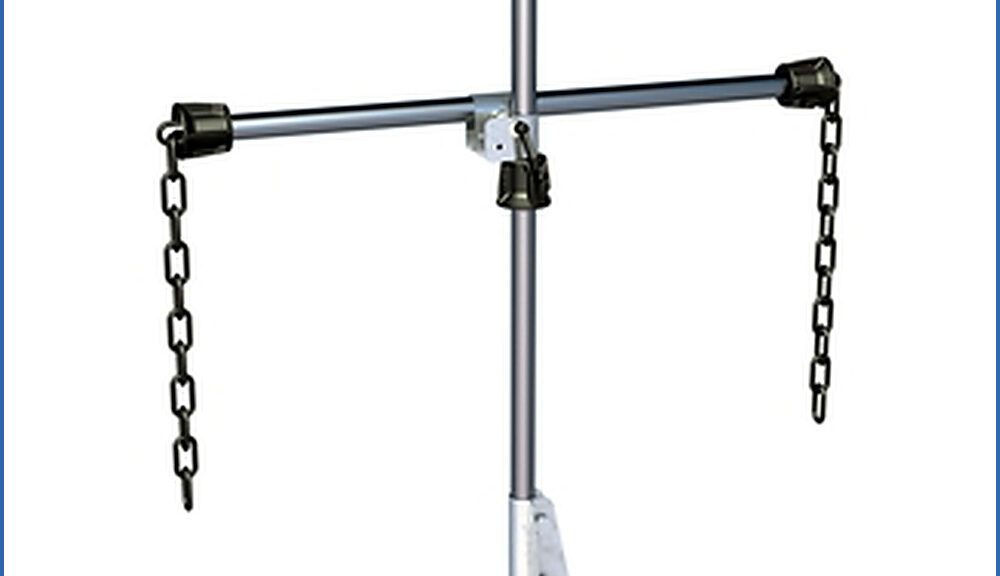

Endress Hauser Modular holder system Flexdip CYH112

Endress Hauser Modular holder system Flexdip CYH112

The Flexdip CYH112 is a modular holder system from Endress+Hauser, designed for sensor and assembly installation in open basins, channels, and tanks across water, wastewater, and utilities applications. It provides outstanding flexibility by supporting nearly any type of mounting configuration while keeping sensors precisely positioned at the measuring point.

Key Features and Benefits

  • Universal Mounting Flexibility: The system works for nearly any fixing type, including floor, wall, and rail mounting. It supports all sensor installation modes — chain suspension, fixed installation, or free-swinging.

  • Adjustable and Expandable: The holder is adjustable in height, position, and orientation, and can be expanded or modified at any time to accommodate changing requirements.

  • Cost-Effective Design: Existing structural works can be utilized, reducing installation costs. The modular design allows simple, cost-effective configuration for each measuring point.

  • Compatible with All Common Parameters: The Flexdip system supports pH/ORP, conductivity, oxygen, turbidity, sludge level, disinfection, UV photometry, and nutrients measurement.

  • Robust Construction: Suitable for process pressures up to 6 bar (87 psi) and process temperatures from –20 to 60 °C (–4 to 140 °F).

  • Perfect Team with CYA112: Forms an ideal combination with the Flexdip CYA112 immersion assembly for simple sensor isolation and maintenance.

Technical Specifications (at a Glance)

Specification Detail
Application Water treatment, wastewater treatment, plant design, open channels, basins, open tanks and process vats, fluctuating water levels
Process Temperature –20 to 60 °C (–4 to 140 °F)
Process Pressure Up to 6 bar (87 psi)
Material Main pipe, transverse pipe: Stainless steel 1.4404; Chain: PA or stainless steel 1.4401
Mounting Types Floor, wall, or rail mounting; chain suspension; fixed; free-swinging

The Flexdip CYH112 delivers reliable, flexible sensor mounting for water and wastewater applications, combining modular design, robust construction, and easy maintenance to ensure accurate measurement at any open basin, channel, or tank.

Endress Hauser Modular holder system Flexdip CYH112



The Flexdip CYH112 is a modular holder system from Endress+Hauser, engineered for sensor and assembly installation in open basins, channels, and tanks across water, wastewater, and utilities applications. It allows nearly any kind of fixing, such as floor, wall, and rail mounting, and is suitable for all types of sensor installation — chain, fixed, or free-swinging.

The holder system is designed as a modular platform that can be expanded or modified at any time. It provides outstanding flexibility, enabling users to install their measurement exactly at the required point. The holder is adjustable in height, position, and orientation, and existing structural works can be utilized to reduce installation costs.

The CYH112 is compatible with a comprehensive range of analytical parameters including pH/ORP, conductivity, oxygen, turbidity, sludge level, disinfection, UV photometry, and nutrients. It forms a perfect team with the Flexdip CYA112 immersion assembly for simple sensor isolation, enabling easy removal of sensors from the medium for maintenance.

Mounting options include fixing on the floor, wall, or directly on a rail. The system supports chain suspension for fluctuating water levels, fixed installation via transverse pipe, and free-swinging float mounting using a swing base. For fixed installation, the immersion tube must protrude over the retaining point by at least 100 mm (3.94 inches).

The holder system is constructed with a main pipe and transverse pipe made of stainless steel 1.4404 for durability and corrosion resistance. Chains are available in PA or stainless steel 1.4401. The system operates within a process temperature range of –20 to 60°C (–4 to 140°F) and is suitable for process pressures up to 6 bar (87 psi).

A complete measuring system typically consists of the CYH112 holder, the CYA112 immersion assembly, a transmitter such as the Liquiline CM44, and a suitable sensor. The Flexdip CYH112 delivers reliable, flexible sensor mounting for water and wastewater applications, combining modular design, robust construction, and easy maintenance to ensure accurate measurement at any open basin, channel, or tank.

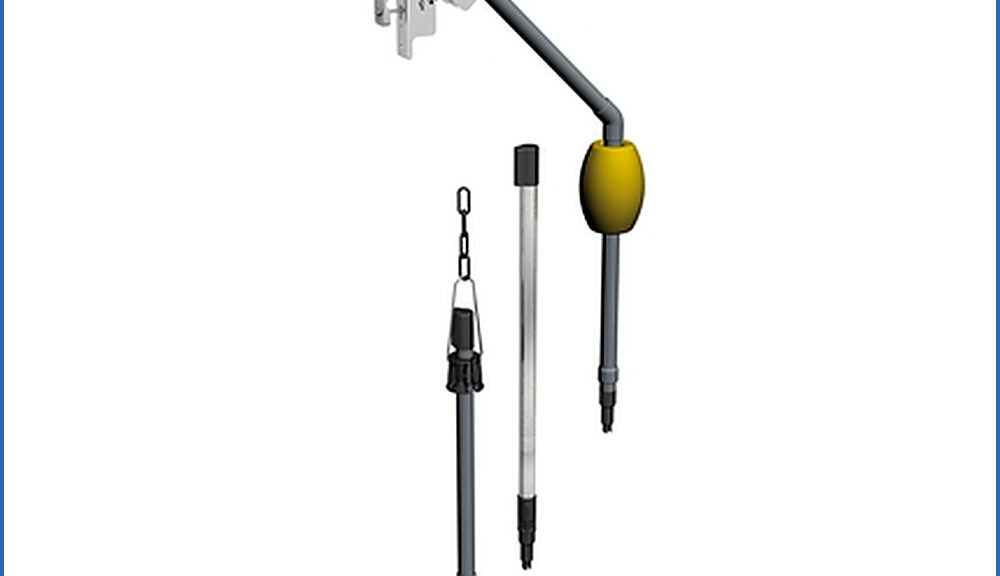

Endress Hauser Immersion assembly Flexdip CYA112

Endress Hauser Immersion assembly Flexdip CYA112

The Flexdip CYA112 is a modular immersion assembly from Endress+Hauser, designed for sensor installation in open basins, channels, and tanks across water, wastewater, and utilities applications. It provides outstanding flexibility for nearly any sensor mounting configuration — chain, fixed, or free-swinging — with a quick fastener for rapid and safe installation of Memosens or fixed-cable sensors.

Key Features and Benefits

  • Modular Configuration: The system allows optimum configuration for every measuring point, with immersion pipe lengths available in 600, 1200, 1800, and 2400 mm increments. The assembly forms a perfect team with the Flexdip CYH112 holder for simple sensor isolation.

  • Fast Sensor Installation: A quick fastener enables rapid installation and exchange of Memosens sensors with contactless plug-in head, while twist-free installation prevents cable tangling for fixed-cable sensors.

  • Multi-Parameter Compatibility: The assembly supports all common analytical parameters including pH/ORP, conductivity, oxygen, turbidity, sludge level, disinfection, UV photometry, and nutrients.

  • Robust Construction: Available in stainless steel 1.4404 or PVC versions, with process temperature range of 0 to 60°C (32 to 140°F) and process pressure up to 6 bar (87 psi).

  • Flexible Mounting Options: Supports fixed installation via transverse pipe, chain suspension for fluctuating water levels, or free-swinging float mounting.

Technical Specifications (at a Glance)

Specification Detail
Application Water treatment, wastewater treatment, plant design, open channels, basins, open tanks, process vats, fluctuating water levels
Process Temperature 0 to 60 °C (32 to 140 °F)
Process Pressure Up to 6 bar (87 psi)
Immersion Pipe Diameter 40 mm (1.57 inch)
Available Lengths 600, 1200, 1800, 2400 mm (23.6, 47.2, 70.9, 94.5 inch); up to 3600 mm for stainless steel
Wetted Materials Immersion pipe, connection angle, welded threads: Stainless Steel 1.4404; Sensor adaption, quick fastener, clamp ring: POM-GF; O-rings: EPDM
Housing Material Options Stainless steel 1.4404 or PVC
Sensor Connection G1″ thread (other threads available: NPT ¾”, G ¾”, Pg13.5)
Mounting Types Fixed (transverse pipe), chain suspension, free-swinging float

The Flexdip CYA112 delivers reliable, flexible sensor mounting for water and wastewater applications, combining a modular design, robust construction, and easy maintenance to ensure accurate measurement in open basins, channels, and tanks.

Endress Hauser Immersion assembly Flexdip CYA112



The Flexdip CYA112 is a modular immersion assembly from Endress+Hauser, engineered for sensor installation in open basins, channels, and tanks across water, wastewater, and utilities applications. It provides outstanding flexibility for nearly any sensor mounting configuration — chain, fixed, or free-swinging — with a quick fastener for rapid and safe installation of Memosens or fixed-cable sensors.

The assembly is designed as a modular system that allows optimum configuration for every measuring point. The immersion pipe is available in lengths of 600, 1200, 1800, and 2400 mm (23.6, 47.2, 70.9, and 94.5 inches), with stainless steel versions extending up to 3600 mm (141.7 inches). The immersion pipe has an outer diameter of 40 mm (1.57 inches). The assembly forms a perfect team with the Flexdip CYH112 holder for simple sensor isolation, enabling easy removal of sensors from the medium without process interruption.

The CYA112 supports all common analytical parameters including pH/ORP, conductivity, oxygen, turbidity, sludge level, disinfection, UV photometry, and nutrients. The quick fastener enables rapid installation and exchange of Memosens sensors with contactless plug-in head, while twist-free installation prevents cable tangling for fixed-cable sensors. The sensor connection uses a G1″ thread, with other thread options available including NPT ¾”, G ¾”, and Pg13.5. Connection pipe types include straight, 45° angled, and 90° angled configurations.

The assembly is available in two material versions. The stainless steel version uses 1.4404 (316L) for the immersion pipe, connection angle, and welded threads, with process pressure capability up to 6 bar (87 psi). The PVC version is suitable for lengths up to 2400 mm (94.5 inches). Sensor adaption, quick fastener, and multifunctional clamp ring are constructed of POM-GF, with EPDM O-rings for sealing. Process temperature range is 0 to 60°C (32 to 140°F).

Mounting options include fixed installation on a transverse pipe of the CYH112 holder, chain suspension for fluctuating water levels, or free-swinging float mounting using a swing base. For fixed installation, the immersion tube must protrude over the retaining point by at least 100 mm (3.94 inches). A complete measuring system consists of the CYA112 assembly, CYH112 holder, a transmitter such as the Liquiline CM44, and a suitable sensor such as the CUS71D.

The Flexdip CYA112 delivers reliable, flexible sensor mounting for water and wastewater applications, combining a modular design, robust construction, and easy maintenance to ensure accurate measurement in open basins, channels, and tanks.
