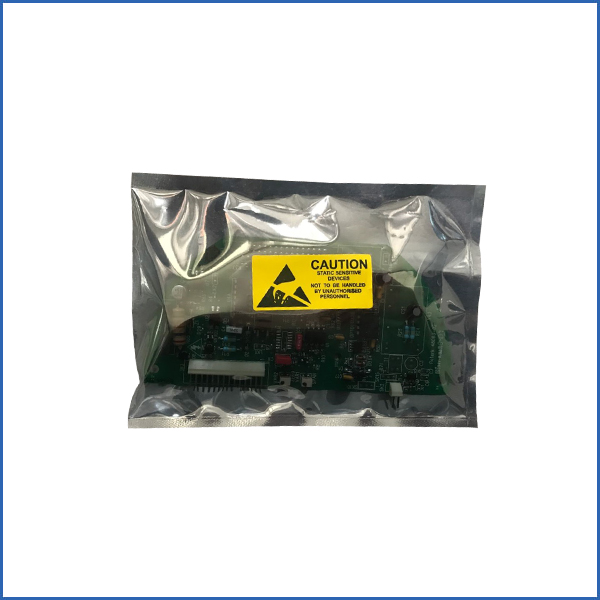

Standard Rotork board accessories Display screen IQ10 1050480-01

Rotork Display screen

Rotork Display screen Standard Rotork Board Accessories Display screen IQ10: 1050480-01

Quick Details
D/C: ORIGINAL
Package: Sealed package
Model Number: IQ10: 1050480-01
Type: Logic ICs
Brand Name: Rotork
Place of Origin: London, United Kingdom
Product Name: Standard Rotork board accessories Display screen IQ10: 1050480-01
Price: Best price with Rotork Display screen IQ10: 1050480-01
Quality: International Standard for Rotork Display screen IQ10: 1050480-01
Model: IQ10: 1050480-01
Standard Package: Wooden package
Safety: good
Actuator Model: IQM10 IQM12 IQM20 IQM25 IQM35
Rated thrust kN: 15.88 28.59 36.4

Rotork Display screen

Rotork Display screen Standard Rotork Board Accessories Display screen IQ10: 1050480-01

Actuator type
Torque (Nm) IQ10 34
Power (KW) 0.05 0.07 0.09 0.11 0.15 0.19
IQ12 81 68 48 41
Power (KW) 0.13 0.16 0.21 0.23
3.IQ18 108
Power (KW) 0.17 0.21 0.23
4.IQ20 203 176 142 102
Power (KW) 0.32 0.40 0.53 0.64 0.76 0.80 0.81
5.IQ25 400 298 244 230 149
Power (KW) 0.63 0.78 0.77 1.06 1.29 1.19
6.IQ35 610 542 474 366 257
Power (KW) 0.96 1.19 1.42 1.50 2.06 2.04 2.06
7.IQ40 1020 845 680 542 406
Power (KW) 1.60 1.98 2.22 2.14 2.94 3.03 3.24
8.IQ70 1490 1290 1020 745 645 542
Power (KW) 2.34 2.91 3.37 3.21 4.41 4.16 5.14 5.59
9.IQ90 2030 1700 1355 1020 865 730
Power (KW) 3.19 3.96 4.44 4.29 5.87 5.68 6.92 7.55
10.IQ91 1355
Power (KW) 10.82 13.98
11.IQ95 3000
Power (KW) 5.81

Note: IQ-IB / IS binding up to 43,386Nm (multi-turn); IQ-IW combined up to 137,000Nm (90 degrees output)
Mechanical data
12. Actuator IQ10IQ20 IQ35 IQ40 IQ70 IQ90 IQ95 IQ12 IQ25 IQ18
Flange Type ISO5210 F10 F14 F16 F25 F30
Actuator weight (Kg) 32 52 75 215 230 220
Maximum permissible stem diameter A type mm 32 38 54 64 7073 (Z type) 83 (Z type)
Threaded interfaces IQ10 – IQ95 are both an M40 and two M25 or a 1.5 “and two 1”
Design life 10,000 times on / off
Working frequency 60 times / hour
Operating temperature -30 degrees Celsius – +70 degrees Celsius
