Rotork Valve Actuator

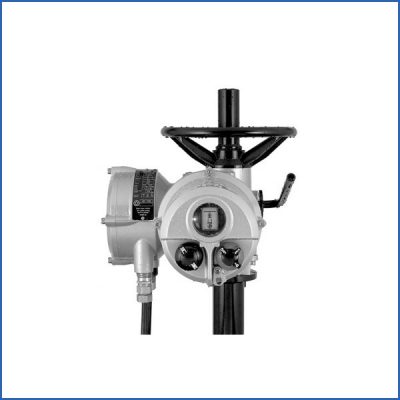

Rotork Valve Actuator Electric Valve Actuator IQ10
Specifications
Firstly, Complete integrated motor control.
Secondly, Simple non-intrusive, infra-red setup and adjustment.
Then provides intelligent communication options and a multilingual display. The IQ actuator range offers multi-turn (rotary) and quarter-turn isolating/regulating duty.
Torque range 14 to 3,000 Nm (10 to 2,200 lbf-ft) direct drive (multi-turn only). Higher torques when combined with IS or IB gearbox, up to 40,800 Nm (30,000 lbf-ft). Quarter-turn when combined with IW gearbox up to 250,000 Nm (185,000 lbf-ft).
- Complete integrated motor control.
- Simple non-intrusive, infra-red setup and adjustment.
- Digital, analogue or bus system remote control and status reporting.
- Comprehensive software tools for plant records and valve performance analysis.
Rotork Valve Actuator
Rotork Valve Actuator Electric Valve Actuator IQ10
It is the home of the flagship IQ intelligent electric actuator range. And the IQ range features legendary innovations including Rotork’s unique double-sealed enclosure, ‘non-intrusive’ infra-red commissioning, data-logging and predictive maintenance capabilities. Then, more recent innovations include the advanced display, and Bluetooth® communications interface and absolute encoder.
Moreover, the IQ functionality and reliability is available for valves of virtually every size and description, including multi-turn (rotary), quarter-turn, isolating and modulating, with watertight and hazardous area approvals to all internationally recognised standards.
Besides, electric actuator ranges also include the AWT for simplified control duties, ROM, ROMpak and Q direct drive actuators for small quarter-turn valves and IEEE qualified NA actuators for the nuclear power industry.
Therefore, the Rotork actuators are compatible with a wide range of communication and process control systems. Then, Rotork’s own Pakscan system offers advanced actuator network control similar to network control from Profibus, Foundation Fieldbus, Modbus, DeviceNet and Hart.
It is the home of the flagship IQ intelligent electric actuator range. The IQ range features legendary innovations including Rotork’s unique double-sealed enclosure.
