KEYENCE Photoelectric Sensors LR-T series laser sensor

Leave a comment

KEYENCE Photoelectric Sensors LR-T Series

KEYENCE Photoelectric Sensors LR-T series  is designed to detect at long ranges while remaining highly stable. This is achieved due to the HS2 technology used, a combination of Time of Flight detection and a custom integrated circuit. Additionally, the interference prevention and Datum Function allow users to maximize this sensors capability in any situation.

The LR-T Series is simple to install and calibrate. Flexible mounting options, a visible beam spot, push button teach, and an easy to read display allow for quick setup. Even at long distances, constant feedback is provided with the LR-T’s highly visible status indicator.

A large variety of applications are possible with the LR-T. Examples include level sensing, web tension control, and general conveyance detection.

KEYENCE Photoelectric Sensors LR-T series LR-TB2000

Model LR-TB2000
Type Cable
Detectable distance 60 to 2000 mm 2.36″ to 78.74″*1
Spot diameter Approx. ø4 mm ø0.16″
Response time 1 ms/10 ms/25 ms/100 ms/1000 ms
selectable
Light source Type Red laser (660 nm)
Laser class Class 2 laser product
(IEC60825-1,FDA (CDRH) Part1040.10*2)
Mutual interference prevention function 4 units (when using the interference prevention function)
Timer OFF/OFF delay/ON delay/One-shot
Power voltage 20 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
Current consumption 45 mA or less (without load)*3

The 5m (196.85”) range of the LR-T allows the sensor to be mounted away from operators or machinery keeping it out of harm’s way. Furthermore, an adjustable beam spot allows users to fine-tune the sensor from any distance.

Sensors, Keyence, Photoelectric Sensors

KEYENCE Photoelectric Sensors CZ-V20 series CZ-V21A Fiber Amplifier Sensor

Leave a comment

KEYENCE Photoelectric Sensors CZ-V20 series

KEYENCE Photoelectric Sensors CZ-V20 series has Industry’s smartest RGB sensor with even higher stability, reliability and resolution. RGB digital amplifier produces 16-bit resolution for all 7 light combinations. Built in self-stabilizer monitors each LED.

KEYENCE Photoelectric Sensors

Model CZ-V21A*1
Output NPN output
Main unit/expansion unit Main unit
Response time 200 μs (HIGH SPEED)/1 ms (FINE)/4 ms (TURBO)/8 ms (SUPER)
Control output NPN open-collector x 4 channels, 40 VDC max., Up to 100 mA for one output, Up to 200 mA in total of 4 outputs, Residual voltage: 1.0 V max.*2
Protection circuit Reverse-polarity protection, overcurrent protection, surge absorber
External tuning input, external bank switch input (C/C + I-mode), external shift input (super I-mode) Input time: 20 ms min.
Timer function Timer OFF/OFF-delay/ON-delay/One-shot, Timer time: 1 to 1000 ms adjustable (for each bank respectively)
Unit expansion Up to 3 units (4 units total including the main unit)
Number of interference prevention units 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER
Rating Power voltage 24 VDC, Ripple (P-P): 10% max.
Current consumption. Normal mode：1.5 W (62.5 mA max.), Eco-mode：1 W (42.0 mA max.)
Environmental resistance Operating temperature range -10 to +55°C 14 to 131°F, No freezing*3
Vibration 10 to 55 Hz, 1.5 mm 0.06″ double-amplitude in X, Y, and Z directions, 2 hours respectively
Material Housing, cover: Polycarbonate
Accessories Mounting Fittings
Weight Approx. 110 g
Sensors, Keyence, Photoelectric Sensors

KEYENCE Photoelectric Sensors CZ seriesCZ-K1P Digital Fiber Optic Sensor

Leave a comment

KEYENCE Photoelectric Sensors

KEYENCE Photoelectric Sensors CZ seriesCZ-K1P Digital Fiber Optic Sensor has industry’s highest color resolution. RGB digital amplifier has 12-bit resolution for all 3 colors. Built in self-stabilizer monitors each LED.

KEYENCE Photoelectric Sensors CZ seriesCZ-K1P Digital Fiber Optic Sensor



Model CZ-K1P
Output PNP
Light source Red LED, Green LED, Blue LED
Response time 300 μs/1 ms (switch-selectable)
Indicator lamp Output: Red LED, Calibration: Orange LED, External synchronization input: Green LED,
Matching rate/received light intensity: LCD (Red/Green)
Error indication Excess light intensity, insufficient light intensity, insufficient color difference
Calibration method 1-point/2-point calibration (switch-selectable)
Tolerance value adjustment Numerical value setting on digital display
Differentiation mode C mode/C + I mode/I mode (switch-selectable)
Timer function OFF-delay timer (40 ms)/Timer OFF (switch-selectable)
External synchronization input Response speed: 500 μs max.
External calibration input Input response time: 20 ms min.
Registered color selection 8-bank selection (By external input),
Non-voltage input, Input response time: 20 ms min.
Control output PNP: 40 VDC max. (100 mA max.), Residual voltage: 1.0 V max.
Protection circuit Reverse-polarity protection (power supply),
overcurrent protection (output), surge absorber (output)
Rating Power voltage 12 to 24 VDC ±10%, Ripple (P-P): 10% max.
Current consumption. 75 mA max.
Environmental resistance Operating ambientluminance Incandescent lamp: 5000 lux max., Sunlight: 10000 lux max.
Operating temperature range -10 to +55°C 14 to 131°F, No freezing*1
Operating ambient humidity 35 to 85% RH (No condensation)
Vibration 10 to 55 Hz, 1.5 mm 0.06″, double amplitude in X, Y, Z directions, 2 hours respectively
Shock resistance 500 m/s2 in X, Y, Z directions, 3 times respectively
Case material Polycarbonate
Weight Approx 115 g (including 2-m 6.6′ cable)
Sensors, Keyence, Photoelectric Sensors

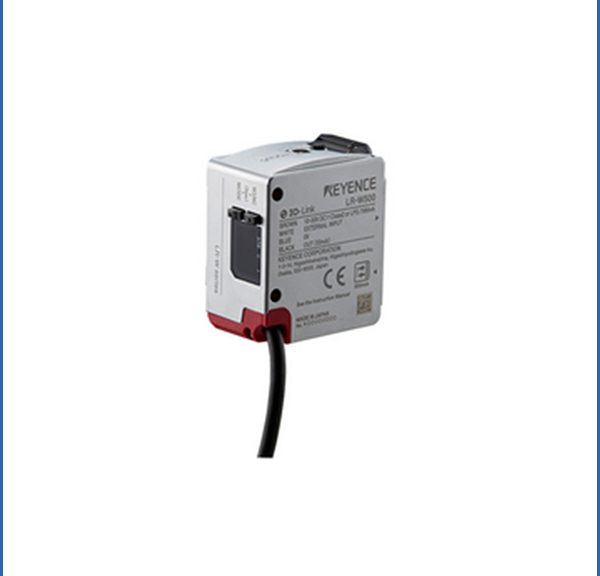

KEYENCE Photoelectric Sensors Self-Contained Full-Spectrum Sensor LR-W series

Leave a comment

KEYENCE Photoelectric Sensors

KEYENCE Photoelectric Sensors Full-Spectrum Sensor has three distinct sensors in the LR-W family.

KEYENCE LR-W series Photoelectric Sensors

Model LR-W500
Type 2 m 6.56′ cable type
Detecting distance 30 to 500 mm 1.18″ to 19.69″
Min. spot diameter Adjustable spot
Approx. ø3.5 mm at 100 mm ø0.14″ at 3.94″
Approx. ø9 mm at 250 mm ø0.35″ at 9.84″
Approx. ø18 mm at 500 mm ø0.71″ at 19.69″
Response time 200 µs/1 ms/10 ms/100 ms/500 ms selectable *1
Light source White LED
Mutual interference reduction function Up to 2 units when alternate frequencies set
Timer OFF/ON delay/OFF delay/One-shot
Power supply Power voltage 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
Current consumption 65 mA or less (without load) at 24 VDC;
120 mA or less (without load) at 12 VDC *2
I/O Control output NPN open collector/PNP open collector selectable
30 VDC or less, 50 mA or less, remaining voltage: 2 V or less
N.O./N.C. selectable
*3
External input Tuning /Transmission OFF selectable
Short circuit current: 1 mA or less for NPN/2 mA or less for PNP
For the applied voltage, see the wiring diagrams in the instruction manual.
For the input times, see the time charts in the instruction manual.
*3
Protection circuit Protection against reverse power connection, power supply surge, output overcurrent, output surge, and reverse output connection
Sensors, Keyence, Photoelectric Sensors

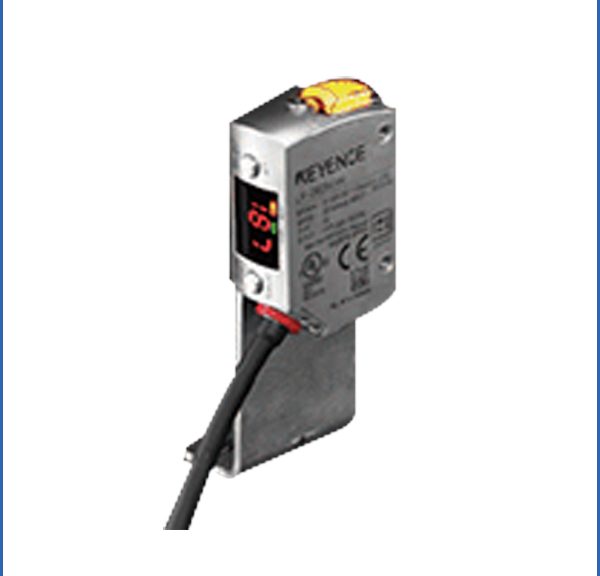

KEYENCE Self-contained CMOS Photoelectric Sensors LR-Z series

Leave a comment

KEYENCE Photoelectric Sensors

KEYENCE Photoelectric Sensors has become a standard for both machine builders and product manufacturers. Function allows for stable detection of clear.

Brand:KEYENCE
Model:KEYENCE Self-contained CMOS Photoelectric Sensors LR-Z series
Type:U.C.D. Function Distance based laser sensorlaser sensor
Output:PNP

Model LR-ZB100C3P*1
Type Distance based laser sensor
Appearance Rectangular
Output PNP
Cable connection M8 connector, 3-pin
Detectable distance 35 to 100 mm 1.38″ to 3.94″ (650 to 0)*2
Standard detectable deviation 35 to 50 mm 1.38″ to 1.97″: 1.5 mm 0.06″
50 to 100 mm 1.97″ to 3.94″: 3 mm 0.12″
Display resolution 2 (0.2 mm 0.008″)
Spot size Approx. 2 × 1 mm 0.08″ × 0.04″ at 100 mm 3.94″
Response time 1.5 ms / 10 ms / 50 ms selectable
Light source Type Red laser (660 nm)
Laser class Class 1 laser product
(IEC60825-1, FDA (CDRH) Part1040.10*3)
Function Indicator 3-digit 7-segment display (red),
output indicator (yellow),
DATUM indicator (orange),
1 spot indicator (green)
Timer OFF/ON delay/OFF delay/One-shot
Specifications Power voltage 10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS
Power consumption 450 mW or less (18 mA or less at 24 V, 34 mA or less at 12 V)
Control output PNP Open collector,
Applied voltage 30 VDC or less, Control current 100 mA or less,
Residual voltage 1.2 V or less at 10 mA or less, 2 V or less at 10 to 100 mA
Protection circuit Protection against reverse power connection, output overcurrent, output surge, reverse output connection
Output operation Light-ON / Dark-ON selectable
Environmental
resistance		 Enclosure rating IP68 (IEC60529), IP69K (DIN40050-9), NEMA 4X, 6P, 13 (NEMA250), ECOLAB*4, Diversey*4
Ambient light Incandescent lamp: 4000 lux or less
Sunlight: 8000 lux or less*5
Ambient temperature -10 to +50°C 14 to 122°F (No freezing)
Storage temperature -25 to +75°C -13 to 167°F (No freezing)
Ambient humidity 35 to 85%RH (No condensation)
Shock resistance 1000 m/s2 in X, Y, Z axis directions respectively 6 times
Vibration resistance 10 to 55 Hz Double amplitude 1.5 mm 0.06″ in the X, Y, Z axis directions respectively, 2 hours
Insulation resistance 20 MΩ or more (500 VDC)
Withstand voltage 1000 VAC 50/60 Hz 1 min
Material Case: SUS316L, Display: PES, Lens cover: PMMA with scratch-resistant coating,
Packing/Connector ring: FKM
Accompanying items Instruction Manual,
Certification/Identification label (FDA)
Weight Approx. 55 g
*1 M8 connector (3-pin) type does not include the external input function.
*2 Display readings can be used as a guide for the detecting distance. When the setting value is tuned, the readout shifts. When the value exceeds “-99”, “-FF” is displayed.
*3 The laser classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No.50.
*4 Have passed resistance tests with cleaning agents from multiple manufactures.
*5 When the response time is 10 ms
Valve Positioner, ABB, Conventional Positioners

ABB Conventional Positioners Series Electro-pneumatic positioners AV4

Leave a comment

Type AV3 & AV4 characterizable electro-pneumatic positioners are control devices that satisfy a wide range of applications. They provide fast, sensitive, and accurate positioning of pneumatic single or double-acting, linear or rotary motion actuators.

A mehanical connection from the actuator to a position feedback cam in the positioner establishes actual position. Three characterized segments on one cam provide application flexibility by establishing various relationships between input signal and actuator position. The relationships provided by the segments are square root, linear, and square.

The AV3 positioners receive a current input (4 to 20 milliampere) from the control device and convert the signal to pneumatic signal. This pneumatic signal is converted to a pneumatic output that produces the motive force that positions the actuator. Type AV3 fails in place on loss of current input signal.

The Type AV4 positioner receives an external 24vdc pulse signal and converts it to a pneumatic output. This output produces the motive force that positions the power actuator. The AV4 fails in place on loss of input signal

ABB Conventional Positioners Series Electro-pneumatic positioners  AV4

Electro-Pneumatic with 24V pulse input Fail-in-Place

Data

  • Compact rugged design
  • High vibration and shock environments
  • Fast, accurate calibration
  • Single or double-acting without additional hardware
  • Vent design allows natural gas operation
  • Electro-Pneumatic with 4-20mA input Fail-in-Place



Valve Positioner, Fisher

Fisher DVC6030 Digital Valve Controller

Leave a comment

Fisher Valve Controller

Fisher Valve Controller DVC6030

  • Place of Origin: Germany
  • Brand Name: Fisher
  • price: Best price with Fisher DVC6030 Digital Valve Controller
  • quality: Original
  • guarantee: 1 year
  • DVC6000 series of digital valve controller is a communication, microprocessor-based electrical-electrical conversion instrument. In addition to the traditional function of converting current signals into air pressure signals, the DVC6000 Series Digital Valve Controller utilizes the HART communication protocol to easily access information critical to process operation.

Fisher DVC6030 Digital Valve Controller

Classification and application:

Products directly mounted on the valve:

  • DVC6010: used in straight stroke control valves
  • DVC6020: for rotary and long stroke straight stroke control valves
  • DVC6030: for 90 degree rotary control valve

Remote installation of products:

  • DVC6005: Basic unit for 2-inch tubing or wall panel mounting
  • DVC6015: The feedback unit is used for straight stroke valves
  • DVC6025: The feedback unit is used for rotary and long stroke straight stroke valves
  • DVC6035: The feedback unit is used for 90 degree rotary valves

Specific models are as follows:

  • DVC6010-AC single acting, DVC6010-AC double acting,
  • DVC6010-HC single acting, DVC6010-HC double acting
  • DVC6020-AC single acting, DVC6020-AC double acting,
  • DVC6020-HC single acting, DVC6020-HC double acting
  • DVC6030-AC single acting, DVC6030-AC double acting,
  • DVC6030-HC single acting, DVC6030-HC double acting

ABB positioner model is as follows:

  • V18345-1010521001
  • V18345-1010121001
  • V18345-1020121001
  • V18345-1010120001
  • V18345-1004210001
  • V18345-1021120001
  • V18345-1020520001
  • V18345-1010221001

Siemens (SIEMENS) positioner models are as follows:

  • 6DR5220-0EN00-0AA0
  • 6DR5010-0NG00-0AA0
  • 6DR5215-0EN00-0AA0
  • 6DR5020-0NG00-0AA0
  • 6DR5010-0NG01-0AA0
  • 6DR5110-0EG00-0AA0
  • 6RD5210-0NN00-0AA0
  • 6DR5010-0NN01-0AA0
Empty tab. Edit page to add content here.
Valve Positioner, Siemens

Siemens Valve Positioner SIPART PS2 6DR5110

Leave a comment
  • Place of Origin: Germany
  • Brand Name: Siemens
  • Model Number:  SIPART PS2 6DR5110
  • price: Best price with Siemens Valve Positioner SIPART PS2 6DR5110
  • quality: Original
  • guarantee: 1 year

Siemens Valve Positioner

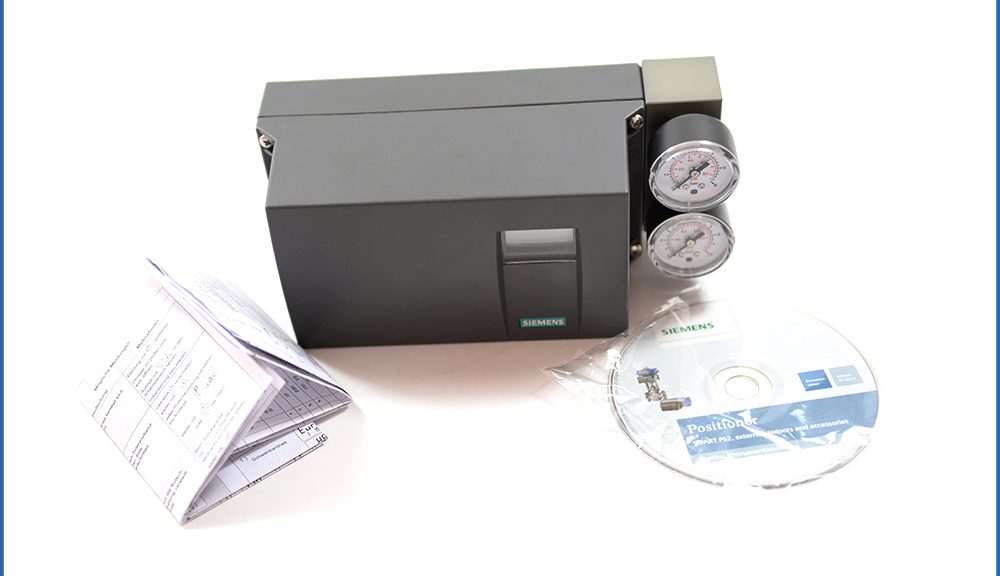

Siemens Valve Positioner SIPART PS2 6DR5110



The SIPART PS2 series locator has the following product types:

1, single acting actuators of plastic aluminum, stainless steel or cast aluminum housing
2, double acting actuators of plastic aluminum and stainless steel housing
3, for non-hazardous areas
4, can be used for non-hazardous areas
5, intrinsically safe products (EEx ia / ib)
6, explosion-proof shell (EEx d)
7, explosion-proof design (no spark type)

Benefits
As standard with IP66 or NEMA 4x protection, optionally available with Makrolon, aluminum or stainless steel enclosure, or as flameproof aluminum version
Intelligent diagnostics functions
Compact booster option
Fail in place and fail-safe functions
Also available down to -40 °C up to +80 °C ambient temperature
Comprehensive certificates and approvals, e.g. ATEX, IEC, FM, CSA, NEPSI, INMETRO, EAC, KC, GL, LR, DNV, ABS and BV



Reference Model :

6DR5010-0NG00-0AA0
6DR5010-0NG00-0AA1
6DR5010-0NG01-0AA0
6DR5010-0NG01-0AA1
6DR5010-0NG11-0AA3
6DR5010-0NG02-0AA0
6DR5010-0EG01-0AA0
6DR5010-0EG00-0AA0
6DR5010-0EN00-0AA0
6DR5010-0EN01-0AA0
6DR5010-0EM00-0AA1
6DR5010-0NM00-0AA0
6DR5010-0NN01-0AA0
6DR5010-0NN01-0AA3
6DR5010-0NG03-0AA0
6DR5010-0GN00-0AA0
6DR5011-0NN01-0AA1
6DR5011-0NG00-0AA0
6DR5011-0EG01-0AA1
6DR5011-0NG13-0AA1
6DR5011-0NN01-0AA1
6DR5011-0NG00-0AA0
6DR5011-0EG01-0AA1
6DR5111-0NG00-0AA0
6DR5011-0NG01-0AA0
6DR5011-0NG13-0AA0
6DR5011-0EN00-0AA0
6DR5011-0NN00-0AA0
6DR5211-0NG00-0AA0
6DR5311-0NG00-0AA0
6DR5511-0NG00-0AA0
6DR5611-0NG00-0AA0

Empty tab. Edit page to add content here.
Valve Positioner, Siemens

Siemens Valve Positioner SIPART PS2 6DR5010

Leave a comment

Siemens Valve Positioner

Siemens Valve Positioner SIPART PS2 6DR5010

  • Place of Origin: Germany
  • Brand Name: Siemens
  • Model Number:  SIPART PS2 6DR5010
  • price: Best price with Siemens Valve Positioner SIPART PS2 6DR5010
  • quality: Original
  • guarantee: 1 year

Siemens Valve Positioner

Siemens Valve Positioner SIPART PS2 6DR5110



The SIPART PS2 series locator has the following product types:

1, single acting actuators of plastic aluminum, stainless steel or cast aluminum housing
2, double acting actuators of plastic aluminum and stainless steel housing
3, for non-hazardous areas
4, can be used for non-hazardous areas
5, intrinsically safe products (EEx ia / ib)
6, explosion-proof shell (EEx d)
7, explosion-proof design (no spark type)

Benefits
As standard with IP66 or NEMA 4x protection, optionally available with Makrolon, aluminum or stainless steel enclosure, or as flameproof aluminum version
Intelligent diagnostics functions
Compact booster option
Fail in place and fail-safe functions
Also available down to -40 °C up to +80 °C ambient temperature
Comprehensive certificates and approvals, e.g. ATEX, IEC, FM, CSA, NEPSI, INMETRO, EAC, KC, GL, LR, DNV, ABS and BV



Reference Model :

6DR5010-0NG00-0AA0
6DR5010-0NG00-0AA1
6DR5010-0NG01-0AA0
6DR5010-0NG01-0AA1
6DR5010-0NG11-0AA3
6DR5010-0NG02-0AA0
6DR5010-0EG01-0AA0
6DR5010-0EG00-0AA0
6DR5010-0EN00-0AA0
6DR5010-0EN01-0AA0
6DR5010-0EM00-0AA1
6DR5010-0NM00-0AA0
6DR5010-0NN01-0AA0
6DR5010-0NN01-0AA3
6DR5010-0NG03-0AA0
6DR5010-0GN00-0AA0
6DR5011-0NN01-0AA1
6DR5011-0NG00-0AA0
6DR5011-0EG01-0AA1
6DR5011-0NG13-0AA1
6DR5011-0NN01-0AA1
6DR5011-0NG00-0AA0
6DR5011-0EG01-0AA1
6DR5111-0NG00-0AA0
6DR5011-0NG01-0AA0
6DR5011-0NG13-0AA0
6DR5011-0EN00-0AA0
6DR5011-0NN00-0AA0
6DR5211-0NG00-0AA0
6DR5311-0NG00-0AA0
6DR5511-0NG00-0AA0
6DR5611-0NG00-0AA0

Empty tab. Edit page to add content here.
Valve Positioner, Fisher

Fisher valve positioner DVC2000 Digital Valve Controller

Leave a comment

Fisher valve positioner

Fisher valve positioner DVC2000 Digital Valve Controller

Three important functions are performed by the DVC2000:

  • Traditional positioning of a control valve by converting the 4-20mA DC input signal from the process controller to a pneumatic output signal to the actuator.
  • Automatic calibration and configuration utilizing the power of microprocessor technology.
  • Communication capability via the HART communications protocol to provide instrument and valve diagnostic information.

Fisher valve positioner DVC2000 Digital Valve Controller

Classification and application:

Products directly mounted on the valve:

  • DVC6010: used in straight stroke control valves
  • DVC6020: for rotary and long stroke straight stroke control valves
  • DVC6030: for 90 degree rotary control valve

Remote installation of products:

  • DVC6005: Basic unit for 2-inch tubing or wall panel mounting
  • DVC6015: The feedback unit is used for straight stroke valves
  • DVC6025: The feedback unit is used for rotary and long stroke straight stroke valves
  • DVC6035: The feedback unit is used for 90 degree rotary valves

Specific models are as follows:

  • DVC6010-AC single acting, DVC6010-AC double acting
  • DVC6010-HC single acting, DVC6010-HC double acting
  • DVC6020-AC single acting, DVC6020-AC double acting
  • DVC6020-HC single acting, DVC6020-HC double acting
  • DVC6030-AC single acting, DVC6030-AC double acting
  • DVC6030-HC single acting, DVC6030-HC double acting

ABB positioner models are as follows:

  • V18345-1010521001
  • V18345-1010121001
  • V18345-1020121001
  • V18345-1010120001
  • V18345-1004210001
  • V18345-1021120001
  • V18345-1020520001
  • V18345-1010221001

Siemens (SIEMENS) positioner models are as follows:

  • 6DR5220-0EN00-0AA0
  • 6DR5010-0NG00-0AA0
  • 6DR5215-0EN00-0AA0
  • 6DR5020-0NG00-0AA0
  • 6DR5010-0NG01-0AA0
  • 6DR5110-0EG00-0AA0
  • 6RD5210-0NN00-0AA0
  • 6DR5010-0NN01-0AA0
Valve Positioner, ABB, I/P Converters

ABB TEIP11 IP signal converter for standard signals

Leave a comment

The I/P converter with various housing is available for cabinet installation, field installation, rail installation and as slide-in type. The signal conversion is based on standard signals. Current signals 0/4 to 20 mA are converted to pressure signals 0.2 to 1 bar or 3 to 15 psi.

ABB TEIP11 IP signal converter for standard signals without booster stage

Data

General specifications:

  • Small dimensions
  • Variable designs
    – Control room housing IP 20, for rail and block mounting
    – Field housing, polyester IP 54
    – Field housing, aluminium IP 65
    – Field housing, stainless steel IP 65
  • High immunity to shocks and vibrations with an effect < 1% for loads up to 10 g
  • Wide temperature range
    –  -40 °C (optionally -55 °C) to 85 °C
  • Worldwide approvals for Explosion Proof and Intrinsic Safety
Valve Positioner, ABB, Digital Positioners

ABB Digital positioner Series Electro-Pneumatic Positioners TZIDC-220

Leave a comment

positioner ABB Series TZIDC-220 features a small and compact design, a modular construction, and an excellent cost-performance ratio. Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.

ABB Series Electro-Pneumatic Positioners TZIDC-220

Standard performance, flameproof enclosure, with FOUNDATION Fieldbus communication

Data

General specifications:

  • Worldwide approvals for Explosion Proof and Intrinsic Safety
  • FF device registration: IT campaign no. IT 016800, ITK-Ver. 4
  • Easiest commissioning and operation on site due to local operation and auto adjustment
  • Robust design and flexible in use with linear and rotary actuators
