Transmitters, Yokogawa, EJA series

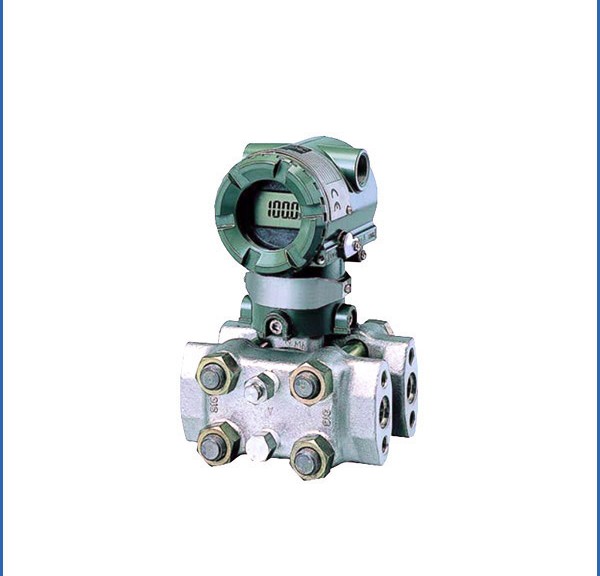

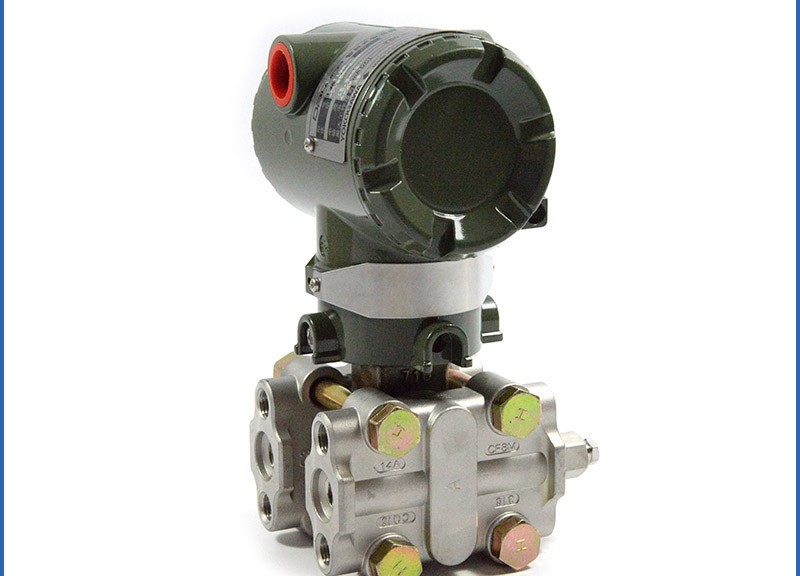

Yokogawa EJA130A High Static Differential Pressure Transmitter

Leave a comment

Differential Pressure Transmitter

Yokogawa EJA130A High Static Differential Pressure Transmitter

The EJA-A series is Yokogawa’s most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

The EJA130A is the Traditional-mount high-static Differential Pressure Transmitters in the series.

EJA130A features include:

  • 0.065% Accuracy
  • 0.1% Stability per 5 years
  • 4,500 psi MWP

Differential Pressure Transmitter

Yokogawa EJA130A High Static Differential Pressure Transmitter

The high performance differential pressure transmitter model EJA130A can be used to measure liquid, gas, or steam flow. It outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure. Model EJA130A also features remote setup and monitoring through communications .

Features:

  • Excellent performance and stability

The EJA series uses a formed from monocrystal silicon, a perfect material, which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successo.

EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.

Transmitters, Yokogawa, EJA series

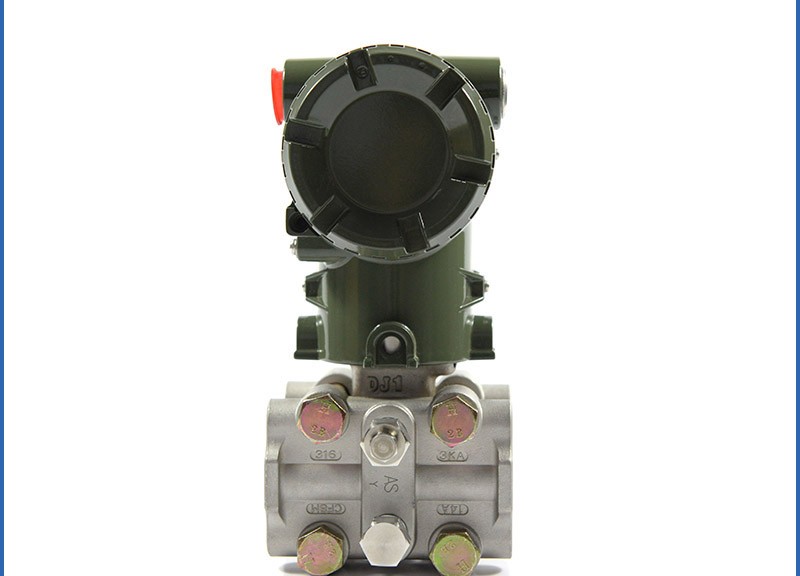

Yokogawa EJA120A Draft Range Differential Pressure Transmitter

Leave a comment

Differential Pressure Transmitter

Yokogawa EJA120A Draft Range Differential Pressure Transmitter

The EJA-A series is Yokogawa’s most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

The EJA120A is the traditional-mount Draft Range Pressure transmitter in the series.

Key EJA120A features include:

  • 0.2% Accuracy (0.1% Accuracy available with /HAC option)
  • 300 msec Response Time (with /F1 option)
  • True Draft Range design

Differential Pressure Transmitter

Yokogawa EJA120A Draft Range Differential Pressure Transmitter

The high performance draft range differential pressure transmitter model EJA120A outputs a 4 to 20 mA DC signal corresponding. Yokogawa model EJA120A also features remote setup and monitoring through communications.



Features:

  • Excellent performance and stability

The EJA series uses a formed from monocrystal silicon, a perfect material. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.

EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.

Diaphragm Seals & Capillaries, Transmitters, Yokogawa, EJA series

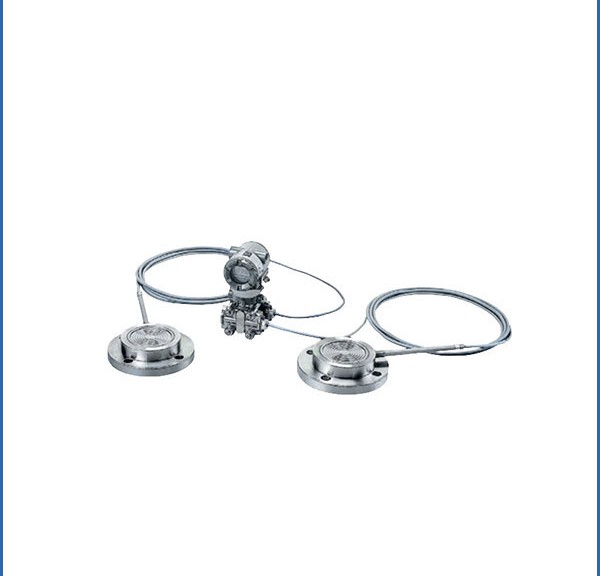

Yokogawa EJA118 DP Transmitter with Remote Diaphragm Seals

Leave a comment

Diaphragm Seals Pressure Transmitter

Yokogawa EJA118 DP Transmitter with Remote Diaphragm Seals Pressure Transmitter

The EJA-A series is Yokogawa’s most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

The EJA118 is a Differential Pressure Transmitter with remote diaphragm seals in the series.

It is available with Flush-type seals (EJA118W), Extended-type seals (EJA118N), or a combination of the two (EJA118Y)

EJA118 features include:

  • 0.2% Accuracy
  • 700 ms Response Time
  • External Zero Adjustment

Diaphragm Seals Pressure Transmitter

Yokogawa EJA118 DP Transmitter with Remote Diaphragm Seals Pressure Transmitter

Diaphragm seals use to prevent process medium form entering directly into the pressure-sensing assembly. They connecteto the transmitter using capillaries filled with fill fluid.

Model EJA118W, EJA118N and EJA118Y Diaphragm Sealed Differential Pressure Transmitters can be used to measure liquid, gas, or steam flow, as well as liquid level, density, and pressure. They output a 4 to 20 mA DC signal corresponding to the measured pressure differential.

The transmitters also feature remote setup and monitoring through communications.



Features:

  • Excellent performance and stability

The EJA series uses a formed from monocrystal silicon, a perfect material. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor.

EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.

Transmitters, Yokogawa, EJA series

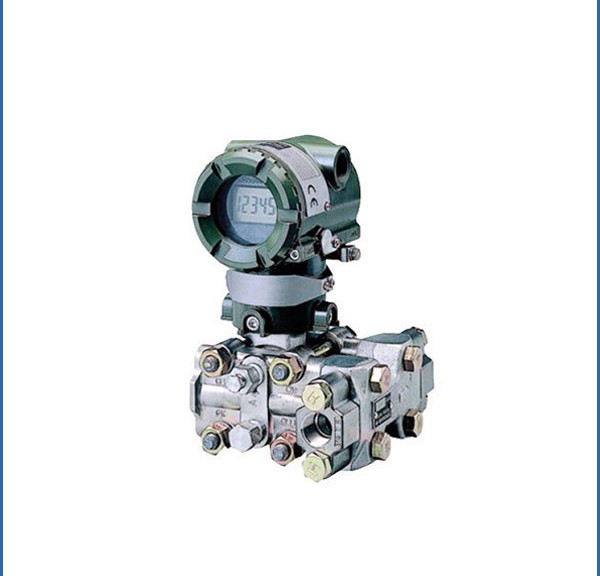

Yokogawa EJA115 Low Flow Transmitter

Leave a comment

Yokogawa Transmitter

Yokogawa Transmitter EJA115 Low Flow Transmitter

The EJA-A series is Yokogawa’s most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

The EJA115 is Differential Pressure Transmitter in the series that is optimized for low flow applications with the addition of an Integral Flow Orifice (IFO).

EJA115 features include:

  • 5% Flow Span (Accuracy)
  • External Zero Adjust

Yokogawa Transmitter

Yokogawa Transmitter EJA115 Low Flow Transmitter

The model EJA115 Low Flow Transmitter is a flowmeter comprised of a differential pressure transmitter. It outputs a 4 to 20 mA DC signal corresponding to the measured flow.

The orifice is available in six types with a bore ranging from 0.508 mm to 6.350 mm. The combination of the bore selection of the differential pressure transmitter enables a wide range of very small flow measurement.

The model EJA115 also features remote setup and monitoring through communications.



Features:

  • Excellent performance and stability

The EJA series uses a formed from monocrystal silicon, a perfect material, which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor to the standard 4 to 20 mA analog communication used in most field instruments today.

EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.

Transmitters, Yokogawa, EJA series

Yokogawa EJA110A Differential Pressure Transmitter

Leave a comment

Differential Pressure Transmitter

Yokogawa EJA110A Differential Pressure Transmitter

The EJA-A series is Yokogawa’s most successful pressure transmitter line. First released in 1991, it continues to offer high performance and high reliability for any application. With an installed base of over 4-1/2 million EJA-A transmitters worldwide, it has a proven track record that makes it a true industry workhorse.

The EJA110A is the Traditional-mount Differential Pressure Transmitters in the series.

EJA110A features include:

  • 0.065% Accuracy
  • 0.1% Stability per 5 years
  • 2,300 psi MWP

Differential Pressure Transmitter

Yokogawa EJA110A Differential Pressure Transmitter

The high performance differential pressure transmitter model EJA110A can be used to measure liquid, gas, or steam flow as well as liquid level, density and pressure. It outputs a 4 to 20 mA DC signal corresponding to the measured differential pressure. Model EJA110A also features remote setup and monitoring through communications.

The EJA Series is available with BRAIN, HART, FOUNDATION fieldbus or PROFIBUS PA communication protocols.



Features:

  • Excellent performance and stability

The EJA series uses a formed from monocrystal silicon, a perfect material, which has no hysteresis in pressure or temperature changes. The sensor minimizes overpressure, temperature change, and static pressure effects, and thus offers unmatched long-term stability.

  • Compact and light-weight design

Half the weight of conventional models thanks to miniaturization of the casing with the amplifier ASIC, pressure cell structure, and flange. The ASIC uses the minimum number of parts and improves the reliability of the amplifier.

  • Fieldbus communication capability

Fieldbus is a digital two-way communication system. It is a revolutionary technology for configuring instrumentation control systems and a promising successor.



EJA series offers two types of fieldbus models, FOUNDATION fieldbus Low Voltage Mode and PROFIBUS PA devices, which ensure interoperability between and other manufactures. As for software, the EJA series incorporates two AI function blocks that compute differential and static pressures to allow flexible configuration of instrumentation.

Diaphragm Seals & Capillaries, Transmitters, Honeywell

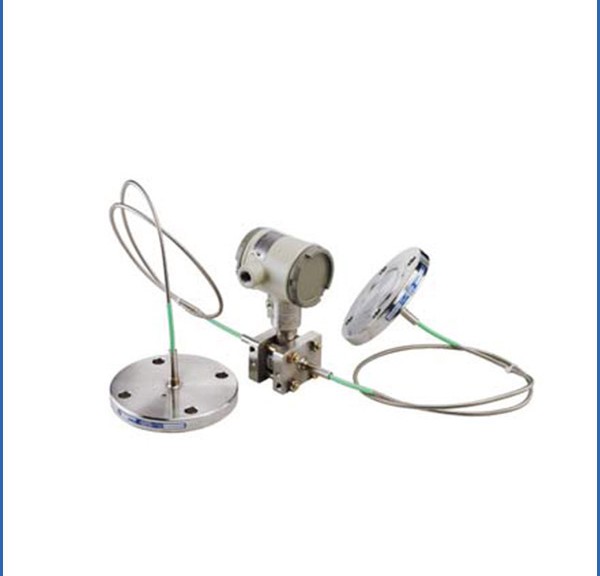

Honeywell ST 3000 Series 900 Remote Seal Pressure Transmitters

Leave a comment

Remote Seal Pressure Transmitter

Remote Seal Pressure Transmitter Honeywell ST 3000 Series 900

​ST 3000 Series 900 Remote Seal Pressure Transmitters includes gauge, absolute and differential pressure transmitters. This remote seal line of transmitters demonstrates proven reliability in applications with a wide variety of secondary fill fluids for corrosive or high temperature process fluids.

Two models of the transmitters are available for application:

  • STR93D  0 to 100 psid  0 to 7 bar
  • STR94G  0 to 500 psig  0 to 35 bar

These cost-effective transmitters offer:

  • Stability = +/-0.01% per year
  • Reliability = 470 years MTBF

Comprehensive self-diagnostics and three levels of failure reporting help users avoid costly shutdowns, meet regulatory requirements and attain high quality standards.

Honeywell ST 3000 Series 900 Remote Sealed Pressure Transmitter

Description of Diaphragm Seals
Diaphragm seals are traditionally used when a standard pressure transmitter should not be exposed to the process pressure directly. Diaphragm seals typically protect the pressure transmitter from one or more damaging aspects of the process media. Consideration for using a diaphragm seal should be made in the following circumstances.
High Process Temperature
Process Media is Viscous or Contains Suspended Solids,Subject to Solidifying ,Corrosive
Process Application Requires Sanitary Connections,Subjects the Measuring Instrument to Hydrogen Permeation
Tank Level Applications with Maintenance Intensive Wet Legs
Tank Application with Density or Interface Measurements
Measuring Instrument Requires Remote Mounting

Diaphragm Seals & Capillaries, Transmitters, Honeywell

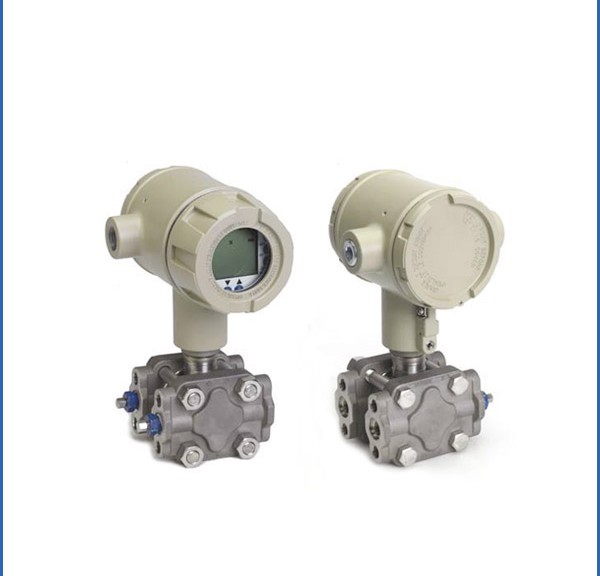

Honeywell ST 3000 Series 100 Remote Diaphragm Seal Pressure Transmitter

Leave a comment

Diaphragm Seal Pressure Transmitter

Diaphragm Seal Transmitter Honeywell ST 3000 Series 100 for use in applications involving sanitary service

Honeywell’s ST 3000 Series 100 Remote Diaphragm Seal Transmitter demonstrate proven reliability in applications with a wide variety of secondary fill fluids for corrosive or high temperature process fluids. Typical applications include high-accuracy level measurement in pressurized vessels in hydrocarbon processing and flow measurement of slurries and high viscosity process fluids in chemical plants.

Honeywell offers the following ST 3000 Series 100 Remote Diaphragm Seal Transmitters:

  • Flush Flange Seals
  • Flange Seal with Extended Diaphragm
  • Pancake Seals
  • Sanitary Seals
  • Chemical Tee “Taylor” Wedge
  • Seals with Threaded Process Connections
  • Saddle Seals
  • Calibration Rings
  • Stainless Steel Armor and PVC Coated Stainless Steel Armor Capillaries
  • 2” Stainless Steel Nipples
  • Welded Meter Body

Five transmitter series are available:

  • STR12D:          0-10 to 0-400 inH2O       0-25 to 0-1000 mbar
  • STR13D:          0-5 to 0-100 psid             0-0.35 to 0-7 bar
  • STR14G:          0-5 to 0-500 psig             0-0.35 to 0-35 bar
  • STR17G:          0-100 to 0-3000 psig       0-7 to 0-210 bar
  • STR14A:          0-5 to 0-500 psia              0-0.35 to 0-35 barA

Honeywell ST 3000 Series 100 Remote Diaphragm Seal Pressure Transmitter

Description

The ST 3000 transmitter can replace any 4 to 20 mA output transmitter in use today and operates over a standard twowire system.

The measuring means is a piezoresistive sensor, which actually contains three sensors in one. It uses a differential pressure sensor, a temperature sensor and a static pressure sensor in delivering the most comprehensive compensated output signal available today.

Microprocessor-based electronics provide higher spanturndown ratio, improved temperature and pressure compensation, and improved accuracy.

The transmitter’s meter body and electronics housing resist shock, vibration, corrosion, and moisture. The electronics housing contains a compartment for the single-board electronics, which is isolated from an integral junction box.
The single-board electronics is replaceable and interchangeable with any other ST 3000 Series 100 or Series 900 model transmitters.



Features

Choice of linear or square root output conformity is a simple configuration selection.

Direct digital integration with Experion PKS and other control systems provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies.

Unique piezoresistive sensor automatically compensates input for real-world temperature and static pressure variations.

Added “smart” features include configuring lower and upper range values, simulating accurate analog output, and selecting preprogrammed engineering units for display.

Smart transmitter capabilities with local or remote interfacing means significant manpower efficiency improvements in commissioning, start-up, and ongoing
maintenance functions.

Transmitters, Honeywell

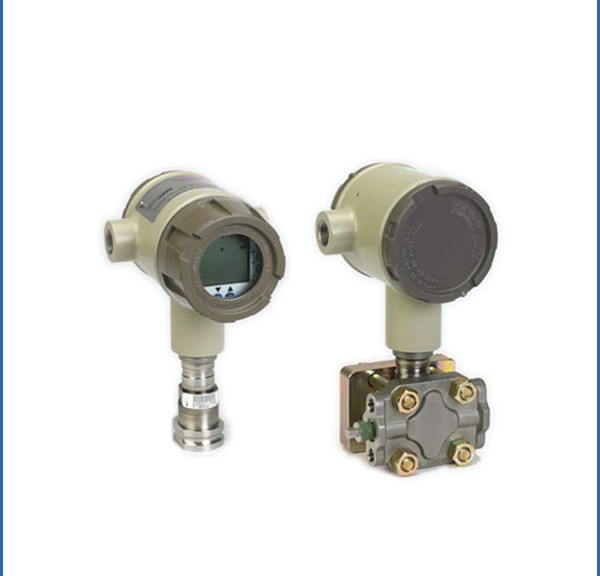

Honeywell ST 3000 Series 900 Gauge Pressure Transmitters

Leave a comment

Pressure Transmitters

Pressure Transmitters ST 3000 transmitter can replace any 4 to 20 mA output transmitter in use today and operates over a standard twowire system.

Honeywell’s ST 3000 Series 900 Gauge Pressure Transmitters are ideal for applications such as high-pressure measurement in boilers, fuel feeds and high-pressure reaction vessels in the petrochemical and hydrocarbon recovery industries or in any location where accuracy and reliability are crucial for safe and economical operations.

​ST 3000 Series 900 Gauge Pressure Transmitters offer users the option to choose between dual-head and in-line models to match their process interface requirements. Six common models of the transmitters ranging from 500 psi to 10,000 psi are available for application:

  • STG944:  0 to 500 psi;       0 to 35 bar
  • STG94L:  0 to 500 psi  ;     0 to 35 bar
  • STG974:  0 to 3000 psi ;    0 to 210 bar
  • STG97L:  0 to 3000 psi  ;    0 to 210 bar
  • STG98L:  0 to 6000 psi  ;    0 to 415 bar
  • STG99L:  0 to 10000 psi ;   0 to 690 bar

These cost-effective transmitters offer:

  • Stability = +/-0.01% per year
  • Reliability = 470 years MTBF

Honeywell ST 3000 Series 900 Gauge Pressure Transmitters



Description

The measuring means is a piezoresistive sensor, which actually contains three sensors in one. It contains a differential pressure sensor, a temperature sensor, and a static pressure sensor.

Microprocessor-based electronics provide higher spanturndown ratio, improved temperature and pressure compensation, and improved accuracy.

The transmitter’s meter body and electronics housing resist shock, vibration, corrosion, and moisture. The electronics housing contains a compartment for the single-board electronics, which is isolated from an integral junction box.
The single-board electronics is replaceable and interchangeable with any other ST 3000 Series 100 or Series 900 model transmitters.

Features

• Choice of linear or square root output conformity is a simple configuration selection.

• Direct digital integration with Experion PKS and other control systems provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies.

• Unique piezoresistive sensor automatically compensates input for temperature and static pressure. Added “smart” features include configuring lower and upper range values, simulating accurate analog output, and selecting preprogrammed engineering units for display.

• Smart transmitter capabilities with local or remote interfacing means significant manpower efficiency improvements in commissioning, start-up, and ongoing maintenance functions.

Diaphragm Seals & Capillaries, Transmitters, Honeywell

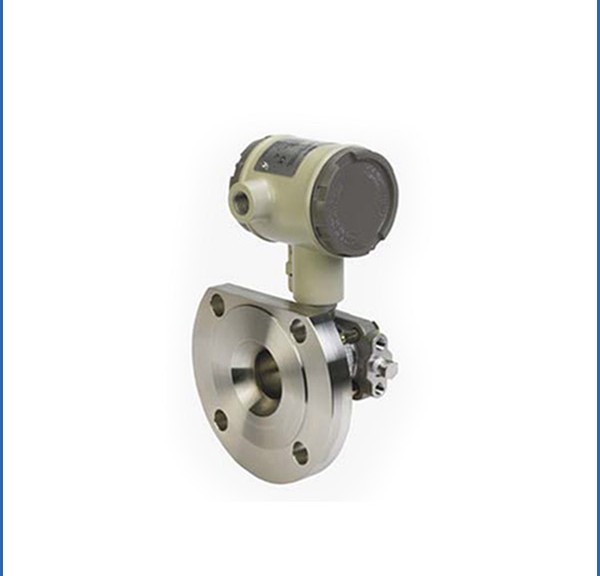

Honeywell ST 3000 Series 900 Flange Mount Pressure Transmitters

Leave a comment

Flange Mount Pressure Transmitter

Flange Mount Pressure Transmitter Honeywell ST 3000 Series 900 offered with a variety of tank connections including ANSI flanges.

Honeywell’s ST 3000 Series 900 Flange Mount Pressure Transmitter are offered with a variety of tank connections, including ANSI flanges and sanitary. Typical applications include gauge pressure measurement in pressure vessels in the chemical industry as well as level applications in chemical and hydrocarbon processing industries with either wet or dry legs on the low side.

ST 3000 Series 900 Flange Mount Pressure Transmitter offer great versatility through compound characterization of the meter body as well as the ability to measure a broad range of differential pressures. Four models from 400” H2O to 100 psi are available for application:

  • STF924:  0 to 400 inH2O;  0 to 1,000 mbar
  • STF932:  0 to 100 psi;       0 to 7 bar
  • STF92F:  0 to 400 inH2O;  0 to 1,000 mbar
  • STF93F:  0 to 100 psi;       0 to 7 bar

The transmitters provide comprehensive self-diagnostics to help users maintain high uptime, meet regulatory requirements, and attain high quality standards. Accurate, reliable and stable, the transmitters offer greater turndown ratio than conventional transmitters.

Honeywell ST 3000 Series 900 Flange Mount Pressure Transmitters

Description

The ST 3000 transmitter can replace any 4 to 20 mA output transmitter in use today and operates over a standard twowire system.

The measuring means is a piezoresistive sensor, which actually contains three sensors in one. It contains a differential pressure sensor, a temperature sensor, and a static pressure sensor.

Microprocessor-based electronics provide higher spanturndown ratio, improved temperature and pressure compensation, and improved accuracy.

The transmitter’s meter body and electronics housing resist shock, vibration, corrosion, and moisture. The electronics housing contains a compartment for the single-board electronics, which is isolated from an integral junction box.
The single-board electronics is replaceable and interchangeable with any other ST 3000 Series 100 or Series 900 model transmitters.

Features

• Choice of linear or square root output conformity is a simple configuration selection.

• Direct digital integration with Experion PKS and other control systems provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies.

• Unique piezoresistive sensor automatically compensates input for temperature and static pressure. Added “smart” features include configuring lower and upper range values, simulating accurate analog output, and selecting preprogrammed engineering units for display.

• Smart transmitter capabilities with local or remote interfacing means significant manpower efficiency improvements in commissioning, start-up, and ongoing maintenance functions.

• ST 3000 transmitters feature full Dual-Seal certification based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.01 requirements without the use of additional seal protection elements.

• Honeywell ST 3000 transmitters are available fully compliant to SIL 2/3 requirements as a standard option.

Transmitters, Honeywell

Honeywell ST 3000 Series 900 Differential Pressure Transmitters

Leave a comment

Differential Pressure Transmitters

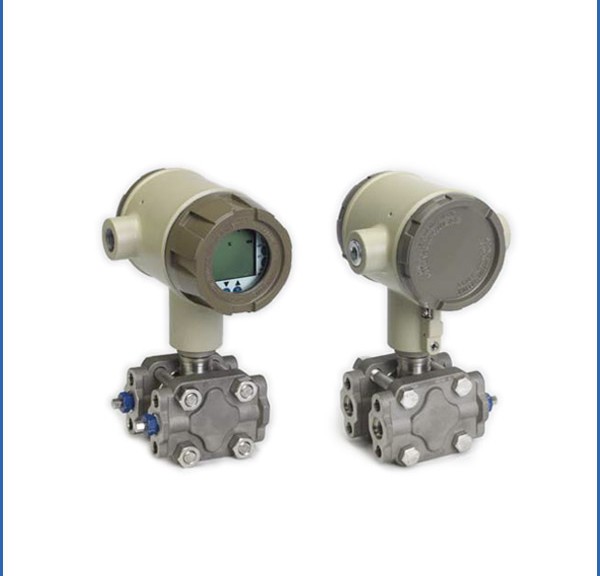

Differential Pressure Transmitters Honeywell ST 3000 Series 900 provide a more accurate process variable as well as advanced diagnostics.

The ST 3000 Series 900 Differential Pressure Transmitters bring proven smart technology to a wide spectrum of pressure measurement applications, from furnace combustion airflow rate to hydrostatic tank gauging. The transmitters can be used with any primary flow element to provide proven, repeatable flow measurement.

​Three most common ranges of ST 3000 Series 900 Differential Pressure Transmitters from 400” H2O to 3000 psi are available for application:

  • STD924       0 to 400 inH2O       0 to 1,000 mbar
  • STD930       0 to 100 psi             0 to 7,000 mbar
  • STD974       0 to 3000 psi           0 to 210,000 mbar

The transmitters provide comprehensive self-diagnostics to help users maintain high uptime, meet regulatory requirements and attain high quality standards. Accurate, reliable and stable, the transmitters offer greater turndown ratio than conventional transmitters.

In addition, the transmitters can be used in a wide spectrum of hazardous environments in perfect safety to provide proven, repeatable pressure measurements.

Honeywell ST 3000 Series 900 Differential Pressure Transmitters

The ST 3000 transmitter can replace any 4 to 20 mA output transmitter in use today and operates over a standard twowire system.

The measuring means is a piezoresistive sensor, which actually contains three sensors in one. It contains a differential pressure sensor, a temperature sensor, and a static pressure sensor.

Microprocessor-based electronics provide higher spanturndown ratio, improved temperature and pressure compensation, and improved accuracy.

The transmitter’s meter body and electronics housing resist shock, vibration, corrosion, and moisture. The electronics housing contains a compartment for the single-board electronics, which is isolated from an integral junction box.

The single-board electronics is replaceable and interchangeable with any other ST 3000 Series 100 or Series 900 model transmitter.

Features

• Choice of linear or square root output conformity is a simple configuration selection.
• Direct digital integration with Experion PKS and other control systems provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies.
• Unique piezoresistive sensor automatically compensates input for temperature and static pressure. Added “smart” features include configuring lower and upper range values, simulating accurate analog output, and selecting preprogrammed engineering units for display.

Transmitters, Honeywell

Honeywell ST 3000 Series 900 Absolute Pressure Transmitters

Leave a comment

Absolute Pressure Transmitter

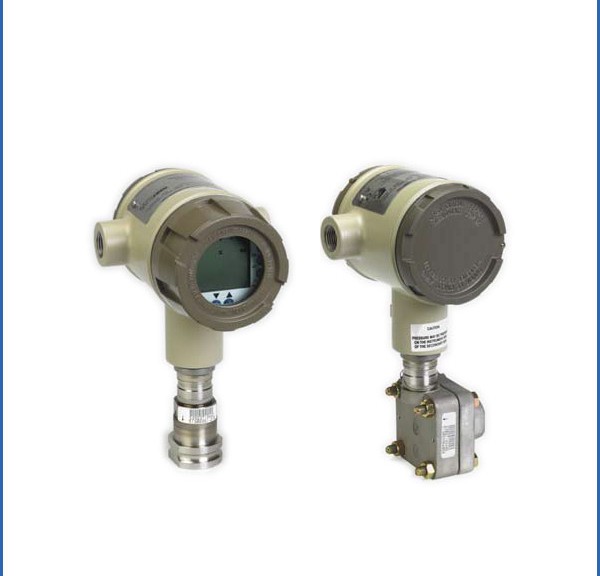

Absolute Pressure Transmitter Honeywell ST 3000 Series 900 can provide a 4-20 mA output.

The ST 3000 Series 900 Absolute Pressure Transmitter are used in applications in which high accuracy in the vacuum range of pressure is needed. Typical applications include low-pressure measurement in vacuum distillation columns, where energy savings are directly proportional to the vacuum in the column.

The cost-effective ST 3000 Series 900 Absolute Pressure Transmitter are available in two variants – In-line (STA92L/STA94L) and Single-Head (STA922/STA940).

  • STA922:      0 to 780 mmHgA;      0 to 1,040 mbarA
  • STA92L:       0 to 780 mmHgA;      0 to 1,040 mbarA
  • STA940:       0 to 500 psia;           0 to 35 barA
  • STA94L:       0 to 500 psia;           0 to 35 barA



The transmitters lead the industry in reliability and stability:

  • Stability = +/-0.01% per year
  • Reliability = 470 years MTBF



Comprehensive self-diagnostics and three levels of failure reporting help users avoid costly shutdowns, meet regulatory requirements, and attain high quality standards. The pressure transmitters can be used in a wide spectrum of hazardous environments in perfect safety to provide proven, repeatable pressure measurements.

Honeywell ST 3000 Series 900 Absolute Pressure Transmitters

Description

The ST 3000 transmitter can replace any 4 to 20 mA output transmitter in use today and operates over a standard two-wire system.
The measuring means is a piezoresistive sensor, which actually contains three sensors in one. It contains a differential pressure sensor, a temperature sensor, and a static pressure sensor.
Microprocessor-based electronics provide higher span-turndown ratio, improved temperature and pressure compensation, and improved accuracy.
The transmitter’s meter body and electronics housing resist shock, vibration, corrosion, and moisture. The electronics housing contains a compartment for the single-board electronics, which is isolated from an integral junction box. The single-board electronics is replaceable and interchangeable with any other ST 3000 Series 100 or Series 900 model transmitter.

Features

•Choice of linear or square root output conformity is a simple configuration selection.
• Direct digital integration with Experion PKS and other control systems provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies.
• Unique piezoresistive sensor automatically compensates input for temperature and static pressure. Added “smart” features include configuring lower and upper range values, simulating accurate analog output, and selecting preprogrammed engineering units for display.
• Smart transmitter capabilities with local or remote interfacing means significant manpower efficiency improvements in commissioning, start-up, and ongoing maintenance functions.

Transmitters, Honeywell

Honeywell ST 3000 Series 100 Differential Pressure Transmitters

Leave a comment

Differential Pressure Transmitter

Differential Pressure Transmitter Honeywell ST 3000 Series 100 bring proven “smart” technology to a wide spectrum of pressure measurement applications.

The ST 3000 Series 100 Differential Pressure Transmitters bring smart technology to a wide spectrum of measurement applications ranging from furnace combustion airflow rate to hydrostatic tank gauging. The differential pressure transmitters can be used with any primary flow element to provide proven, repeatable flow measurement.​​​​

ST 3000 Series 100 Differential Pressure Transmitters are ideal for critical process loops and high-value applications such as custody transfer and energy and material balances.

Five models of the transmitters are available for deployment:

  • STD110                      0 to 10 inH2O                        0 to 25 mbar
  • STD120                      0 to 400 inH2O                     0 to 1,000 mbar
  • STD125                      0 to 600 inH2O                     0 to 1,500 mbar
  • STD130                      0 to 100 psi                           0 to 7 bar
  • STD170                      0 to 3,000 psi                        0 to 210 bar

All models offer:

  • Accuracy of ± 0.0375%
  • Stability of ± 0.01% per year
  • Reliability of 470 years MTBF
  • Turndown ratio of 400:1
  • Lifetime warranty of 15 years.

Honeywell ST 3000 Series 100 Differential Pressure Transmitters

Description

The ST 3000 transmitter can replace any 4 to 20 mA output transmitter in use today and operates over a standard twowire system.

The measuring means is a piezoresistive sensor, which actually contains three sensors in one. It uses a differential pressure sensor, a temperature sensor and a static pressure sensor in delivering the most comprehensive compensated output signal available today.

Microprocessor-based electronics provide higher spanturndown ratio, improved temperature and pressure compensation, and improved accuracy.

The transmitter’s meter body and electronics housing resist shock, vibration, corrosion, and moisture. The electronics housing contains a compartment for the single-board electronics, which is isolated from an integral junction box. The single-board electronics is replaceable and interchangeable with any other ST 3000 Series 100 or Series 900 model transmitters.



Features

• Choice of linear or square root output conformity is a simple configuration selection.

• Direct digital integration with Experion PKS and other control systems provides local measurement accuracy to the system level without adding typical A/D and D/A converter inaccuracies.

• Unique piezoresistive sensor automatically compensates input for real-world temperature and static pressure variations.

• Added “smart” features include configuring lower and upper range values, simulating accurate analog output, and selecting preprogrammed engineering units for display.

• Smart transmitter capabilities with local or remote interfacing means significant manpower efficiency improvements in commissioning, start-up, and ongoing maintenance functions.

• ST3000 transmitters feature full Dual-Seal certification based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.01 requirements without the use of additional seal protection elements.

• Honeywell ST 3000 transmitters are available fully compliant to SIL 2/3 requirements as a standard option.
