Rosemount pH ORP Sensor

Rosemount pH ORP Sensor TUpH Retraction pH ORP Sensor 398R 398RVP
A TUpH Sensor Design
Coating and fouling resistant with large surface area TUpH reference junction.
Titanium and Tefzel sensor construction for superior chemical resistance to aggressive chemicals such as chlorine dioxide in pulp bleaching towers and most organic solvents.
Selectable O-ring options of either EPDM, Viton, or Kalrez.
Optional flat pH glass electrode for abrasive and coating applications.
Operates in process pressures up to 250 psig.

Rosemount pH ORP Sensor

Rosemount pH ORP Sensor TUpH Retraction pH ORP Sensor 398R 398RVP

A TUpH Sensor Design
Coating and fouling resistant with large surface area TUpH reference junction.
First, titanium and Tefzel sensor construction for superior chemical resistance to aggressive chemicals such as chlorine dioxide in pulp bleaching towers and most organic solvents.
Second, selectable O-ring options of either EPDM, Viton, or Kalrez.
Third, optional flat pH glass electrode for abrasive and coating applications.
Last, operates in process pressures up to 250 psig.

Versatile Installation Options
Suitable for insertion/submersion type installations (Rosemount 398/398VP).
And retractable design allows sensors to remove for calibration and maintenance without process shutdown (Rosemount 398R/398RVP).
Besides that, compatible for use with a 1-1/2 in. or 1-1/4 in. ball valve (Rosemount 398R/398RVP).
Then, variopol (VP8) cable connection option, for quick cable-to-sensor release, eliminates cable twisting.

Ordering Information
Rosemount 398R/398RVP sensors offered in 21 inch and 36 inch titanium tube sensor lengths. Then sensors can use with a ball valve (sold separately) for hot tap applications. However, Rosemount 398 sensors come standard with 15 ft. of integral or 9.5 in. cable for use with a sensor head junction box (sold separately). Therefore, Rosemount 398RVP sensors are SMART preamplifier optional and are used with quick disconnect VP8 interconnecting cables (sold separately).

TUpH Sensors for Your Tough pH/ORP Applications
Rosemount 398/398VP/398R/398RVP TUpH pH sensors are robust sensors design to meet a number of difficult application requirements. Becuase sensors feature a variety of options suited to meet a number of installation requirements and are ideal for use in dirty,
abrasive, coating, and high solid applications containing chlorine dioxide.

Rosemount pH ORP Sensor

Rosemount pH ORP Sensor TUpH Sensor 398 398VP
A TUpH Sensor Design
Coating and fouling resistant with large surface area TUpH reference junction.
Titanium and Tefzel sensor construction for superior chemical resistance to aggressive chemicals such as chlorine dioxide in pulp bleaching towers and most organic solvents.
Selectable O-ring options of either EPDM, Viton, or Kalrez.
Optional flat pH glass electrode for abrasive and coating applications.
Operates in process pressures up to 250 psig.

Rosemount pH ORP Sensor

Rosemount pH ORP Sensor UpH Sensor 398 398VP

A TUpH Sensor Design
Coating and fouling resistant with large surface area TUpH reference junction.
First, titanium and Tefzel sensor construction for superior chemical resistance to aggressive chemicals such as chlorine dioxide in pulp bleaching towers and most organic solvents.
Second, selectable O-ring options of either EPDM, Viton, or Kalrez.
Third, optional flat pH glass electrode for abrasive and coating applications.
Last, operates in process pressures up to 250 psig.

Versatile Installation Options
Suitable for insertion/submersion type installations (Rosemount 398/398VP).
And retractable design allows sensors to remove for calibration and maintenance without process shutdown (Rosemount 398R/398RVP).
Besides that, compatible for use with a 1-1/2 in. or 1-1/4 in. ball valve (Rosemount 398R/398RVP).
Then, variopol (VP8) cable connection option, for quick cable-to-sensor release, eliminates cable twisting.

Ordering Information
Rosemount 398/398VP sensors housed in a titanium tube and constructed with a Tefzel reference junction. What’s more, sensors can be used with a 1 inch MNPT process connector (sold separately). Rosemount 398 sensors come standard with 15 ft. of integral cable.
However, rosemount 398VP sensors used with quick disconnect VP8 interconnecting cables (sold separately)

TUpH Sensors for Your Tough pH/ORP Applications
Rosemount 398/398VP/398R/398RVP TUpH pH sensors are robust sensors design to meet a number of difficult application requirements. Becuase sensors feature a variety of options suited to meet a number of installation requirements and are ideal for use in dirty,
abrasive, coating, and high solid applications containing chlorine dioxide.

Rosemount pH ORP Sensor

Rosemount pH ORP Sensor Retraction pH ORP Sensor 396R 396RVP

Features and Applications
Rosemount 396R and 396RVP Sensors are specifically designed for improved life in harsh, dirty applications where a separate sample stream is difficultto provide and greaterinsertion depths are required. These sensors are designed for use with a 1-1/4 in. or 1-1/2 in. ball valve for hot tap installation.

Rosemount pH ORP Sensor

Rosemount pH ORP Sensor Retraction pH ORP Sensor 396R 396RVP

Wiring for Rosemount 396R
Make electrical connections as shown on Figures 3-1 through 3-15 using the following guidelines.
For wiring Rosemount 396RVP, see Section 4.
1. Pay particular attention to the analyzer or transmitter model number when following details on the wiring diagrams to ensure.
2. Use Rosemount custom cable Part Number 9200273 for interconnect.
3. The maximum distance from the sensor to the transmitter is 15 ft without an integral preamplifier.
4. Signal cable should run in a dedicated conduit and should keep away from AC power lines.

Recommended pH Sensor Standardization
For maximum accuracy,the sensor can standard on-line or with a process grab sample after a buffer calibration has perform.

Standardization accounts for the sensor junction potential and other interferences.
Standardization will not change the sensor’s slope but will simply adjust the transmitters reading to match that of the known process pH.
1. While obtaining a process solution sample (the sample is closing to the sensor), record the pH value is showing on the transmitter display.
2. Measure and record the pH of the process solution sample with a another temperature compensated, calibrated pH instrument. For best results, standardization should be performed at the process temperature.
3. Adjust the transmitter value to the standardized value.

Rosemount pH ORP Sensor

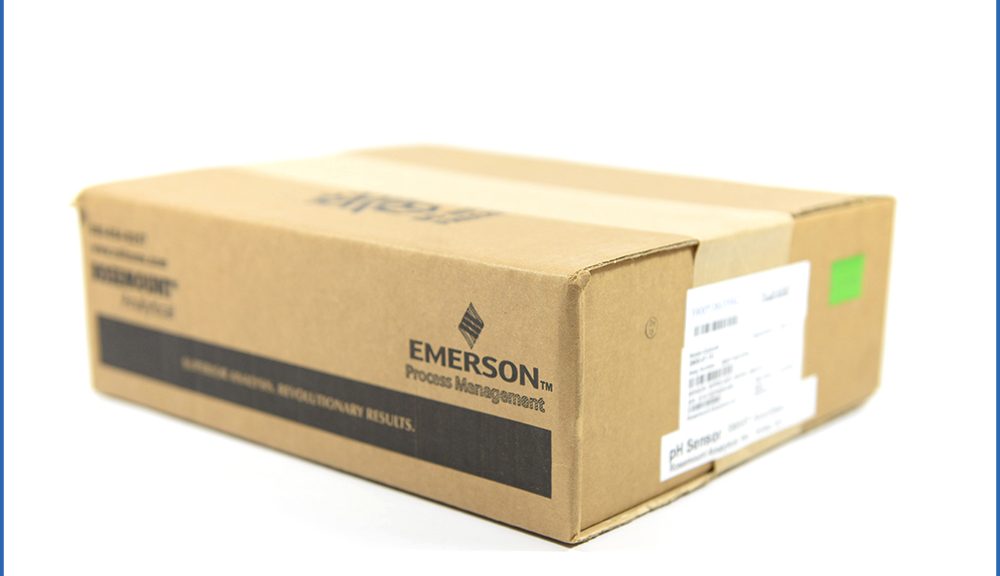

Rosemount pH ORP Sensor Submersion Insertion pH ORP Sensor 396P 396PVP

It’s RUGGED THREADED POLYPROPYLENE BODY for maximum
chemical resistance and completely sealed to eliminate process intrusion. EPDM to eliminate process intrusion.

The 396P and 396PVP sensor is housed in a molded polypropylene body with EPDM seals, making it virtually indestructible and chemically resistant. Complete encapsulation eliminates leakage or high humidity problems traditionally found in other pH/ORP designs.

Rosemount pH ORP Sensor

Rosemount Sensor Submersion Insertion pH ORP Sensor 396P 396PVP

Firstly, this trending data allows technicians to predict frequency of maintenance. Additional SMART features include factory calibration, resetting SMART sensor calibration data with user menus.

Then, the TUpHTM large area reference junction for minimum maintenance requirements: The reference junction provides an electrical connection between the reference electrode and the sample. And helps maintain a stable reference potential, regardless of the change in sample pH.

What’s more, the TUpH reference electrode junction, and the entire plastic tip surrounding the glass pH electrode. Because it resists plugging (a common cause of pH signal drift).

The Model 396P and 396PVP sensors are available in two configurations.

First, the standard shrouded tip, in which the pH glass completely recess within the reference junction for abrasive or rough applications.

Second, the optional slott tip with a partially exposed pH glass for viscous or low flow applications.

Importantly, the Model 396P and 396PVP sensors feature a titanium solution ground, constructe in an annular design around the pH/ORP electrode. However, the solution ground provides advanced sensor diagnostics for preventative maintenance.
