EJA-E series, Transmitters, Yokogawa

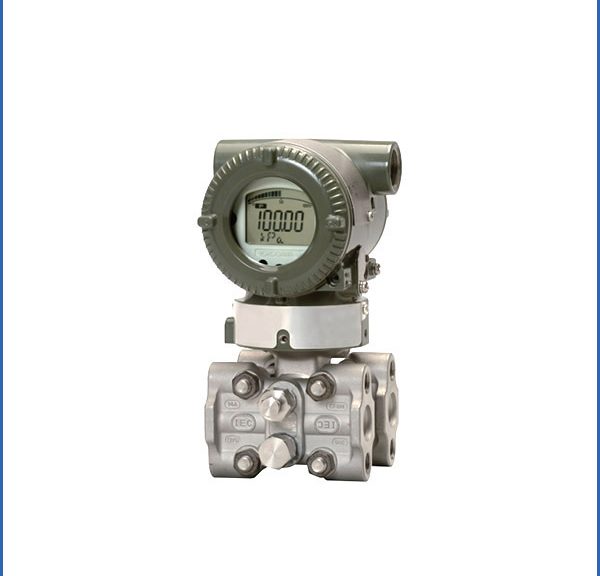

Yokogawa Differential Pressure Transmitter EJA110E-JF

Leave a comment

Yokogawa Differential Pressure Transmitter EJA110E-JF

Above all,the EJA-E series of transmitters is Yokogawa’s most recent evolution of the DPharp family of pressure transmitters.

Release date: 2012
Features:combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series

Certainly, the EJA110E is also our standard traditional-mount differential pressure transmitter in this series.

Furthermore, the EJA110E features include:

  • 0.055% Accuracy (0.04% Accuracy option)
  • 0.1% Stability for 7 years
  • MWP 2,300 psi (MWP 3,600 psi option)
  • 90 ms Response Time
  • Local Parameter Setting (LPS)
  • SIL 2 (IEC 61508) Certified





Yokogawa Differential Pressure Transmitter EJA110E-JF Description

□ NORMAL OPERATING CONDITION

Ambient Temperature Limits

−40 to 85°C (−40 to 185°F)

−30 to 80°C (−22 to 176°F) with LCD display

Process Temperature Limits

−40 to 120°C (−40 to 248°F)

Ambient Humidity Limits

0 to 100% RH

Working Pressure Limits (Silicone oil)

Maximum Pressure Limits (MWP)

16 MPa (2300 psi)

25 MPa (3600 psi) for option code /HG

  • Supply Voltage “◊”
    10.5 to 42 V DC for general use and flameproof type.
    10.5 to 32 V DC for lightning protector
    (option code /A.)
    10.5 to 30 V DC for intrinsically safe, type n, or
    nonincendive.
    Minimum voltage limited at 16.6 V DC for digital
    communications, BRAIN and HART

Most noteworthy, the  EJA110E-JF model list：

-JFS0J -710DA
-JFS0C -710DA
-JFS1G -710DA
-JFS2J -710DA
-JFS2C -710DA
-JFS3G -710DA
-JFS3C -710DA
-JFS3J -710DA
-JFS4J -710DA
-JFS4G -710DA
Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXF005G AXF Magnetic Flowmeter

Leave a comment
Yokogawa AXF005G AXF Magnetic Flowmeter

the AXF005G is also our standard traditional-mount differential in this series.

Furthermore, the AXF005G features include:

Above all the Place of Origin:
Japan
And the Brand Name:
Yokogawa,
And the Model Number:
AXF
And the Product Name:
Yokogawa AXF005 AXF Magnetic Flowmeter Integral Flowmeter
And the Model:
AXF
And the Warranty:
1years
And the Accuracy:
Hight
And the Price:
Best price for Yokogawa AXF005 AXF Magnetic Flowmeter
And the Output:
4- 20 MA
And the Ambient Temperature:
-20 to 60 degree
Safe:
good

Yokogawa AXF005G AXF Magnetic Flowmeter



Yokogawa AXF005G AXF Magnetic Flowmeter

Therefore fieldbus communication type is also available.

Furthermore, the AXF005G similarly features include:

AXF002 Series ——————–size 2.5 mm (0.1 in.) flowmeter
AXF005 Series ——————–size 5 mm (0.2 in.) flowmeter
AXF010 Series ——————–size 10 mm (0.4 in.) flowmeter
AXF015 Series ——————–size 15 mm (0.5 in.) flowmeter
AXF025 Series ——————–size 25 mm (1.0 in.) flowmeter
AXF032 Series ——————–size 32 mm (1.25 in.) flowmeter
AXF040 Series ——————–size 40 mm (1.5 in.) flowmeter
AXF050 Series ——————–size 50 mm (2.0 in.) flowmeter
AXF065 Series ——————–size 65 mm (2.5 in.) flowmeter
AXF080 Series ——————–size 80 mm (3.0 in.) flowmeter
AXF100 Series ——————–size 100 mm (4.0 in.) flowmeter
AXF125 Series ——————–size 125 mm (5.0 in.) flowmeter
AXF150 Series ——————–size 150 mm (6.0 in.) flowmeter
AXF200 Series ——————–size 200 mm (8.0 in.) flowmeter
AXF250 Series ——————–size 250 mm (10 in.) flowmeter
AXF300 Series ——————–size 300 mm (12 in.) flowmeter

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXF002C AXF Magnetic Flowmeter

Leave a comment
Yokogawa AXF002C AXF Magnetic Flowmeter
Yokogawa AXF002C AXF Magnetic Flowmeter
Place of Origin:
Japan
Brand Name:
Yokogawa
Standard dual frequency excitation:
ize 2.5 to 400 mm (0.1 to 16 in.)
Communication Signals:
BRAIN or HART communication signal
BRAIN Communication Distance:
Up to 1.5 km (0.93 miles)
Data Security During Power Failure:
Data (parameters, totalizer value, etc.) storage by
Protection:
General-purpose Use/Sanitary Type/TIIS Flameproof:IP66 IP67
Case and Cover:
Corrosion-resistant coating
Coating Color:
Mint green coating (Munsell 5.6 BG .3/2.9 or its equivalent
Converter Material:
Case and Cover : Aluminum alloy
Electrical Connection:
ANSI 1/2 NPT female
Displayed Languages:
English,Japanese, German, French, Italian, and Spanish

Yokogawa AXF002C AXF Magnetic Flowmeter

Yokogawa AXF002C AXF Magnetic Flowmeter

The ADMAG AXF is the magnetic flow meter which has adopted the proven Dual Frequency Excitation. Moreover, the Enhanced Dual Frequency Excitation has been newly added to tackle more severe applications.

The AXF has user-friendly functions; such as an electrode adhesion level diagnosis function, infra-red switches which can be used for setting parameters without opening the case cover, ability to change the direction of electrical connection on the site.

Based on FOUNDATION™ fieldbus specifications, AXF Fieldbus models offer more flexible instrumentation through a higher level communication capability and propose the cost reduction by multi-drop wirings with less cables. FOUNDATION™ fieldbus is a registered trademark of Fieldbus FOUNDATION.

Note: The “Dual Frequency Excitation Method” is a Yokogawa innovation.

Expansion of Product Lineup

Improved Accuracy Specification
The standard accuracy is 0.35% of reading. Also available as an option is high accuracy calibration rated at 0.2% of reading.

Extra Small Size Flange Type
Flange types are now available in sizes as small as 2.5 mm.

Variety of Sanitary Connections
A wider variety of sanitary connections are now available, including Tri-Clamp, ISO, DIN and SMS.



Enhanced Performance

Enhanced Dual Frequency Excitation
The enhanced dual frequency excitation method is available as an option. This provides highly stable measurements involving high concentration slurries or low conductivity fluids.

Lower Minimum Conductivity
The newly designed AXF converter permits the measurement of fluids with conductivity as low as 1μS/cm depending on the nominal pipe size and fluid condition.

High-Speed Pulse Output
The maximum rate for high speed applications such as short-duration batch processes is now 10,000 pps (pulses per second).

Reference Model :

AXF002G、AXF005G、AXF010G、AXF015G、AXF025G、AXF032G、AXF040G、AXF050G、AXF065G、AXF080G、AXF100G、AXF125G、AXF150G、AXF200G、AXF250G、AXF300G、AXF350G、AXF400G

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXF002G AXF Magnetic Flowmeter

Leave a comment
Yokogawa AXF002G AXF Magnetic Flowmeter

the AXF002G is also our standard traditional-mount differential in this series.

Furthermore, the AXF002G features include:

Above all the Place of Origin:
Japan
And the Brand Name:
Yokogawa,
And the Model Number:
AXF
And the Product Name:
Yokogawa AXF002 AXF Magnetic Flowmeter Integral Flowmeter
And the Model:
AXF
And the Warranty:
1years
And the Accuracy:
Hight
And the Price:
Best price for Yokogawa AXF005 AXF Magnetic Flowmeter
And the Output:
4- 20 MA
And the Ambient Temperature:
-20 to 60 degree
Safe:
good

Yokogawa AXF002G AXF Magnetic Flowmeter

Yokogawa AXF002G AXF Magnetic Flowmeter

Therefore fieldbus communication type is also available.

Furthermore, the AXF002G similarly features include:

AXF002 Series ——————–size 2.5 mm (0.1 in.) flowmeter
AXF005 Series ——————–size 5 mm (0.2 in.) flowmeter
AXF010 Series ——————–size 10 mm (0.4 in.) flowmeter
AXF015 Series ——————–size 15 mm (0.5 in.) flowmeter
AXF025 Series ——————–size 25 mm (1.0 in.) flowmeter
AXF032 Series ——————–size 32 mm (1.25 in.) flowmeter
AXF040 Series ——————–size 40 mm (1.5 in.) flowmeter
AXF050 Series ——————–size 50 mm (2.0 in.) flowmeter
AXF065 Series ——————–size 65 mm (2.5 in.) flowmeter
AXF080 Series ——————–size 80 mm (3.0 in.) flowmeter
AXF100 Series ——————–size 100 mm (4.0 in.) flowmeter
AXF125 Series ——————–size 125 mm (5.0 in.) flowmeter
AXF150 Series ——————–size 150 mm (6.0 in.) flowmeter
AXF200 Series ——————–size 200 mm (8.0 in.) flowmeter
AXF250 Series ——————–size 250 mm (10 in.) flowmeter
AXF300 Series ——————–size 300 mm (12 in.) flowmeter

Flowmeters, Yokogawa, Vortex Flowmeter

Yokogawa DY400 Vortex Flowmeter

Leave a comment

Yokogawa DY400 Vortex Flowmeter

Yokogawa DY400 Vortex Flowmeter

  • Place of Origin: Japan
  • Brand Name: Yokogawa
  • Model Number: DY400
  • quality: Original
  • guarantee: 1 year
  • accuracy: ±0.75% of Reading(Liquid)±1% of Reading (Gas, Steam)
  • Communication Signal: BRAIN or HART
  • Process Temperature: 29 to 250 deg C
  • Fluid to be Measured: Liquid, Gas, Steam (Avoid Multiphase Flow and Sticky Fluids)
  • Repeatability: ± 0.2% of Reading
  • Power Supply Voltage: 10.5 to 42 V DC

Yokogawa DY400 Vortex Flowmeter

Yokogawa DY400 Vortex Flowmeter

Performance Specifications
Fluid to be Measured :
Liquid, Gas, Steam (Avoid Multiphase Flow
and Sticky Fluids)
Measuring Flow Rates :
Refer to Table 6
Accuracy : ±0.75% of Reading (Liquid)
±1% of Reading (Gas, Steam)
Refer to P.13.
When Multi-Variable Type is selected,
refer to P.13.
Repeatability : ± 0.2% of Reading
Calibration :
This flowmeter is factory-calibrated using a
water flow.
Temperature and flow calibration by water
flow when Multi-Variable Type is selected.

Normal Operating Condition
Process Temperature Range :
–29 to 250 °C (general)
–196 to 100 °C (Cryogenic Version:option)
–29 to 450 °C (High Process Temperature
Version:option)
When Multi-Variable Type is selected, refer
to P.10.
Refer to Figure 1 for integral converter type.
Process Pressure Limit :
–0.1MPa (–1 kg/cm2) to flange rating.
Ambient Temperature Range :
–29 to 85 °C (Remote type detector)
–40 to 85 °C (Remote type converter)
–29 to 85 °C (Integral type, refer to Figure 1)
–29 to 80 °C (Integral type with Indicator,
refer to Figure 1)
–30 to 80 °C (Remote type converter with
Indicator)





DY015……………………………Size 15 mm (1/2 inch)
DY025……………………………Size 25 mm (1 inch)
DY040……………………………Size 40 mm (1-1/2 inch)
DY050……………………………Size 50 mm (2 inch)
DY080……………………………Size 80 mm (3 inch)
DY100……………………………Size 100 mm (4 inch)
DY150……………………………Size 150 mm (6 inch)
DY200……………………………Size 200 mm (8 inch)
DY250……………………………Size 250 mm (10 inch)
DY300……………………………Size 300 mm (12 inch)



ST3000 900 Series, Transmitters, Honeywell

Honeywell New And Original STA940 Absolute Pressure Transmitter

Leave a comment

Pressure Transmitter

Pressure Transmitter Honeywell STA940 series all Intelligent Absolute Transmitter is a microprocessor-based intelligent transmitter. The latest R300 version, to enhance the accuracy of the transmitter, reliability and long-term stability indicators. It can measure a variety of liquid and gas differential pressure, pressure or level, and output the corresponding 4 ~ 20mA analog and digital signals. Its unique temperature and static pressure error automatic correction function to make it meet the harsh environment.

Features

1. Advanced sensor technology: the use of ion implantation silicon technology, in the differential pressure sensor integrated static pressure and temperature sensor, at any time to correct the process temperature and static pressure caused by the error, improve the measurement accuracy and stability.

2. High reliability: Mean time between failures 470 years.

3. High stability: ± 0.01% / year.

4. High precision: ± 0.065%.

5 Wide measuring range:

STA92L, STA9220 ~ 104kPa (A)

STA94L, STA9400 ~ 3.5MPa (A)

6. Complete specifications: wetted parts of a variety of anti-corrosion materials are available, to meet the conditions of the use of various conditions

7. With a variety of intrinsically safe and flameproof certification.

8. Optional HART protocol.

9. Optional fieldbus (FF) communication protocol.

10. Use the field communicator or MCT multi-protocol communicator to achieve the ST3000 transmitter configuration, checksum fault diagnosis.

11. Configuration via SCT configuration tool via a portable computer.

12. Digital integration with Honeywell ExperionPKSTM distributed control system.

14. Small size, light weight: 4.5Kg (STA922, STA940), 2.0Kg (STA92L / STA922)

Description

ST 3000 900 Series Models:

ST 3000 900 Differential Pressure Models
STD924
STD930
STD974
900 Absolute Pressure Models
STA922/STA92L
STA922/STA92L
900
Flange Mounted Liquid Level Models
STF924
STF932
STF92F
STF93F
900 Remote Diaphragm Seals Models
STR93D
STR94G
900 Gauge Pressure Models
STG944
STG94L
STG974
STG97L
STG98L
STG99L
ST3000 900 Series, Transmitters, Honeywell

Honeywell New And Original STA94L Absolute Pressure Transmitter

Leave a comment

Honeywell New And Original STA94L Absolute Pressure Transmitter

Honeywell New And Original STA94L Absolute Pressure Transmitter

The ST 3000 Series 900 Absolute Pressure Transmitters are used in applications in which high accuracy in the vacuum range of pressure is needed. Typical applications include low-pressure measurement in vacuum distillation columns, and where energy savings are directly proportional to the vacuum in the column.



The cost-effective ST 3000 Series 900 Absolute Pressure Transmitters are available in two variants – In-line (STA92L/STA94L) and Single-Head (STA922/STA940).

  • STA922:      0 to 780 mmHgA;      0 to 1,040 mbarA
  • STA92L:       0 to 780 mmHgA;      0 to 1,040 mbarA
  • STA940:       0 to 500 psia;           0 to 35 barA
  • STA94L:       0 to 500 psia;           0 to 35 barA



The transmitters lead the industry in reliability and stability:

  • Stability = +/-0.01% per year
  • Reliability = 470 years MTBF



Comprehensive self-diagnostics and three levels of failure reporting help users avoid costly shutdowns, meet regulatory requirements, and attain high quality standards. The pressure transmitters can be used in a wide spectrum of hazardous environments in perfect safety to provide proven, repeatable pressure measurements.

Description

ST 3000 900 Series Models:

ST 3000 900 Differential Pressure Models
STD924
STD930
STD974
900 Absolute Pressure Models
STA922/STA92L
STA922/STA92L
900
Flange Mounted Liquid Level Models
STF924
STF932
STF92F
STF93F
900 Remote Diaphragm Seals Models
STR93D
STR94G
900 Gauge Pressure Models
STG944
STG94L
STG974
STG97L
STG98L
STG99L
ST 700 series, Transmitters, Honeywell

Honeywell STR735D Remote Diaphragm Seals Pressure Transmitter

Leave a comment

Honeywell STR735D Remote Diaphragm Seals Pressure Transmitter

Honeywell STR735D Remote Diaphragm Seals Pressure Transmitter

Diaphragm Seals Pressure Transmitter Honeywell STR700 is suitable for monitoring, control and data acquisition. STR700 products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures.

Features:

  • Accuracy up to 0.065 % of calibrated span
  •  Stability up to 0.02% of URL per year for five years
  •  Automatic temperature compensation
  •  Rangeability up to 100:1
  •  Response times as fast as 100ms
  •  Alphanumeric display capabilities
  •  External zero, span, & configuration capability
  •  Polarity insensitive electrical connections
  •  On-board diagnostic capabilities
  •  Integral Dual Seal design for safety based on
  • ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
  •  Full compliance to SIL 2/3 requirements as a standard.
  •  Modular design characteristics

Honeywell STR735D Remote Diaphragm Seals Pressure Transmitter

Honeywell STR735D Remote Diaphragm Seals Pressure Transmitter

Description

  • Honeywell differential pressure transmitter models are the following:
    STD924-A1A-00000-MB, SM, 1C (0-100 KPa)
    STD924-E1A-00000-AN, MB, SM, 1C (0-100KPa)
    STD924-E1H-00000-MB, S2, SM, 1C (0-100KPa)
    STD930-A1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1H-00000-S2, MB, SM, 1C (0-700KPa)
    Differential Pressure Transmitter Range:
    STD110 (0 ~ 100 0 ~ 2500Pa)
    STD120 (0 to 0.25 0 to 100 kPa)
    STD130 (0-0.35 to 0-7 bar)
    STD170 (0-7 to 0-210 bar)
    STD125 (0-62.2 to 0-1,500 mbar)
    Common models:
    Honeywell differential pressure transmitter models are the following:
    STD110-A1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1H-00000-S2, MB, 1C (0 to 100 0 to 2500 Pa)
    STD120-A1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1H-00000-MB, S2, SM, 1C (0 to 0.25 0 to 100 kPa)
    On-line pressure transmitter Range:
    STG94L (0 ~ 0.14 0 ~ 3.5MPa)
    STG97L (0 ~ 2.1 0 ~ 21MPa)
    STG98L (0 to 3.5 0 to 41.5 MPa)
    STG99L (0 ~ 3.5 0 ~ 69MPa)
    Common models:
    Honeywell pressure transmitter has the following models:
    STG94L-E1G-00000-1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1G-00000-SM, 1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1A-00000-SM, MB, 1C (0 to 0.14 0 to 3.5 MPa)
    STG97L-E1G-00000-SM, MB, 1C (0 to 2.1 0 to 21 MPa)
    STG97L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    STG98L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    On-line pressure transmitter Range:
    STG94L: (0 to 0.14 0 to 3.5 MPa)
    STG97L: (0 to 2.1 0 to 21 MPa)
    STG98L: (0 to 3.5 0 to 41.5 MPa)
    STG99L: (0 to 3.5 0 to 69 MPa)
ST 700 series, Transmitters, Honeywell

Honeywell New And Original STG78S Gauge Pressure Transmitter

Leave a comment

Honeywell New And Original STG78S Gauge Pressure Transmitter

Honeywell New And Original STG78S Gauge Pressure Transmitter

STG78S series is a high-performance pressure transmitter with advanced sensor technology that combines pressure with static pressure and temperature compensation on the sensor chip to provide extremely high measurement accuracy and stability over a wide range of static pressure and temperature.

Features:

  • Accuracy up to 0.065 % of calibrated span
  •  Stability up to 0.02% of URL per year for five years
  •  Automatic temperature compensation
  •  Rangeability up to 100:1
  •  Response times as fast as 100ms
  •  Alphanumeric display capabilities
  •  External zero, span, & configuration capability
  •  Polarity insensitive electrical connections
  •  On-board diagnostic capabilities
  •  Integral Dual Seal design for safety based on
  • ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
  •  Full compliance to SIL 2/3 requirements as a standard.
  •  Modular design characteristics

Honeywell New And Original STG78S Gauge Pressure Transmitter

Honeywell New And Original STG78S Gauge Pressure Transmitter

Description

  • Honeywell differential pressure transmitter models are the following:
    STD924-A1A-00000-MB, SM, 1C (0-100 KPa)
    STD924-E1A-00000-AN, MB, SM, 1C (0-100KPa)
    STD924-E1H-00000-MB, S2, SM, 1C (0-100KPa)
    STD930-A1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1H-00000-S2, MB, SM, 1C (0-700KPa)
    Differential Pressure Transmitter Range:
    STD110 (0 ~ 100 0 ~ 2500Pa)
    STD120 (0 to 0.25 0 to 100 kPa)
    STD130 (0-0.35 to 0-7 bar)
    STD170 (0-7 to 0-210 bar)
    STD125 (0-62.2 to 0-1,500 mbar)
    Common models:
    Honeywell differential pressure transmitter models are the following:
    STD110-A1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1H-00000-S2, MB, 1C (0 to 100 0 to 2500 Pa)
    STD120-A1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1H-00000-MB, S2, SM, 1C (0 to 0.25 0 to 100 kPa)
    On-line pressure transmitter Range:
    STG94L (0 ~ 0.14 0 ~ 3.5MPa)
    STG97L (0 ~ 2.1 0 ~ 21MPa)
    STG98L (0 to 3.5 0 to 41.5 MPa)
    STG99L (0 ~ 3.5 0 ~ 69MPa)
    Common models:
    Honeywell pressure transmitter has the following models:
    STG94L-E1G-00000-1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1G-00000-SM, 1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1A-00000-SM, MB, 1C (0 to 0.14 0 to 3.5 MPa)
    STG97L-E1G-00000-SM, MB, 1C (0 to 2.1 0 to 21 MPa)
    STG97L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    STG98L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    On-line pressure transmitter Range:
    STG94L: (0 to 0.14 0 to 3.5 MPa)
    STG97L: (0 to 2.1 0 to 21 MPa)
    STG98L: (0 to 3.5 0 to 41.5 MPa)
    STG99L: (0 to 3.5 0 to 69 MPa)
ST 700 series, Transmitters, Honeywell

Honeywell STG74S Gauge Pressure Transmitter

Leave a comment

Pressure Transmitter

Pressure Transmitter Honeywell STG74S is a high-performance pressure transmitter with advanced sensor technology that combines pressure with static pressure and temperature compensation on the sensor chip to provide extremely high measurement accuracy and stability over a wide range of static pressure and temperature

Features:

  • Accuracy up to 0.065 % of calibrated span
  •  Stability up to 0.02% of URL per year for five years
  •  Automatic temperature compensation
  •  Rangeability up to 100:1
  •  Response times as fast as 100ms
  •  Alphanumeric display capabilities
  •  External zero, span, & configuration capability
  •  Polarity insensitive electrical connections
  •  On-board diagnostic capabilities
  •  Integral Dual Seal design for safety based on
  • ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
  •  Full compliance to SIL 2/3 requirements as a standard.
  •  Modular design characteristics

Span & Range Limits:

Model URL/Ma

x Span

psi (bar)



 LRL

psi (bar)



 Min Span



 Turn

down


STG730/STG73L 50(3.5) -14.7 (-1.0) 0.5 (0.035) 100:1
STG740/STG74L 500 (35) -14.7 (-1.0) 5 (.35) 100:1
STG770/STG77L 3000 (210) -14.7 (-1.0) 30 (2.1) 100:1
STG78L 6000 (420) -14.7 (-1.0) 60 (4.2) 100:1
STG79L 10000 -14.7 (-1.0) 100 (6.9) 100:1



Communications/Output Options:

Honeywell Digitally Enhanced (DE)

HART ®(version 7.0)

FOUNDATION™ Fieldbus

Honeywell STG74S Gauge Pressure Transmitter

Description

  • Honeywell differential pressure transmitter models are the following:
    STD924-A1A-00000-MB, SM, 1C (0-100 KPa)
    STD924-E1A-00000-AN, MB, SM, 1C (0-100KPa)
    STD924-E1H-00000-MB, S2, SM, 1C (0-100KPa)
    STD930-A1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1H-00000-S2, MB, SM, 1C (0-700KPa)
    Differential Pressure Transmitter Range:
    STD110 (0 ~ 100 0 ~ 2500Pa)
    STD120 (0 to 0.25 0 to 100 kPa)
    STD130 (0-0.35 to 0-7 bar)
    STD170 (0-7 to 0-210 bar)
    STD125 (0-62.2 to 0-1,500 mbar)
    Common models:
    Honeywell differential pressure transmitter models are the following:
    STD110-A1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1H-00000-S2, MB, 1C (0 to 100 0 to 2500 Pa)
    STD120-A1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1H-00000-MB, S2, SM, 1C (0 to 0.25 0 to 100 kPa)
    On-line pressure transmitter Range:
    STG94L (0 ~ 0.14 0 ~ 3.5MPa)
    STG97L (0 ~ 2.1 0 ~ 21MPa)
    STG98L (0 to 3.5 0 to 41.5 MPa)
    STG99L (0 ~ 3.5 0 ~ 69MPa)
    Common models:
    Honeywell pressure transmitter has the following models:
    STG94L-E1G-00000-1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1G-00000-SM, 1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1A-00000-SM, MB, 1C (0 to 0.14 0 to 3.5 MPa)
    STG97L-E1G-00000-SM, MB, 1C (0 to 2.1 0 to 21 MPa)
    STG97L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    STG98L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    On-line pressure transmitter Range:
    STG94L: (0 to 0.14 0 to 3.5 MPa)
    STG97L: (0 to 2.1 0 to 21 MPa)
    STG98L: (0 to 3.5 0 to 41.5 MPa)
    STG99L: (0 to 3.5 0 to 69 MPa)
ST 700 series, Transmitters, Honeywell

Honeywell STF73P SmartLine Flange Mounted Level Transmitter

Leave a comment

Honeywell STF73P SmartLine Flange Mounted Level Transmitter

Honeywell STF73P SmartLine Flange Mounted Level Transmitter

Level Transmitter Honeywell STF700 series is suitable for monitoring, control and data acquisition. The SmartLine family pressure transmitters are designed around a high performance piezo-resistive sensor. This one sensor actually integrates multiple sensors linkingprocess pressure measurement with on-board static pressure (DP Models) and temperature compensation measurements. This level of performance allows the ST 700 to replace most competitive transmitters available today.

Features:

  • Accuracy up to 0.065 % of calibrated span
  •  Stability up to 0.02% of URL per year for five years
  •  Automatic temperature compensation
  •  Rangeability up to 100:1
  •  Response times as fast as 100ms
  •  Alphanumeric display capabilities
  •  External zero, span, & configuration capability
  •  Polarity insensitive electrical connections
  •  On-board diagnostic capabilities
  •  Integral Dual Seal design for safety based on
  • ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
  •  Full compliance to SIL 2/3 requirements as a standard.
  •  Modular design characteristics

HoHoneywell STF73P SmartLine Flange Mounted Level Transmitter

Honeywell STF73P SmartLine Flange Mounted Level Transmitter

Description

  • Honeywell differential pressure transmitter models are the following:
    STD924-A1A-00000-MB, SM, 1C (0-100 KPa)
    STD924-E1A-00000-AN, MB, SM, 1C (0-100KPa)
    STD924-E1H-00000-MB, S2, SM, 1C (0-100KPa)
    STD930-A1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1H-00000-S2, MB, SM, 1C (0-700KPa)
    Differential Pressure Transmitter Range:
    STD110 (0 ~ 100 0 ~ 2500Pa)
    STD120 (0 to 0.25 0 to 100 kPa)
    STD130 (0-0.35 to 0-7 bar)
    STD170 (0-7 to 0-210 bar)
    STD125 (0-62.2 to 0-1,500 mbar)
    Common models:
    Honeywell differential pressure transmitter models are the following:
    STD110-A1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1H-00000-S2, MB, 1C (0 to 100 0 to 2500 Pa)
    STD120-A1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1H-00000-MB, S2, SM, 1C (0 to 0.25 0 to 100 kPa)
    On-line pressure transmitter Range:
    STG94L (0 ~ 0.14 0 ~ 3.5MPa)
    STG97L (0 ~ 2.1 0 ~ 21MPa)
    STG98L (0 to 3.5 0 to 41.5 MPa)
    STG99L (0 ~ 3.5 0 ~ 69MPa)
    Common models:
    Honeywell pressure transmitter has the following models:
    STG94L-E1G-00000-1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1G-00000-SM, 1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1A-00000-SM, MB, 1C (0 to 0.14 0 to 3.5 MPa)
    STG97L-E1G-00000-SM, MB, 1C (0 to 2.1 0 to 21 MPa)
    STG97L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    STG98L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    On-line pressure transmitter Range:
    STG94L: (0 to 0.14 0 to 3.5 MPa)
    STG97L: (0 to 2.1 0 to 21 MPa)
    STG98L: (0 to 3.5 0 to 41.5 MPa)
    STG99L: (0 to 3.5 0 to 69 MPa)
ST 700 series, Transmitters, Honeywell

Honeywell STF72P SmartLine Flange Mounted Level Transmitter

Leave a comment

Honeywell STF72P SmartLine Flange Mounted Level Transmitter

Honeywell STF72P SmartLine Flange Mounted Level Transmitter

Level Transmitter Honeywell STF700 series is suitable for monitoring, control and data acquisition. The SmartLine family pressure transmitters are designed around a high performance piezo-resistive sensor. This one sensor actually integrates multiple sensors linkingprocess pressure measurement with on-board static pressure (DP Models) and temperature compensation measurements. This level of performance allows the ST 700 to replace most competitive transmitters available today.

Features:

  • Accuracy up to 0.065 % of calibrated span
  •  Stability up to 0.02% of URL per year for five years
  •  Automatic temperature compensation
  •  Rangeability up to 100:1
  •  Response times as fast as 100ms
  •  Alphanumeric display capabilities
  •  External zero, span, & configuration capability
  •  Polarity insensitive electrical connections
  •  On-board diagnostic capabilities
  •  Integral Dual Seal design for safety based on
  • ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
  •  Full compliance to SIL 2/3 requirements as a standard.
  •  Modular design characteristics

HoHoneywell STF72P SmartLine Flange Mounted Level Transmitter

Honeywell STF72P SmartLine Flange Mounted Level Transmitter

Description

  • Honeywell differential pressure transmitter models are the following:
    STD924-A1A-00000-MB, SM, 1C (0-100 KPa)
    STD924-E1A-00000-AN, MB, SM, 1C (0-100KPa)
    STD924-E1H-00000-MB, S2, SM, 1C (0-100KPa)
    STD930-A1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1A-00000-MB, SM, 1C (0-700KPa)
    STD930-E1H-00000-S2, MB, SM, 1C (0-700KPa)
    Differential Pressure Transmitter Range:
    STD110 (0 ~ 100 0 ~ 2500Pa)
    STD120 (0 to 0.25 0 to 100 kPa)
    STD130 (0-0.35 to 0-7 bar)
    STD170 (0-7 to 0-210 bar)
    STD125 (0-62.2 to 0-1,500 mbar)
    Common models:
    Honeywell differential pressure transmitter models are the following:
    STD110-A1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1A-00000-MB, SM, 1C (0 to 100 0 to 2500 Pa)
    STD110-E1H-00000-S2, MB, 1C (0 to 100 0 to 2500 Pa)
    STD120-A1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1A-00000-MB, SM, 1C (0 to 0.25 0 to 100 kPa)
    STD120-E1H-00000-MB, S2, SM, 1C (0 to 0.25 0 to 100 kPa)
    On-line pressure transmitter Range:
    STG94L (0 ~ 0.14 0 ~ 3.5MPa)
    STG97L (0 ~ 2.1 0 ~ 21MPa)
    STG98L (0 to 3.5 0 to 41.5 MPa)
    STG99L (0 ~ 3.5 0 ~ 69MPa)
    Common models:
    Honeywell pressure transmitter has the following models:
    STG94L-E1G-00000-1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1G-00000-SM, 1C (0 to 0.14 0 to 3.5 MPa)
    STG94L-E1A-00000-SM, MB, 1C (0 to 0.14 0 to 3.5 MPa)
    STG97L-E1G-00000-SM, MB, 1C (0 to 2.1 0 to 21 MPa)
    STG97L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    STG98L-E1G-00000-MB, 1C (0 to 2.1 0 to 21 MPa)
    On-line pressure transmitter Range:
    STG94L: (0 to 0.14 0 to 3.5 MPa)
    STG97L: (0 to 2.1 0 to 21 MPa)
    STG98L: (0 to 3.5 0 to 41.5 MPa)
    STG99L: (0 to 3.5 0 to 69 MPa)
