proximity sensor

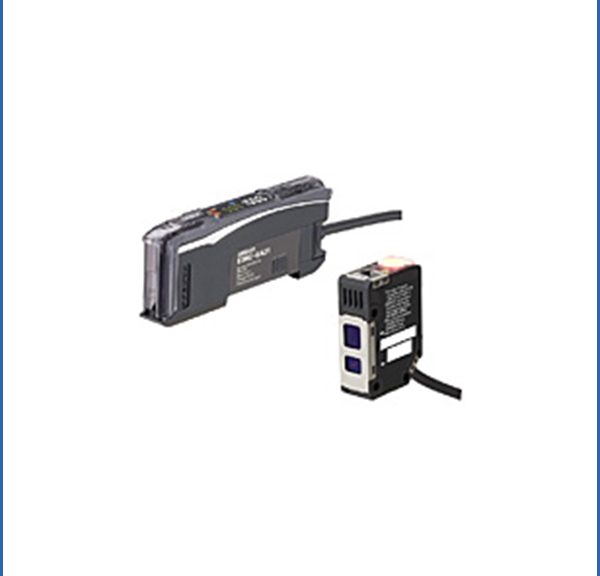

Omron Proximity Sensor Y92□ Series



Quick Details
Place of Origin:China (Mainland)
Brand Name:OMRON
Model Number:Y92□
Usage:Position Sensor
Theory:Inductance Sensor
Output:Analog Sensor

proximity sensor

Omron Proximity Sensor Y92□ Series





Mounting brackets

There are 4 kinds of special resin mounting brackets.

According to shape selection.

Mounting sleeve (quick installation)

After installing the sleeve and sensor correctly, no need to

adjust the sensor after replacing the sensor.

Protective cover

Cover with protection head.

According to shape selection.

species:
Mounting brackets

Project

The model uses hex bolts for the sensor outer diameter

Y92E-B8 M4 × 20 M8

Y92E-B12 M4 × 25 M12

Y92E-B18 M5 × 32 M18

Y92E-B30 M5 × 50 M30

Note: Please note the effect of the surrounding metal when

using unshielded.

(Please refer to the model for each sensor type.)

Mounting sleeve (quick installation)

Project

Model for sensors

Y92E-G8 E2E / E2E2 M8 Shielded

Y92E-G12 E2E / E2E2 M12 Shielded

Y92E-G18 E2E / E2E2 M18 Shielded

Y92E-G30 E2E / E2E2 M30 Shielded

Note: Do not tighten the nut with too much force.

When tightening, tighten the following tightening torque below the table.

Project

Type nuts for fastening nuts for fixing the body

Y92E-G8 18N · m 6N · m

Y92E-G12 40N · m 15N · m

Y92E-G18 70N · m 15N · m

Y92E-G30 100N · m 30N · m

Protective cover

[Static capacity type proximity sensor can not be used. To
Project

Model cover diameter (thread opening) material suitable for sensor diameter

Y92E-E12 M12 × 1 Polyacetal resin M12 Shield type

Y92E-E18 M18 × 1 M18 Shield type

Y92E-E30 M30 × 1.5 M30 Shielded type

Y92E-E12M M12 × 1 M12 Unshielded

Y92E-E18M M18 × 1 M18 Unshielded

Y92E-E30M M30 × 1.5 M30 Unshielded

Anti-sputter protection cover (cover inside the threaded opening



[Static capacity type proximity sensor can not be used. To
Project

Model for sensor diameter

Y92E-E8-7 M8 shield type

Y92E-E12-7 M12 Shielded

Y92E-E18-7 M18 Shield type

Y92E-E30-7 M30 Shielded type

Note: Please note that excessive screwing will damage the cover.

Anti-sputtering protective cover (inside of the cover without thread opening)



[Static capacity type proximity sensor can not be used. To
Project

Model material suitable for sensor diameter

Y92E-E12-2 silicone rubber M12 shield type

Y92E-E18-2 M18 Shielded

Y92E-E30-2 M30 Shielded

Protective cover (E2V, E2EZ special metal type)

Protective cover dimensions table

Model Item Size (mm) Applicable sensor material

A B (thread opening) C D E

Y92E-VM12 φ13 M12 × 1 0.60 ± 0.05 5 φ9 E2V M12

Corresponding shielding

E2EZ-X2D □ -N

E2EZ-X2D1-M1 (T) (G) J SUS303

Y92E-VM18 φ19 M18 × 1 0.60 ± 0.05 6 φ14 E2V M18

Corresponding shielding

E2EZ-X4D □ -N

E2EZ-X4D1-M1 (T) (G) J

Y92E-VM30 φ31 M30 × 1.5 0.60 ± 0.05 8 φ24 E2V M30

Corresponding shielding

E2EZ-X8D □ -N

E2EZ-X8D1-M1 (T) (G) J

Rated / performance when installing protective cover

Model E2V-X □ E2EZ-X □

project

Detection distance When installing the protective cover, it

is within ± 10% of the range before installation.

Please use within the range of the set distance.

When the protective cover is installed, it is within ± 10%

of the range before installation.

Only M30 type, within ± 15% range.

Please use within the range of the set distance.

Ambient temperature range Action: 5 ~ 55 ℃ (but not condensation)

When stored: -25 ~ 70 ℃ (but not frozen): 0 ~ 50 ℃ (but not frozen condensation)

When stored: 0 ~ 50 ℃ (but not frozen)

Note: For other items, the original rating / performance

with E2V / E2EZ has not changed.

If the use of anti-adhesive to prevent the use of adhesives,

the installation will be more robust.

Nut set

Sensor mounting nut kit. Please order when lost.

According to the use of the sensor shape selection.

Model Item Applicable Sensor Applicable sensor outside

diameter setting contents

Y92E-NWM08-E2E E2E M8 Fastening nut (brass nickel plated): 2 pcs

Toothed washers (galvanized): 1

Y92E-NWM12-E2E M12

Y92E-NWM18-E2E M18

Y92E-NWM30-E2E M30

Y92E-NWM12-E2EQ E2EQ M12 Fastening nut (fluororesin coating,

substrate: brass): 2

Toothed washers (galvanized): 1

Y92E-NWM18-E2EQ M18

Y92E-NWM30-E2EQ M30

Y92E-NWM8 E2FM

E2EF-X M8 fastening nut (SUS303): 2 pcs

Toothed washers (galvanized): 1

Y92E-NWM12 M12

Y92E-NWM18 M18

Y92E-NWM30 M30

Y92E-NWM12-E2EH E2EH M12 Fastening nut (SUS316L): 2

Y92E-NWM18-E2EH M18

Y92E-NWM30-E2EH M30

Y92E-NWM12-E2EZ E2EZ M12 Fastening nut (iron galvanized): 2

pieces

Toothed washers (galvanized): 1

Y92E-NWM18-E2EZ M18

Y92E-NWM30-E2EZ M30

Y92E-NWM08-E2F E2F M8 Fastening nut (polycarbonate): 2 pieces

Y92E-NWM12-E2F M12

Y92E-NWM18-E2F M18

Y92E-NWM30-E2F M30

proximity sensor

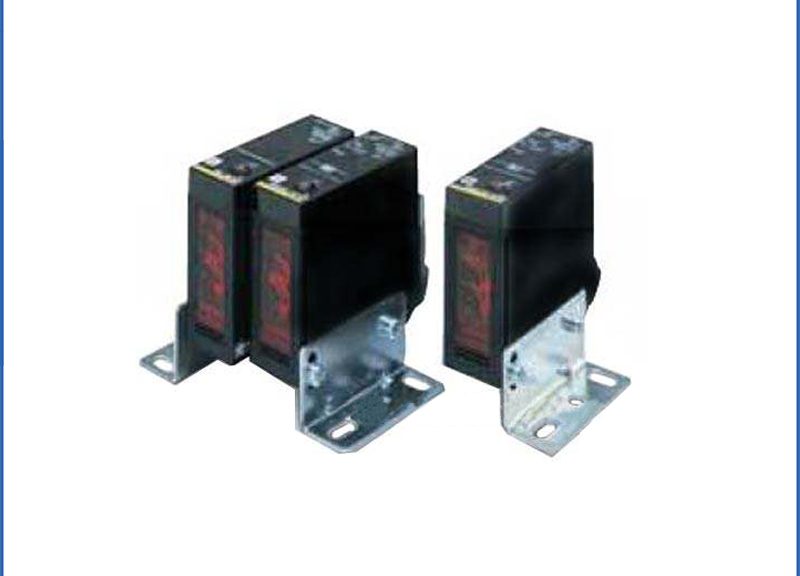

Omron Proximity Sensor B7AP Series



Quick Details
Place of Origin:China (Mainland)
Brand Name:OMRON
Model Number:B7AP-M1
Usage:Position Sensor
Theory:Inductance Sensor
Output:Analog Sensor

proximity sensor

Omron Proximity Sensor B7AP Series





Omron Proximity Sensor B7AP

The metal heads of the E2EF achieve the same distances for

the same sizes as the E2E Proximity Sensors with Resin

Heads.

This allows you to use Proximity Sensors that withstand

friction with the workpiece without major changes to

mounting brakets.

The 0.4-mm metal head exhibits almost no wear due to

friction with the workpiece or cleaning with metal brushes.

This helps prevent equipment down time due to sensor failure

and reduces the frequency of replacement.

Spatter-resistant models with fluororesin-coated head are

also available.

Reduces adhesion of spatter to achieve

stable detection.

The tough all-stainless steel housing with a flame-retardant

cable enables reliable application where spatter is present

near welding machines.

Main information

Omron Proximity Sensor B7AP

Sensing object

Ambient temperature range

Dielectric strength

Degree of protection

Ferrous metal (The sensing distance decreases with non-

ferrous metal.

Refer to Engineering Data on Data Sheet.)

Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no

icing or condensation)

1,000 VAC, 50/60 Hz for 1 minute between current-carrying

parts and case

IEC 60529 IP67

Flat type.

■ metal, but also can detect water, oil, glass, plastic and

other non-metallic.

■ Can be installed directly to the metal surface.

proximity sensor

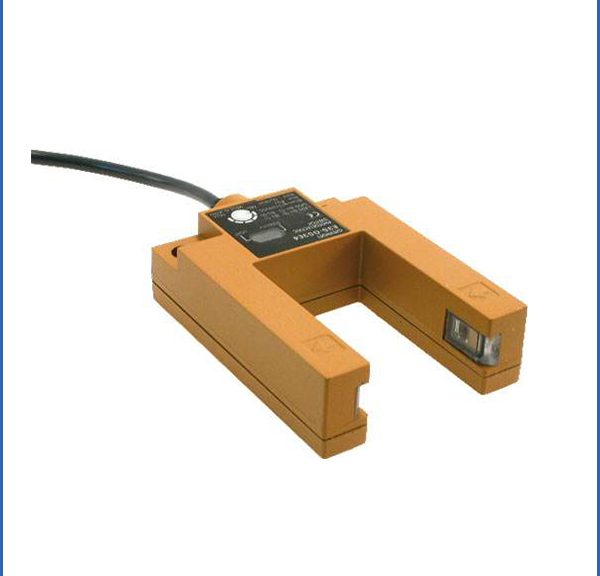

Omron Proximity Sensor F92A Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:F92A
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:F92A
Name:Omron Proximity Sensor F92A
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor F92A Series





Omron Proximity Sensor F92A

The metal heads of the E2EF achieve the same distances for

the same sizes as the E2E Proximity Sensors with Resin

Heads.

This allows you to use Proximity Sensors that withstand

friction with the workpiece without major changes to

mounting brakets.

The 0.4-mm metal head exhibits almost no wear due to

friction with the workpiece or cleaning with metal brushes.

This helps prevent equipment down time due to sensor failure

and reduces the frequency of replacement.

Spatter-resistant models with fluororesin-coated head are

also available.

Reduces adhesion of spatter to achieve

stable detection.

The tough all-stainless steel housing with a flame-retardant

cable enables reliable application where spatter is present

near welding machines.

Main information

Omron Proximity Sensor F92A

Sensing object

Ambient temperature range

Dielectric strength

Degree of protection

Ferrous metal (The sensing distance decreases with non-

ferrous metal.

Refer to Engineering Data on Data Sheet.)

Operating: − 10 to 70 °C, Storage: − 25 to 70 °C (with no

icing or condensation)

1,000 VAC, 50/60 Hz for 1 minute between current-carrying

parts and case

IEC 60529 IP67

Flat type.

■ metal, but also can detect water, oil, glass, plastic and

other non-metallic.

■ Can be installed directly to the metal surface.

proximity sensor

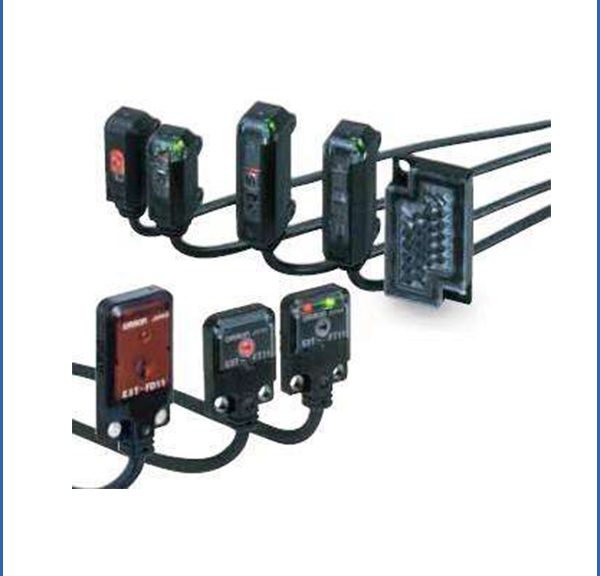

Omron Proximity Sensor GLS Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:GLS

Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:GLS
Name:Omron Proximity SensorGLS
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor TL-L Series





Features:



A proximity sensor that starts the reed switch with a

permanent magnet

It is suitable for opening and closing of detection doors

species:
Terminal type (switch section)

Type of model

Model GLS-1

Switch GLS-S1

The magnet portion GLS-M1

Lead wire type (switch section)

Type of wire long model

Complete sets of models 1m GLS-1L

Switch section GLS-S1-L

Note: For wire leads, the magnetic parts can not be

purchased separately.

The wire lead-out type is different from the size of the

terminal block type magnet section.

Rating / Performance:

Item Model GLS-1 GLS-1L

Find out the distance 15mm * 1

Contact circuit 1a

Contact Capacity * 2 Maximum Operating Voltage: DC100V

Maximum use of current: DC0.1A

Maximum contact capacity: 10W (including opening and closing)

Contact withstand voltage DC250V 1min (leakage current 1mA or less)

Response frequency below 20Hz

Ambient temperature range of work, save: the -20 ~ +60 ℃ (no icing, condensation)

Environmental Humidity Range Operating, when stored: 35 ~ 85% RH (no condensation)

Contact resistance 150mΩ or less 250mΩ or less (including

the conductor resistance of the wire)

Withstand voltage AC1,000V 1min between the terminals and the shell

Life of more than 50 million times (DC24V 0.1A resistance load)

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X,

Y, Z direction 2h

Impact (durable) 300m / s2 X, Y, Z direction 3 times

Protection structure IEC standard IP40

Connection type Terminal type Lead wire lead type (standard

wire length 1m)

Material switch parts ABS

Magnet parts

* 1. The actual detection distance is 15mm or more, please note.

* 2. Outdoor can not be used.

proximity sensor

Omron Proximity Sensor TL-L Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:TL-L
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:TL-L
Name:Omron Proximity SensorTL-L
Accuracy:0.5%FS

proximity sensor

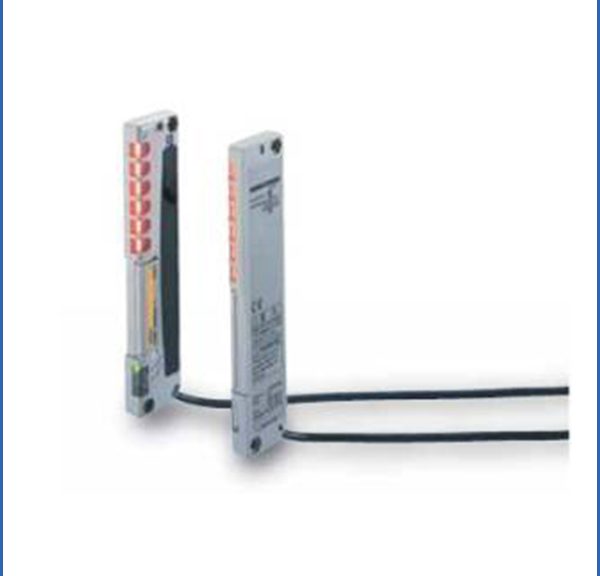

Omron Proximity Sensor TL-L Series





Features:



Equipped with water type

species:
Shape Detection Distance Output Type Model

Cylindrical type

(Flat mounting) 100mm Current output type TL-L100-7 1M

Note: water type (JIS0920 water type: pressure 0.39MPa)

equipped with TL-L100-10.

Rating:

Output specification Current output type

TL-L100-7

Detection distance 100mm ± 10%

Set the distance 0 ~ 80mm

Should be less than 15% of the detection distance

Can detect objects magnetic metal, non-magnetic metal

Standard detection of objects iron 200 × 200 × 1mm

Response time is less than 100ms

voltage

(Using voltage range) DC10 ~ 30V Ripple (p-p) 10%

Current consumption below DC40mA

Control output (residual voltage) DC200mA or less (1V or less)

Indicator action display (red)

Action mode

(Near the detection object) NO For details, see the timing

diagram in the “Input Output Section Circuit Diagram”

Protection circuit reverse protection, surge absorption

Ambient temperature range of work, save: the -25 ~ +55 ℃ (no icing, condensation)

Ambient temperature range of work, when stored: 35 ~ 95% RH (no condensation)

The temperature of -10 ~ +40 ℃ temperature range +20 ℃,

the detection distance of 30% or less

Voltage in the rated power supply voltage within ± 10% of

the range, the rated power supply voltage, the detection of the distance

± 5% or less

Insulation resistance 5MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage AC500V 50 / 60Hz 1min charging part

between the whole and the shell

Vibration (durable) 10 ~ 55Hz up and down amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 200m / s2 X, Y, Z direction 10 times

Protection structure IEC standard

Connection type Wire lead type (standard wire length 1m)

After mass (after packaging) about 1.5kg

Material shell: aluminum die-casting detection surface:

epoxy resin

Accessories manual

proximity sensor

Omron Proximity Sensor E2J Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2J
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2J
Name:Omron Proximity Sensor E2J
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor E2J Series





Features:

Thickness of 5.5mm flat sensor head

Using robotic wire

The sensor section is also equipped with an action indicator

Simple connection via one-touch connector
species:
Ontology

The sensor section is part of the amplifier unit

Shape detection distance (variable range) Model Output form Model

Flat type
Unshielded

473_lu_1_1

10mm
(4 ~ 10mm) E2J-W10MA 1M DC 3-wire NPN collector

Open output E2J-JC4A 2M

20mm
(8 ~ 20mm) E2J-W20MA 1M

Rating / Performance:

Sensor part

Model E2J-W10MA E2J-W20MA

Standard detection distance 10 mm 20 mm

Detection range of variable range 4 ~ 10mm 8 ~ 20mm

Should be less than 15% of the detection distance

Detects object conductors and dielectric bodies

Standard detection of objects to ground metal plate 50 × 50

× 1mm
Response frequency above 70Hz

Response frequency detection display (red)

Ambient temperature range of work, when stored: the -10 ~

+55 ° C (no icing, no condensation)

Environmental Humidity Range Operating, when stored: 35 ~

85% RH (no condensation)

Vibration (durable) 10 ~ 500Hz up and down amplitude 2mm or

150m / s2 X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 3 times

Protection structure IEC standard

Connection type connector relay type (robot wire) (standard

wire length 1m)

Quality (after packaging) about 30g about 40g

Material shell heat ABS

Amplifier unit section

Model E2J-JC4A

Power supply voltage DC24V ± 20% ripple (p-p) 10% or less

Current consumption below 30mA

Control

Output switch capacity NPN Open collector output 100mA or

less (DC30V or less)

Residual voltage below 1V

Indicator action display (orange)

Power display (green)

Sensitivity adjustment knob speed 8 laps with indicator

Protection circuit reverse connection protection, load short

circuit protection, surge absorption

Ambient temperature range of work, when stored: the -10 ~

+55 ° C (no icing, no condensation)

Ambient temperature range When operating, save: 35 ~ 85% RH

(no condensation)

The effect of temperature

(Sensor + amplifier) ​​0 to 40 ° C in the temperature range +

23 ° C, the detection distance of ± 25%

The voltage is within ± 20% of the rated power supply

voltage, the rated power supply voltage, the detection

distance of ± 1%

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage AC1,000V 50 / 60Hz 1min charging part

between the whole and the shell

Vibration (durable) 10 ~ 150Hz up and down amplitude 1.5mm

or 100m / s2

X, Y, Z direction 2h

Impact (durable) 300m / s2 X, Y, Z direction 3 times

Protection structure IEC standard IP50

Connection type wire lead type (standard wire length 2m)

After mass (after packaging) about 60g

Material shell ABS

Accessories Mounting bracket, instruction manual

proximity sensor

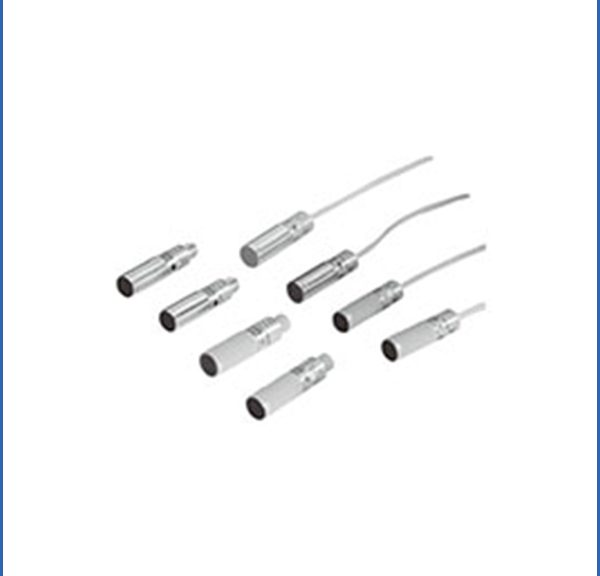

Omron Proximity Sensor E2KQ-X Series



Quick Details
Place of Origin:Germany
Brand Name:Omron
Model Number:E2KQ-X
Usage:Humidity Sensor
Theory:Current Sensor
Output:Analog Sensor
Model:E2KQ-X
Name:Omron Proximity Sensor E2K-L
Accuracy:0.5%FS

proximity sensor

Omron Proximity Sensor E2KQ-X Series





Features:
Excellent chemical resistance, oil resistance (fluororesin

housing)

Adjust the distance according to the detection object

(sensitivity knob)

species:
Sensors

Shape Detection Distance Output Type Action Type Model

Unshielded

474_lu_1_1

M18 10mm
[6 ~ 10mm *] DC

3 lines
NPN NO E2KQ-X10ME1 2M

NC E2KQ-X10ME2 2M

Rating / Performance:

Item Model E2KQ-X10ME1 E2KQ-X10ME2

Standard detection distance * 1 10mm

Detection range of variable range 6 ~ 10mm

Should be detected by the distance of 4 to 20%

Can detect object conductor and dielectric body

Standard detection of objects to ground metal plate 50 × 50 × 1mm

Response frequency 35Hz

Power supply voltage (using voltage range) DC12 ~ 24V

Pulsation (p-p) 10% or less (DC10 ~ 30V)

Current consumption below 15mA

Control output switch capacity 100mA

Residual voltage 1.5V or less (load current 100mA, wire

length 2m)

Indicator light (red)

Action mode (near detection of object) * 2 NO NC

Ambient temperature range Operating: -10 ~ +55 ℃, save: -25

~ +55 ℃ (no icing, condensation)

Temperature of the temperature range of -10 ~ +55 ℃, +23

℃, the detection distance of ± 15%

The voltage is within ± 20% of the rated power supply

voltage, the rated power supply voltage, the detection

distance of ± 2%

Insulation resistance 50MΩ or more (DC500V megger) The

charging unit is integral with the housing

Withstand voltage AC500V 50 / 60Hz 1min charging part

between the whole and the shell

Vibration (durable) 10 ~ 55Hz double amplitude 1.5mm X, Y, Z direction 2h

Impact (durable) 500m / s2 X, Y, Z direction 3 times



Material shell, detection of fluorine resin

Tighten nuts

Cable PVC

Accessories Adjustable screwdriver, instruction manual

* 1. The numbers in the table are the detection distance of

the standard detection object. For other materials please

refer to the sample “Characteristic data”.

* 2. For details, refer to the timing diagram of the “Input

Output Section Circuit Diagram” on the sample.
