All posts by conchgroup_sales

EJA-E series, Transmitters, Yokogawa

Yokogawa EJA310E -JL Absolute Pressure Transmitter

Leave a comment

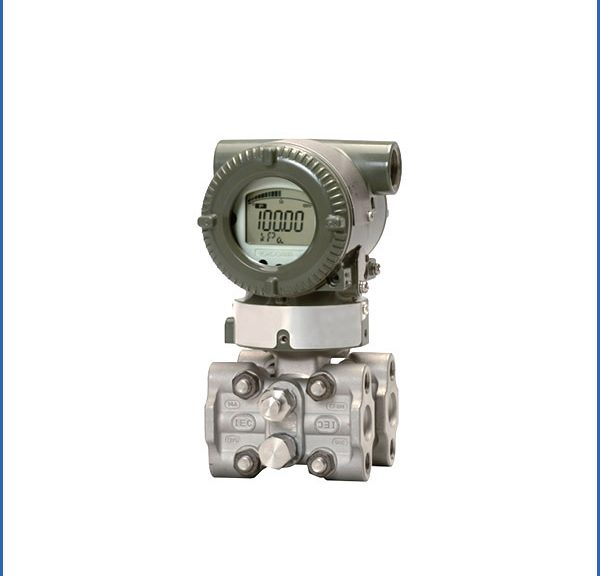

YOKOGAWA EJA310E Absolute Pressure Transmitter

YOKOGAWA EJA310E -JL Absolute Pressure Transmitter

The high performance absolute pressure transmitter
EJA310E features single crystal silicon resonant
sensor and is suitable to measure liquid, gas, or
steam pressure.

  • Power Supply Effects(Output signal code D and J)
    ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
  • Stability
    ±0.2 % of URL per 10 years
  • Weight
    [Installation code 7, 8, and 9]
    2.8 kg (6.2 lb) without integral indicator, mounting
    bracket, and process connector.
    Add 1.5 kg (3.3 lb) for Amplifier housing code 2.

YOKOGAWA EJA310E  Absolute Pressure Transmitter

YOKOGAWA EJA310E -JL Absolute Pressure Transmitter

□ NORMAL OPERATING CONDITION
(Optional features or approval codes may
affect limits.)
Ambient Temperature Limits
−40 to 85°C (−40 to 185°F)
−30 to 80°C (−22 to 176°F) with LCD display
Process Temperature Limits
−40 to 120°C (−40 to 248°F) M, A & B capsules
−40 to 100°C (−40 to 212°F) L capsule
Ambient Humidity Limits
0 to 100% RH
Maximum Over Pressure

Capsule Pressure
L and M 500 kPa abs (72 psia)
A 16 MPa abs (2300 psia)
B 25 MPa abs (3600 psia)

Working Pressure Limits (Silicone oil)
Maximum Pressure Limits

Capsule Pressure
L 10 kPa abs (2.95 inHg abs)
M 130 kPa abs (38 inHg abs)
A 3.5 MPa abs (500 psia)
B 16 MPa abs (2300 psia)

Minimum Pressure Limit
See graph below

Supply Voltage “◊”
For 4 to 20 mA HART / BRAIN
(Output signal code D and J)
10.5 to 42 V DC for general use and flameproof type.
10.5 to 32 V DC for lightning protector
(option code /A.)
10.5 to 30 V DC for intrinsically safe, type n, or nonincendive.
Minimum voltage limited at 16.6 V DC for digital
communications, BRAIN and HART
For 1 to 5 V HART (Output signal code Q)
Power supply :
9 to 28 V DC for general use and flame proof type.
Power Consumption :
0.96 mA to 3 mA, 27 mW

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXF100W AXF Magnetic Flowmeter

Leave a comment
Yokogawa AXF100W AXF Magnetic Flowmeter

the AXF100W is also our standard traditional-mount differential in this series.

Furthermore, the AXF100W features include:

Above all the Place of Origin:
Japan
And the Brand Name:
Yokogawa,
And the Model Number:
AXF
And the Product Name:
Yokogawa AXF100W AXF Magnetic Flowmeter Integral Flowmeter
And the Model:
AXF
And the Warranty:
1years
And the Accuracy:
Hight
And the Price:
Best price for Yokogawa AXF100W AXF Magnetic Flowmeter
And the Output:
4- 20 MA
And the Ambient Temperature:
-20 to 60 degree
Howerver the safe is good

Yokogawa AXF100W AXF Magnetic Flowmeter

Yokogawa AXF100W AXF Magnetic Flowmeter

Therefore fieldbus communication type is also available.

Furthermore, the AXF100W similarly features include:

AXF002 Series ——————–size 2.5 mm (0.1 in.) flowmeter
AXF005 Series ——————–size 5 mm (0.2 in.) flowmeter
AXF010 Series ——————–size 10 mm (0.4 in.) flowmeter
AXF015 Series ——————–size 15 mm (0.5 in.) flowmeter
AXF025 Series ——————–size 25 mm (1.0 in.) flowmeter
AXF032 Series ——————–size 32 mm (1.25 in.) flowmeter
AXF040 Series ——————–size 40 mm (1.5 in.) flowmeter
AXF050 Series ——————–size 50 mm (2.0 in.) flowmeter
AXF065 Series ——————–size 65 mm (2.5 in.) flowmeter
AXF080 Series ——————–size 80 mm (3.0 in.) flowmeter
AXF100 Series ——————–size 100 mm (4.0 in.) flowmeter
AXF125 Series ——————–size 125 mm (5.0 in.) flowmeter
AXF150 Series ——————–size 150 mm (6.0 in.) flowmeter
AXF200 Series ——————–size 200 mm (8.0 in.) flowmeter
AXF250 Series ——————–size 250 mm (10 in.) flowmeter
AXF300 Series ——————–size 300 mm (12 in.) flowmeter

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXF100G AXF Magnetic Flowmeter

Leave a comment
Yokogawa AXF100G AXF Magnetic Flowmeter

the AXF100G is also our standard traditional-mount differential in this series.

Furthermore, the AXF100G features include:

Above all the Place of Origin:
Japan
And the Brand Name:
Yokogawa,
And the Model Number:
AXF
And the Product Name:
Yokogawa AXF100G AXF Magnetic Flowmeter Integral Flowmeter
And the Model:
AXF
And the Warranty:
1years
And the Accuracy:
Hight
And the Price:
Best price for Yokogawa AXF100G AXF Magnetic Flowmeter
And the Output:
4- 20 MA
And the Ambient Temperature:
-20 to 60 degree
Howerver the safe is good

Yokogawa AXF100G AXF Magnetic Flowmeter

Yokogawa AXF100G AXF Magnetic Flowmeter

Therefore fieldbus communication type is also available.

Furthermore, the AXF100G similarly features include:

AXF002 Series ——————–size 2.5 mm (0.1 in.) flowmeter
AXF005 Series ——————–size 5 mm (0.2 in.) flowmeter
AXF010 Series ——————–size 10 mm (0.4 in.) flowmeter
AXF015 Series ——————–size 15 mm (0.5 in.) flowmeter
AXF025 Series ——————–size 25 mm (1.0 in.) flowmeter
AXF032 Series ——————–size 32 mm (1.25 in.) flowmeter
AXF040 Series ——————–size 40 mm (1.5 in.) flowmeter
AXF050 Series ——————–size 50 mm (2.0 in.) flowmeter
AXF065 Series ——————–size 65 mm (2.5 in.) flowmeter
AXF080 Series ——————–size 80 mm (3.0 in.) flowmeter
AXF100 Series ——————–size 100 mm (4.0 in.) flowmeter
AXF125 Series ——————–size 125 mm (5.0 in.) flowmeter
AXF150 Series ——————–size 150 mm (6.0 in.) flowmeter
AXF200 Series ——————–size 200 mm (8.0 in.) flowmeter
AXF250 Series ——————–size 250 mm (10 in.) flowmeter
AXF300 Series ——————–size 300 mm (12 in.) flowmeter

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXF080C AXF Magnetic Flowmeter

Leave a comment
Yokogawa AXF080C AXF Magnetic Flowmeter

the AXF080C is also our standard traditional-mount differential in this series.

Furthermore, the AXF080C features include:

Above all the Place of Origin:
Japan
And the Brand Name:
Yokogawa,
And the Model Number:
AXF
And the Product Name:
Yokogawa AXF080C AXF Magnetic Flowmeter Integral Flowmeter
And the Model:
AXF
And the Warranty:
1years
And the Accuracy:
Hight
And the Price:
Best price for Yokogawa AXF080C AXF Magnetic Flowmeter
And the Output:
4- 20 MA
And the Ambient Temperature:
-20 to 60 degree
Howerver the safe is good

Yokogawa AXF080C AXF Magnetic Flowmeter

Yokogawa AXF080C AXF Magnetic Flowmeter

Therefore fieldbus communication type is also available.

Furthermore, the AXF080C similarly features include:

AXF002 Series ——————–size 2.5 mm (0.1 in.) flowmeter
AXF005 Series ——————–size 5 mm (0.2 in.) flowmeter
AXF010 Series ——————–size 10 mm (0.4 in.) flowmeter
AXF015 Series ——————–size 15 mm (0.5 in.) flowmeter
AXF025 Series ——————–size 25 mm (1.0 in.) flowmeter
AXF032 Series ——————–size 32 mm (1.25 in.) flowmeter
AXF040 Series ——————–size 40 mm (1.5 in.) flowmeter
AXF050 Series ——————–size 50 mm (2.0 in.) flowmeter
AXF065 Series ——————–size 65 mm (2.5 in.) flowmeter
AXF080 Series ——————–size 80 mm (3.0 in.) flowmeter
AXF100 Series ——————–size 100 mm (4.0 in.) flowmeter
AXF125 Series ——————–size 125 mm (5.0 in.) flowmeter
AXF150 Series ——————–size 150 mm (6.0 in.) flowmeter
AXF200 Series ——————–size 200 mm (8.0 in.) flowmeter
AXF250 Series ——————–size 250 mm (10 in.) flowmeter
AXF300 Series ——————–size 300 mm (12 in.) flowmeter

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXF080W AXF Magnetic Flowmeter

Leave a comment
Yokogawa AXF080W AXF Magnetic Flowmeter

the AXF080W is also our standard traditional-mount differential in this series.

Furthermore, the AXF080W features include:

Above all the Place of Origin:
Japan
And the Brand Name:
Yokogawa,
And the Model Number:
AXF
And the Product Name:
Yokogawa AXF080W AXF Magnetic Flowmeter Integral Flowmeter
And the Model:
AXF
And the Warranty:
1years
And the Accuracy:
Hight
And the Price:
Best price for Yokogawa AXF080W AXF Magnetic Flowmeter
And the Output:
4- 20 MA
And the Ambient Temperature:
-20 to 60 degree
Howerver the safe is good

Yokogawa AXF080W AXF Magnetic Flowmeter

Yokogawa AXF080W AXF Magnetic Flowmeter

Therefore fieldbus communication type is also available.

Furthermore, the AXF080W similarly features include:

AXF002 Series ——————–size 2.5 mm (0.1 in.) flowmeter
AXF005 Series ——————–size 5 mm (0.2 in.) flowmeter
AXF010 Series ——————–size 10 mm (0.4 in.) flowmeter
AXF015 Series ——————–size 15 mm (0.5 in.) flowmeter
AXF025 Series ——————–size 25 mm (1.0 in.) flowmeter
AXF032 Series ——————–size 32 mm (1.25 in.) flowmeter
AXF040 Series ——————–size 40 mm (1.5 in.) flowmeter
AXF050 Series ——————–size 50 mm (2.0 in.) flowmeter
AXF065 Series ——————–size 65 mm (2.5 in.) flowmeter
AXF080 Series ——————–size 80 mm (3.0 in.) flowmeter
AXF100 Series ——————–size 100 mm (4.0 in.) flowmeter
AXF125 Series ——————–size 125 mm (5.0 in.) flowmeter
AXF150 Series ——————–size 150 mm (6.0 in.) flowmeter
AXF200 Series ——————–size 200 mm (8.0 in.) flowmeter
AXF250 Series ——————–size 250 mm (10 in.) flowmeter
AXF300 Series ——————–size 300 mm (12 in.) flowmeter

EJA-E series, Transmitters, Yokogawa

Yokogawa EJA310E -DB Absolute Pressure Transmitter

Leave a comment

YOKOGAWA EJA310E Absolute Pressure Transmitter

YOKOGAWA EJA310E -DB Absolute Pressure Transmitter

The high performance absolute pressure transmitter
EJA310E features single crystal silicon resonant
sensor and is suitable to measure liquid, gas, or
steam pressure.

  • Power Supply Effects(Output signal code D and J)
    ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
  • Stability
    ±0.2 % of URL per 10 years
  • Weight
    [Installation code 7, 8, and 9]
    2.8 kg (6.2 lb) without integral indicator, mounting
    bracket, and process connector.
    Add 1.5 kg (3.3 lb) for Amplifier housing code 2.

YOKOGAWA EJA310E  Absolute Pressure Transmitter

YOKOGAWA EJA310E -DB Absolute Pressure Transmitter

□ NORMAL OPERATING CONDITION
(Optional features or approval codes may
affect limits.)
Ambient Temperature Limits
−40 to 85°C (−40 to 185°F)
−30 to 80°C (−22 to 176°F) with LCD display
Process Temperature Limits
−40 to 120°C (−40 to 248°F) M, A & B capsules
−40 to 100°C (−40 to 212°F) L capsule
Ambient Humidity Limits
0 to 100% RH
Maximum Over Pressure

Capsule Pressure
L and M 500 kPa abs (72 psia)
A 16 MPa abs (2300 psia)
B 25 MPa abs (3600 psia)

Working Pressure Limits (Silicone oil)
Maximum Pressure Limits

Capsule Pressure
L 10 kPa abs (2.95 inHg abs)
M 130 kPa abs (38 inHg abs)
A 3.5 MPa abs (500 psia)
B 16 MPa abs (2300 psia)

Minimum Pressure Limit
See graph below

Supply Voltage “◊”
For 4 to 20 mA HART / BRAIN
(Output signal code D and J)
10.5 to 42 V DC for general use and flameproof type.
10.5 to 32 V DC for lightning protector
(option code /A.)
10.5 to 30 V DC for intrinsically safe, type n, or nonincendive.
Minimum voltage limited at 16.6 V DC for digital
communications, BRAIN and HART
For 1 to 5 V HART (Output signal code Q)
Power supply :
9 to 28 V DC for general use and flame proof type.
Power Consumption :
0.96 mA to 3 mA, 27 mW

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXF080G AXF Magnetic Flowmeter

Leave a comment
Yokogawa AXF080G AXF Magnetic Flowmeter

the AXF080G is also our standard traditional-mount differential in this series.

Furthermore, the AXF080G features include:

Above all the Place of Origin:
Japan
And the Brand Name:
Yokogawa,
And the Model Number:
AXF
And the Product Name:
Yokogawa AXF080C AXF Magnetic Flowmeter Integral Flowmeter
And the Model:
AXF
And the Warranty:
1years
And the Accuracy:
Hight
And the Price:
Best price for Yokogawa AXF080G AXF Magnetic Flowmeter
And the Output:
4- 20 MA
And the Ambient Temperature:
-20 to 60 degree
Howerver the safe is good

Yokogawa AXF080G AXF Magnetic Flowmeter

Yokogawa AXF080G AXF Magnetic Flowmeter

Therefore fieldbus communication type is also available.

Furthermore, the AXF080G similarly features include:

AXF002 Series ——————–size 2.5 mm (0.1 in.) flowmeter
AXF005 Series ——————–size 5 mm (0.2 in.) flowmeter
AXF010 Series ——————–size 10 mm (0.4 in.) flowmeter
AXF015 Series ——————–size 15 mm (0.5 in.) flowmeter
AXF025 Series ——————–size 25 mm (1.0 in.) flowmeter
AXF032 Series ——————–size 32 mm (1.25 in.) flowmeter
AXF040 Series ——————–size 40 mm (1.5 in.) flowmeter
AXF050 Series ——————–size 50 mm (2.0 in.) flowmeter
AXF065 Series ——————–size 65 mm (2.5 in.) flowmeter
AXF080 Series ——————–size 80 mm (3.0 in.) flowmeter
AXF100 Series ——————–size 100 mm (4.0 in.) flowmeter
AXF125 Series ——————–size 125 mm (5.0 in.) flowmeter
AXF150 Series ——————–size 150 mm (6.0 in.) flowmeter
AXF200 Series ——————–size 200 mm (8.0 in.) flowmeter
AXF250 Series ——————–size 250 mm (10 in.) flowmeter
AXF300 Series ——————–size 300 mm (12 in.) flowmeter

EJA-E series, Transmitters, Yokogawa

Yokogawa EJA310E -DA Absolute Pressure Transmitter

Leave a comment

YOKOGAWA EJA310E Absolute Pressure Transmitter

YOKOGAWA EJA310E -DA Absolute Pressure Transmitter

The high performance absolute pressure transmitter
EJA310E features single crystal silicon resonant
sensor and is suitable to measure liquid, gas, or
steam pressure.

  • Power Supply Effects(Output signal code D and J)
    ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
  • Stability
    ±0.2 % of URL per 10 years
  • Weight
    [Installation code 7, 8, and 9]
    2.8 kg (6.2 lb) without integral indicator, mounting
    bracket, and process connector.
    Add 1.5 kg (3.3 lb) for Amplifier housing code 2.

YOKOGAWA EJA310E  Absolute Pressure Transmitter

YOKOGAWA EJA310E -DA Absolute Pressure Transmitter

□ NORMAL OPERATING CONDITION
(Optional features or approval codes may
affect limits.)
Ambient Temperature Limits
−40 to 85°C (−40 to 185°F)
−30 to 80°C (−22 to 176°F) with LCD display
Process Temperature Limits
−40 to 120°C (−40 to 248°F) M, A & B capsules
−40 to 100°C (−40 to 212°F) L capsule
Ambient Humidity Limits
0 to 100% RH
Maximum Over Pressure

Capsule Pressure
L and M 500 kPa abs (72 psia)
A 16 MPa abs (2300 psia)
B 25 MPa abs (3600 psia)

Working Pressure Limits (Silicone oil)
Maximum Pressure Limits

Capsule Pressure
L 10 kPa abs (2.95 inHg abs)
M 130 kPa abs (38 inHg abs)
A 3.5 MPa abs (500 psia)
B 16 MPa abs (2300 psia)

Minimum Pressure Limit
See graph below

Supply Voltage “◊”
For 4 to 20 mA HART / BRAIN
(Output signal code D and J)
10.5 to 42 V DC for general use and flameproof type.
10.5 to 32 V DC for lightning protector
(option code /A.)
10.5 to 30 V DC for intrinsically safe, type n, or nonincendive.
Minimum voltage limited at 16.6 V DC for digital
communications, BRAIN and HART
For 1 to 5 V HART (Output signal code Q)
Power supply :
9 to 28 V DC for general use and flame proof type.
Power Consumption :
0.96 mA to 3 mA, 27 mW

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXF065C AXF Magnetic Flowmeter

Leave a comment
Yokogawa AXF065C AXF Magnetic Flowmeter

the AXF065C is also our standard traditional-mount differential in this series.

Furthermore, the AXF065C features include:

Above all the Place of Origin:
Japan
And the Brand Name:
Yokogawa,
And the Model Number:
AXF
And the Product Name:
Yokogawa AXF065C AXF Magnetic Flowmeter Integral Flowmeter
And the Model:
AXF
And the Warranty:
1years
And the Accuracy:
Hight
And the Price:
Best price for Yokogawa AXF065C AXF Magnetic Flowmeter
And the Output:
4- 20 MA
And the Ambient Temperature:
-20 to 60 degree
Howerver the safe is good

Yokogawa AXF065C AXF Magnetic Flowmeter

Yokogawa AXF065C AXF Magnetic Flowmeter

Therefore fieldbus communication type is also available.

Furthermore, the AXF065C similarly features include:

AXF002 Series ——————–size 2.5 mm (0.1 in.) flowmeter
AXF005 Series ——————–size 5 mm (0.2 in.) flowmeter
AXF010 Series ——————–size 10 mm (0.4 in.) flowmeter
AXF015 Series ——————–size 15 mm (0.5 in.) flowmeter
AXF025 Series ——————–size 25 mm (1.0 in.) flowmeter
AXF032 Series ——————–size 32 mm (1.25 in.) flowmeter
AXF040 Series ——————–size 40 mm (1.5 in.) flowmeter
AXF050 Series ——————–size 50 mm (2.0 in.) flowmeter
AXF065 Series ——————–size 65 mm (2.5 in.) flowmeter
AXF080 Series ——————–size 80 mm (3.0 in.) flowmeter
AXF100 Series ——————–size 100 mm (4.0 in.) flowmeter
AXF125 Series ——————–size 125 mm (5.0 in.) flowmeter
AXF150 Series ——————–size 150 mm (6.0 in.) flowmeter
AXF200 Series ——————–size 200 mm (8.0 in.) flowmeter
AXF250 Series ——————–size 250 mm (10 in.) flowmeter
AXF300 Series ——————–size 300 mm (12 in.) flowmeter

Flowmeters, Yokogawa, Electromagnetic Flowmeter

Yokogawa AXF065W AXF Magnetic Flowmeter

Leave a comment
Yokogawa AXF065W AXF Magnetic Flowmeter

the AXF065W is also our standard traditional-mount differential in this series.

Furthermore, the AXF065W features include:

Above all the Place of Origin:
Japan
And the Brand Name:
Yokogawa,
And the Model Number:
AXF
And the Product Name:
Yokogawa AXF065W AXF Magnetic Flowmeter Integral Flowmeter
And the Model:
AXF
And the Warranty:
1years
And the Accuracy:
Hight
And the Price:
Best price for Yokogawa AXF065W AXF Magnetic Flowmeter
And the Output:
4- 20 MA
And the Ambient Temperature:
-20 to 60 degree
Howerver the safe is good

Yokogawa AXF065W AXF Magnetic Flowmeter

Yokogawa AXF065W AXF Magnetic Flowmeter

Therefore fieldbus communication type is also available.

Furthermore, the AXF065W similarly features include:

AXF002 Series ——————–size 2.5 mm (0.1 in.) flowmeter
AXF005 Series ——————–size 5 mm (0.2 in.) flowmeter
AXF010 Series ——————–size 10 mm (0.4 in.) flowmeter
AXF015 Series ——————–size 15 mm (0.5 in.) flowmeter
AXF025 Series ——————–size 25 mm (1.0 in.) flowmeter
AXF032 Series ——————–size 32 mm (1.25 in.) flowmeter
AXF040 Series ——————–size 40 mm (1.5 in.) flowmeter
AXF050 Series ——————–size 50 mm (2.0 in.) flowmeter
AXF065 Series ——————–size 65 mm (2.5 in.) flowmeter
AXF080 Series ——————–size 80 mm (3.0 in.) flowmeter
AXF100 Series ——————–size 100 mm (4.0 in.) flowmeter
AXF125 Series ——————–size 125 mm (5.0 in.) flowmeter
AXF150 Series ——————–size 150 mm (6.0 in.) flowmeter
AXF200 Series ——————–size 200 mm (8.0 in.) flowmeter
AXF250 Series ——————–size 250 mm (10 in.) flowmeter
AXF300 Series ——————–size 300 mm (12 in.) flowmeter

EJA-E series, Transmitters, Yokogawa

Yokogawa EJA310E -DM Absolute Pressure Transmitter

Leave a comment

YOKOGAWA EJA310E Absolute Pressure Transmitter

YOKOGAWA EJA310E -DM Absolute Pressure Transmitter

The high performance absolute pressure transmitter
EJA310E features single crystal silicon resonant
sensor and is suitable to measure liquid, gas, or
steam pressure.

  • Power Supply Effects(Output signal code D and J)
    ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
  • Stability
    ±0.2 % of URL per 10 years
  • Weight
    [Installation code 7, 8, and 9]
    2.8 kg (6.2 lb) without integral indicator, mounting
    bracket, and process connector.
    Add 1.5 kg (3.3 lb) for Amplifier housing code 2.

YOKOGAWA EJA310E  Absolute Pressure Transmitter

YOKOGAWA EJA310E -DM Absolute Pressure Transmitter

□ NORMAL OPERATING CONDITION
(Optional features or approval codes may
affect limits.)
Ambient Temperature Limits
−40 to 85°C (−40 to 185°F)
−30 to 80°C (−22 to 176°F) with LCD display
Process Temperature Limits
−40 to 120°C (−40 to 248°F) M, A & B capsules
−40 to 100°C (−40 to 212°F) L capsule
Ambient Humidity Limits
0 to 100% RH
Maximum Over Pressure

Capsule Pressure
L and M 500 kPa abs (72 psia)
A 16 MPa abs (2300 psia)
B 25 MPa abs (3600 psia)

Working Pressure Limits (Silicone oil)
Maximum Pressure Limits

Capsule Pressure
L 10 kPa abs (2.95 inHg abs)
M 130 kPa abs (38 inHg abs)
A 3.5 MPa abs (500 psia)
B 16 MPa abs (2300 psia)

Minimum Pressure Limit
See graph below

Supply Voltage “◊”
For 4 to 20 mA HART / BRAIN
(Output signal code D and J)
10.5 to 42 V DC for general use and flameproof type.
10.5 to 32 V DC for lightning protector
(option code /A.)
10.5 to 30 V DC for intrinsically safe, type n, or nonincendive.
Minimum voltage limited at 16.6 V DC for digital
communications, BRAIN and HART
For 1 to 5 V HART (Output signal code Q)
Power supply :
9 to 28 V DC for general use and flame proof type.
Power Consumption :
0.96 mA to 3 mA, 27 mW

EJA-E series, Transmitters, Yokogawa

Yokogawa EJA310E -DL Absolute Pressure Transmitter

Leave a comment

YOKOGAWA EJA310E Absolute Pressure Transmitter

YOKOGAWA EJA310E -DL Absolute Pressure Transmitter

The high performance absolute pressure transmitter
EJA310E features single crystal silicon resonant
sensor and is suitable to measure liquid, gas, or
steam pressure.

  • Power Supply Effects(Output signal code D and J)
    ±0.005 % per Volt (from 21.6 to 32 V DC, 350Ω)
  • Stability
    ±0.2 % of URL per 10 years
  • Weight
    [Installation code 7, 8, and 9]
    2.8 kg (6.2 lb) without integral indicator, mounting
    bracket, and process connector.
    Add 1.5 kg (3.3 lb) for Amplifier housing code 2.

YOKOGAWA EJA310E  Absolute Pressure Transmitter

YOKOGAWA EJA310E -DL Absolute Pressure Transmitter

□ NORMAL OPERATING CONDITION
(Optional features or approval codes may
affect limits.)
Ambient Temperature Limits
−40 to 85°C (−40 to 185°F)
−30 to 80°C (−22 to 176°F) with LCD display
Process Temperature Limits
−40 to 120°C (−40 to 248°F) M, A & B capsules
−40 to 100°C (−40 to 212°F) L capsule
Ambient Humidity Limits
0 to 100% RH
Maximum Over Pressure

Capsule Pressure
L and M 500 kPa abs (72 psia)
A 16 MPa abs (2300 psia)
B 25 MPa abs (3600 psia)

Working Pressure Limits (Silicone oil)
Maximum Pressure Limits

Capsule Pressure
L 10 kPa abs (2.95 inHg abs)
M 130 kPa abs (38 inHg abs)
A 3.5 MPa abs (500 psia)
B 16 MPa abs (2300 psia)

Minimum Pressure Limit
See graph below

Supply Voltage “◊”
For 4 to 20 mA HART / BRAIN
(Output signal code D and J)
10.5 to 42 V DC for general use and flameproof type.
10.5 to 32 V DC for lightning protector
(option code /A.)
10.5 to 30 V DC for intrinsically safe, type n, or nonincendive.
Minimum voltage limited at 16.6 V DC for digital
communications, BRAIN and HART
For 1 to 5 V HART (Output signal code Q)
Power supply :
9 to 28 V DC for general use and flame proof type.
Power Consumption :
0.96 mA to 3 mA, 27 mW
