Transmitters, Yokogawa, EJA series

Yokogawa EJA130A -EM High Static Differential Pressure Transmitter

Leave a comment

Yokogawa EJA130A High Static Differential Pressure Transmitter

Yokogawa EJA130A -EM High Static Differential Pressure Transmitter

The high performance differential pressure transmitter
model EJA130A can be used to measure liquid, gas,
or steam flow as well as liquid level, density and
pressure.

Static Pressure Effects
Total Effects per Change
[0.1 % Span + 0.028 % URL] per 6.9 MPa {1000 psi}
Effect on Zero (can be corrected at line pressure)
0.028 % of URL per 6.9 MPa {1000 psi}

Overpressure Effects
0.03 % of URL per 32 MPa {4500 psi}

Stability
0.1 % of URL per 60 months

Power Supply Effects “◊”
0.005 % per Volt (from 21.6 to 32 V DC, 350 Ω)

Output “◊”
Two wire 4 to 20 mA DC output with digital communications,
linear or square root programmable. BRAIN
or HART FSK protocol are superimposed on the 4 to
20 mA signal.

Weight
6.8 kg (15.0 lb) without mounting bracket and
process connector

Yokogawa EJA130A High Static Differential Pressure Transmitter

Yokogawa EJA130A -EM High Static Differential Pressure Transmitter

Description

Ambient Temperature Limits
(approval codes may affect limits)
-40 to 85 ˚C (-40 to 185 ˚F)
-30 to 80 ˚C (-22 to 176 ˚F) with LCD Display
Process Temperature Limits
(approval codes may affect limits)
-40 to 120 ˚C (-40 to 248 ˚F)
Ambient Humidity Limits
5 to 100 % RH @ 40 ˚C (104 ˚F)

Supply Voltage “◊”
10.5 to 42 V DC for general use and flameproof type
10.5 to 32 V DC for lightning protector (Optional
code /A)
10.5 to 30 V DC for intrinsically safe, Type n,
nonincendive, or non-sparking type
Minimum voltage limited at 16.4 V DC for digital
communications, BRAIN and HART

Transmitters, Yokogawa, EJA series

Yokogawa EJA130A -DH High Static Differential Pressure Transmitter

Leave a comment

Yokogawa EJA130A High Static Differential Pressure Transmitter

Yokogawa EJA130A -DH High Static Differential Pressure Transmitter

The high performance differential pressure transmitter
model EJA130A can be used to measure liquid, gas,
or steam flow as well as liquid level, density and
pressure.

Static Pressure Effects
Total Effects per Change
[0.1 % Span + 0.028 % URL] per 6.9 MPa {1000 psi}
Effect on Zero (can be corrected at line pressure)
0.028 % of URL per 6.9 MPa {1000 psi}

Overpressure Effects
0.03 % of URL per 32 MPa {4500 psi}

Stability
0.1 % of URL per 60 months

Power Supply Effects “◊”
0.005 % per Volt (from 21.6 to 32 V DC, 350 Ω)

Output “◊”
Two wire 4 to 20 mA DC output with digital communications,
linear or square root programmable. BRAIN
or HART FSK protocol are superimposed on the 4 to
20 mA signal.

Weight
6.8 kg (15.0 lb) without mounting bracket and
process connector

Yokogawa EJA130A High Static Differential Pressure Transmitter

Yokogawa EJA130A -DH High Static Differential Pressure Transmitter

Description

Ambient Temperature Limits
(approval codes may affect limits)
-40 to 85 ˚C (-40 to 185 ˚F)
-30 to 80 ˚C (-22 to 176 ˚F) with LCD Display
Process Temperature Limits
(approval codes may affect limits)
-40 to 120 ˚C (-40 to 248 ˚F)
Ambient Humidity Limits
5 to 100 % RH @ 40 ˚C (104 ˚F)

Supply Voltage “◊”
10.5 to 42 V DC for general use and flameproof type
10.5 to 32 V DC for lightning protector (Optional
code /A)
10.5 to 30 V DC for intrinsically safe, Type n,
nonincendive, or non-sparking type
Minimum voltage limited at 16.4 V DC for digital
communications, BRAIN and HART

Transmitters, Yokogawa, EJA series

Yokogawa EJA130A -DM High Static Differential Pressure Transmitter

Leave a comment

Yokogawa EJA130A High Static Differential Pressure Transmitter

Yokogawa EJA130A -DM High Static Differential Pressure Transmitter

The high performance differential pressure transmitter
model EJA130A can be used to measure liquid, gas,
or steam flow as well as liquid level, density and
pressure.

Static Pressure Effects
Total Effects per Change
[0.1 % Span + 0.028 % URL] per 6.9 MPa {1000 psi}
Effect on Zero (can be corrected at line pressure)
0.028 % of URL per 6.9 MPa {1000 psi}

Overpressure Effects
0.03 % of URL per 32 MPa {4500 psi}

Stability
0.1 % of URL per 60 months

Power Supply Effects “◊”
0.005 % per Volt (from 21.6 to 32 V DC, 350 Ω)

Output “◊”
Two wire 4 to 20 mA DC output with digital communications,
linear or square root programmable. BRAIN
or HART FSK protocol are superimposed on the 4 to
20 mA signal.

Weight
6.8 kg (15.0 lb) without mounting bracket and
process connector

Yokogawa EJA130A High Static Differential Pressure Transmitter

Yokogawa EJA130A -DM High Static Differential Pressure Transmitter

Description

Ambient Temperature Limits
(approval codes may affect limits)
-40 to 85 ˚C (-40 to 185 ˚F)
-30 to 80 ˚C (-22 to 176 ˚F) with LCD Display
Process Temperature Limits
(approval codes may affect limits)
-40 to 120 ˚C (-40 to 248 ˚F)
Ambient Humidity Limits
5 to 100 % RH @ 40 ˚C (104 ˚F)

Supply Voltage “◊”
10.5 to 42 V DC for general use and flameproof type
10.5 to 32 V DC for lightning protector (Optional
code /A)
10.5 to 30 V DC for intrinsically safe, Type n,
nonincendive, or non-sparking type
Minimum voltage limited at 16.4 V DC for digital
communications, BRAIN and HART

Transmitters, Yokogawa, EJA series

Yokogawa EJA220A -DM Flange Mounted Differential Pressure Transmitter

Leave a comment

Yokogawa EJA220A -DM Flange Mounted Differential Pressure Transmitter

The high performance flange mounted differential pressure transmitter models EJA220A can be used to measure levels of densities of solidifying or precipitating liquids.

Static Pressure Effects
Total Effects per Change
[0.028 % Span+0.007 % URL] per 0.69 MPa
{100 psi}
Effect on Zero (can be corrected at line pressure)
0.007 % of URL per 0.69 MPa {100 psi}
Stability
0.1 % of URL per 60 months
Power Supply Effects “◊”
0.005 % per Volt (from 21.6 to 32 V DC, 350Ω )

Output “◊”
Two wire 4 to 20 mA DC output with digital communications.
BRAIN or HART FSK protocol are superimposed
on the 4 to 20 mA signal.
Failure Alarm
Output status at CPU failure and hardware error;
Up-scale: 110%, 21.6 mA DC or more(standard)
Down-scale: -5%, 3.2 mA DC or less
-2.5%, 3.6 mA DC or less (Optional
code /F1)
Note: Applicable for Output signal code D and E

Weight
10.7 kg(23.6 lb) (Model EJA210A with 3” ANSI 150
flange; without integral indicator and
process connector.)

Description

Ambient Temperature Limits
(approval codes may affect limits)
-40 to 85 ˚C (-40 to 185 ˚F)
-30 to 80 ˚C (-22 to 176 ˚F) with LCD Display
Process Temperature Limits
(approval codes may affect limits)
-40 to 120 ˚C (-40 to 248 ˚F)
Ambient Humidity Limits
5 to 100 % RH @ 40 ˚C (104 ˚F)

Supply Voltage “”
10.5 to 42 V DC for general use and flameproof type
10.5 to 32 V DC for lightning protector (Optional
code /A)
10.5 to 30 V DC for intrinsically safe, Type n,
nonincendive, or non-sparking type
Minimum voltage limited at 16.4 V DC for digital
communications, BRAIN and HART

Transmitters, Yokogawa, EJA series

Yokogawa EJA210A -DM Flange Mounted Differential Pressure Transmitter

Leave a comment

Yokogawa EJA210A -DM Flange Mounted Differential Pressure Transmitter

The high performance flange mounted differential pressure transmitter models EJA210A can be used to measure levels of densities of solidifying or precipitating liquids.

Static Pressure Effects
Total Effects per Change
[0.028 % Span+0.007 % URL] per 0.69 MPa
{100 psi}
Effect on Zero (can be corrected at line pressure)
0.007 % of URL per 0.69 MPa {100 psi}
Stability
0.1 % of URL per 60 months
Power Supply Effects “◊”
0.005 % per Volt (from 21.6 to 32 V DC, 350Ω )

Output “◊”
Two wire 4 to 20 mA DC output with digital communications.
BRAIN or HART FSK protocol are superimposed
on the 4 to 20 mA signal.
Failure Alarm
Output status at CPU failure and hardware error;
Up-scale: 110%, 21.6 mA DC or more(standard)
Down-scale: -5%, 3.2 mA DC or less
-2.5%, 3.6 mA DC or less (Optional
code /F1)
Note: Applicable for Output signal code D and E

Weight
10.7 kg(23.6 lb) (Model EJA210A with 3” ANSI 150
flange; without integral indicator and
process connector.)

Description

Ambient Temperature Limits
(approval codes may affect limits)
-40 to 85 ˚C (-40 to 185 ˚F)
-30 to 80 ˚C (-22 to 176 ˚F) with LCD Display
Process Temperature Limits
(approval codes may affect limits)
-40 to 120 ˚C (-40 to 248 ˚F)
Ambient Humidity Limits
5 to 100 % RH @ 40 ˚C (104 ˚F)

Supply Voltage “”
10.5 to 42 V DC for general use and flameproof type
10.5 to 32 V DC for lightning protector (Optional
code /A)
10.5 to 30 V DC for intrinsically safe, Type n,
nonincendive, or non-sparking type
Minimum voltage limited at 16.4 V DC for digital
communications, BRAIN and HART

Rosemount, Flowmeters

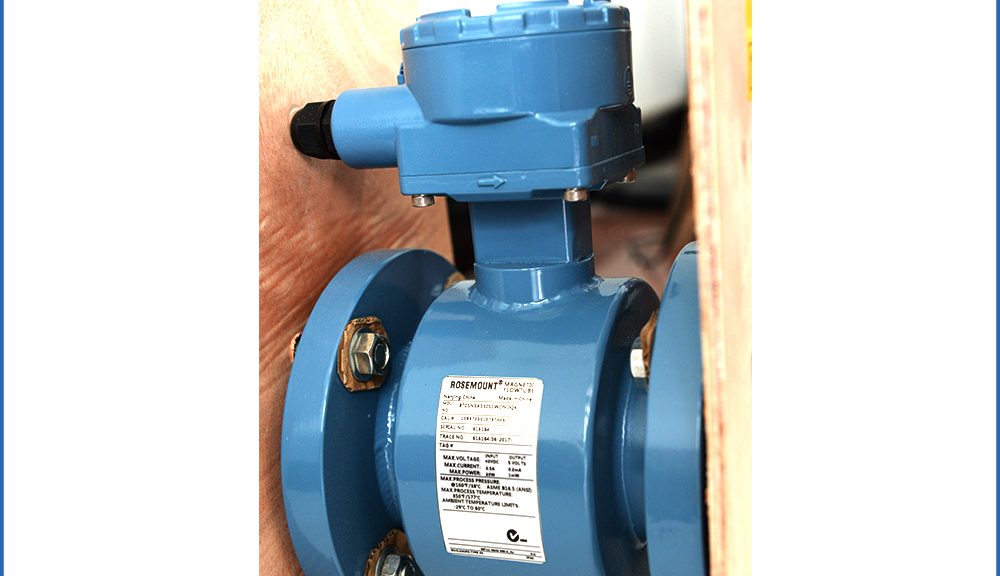

Rosemount 8707 High-Signal Magnetic Flowmeter Sensor

Leave a comment

Rosemount 8707 High-Signal Magnetic Flowmeter Sensor

Rosemount  High-Signal Magnetic Flowmeter Sensor

  • Brand: Rosemount
  • General Characteristics:
  • Standard Process Sensor
  • Flanged Process Connections
  • Welded, sealed coil housing
  • 1/2-in. (15mm) to 36-in. (900mm)
  • Pulse DC Technology
  • Standard, grounding, and bullet-nose electrodes
    available
  • Service:Conductive liquids and slurries
  • Line sizes:1/2–in. to 36-in. (15 mm to 900 mm) for Rosemount 8705
  • Sensor coil resistance:8705: 7 – 16Ω

Rosemount 8707 High-Signal Magnetic Flowmeter Sensor

All flanged sensors are fabricated from stainless and carbon steel and welded to provide a hermetic seal that protects against moisture and other contaminants. Sizes range from 1
/2-in. (15 mm) to 36-in. (900 mm).

The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from the most hostile environments.

  • Industry leading performance with standard reference accuracy of 0.25% of rate with an optional High Accuracy of 0.15% of rate
  • 8732 Transmitter – Integral-mount design, backlit display, and explosion-proof housing. Available with HART®, FOUNDATION™ fieldbus, or PROFIBUS PA, Device Diagnostics, and Smart™ Meter Verification to improve
    reliability and performance
  • 8712 HART Transmitter – available with Device Diagnostics including Smart Meter Verification to
    improve reliability and performance. Quick setup with easy-to-use local operator interface
  • 8712H/8707 High-Signal System – Pulsed DC solutions for the most demanding flow measurement
    applications
  • 8705 Flanged sensor – Fully welded sensor for maximum protection
  • 8711 Wafer sensor – Economical, compact, and lightweight sensor, provided with alignment spacers for
    easy installation
  • 8721 Hygienic sensor – Specifically designed for food, beverage, and life sciences applications

Rosemount 8705 Sensors are interchangeable with 8732, and 8712 Transmitters. Rosemount 8707 High-Signal Sensors are interchangeable with 8732, 8712, and 8712H High-Signal Transmitters. System accuracy is maintained regardless of line
size or optional features. Each sensor nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator Interface (LOI) or the Field Communicator.

Rosemount, Flowmeters

Rosemount 8712H High-Signal Magnetic Flowmeter Transmitter

Leave a comment

Rosemount 8712H High-Signal Magnetic Flowmeter Transmitter

Rosemount  High-Signal Magnetic Flowmeter Transmitter

Magnetic Flowmeter Rosemount 8700 Magnetic Flowmeter Transmitters

Features

  • Flanged style
  • 0.25% standard accuracy; 0.15% high accuracy option available
  • ½ to 36 inch size available
  • Pulsed DC coil drive power
  • Standard process design

Rosemount 8712H High-Signal Magnetic Flowmeter Transmitter

Rosemount High-Signal Magnetic Flowmeter Transmitter

The rosemount 8712 Remote Mount Transmitter brings diagnostics to any HART/ 4-20 mA system that can change how magmeters are installed, maintained, and verified.

In addition,the Rosemount 8712 also features an easy-to-use 2 line by 20 character operator interface, with quick access to all diagnostic information, and instant access to basic configuration setup through dedicated keys.

Functional specifications

  • Sensor compatibility
    Compatible with 8707 High-Signal sensor only.
  • Sensor coil resistance

12 maximum

  • Transmitter coil drive current
    5 A
  • Power supply

120 V AC, 50–60 Hz

Firstly, Rosemount 8700 series flanged flowtube sensors fabricate from stainless and carbon steel and welded to provide a hermetic seal that protects against moisture and other contaminants. Rosemount magmeter systems use pulsed DC technology that provides continuous automatic zeroing to compensate for variations in the process environment.

Therefore, process liquid must have a conductivity of 5 microsiemens/cm (5 micromhos/cm) or greater. Rosemount 8700 series flowtubes are interchangeable with both the 8712D and 8732 flow transmitters.

And system accuracy is maintained regardless of line size or optional features. So, each Rosemount 8705 flanged flowtube nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator interface or the HART Communicator – depending on model.

First, industry leading performance with standard reference accuracy of 0.25% of rate with an optional High Accuracy of 0.15% of rate.

Second,Rosemount 8712 HART Transmitter – available with Device Diagnostics including Smart Meter Verification to improve reliability and performance.

Then, quick setup with easy-to-use local operator interface Then, Rosemount 8712H/8707 High-Signal System – Pulsed DC solutions for the most demanding flow measurement applications.

Moreover, Rosemount 8705 Flanged sensor – Fully welded sensor for maximum protection.

Rosemount, Flowmeters

Rosemount 8712E Remote Mount Transmitter

Leave a comment

Rosemount 8712E Remote Mount Transmitter

Rosemount Remote Mount Transmitter

Magnetic Flowmeter Rosemount 8700 Magnetic Flowmeter Transmitters

Features

  • Flanged style
  • 0.25% standard accuracy; 0.15% high accuracy option available
  • ½ to 36 inch size available
  • Pulsed DC coil drive power
  • Standard process design

Rosemount 8712E Remote Mount Transmitter

Rosemount Remote Mount Transmitter

The rosemount 8712E Remote Mount Transmitter brings diagnostics to any HART/ 4-20 mA system that can change how magmeters are installed, maintained, and verified.

In addition,the Rosemount 8712 also features an easy-to-use 2 line by 20 character operator interface, with quick access to all diagnostic information, and instant access to basic configuration setup through dedicated keys.

Firstly, Rosemount 8700 series flanged flowtube sensors fabricate from stainless and carbon steel and welded to provide a hermetic seal that protects against moisture and other contaminants.

Rosemount magmeter systems use pulsed DC technology that provides continuous automatic zeroing to compensate for variations in the process environment. Therefore, process liquid must have a conductivity of 5 microsiemens/cm (5 micromhos/cm) or greater.

Rosemount 8700 series flowtubes are interchangeable with both the 8712D and 8732 flow transmitters. And system accuracy is maintained regardless of line size or optional features. So, each Rosemount 8705 flanged flowtube nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator interface or the HART Communicator – depending on model.

First, industry leading performance with standard reference accuracy of 0.25% of rate with an optional High Accuracy of
0.15% of rate
Secondly,Rosemount 8712 HART Transmitter – available with Device Diagnostics including Smart Meter Verification to
improve reliability and performance. Then, quick setup with easy-to-use local operator interface
Then, Rosemount 8712H/8707 High-Signal System – Pulsed DC solutions for the most demanding flow measurement
applications
Moreover, Rosemount 8705 Flanged sensor – Fully welded sensor for maximum protection

Materials of construction

  • Housing
    Low-copper aluminum, Type 4X and IEC 60529 IP66
  • Paint
    Polyurethane
  • Cover gasket
    Silicone Rubber

Transmitter weight
Transmitter approximately 9 lbs. (4 kg). Add 1 lb (0.5 kg) for
local operator interface.

Rosemount, Flowmeters

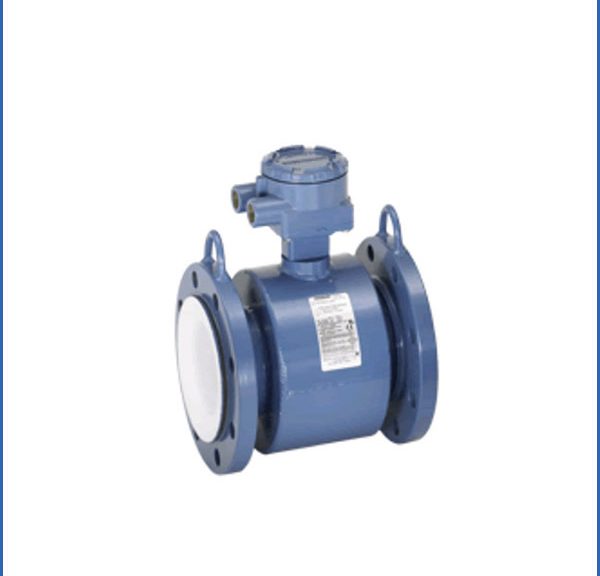

Rosemount 8732E Magnetic Flowmeter Transmitter

Leave a comment

Rosemount 8732E Magnetic Flowmeter Transmitter

Rosemount Magnetic Flowmeter Transmitter

Magnetic Flowmeter Rosemount 8700 Magnetic Flowmeter Transmitters

Features

  • Flanged style
  • 0.25% standard accuracy; 0.15% high accuracy option available
  • ½ to 36 inch size available
  • Pulsed DC coil drive power
  • Standard process design

Rosemount 8732E Magnetic Flowmeter Transmitter

Rosemount  Magnetic Flowmeter Transmitter

Firstly, Rosemount 8700 series flanged flowtube sensors fabricate from stainless and carbon steel and welded to provide a hermetic seal that protects against moisture and other contaminants.

Rosemount magmeter systems use pulsed DC technology that provides continuous automatic zeroing to compensate for variations in the process environment. Therefore, process liquid must have a conductivity of 5 microsiemens/cm (5 micromhos/cm) or greater.

Rosemount 8700 series flowtubes are interchangeable with both the 8712D and 8732 flow transmitters. And system accuracy is maintained regardless of line size or optional features. So, each Rosemount 8705 flanged flowtube nameplate has a sixteen-digit calibration number that can be entered into a transmitter through the Local Operator interface or the HART Communicator – depending on model.

First, industry leading performance with standard reference accuracy of 0.25% of rate with an optional High Accuracy of
0.15% of rate
Second, Rosemount 8732 Transmitter – Integral-mount design, backlit display, and explosion-proof housing. Available with HART®, FOUNDATION™ fieldbus, or PROFIBUS PA, Device Diagnostics, and Smart™ Meter Verification to improve
reliability and performance
Third, Rosemount 8712 HART Transmitter – available with Device Diagnostics including Smart Meter Verification to
improve reliability and performance. Then, quick setup with easy-to-use local operator interface
Then, Rosemount 8712H/8707 High-Signal System – Pulsed DC solutions for the most demanding flow measurement
applications
Moreover, Rosemount 8705 Flanged sensor – Fully welded sensor for maximum protection
What’s more, Rosemount 8711 Wafer sensor – Economical, compact, and lightweight sensor, provided with alignment spacers for
easy installation
Importantly, Rosemount 8721 Hygienic sensor – Specifically designed for food, beverage, and life sciences applications

Materials of construction
Standard housing
Low copper aluminum
Type 4X and IEC 60529 IP66
Optional housing
316/316L unpainted, option code SH
Type 4X and IEC 60529 IP66

Flowmeters, Endress+Hauser, Coriolis Mass Flowmeter

Endress+Hauser Proline Promass 84M Coriolis Mass Flowmeter

Leave a comment

Mass Flowmeter

Endress+Hauser Proline Promass 84M Coriolis Mass Flowmeter

  • Brand : Endress+Hauser
  • Model: Endress+Hauser Proline Promass 84M Coriolis Mass Flowmeter

Proline Promass 84M
Coriolis Mass Flow Measuring System
The universal and multivariable flowmeter for liquids and gases for custody transfer

Endress+Hauser Proline Promass 84M Coriolis Mass Flowmeter

Applications
The Coriolis measuring principle operates independently
of the physical fluid properties, such as viscosity and
density.
• Extremely accurate, verified measurement of
liquids (other than water) and for gases under
high pressure (>100 bar)
• Fluid temperatures up to +350 °C
• Process pressures up to 350 bar
• Mass flow measurement up to 2200 t/h
Approvals for custody transfer:
• PTB, NMi, METAS, BEV, NTEP, MC
Approvals for hazardous area:
• ATEX, FM, CSA, TIIS, IECEx, NEPSI
Approvals in the food industry/hygiene sector:
• 3A, FDA, EHEDG
Connection to process control system:
• HART, MODBUS

Your benefits
The Promass measuring devices make it possible to
simultaneously record several process variables (mass/
density/temperature) for various process conditions
during measuring operation.
The Proline transmitter concept comprises:
• Modular device and operating concept resulting in a
higher degree of efficiency
• Diagnostic ability and data back-up for increased
process quality
The Promass sensors, tried and tested in over 100000
applications, offer:
• Best performance due to PremiumCal
• Multivariable flow measurement in compact design
• Insensitivity to vibrations thanks to balanced two-tube
measuring system
• Immune from external piping forces due to robust
design
• Easy installation without taking inlet and outlet runs
into consideration

Flowmeters, Endress+Hauser, Coriolis Mass Flowmeter

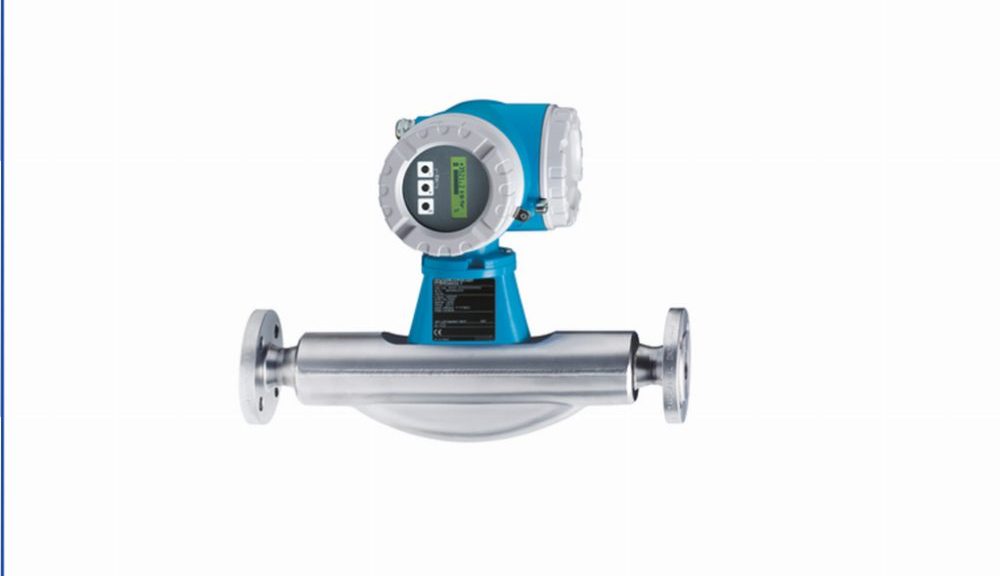

Endress+Hauser Proline Promass 83M Coriolis Mass Flowmeter

Leave a comment

Mass Flowmeter

Endress+Hauser Proline Promass 83M Coriolis Mass Flowmeter

  • Brand : Endress+Hauser
  • Model: Endress+Hauser Proline Promass 83M Coriolis Mass Flowmeter

Coriolis Mass Flow Measuring System
The universal and multivariable flowmeter for liquids and gases

Measured variable

• Mass flow (proportional to the phase difference between two sensors mounted on the measuring tube to
register a phase shift in the oscillation)
• Fluid density (proportional to resonance frequency of the measuring tube)
• Fluid temperature (measured with temperature sensors)

Endress+Hauser Proline Promass 83M Coriolis Mass Flowmeter

Application
The Coriolis measuring principle operates independently
of the physical fluid properties, such as viscosity and
density.
• Extremely accurate measurement of liquids and gases
such as oils, lubricants, fuels, liquefied gases, solvents,
foodstuffs and compressed gases
• Fluid temperatures up to +350 °C
• Process pressures up to 350 bar
• Mass flow measurement up to 2200 t/h
Approvals for hazardous area:
• ATEX, FM, CSA, TIIS, IECEx, NEPSI
Approvals in the food industry/hygiene sector:
• 3A, FDA, EHEDG
Connection to all common process control systems:
• HART, PROFIBUS DP/PA, FOUNDATION Fieldbus,
MODBUS

Measuring ranges for liquids

DN Range for full scale values (liquids) gmin(F) to gmax(F)
8 0 to 2000 kg/h
15 0 to 6500 kg/h
25 0 to 18000 kg/h
40 0 to 45000 kg/h
50 0 to 70000 kg/h
80 0 to 180000 kg/h
100 (only Promass F) 0 to 350000 kg/h
150 (only Promass F) 0 to 800000 kg/h
250 (only Promass F) 0 to 2200000 kg/h
Flowmeters, Endress+Hauser, Coriolis Mass Flowmeter

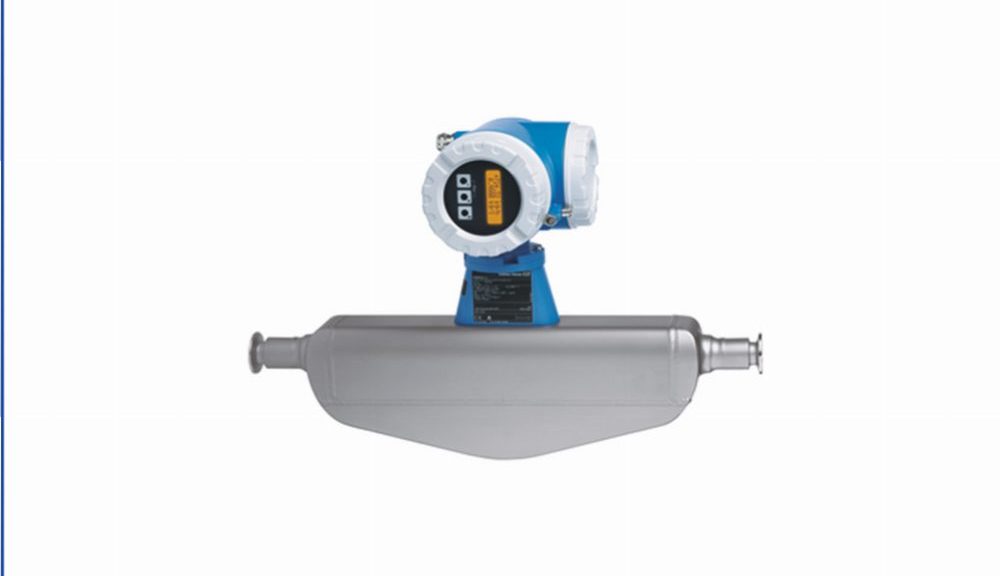

Endress+Hauser Proline Promass 80M Coriolis Mass Flowmeter

Leave a comment

Mass Flowmeter

Endress+Hauser Proline Promass 80M Coriolis Mass Flowmeter

  • Brand : Endress+Hauser
  • Model: Endress+Hauser Proline Promass 80M Coriolis Mass Flowmeter

Coriolis Mass Flow Measuring System
The universal and multivariable flowmeter for liquids and gases

Endress+Hauser Proline Promass 80M Coriolis Mass Flowmeter

Application
The Coriolis measuring principle operates independently
of the physical fluid properties, such as viscosity and
density.
• Extremely accurate measurement of liquids and gases
such as oils, lubricants, fuels, liquefied gases, solvents,
foodstuffs and compressed gases
• Fluid temperatures up to +350 °C
• Process pressures up to 350 bar
• Mass flow measurement up to 2200 t/h
Approvals for hazardous area:
• ATEX, FM, CSA, TIIS, IECEx, NEPSI
Approvals in the food industry/hygiene sector:
• 3A, FDA, EHEDG
Connection to all common process control systems:
• HART, PROFIBUS DP/PA, FOUNDATION Fieldbus,
MODBUS

Measuring ranges for liquids

DN Range for full scale values (liquids) gmin(F) to gmax(F)
8 0 to 2000 kg/h
15 0 to 6500 kg/h
25 0 to 18000 kg/h
40 0 to 45000 kg/h
50 0 to 70000 kg/h
80 0 to 180000 kg/h
100 (only Promass F) 0 to 350000 kg/h
150 (only Promass F) 0 to 800000 kg/h
250 (only Promass F) 0 to 2200000 kg/h
