Endress Hauser Proline Promass X 300 Coriolis Flowmeter 8X3B3E 8X3B3F 8X3B3R

8 9 月, 2026 conchgroup_sales Leave a comment

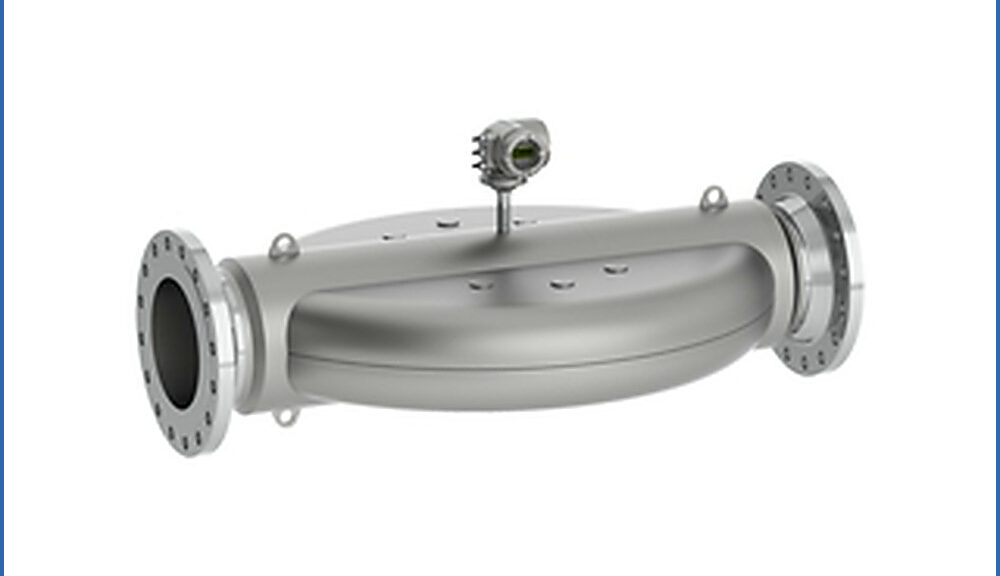

Endress Hauser Proline Promass X 300 Coriolis Flowmeter 8X3B3E 8X3B3F 8X3B3R

The Proline Promass X 300 is a Coriolis mass flowmeter from Endress+Hauser, engineered as the highest-capacity four-tube flowmeter for the most demanding applications in the oil and gas industry. Featuring a compact, easily accessible transmitter, it delivers premium accuracy for large quantities with outstanding performance in onshore, offshore, and subsea operations.

Key Features and Benefits

Highest Capacity Four-Tube Design: The patented four-tube system offers exceptional capacity for high flow rates with low pressure drop. The complete exterior is made of 1.4435 (316L) stainless steel, providing superior corrosion resistance.
Premium Accuracy for Large Quantities: Delivers mass flow accuracy of ±0.10% as standard, with an optional PremiumCal upgrade to ±0.05%. This single installation point replaces multiple measurement devices, reducing capital expenditure and installation costs.
Outstanding Performance in Oil and Gas Applications: Specifically designed for on- and offshore oil and gas applications, the Promass X 300 handles the highest flow rates with exceptional performance.
Multivariable Measurement: Simultaneously measures mass flow, density, temperature, volume flow, corrected volume flow (API tables), reference density, and concentration, reducing the need for multiple process measuring points.
Space-Saving Installation: The measuring principle requires no inlet or outlet straight pipe runs, enabling flexible installation in tight spaces.
Flexible Transmitter with Advanced Connectivity: The compact dual-compartment housing supports up to 3 I/Os, with a backlit display featuring touch control and WLAN access Full access to process and diagnostic information is available via numerous, freely combinable I/Os and fieldbuses (HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, EtherNet/IP, OPC-UA).
Integrated Heartbeat Technology: Built-in verification ensures measurement reliability, enables traceable verification in accordance with ISO 9001:2015 (TÜV SÜD attestation), and allows extension of recalibration cycles without process interruption.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Coriolis
Nominal Diameter Range	DN 300 to 400 (12 to 16″)
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow (API tables), reference density, concentration
Max. Measurement Error	Mass flow (liquid): ±0.10% (standard), ±0.05% (PremiumCal); Mass flow (gas): ±0.35%; Density (liquid): ±0.0005 g/cm³
Measuring Range	0 to 4,100 t/h (0 to 4,520 tn. sh./h)
Max. Process Pressure	PN 100, Class 600
Medium Temperature Range	–50 to +180 °C (–58 to +356 °F)
Wetted Materials	Measuring tube: 1.4404 (316/316L); Connections: 1.4404 (316/316L)
Sensor Housing Material	1.4404 (316L), highest corrosion resistance
Transmitter Housing	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L
Degree of Protection	IP66/67, Type 4X enclosure
Display/Operation	4-line backlit display with touch control; WLAN access; remote display available
Digital Communication	HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, EtherNet/IP, OPC-UA
Power Supply	DC 24 V; AC 100 to 230 V
Hazardous Area Approvals	ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex
Functional Safety	IEC 61508 (SIL), applicable in IEC 61511 safety applications
Marine Approvals	LR, DNV, ABS, BV, CCS
Material Certificates	3.1 material; NACE MR0175/MR0103

The Proline Promass X 300 delivers the highest capacity Coriolis flow measurement for demanding oil and gas applications, combining a robust four-tube design with premium accuracy, flexible transmitter options, and the diagnostic power of Heartbeat Technology.

Endress Hauser Proline Promass X 300 Coriolis Flowmeter 8X3B3E 8X3B3F 8X3B3R

The meter operates on the Coriolis measuring principle, where four measuring tubes oscillate in antiphase and the Coriolis force creates a phase shift proportional to mass flow. This direct measurement is virtually independent of pressure, density, temperature, and viscosity, ensuring robust performance under varying process conditions. The patented four-tube system offers exceptional capacity for high flow rates with low pressure drop, and the complete exterior is made of 1.4435 (316L) stainless steel, providing superior corrosion resistance. The nominal diameter range covers DN 300 to 400 (12 to 16 inches), with measuring capabilities from 0 to 4,100 t/h (0 to 4,520 tn. sh./h).

The device provides multivariable measurement, simultaneously capturing mass flow, density, temperature, volume flow, corrected volume flow (API tables), reference density, and concentration. Standard mass flow accuracy for liquids is ±0.10%, with an optional PremiumCal upgrade to ±0.05%. Gas mass flow accuracy is ±0.35%, and liquid density accuracy is ±0.0005 g/cm³. The measuring principle requires no inlet or outlet straight pipe runs, enabling space-saving installation. Medium temperature range is –50 to +180°C (–58 to +356°F), and maximum process pressure reaches PN 100 or Class 600.

Wetted materials are selected for durability and compatibility. Measuring tubes and process connections are constructed of 1.4404 (316/316L), and the sensor housing is made of 1.4404 (316L) for highest corrosion resistance. The device holds material certificate 3.1 and is compliant with NACE MR0175/MR0103 standards.

The transmitter features a robust dual-compartment housing with up to 3 I/Os, a 4-line backlit display with touch control, and WLAN access for convenient local operation. Transmitter housing options include coated AlSi10Mg and stainless steel 1.4409 (CF3M) similar to 316L. The device is rated IP66/67, Type 4X enclosure. Digital communication options include HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, EtherNet/IP, and OPC-UA. Power supply options include DC 24 V and AC 100 to 230 V.

Integrated Heartbeat Technology enables continuous process safety monitoring and traceable verification in accordance with ISO 9001:2015 (TÜV SÜD-attested) without process interruption, allowing extension of recalibration cycles. The device is developed according to IEC 61508 for functional safety (SIL) and holds international hazardous area approvals including ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, and UK Ex, with marine approvals from LR, DNV, ABS, BV, and CCS.

Endress+Hauser, Coriolis Mass Flowmeter

Endress Hauser Proline Promass P 100 Coriolis Flowmeter 8P1B15 8P1B25 8P1B40

8 9 月, 2026 conchgroup_sales Leave a comment

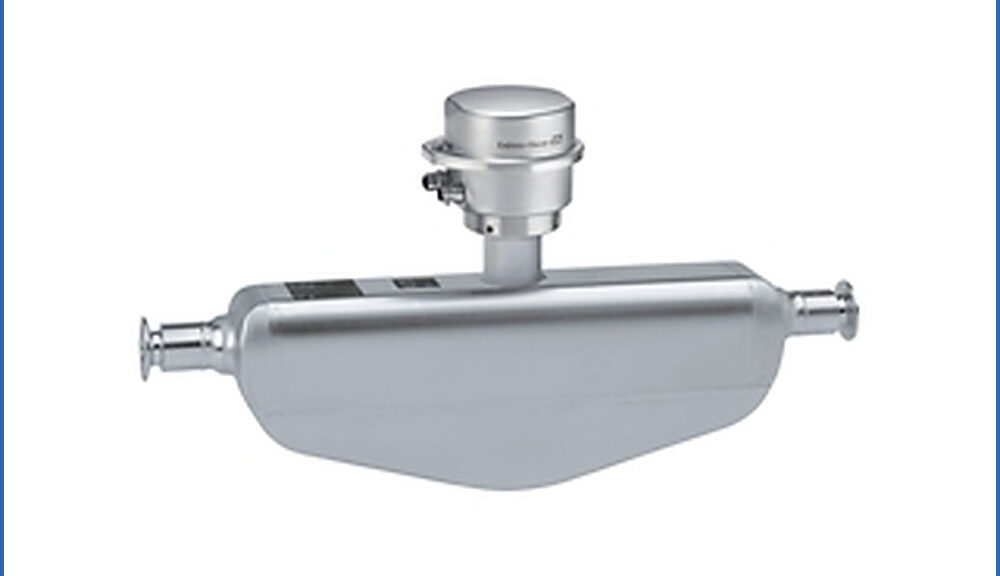

Endress Hauser Proline Promass P 100 Coriolis Flowmeter 8P1B15 8P1B25 8P1B40

The Proline Promass P 100 is a Coriolis flowmeter from Endress+Hauser, designed as the specialist for life sciences applications with an ultra-compact transmitter. Dedicated to sterile processes and demanding hygienic environments, it delivers full performance on the smallest footprint, making it the preferred choice for system integrators, skid builders, and equipment manufacturers.

Key Features and Benefits

Specialist for Life Sciences and Sterile Applications: The Promass P 100 is engineered for applications under sterile conditions in the life sciences and pharmaceutical industries. It is ASME BPE, 3-A, and EHEDG compliant with low delta ferrite, featuring an electropolished measuring tube in 1.4435 (316L) and fast recovery from CIP/SIP cycles.
Ultra-Compact Transmitter: The device features the smallest transmitter housing available today, providing full functionality on a minimal footprint for space-constrained installations.
Multivariable Measurement: Simultaneously measures mass flow, density, temperature, volume flow, corrected volume flow, reference density, and concentration, reducing the need for multiple process measuring points.
High Accuracy: Delivers a mass flow accuracy of ±0.1% for liquids, with density accuracy of ±0.0005 g/cm³.
Convenient Operation and Verification: Integrated web server enables time-saving local operation without additional software or hardware. Built-in Heartbeat Technology provides integrated verification and diagnostics.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Coriolis
Nominal Diameter Range	DN 8 to 50 (⅜ to 2″)
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentratio
Max. Measurement Error	Mass flow (liquid): ±0.1%; Density: ±0.0005 g/cm³
Measuring Range	0 to 70,000 kg/h (0 to 2,570 lb/min)
Max. Process Pressure	PN 63, Class 300, 40K
Medium Temperature Range	Standard: –50 to +150°C; Option: –50 to +205°C
Wetted Materials	Measuring tube: 1.4435 (316L); Connections: 1.4435 (316L); 1.4404 (316/316L)
Transmitter Housing	AlSi10Mg, coated
Degree of Protection	IP66/67, Type 4X enclosure; IP69 optional
Display/Operation	4-line backlit display available; Configuration via web browser
Digital Communication	HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power Supply	DC 20 to 30 V
Hygienic Approvals	3-A, EHEDG, ASME BPE, ISPE, cGMP
Hazardous Area Approvals	ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

The Proline Promass P 100 delivers reliable, high-performance Coriolis flow measurement for demanding life sciences and sterile applications, combining an ultra-compact transmitter, multivariable measurement capability, hygienic compliance, and the diagnostic power of Heartbeat Technology.

Endress Hauser Proline Promass P 100 Coriolis Flowmeter 8P1B15 8P1B25 8P1B40

The meter operates on the Coriolis measuring principle, where two measuring tubes oscillate in antiphase and the Coriolis force creates a phase shift proportional to mass flow. This direct measurement is virtually independent of pressure, density, temperature, and viscosity, ensuring robust performance. The nominal diameter range covers DN 8 to 50 (³⁄₈ to 2 inches), with measuring capabilities from 0 to 70,000 kg/h (0 to 2,570 lb/min).

The device provides multivariable measurement, simultaneously capturing mass flow, density, temperature, volume flow, corrected volume flow, reference density, and concentration. Mass flow accuracy for liquids is ±0.1%, and density accuracy is ±0.0005 g/cm³. The measuring principle requires no inlet or outlet straight pipe runs, enabling space-saving installation. Medium temperature range is –50 to +150°C as standard, with an optional high-temperature version extending to +205°C. Maximum process pressure reaches PN 63, Class 300, or 40K.

Wetted materials are selected for sterile and hygienic compliance. Measuring tubes are constructed of 1.4435 (316L) with electropolished surface finish and low delta ferrite, and process connections are available in 1.4435 (316L) and 1.4404 (316/316L). The device complies with ASME BPE, 3-A, and EHEDG standards, ensuring suitability for pharmaceutical and biotech applications. It features fast recovery from CIP/SIP cycles, enhancing process availability.

The ultra-compact transmitter provides full functionality on the smallest footprint, ideal for space-constrained installations. Transmitter housing is constructed of coated AlSi10Mg and is rated IP66/67, Type 4X enclosure, with an optional IP69 rating for demanding washdown environments. A 4-line backlit display is available for local operation, and configuration is accessible via an integrated web server without additional software or hardware. Digital communication options include HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, and PROFINET.

Integrated Heartbeat Technology enables continuous process safety monitoring and traceable verification without process interruption. The device holds international hazardous area approvals including ATEX, IECEx, cCSAus, INMETRO, NEPSI, and EAC, and is compliant with hygienic standards including 3-A, EHEDG, ASME BPE, ISPE, and cGMP.

Endress+Hauser, Coriolis Mass Flowmeter

Endress Hauser Proline Promass F 300 Coriolis Flowmeter 8F3B08 8F3B15 8F3B1F

8 9 月, 2026 conchgroup_sales Leave a comment

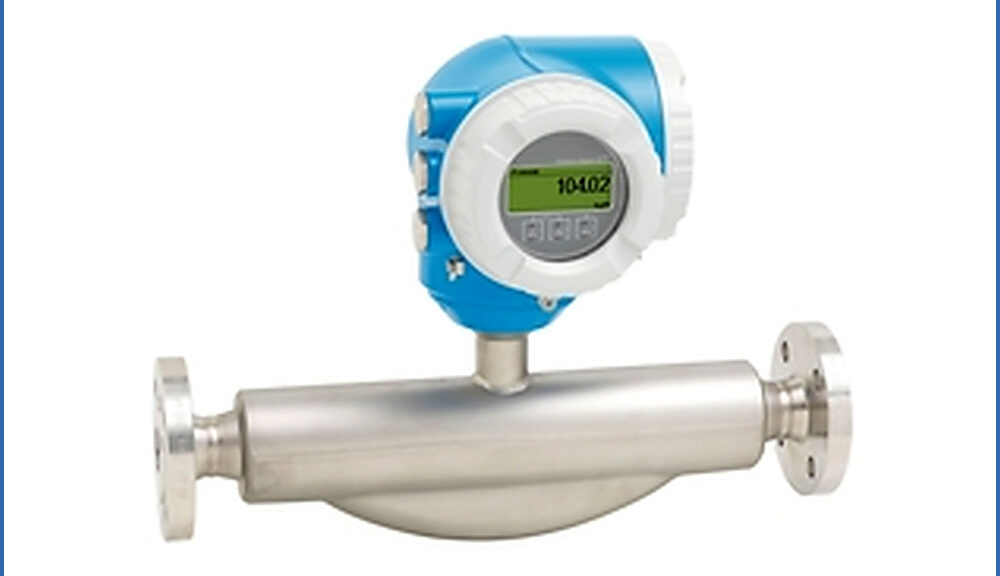

Endress Hauser Proline Promass F 300 Coriolis Flowmeter 8F3B08 8F3B15 8F3B1F

The Proline Promass F 300 is a premium Coriolis flowmeter from Endress+Hauser, engineered for the highest measurement performance across the widest range of demanding liquid and gas applications. Featuring a compact, easily accessible transmitter, it offers unparalleled flexibility in operation, system integration, and connectivity, ensuring process safety in fluctuating and harsh environments.

Key Features and Benefits

Premium Accuracy and Robustness: Offers a standard mass flow accuracy of ±0.10% with an optional PremiumCal upgrade to ±0.05%, ensuring precision for critical applications. The meter is immune to fluctuations in pressure, temperature, density, and viscosity, maintaining reliability in harsh conditions.
Multivariable Measurement: Simultaneously measures mass flow, density, temperature, volume flow, and concentration, reducing the need for multiple process measuring points.
Space-Saving Installation: The measuring principle requires no inlet or outlet straight pipe runs, enabling installation in tight spaces and reducing engineering costs.
Broad Capabilities Across Temperatures and Pressures: Handles a medium temperature range from -196 to +350 °C (-320 to +662 °F) and process pressures up to PN 100, Class 600, or 63K, accommodating a wide variety of process conditions. Nominal diameters span from DN 8 to 250 (³⁄₈ to 10″).
Flexible Transmitter with Enhanced Connectivity: The compact dual-compartment housing supports up to 3 I/Os, with a backlit display featuring touch control and WLAN access. Full access to process and diagnostic information is available via numerous, freely combinable I/Os and fieldbuses (HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, EtherNet/IP, OPC-UA).
Integrated Heartbeat Technology: Enables continuous diagnostics, process safety monitoring, and traceable verification in accordance with ISO 9001 without process interruption, allowing extension of recalibration cycles.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Coriolis
Nominal Diameter Range	DN 8 to 250 (³⁄₈ to 10″)
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Max. Measurement Error	Mass flow (liquid): ±0.10% (standard), ±0.05% (PremiumCal); Mass flow (gas): ±0.25%; Density (liquid): ±0.0005 g/cm³
Measuring Range	0 to 2,200,000 kg/h (0 to 80,840 lb/min)
Medium Temperature Range	Standard: –50 to +150 °C; Option: –196 to +350 °C
Max. Process Pressure	PN 100, Class 600, 63K
Wetted Materials	Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602
Transmitter Housing	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygienic design
Degree of Protection	IP66/67, Type 4X enclosure; IP69 optional
Display/Operation	4-line backlit display with touch control; WLAN access; remote display available
Digital Communication	HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, EtherNet/IP, OPC-UA
Power Supply	DC 24 V; AC 100 to 230 V
Hazardous Area Approvals	ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC
Functional Safety	IEC 61508 (SIL), applicable in IEC 61511 safety applications

The Proline Promass F 300 delivers the highest measurement performance for liquids and gases under varying, demanding process conditions. It combines premium accuracy, robustness, and a compact transmitter with exceptional flexibility in operation and system integration, underpinned by the diagnostic power of Heartbeat Technology.

Endress Hauser Proline Promass F 300 Coriolis Flowmeter 8F3B08 8F3B15 8F3B1F

The Proline Promass F 300 is a premium Coriolis flowmeter from Endress+Hauser, engineered for the highest measurement performance across the widest range of demanding liquid and gas applications . Featuring a compact, easily accessible transmitter, it offers unparalleled flexibility in operation, system integration, and connectivity, ensuring process safety in fluctuating and harsh environments .

The meter operates on the Coriolis measuring principle, with two measuring tubes oscillating in antiphase . As fluid flows through the tubes, the Coriolis force creates a phase shift proportional to the mass flow . This direct mass flow measurement is virtually independent of pressure, density, temperature, and viscosity, ensuring robust performance under varying process conditions . The nominal diameter range covers DN 8 to 250 (³⁄₈ to 10 inches), with measuring capabilities from 0 to 2,200,000 kg/h (0 to 80,840 lb/min) .

The device provides multivariable measurement, simultaneously capturing mass flow, density, temperature, volume flow, corrected volume flow, reference density, and concentration . Standard mass flow accuracy is ±0.10% for liquids, with an optional PremiumCal upgrade to ±0.05% . Gas mass flow accuracy is ±0.25%, and liquid density accuracy is ±0.0005 g/cm³ . The measuring principle requires no inlet or outlet straight pipe runs, enabling space-saving installation . Medium temperature range extends from –196 to +350°C (–320 to +662°F) with optional configurations, and maximum process pressure reaches PN 100, Class 600, or 63K .

Wetted materials are selected for durability and compatibility . Measuring tubes are available in 1.4539 (904L), 1.4404 (316/316L), and Alloy C22 (2.4602), with flanges in various materials including 1.4404/316/316L and Alloy C22 . The transmitter features a robust dual-compartment housing with up to 3 I/Os, a 4-line backlit display with touch control, and WLAN access for convenient local operation . Transmitter housing options include coated AlSi10Mg, stainless steel 1.4409 (CF3M) similar to 316L, and a hygienic stainless steel design . The device is rated IP66/67, Type 4X enclosure, with an optional IP69 rating for demanding washdown environments . Digital communication options include HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, EtherNet/IP, and OPC-UA . Power supply options include DC 24 V and AC 100 to 230 V .

Integrated Heartbeat Technology enables continuous process safety monitoring and traceable verification in accordance with ISO 9001 without process interruption, allowing extension of recalibration cycles . The device is developed according to IEC 61508 for functional safety (SIL) and holds international hazardous area approvals including ATEX, IECEx, cCSAus, NEPSI, INMETRO, and EAC .

The Proline Promass F 300 delivers the highest measurement performance for liquids and gases under varying, demanding process conditions, combining premium accuracy, robustness, and a compact transmitter with exceptional flexibility in operation and system integration, underpinned by the diagnostic power of Heartbeat Technology.

Endress+Hauser, Vortex Flowmeter

Endress Hauser Proline Prowirl R 200 vortex flowmeter 7R2CRF 7R2CRG 7R2CRJ

8 9 月, 2026 conchgroup_sales Leave a comment

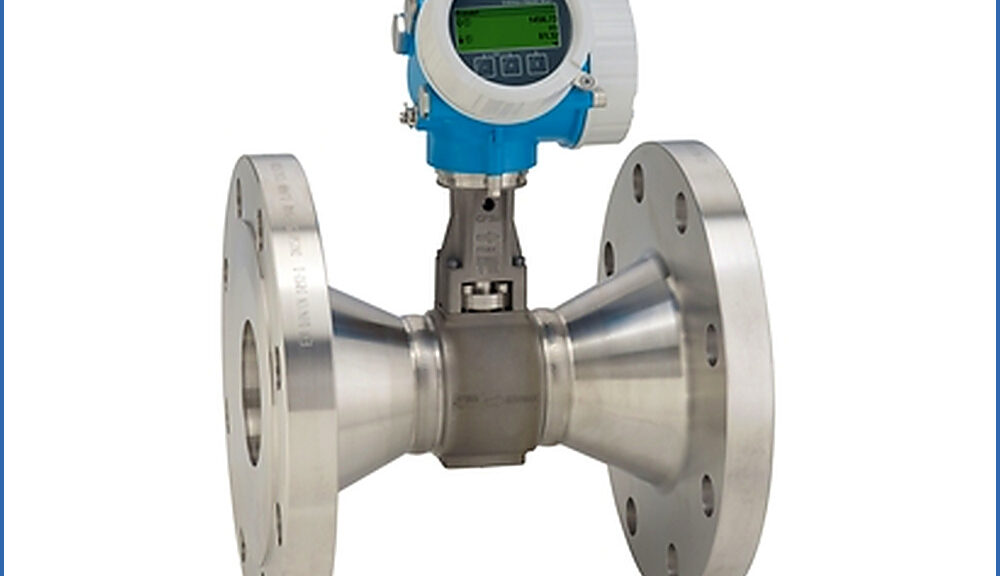

Endress Hauser Proline Prowirl R 200 vortex flowmeter 7R2CRF 7R2CRG 7R2CRJ

The Proline Prowirl R 200 is a cost-effective vortex flowmeter from Endress+Hauser, optimized for low-flow applications and designed to deliver best-in-class accuracy even with pipe diameter reductions. Featuring integrated diameter reduction by one or two line sizes, it eliminates the need for costly pipework modifications, providing significant cost and time savings.

Key Features and Benefits

Designed for Low Flows and Energy Management: The Prowirl R 200 is a particularly dependable solution for energy management, dedicated to applications with very low or reduced flow. Its integrated temperature and pressure measurement enables easy energy management for steam and gases.
Best-in-Class Accuracy Despite Pipe Reduction: The integrated diameter reduction by one or two line sizes means no pipework modifications are needed for line size reduction. It delivers the same accuracy down to Reynolds number Re 10,000 and features one of the most linear vortex meter bodies available.
Long-Term Stability: The robust, drift-free capacitive DSC sensor ensures reliable measurement over extended periods without recalibration.
Loop-Powered Two-Wire Technology: Enables cost-effective and seamless integration into existing infrastructures while offering the highest operational safety in hazardous areas.
Safe and Convenient Operation: The transmitter features a separate connection compartment for convenient wiring and a 4-line backlit display with touch control for safe operation without opening the device.
Integrated Heartbeat Technology: Built-in verification ensures measurement reliability, enables traceable verification according to ISO 9001, and allows extension of recalibration cycles.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Vortex (Karman vortex street)
Nominal Diameter (Mating Pipe)	DN 25 to 250 (1 to 10″)
Measured Variables	Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature
Max. Measurement Error	Liquid volume flow: ±0.75%; Steam/gas volume flow: ±1.00%; Liquid mass flow: ±0.85%
Measuring Range (Liquid)	0.1 to 540 m³/h (0.061 to 320 ft³/min)
Measuring Range (Steam/Gas)	0.52 to 7,300 m³/h (0.31 to 4,300 ft³/min)
Max. Process Pressure	PN 40, Class 300, 20K
Medium Temperature Range	Standard: –40 to +260°C; Option: –200 to +400°C; On request: –200 to +450°C
Wetted Materials	Measuring tube: 1.4408 (CF3M); DSC sensor: 1.4404/F316/F316L
Transmitter Housing	AlSi10Mg, coated; 1.4404 (316L)
Degree of Protection	IP66/67, Type 4X enclosure
Display/Operation	4-line backlit display with touch control; remote display available
Digital Communication	HART, PROFIBUS PA, FOUNDATION Fieldbus
Power Supply	DC 12 to 35 V (4-20 mA HART); DC 9 to 32 V (PROFIBUS PA)
Functional Safety	IEC 61508 (SIL), applicable in IEC 61511 safety applications
Hazardous Area Approvals	ATEX, IECEx, cCSAus, JPN, EAC, UK Ex
Marine Approvals	ABS, LR, BV, DNV

The Proline Prowirl R 200 delivers reliable, cost-effective vortex flow measurement for low-flow steam, gas, and liquid applications, combining an innovative integrated diameter reduction design, robust construction, loop-powered technology, and the advanced diagnostic capabilities of Heartbeat Technology.

Endress Hauser Proline Prowirl R 200 vortex flowmeter 7R2CRF 7R2CRG 7R2CRJ

The flowmeter operates on the Karman vortex street principle, with no moving parts for maintenance-free operation. Integrated temperature and pressure measurement enable multivariable capabilities, including volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, and temperature. The device is designed for mating pipe nominal diameters of DN 25 to 250 (1 to 10 inches), with measuring ranges of 0.1 to 540 m³/h for liquids and 0.52 to 7,300 m³/h for steam and gas.

The integrated diameter reduction by one or two line sizes eliminates the need for pipework modifications, reducing installation complexity and costs. The device delivers consistent accuracy down to Reynolds number Re 10,000, featuring one of the most linear vortex meter bodies available. Volume flow accuracy is ±0.75% for liquids and ±1.00% for steam and gas, with liquid mass flow accuracy at ±0.85%.

Wetted materials are selected for durability and compatibility. The measuring tube is constructed of 1.4408 (CF3M), and the DSC sensor is available in 1.4404/F316/F316L. Maximum process pressure is PN 40, Class 300, or 20K. Medium temperature range is –40 to +260°C as standard, with an optional high/low-temperature version extending from –200 to +400°C (and up to +450°C on request).

The robust, drift-free capacitive DSC sensor ensures reliable measurement over extended periods without recalibration. The transmitter features a robust dual-compartment housing with a separate connection compartment for convenient wiring and a 4-line backlit display with touch control for safe operation without opening the device. A remote display version is also available. Digital communication options include HART, PROFIBUS PA, and FOUNDATION Fieldbus. The device holds hazardous area approvals (ATEX, IECEx, cCSAus, JPN, EAC, UK Ex) and marine approvals (ABS, LR, BV, DNV), and is developed according to IEC 61508 for functional safety (SIL).

Integrated Heartbeat Technology enables continuous process safety monitoring and traceable verification in accordance with ISO 9001, allowing extension of recalibration cycles without process interruption.

Endress+Hauser, Vortex Flowmeter

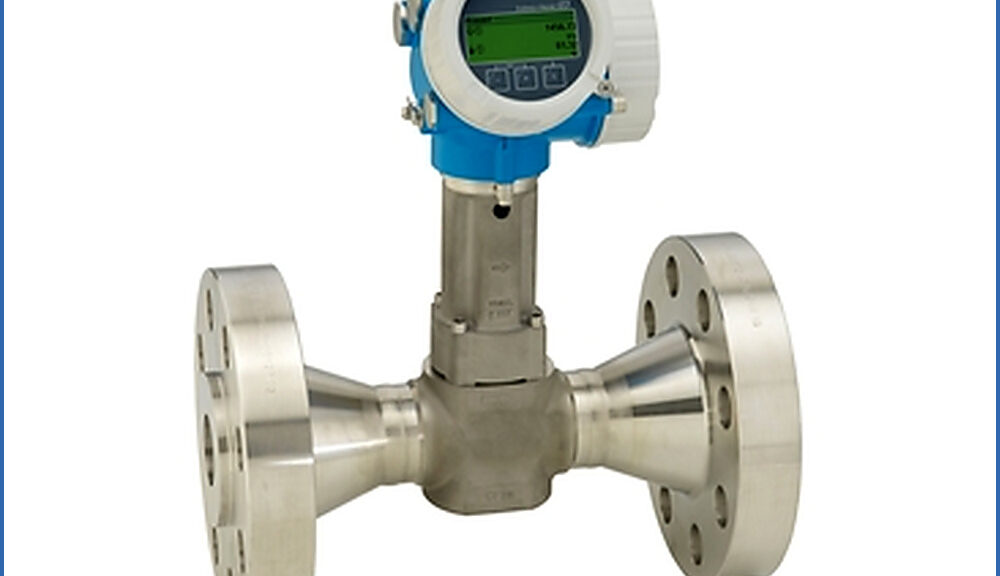

Endress Hauser Proline Prowirl O 200 Vortex Flowmeter 7O2C15 7O2C1F 7O2C1H

8 9 月, 2026 conchgroup_sales Leave a comment

Endress Hauser Proline Prowirl O 200 Vortex Flowmeter 7O2C15 7O2C1F 7O2C1H

The Proline Prowirl O 200 is a high-pressure vortex flowmeter from Endress+Hauser, optimized for demanding gas and steam applications with high process pressure. Featuring genuine loop-powered two-wire technology and a robust drift-free capacitive DSC sensor, it enables cost-effective integration into existing infrastructures while ensuring maximum operational safety in hazardous areas. It is the specialist for applications requiring reliable process control in main and ancillary processes at elevated pressures.

Key Features and Benefits

Designed for High-Pressure Applications: The Prowirl O 200 is the preferred choice for high-pressure steam and gas measurement, with saturated steam mass flow capability up to PN 250 (Class 1500). Its special sensor design ensures increased mechanical integrity for demanding high-pressure piping systems.
Full NACE Compliance: The device offers full compliance with NACE MR0175/MR0103 standards, making it suitable for applications with aggressive media and corrosive environments.
Integrated Multivariable Measurement: Integrated temperature and pressure measurement enables better process control for steam and gases, including energy flow and heat flow difference calculations.
Superior Accuracy and Linearity: Consistently delivers same accuracy down to Reynolds number Re 10,000, offering one of the most linear vortex meter bodies available. Volume flow accuracy for liquids is ±0.75%, and ±1.00% for steam and gas.
Long-Term Stability: Features a robust drift-free capacitive DSC sensor that resists vibration, temperature shocks (>150 K/s), and water hammer, ensuring reliable measurement without recalibration over extended periods.
Safe and Convenient Operation: The transmitter features a separate connection compartment for convenient wiring and a 4-line backlit display with touch control for safe operation without opening the device.
Integrated Heartbeat Technology: Built-in verification ensures measurement reliability, enables traceable verification according to ISO 9001 (TÜV SÜD attestation), and allows extension of recalibration cycles without process interruption.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Vortex (Karman vortex street)
Nominal Diameter Range	DN 15 to 300 (½ to 12″)
Measured Variables	Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature
Max. Measurement Error	Liquid volume flow: ±0.75%; Steam/gas volume flow: ±1.00%; Liquid mass flow: ±0.85%; Saturated steam mass flow: ±1.5% (temp./press. comp.)
Measuring Range	Liquid: 0.2 to 1,895 m³/h; Steam/gas: 1.5 to 25,285 m³/h
Max. Process Pressure	PN 250, Class 1500, 40K
Medium Temperature Range	Standard: –40 to +260°C; Option: –200 to +400°C
Wetted Materials	Measuring tube: 1.4408 (CF3M); DSC sensor: UNS N07718 similar to Alloy 718; Process connection: 1.4404/F316/F316L
Transmitter Housing	AlSi10Mg coated; 1.4404 (316L)
Degree of Protection	IP66/67, Type 4X enclosure
Display/Operation	4-line backlit display with touch control; remote display available
Digital Communication	HART, PROFIBUS PA, FOUNDATION Fieldbus
Power Supply	DC 12 to 35 V (4-20 mA HART); DC 9 to 32 V (PROFIBUS PA)
Functional Safety	IEC 61508 (SIL), applicable in IEC 61511 safety applications
Hazardous Area Approvals	ATEX, IECEx, cCSAus, JPN
Marine Approvals	ABS, LR, BV, DNV

The Proline Prowirl O 200 delivers reliable, high-performance vortex flow measurement for demanding high-pressure gas and steam applications, combining robust construction, multivariable measurement capability, full NACE compliance, and the advanced diagnostic power of Heartbeat Technology.

Endress Hauser Proline Prowirl O 200 Vortex Flowmeter 7O2C15 7O2C1F 7O2C1H

The Proline Prowirl O 200 is a high-pressure vortex flowmeter from Endress+Hauser, designed for demanding gas and steam applications requiring reliable process control at elevated pressures. Featuring genuine loop-powered two-wire technology and a robust, drift-free capacitive DSC sensor, it enables cost-effective integration into existing infrastructures while ensuring maximum operational safety in hazardous areas.

The flowmeter operates on the Karman vortex street principle, with no moving parts for maintenance-free operation. Integrated temperature and pressure measurement enable multivariable capabilities including volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, and temperature. The nominal diameter range covers DN 15 to 300 (½ to 12 inches), with measuring ranges of 0.2 to 1,895 m³/h for liquids and 1.5 to 25,285 m³/h for steam and gas.

The sensor design ensures increased mechanical integrity and is optimized for high-pressure mating pipes. It delivers consistent accuracy down to Reynolds number Re 10,000, offering one of the most linear vortex meter bodies available. Volume flow accuracy is ±0.75% for liquids and ±1.00% for steam and gas, with mass flow accuracy for liquid at ±0.85% and for saturated steam at ±1.5% (temperature/pressure compensated).

Saturated steam mass flow capability extends up to PN 250 (Class 1500). The device offers full compliance with NACE MR0175/MR0103 standards. Medium temperature range is –40 to +260°C as standard, with an optional high/low-temperature version extending from –200 to +400°C. Wetted materials include measuring tube in 1.4408 (CF3M), DSC sensor in UNS N07718 similar to Alloy 718, and process connections in 1.4404/F316/F316L.

The transmitter features a robust dual-compartment housing with separate connection compartment for convenient wiring and a 4-line backlit display with touch control for safe operation without opening the device. Digital communication options include HART, PROFIBUS PA, and FOUNDATION Fieldbus. The device holds hazardous area approvals (ATEX, IECEx, cCSAus, JPN) and marine approvals (ABS, LR, BV, DNV), and is developed according to IEC 61508 for functional safety (SIL).

Endress+Hauser, Vortex Flowmeter

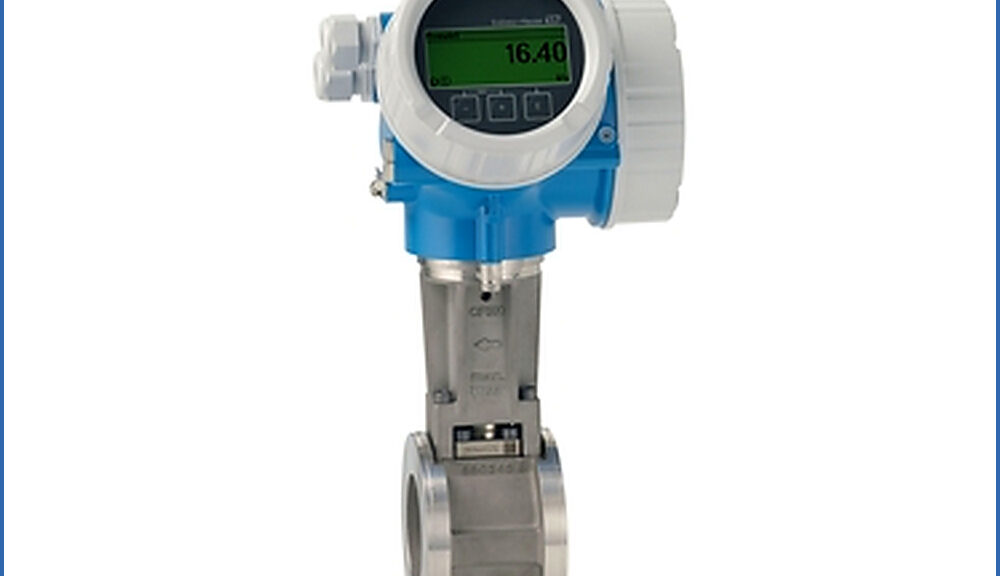

Endress Hauser Proline Prowirl D 200 Vortex Flowmeter 7D2C15 7D2C1F 7D2C1H

8 9 月, 2026 conchgroup_sales Leave a comment

Endress Hauser Proline Prowirl D 200 Vortex Flowmeter 7D2C15 7D2C1F 7D2C1H

The Proline Prowirl D 200 is a cost-effective wafer-style vortex flowmeter from Endress+Hauser, optimized for wet, saturated, and superheated steam, gases, and liquids, including cryogenic applications. Featuring genuine loop-powered two-wire technology and a robust, drift-free capacitive DSC sensor, it enables seamless integration into existing infrastructures while offering superior long-term stability and operational safety in hazardous areas.

Key Features and Benefits

Cost-Effective Wafer Design: The sensor installs directly between two flanges with a compact face-to-face length of 65 mm (2.56 in), eliminating the need for flanges and reducing weight and installation costs. It is ideal for ancillary process applications and 1-to-1 replacement of orifice plates.
Optimized for Steam Applications: Integrated temperature measurement enables mass flow and energy flow calculation for saturated steam. The Prowirl D 200 is the preferred measuring principle for wet, saturated, and superheated steam, gases, and liquids.
High Robustness and Long-Term Stability: The capacitive DSC sensor is drift-free and proven to withstand vibrations, temperature shocks, and water hammer, ensuring long-term stability without recalibration.
Easy Installation and Operation: The sensor includes centering rings for easy alignment during installation. The transmitter features a separate connection compartment for convenient wiring and a 4-line backlit display with touch control for safe operation without opening the device.
Built-in Heartbeat Technology: Integrated verification ensures measurement reliability, enables compliant verification according to ISO 9001:2015, and allows extension of recalibration cycles without process interruption.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Vortex (Karman vortex street)
Nominal Diameter Range	DN 15 to 150 (½ to 6″)
Measured Variables	Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature
Max. Measurement Error	Liquid volume flow: ±0.75%; Steam/gas volume flow: ±1.00%; Liquid mass flow: ±0.85%; Steam/gas mass flow: ±1.7%
Measuring Range	Liquid: 0.16 to 625 m³/h; Steam/gas: 2 to 8,342 m³/h
Max. Process Pressure	PN 40, Class 300, 20K
Medium Temperature Range	Standard: –40 to +260°C; Option: –200 to +400°C; Special: –200 to +450°C
Wetted Materials	Measuring tube: 1.4408 (CF3M); DSC sensor: 1.4435 (316/316L)
Transmitter Housing	AlSi10Mg coated; 1.4404 (316L)
Degree of Protection	IP66/67, Type 4X enclosure
Display/Operation	4-line backlit display with touch control; remote display available
Digital Communication	HART, PROFIBUS PA, FOUNDATION Fieldbus, PROFINET over Ethernet-APL, Modbus TCP over Ethernet-APL
Power Supply	DC 12 to 35 V (4-20 mA HART); DC 9 to 32 V (PROFIBUS PA)
Functional Safety	IEC 61508 (SIL), applicable in IEC 61511 safety applications
Hazardous Area Approvals	ATEX, IECEx, cCSAus, JPN, EAC, UK Ex, KC

The Proline Prowirl D 200 delivers reliable, cost-effective vortex flow measurement for demanding steam, gas, and liquid applications, combining a compact wafer design, robust construction, maintenance-free operation, and the advanced diagnostic power of Heartbeat Technology.

Endress Hauser Proline Prowirl D 200 Vortex Flowmeter 7D2C15 7D2C1F 7D2C1H

The Proline Prowirl D 200 is a cost-effective wafer-style vortex flowmeter from Endress+Hauser, optimized for wet, saturated, and superheated steam, gases, and liquids, including cryogenic applications. Featuring genuine loop-powered two-wire technology and a robust, drift-free capacitive DSC sensor, the device enables seamless integration into existing infrastructures while delivering superior long-term stability and operational safety in hazardous areas.

The flowmeter operates on the Karman vortex street principle. As fluid flows past a bluff body, vortices are alternately formed on both sides, generating pressure fluctuations that are detected by the capacitive sensor and converted to electrical pulses. The frequency of vortex shedding is proportional to the volume flow, and the device has no moving parts, ensuring maintenance-free operation. The nominal diameter range covers DN 15 to 150 (½ to 6 inches), with measuring ranges of 0.25 to 625 m³/h for liquids and 2.1 to 8,335 m³/h for steam and gas.

The sensor installs directly between two flanges with a compact face-to-face length of 65 mm (2.56 in), eliminating the need for flanges and reducing weight and installation costs. Included centering rings enable easy alignment during installation. Integrated temperature measurement via Pt1000 sensors enables mass flow and energy flow calculation for saturated steam. Accuracy specifications include ±0.75% for liquid volume flow, ±1.00% for steam and gas volume flow, ±0.85% for liquid mass flow, and ±1.7% for steam and gas mass flow. Maximum process pressure is PN 40, Class 300, or 20K, with a standard medium temperature range of –40 to +260°C and optional high/low temperature versions extending from –200 to +400°C.

Wetted materials are selected for durability and compatibility. The measuring tube is constructed of 1.4408 (CF3M), with the DSC sensor available in 1.4435 (316/316L). The capacitive DSC sensor is drift-free and proven to withstand vibrations, temperature shocks, and water hammer, ensuring long-term stability without recalibration.

The transmitter features a robust dual-compartment housing with a separate connection compartment for convenient wiring. A 4-line backlit display with touch control enables safe operation without opening the device, and a remote display version is available. The compact version is rated IP66/67, Type 4X enclosure. Digital communication options include HART, PROFIBUS PA, FOUNDATION Fieldbus, PROFINET over Ethernet-APL, and Modbus TCP over Ethernet-APL.

Integrated Heartbeat Technology enables continuous process safety monitoring and compliant verification in accordance with ISO 9001:2015 (TÜV SÜD-attested), allowing extension of recalibration cycles without process interruption. The device is developed according to IEC 61508 for functional safety (SIL) and holds international hazardous area approvals including ATEX, IECEx, cCSAus, JPN, EAC, UK Ex, and KC.

Endress+Hauser, Vortex Flowmeter

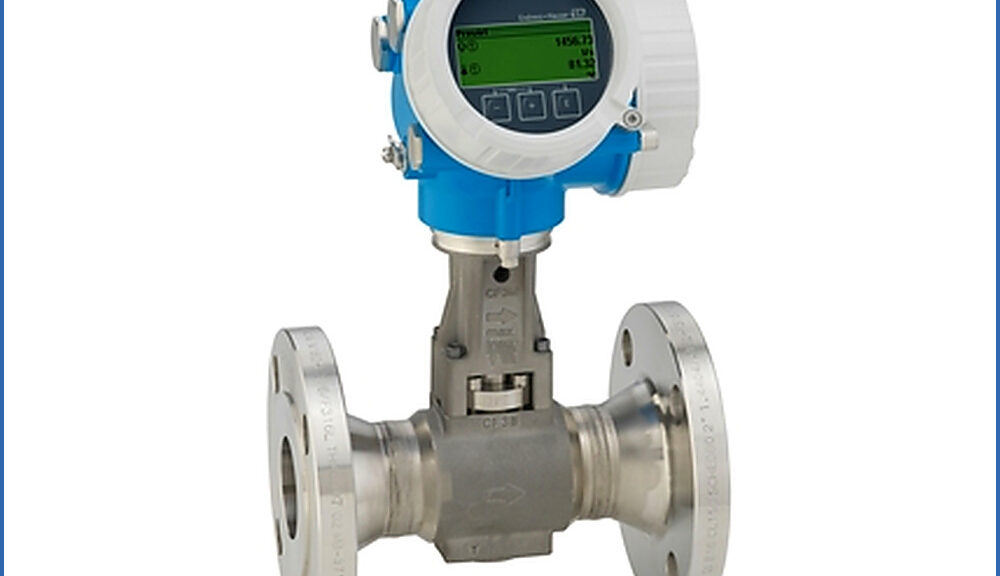

Endress Hauser Proline Prowirl F 200 Vortex Flowmeter 7F2C15 7F2C1F 7F2C1H

8 9 月, 2026 conchgroup_sales Leave a comment

Endress Hauser Proline Prowirl F 200 Vortex Flowmeter 7F2C15 7F2C1F 7F2C1H

The Proline Prowirl F 200 is a multivariable vortex flowmeter from Endress+Hauser, optimized for wet, saturated, and superheated steam, gases, and liquids, including cryogenic applications. Featuring genuine loop-powered two-wire technology and a robust, drift-free capacitive sensor, it enables cost-effective integration into existing infrastructures while offering superior long-term stability and highest operational safety in hazardous areas.

Key Features and Benefits

Optimized for Steam Applications: The Prowirl F 200 is the preferred choice for steam measurement, with wet steam detection capabilities for nominal diameters DN 25 to 300 (1 to 12 inches). It includes integrated temperature and pressure measurement for easy energy management of steam and gases.
Superior Accuracy and Linearity: Delivers best-in-class accuracy with consistent performance down to Reynolds number Re 10,000, making it one of the most linear vortex meter bodies available. Volume flow accuracy for liquids is up to ±0.65% (optional) and ±0.75% (standard), and ±1.00% for steam and gas.
Long-Term Stability: Features a robust, drift-free capacitive DSC sensor that ensures reliable measurement over extended periods without the need for recalibration.
Space-Saving Engineering: Inlet run compensation allows for shorter straight pipe runs, saving installation space. The device supports flexible positioning of the pressure cell and features an industrial siphon design for pressure measurement.
Safe and Convenient Operation: The transmitter features a separate connection compartment for convenient wiring and a 4-line backlit display with touch control for safe operation without opening the device.
Integrated Heartbeat Technology: Built-in verification ensures measurement reliability, enables traceable verification according to ISO 9001:2015 (TÜV SÜD attestation), and allows extension of recalibration cycles without process interruption.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Vortex (vortex-shedding)
Nominal Diameter Range	DN 15 to 300 (½ to 12″)
Measured Variables	Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature
Max. Measurement Error	Liquid volume flow: ±0.75% (std.) / ±0.65% (opt.); Steam/gas volume flow: ±1.00%; Liquid mass flow: ±0.85%; Saturated steam mass flow: ±1.7% (temp. comp.) / ±1.5% (temp./press. comp.)
Measuring Range	Liquid: 0.076 to 2100 m³/h (0.045 to 1300 ft³/min); Steam/gas: 0.39 to 28000 m³/h (0.23 to 17000 ft³/min)
Max. Process Pressure	PN 100, Class 600, 20K
Medium Temperature Range	Standard: –40 to +260°C (–40 to +500°F); Option: –200 to +400°C (–328 to +752°F)
Wetted Materials	Measuring tube: 1.4408 (CF3M); CX2MW similar to Alloy C22; DSC sensor: 1.4404 (316/316L); UNS N06022 similar to Alloy C22
Transmitter Housing Material	AlSi10Mg coated; 1.4404 (316L)
Degree of Protection	Compact version: IP66/67, Type 4X enclosure
Display/Operation	4-line backlit display with touch control; remote display available
Digital Communication	HART, PROFIBUS PA, FOUNDATION Fieldbus, PROFINET over Ethernet-APL, Modbus TCP over Ethernet-APL
Power Supply	DC 12 to 35 V (4-20 mA HART); DC 9 to 32 V (PROFIBUS PA)
Hazardous Area Approvals	ATEX, IECEx, cCSAus, JPN, EAC
Functional Safety	IEC 61508 (SIL), applicable in IEC 61511 safety applications

The Proline Prowirl F 200 delivers reliable, high-performance vortex flow measurement for demanding steam, gas, and liquid applications, combining multivariable measurement capabilities, robust construction, maintenance-free operation, and the advanced diagnostic power of Heartbeat Technology.

Endress Hauser Proline Prowirl F 200 Vortex Flowmeter 7F2C15 7F2C1F 7F2C1H

The Proline Prowirl F 200 is a multivariable vortex flowmeter from Endress+Hauser, optimized for wet, saturated, and superheated steam, gases, and liquids, including cryogenic applications. Featuring genuine loop-powered two-wire technology and a robust, drift-free capacitive DSC sensor, the device enables cost-effective integration into existing infrastructures while delivering superior long-term stability and operational safety. The preferred measuring principle for steam applications, it provides inline wet steam measurement with capabilities for nominal diameters DN 25 to 300 (1 to 12 inches).

The device measures volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, and temperature. Integrated temperature and pressure measurement enables easy energy management for steam and gases. The meter is compliant with the international vortex standard ISO 12764 and delivers consistent accuracy down to Reynolds number Re 10,000, offering one of the most linear vortex meter bodies available. Accuracy specifications include ±0.75% for liquid volume flow (standard), ±0.65% as an optional upgrade, ±1.00% for steam and gas volume flow, ±0.85% for liquid mass flow, and ±1.5% to ±1.7% for saturated steam mass flow depending on compensation method. The nominal diameter range covers DN 15 to 300 (½ to 12 inches), with measuring ranges of 0.2 to 2,100 m³/h for liquids and 1.5 to 28,000 m³/h for steam and gas.

Wetted materials are selected for durability and compatibility with process media. The measuring tube is constructed of 1.4408 (CF3M) or CX2MW similar to Alloy C22, with the DSC sensor available in 1.4404 (316/316L) or UNS N06022 similar to Alloy C22. Maximum process pressure is PN 100, Class 600, or 20K. Medium temperature range is –40 to +260°C (–40 to +500°F) as standard, with an optional high/low temperature version extending from –200 to +400°C (–328 to +752°F).

The transmitter features a robust dual-compartment housing with a separate connection compartment for convenient wiring. A 4-line backlit display with touch control enables safe operation without opening the device. A display module with data transfer function is included, and a remote display version is available for flexible installation. Digital communication options include HART, PROFIBUS PA, FOUNDATION Fieldbus, PROFINET over Ethernet-APL, and Modbus TCP over Ethernet-APL. The compact version is rated IP66/67, Type 4X enclosure.

Integrated Heartbeat Technology enables continuous process safety monitoring and traceable verification in accordance with ISO 9001 (TÜV SÜD-attested), allowing extension of recalibration cycles without process interruption. The device is developed according to IEC 61508 for functional safety (SIL) and holds international hazardous area approvals including ATEX, IECEx, cCSAus, JPN, and EAC.

Endress+Hauser, Electromagnetic Flowmeter

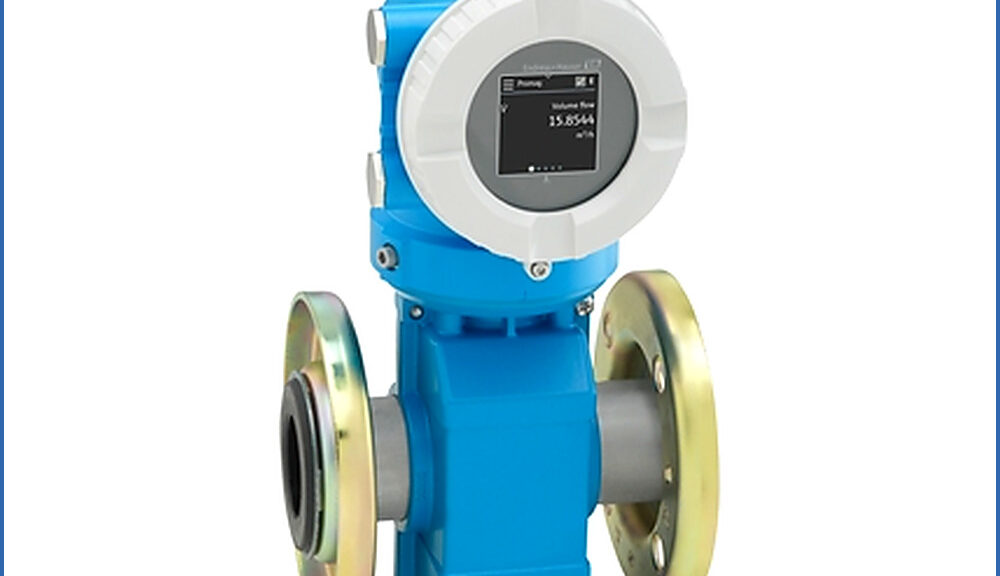

Endress Hauser Proline Promag W 10 Electromagnetic Flowmeter 5WBB1F 5WBB1H 5WBB25

8 9 月, 2026 conchgroup_sales Leave a comment

Endress Hauser Proline Promag W 10 Electromagnetic Flowmeter 5WBB1F 5WBB1H 5WBB25

The Proline Promag W 10 is an electromagnetic flowmeter from Endress+Hauser, designed for basic water and wastewater applications with an easy-to-use operation concept. Featuring a straightforward hardware and software design, it simplifies every step of the instrument lifecycle from engineering to servicing. It is ideal for elementary measurement tasks such as raw water intake.

Key Features and Benefits

Reliable Measurement with No Pressure Loss: The patented full-bore sensor requires no inlet or outlet runs (0 x DN) and ensures constant accuracy with no pressure loss due to cross-section constriction. The bidirectional measuring principle is virtually independent of pressure, density, temperature, and viscosity.
Flexible and Durable Design: The sensor is available with fixed or lap-joint process connections and features a robust, completely welded construction. It meets EN ISO 12944 corrosion protection standards, making it suitable for underground or permanent underwater installation, with an optional IP68 (Type 6P) enclosure.
Easy Operation and Commissioning: Operation is intuitive via mobile devices using the SmartBlue app or a display with touch screen. Wizard-guided parameterization can be performed in advance or in the field to save commissioning time.
Broad Approvals: Holds international drinking water approvals including ACS, KTW-BWGL, NSF 61, and WRAS.
Built-in Heartbeat Technology: Integrated verification ensures measurement reliability, enables compliant verification in accordance with ISO 9001:2015 (TÜV SÜD-attested), and allows extension of recalibration cycles.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 25 to 3000 (1 to 120″)
Measured Variables	Volume flow, conductivity, mass flow
Max. Measurement Error	Standard: ±0.5% o.r. ± 1 mm/s; Option: ±0.2% o.r. ± 2 mm/s
Measuring Range	0.5 m³/h to 263,000 m³/h (2.5 gal/min to 1,665 Mgal/d)
Max. Process Pressure	PN 40, Class 300, 20K
Medium Temperature Range	Hard rubber: 0 to +80°C; Polyurethane: –20 to +50°C; PTFE: –20 to +90°C
Liner Materials	Hard rubber, Polyurethane, PTFE
Electrode Materials	1.4435 (316L), Alloy C22
Sensor Housing Material	DN 25–300: AlSi10Mg coated; DN 350–3000: Carbon steel with protective varnish
Transmitter Housing	Polycarbonate
Degree of Protection	Compact: IP66/67, Type 4X; Remote sensor option: IP68, Type 6P
Display/Operation	LCD display with touch & auto rotate; SmartBlue app (Bluetooth)
Digital Communication	HART, Modbus RS485
Power Supply	DC 24 V; AC 100 to 230 V

The Proline Promag W 10 delivers reliable, cost-effective flow measurement for basic water and wastewater applications, combining a space-saving full-bore design with easy operation, flexible installation, and the diagnostic power of Heartbeat Technology.

Endress Hauser Proline Promag W 10 Electromagnetic Flowmeter 5WBB1F 5WBB1H 5WBB25

The Proline Promag W 10 is an electromagnetic flowmeter from Endress+Hauser, designed for basic water and wastewater applications with an easy-to-use operation concept. Featuring a straightforward hardware and software design, it simplifies every step of the instrument lifecycle from engineering to servicing, making it ideal for elementary measurement tasks such as raw water intake.

The meter operates on the electromagnetic measuring principle, which is virtually independent of pressure, density, temperature, and viscosity. With no moving parts, the device is maintenance-free and delivers energy-efficient measurement without pressure loss due to cross-section constriction. The patented full-bore sensor design requires no inlet or outlet runs (0 x DN), ensuring constant accuracy even in space-restricted installations. The nominal diameter range covers DN 25 to 3000 (1 to 120 inches), with measuring capabilities from 0.5 m³/h to 263,000 m³/h (2.5 gal/min to 1,665 Mgal/d). Measurement accuracy is specified at ±0.5% of reading ± 1 mm/s for standard applications, with an optional high-accuracy version at ±0.2% of reading ± 2 mm/s.

Wetted materials are selected for compatibility with water applications. Liner options include hard rubber (0 to +80°C), polyurethane (–20 to +50°C), and PTFE (–20 to +90°C). Electrode materials are available in 1.4435 (316L) stainless steel and Alloy C22 (2.4602/UNS N06022). The sensor housing is constructed of coated AlSi10Mg for DN 25–300, with carbon steel and protective varnish for larger sizes. Maximum process pressure is PN 40, Class 300, or 20K.

The sensor is built for flexible installation with robust, completely welded construction. It meets EN ISO 12944 corrosion protection standards, making it suitable for underground or permanent underwater installation, with an optional IP68 (Type 6P) enclosure. The device holds international drinking water approvals including ACS, KTW-BWGL, NSF 61, and WRAS.

The transmitter housing is constructed of durable polycarbonate and is rated IP66/67, Type 4X enclosure for protection in demanding environments. Operation is intuitive via mobile devices using the SmartBlue app with Bluetooth connectivity or a local LCD display with touch and auto-rotate functionality. Wizard-guided parameterization can be performed in advance or in the field to save commissioning time. Digital communication options include HART and Modbus RS485. Power supply options include DC 24 V and AC 100 to 230 V.

Endress+Hauser, Electromagnetic Flowmeter

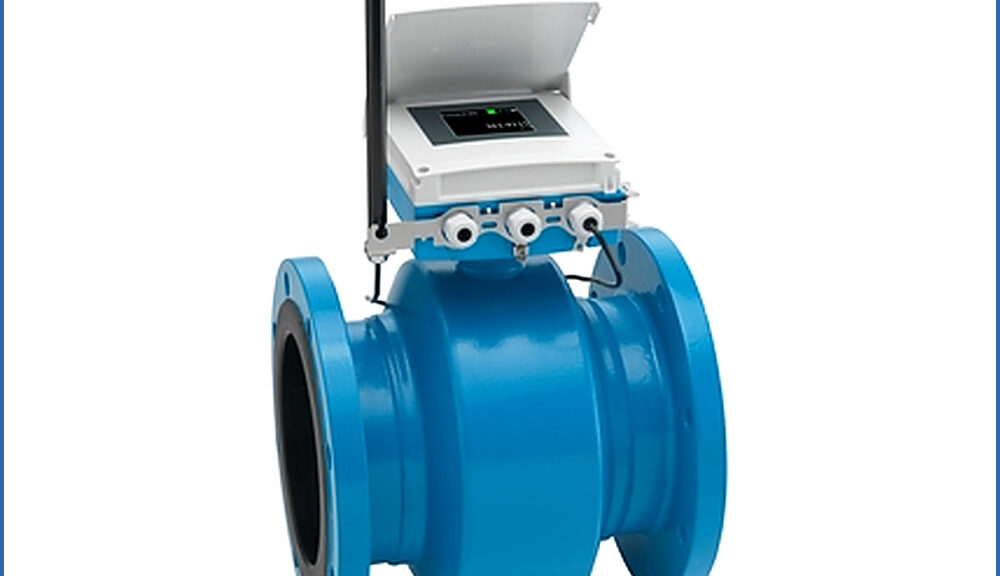

Endress Hauser Proline Promag W 800 Electromagnetic Flowmeter 5W8C1F 5W8C25 5W8C1H

3 9 月, 2026 conchgroup_sales Leave a comment

Endress Hauser Proline Promag W 800 Electromagnetic Flowmeter 5W8C1F 5W8C25 5W8C1H

The Proline Promag W 800 is a battery-powered electromagnetic flowmeter from Endress+Hauser, engineered for demanding water and wastewater applications in locations without a power supply. Featuring an energy-efficient transmitter and worldwide data transmission capabilities, it is ideal for drinking water distribution networks, irrigation systems, and remote monitoring stations.

Key Features and Benefits

Battery-Powered Operation with Long Lifetime: The transmitter is powered by a battery with a lifetime of up to 15 years, enabling autonomous operation in off-grid locations without the need for an external power supply. Measuring intervals can be adapted individually to optimize energy consumption.
Designed for Harsh Water and Wastewater Applications: The Promag W 800 is dedicated to industrial and municipal water and wastewater measurement. It is built for direct underground installation or permanent underwater use, with EN ISO 12944 corrosion protection and IP68 (Type 6P enclosure) rating.
Maintenance-Free and Energy-Efficient: The bidirectional measuring principle has no moving parts, ensuring maintenance-free operation with no pressure loss due to cross-section constriction. It is virtually independent of pressure, density, temperature, and viscosity.
Global Data Transmission and Communication: The transmitter enables secure data storage and worldwide encrypted communication over mobile networks (LTE Cat M1/NB1/NB2, GPRS, EGPRS). Remote data access is possible via email and SMS, and device commissioning and operation are convenient via Bluetooth using the intuitive SmartBlue app.
Broad Approvals and Certifications: Holds international drinking water approvals and is approved for custody transfer according to MI-001/OIML R49 standards. The robust and completely welded sensor ensures reliable long-term operation.
Built-in Heartbeat Technology: Integrated verification ensures measurement reliability and enables compliant verification according to ISO 9001, providing proof of measurement reliability without process interruption.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 25 to 900 (1 to 36″)
Measured Variables	Volume flow
Max. Measurement Error	±0.5% o.r. ± 2 mm/s
Measuring Range	9 dm³/min to 22,500 m³/h (2.5 to 100,000 gal/min)
Max. Process Pressure	PN 40, Class 300, 20K
Medium Temperature Range	Hard rubber: 0 to +70°C; Polyurethane: –20 to +50°C; PTFE: –20 to +70°C
Liner Materials	Polyurethane, Hard rubber, PTFE
Electrode Materials	1.4435 (316L), Alloy C22 (2.4602/UNS N06022)
Sensor Housing Material	DN 25–300: AlSi10Mg coated; DN 350–900: Carbon steel with protective varnish
Transmitter Housing Material	Polycarbonate
Degree of Protection	IP66/67, Type 4X and IP68, Type 6P enclosure
Display/Operation	4-line backlit display with touch control; Bluetooth via SmartBlue app
Digital Communication	LTE Cat M1; LTE Cat NB1; LTE Cat NB2; GPRS; EGPRS; Modbus RS485
Power Supply	Battery (DC 3.6 V)

The Proline Promag W 800 delivers reliable, maintenance-free flow measurement for demanding water and wastewater applications, combining battery-powered autonomy, robust construction for underground or underwater installation, worldwide data communication, and advanced diagnostic capabilities through Heartbeat Technology.

Endress Hauser Proline Promag W 800 Electromagnetic Flowmeter 5W8C1F 5W8C25 5W8C1H

The Proline Promag W 800 is a battery-powered electromagnetic flowmeter from Endress+Hauser, engineered for demanding water and wastewater applications in locations without a power supply. Featuring an energy-efficient transmitter with a battery lifetime of up to 15 years, it enables autonomous operation and worldwide data transmission via mobile networks.

The meter operates on the electromagnetic measuring principle, measuring flow bidirectionally with no moving parts. This design ensures maintenance-free operation and energy-efficient measurement without pressure loss due to cross-section constriction. The nominal diameter range covers DN 25 to 900 (1 to 36 inches), with measuring capabilities from 9 dm³/min to 22,500 m³/h (2.5 to 100,000 gal/min). Measurement accuracy is specified at ±0.5% of reading ± 2 mm/s.

Wetted materials are selected for compatibility with water applications. Liner options include polyurethane, hard rubber, and PTFE, with electrode materials available in 1.4435 (316L) stainless steel and Alloy C22 (2.4602/UNS N06022). The sensor housing is constructed of coated AlSi10Mg for DN 25–300, with carbon steel and protective varnish for larger sizes, and the transmitter housing is made of durable polycarbonate. Maximum process pressure is PN 40, Class 300, or 20K.

The sensor is built for direct underground installation or permanent underwater use, meeting EN ISO 12944 corrosion protection standards with an IP68 (Type 6P enclosure) rating. The device holds international drinking water approvals including ACS, KTW/W270, NSF 61, and WRAS BS 6920, with custody transfer certification according to MI-001/OIML R49 standards.

The transmitter features secure data storage and worldwide encrypted communication over mobile networks (LTE Cat M1/NB1/NB2, GPRS, EGPRS), with remote data access via email and SMS. Local operation is convenient via a 4-line backlit display with touch control, and device commissioning is supported through Bluetooth using the intuitive SmartBlue app. Digital communication options include Modbus RS485.

Integrated Heartbeat Technology enables continuous process safety monitoring and compliant verification in accordance with ISO 9001, providing proof of measurement reliability without process interruption.

Endress+Hauser, Electromagnetic Flowmeter

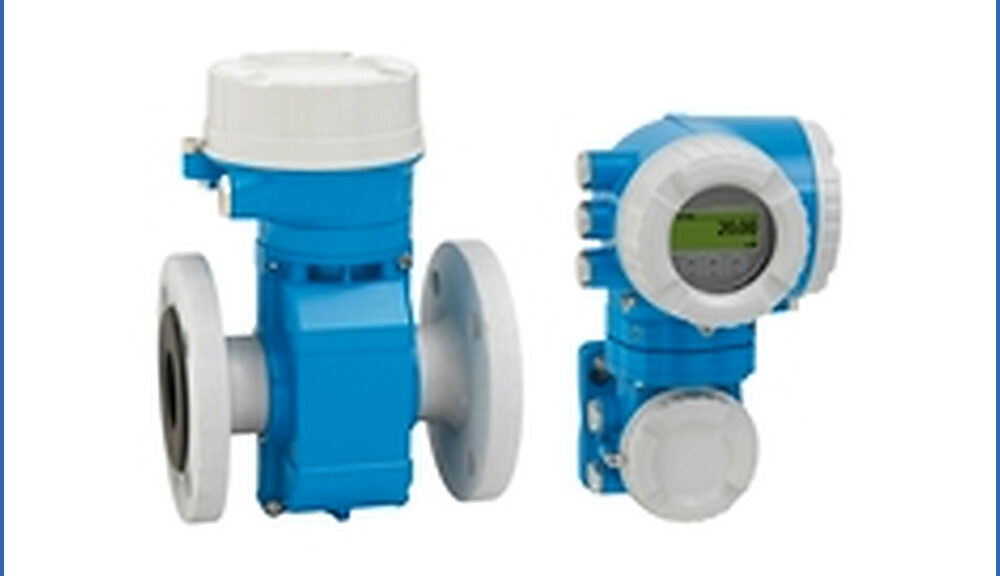

Endress Hauser Proline Promag W 500 Electromagnetic Flowmeter 5W5B1F 5W5B32 5W5B1H

3 9 月, 2026 conchgroup_sales Leave a comment

Endress Hauser Proline Promag W 500 Electromagnetic Flowmeter 5W5B1F 5W5B32 5W5B1H

The Proline Promag W 500 is an electromagnetic flowmeter from Endress+Hauser, engineered as a specialist for demanding water and wastewater applications. Featuring an innovative remote transmitter with up to 4 I/Os, it maximizes installation flexibility and operational safety in hazardous areas and harsh conditions.

Key Features and Benefits

Reliable Measurement with No Pressure Loss: The bidirectional measuring principle is virtually independent of pressure, density, temperature, and viscosity. It requires 0 x DN inlet run and causes no pressure loss due to cross-section constriction, ensuring constant accuracy even in space-restricted installations.
Certified Corrosion Protection: Meets EN ISO 12944 corrosion protection standards, making it suitable for underground or permanent underwater installation (optional IP68, Type 6P enclosure).
Broad Approvals: Holds international drinking water approvals including ACS, KTW/W270, NSF 61, and WRAS BS 6920. Approved for custody transfer according to MI-001/OIML R49 standards.
Remote Transmitter with Enhanced Features: The remote version supports up to 4 I/Os, with a 4-line backlit display featuring touch control and WLAN access for convenient local operation. A standard cable connects the sensor and transmitter for flexible installation.
Flexible and Durable Design: The sensor is available with fixed or lap-joint process connections and features a robust, completely welded construction for long-term operation.
Built-in Heartbeat Technology: Integrated verification ensures measurement reliability, enables compliant verification according to ISO 9001, and allows extension of recalibration cycles.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 25 to 2400 (1 to 90″)
Measured Variables	Volume flow, conductivity, mass flow
Max. Measurement Error	Standard: ±0.5% o.r. ± 1 mm/s; Option: ±0.2% o.r. ± 2 mm/s
Measuring Range	9 dm³/min to 110,000 m³/h (2.5 gal/min to 700 Mgal/d)
Max. Process Pressure	PN 40, Class 300, 20K
Medium Temperature Range	Hard rubber: 0 to +80°C; Polyurethane: –20 to +50°C; PTFE: –20 to +90°C
Liner Materials	Polyurethane, Hard rubber, PTFE
Electrode Materials	1.4435 (316L), Alloy C22, Tantalum
Sensor Housing Material	DN 25–300: AlSi10Mg coated; Larger: Carbon steel with protective varnish
Transmitter Housing	AlSi10Mg coated; 1.4409 (CF3M) similar to 316L; Polycarbonate
Degree of Protection	Compact: IP66/67, Type 4X; Remote sensor (option): IP68, Type 6P
Display/Operation	4-line backlit display with touch control and WLAN access
Digital Communication	HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, EtherNet/IP, OPC-UA

The Proline Promag W 500 delivers reliable, accurate flow measurement for demanding water and wastewater applications, combining a robust full-bore sensor design with flexible remote installation, comprehensive approvals, and advanced diagnostic capabilities through Heartbeat Technology.

Endress Hauser Proline Promag W 500 Electromagnetic Flowmeter 5W5B1F 5W5B32 5W5B1H

The meter operates on the bidirectional electromagnetic measuring principle, which is virtually independent of pressure, density, temperature, and viscosity. With no moving parts, the device is maintenance-free and delivers energy-efficient measurement without pressure loss due to cross-section constriction. The patented full-bore sensor design requires no inlet or outlet runs (0 x DN), ensuring constant accuracy even in space-restricted installations directly after bends. The nominal diameter range covers DN 25 to 2400 (1 to 90 inches), with measuring capabilities from 9 dm³/min to 110,000 m³/h (2.5 gal/min to 700 Mgal/d). Measurement accuracy is specified at ±0.5% of reading ± 1 mm/s for standard applications, with an optional high-accuracy version at ±0.2% of reading ± 2 mm/s.

Wetted materials are selected for compatibility with water and wastewater applications. Liner options include polyurethane (–20 to +50°C), hard rubber (0 to +80°C), and PTFE (–20 to +90°C). Electrode materials are available in 1.4435 (316L) stainless steel, Alloy C22 (2.4602/UNS N06022), and Tantalum. The sensor housing is constructed of coated AlSi10Mg for DN 25–300, with carbon steel and protective varnish for larger sizes. Maximum process pressure is PN 40, Class 300, or 20K.

The sensor meets EN ISO 12944 corrosion protection standards, making it suitable for underground or permanent underwater installation, with an optional IP68 (Type 6P) enclosure for remote sensor versions. The device holds international drinking water approvals including ACS, KTW/W270, NSF 61, and WRAS BS 6920, with custody transfer certification according to MI-001/OIML R49 standards.

The remote transmitter supports up to 4 I/Os, offering extensive connectivity for various process requirements. A 4-line backlit display features touch control and WLAN access for convenient local operation, and a standard cable connects the sensor and transmitter for flexible installation. Transmitter housing options include coated AlSi10Mg, stainless steel 1.4409 (CF3M) similar to 316L, and polycarbonate. Digital communication options include HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, EtherNet/IP, and OPC-UA, ensuring seamless integration into a wide range of control systems.

Integrated Heartbeat Technology enables continuous process safety monitoring and compliant verification in accordance with ISO 9001. This technology allows extension of recalibration cycles and provides proof of measurement reliability without process interruption.

Endress+Hauser, Electromagnetic Flowmeter

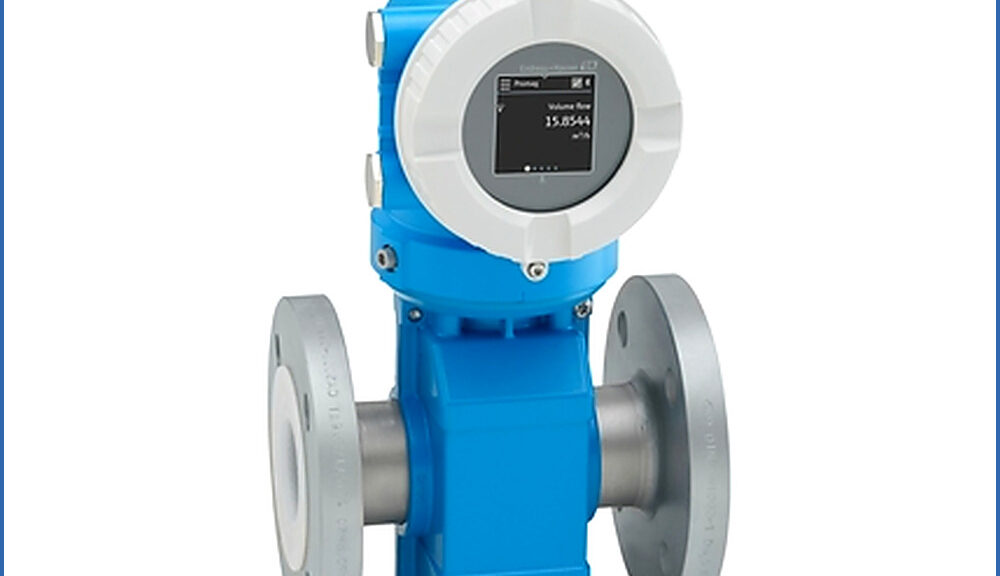

Endress Hauser Proline Promag P 10 Electromagnetic Flowmeter 5PBB15 5PBB1F 5PBB1H

3 9 月, 2026 conchgroup_sales Leave a comment

Endress Hauser Proline Promag P 10 Electromagnetic Flowmeter 5PBB15 5PBB1F 5PBB1H

The Proline Promag P 10 is a cost-effective electromagnetic flowmeter from Endress+Hauser, engineered for basic chemical and process applications involving corrosive liquids and high medium temperatures. With its straightforward hardware and software design, it simplifies every step of the instrument lifecycle from engineering to servicing.

Key Features and Benefits

Dedicated to Chemical and Process Applications: The Promag P 10 is specifically designed for applications with corrosive liquids and elevated temperatures. The bidirectional measuring principle is virtually independent of pressure, density, temperature, and viscosity.
Extensive Material Selection for Diverse Media: Wetted materials include liners made of PTFE or PFA, with electrodes available in 1.4435 (316L), Alloy C22 (2.4602/UNS N06022), Tantalum, Platinum, and Titanium. This wide variety ensures compatibility with a broad range of corrosive process media.
Maintenance-Free and Energy-Efficient: With no moving parts, the device ensures maintenance-free operation and energy-saving flow measurement without pressure loss due to cross-section constriction.
Flexible Operation and Commissioning: Features a 2.4-inch LCD touchscreen display and supports configuration via the SmartBlue app using Bluetooth technology for mobile device operation. Wizard-guided parameterization saves commissioning time.
Built-in Heartbeat Technology: Integrated verification technology ensures measurement reliability, enables compliant verification in accordance with ISO 9001:2015 (TÜV SÜD-attested), and allows extension of recalibration cycles.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 15 to 600 (½ to 24″)
Measured Variables	Volume flow, conductivity, mass flow
Max. Measurement Error	Standard: ±0.5% o.r. ± 1 mm/s; Option: ±0.2% o.r. ± 2 mm/s
Measuring Range	4 dm³/min to 9,600 m³/h (1 to 44,000 gal/min)
Max. Process Pressure	PN 40, Class 300, 20K
Medium Temperature Range	PFA: –20 to +150°C; PTFE: –40 to +130°C
Liner Materials	PFA; PTFE
Electrode Materials	1.4435 (316L); Alloy C22; Tantalum; Platinum; Titanium
Sensor Housing Material	DN 15–300: AlSi10Mg coated; DN 350–600: Carbon steel with protective varnish
Transmitter Housing	AlSi10Mg, coated
Degree of Protection	IP66/67, Type 4X enclosure
Display/Operation	2.4″ LCD display with touch & auto rotate; SmartBlue app with Bluetooth
Digital Communication	HART, MODBUS RS485
Power Supply	DC 24 V; AC 100 to 230 V
Hazardous Area Approvals	ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC, KC, JPN, UK Ex

The Proline Promag P 10 delivers reliable, cost-effective flow measurement for basic chemical and process applications, combining robust construction, extensive material options, easy operation via app or display, and the diagnostic power of Heartbeat Technology.

Endress Hauser Proline Promag P 10 Electromagnetic Flowmeter 5PBB15 5PBB1F 5PBB1H

The meter operates on the electromagnetic measuring principle, which is virtually independent of pressure, density, temperature, and viscosity. With no moving parts, the device is maintenance-free and delivers energy-efficient measurement without pressure loss due to cross-section constriction. The nominal diameter range covers DN 15 to 600 (½ to 24 inches), with measuring capabilities from 4 dm³/min to 9,600 m³/h (1 to 44,000 gal/min). Measurement accuracy is specified at ±0.5% of reading ± 1 mm/s for standard applications, with an optional high-accuracy version at ±0.2% of reading ± 2 mm/s.

Wetted materials are extensively selected for compatibility with corrosive and high-temperature media. Liner options include PFA (–20 to +150°C) and PTFE (–40 to +130°C). Electrode materials are available in 1.4435 (316L) stainless steel, Alloy C22 (2.4602/UNS N06022), Tantalum, Platinum, and Titanium. The sensor housing is constructed of coated AlSi10Mg for DN 15–300, with carbon steel and protective varnish for larger sizes (DN 350–600). Maximum process pressure is PN 40, Class 300, or 20K.

The transmitter housing is constructed of coated AlSi10Mg and is rated IP66/67, Type 4X enclosure for protection in demanding environments. Operation is flexible via a 2.4-inch LCD touchscreen display or mobile devices using the SmartBlue app with Bluetooth connectivity, enabling convenient remote configuration and monitoring. Wizard-guided parameterization saves commissioning time. Digital communication options include HART and Modbus RS485. Power supply options include DC 24 V and AC 100 to 230 V.

Integrated Heartbeat Technology enables continuous process safety monitoring and compliant verification in accordance with ISO 9001:2015 (TÜV SÜD-attested). This technology allows extension of recalibration cycles and provides proof of measurement reliability without process interruption. The device holds international hazardous area approvals including ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC, KC, JPN, and UK Ex.

Endress+Hauser, Electromagnetic Flowmeter

Endress Hauser Proline Promag P 500 Electromagnetic Flowmeter 5P5B15 5P5B1F 5P5B1H

3 9 月, 2026 conchgroup_sales Leave a comment

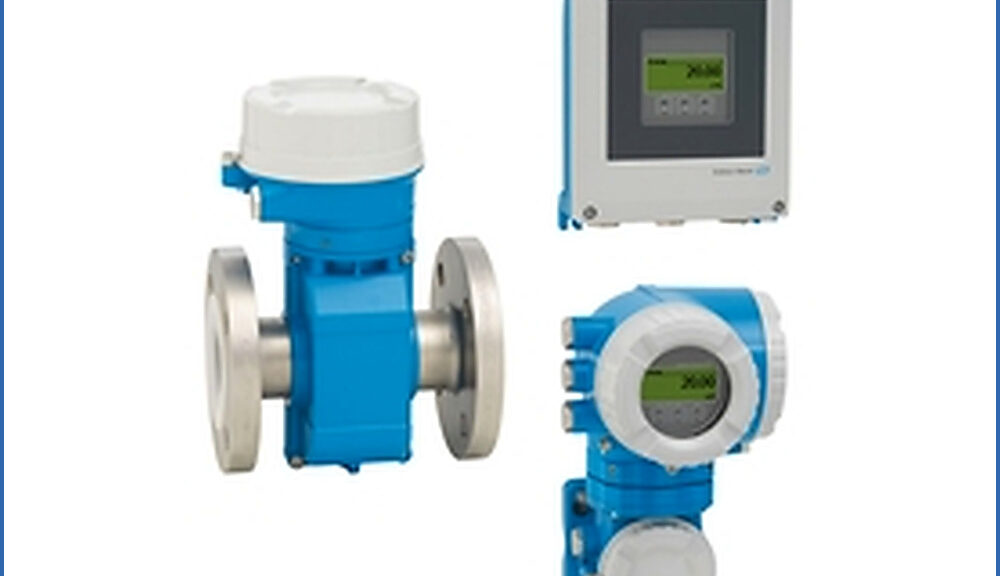

Endress Hauser Proline Promag P 500 Electromagnetic Flowmeter 5P5B15 5P5B1F 5P5B1H

The Proline Promag P 500 is a high-temperature electromagnetic flowmeter from Endress+Hauser, dedicated to demanding chemical and process applications involving corrosive liquids and elevated media temperatures. Featuring an innovative remote transmitter with up to 4 I/Os, it maximizes installation flexibility and operational safety in challenging environments.

Key Features and Benefits

Designed for Corrosive and High-Temperature Media: The Promag P is specifically engineered for chemical and process applications with aggressive liquids and media temperatures up to +180°C (+356°F). The bidirectional measuring principle is virtually independent of pressure, density, temperature, and viscosity.
Extensive Material Selection for Diverse Applications: Wetted materials include liners made of PFA (standard and high-temperature versions) and PTFE, with electrodes available in 1.4435 (316L), Alloy C22, Tantalum, Platinum, Titanium, and Duplex 1.4462, ensuring compatibility with a wide variety of corrosive process media.
Remote Transmitter with Maximum Flexibility: The remote version supports up to 4 I/Os, with a backlit display featuring touch control and WLAN access for convenient local operation -2 -5. A standard cable connects the sensor and transmitter, allowing flexible installation in demanding environments.
Maintenance-Free and Energy-Efficient: With no moving parts, the device ensures maintenance-free operation and energy-saving flow measurement without pressure loss due to cross-section constriction.
Broad System Integration: Offers full access to process and diagnostic information via numerous, freely combinable I/Os and fieldbuses. Digital communication options include HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, EtherNet/IP, and OPC-UA.
Built-in Heartbeat Technology: Integrated verification enables traceable measurement in accordance with ISO 9001 (TÜV-attested), ensuring continuous process safety and compliance.

Technical Specifications (at a Glance)

Specification	Detail
Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 15 to 600 (½ to 24″)
Measured Variables	Volume flow, conductivity, mass flow
Max. Measurement Error	Standard: ±0.5% o.r. ± 1 mm/s; Option: ±0.2% o.r. ± 2 mm/s
Measuring Range	4 dm³/min to 9,600 m³/h (1 to 44,000 gal/min)
Max. Process Pressure	PN 40, Class 300, 20K
Medium Temperature Range	PFA: –20 to +150°C; PFA HT: –20 to +180°C; PTFE: –40 to +130°C
Liner Materials	PFA; PTFE
Electrode Materials	1.4435 (316L); Alloy C22; Tantalum; Platinum; Titanium; Duplex 1.4462
Sensor Housing Material	DN 15–300: AlSi10Mg coated; DN 350–600: Carbon steel with protective varnish
Transmitter Housing	AlSi10Mg coated; 1.4409 (CF3M) similar to 316L; Polycarbonate
Degree of Protection	IP66/67, Type 4X enclosure (standard); IP69 optional for remote sensor
Display/Operation	4-line backlit display with touch control and WLAN access
Digital Communication	HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, EtherNet/IP, OPC-UA
Hazardous Area Approvals	ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC

The Proline Promag P 500 delivers reliable, high-performance flow measurement for demanding chemical applications, combining a flexible remote transmitter design with extensive material options, comprehensive communication capabilities, and advanced diagnostic features through Heartbeat Technology.

Endress Hauser Proline Promag P 500 Electromagnetic Flowmeter 5P5B15 5P5B1F 5P5B1H

The meter operates on the electromagnetic measuring principle, which is virtually independent of pressure, density, temperature, and viscosity. With no moving parts, the device is maintenance-free and delivers energy-efficient measurement without pressure loss due to cross-section constriction. The nominal diameter range covers DN 15 to 600 (½ to 24 inches), with measuring capabilities from 4 dm³/min to 9,600 m³/h (1 to 44,000 gal/min). Measurement accuracy is specified at ±0.5% of reading ± 1 mm/s for standard applications, with an optional high-accuracy version at ±0.2% of reading ± 2 mm/s.

Wetted materials are extensively selected for compatibility with corrosive and high-temperature media. Liner options include PFA (standard: –20 to +150°C; high-temperature: –20 to +180°C) and PTFE (–40 to +130°C). Electrode materials are available in 1.4435 (316L) stainless steel, Alloy C22 (2.4602/UNS N06022), Tantalum, Platinum, Titanium, and Duplex 1.4462. The sensor housing is constructed of coated AlSi10Mg for DN 15–300, with carbon steel and protective varnish for larger sizes (DN 350–600). Maximum process pressure is PN 40, Class 300, or 20K.

The remote transmitter supports up to 4 I/Os, offering extensive connectivity for various process requirements. A backlit display features touch control and WLAN access for convenient local operation, and a standard cable connects the sensor and transmitter for flexible installation. Transmitter housing options include coated AlSi10Mg, stainless steel 1.4409 (CF3M) similar to 316L, and polycarbonate. The sensor is rated IP66/67, Type 4X enclosure as standard, with an optional IP69 rating for demanding environments.

Digital communication options include HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, EtherNet/IP, and OPC-UA, ensuring flexible integration into a wide range of control systems.

Integrated Heartbeat Technology enables continuous process safety monitoring and traceable verification in accordance with ISO 9001 (TÜV-attested). This technology allows extension of recalibration cycles and provides proof of measurement reliability without process interruption. The device holds international hazardous area approvals including ATEX, IECEx, cCSAus, INMETRO, NEPSI, and EAC.
